SPECIFICATIONS

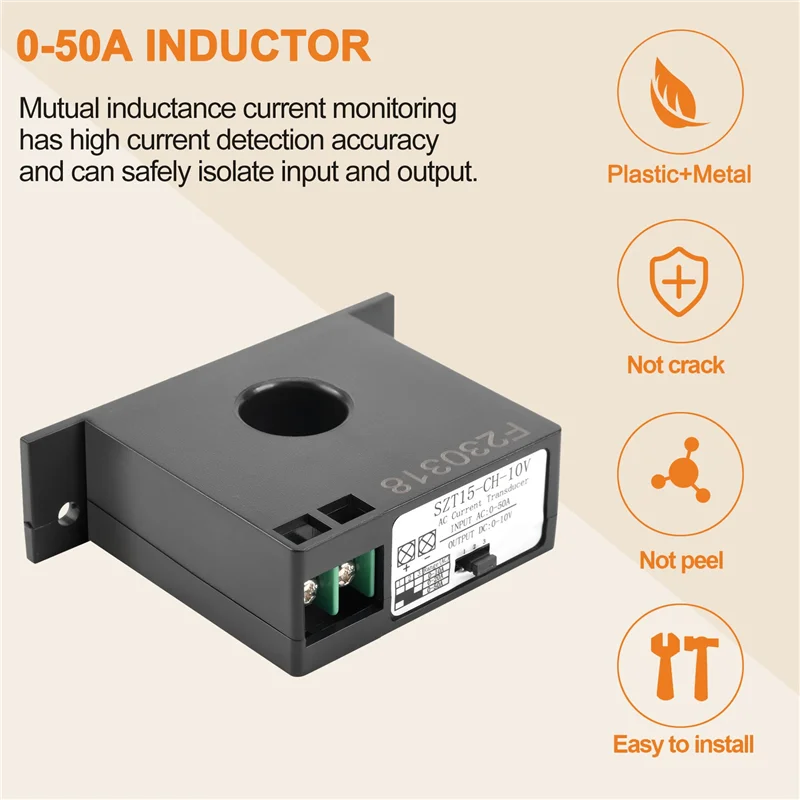

1. Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.
2. Self-powered, no external power supply required.
3. Easy to install and use, no need to connect DC into the circuit when measuring.
4. Measured current AC 0-10/20/50A, output signal DC 0-10V.
5. Straight-through structure design, isolation withstand voltage up to 2000V.
6. Hysteresis is less than 1% and can be used under strong magnetic conditions.
7. The outer casing is made of self-extinguishing material ABS.
8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
Specification:

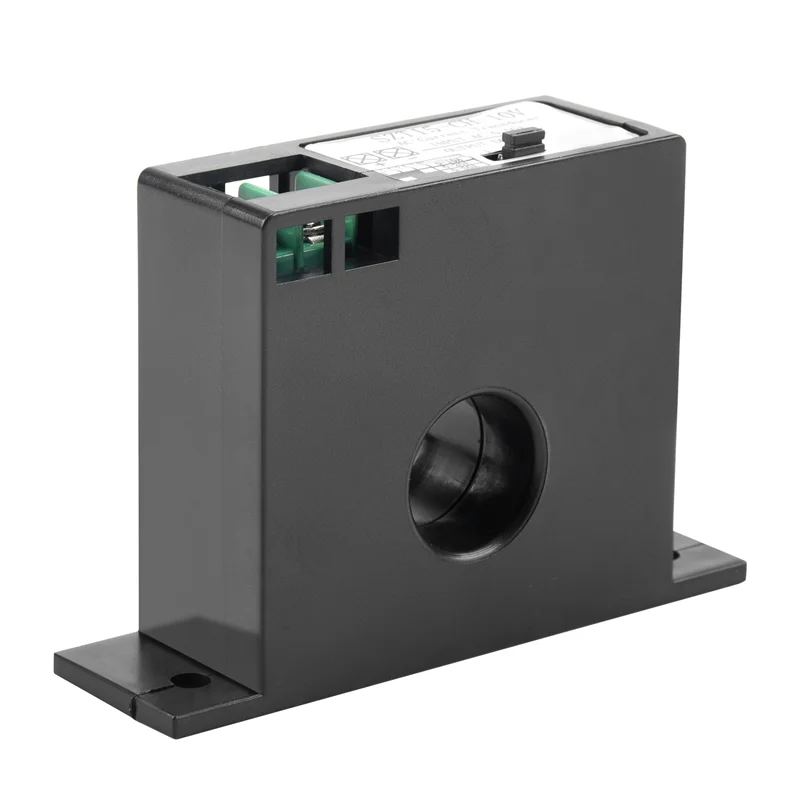

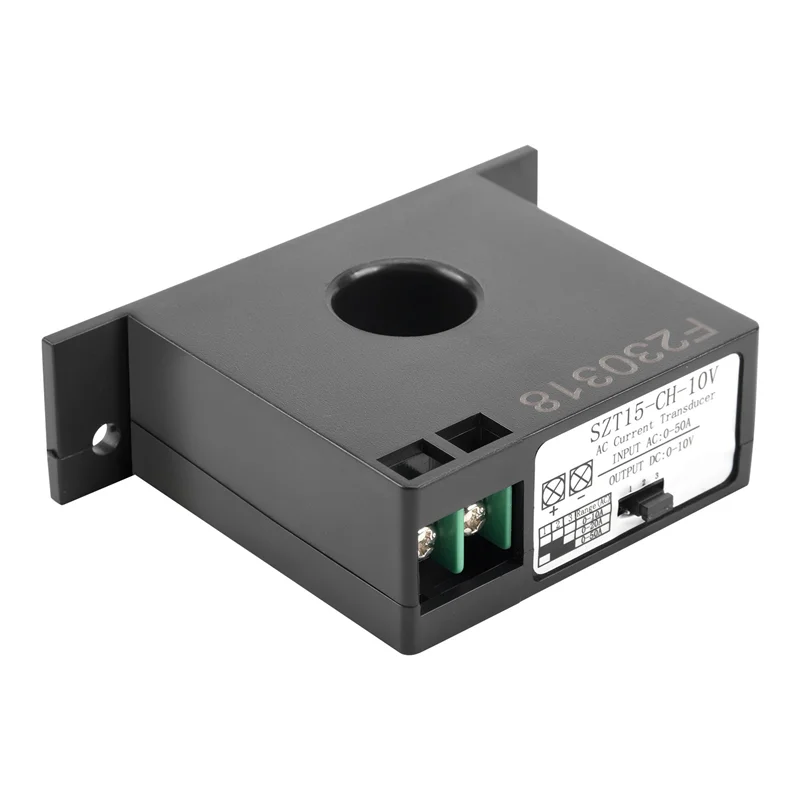

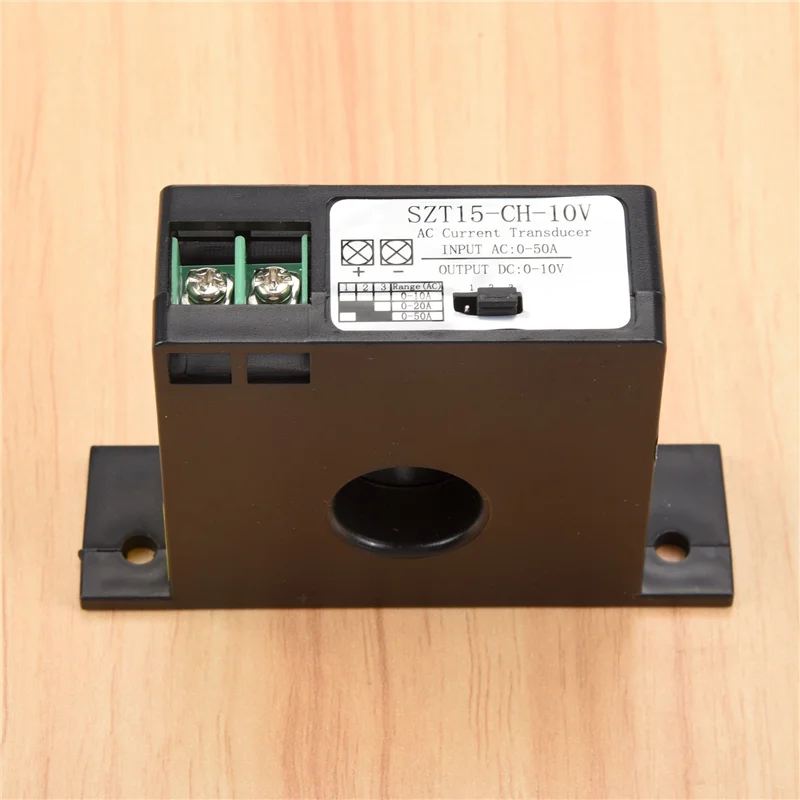

Model: SZT15-CH-10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%

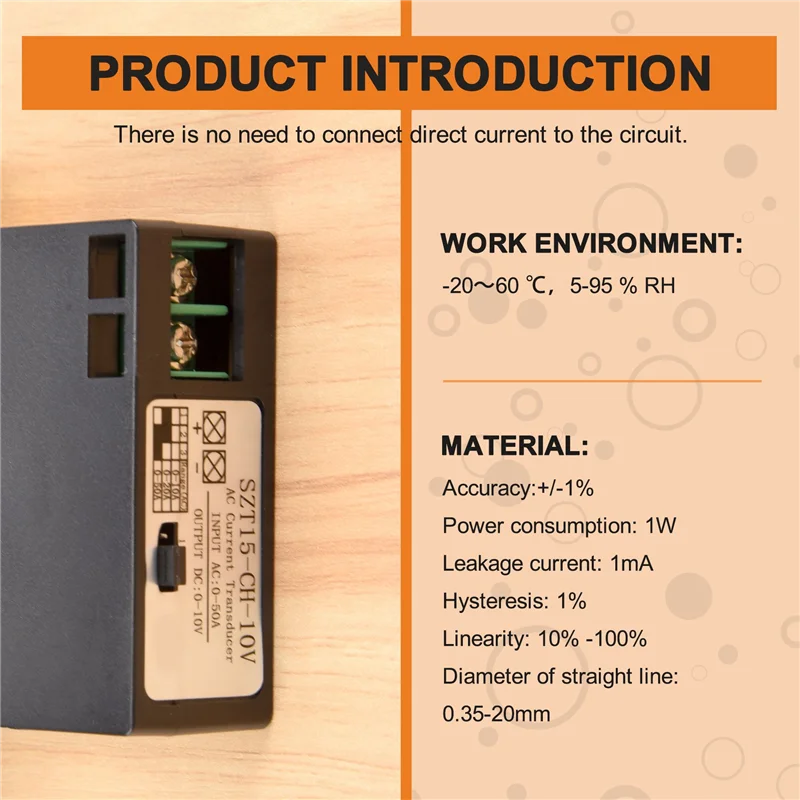

Accuracy: ±1%
Power consumption: ≤1W
Leakage current: ≤1mA
Hysteresis: ≤1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: ≤200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60℃, 5-95%RH

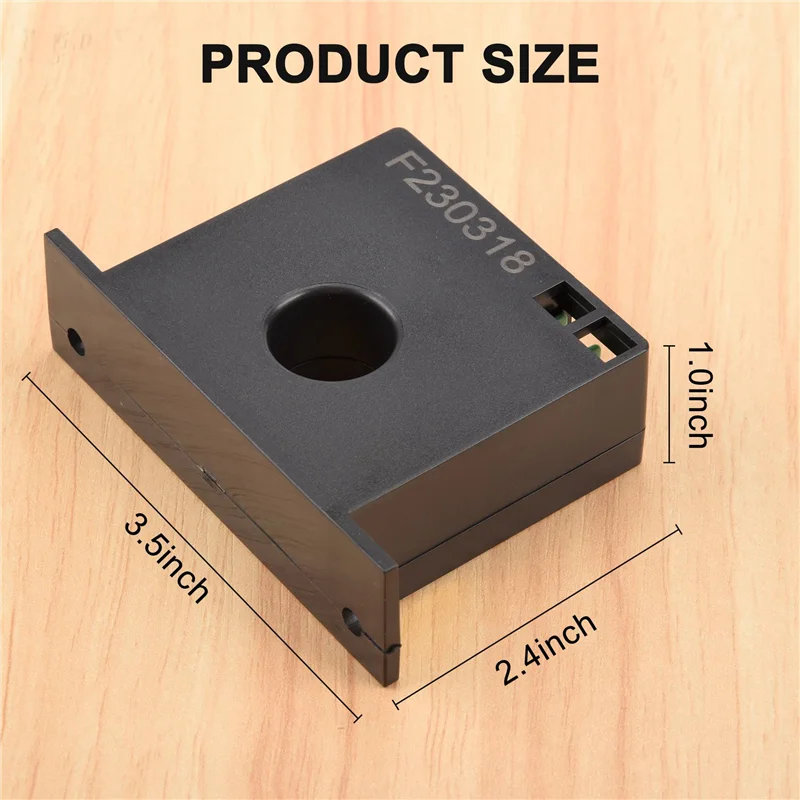

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0inch
Hole diameter: 20mm / 0.8inch
Color: Black
Material: plastic + metal
Package Contents:
1 * AC Current Transmitter
Only the above package content, other products are not included.
