Description

SPECIFICATIONS

Accuracy: ≤±1.0%FS

Battery Included: no

Brand Name: YD WZYDDZ

Certification: CE

Electrical connection: Packard connection

Electromagnetism Compatibility: EN50051-1

Explosion-proof class: Exia2CT6

High-concerned chemical: none

Housing material: -40-105℃,304 Stainless Steel

Max Measuring Range: 200 - 399 Bar

Measuring range: 300-3500psi gauge pressure

Model Number: YD6080

Operating temperature: -40-105℃

Origin: Mainland China

Output signal: 0.5-4.5V

Pressure connection: 1/8NPT or other

Protection class: IP65

Semi-finishedproduct: No

Sensor core: ceramic sensor

Supply voltage: 5-12v

Descriptions

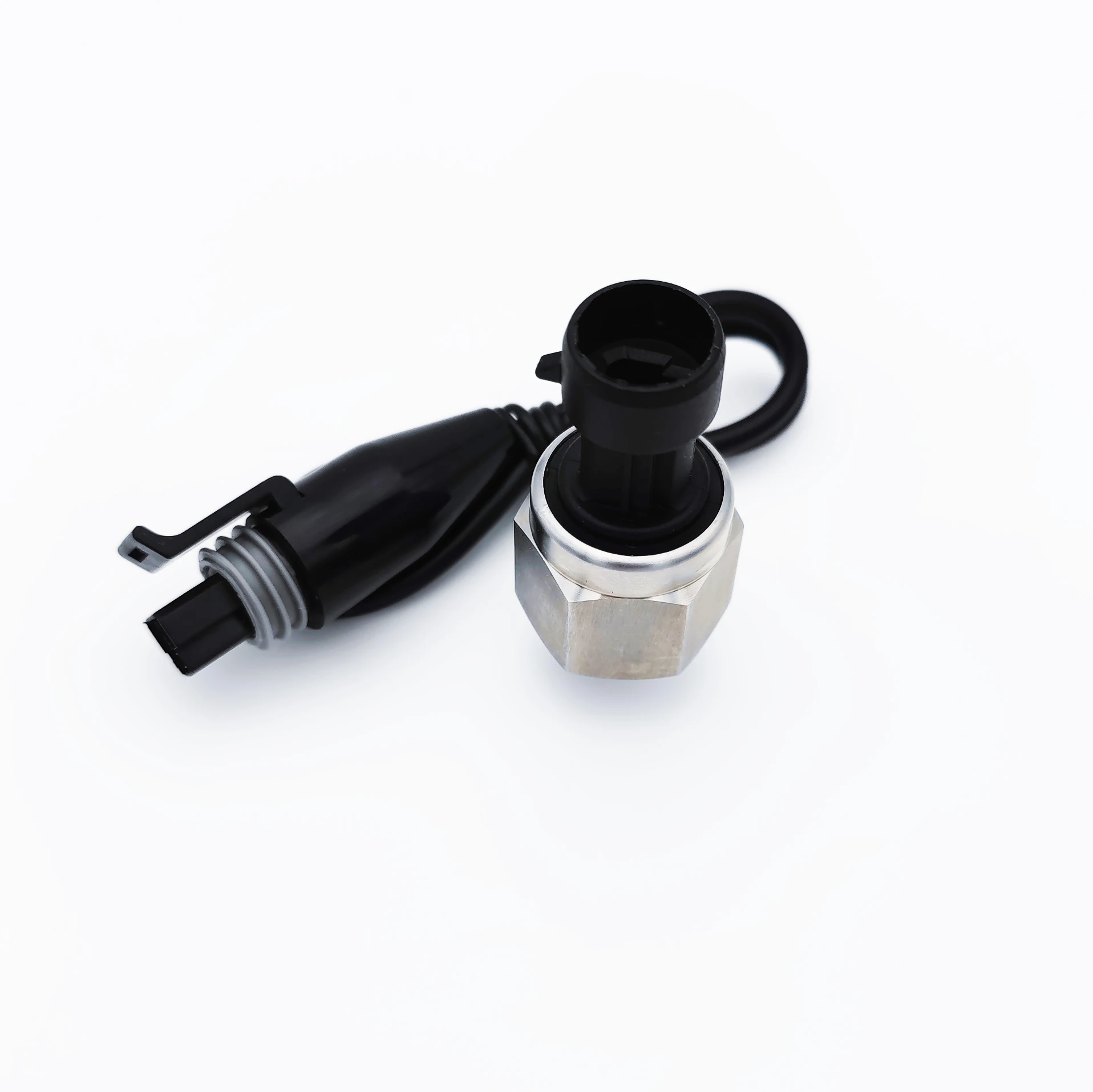

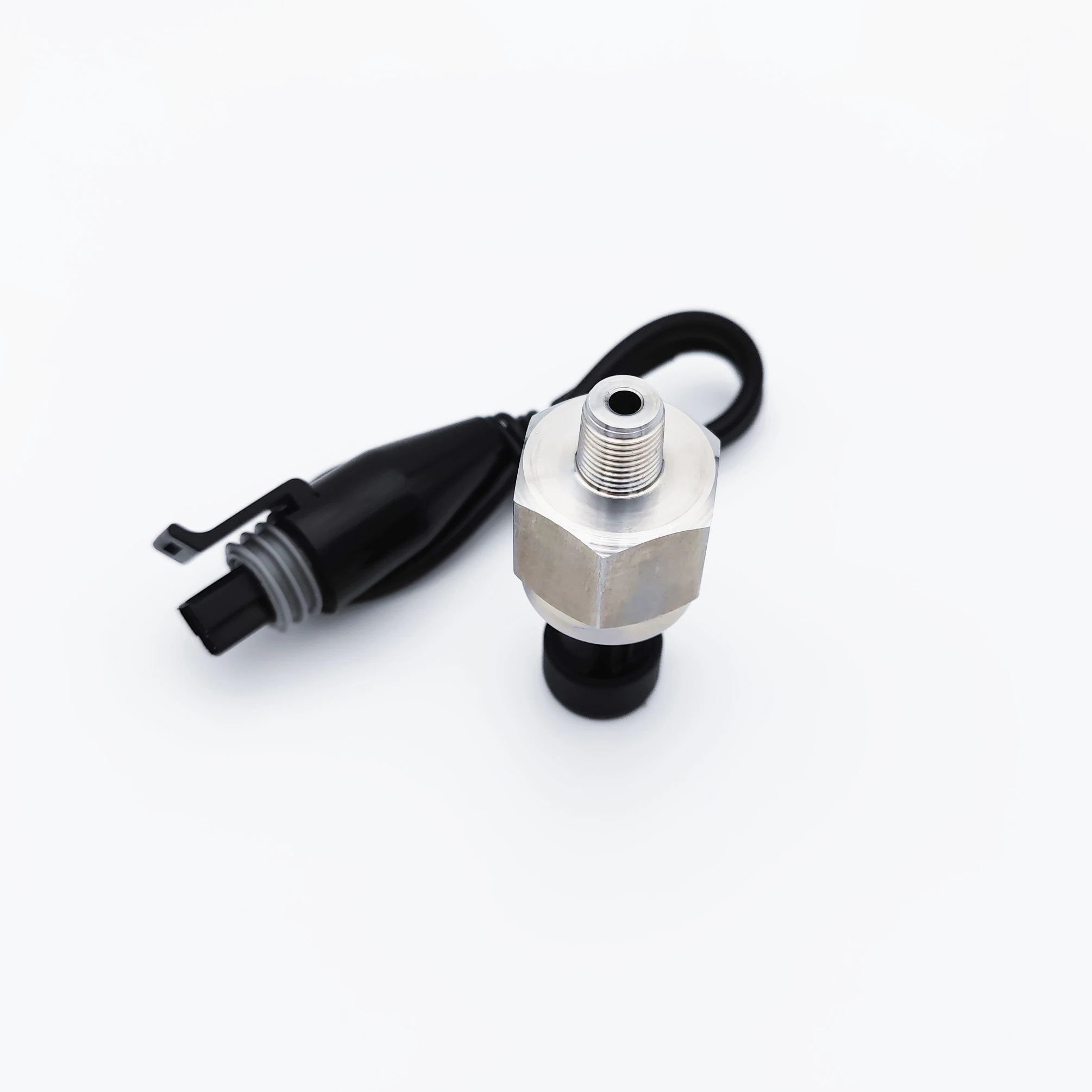

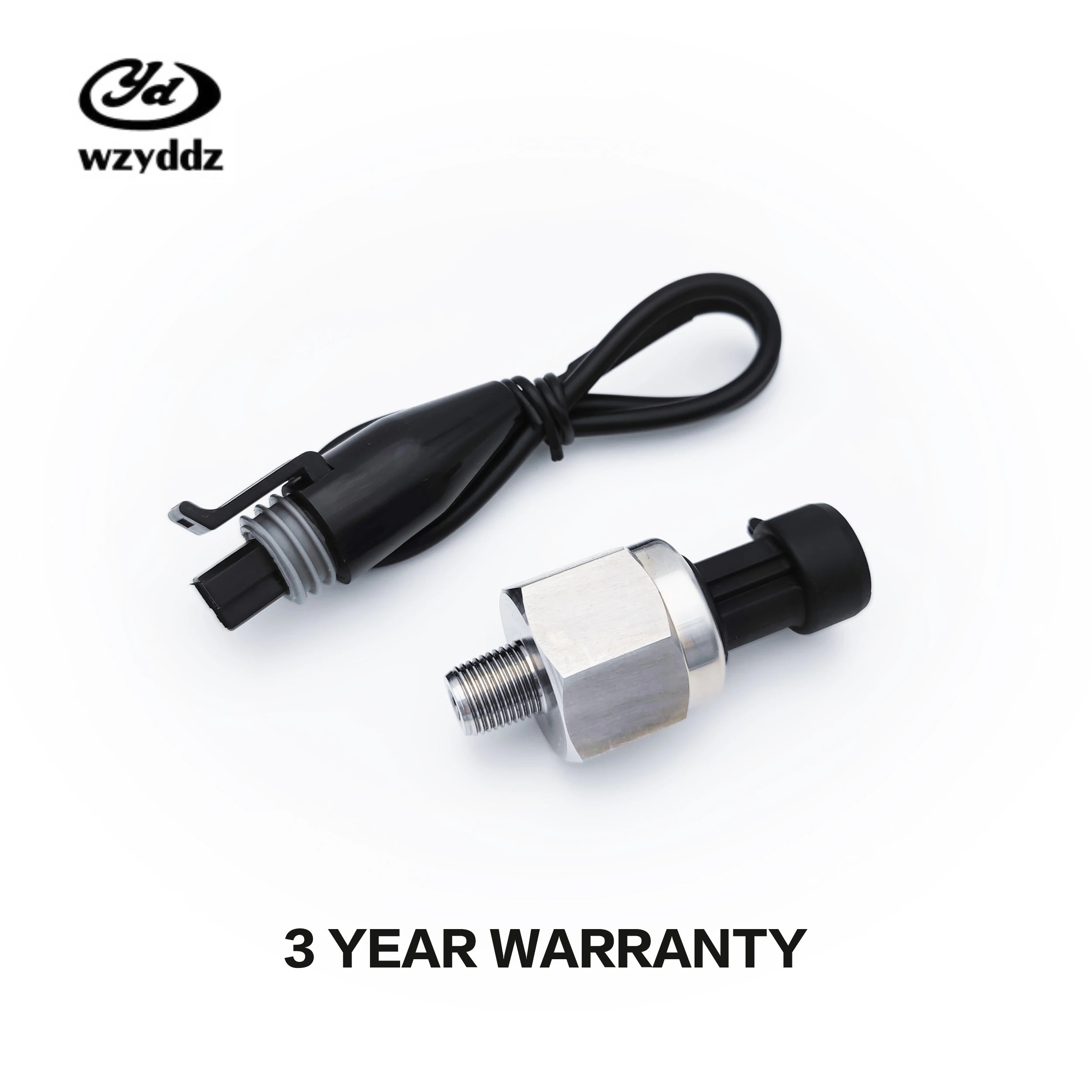

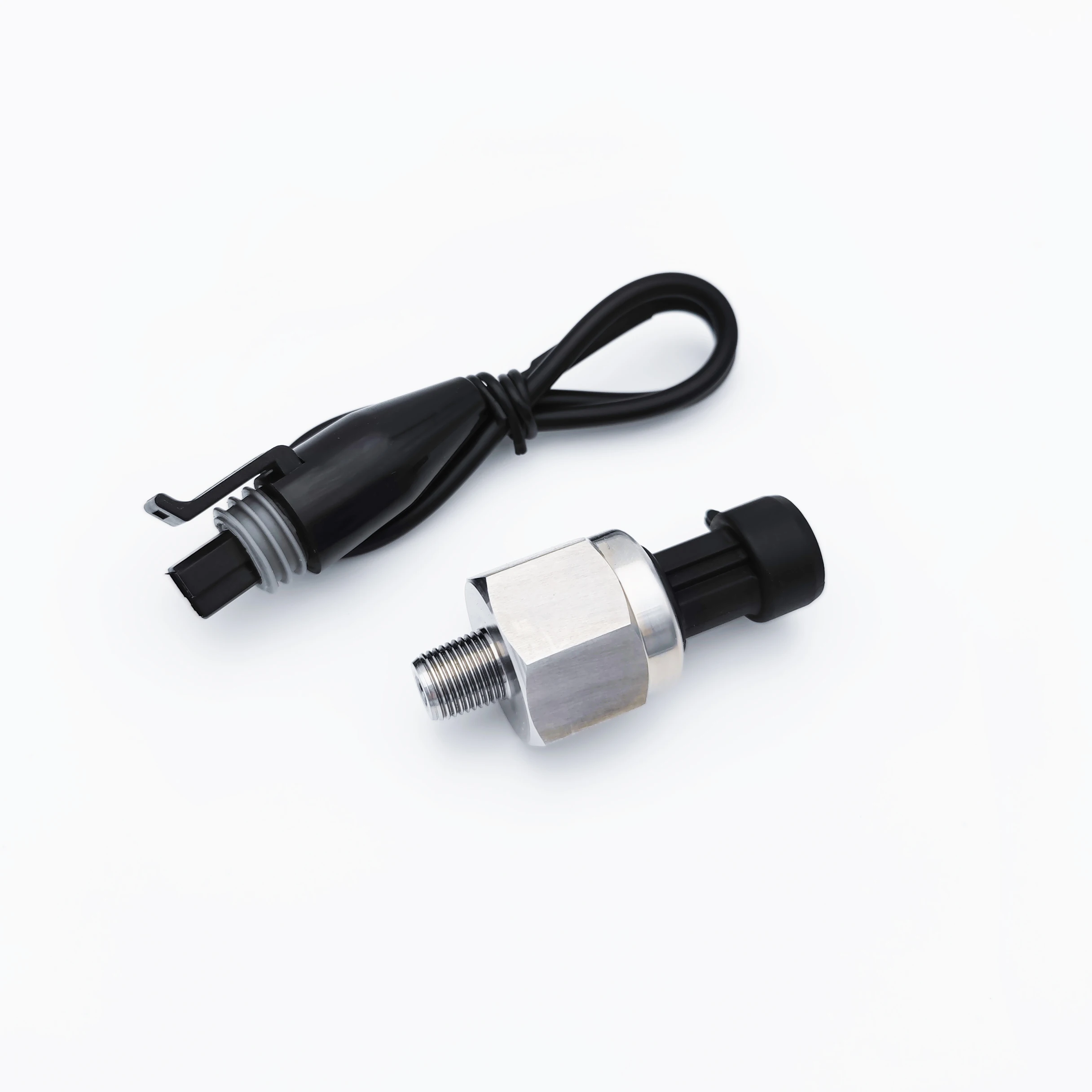

YD6080 series of pressure transmitters adopts ceramic pressure sensor core, all stainless steel package, suitable for most media, with good long-term stability, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 0.5-4.5V, various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: 300-3500psi gauge pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, or other please tell us
Supply voltage: 5VDC -12VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 1/8”NPT, Other pressure connection is on request
Electrical connection: Packard connection
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg

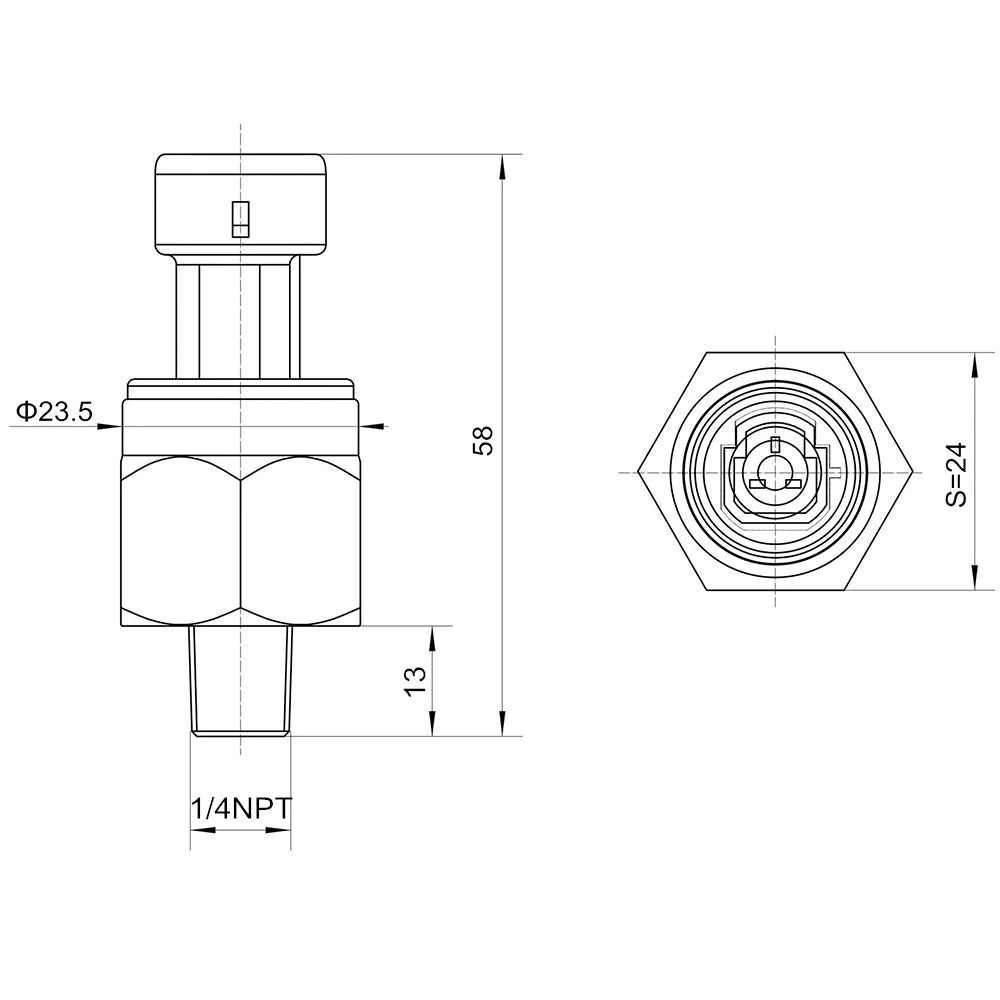

Dimension (unit:mm)

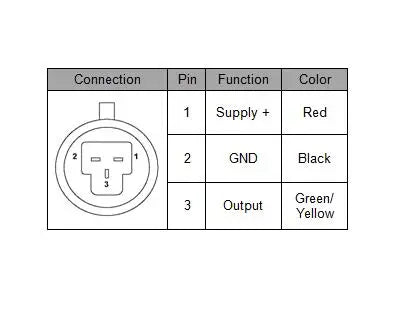

Electrical connection

Pin1: Supply + (Red)
Pin2: GND (Black)
Pin3: Output (Yellow/Green)

Ordering information

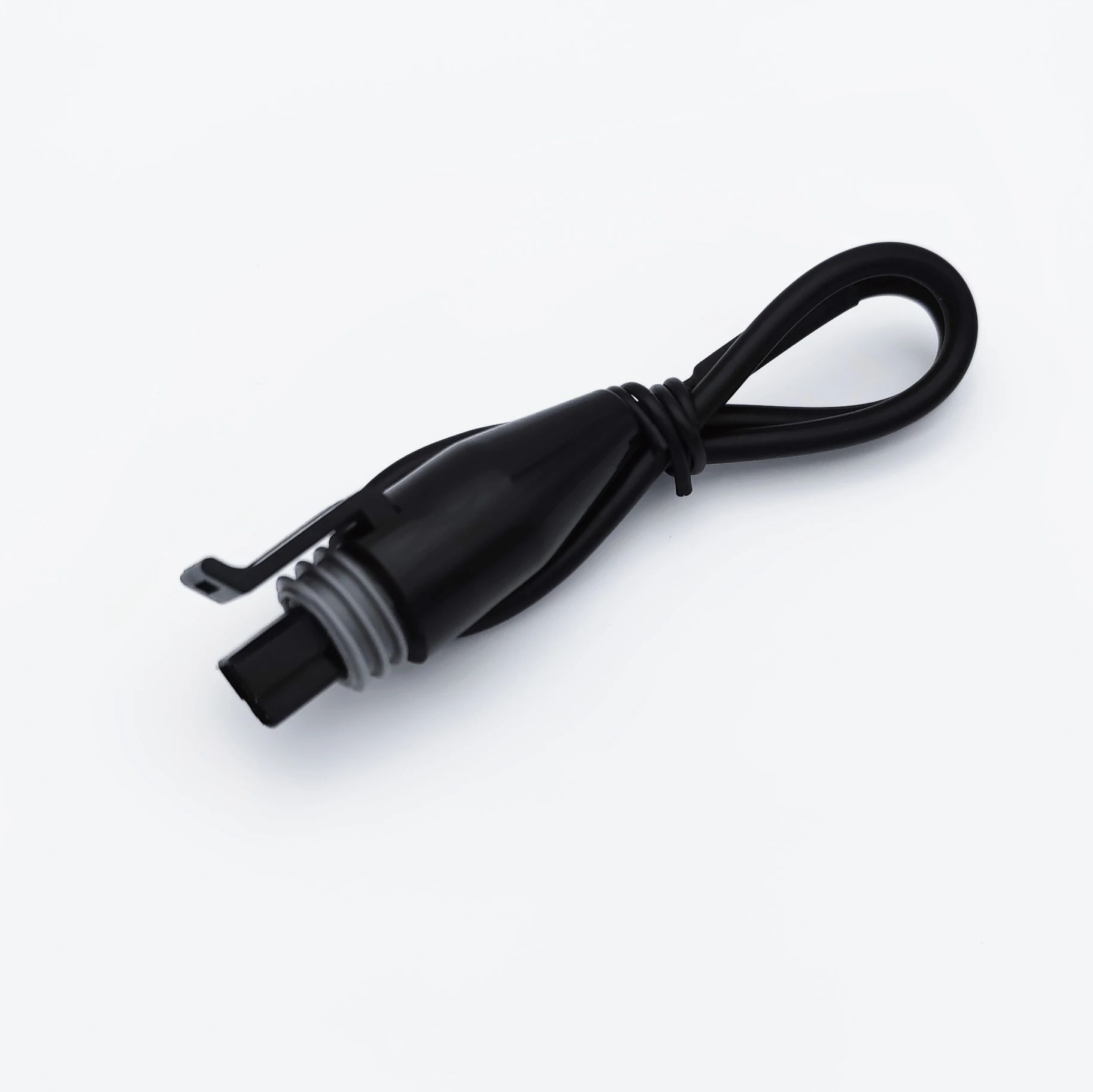

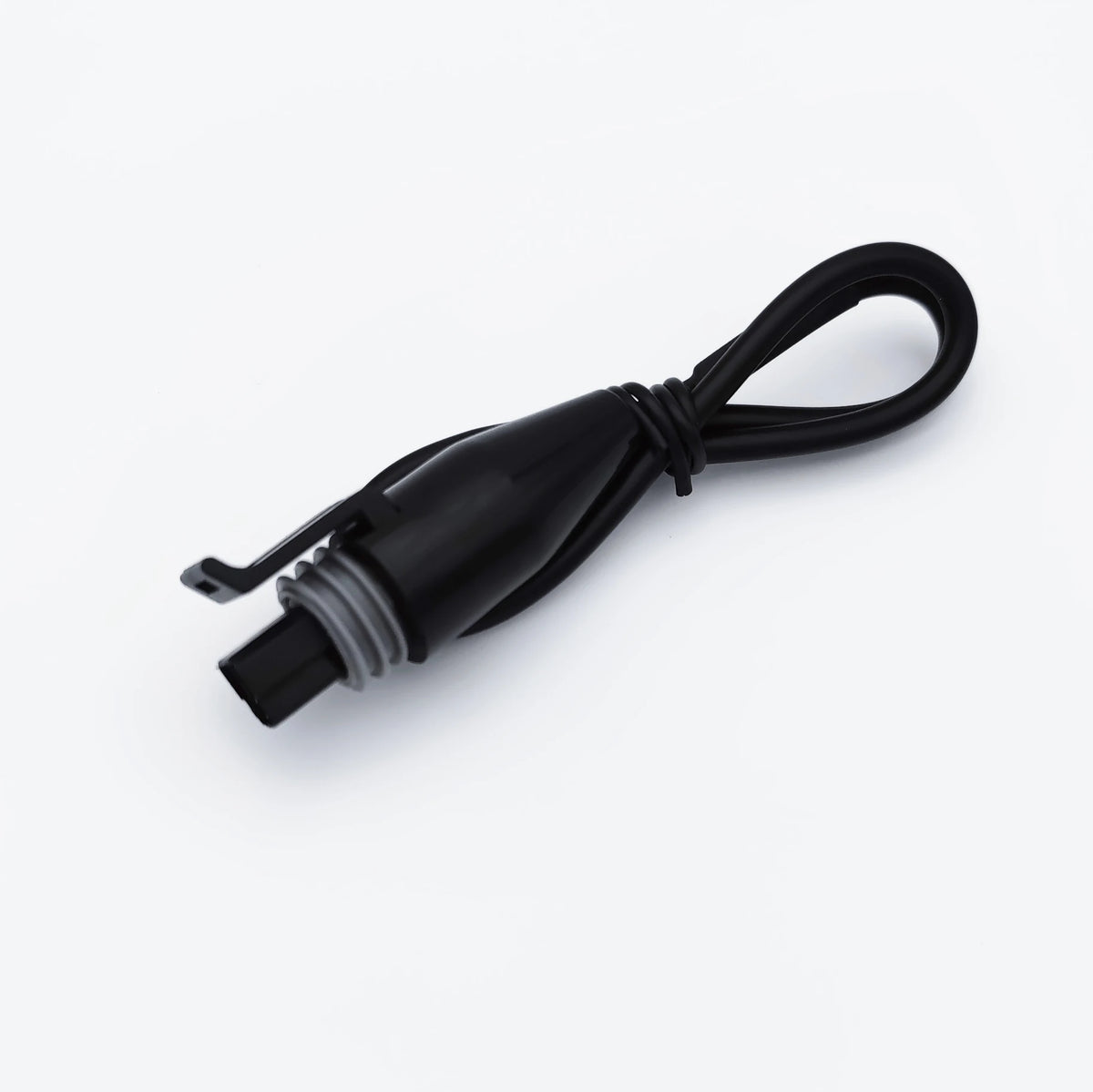

1. Default cable length: 0.3m / 11.8inch cable.
2. If you have other special requirements, please
contact us and note in the order.
3. Typical parameters you can choose, then
remark in your order.
