Description

SPECIFICATIONS

Accuracy: ≤±1.0%FS

Battery Included: no

Brand Name: YD WZYDDZ

Certification: CE

Choice: yes

Electrical connection: Direct cable

Electromagnetism Compatibility: EN50051-1

Explosion-proof class: Exia2CT6

High-concerned chemical: none

Housing material: 304 Stainless Steel

Max Measuring Range: 100 - 199 Bar

Measuring range: 0-60Mpa gauge pressure

Model Number: YD4080

Operating temperature: -40-105℃

Origin: Mainland China

Output signal: 0.5-4.5V or 0-5V or 1-5V or 0.4-2.4V(Low power consumption)

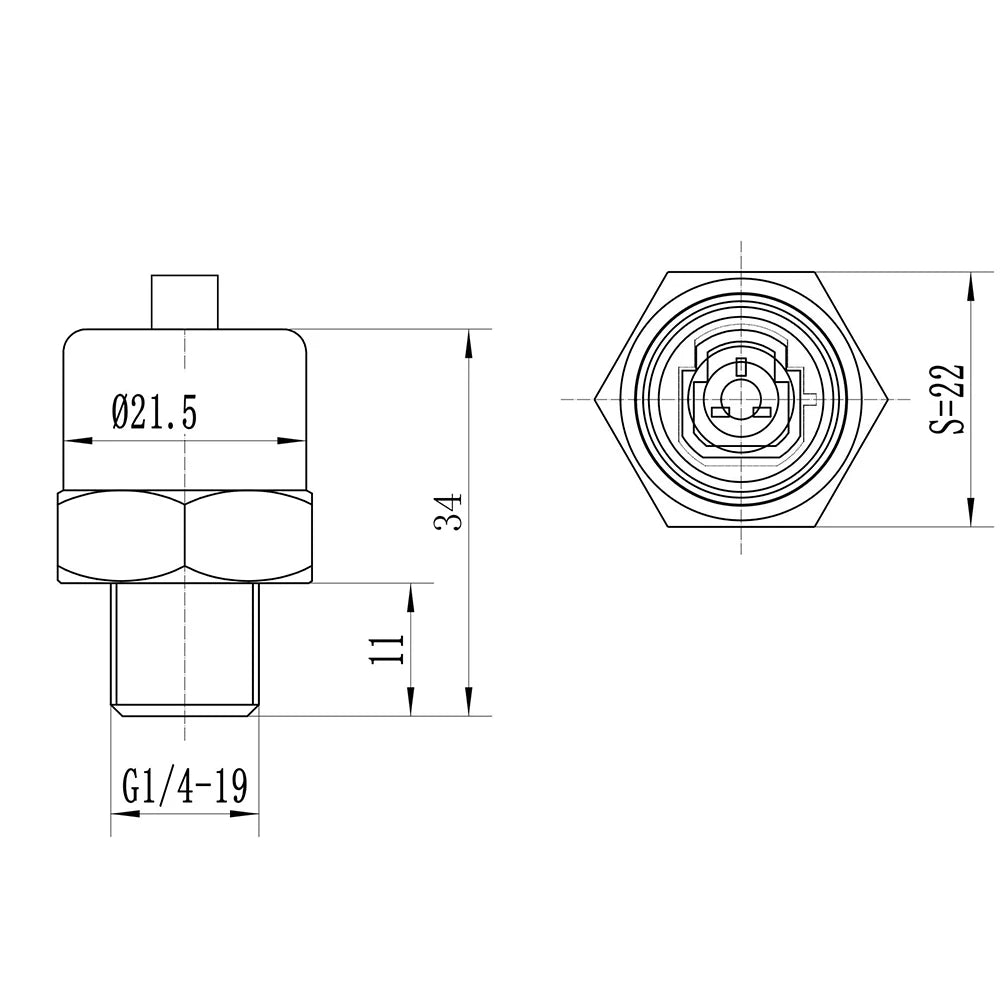

Pressure connection: G1/4 or other

Protection class: IP65

Semi-finishedproduct: No

Sensor core: ceramic sensor

Supply voltage: 5VDC

semi_Choice: yes

Descriptions

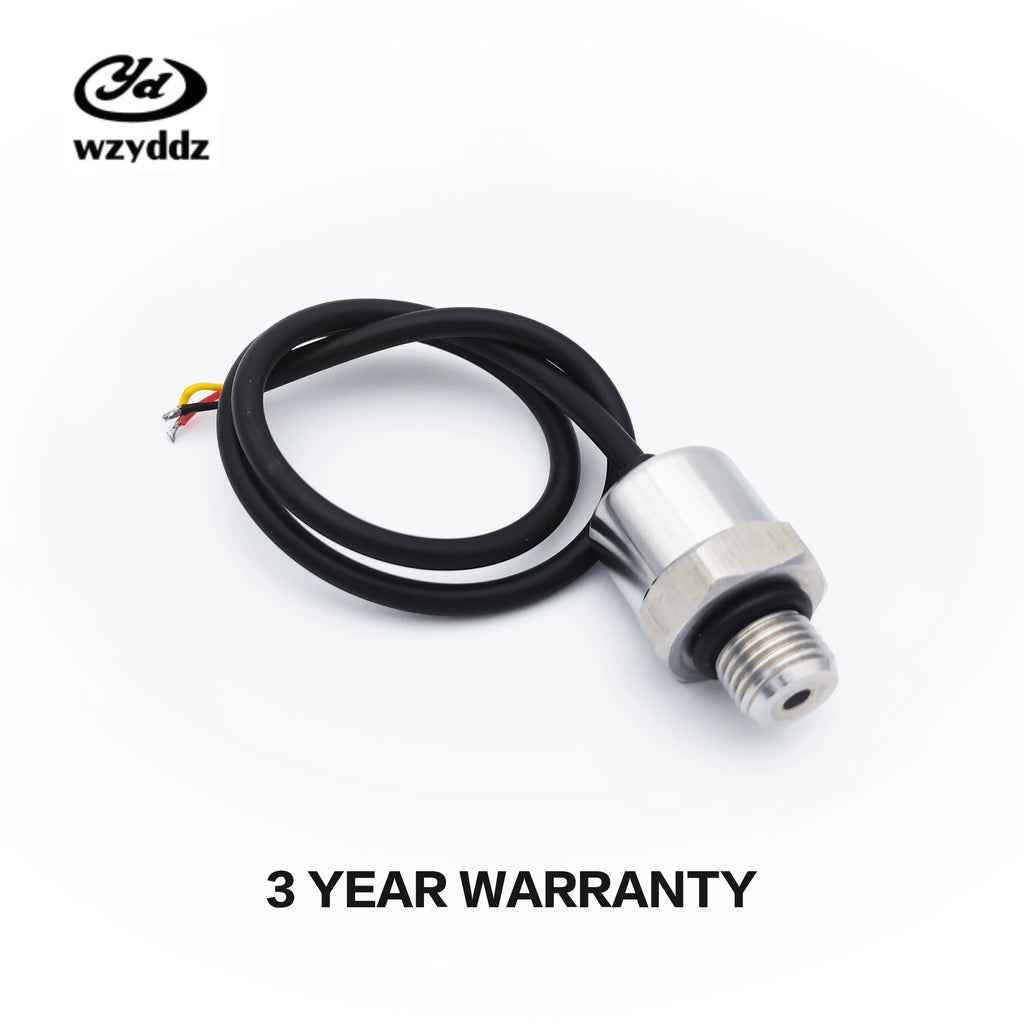

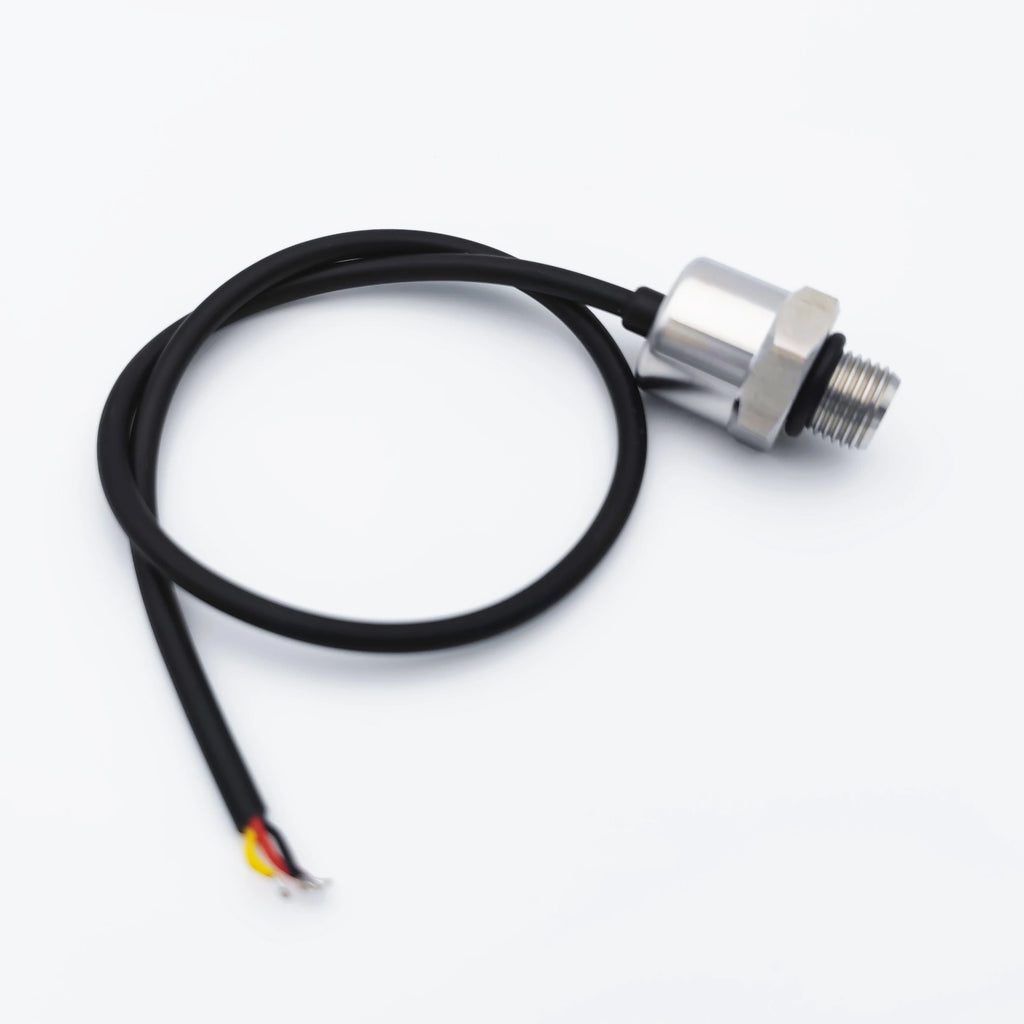

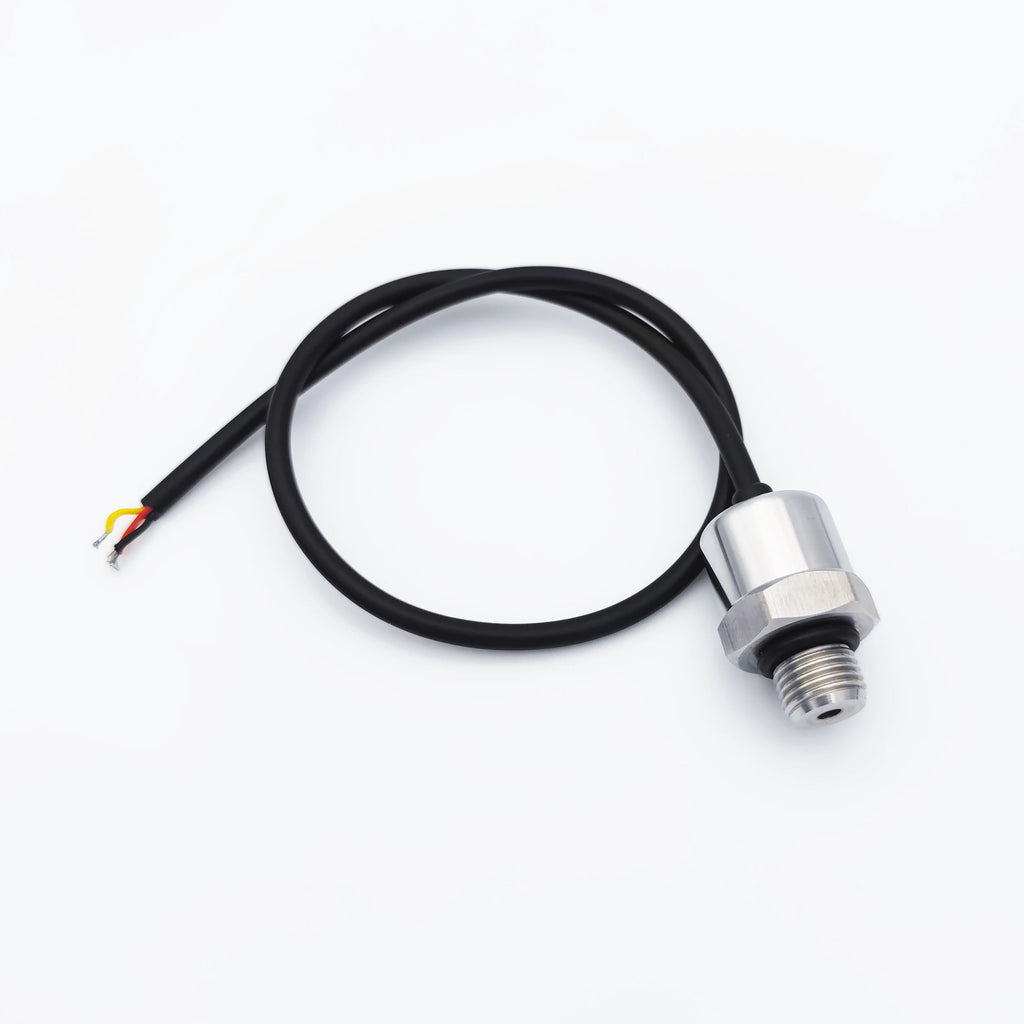

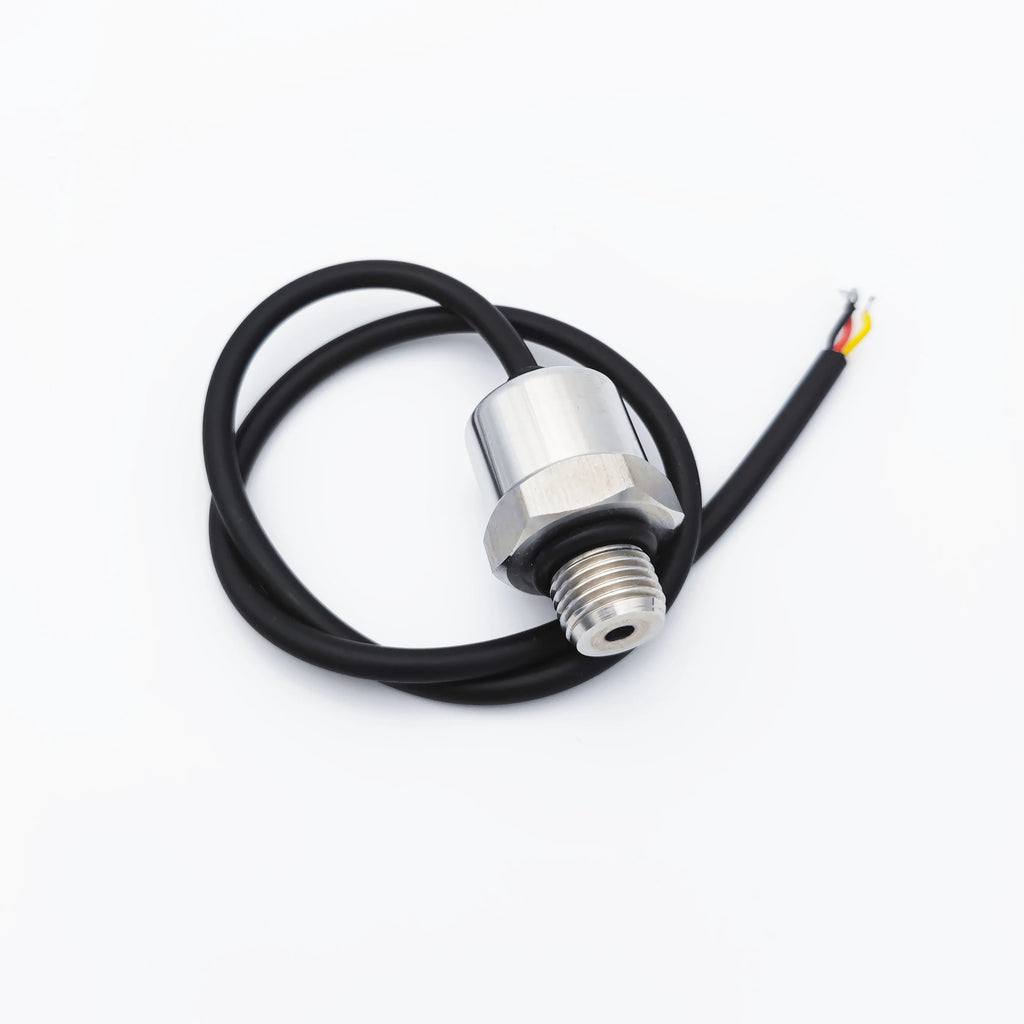

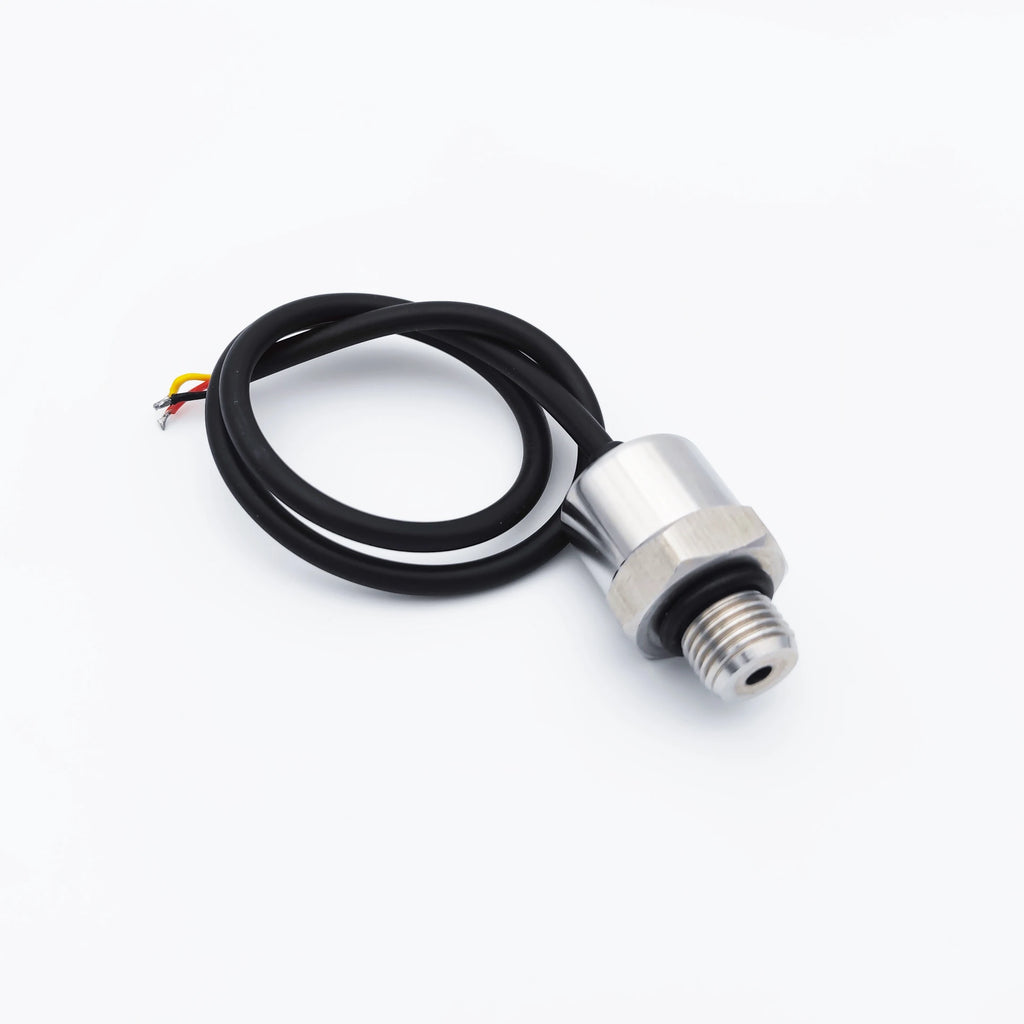

YD4080 series of pressure transmitters adopts ceramic pressure sensor core, all stainless steel package, suitable for most media, with good long-term stability, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 0.5-4.5V, 0-5V, 1-5V, various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: 0-60Mpa gauge pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, or other please tell us
Supply voltage: 5VDC or 12VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 1/8”NPT, Other pressure connection is on request

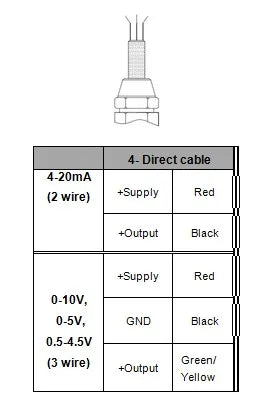

Electrical connection: Direct cable
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg
