SPECIFICATIONS

Accuracy: 0.5%FS (typical), 0.2%FS

Battery Included: no

Brand Name: NONE

Compensated Temp: -10°C ~ 70°C

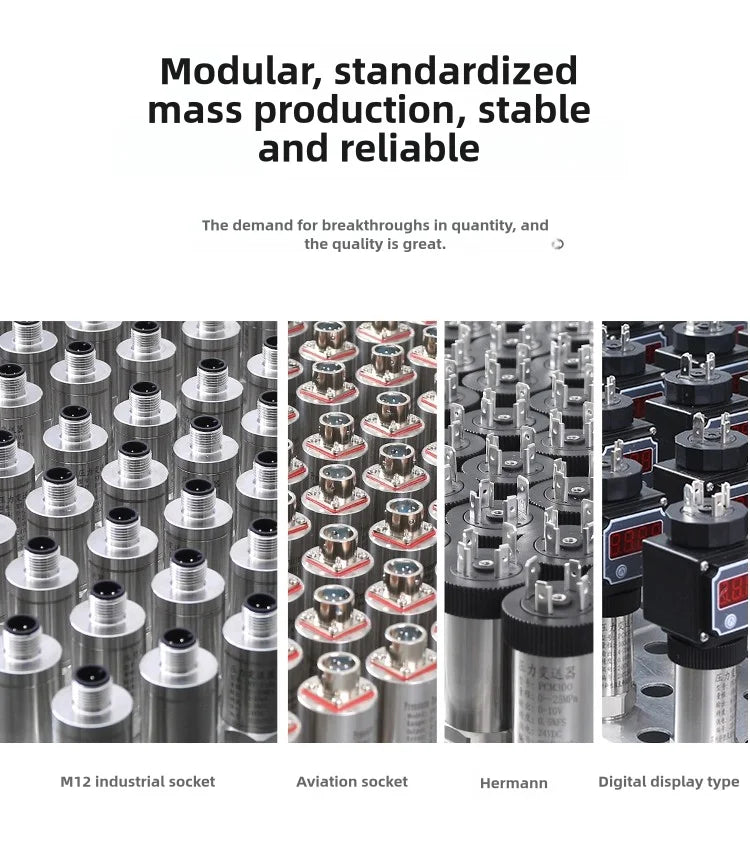

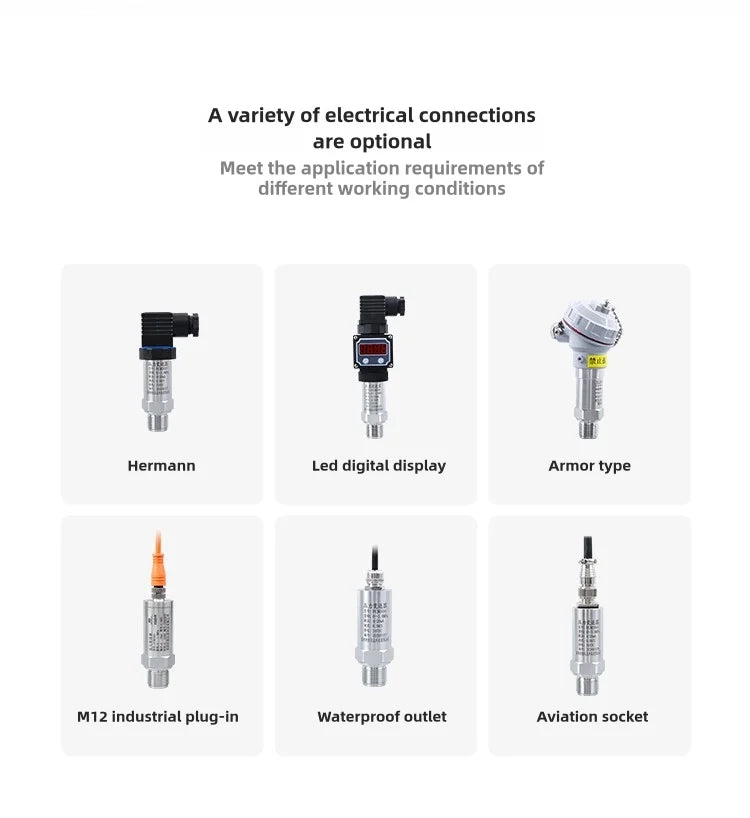

Electrical Interface: Hirschmann, M12 industrial plug

High-concerned chemical: none

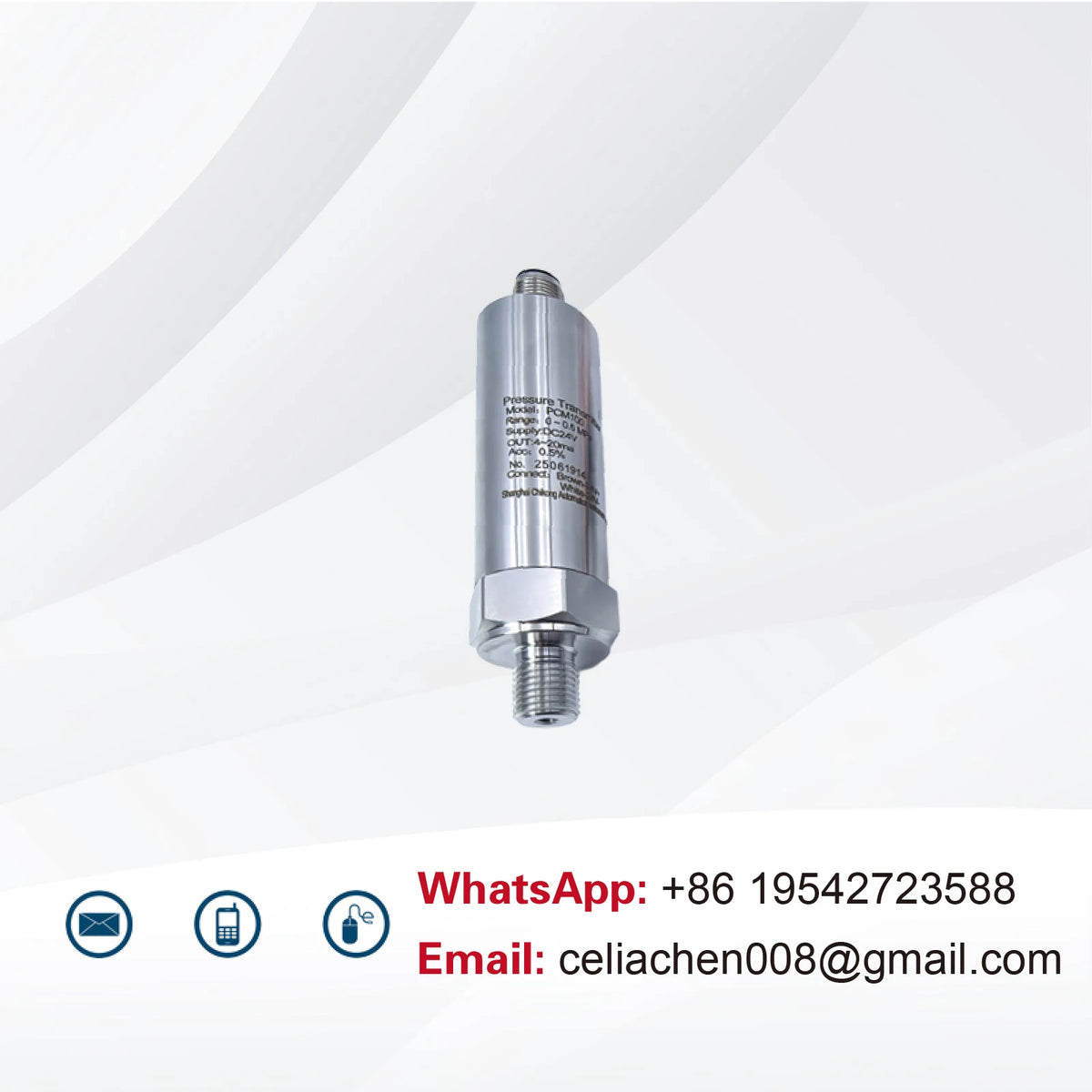

Model: PCM100

Operating Temp.: -20°C ~ 80°C

Origin: Mainland China

Output Signal: Output Signal 4-20mA (default), 0-5V, 0.5-4.5V,0-10V,RS485

Power Supply: 9~24VDC

Pressure Range: -100~700kPa to 70MPa (optional)

Pressure Type: Gauge (default), Absolute, Sealed

Semi-finishedproduct: No

Thread Options: G1/4, NP1/4, M14X1.5

Due to page limitations, we are unable to list all available pressure ranges and corresponding units. However, any pressure range within -0.1 to 60 MPa does not affect the price. Supported pressure units include MPa, kPa, bar, psi, and kgf/cm². If the required pressure range or unit is not listed, please select any available range, along with the desired thread type and signal output, and place your order. Make sure to specify your required pressure range and unit (e.g., MPa, bar, psi) in the order notes. We will produce and ship the product according to your specified parameters. Thank you for your understanding!

1. NOTE

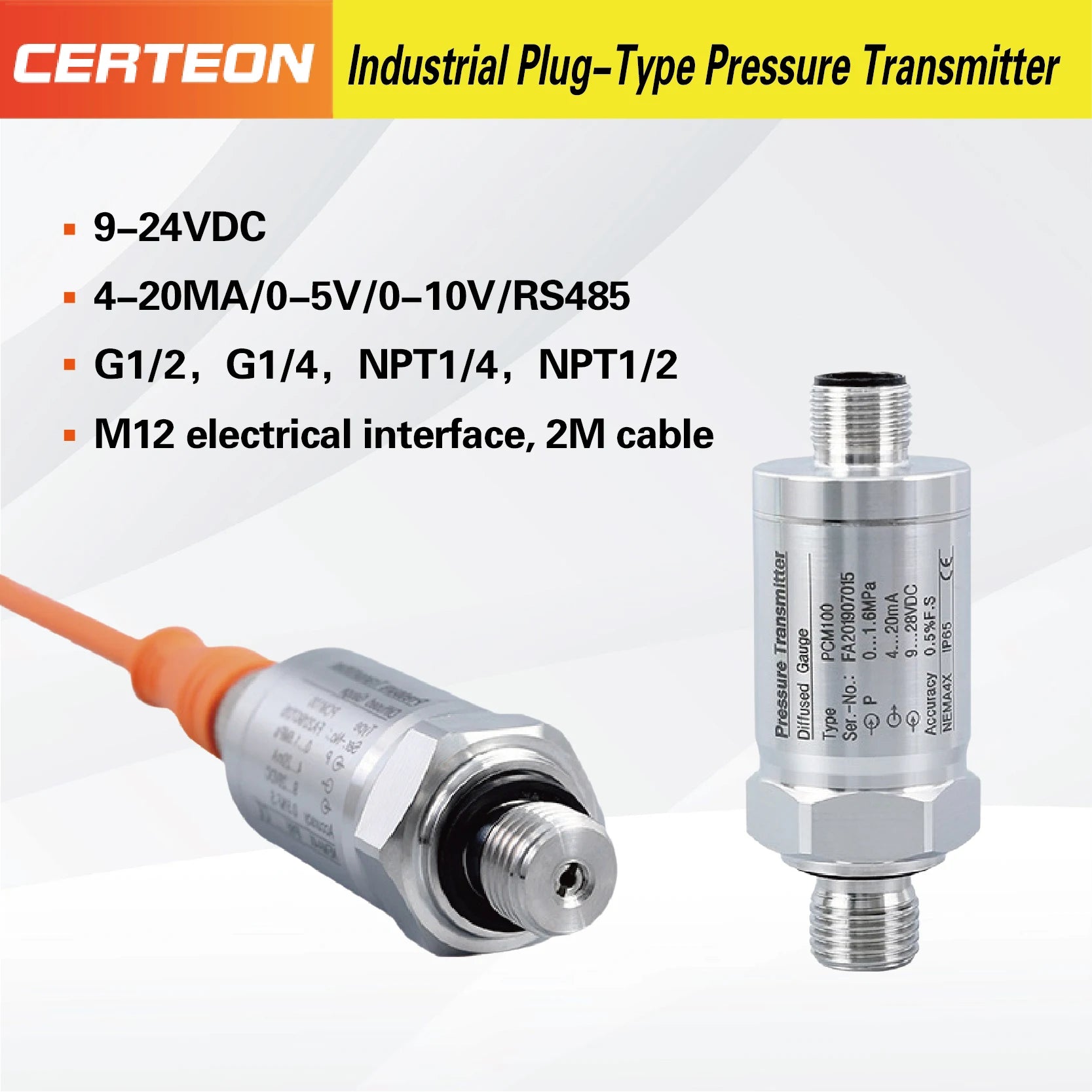

Default Configuration:

· Pressure Type: Gauge pressure

· Power Supply: 9-24VDC

· Thread: G1/2

· Signal Output: 4-20mA

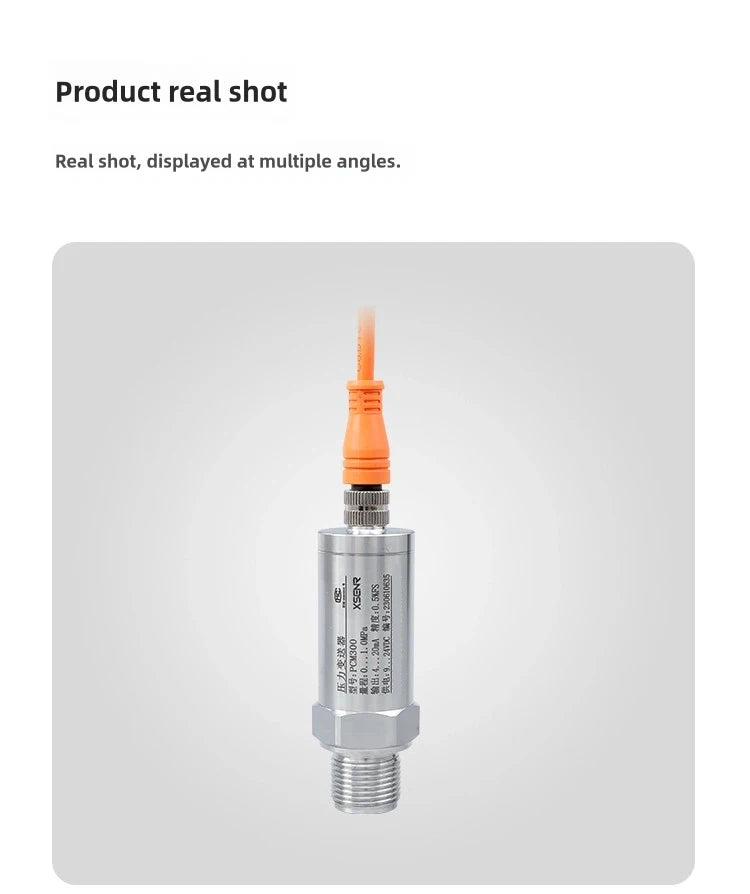

· Electrical Interface: M12 connector

· Cable: 2-meter included

· Accuracy: 0.5%

Due to page limitations, some configurations may not be listed. Please contact us

Customizable Options:

· Pressure Range: -100 kPa to 70 MPa

· Signal Output: 0-5V, 0.5-4.5V, 0-10V，RS485

· Thread Options: G1/4, NPT1/4, M14x1.5, M20x1.5

· Electrical Interface: Hirschmann connector available

· Cable Length: 5m, 10m, 20m, etc.

· Accuracy: 0.2% available

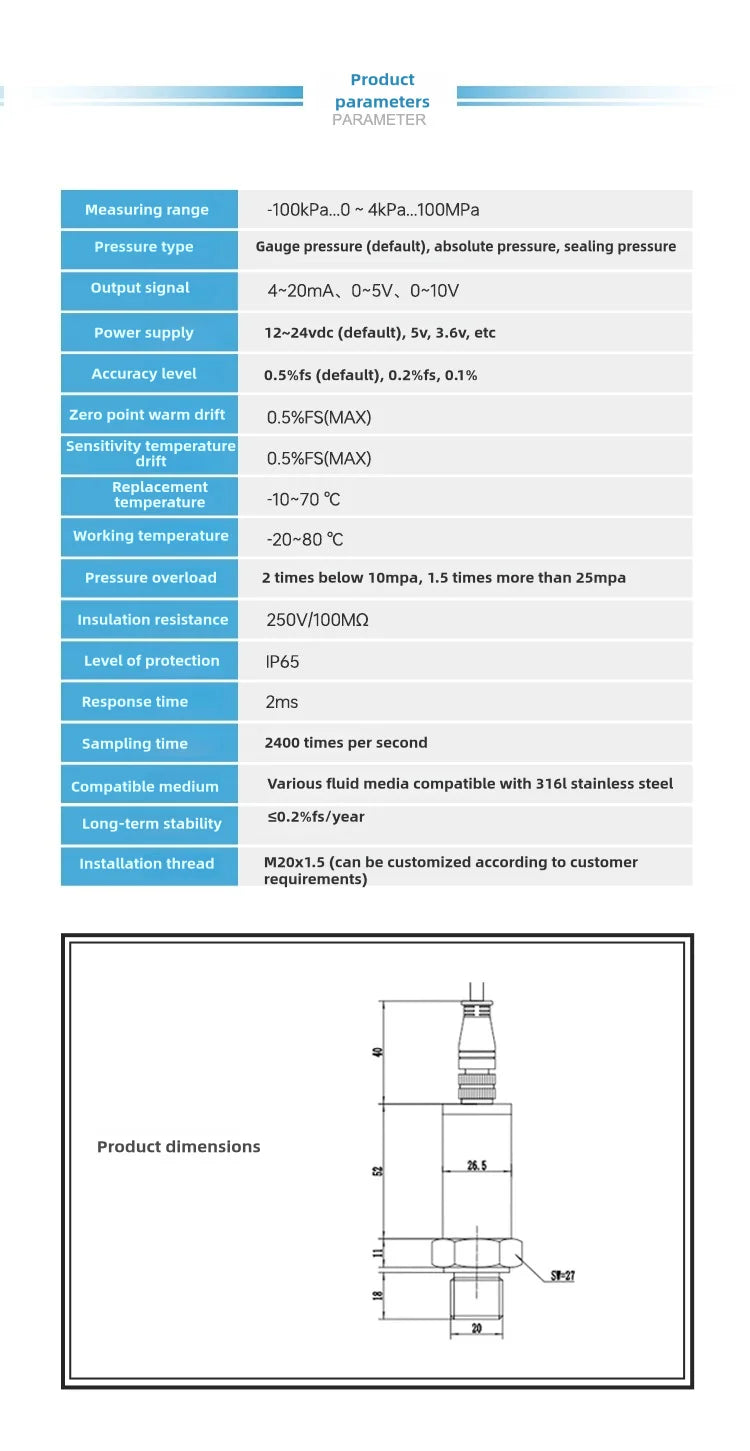

2.Parameters

3.Features

High Accuracy – 0.2%FS precision available for highly accurate pressure monitoring.
Shock & Vibration Resistant – Withstands instant pressure surges of 2-3 times nominal value.

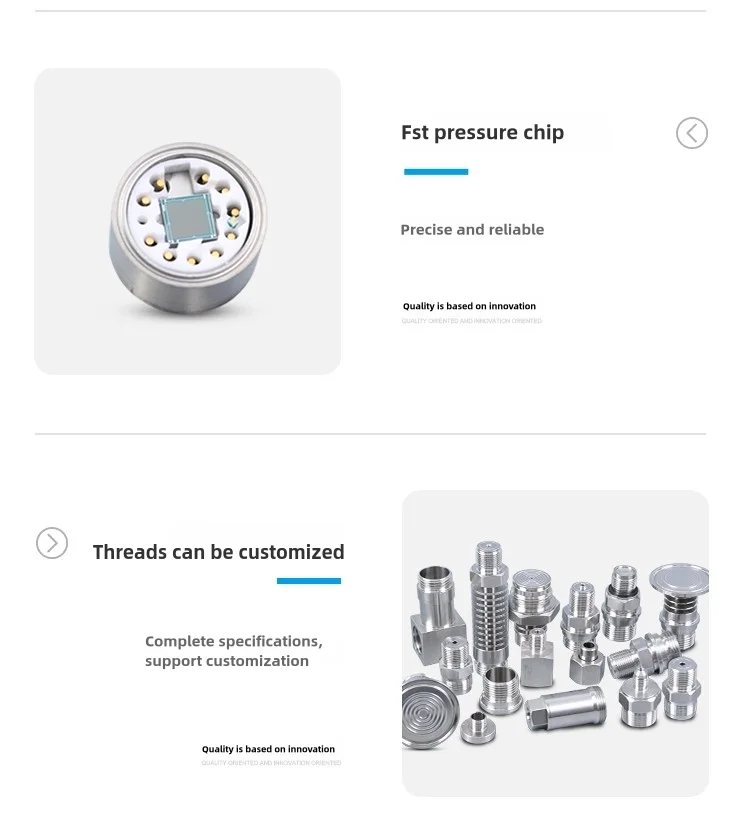

Customizable Threads – Available in G1/4, NP1/4, M14X1.5, and custom designs.
Industrial-Grade Protection – IP65-rated for dust and water resistance.
High Sampling Rate – 2400 readings per second for real-time monitoring.

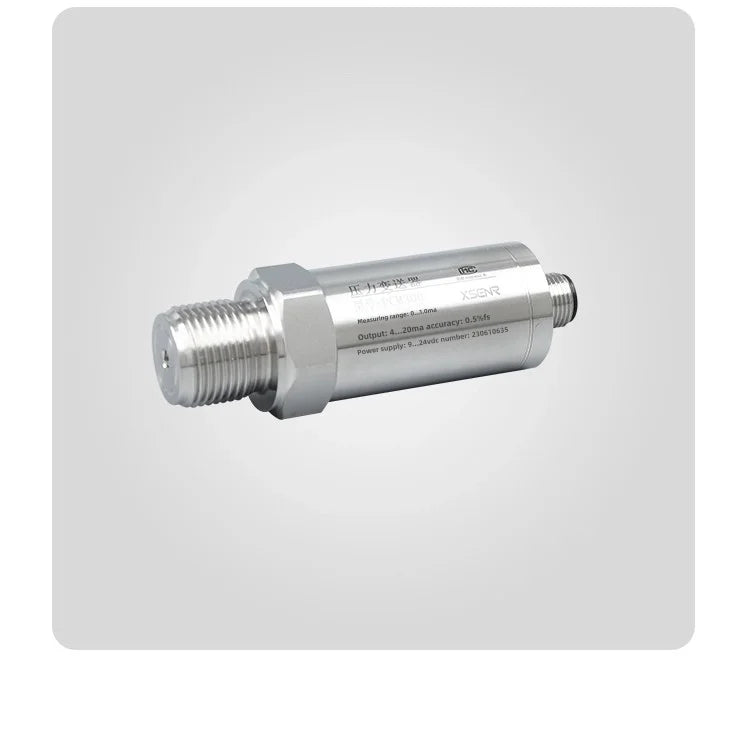

Stable & Durable – Stainless steel housing ensures long-term reliability.

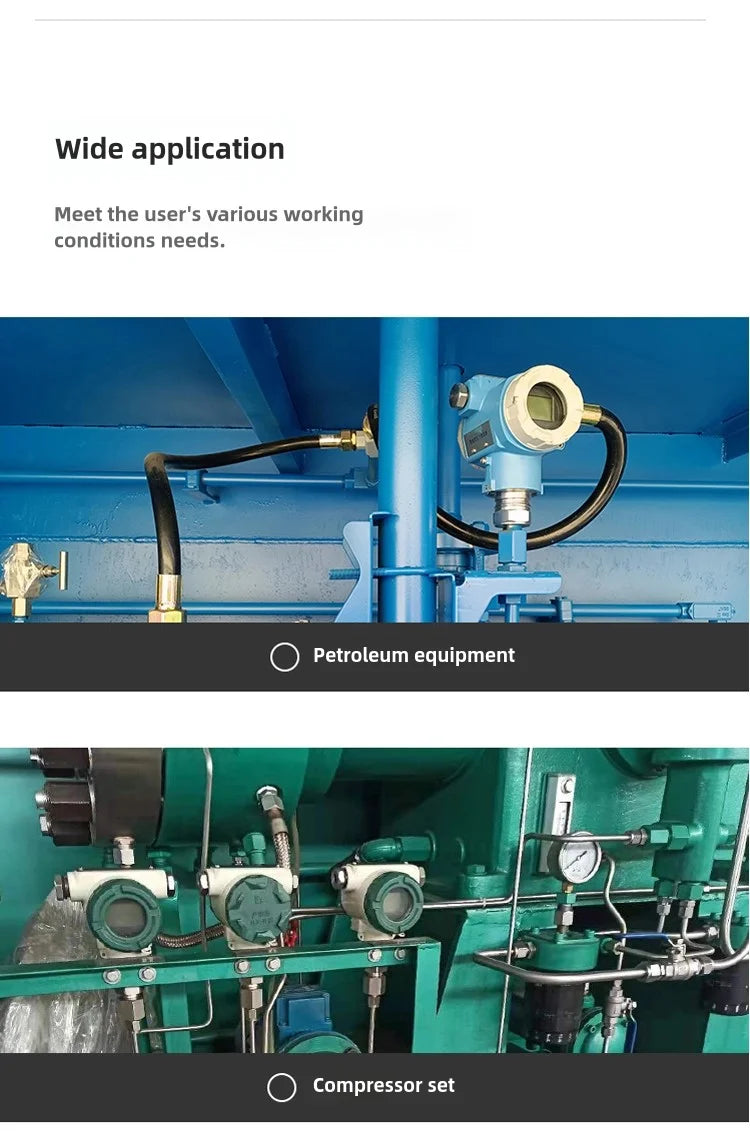

4.Applications

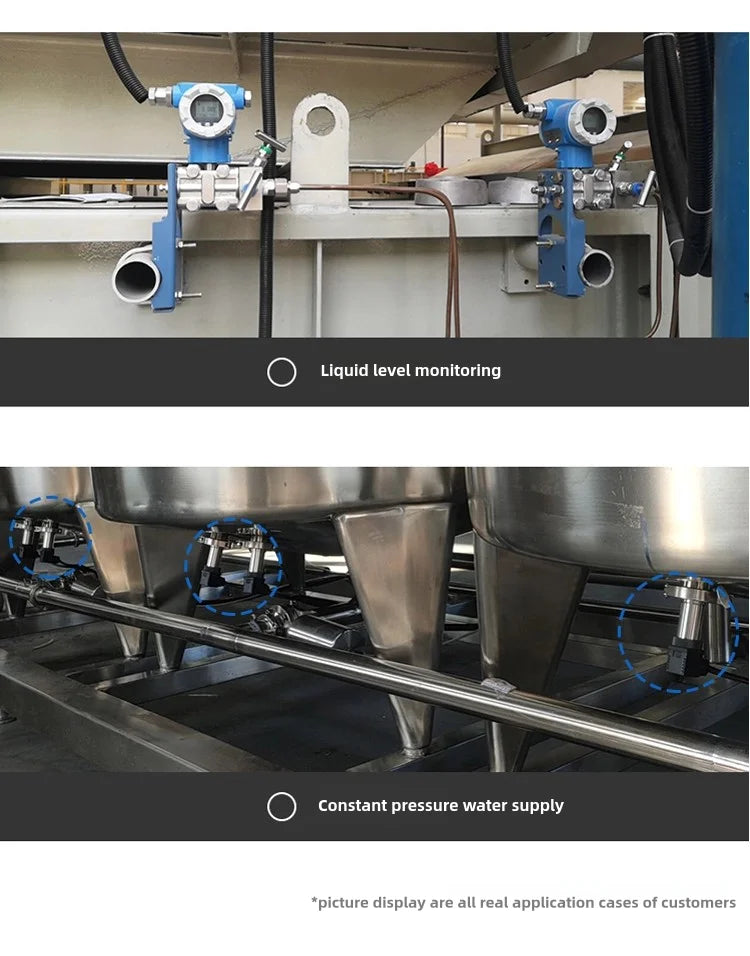

Constant Pressure Water Supply – Ensures stable water distribution in industrial and residential settings.
Aerospace & Aviation – Used for precise pressure monitoring in aircraft and spacecraft.
HVAC Systems – Monitors pressure levels in heating, ventilation, and air conditioning applications.
Hydraulic Engineering – Supports high-pressure hydraulic systems for machinery and automation.
Gas Pipelines – Ensures safety and performance in gas distribution networks.
Medical Equipment – Reliable pressure measurement for medical gas and fluid systems.

5.FAQs

Q1: Can the PCM100 sensor withstand high-pressure surges?

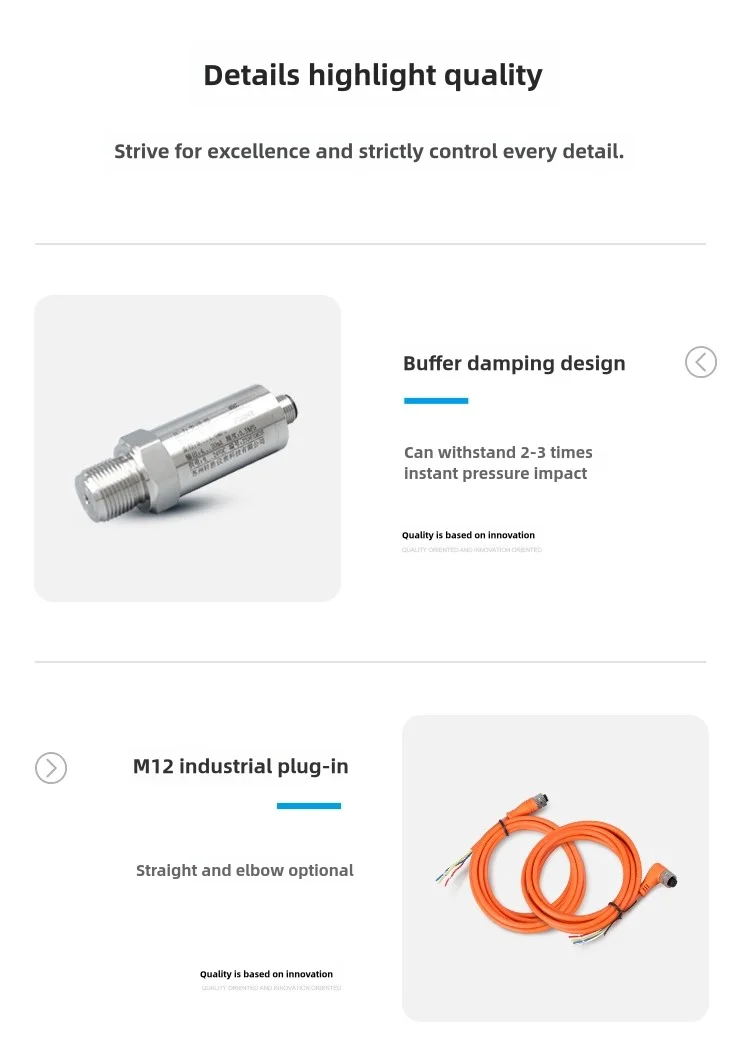

A1: Yes, it features a buffer damping design, capable of handling instantaneous pressure spikes of 2-3 times the nominal pressure.

Q2: What type of media is compatible with the sensor?

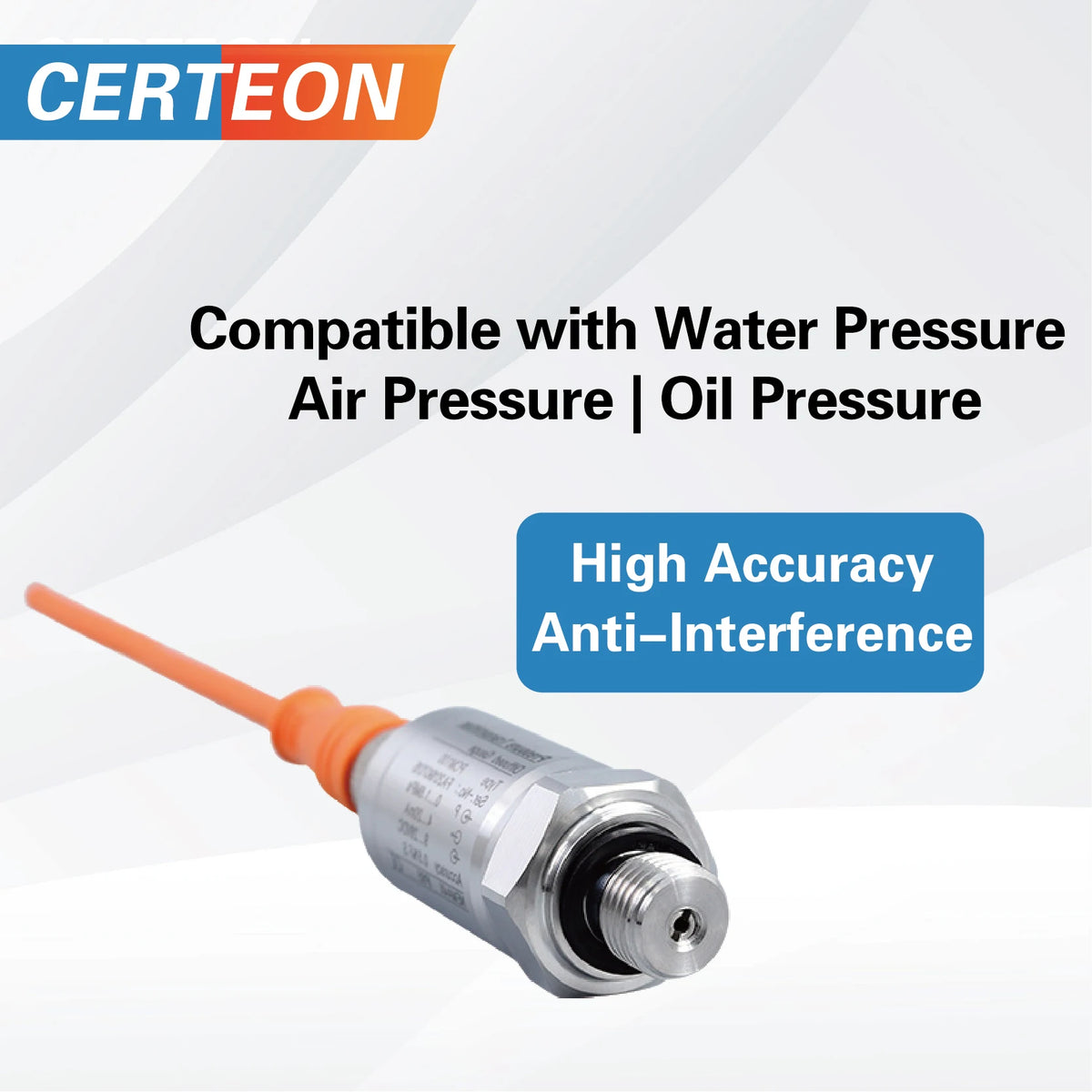

A2: The sensor is made of 316L stainless steel, making it compatible with various liquid and gas media.

Q3: Can the thread type be customized?
A3: Yes, we offer custom thread options based on customer requirements.
