Description

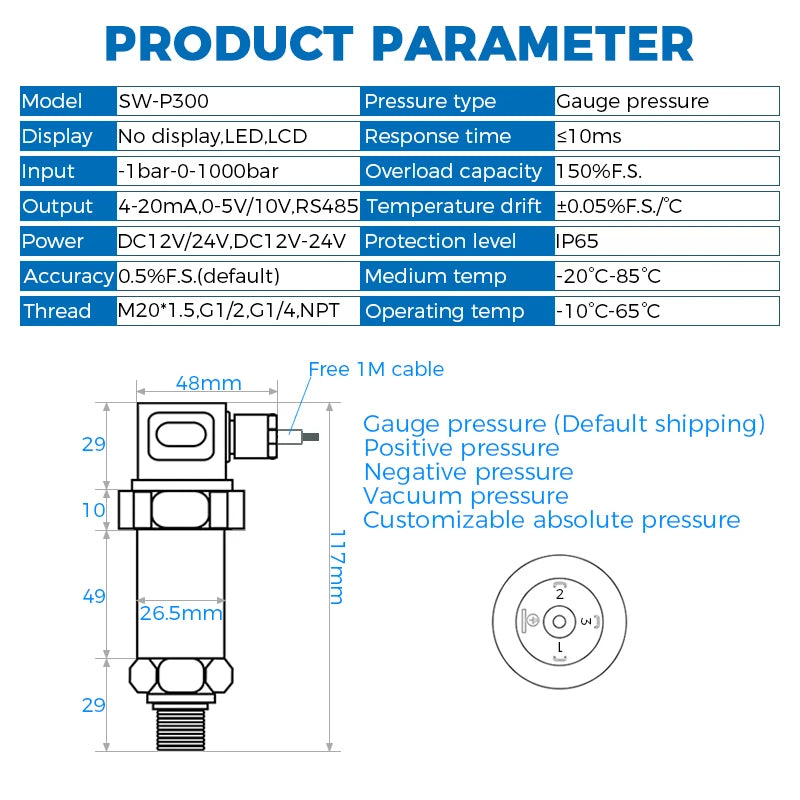

SPECIFICATIONS

Accuracy: 0.5%F.S.(Default)

Battery Included: no

Brand Name: SOWAKAM

High-concerned chemical: none

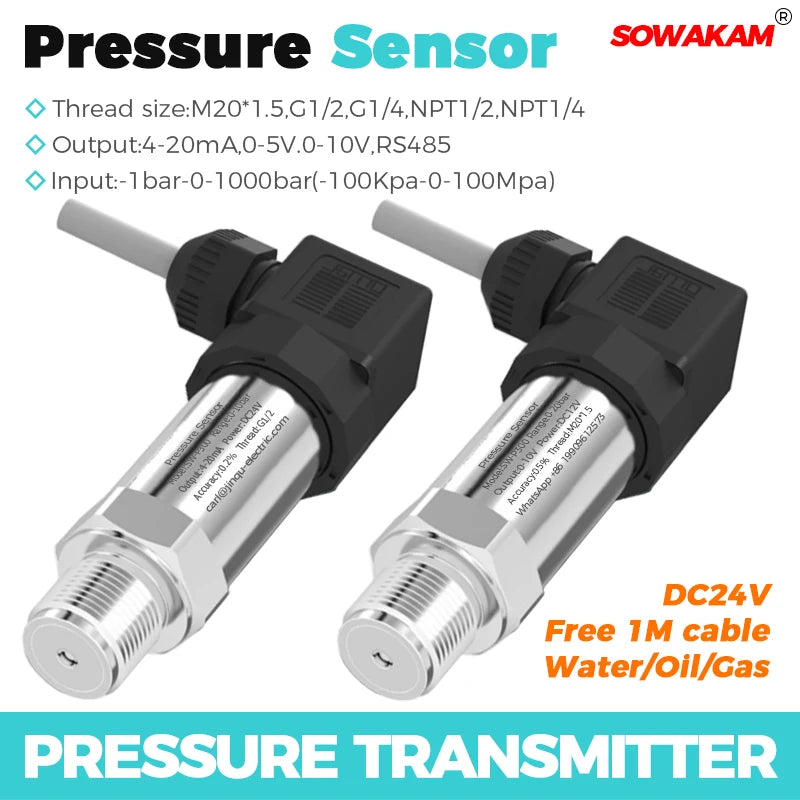

Input range: -1bar-0-1000bar(-100Kpa-0-100Mpa)

Long-term stability: ≤0.2%F.S./℃

Max Measuring Range: 400 Bar & Above

Medium temperature: -20℃-85℃

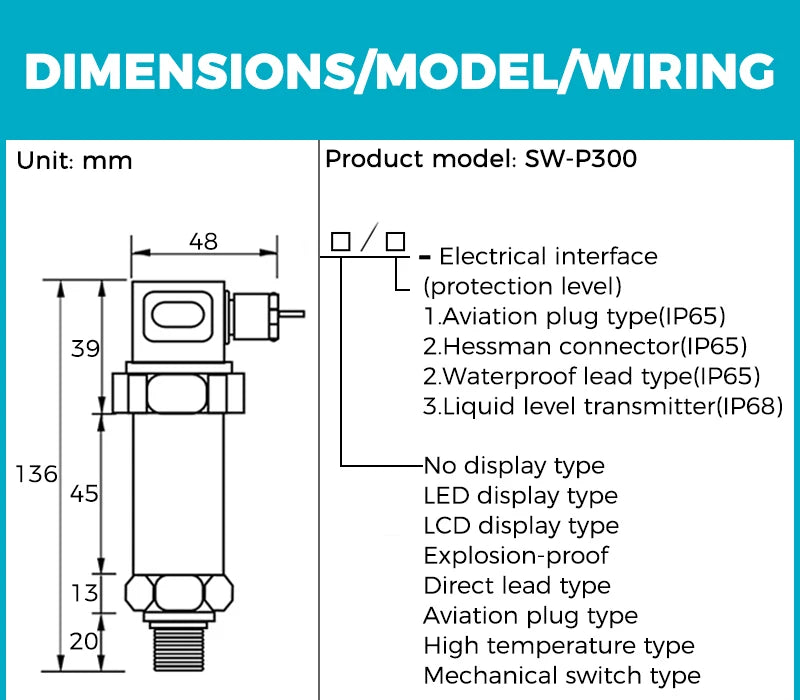

Model Number: SW-P300

Operating temperature: -10℃-65℃

Origin: Mainland China

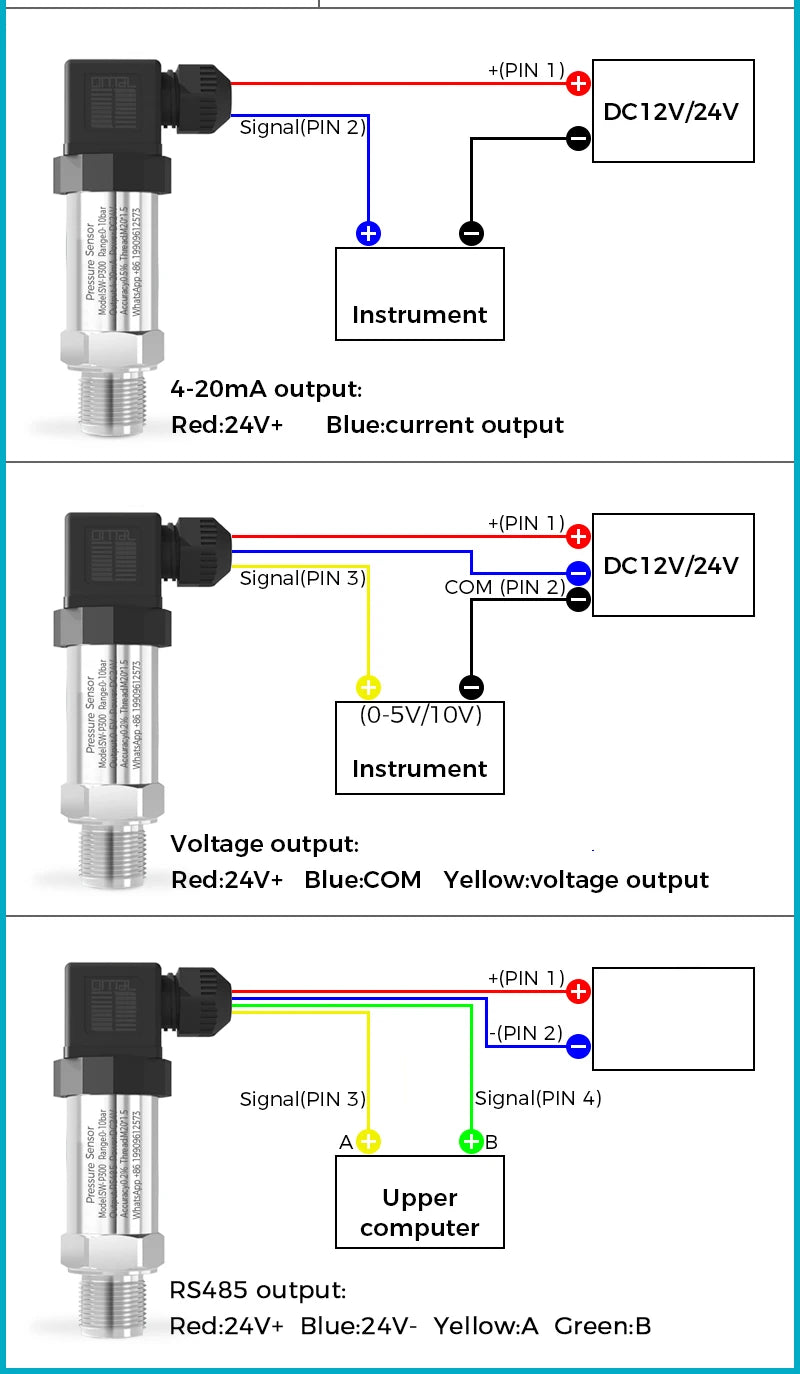

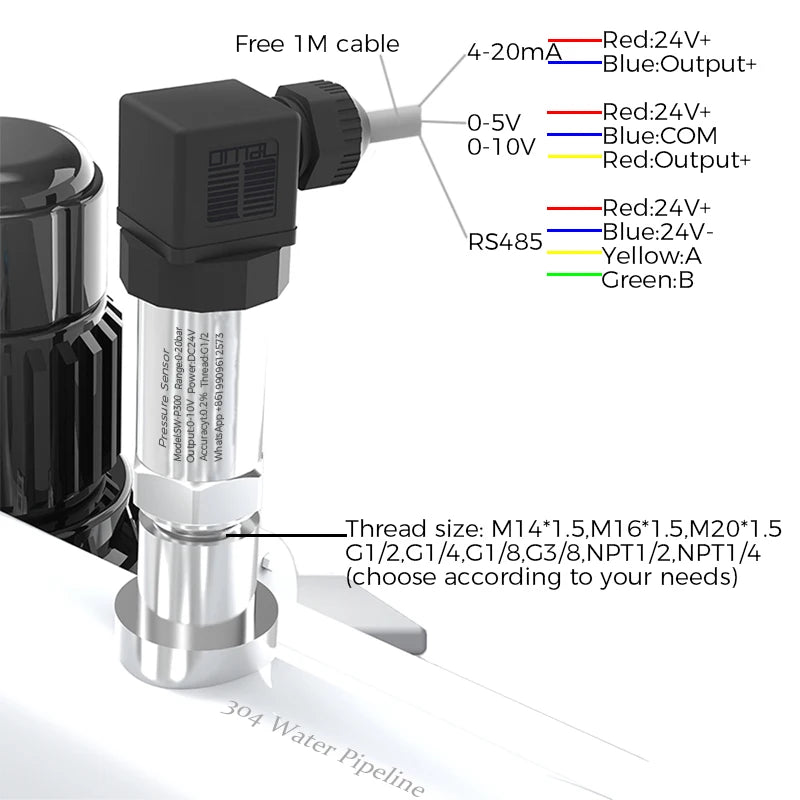

Output: 4-20mA,0-5V,0-10V,RS485

Overload pressure: 150%F.S.

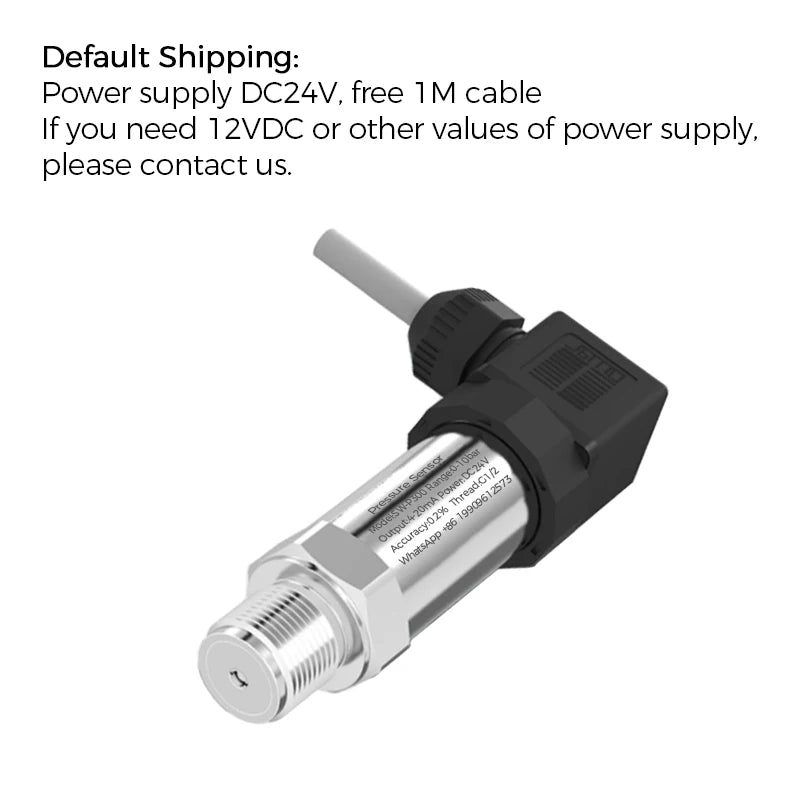

Power supply: DC12V-36V(default DC24V)

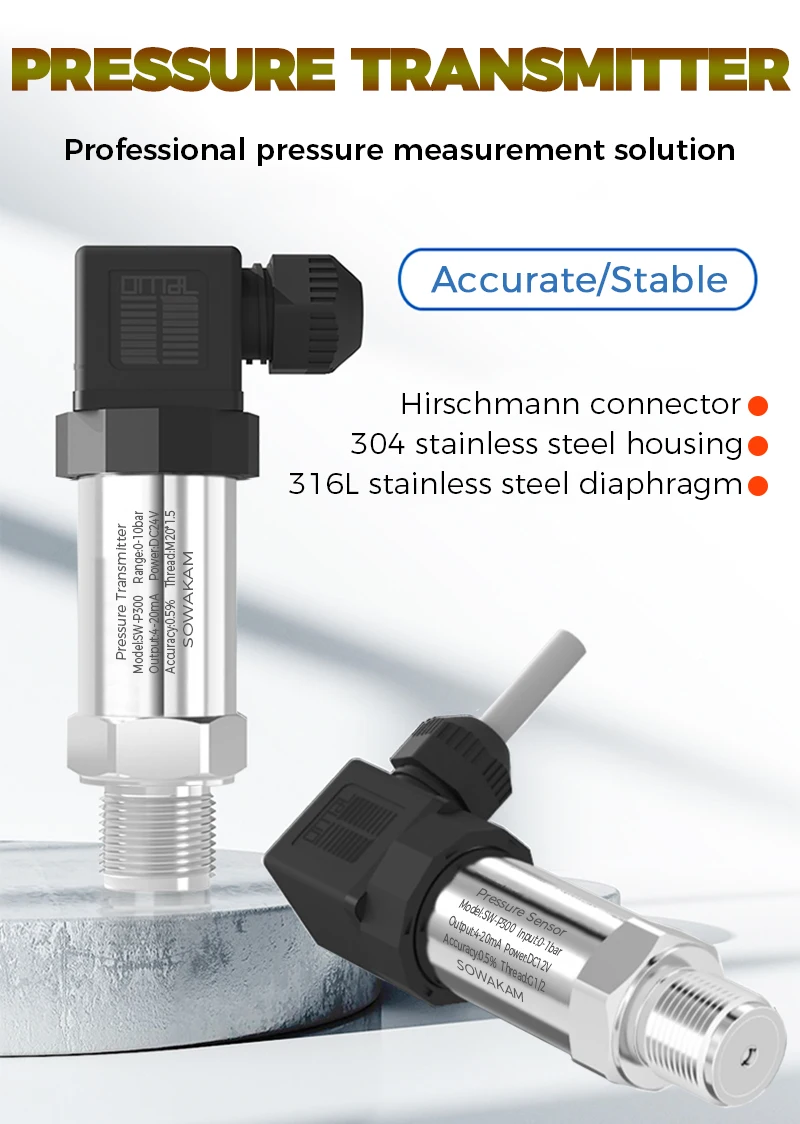

Product material: Shell-SS304, Diaphragm-SS316L

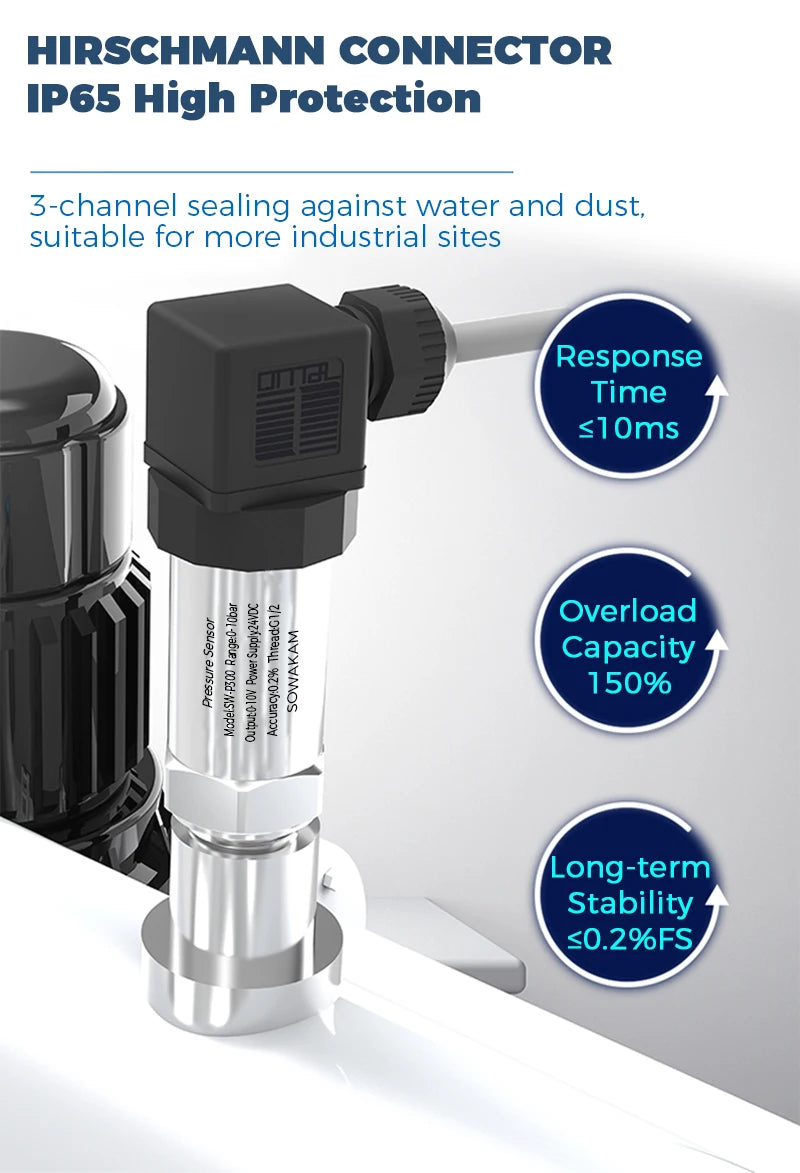

Protection class: IP65

Response time: ≤10ms

Semi-finishedproduct: No

Sowakam Model: SW-P300

Temperature drift: ±0.05%F.S./℃

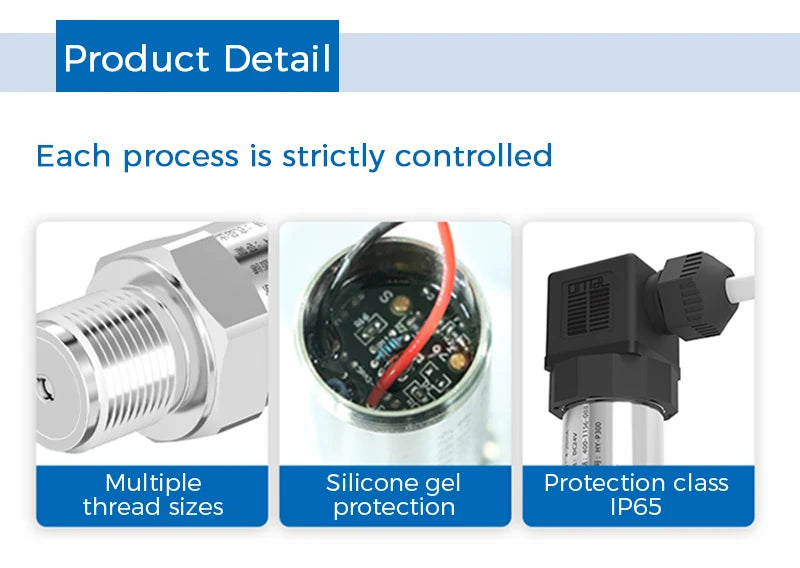

Thread size: M20*1.5,G1/2,G1/4,NPT Series

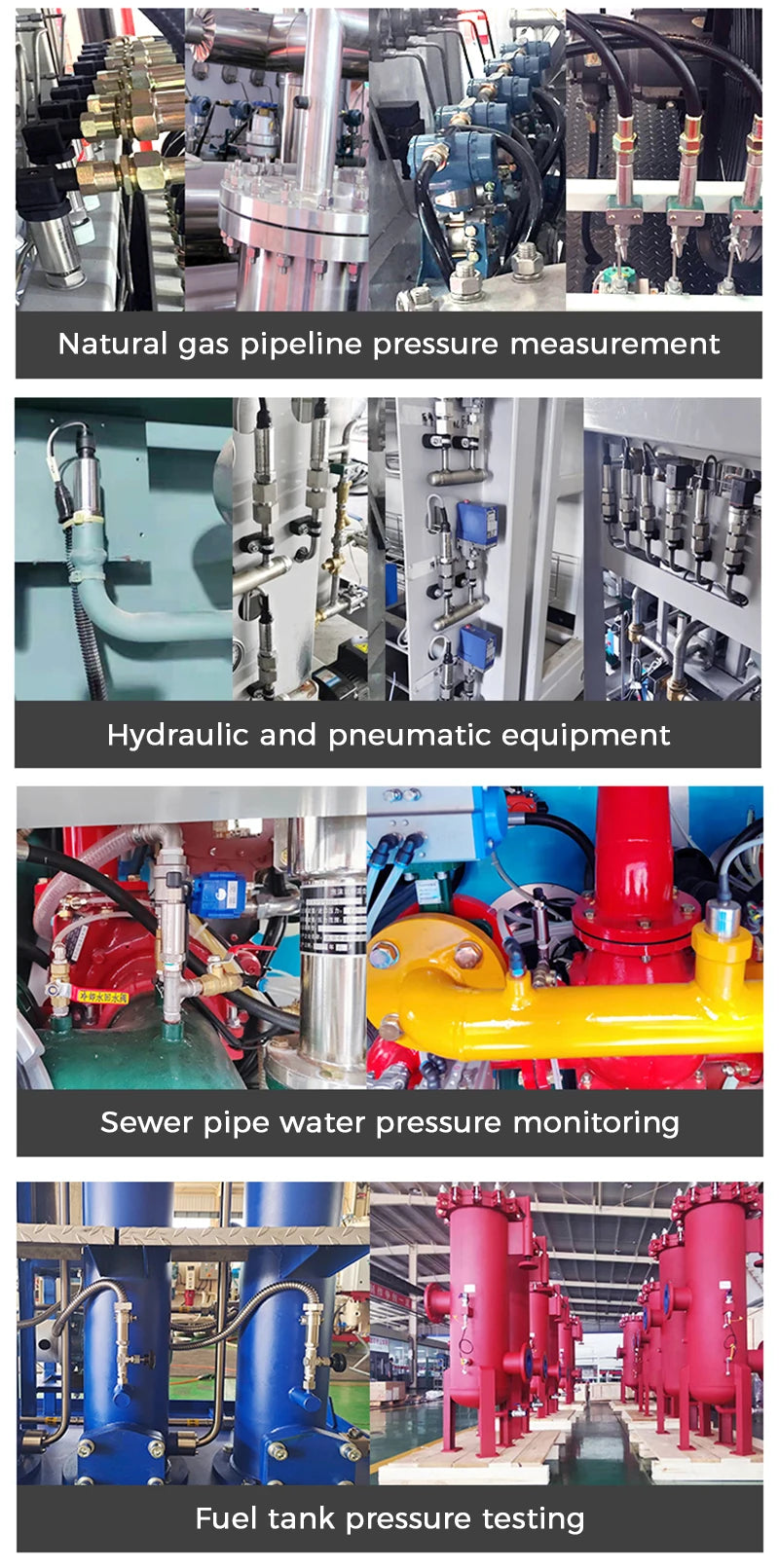

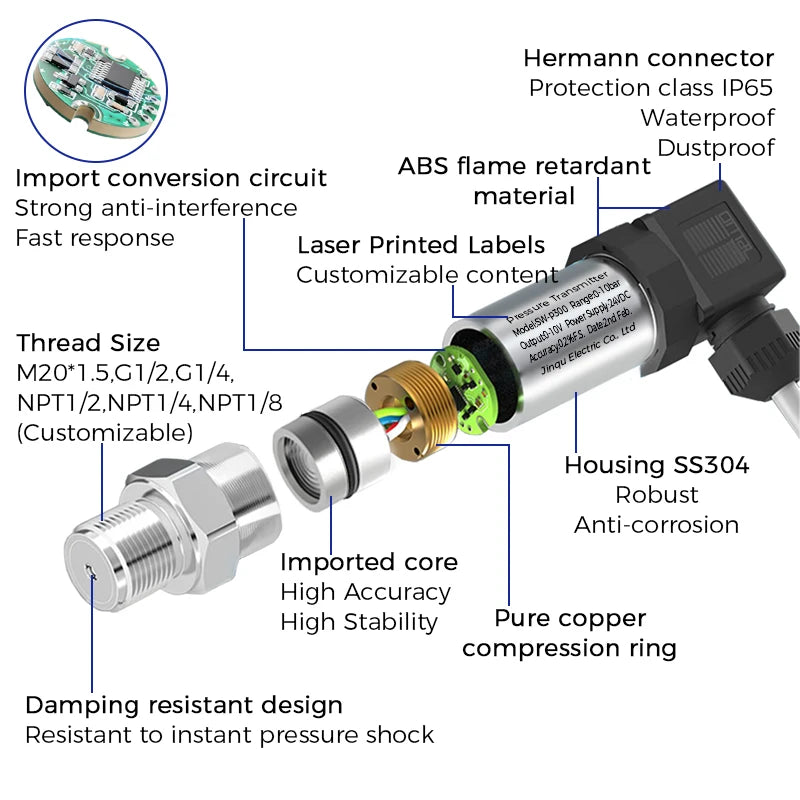

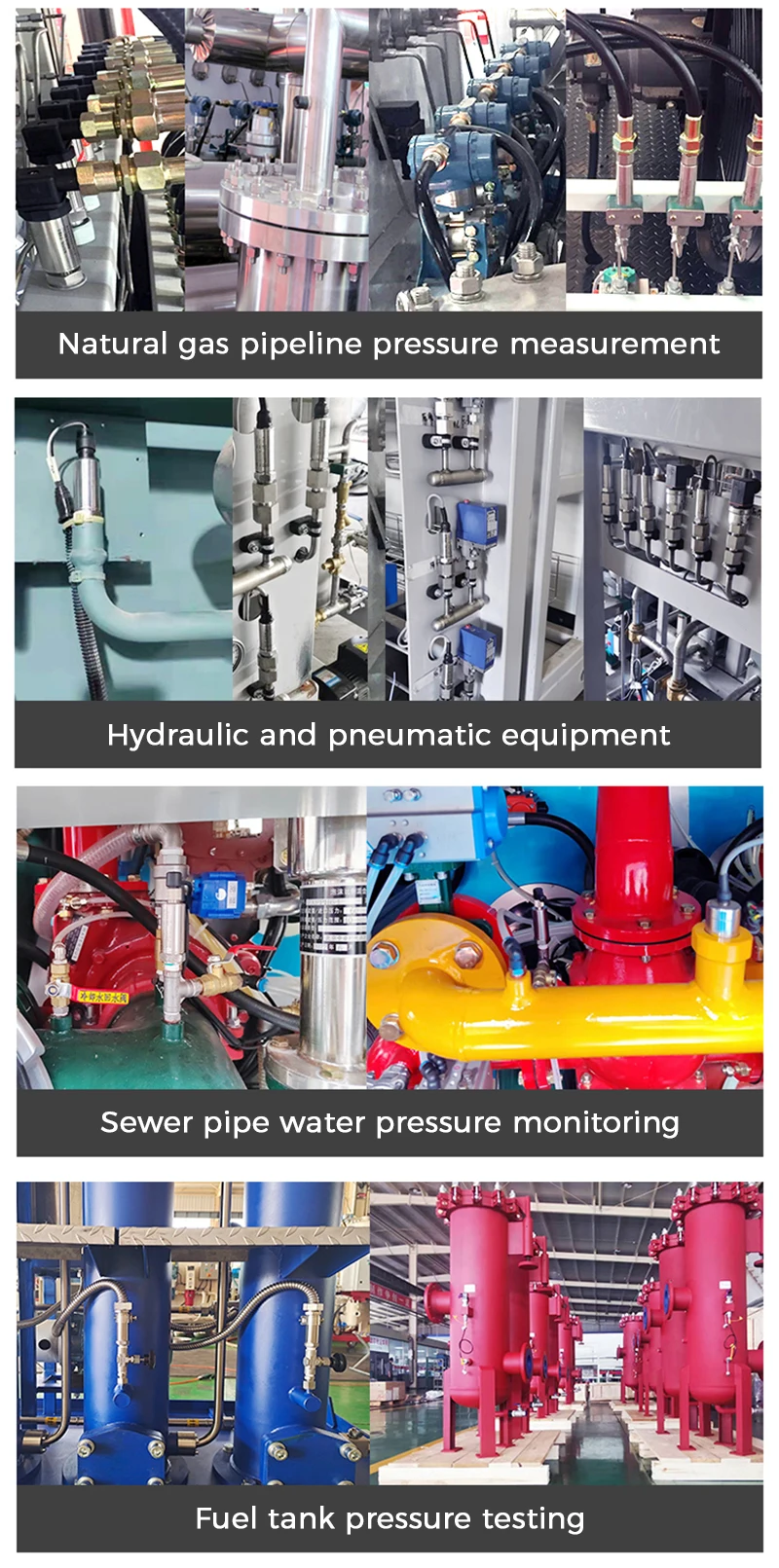

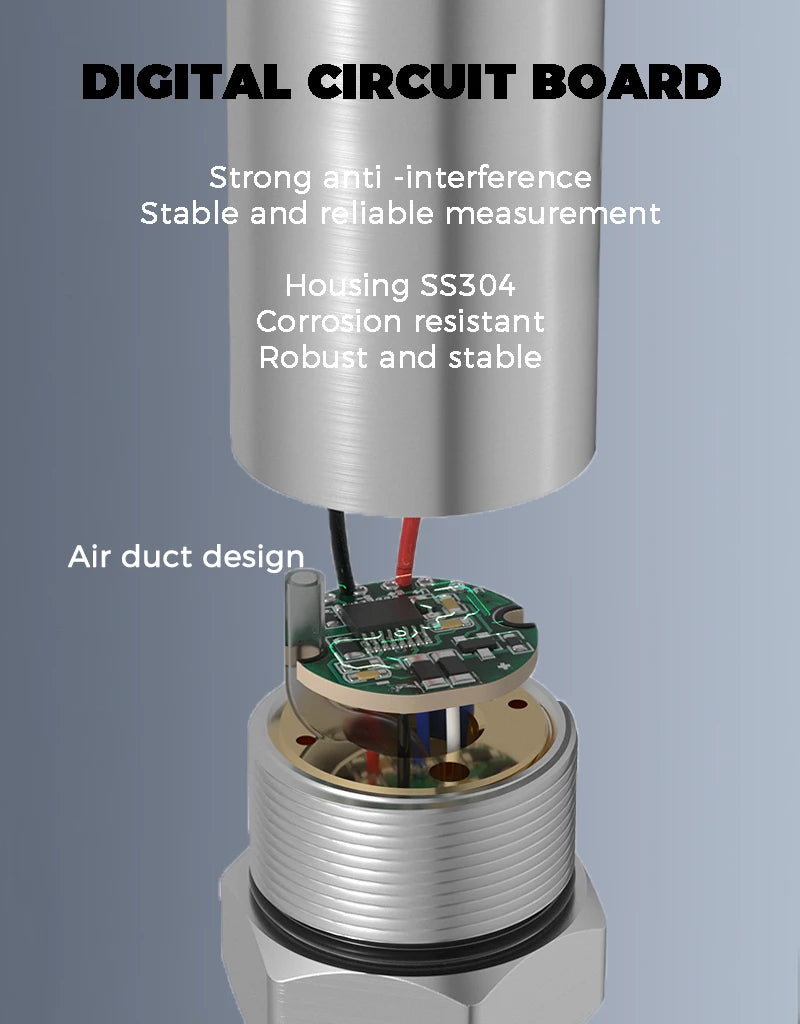

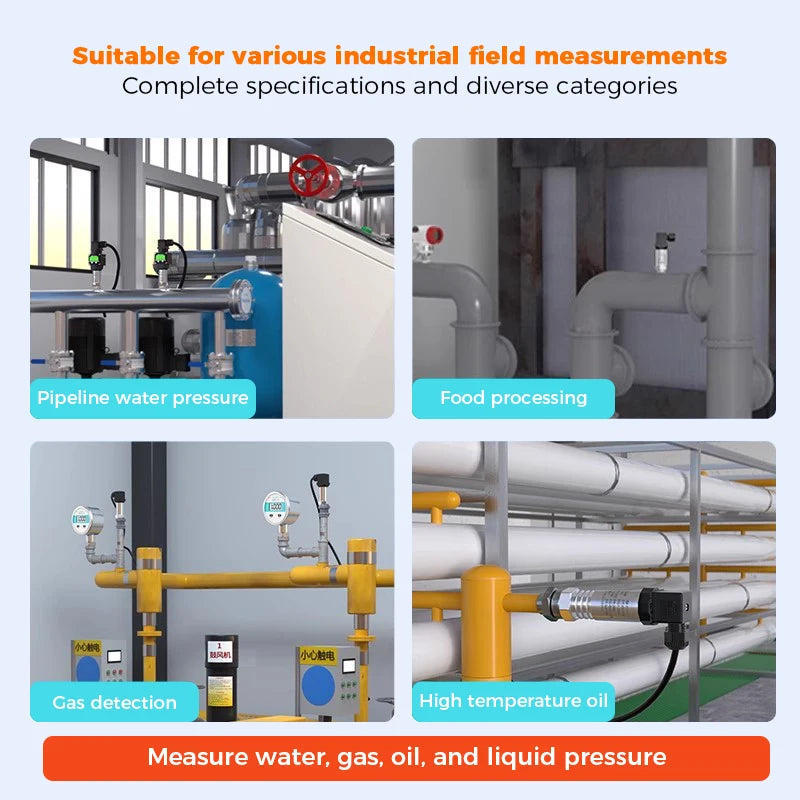

By using imported diffused silicon cores, high-performance circuit boards, sensitivity and temperature compensation technology, the physical pressure parameters sensed by pressure sensors such as gases and liquids are converted into standard electrical signals, which are supplied to secondary instruments such as indicator alarms, recorders, and regulators for measurement, indication, and process adjustment.

Features

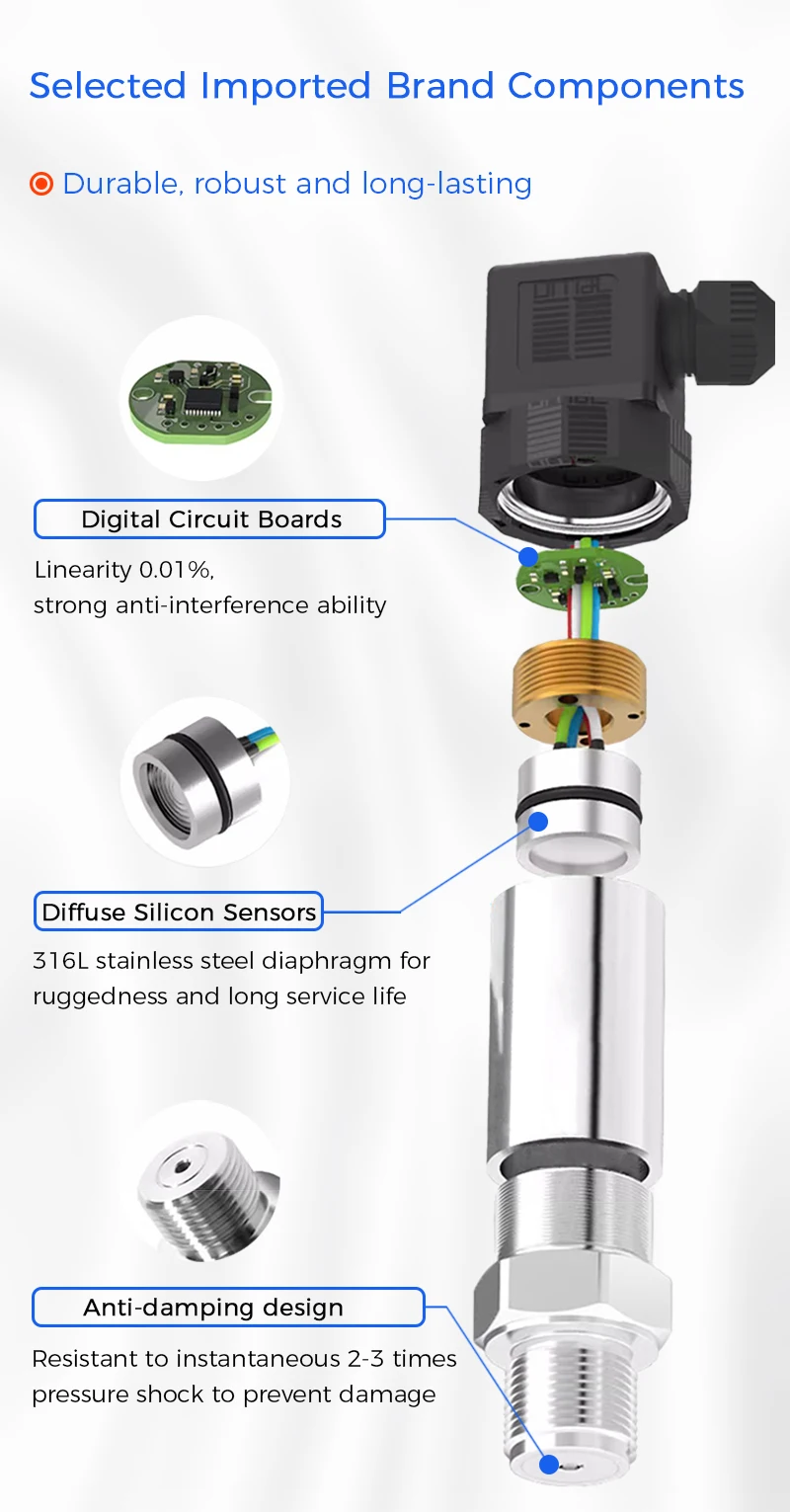

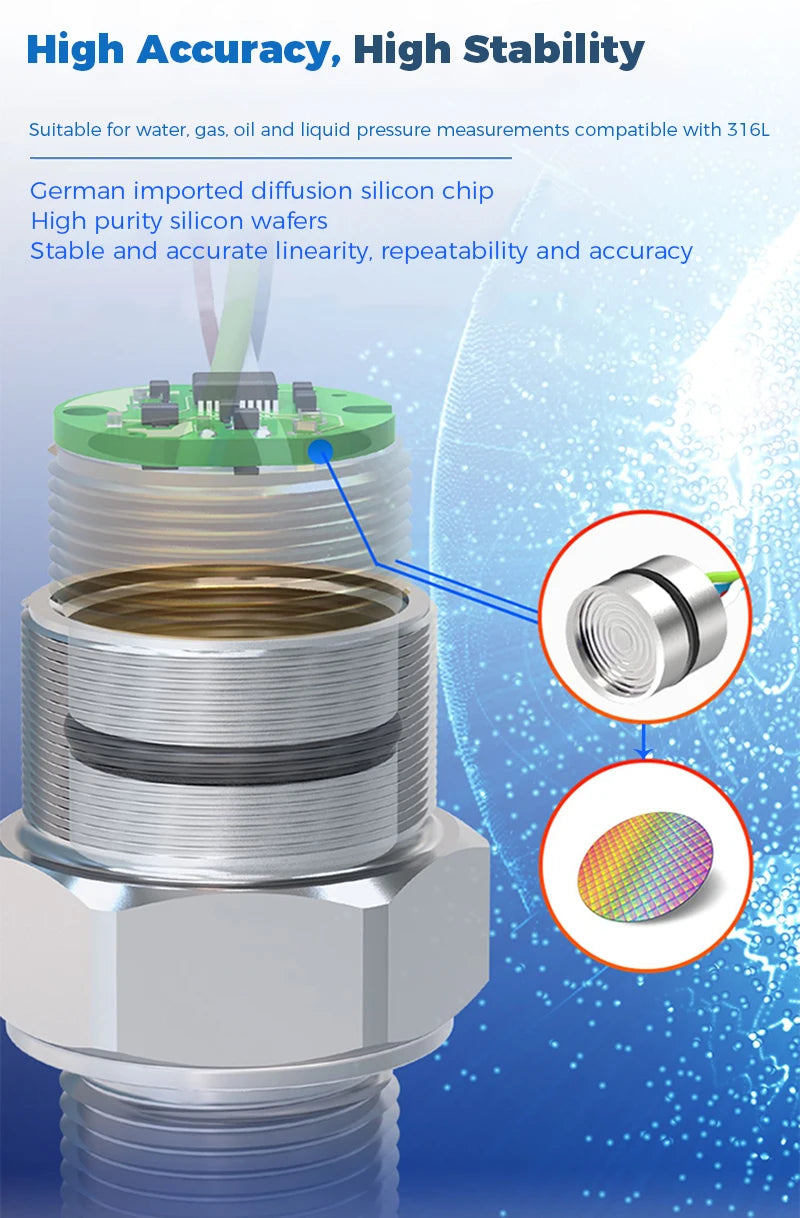

1.German imported diffusion silicon sensors have fast response, accurate and stable measurement.

2.Adopting diaphragm isolation technology, integrated core, wide voltage power supply.

3.Digital compensation and non-linear correction techniques are used.

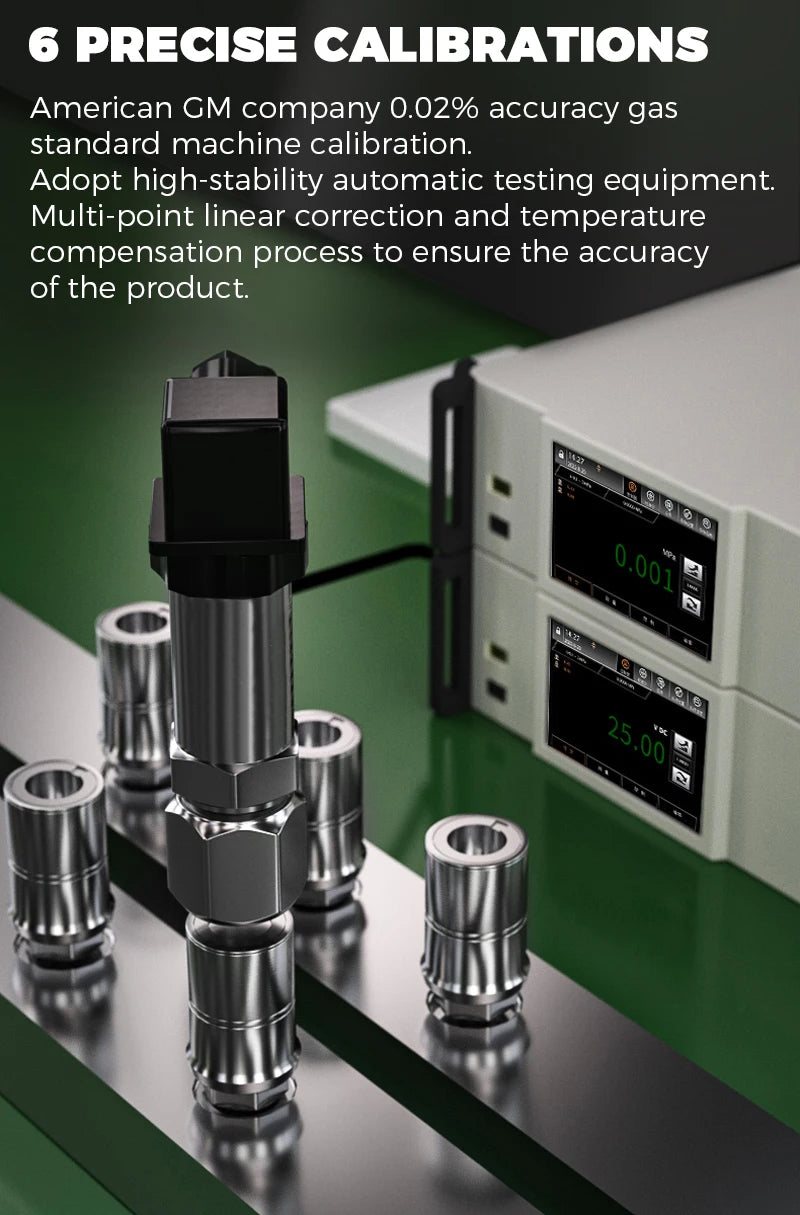

4.The product adopts 8-point standard calibration and 4-point
detection calibration, covering full range measurement.

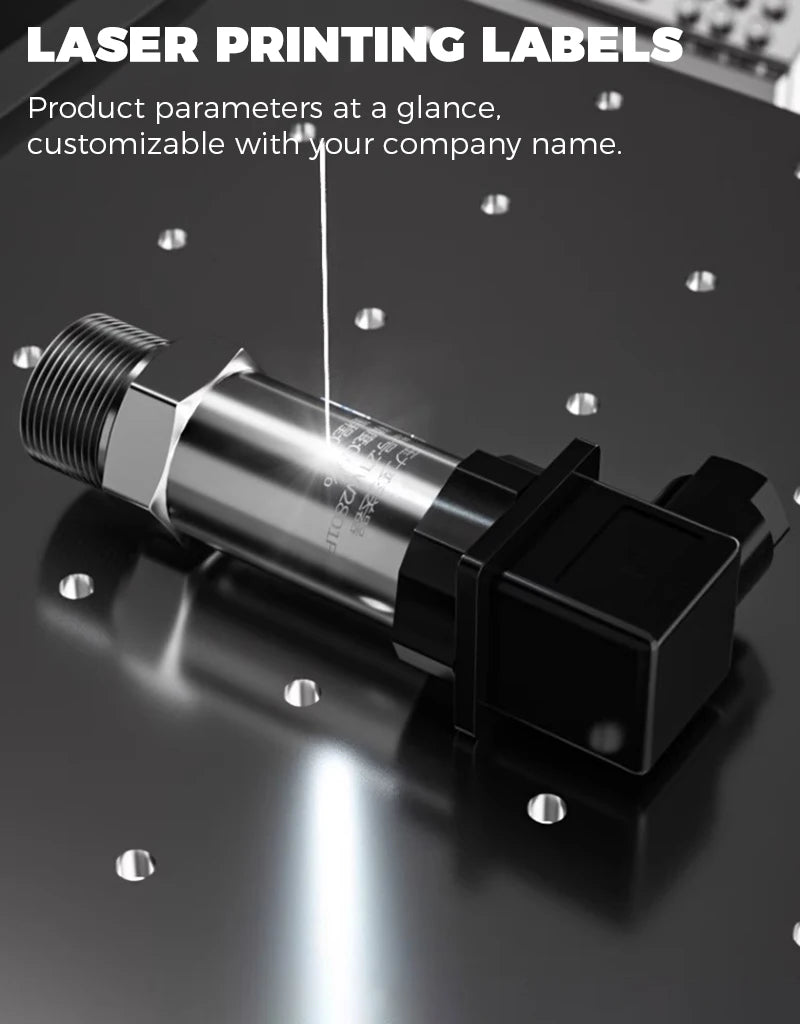

5.No moving parts inside for reliable performance. 6.Parameters and product labelling can be customised on request.

FAQ

1.How long is the delivery time?

The product can be shipped to you on the same day.

2.What if I don't have the required parameters?

Input, output, power supply, thread size and other parameters can be customized.

3.Can I customize my product label?
