SPECIFICATIONS

Application: -

Brand Name: XiangYangWei

Condition: New

Dissipation Power: international standard

High-concerned chemical: none

Operating Temperature: international standard

Origin: Mainland China

Supply Voltage: international standard

Type: Module

Features:
ATMEGA32U4 runs at 5V/16MHz
Supported I/O IDE V1.0.1
Micro USB interface programming on the board
4 10-bit ADC pins
12 digits for Arduino (5 PWM capability)
Rx and Tx hardware serial connection

illustrate:

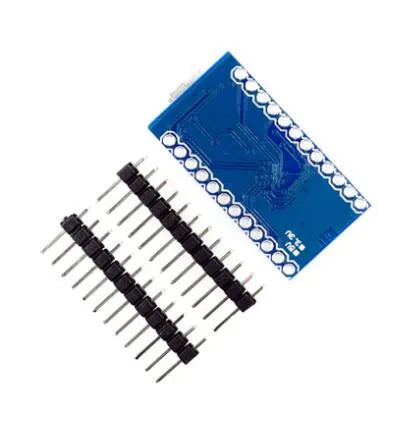

This small board does all the neat for Arduino skills: 4-channel 10-bit ADC, 5 PWM pins, 12 DIO and hardware serial connection Rx and Tx you are familiar with. Running at 16MHz and 5V, this committee will remind you for Arduino compatible boards you like, but this little guy can go anywhere. There is a voltage regulator on the ship, so it can accept voltages up to 12VDC. If you are supplying an unstable power supply board, be sure to connect to the "RAW" not VCC pin. This latest version fixes silk errors so that pin 14 is the correct marking. We also added a PTC fuse and diode to protect the power supply circuit and corrected the RX and TX LED circuits
