Programmable Signal Isolator with Optical Isolation

The HHD programmable signal isolator is designed for signal isolation, distribution, conversion, and transmitter power supply in industrial automation systems. Its optical isolation technology provides an isolation withstand voltage of up to 2500 V, helping eliminate ground loops, reduce electrical interference, and protect PLCs, controllers, and data acquisition equipment.

With accuracy up to ±0.1%, the device supports configurable 4–20 mA, 0–10 V, 0–5 V, and RS485 Modbus RTU input and output signals, depending on the selected model. It can convert different signal types, distribute one input signal to multiple isolated outputs, and provide power to field transmitters.

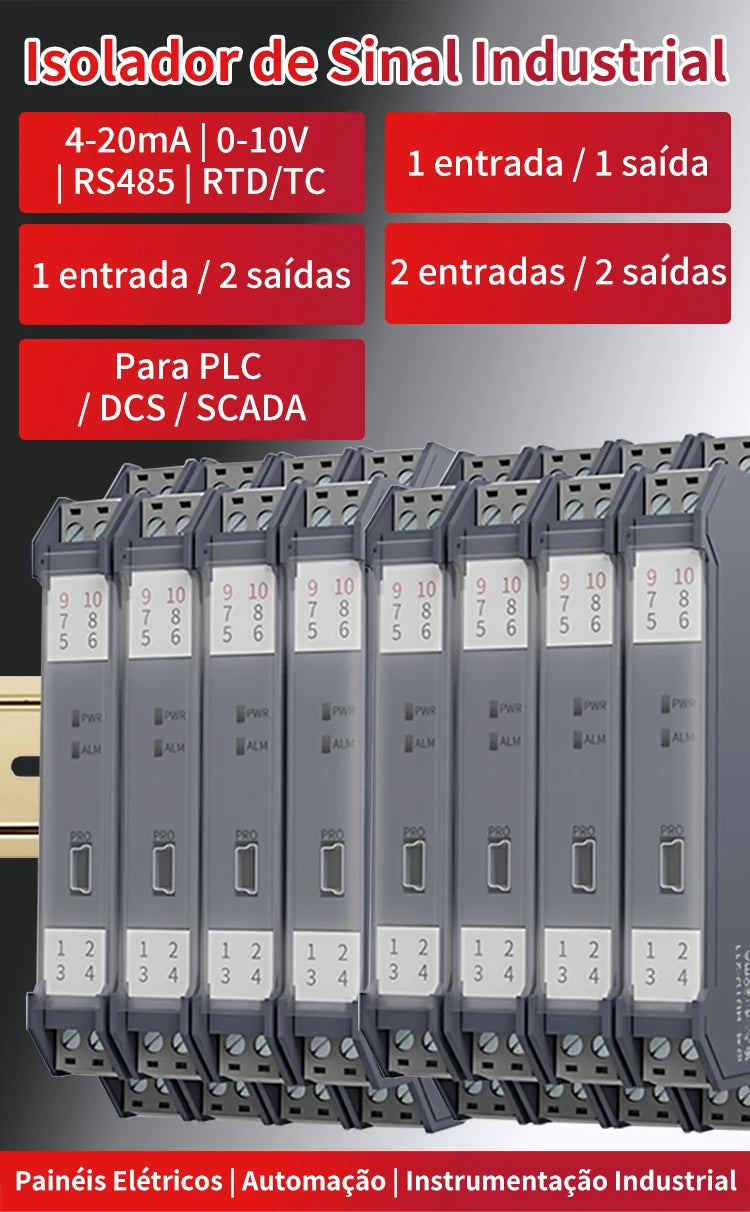

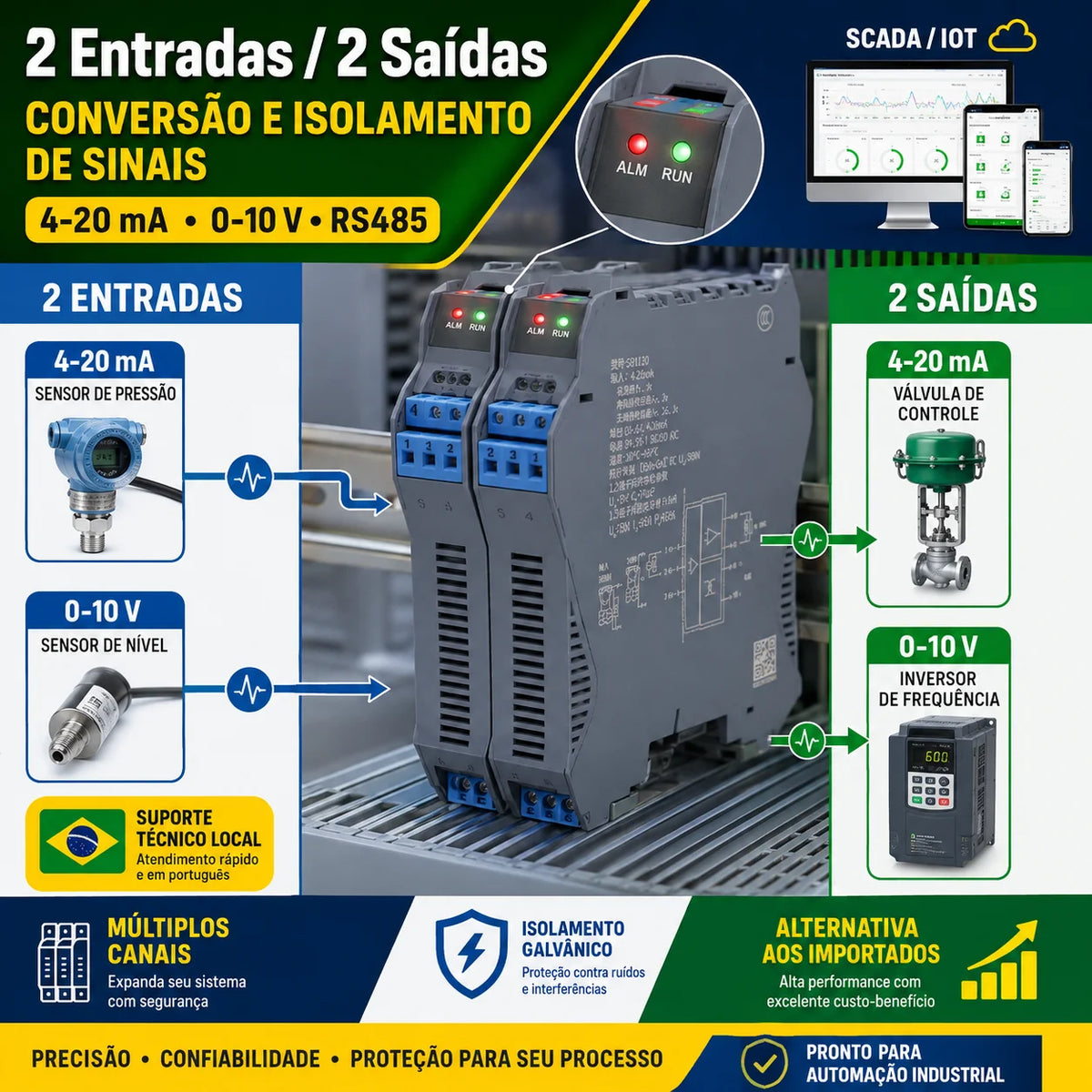

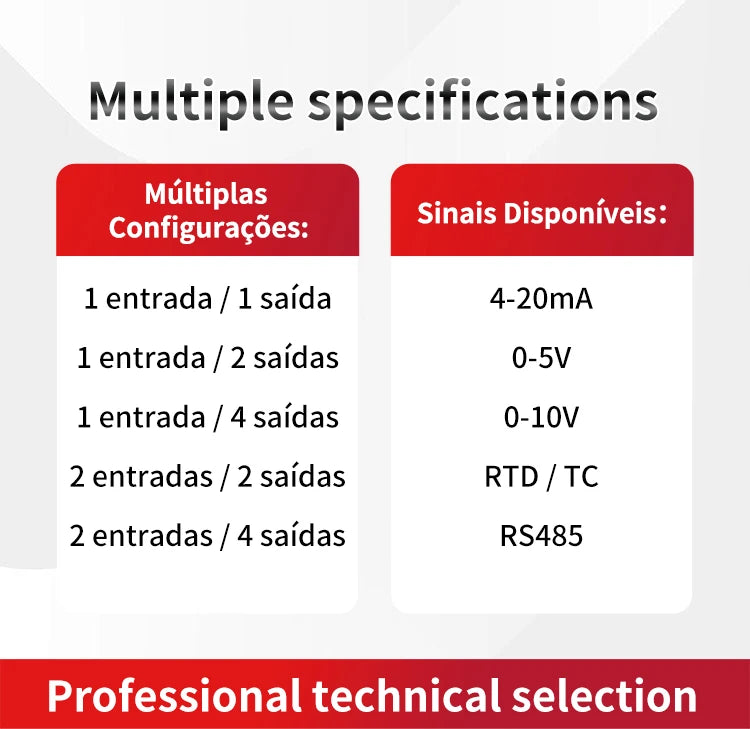

Available channel configurations include 1 input/1 output, 1 input/2 outputs, 1 input/3 outputs, 1 input/4 outputs, and 2 inputs/2 outputs. The compact structure is suitable for installation inside control cabinets and easy integration with PLC, HMI, SCADA, industrial IoT, and remote monitoring systems.

Technical Specifications

Parameter	Specification
Product	Programmable Signal Isolator

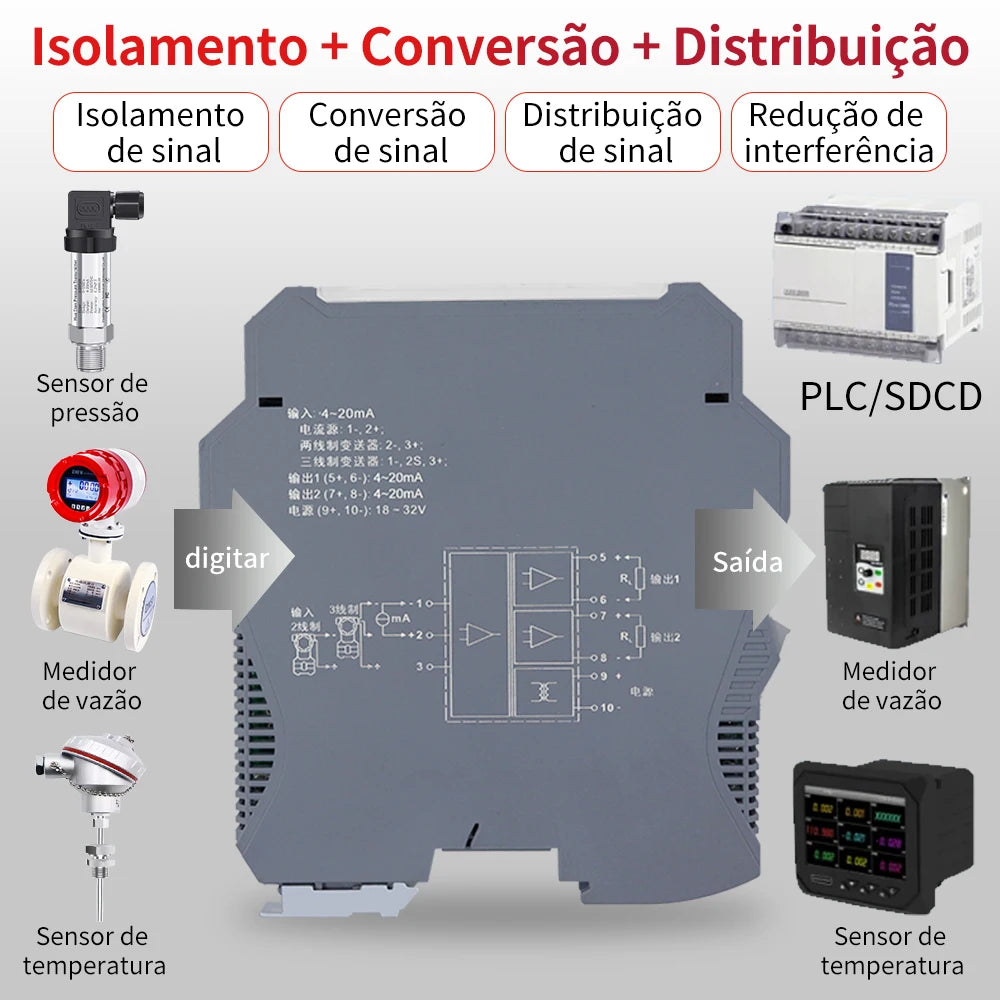

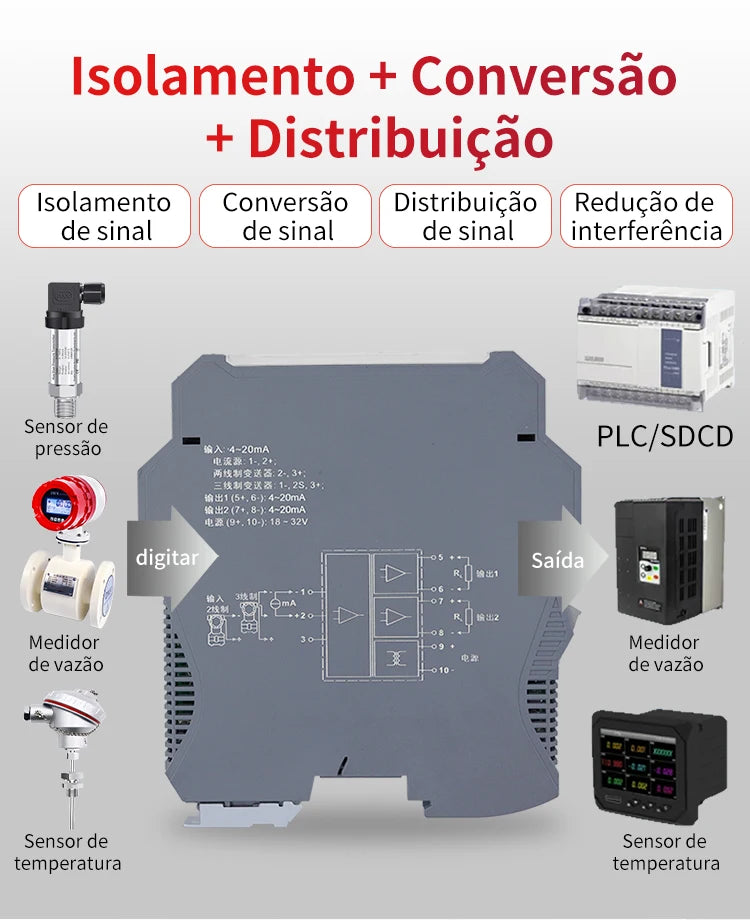

Main Functions	Signal isolation, conversion, distribution, and transmitter power supply
Isolation Method	Optical isolation
Isolation Withstand Voltage	Up to 2500 V
Accuracy	Up to ±0.1%
Supported Input Signals	4–20 mA, 0–10 V, 0–5 V, or RS485
Supported Output Signals	4–20 mA, 0–10 V, 0–5 V, or RS485 Modbus RTU

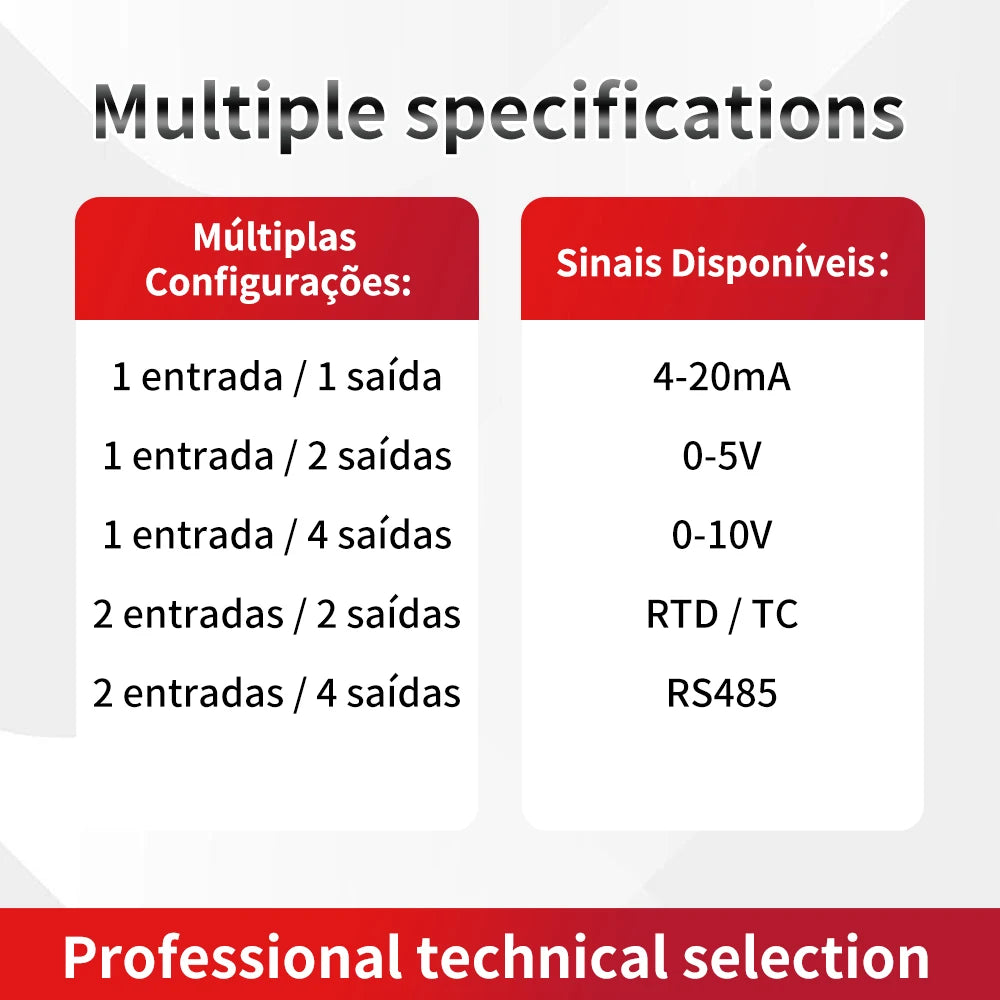

Channel Configurations	1-in/1-out, 1-in/2-out, 1-in/3-out, 1-in/4-out, or 2-in/2-out
Signal Conversion	Current, voltage, and RS485 signal conversion according to model
Signal Distribution	One input signal can be distributed to multiple isolated outputs
Transmitter Power Supply	Available according to the selected model

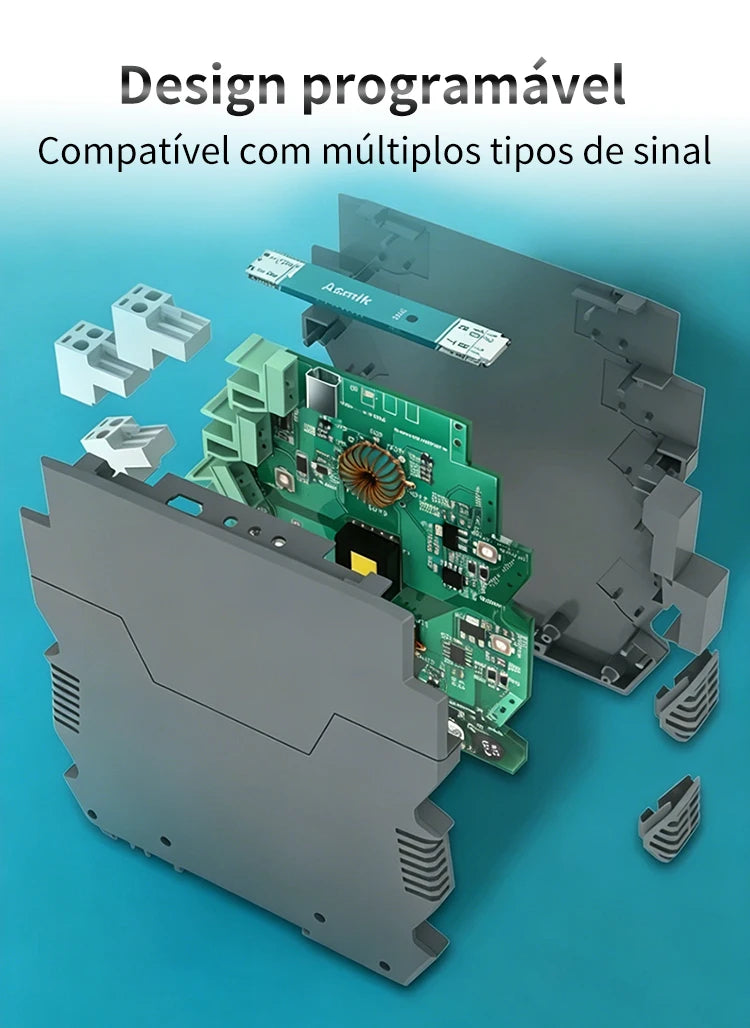

Programming	Configurable input and output signal ranges

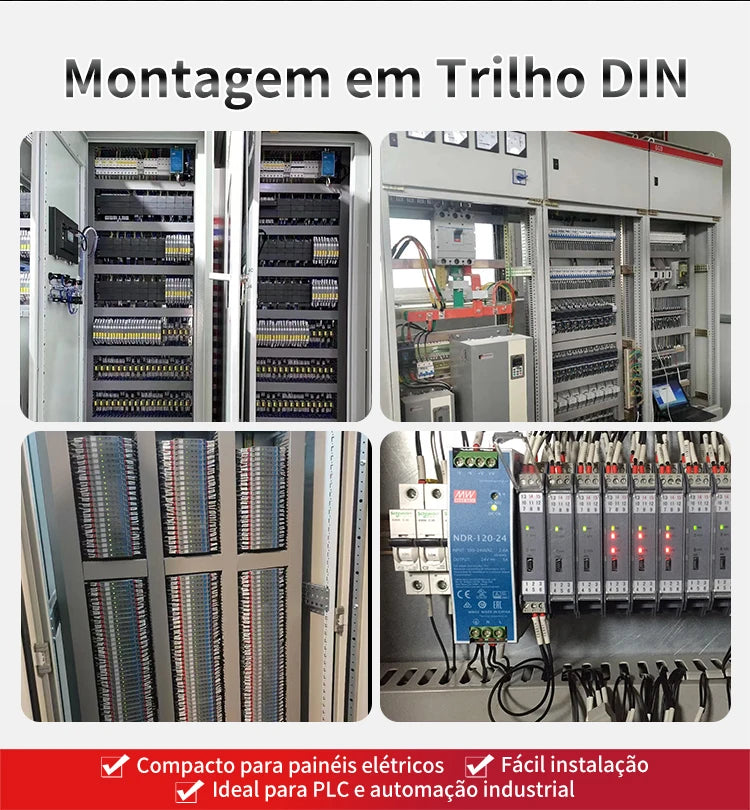

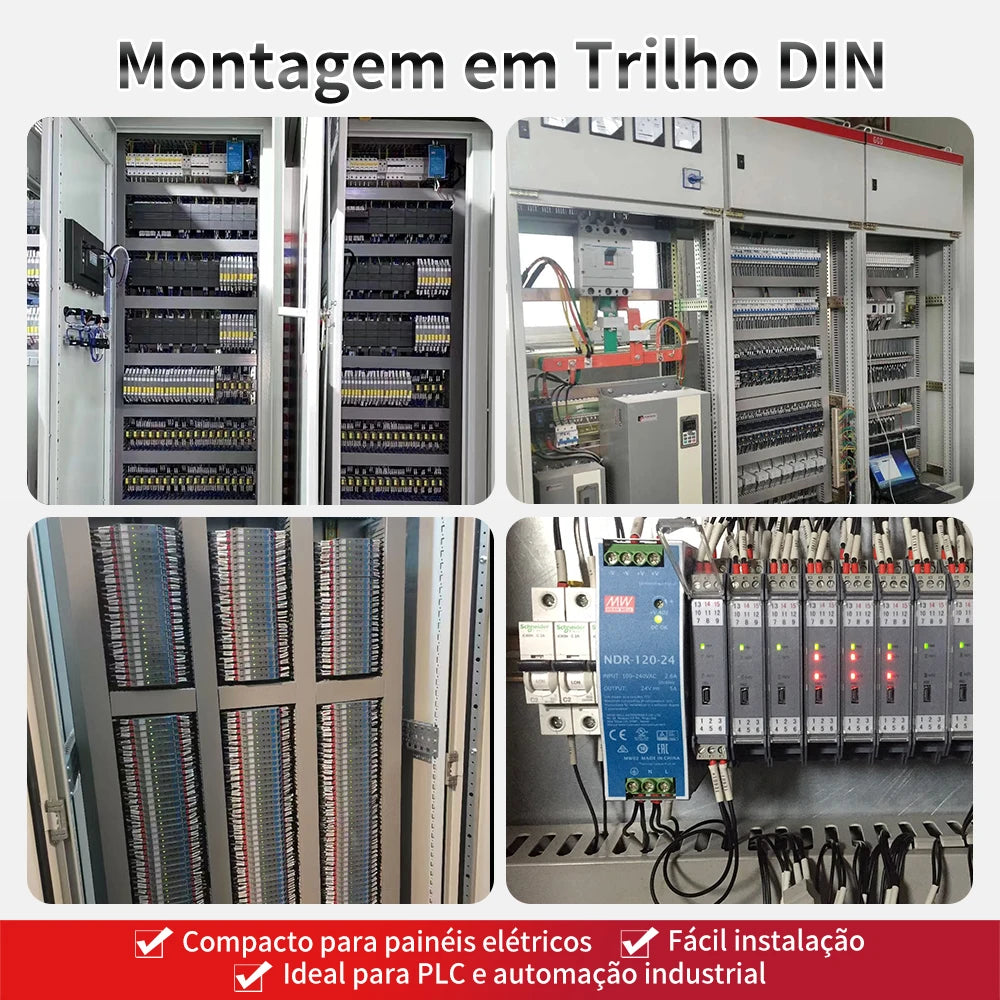

Installation	Control cabinets, electrical panels, and automation systems
System Integration	PLC, HMI, SCADA, IoT, and data acquisition systems
Customization	Signals, channels, power supply, label, logo, and OEM packaging

Our Advantages

Local technical support for model selection, configuration, installation, and troubleshooting
Selected specifications available from local warehouses for faster delivery
Cost-effective alternative to European and American brands
OEM/ODM customization and project-based volume supply
We are recruiting distributors, sales agents, system integrators, and channel partners

For correct model selection, please provide the input signal, output signal, channel configuration, power supply, transmitter power requirement, communication protocol, and order quantity.
