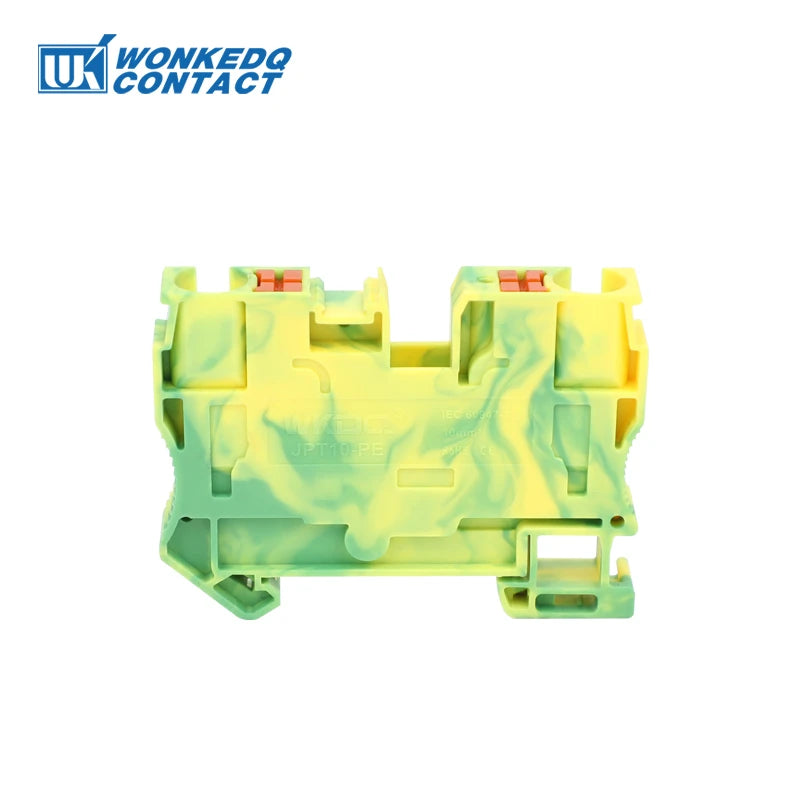

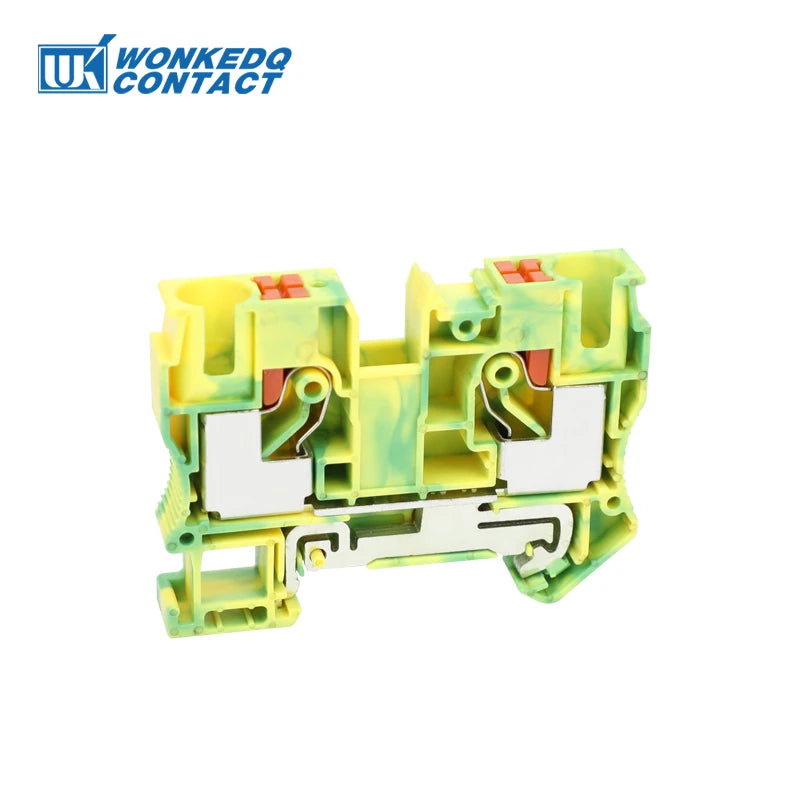

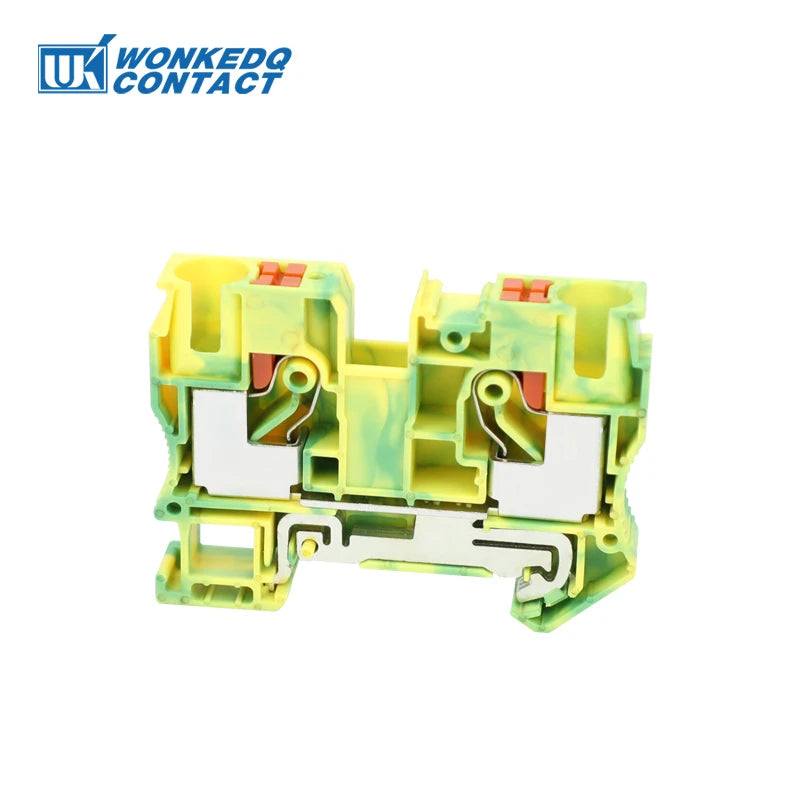

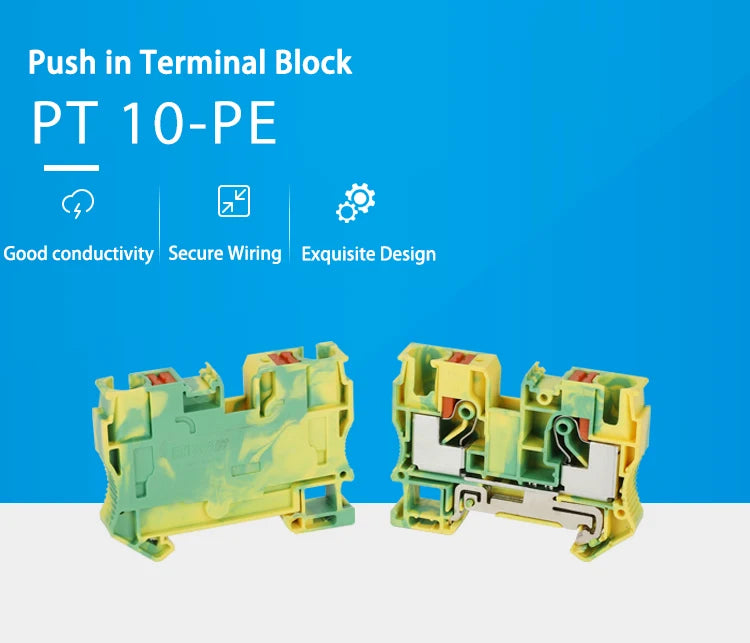

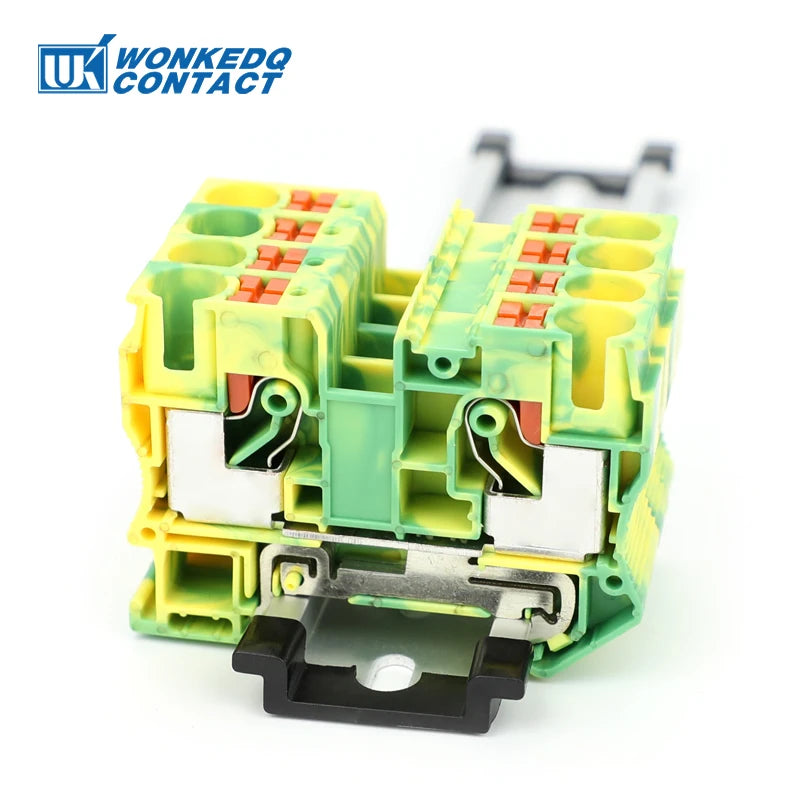

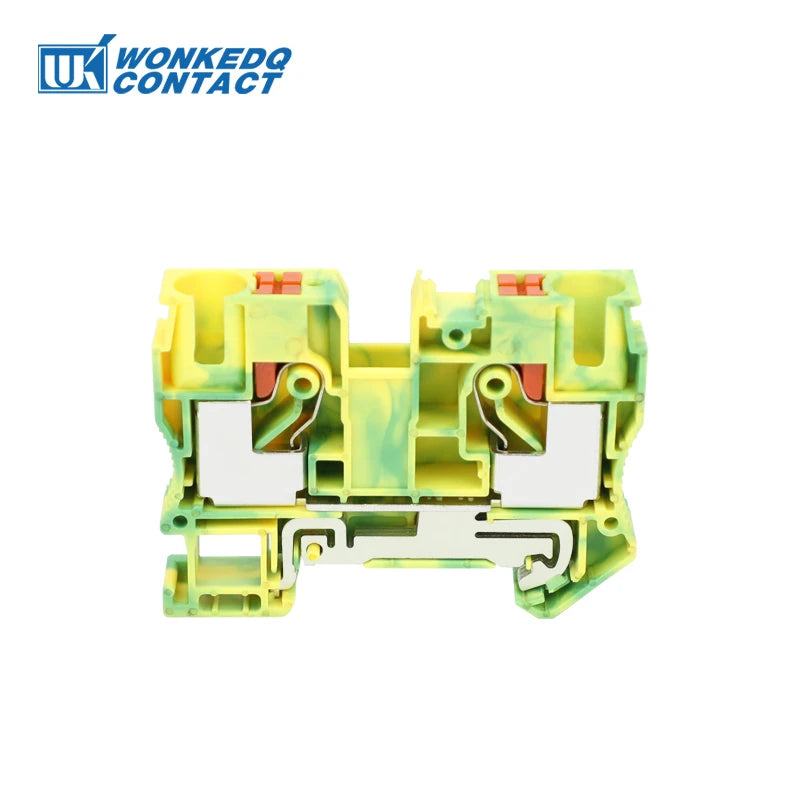

PT10-PE Push-in Ground Feed Through Din Rail Terminal Block 10mm² Protective Earth Plug Wire Electrical Connector PT 10-PE
PT10-PE / 10 Pcs
$134.20
Sale price
$134.20
Regular price
$0.00
Skip to product information
PT10-PE Push-in Ground Feed Through Din Rail Terminal Block 10mm² Protective Earth Plug Wire Electrical Connector PT 10-PE
$134.20
Sale price
$134.20
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: WONKEDQ
Certification: CE,RoHS
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: PT 10-PE
Origin: Mainland China
Type: Push-in Terminal
DESCRIPTION

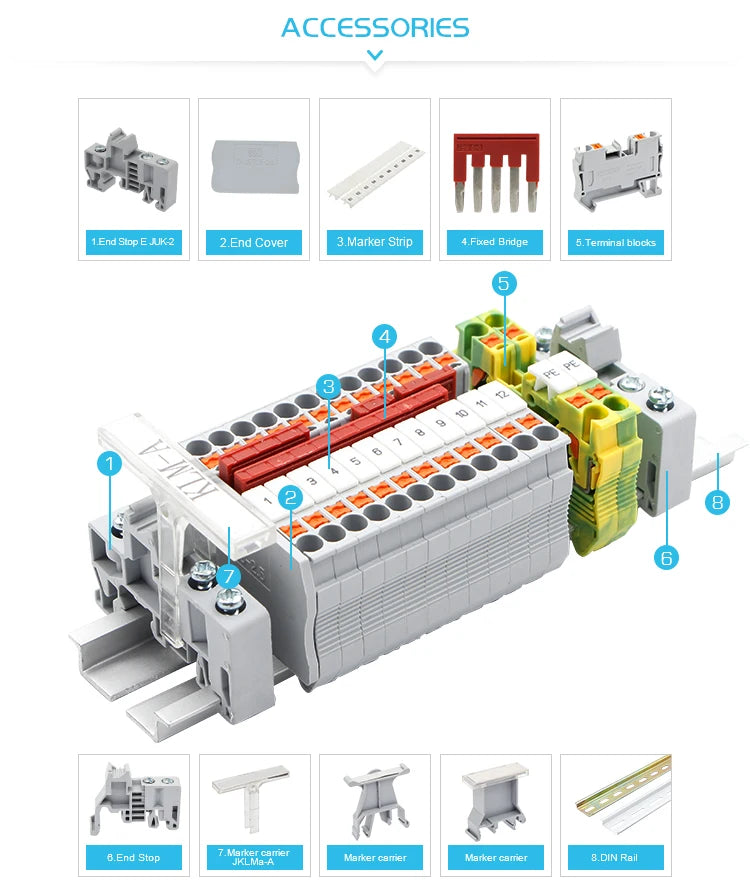

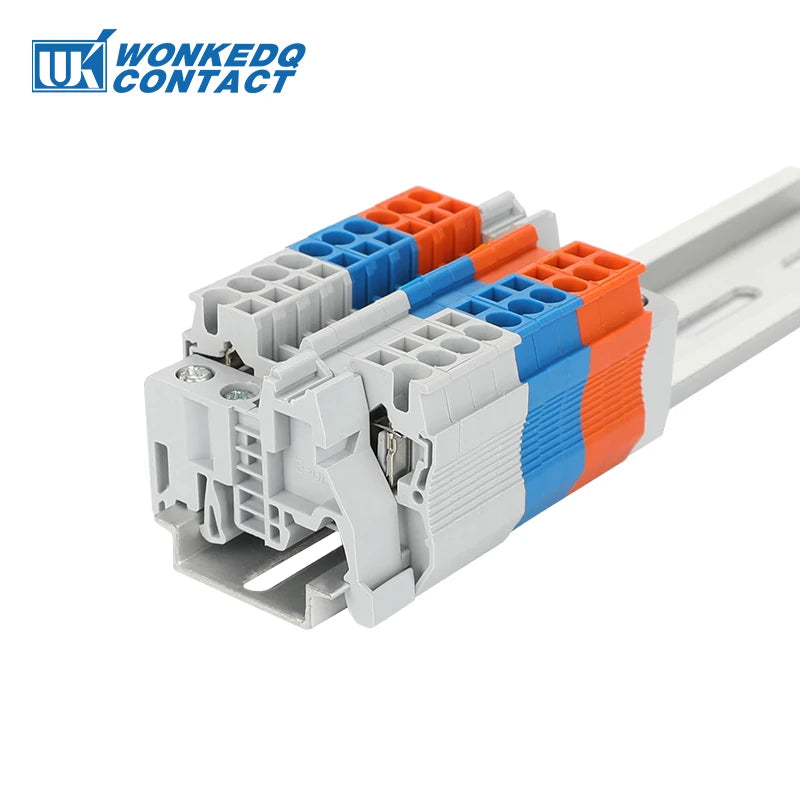

ACCESSORIES( Click the pictures to the links)
|
|
|
|
End Cover |

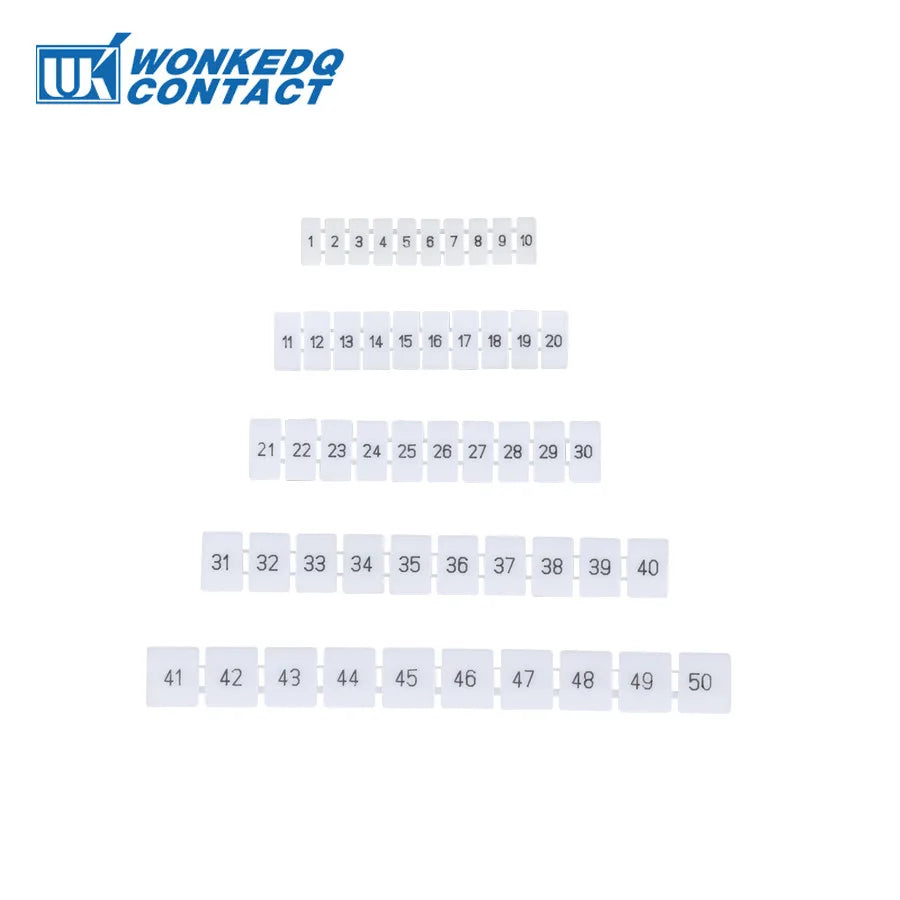

Marker Strips |

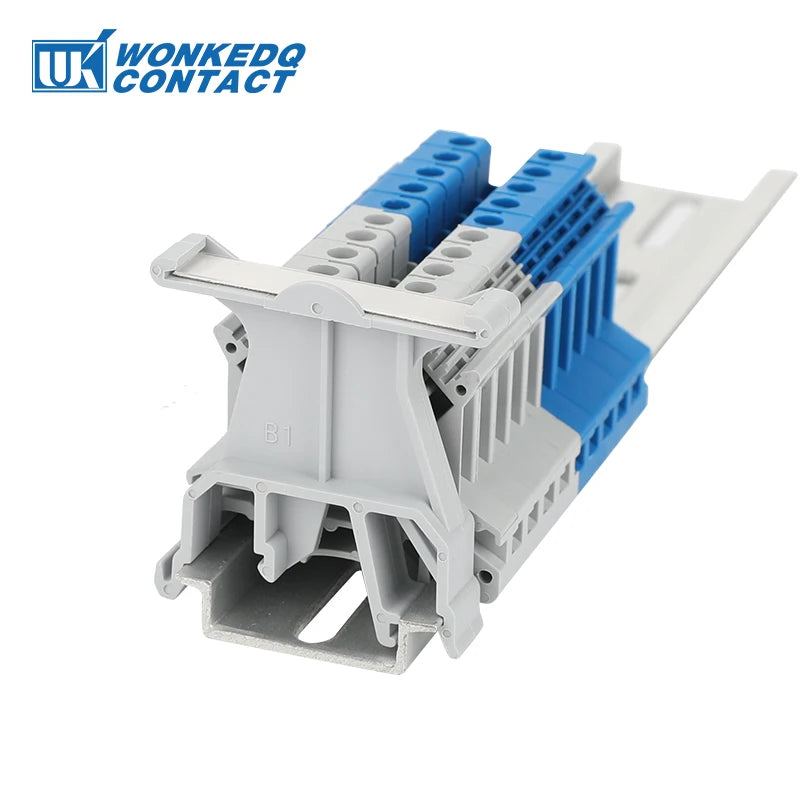

End Stop |

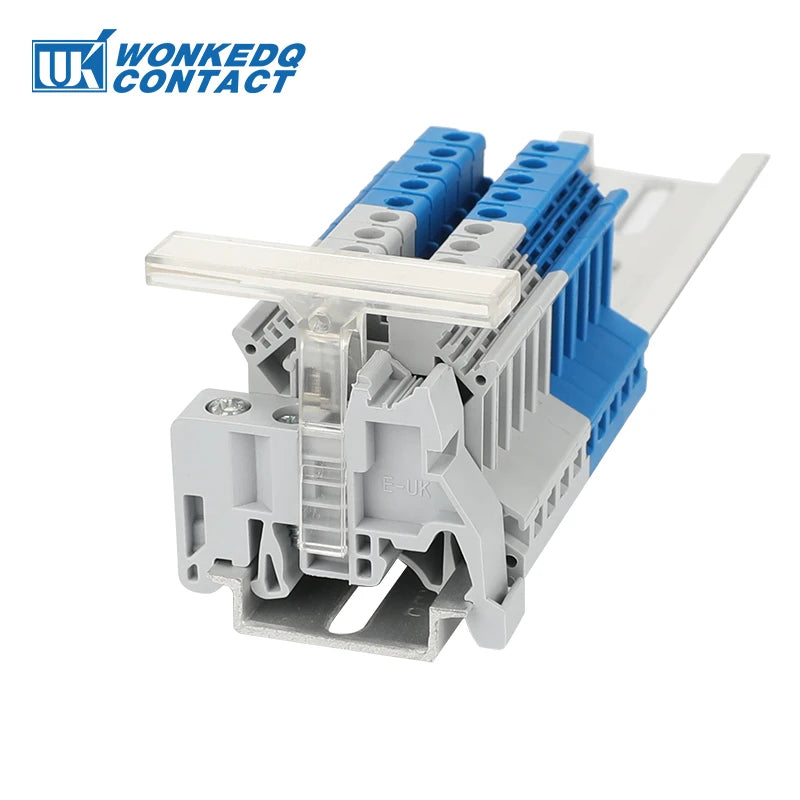

Marker Carrier |
|
|
|
|
Marker Clips |

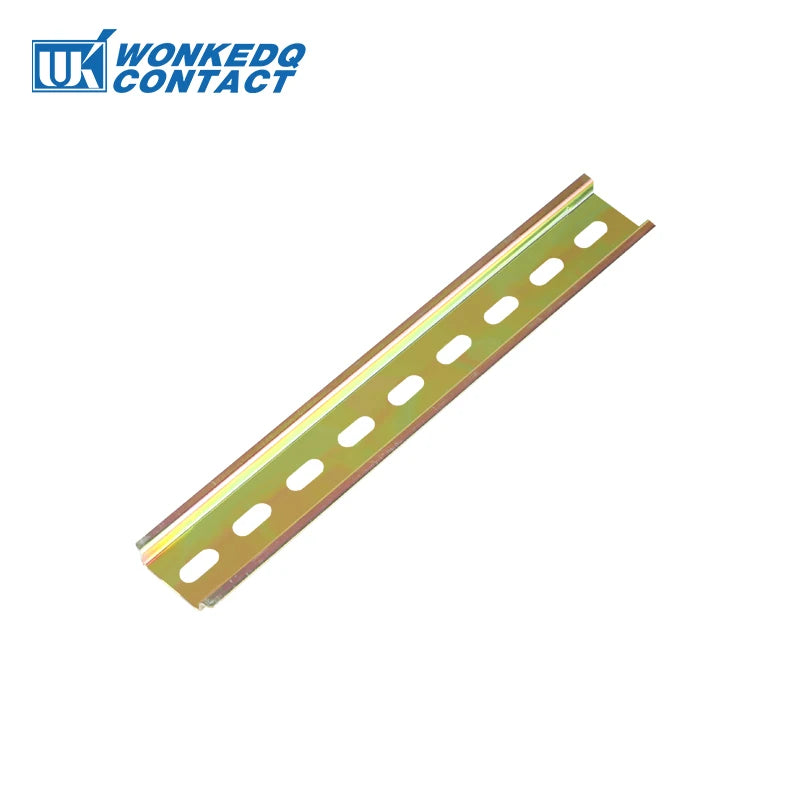

Din Rail |
RECOMMEND |
RECOMMEND |
Type No. |
Details |
Accessories |
PT 10-PE |

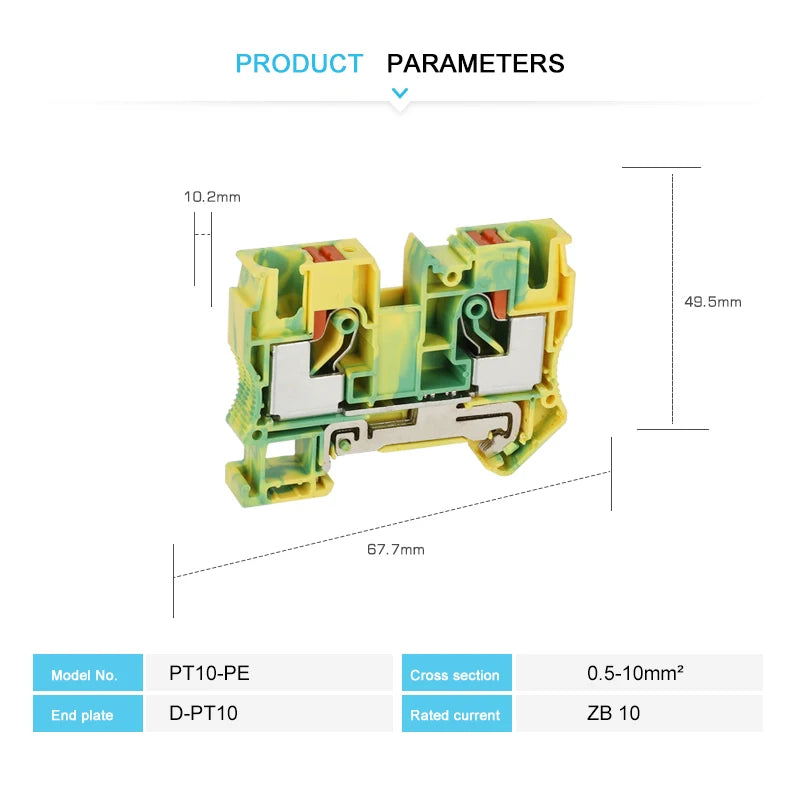

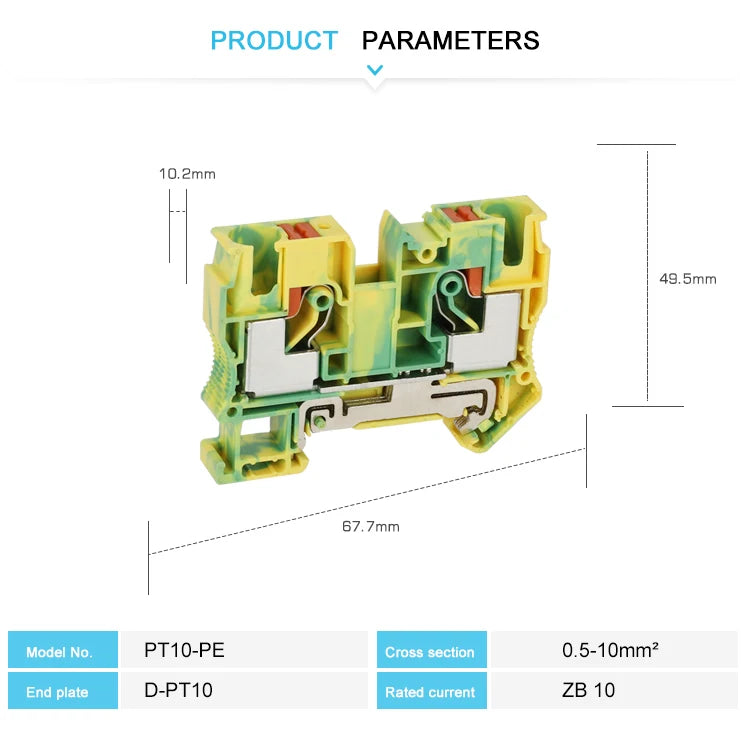

0.5-16mm²/0.5-10mm² L67.7/H49.5/W10.2 mm |
End cover: |
Marker strip: |
Technical Parameters
Model Number |
PT 10-PE |
Color |
Green and Yellow |
Length/Wide/Height (mm) |
68/50/10.2 |
Connection method |
Push-in connection |
Material |
Flame resistant Nylon PA66, Tin plated brass conductor |
Rated Voltage/Current |
1000V/57A |
Cross section, solid/soft Cable |
0.5-16mm² / 0.5-10 mm² |
Conductor Size |
16-6 AWG |
Mounting Type |
DIN Rail NS 35 |
Standard |
IEC 60947-7-1 |
LOGO |
WonkeDQ, LOGO can be customized |
Packing Detail |
35.1g/pc, 40PCS/BOX |
Certification |
CE/RoHS/CQC/ISO 9001 |
