Description

SPECIFICATIONS

Brand Name: sweideer

Button contact: 1NO/1NC/1NO1NC/2NO

Certification: CE,CCC,CCC,ce

Choice: yes

Contact material: Silver contact

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Waterproof

High-concerned chemical: none

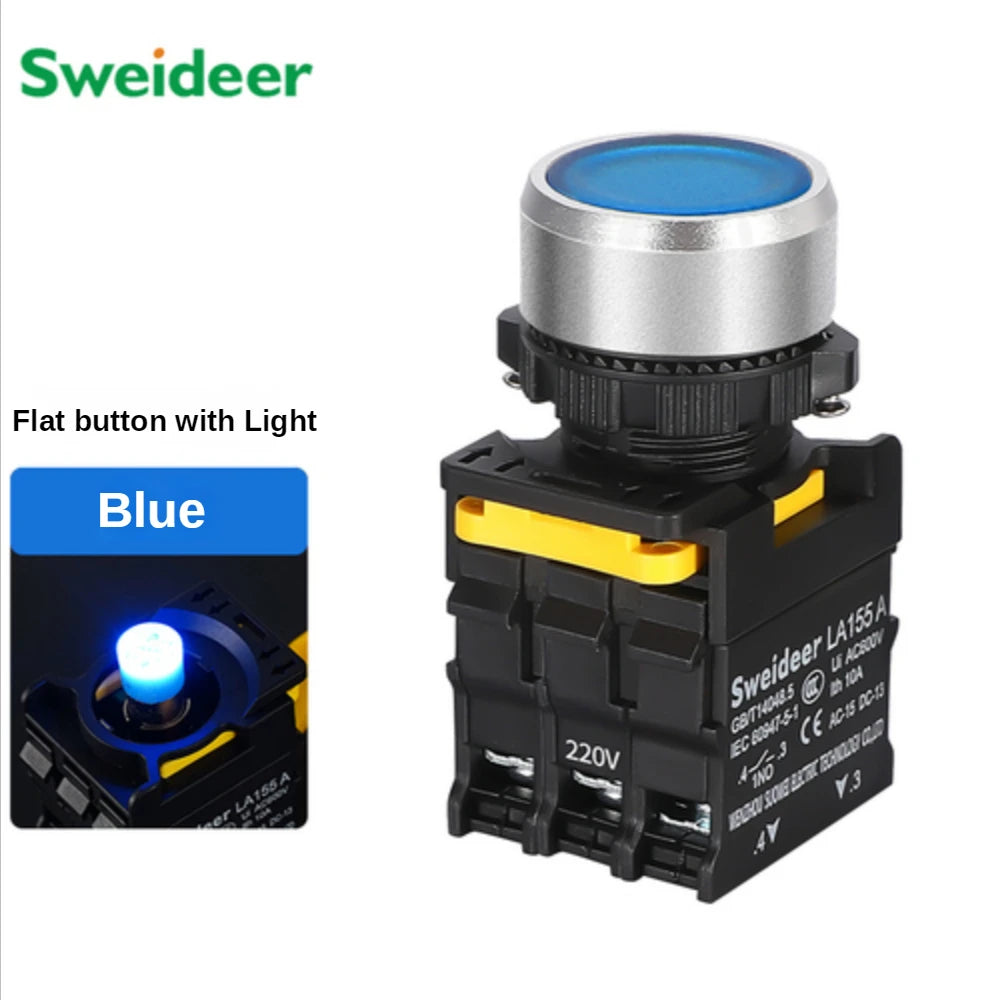

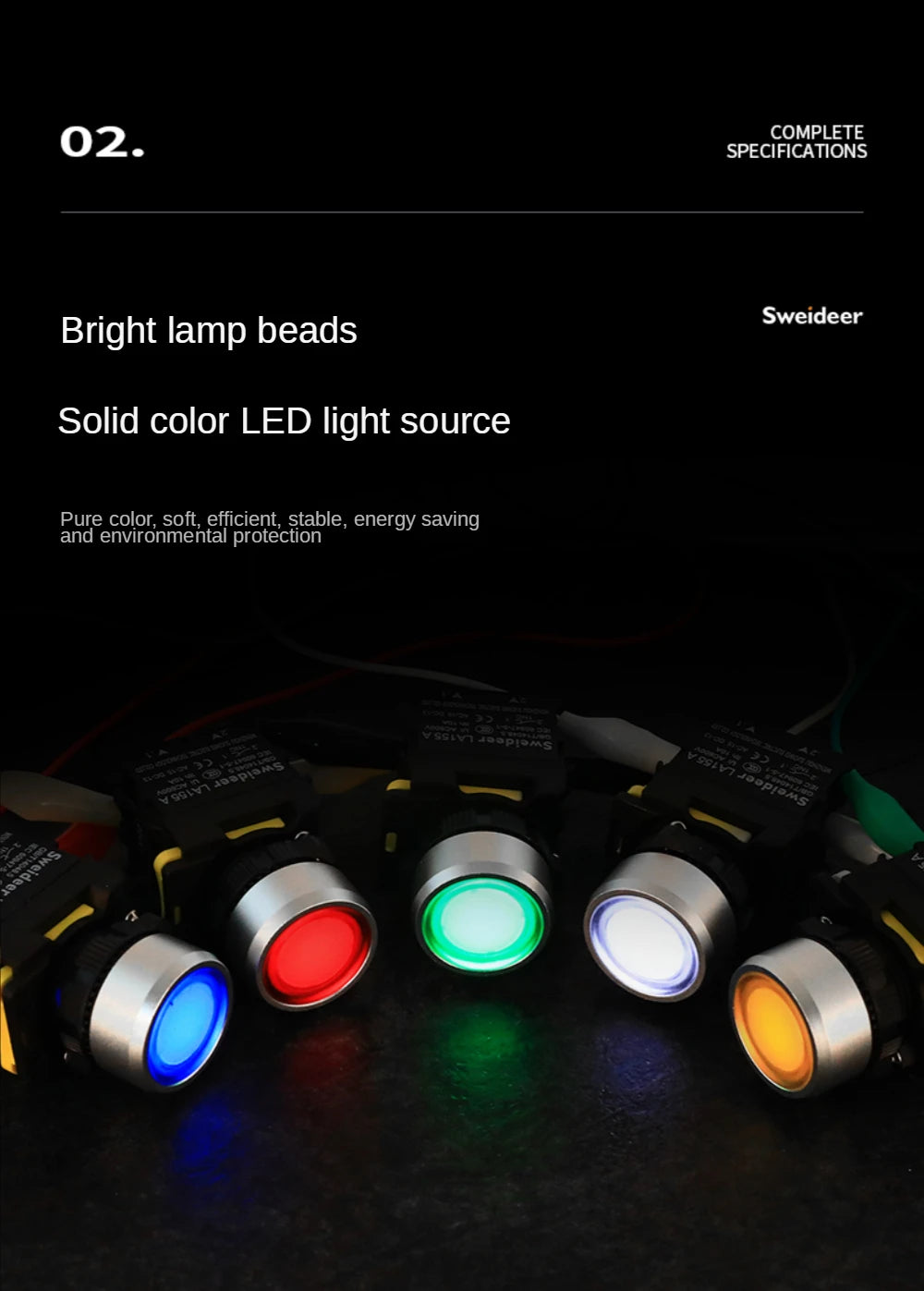

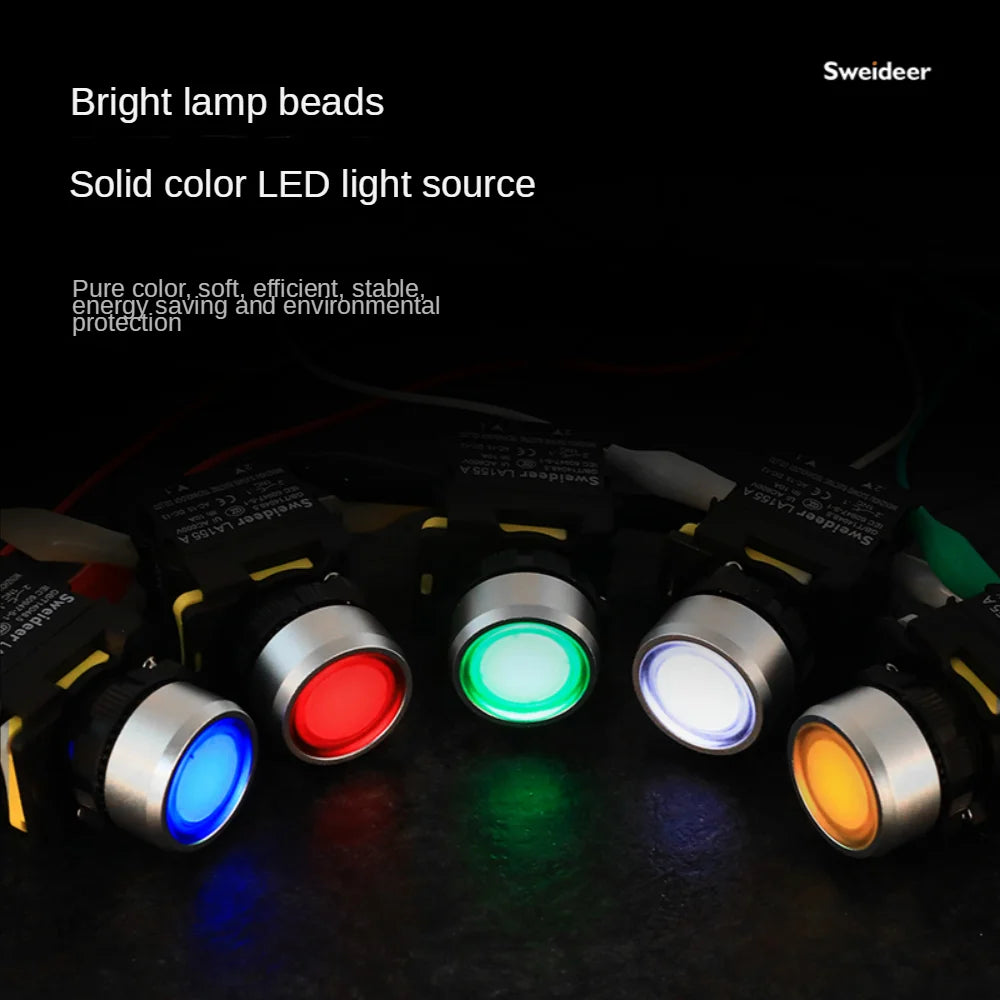

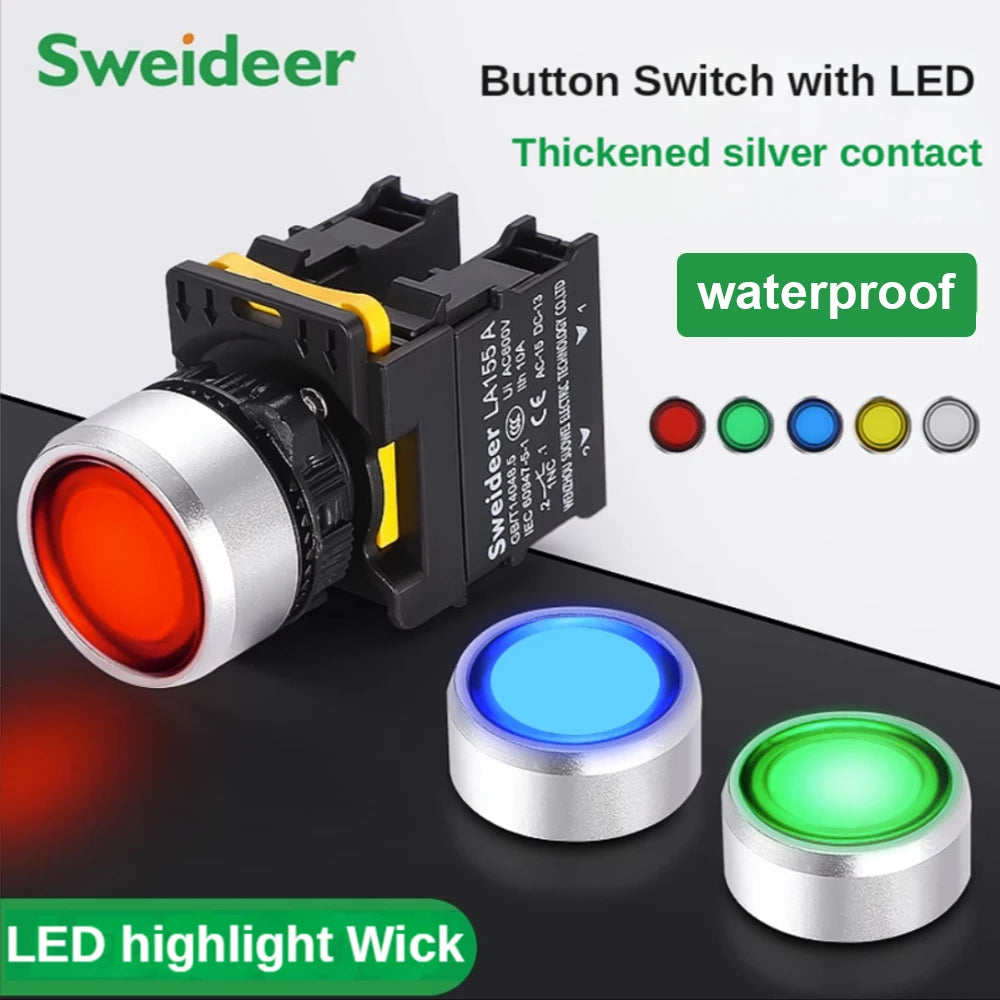

Illuminated Color: red/green/blue/white/yellow

Is Smart Device: no

Item Type: SWITCHES

Material: Alloy

Model Number: Push Button Switch with Light

Opening diameter: 22MM

Origin: Mainland China

Push Button: on Off Switch

Switch Type: Push Button Switch

Voltage Available: 12V,24V,220V,110V,380V

Warranty: 1 Year

Waterproof Power Switch with Light 12V: momentary switch

semi_Choice: yes

Product Specification

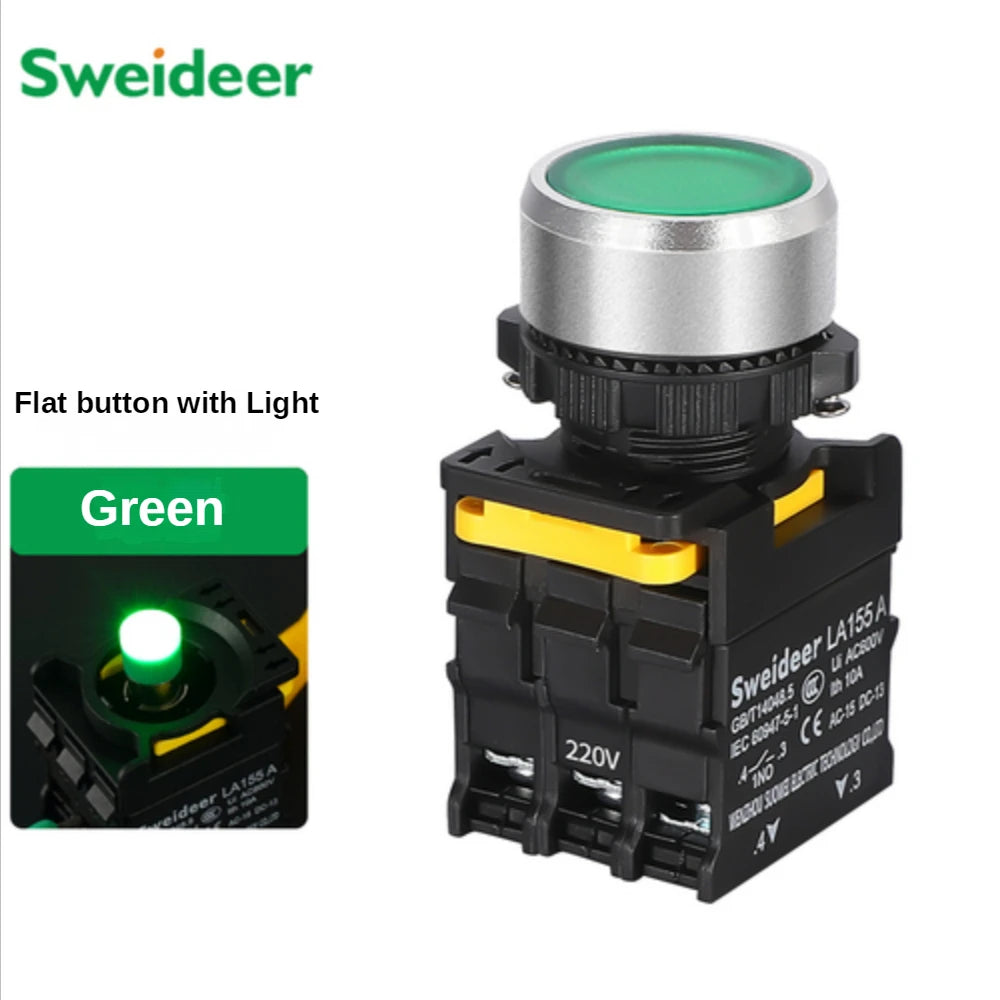

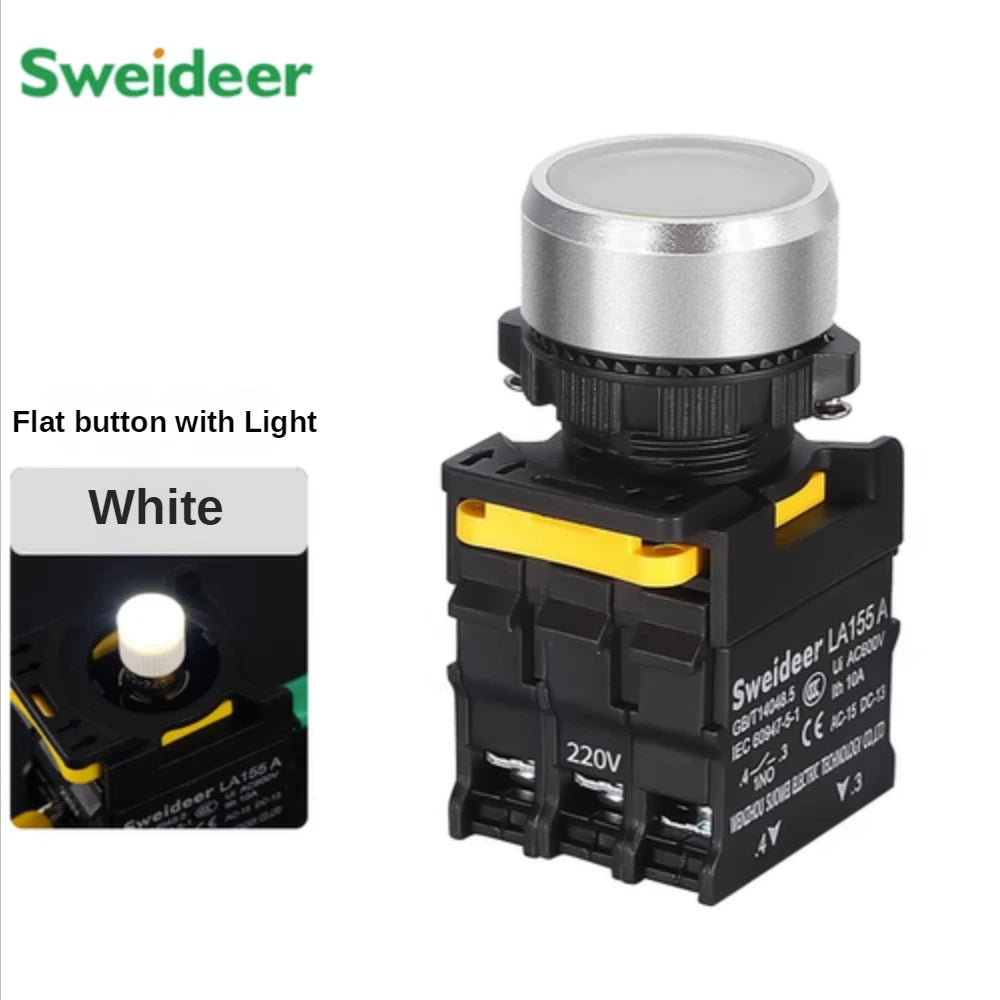

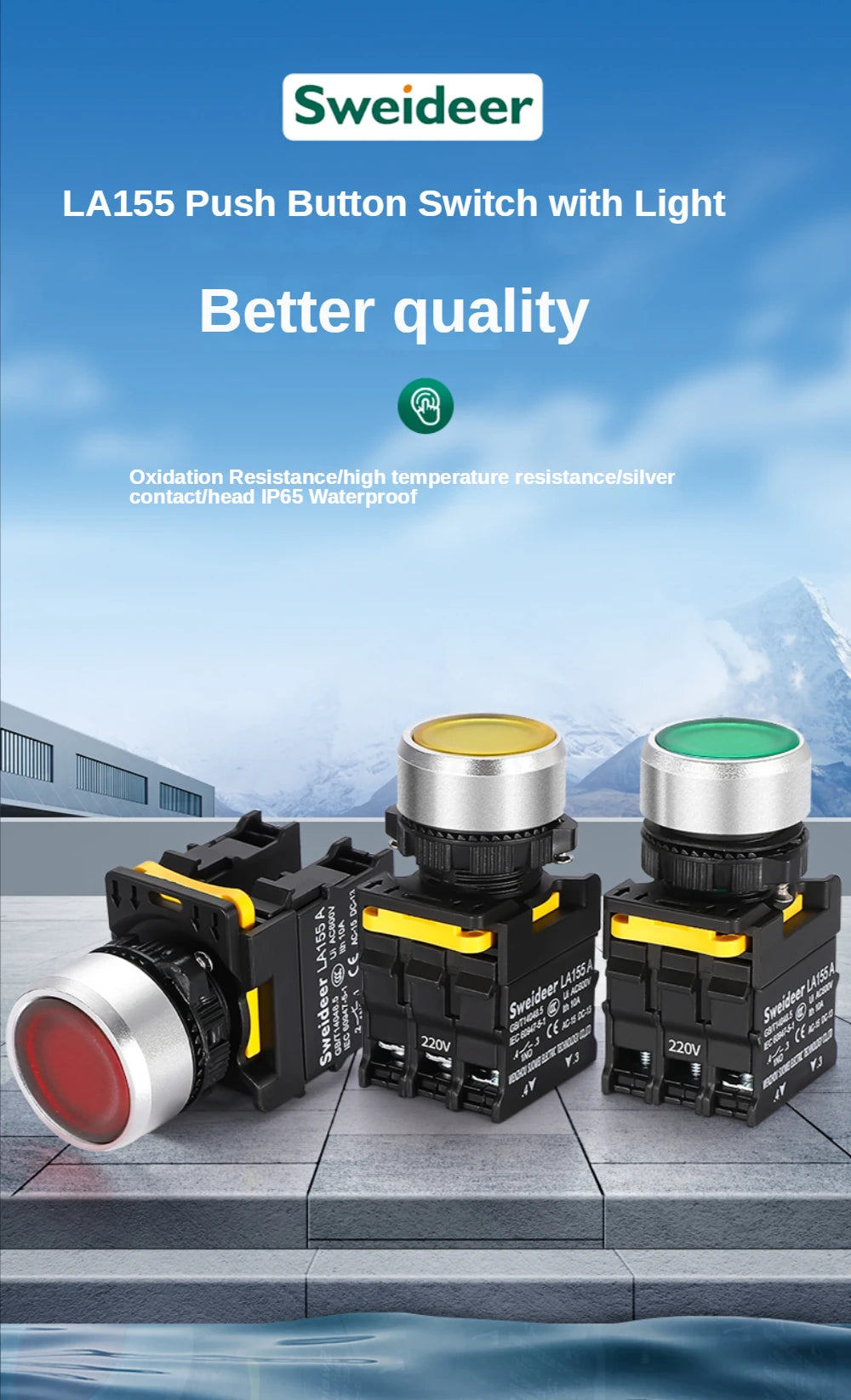

Product name: Push Button Switch with Light

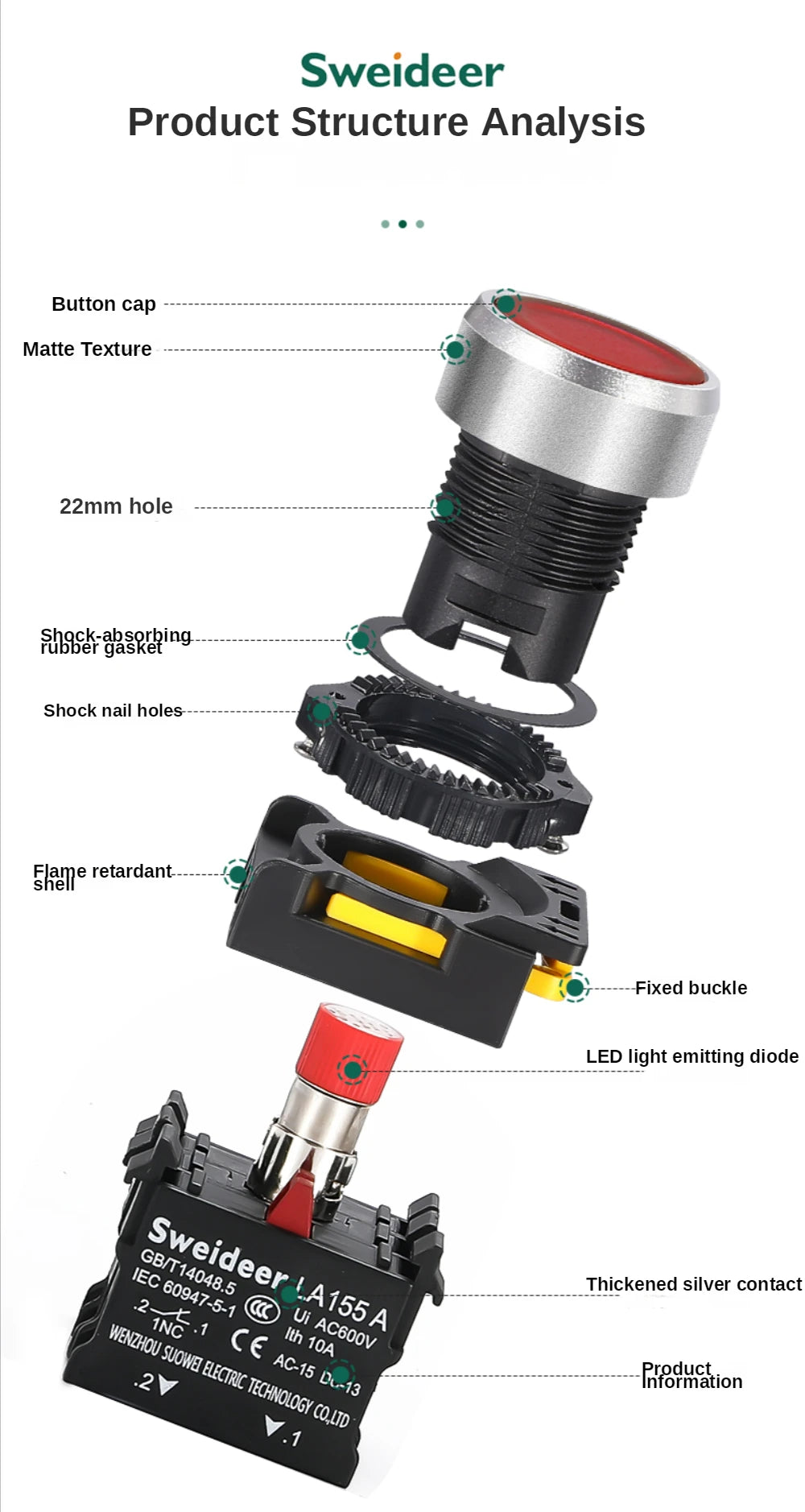

Contact material: Silver contact
Rated current: 10A

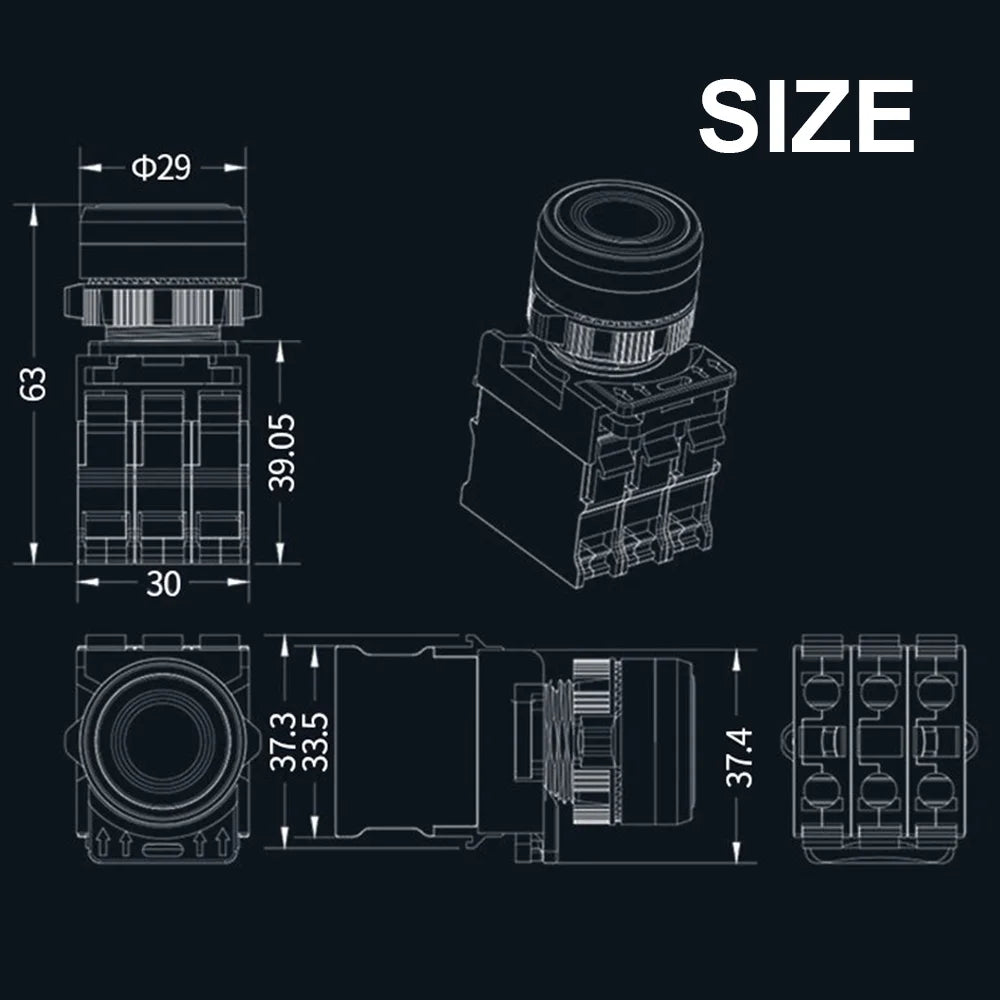

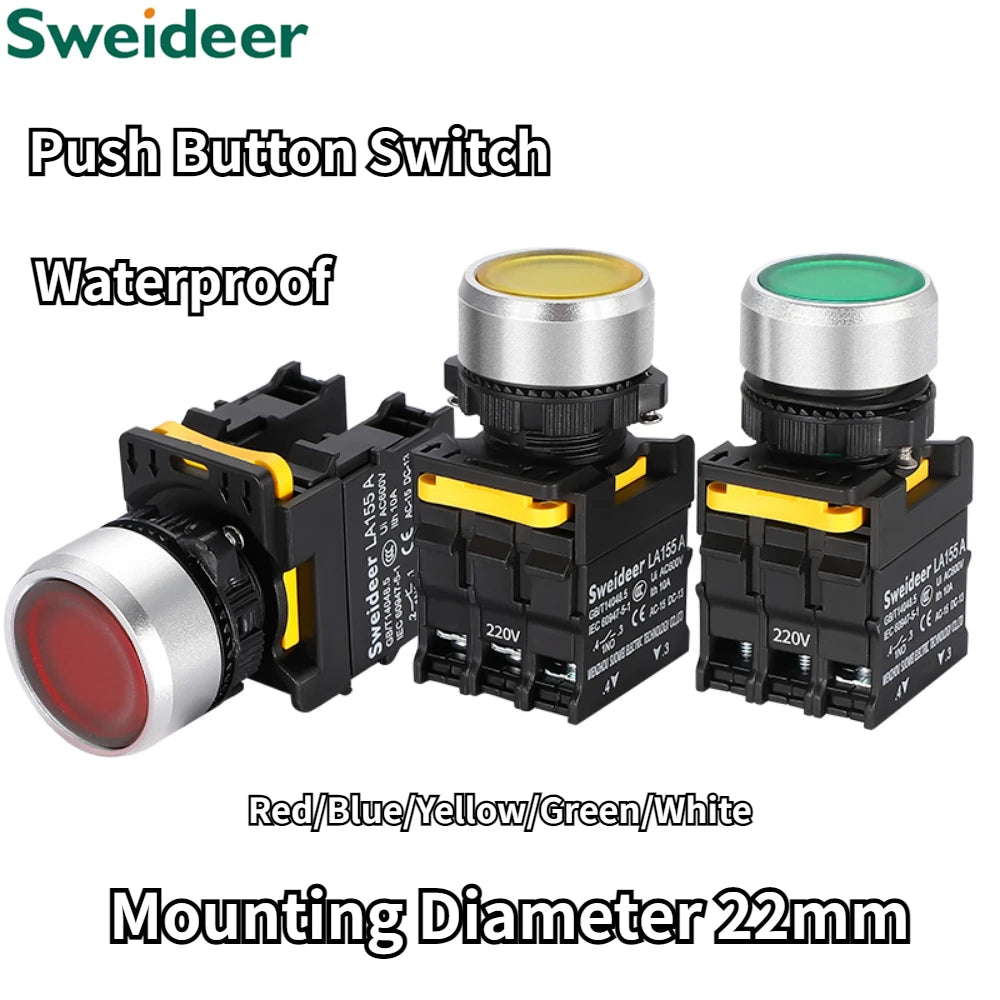

Opening diameter: 22MM
Button contact: 1NO/1NC/1NO1NC/2NO
Operation mode: Momentary self-reset / fixed self-locking

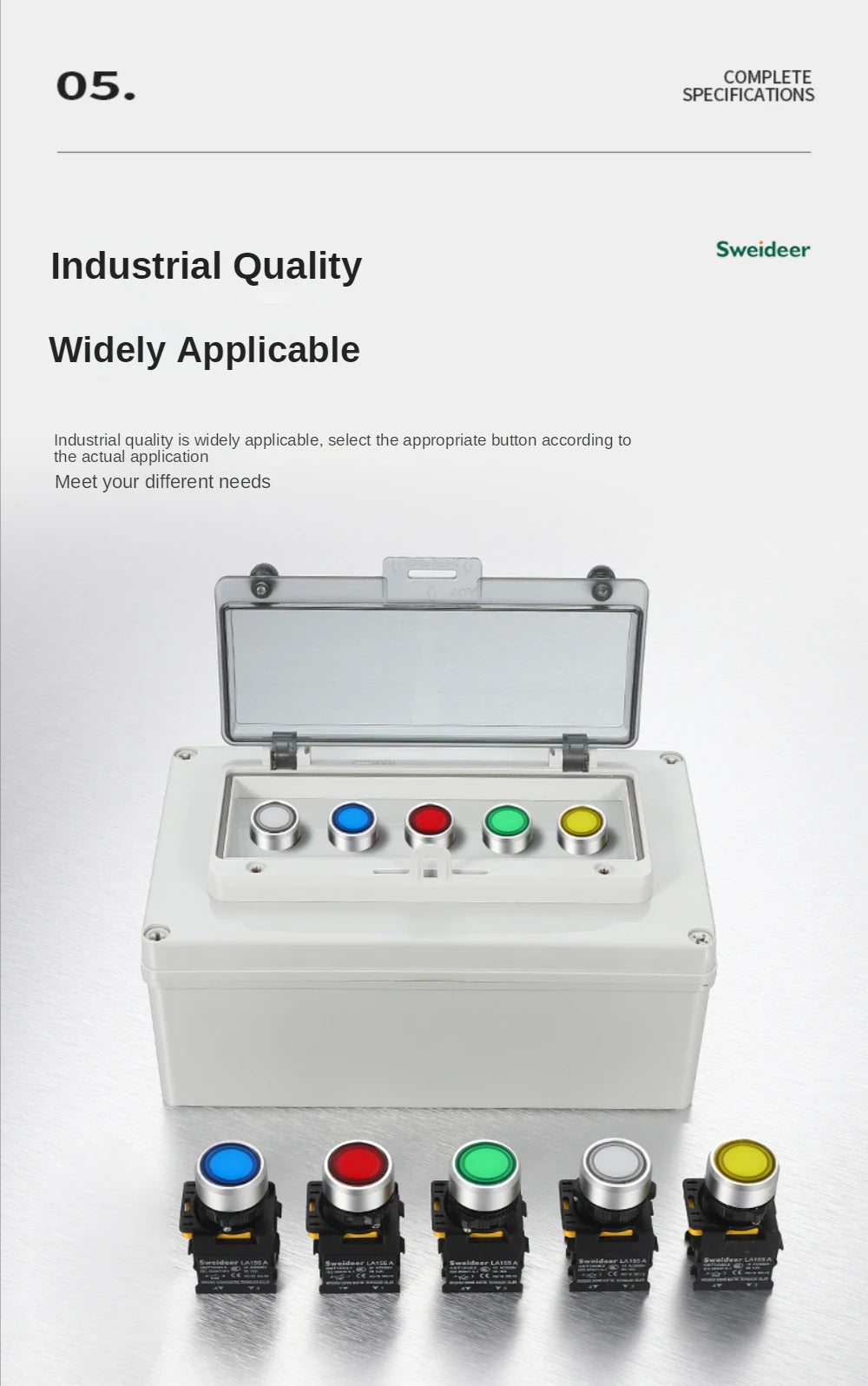

Button color: Red Yellow Blue Green White
Product model: LA155-A1
Voltage Available: 12V,24V,220V,110V,380V

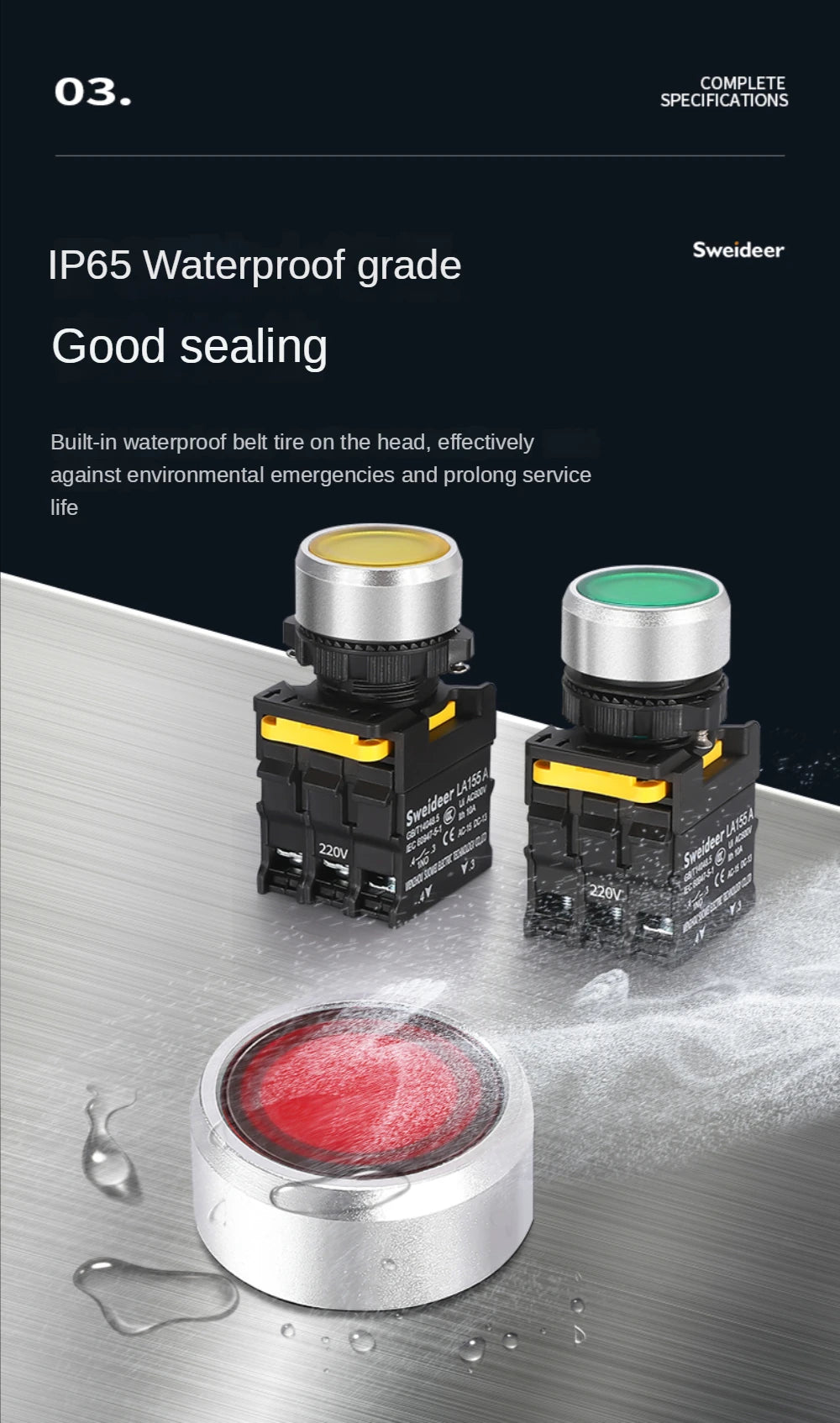

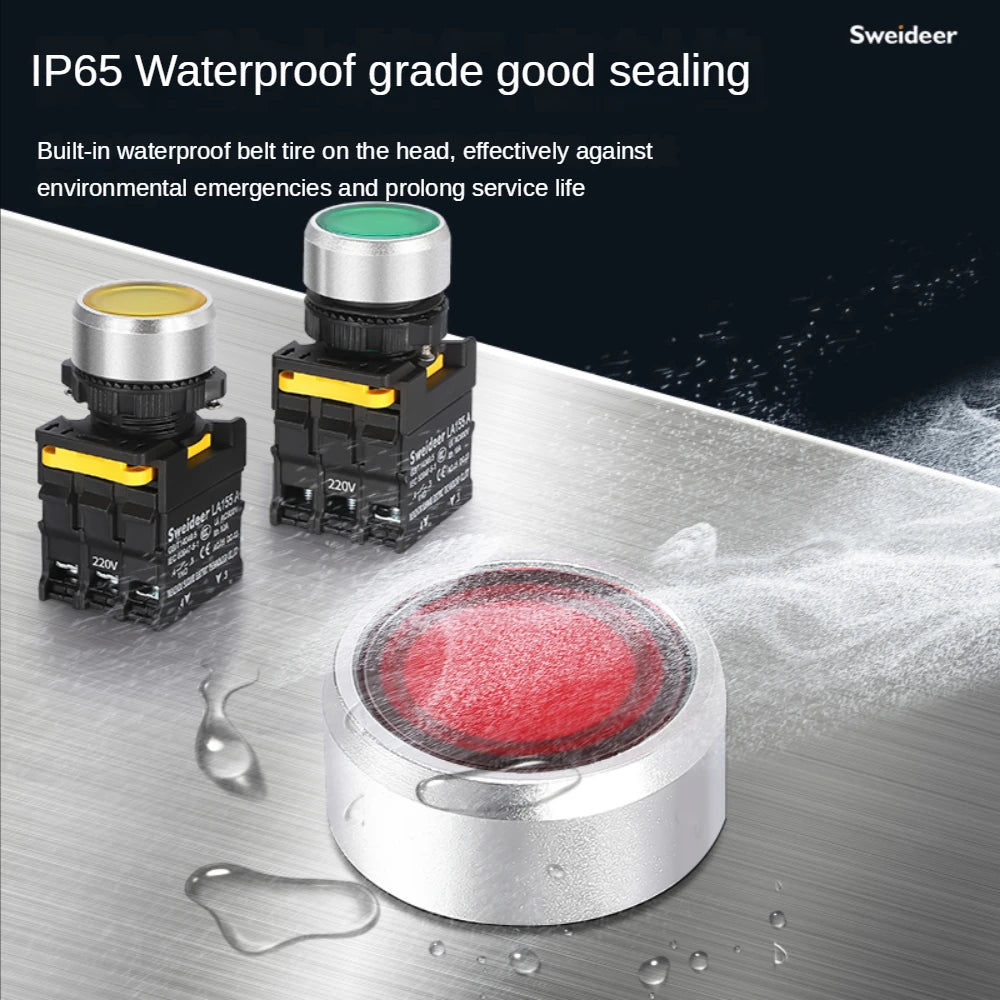

Waterproof grade: IP65

Package Content

1pc Push Button Switch with Light

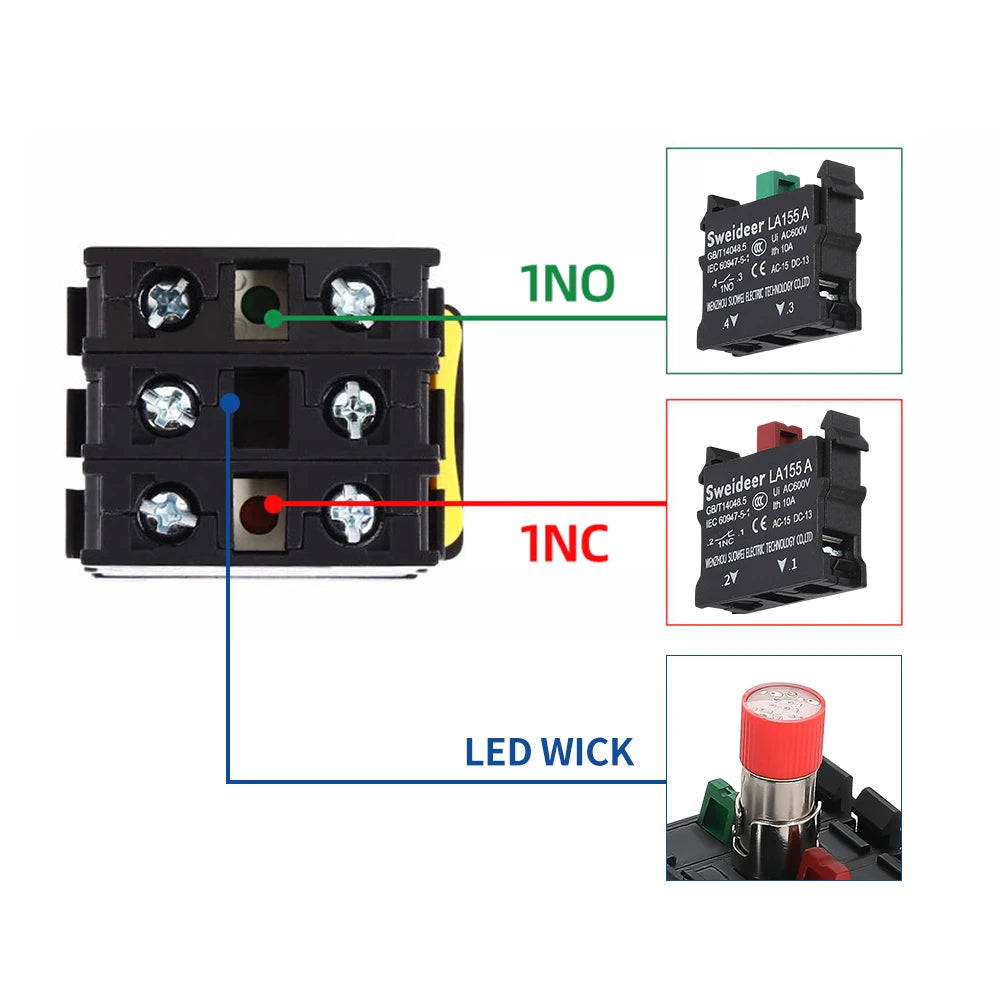

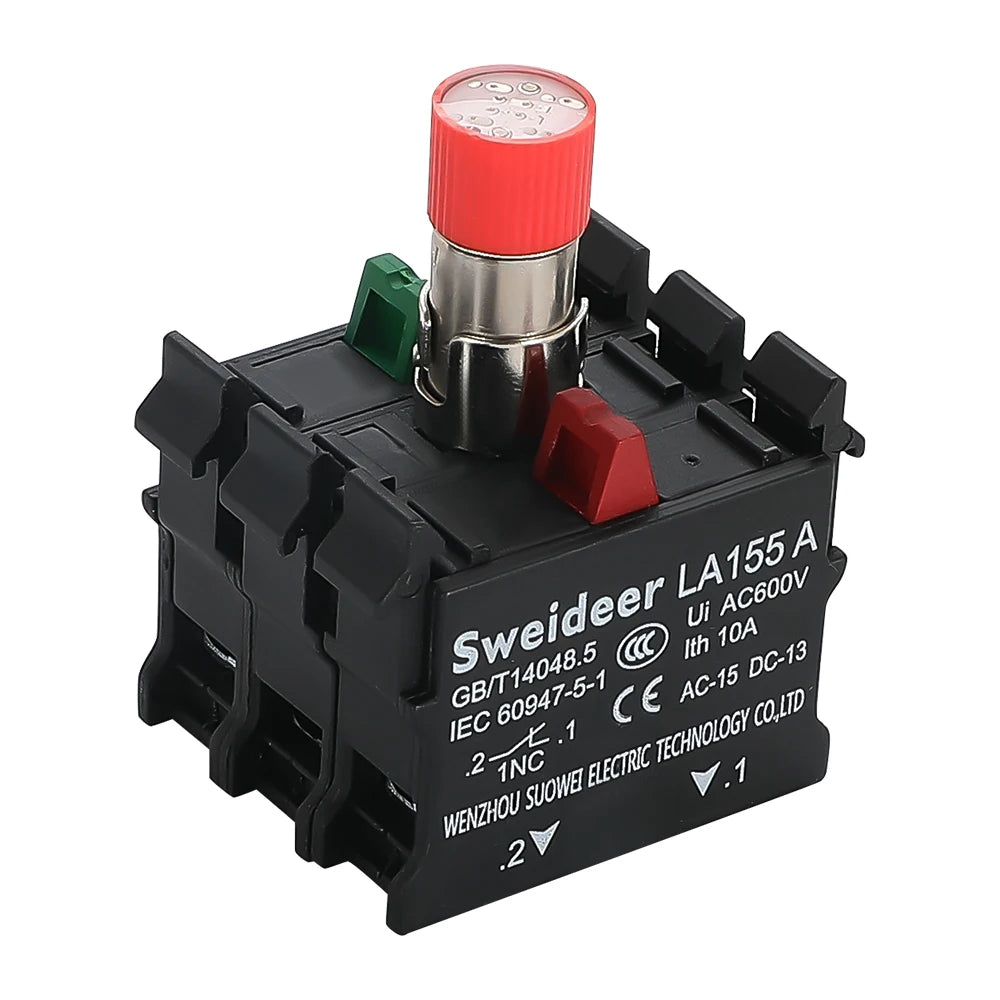

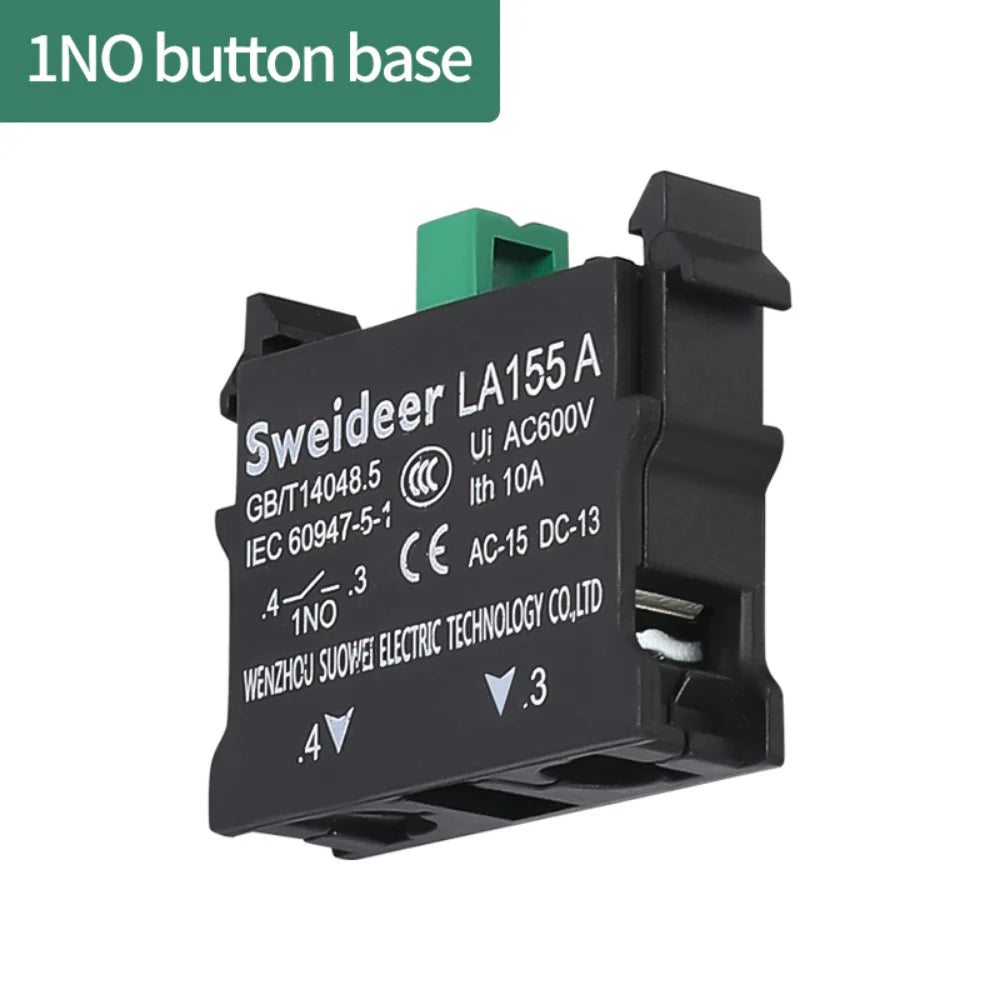

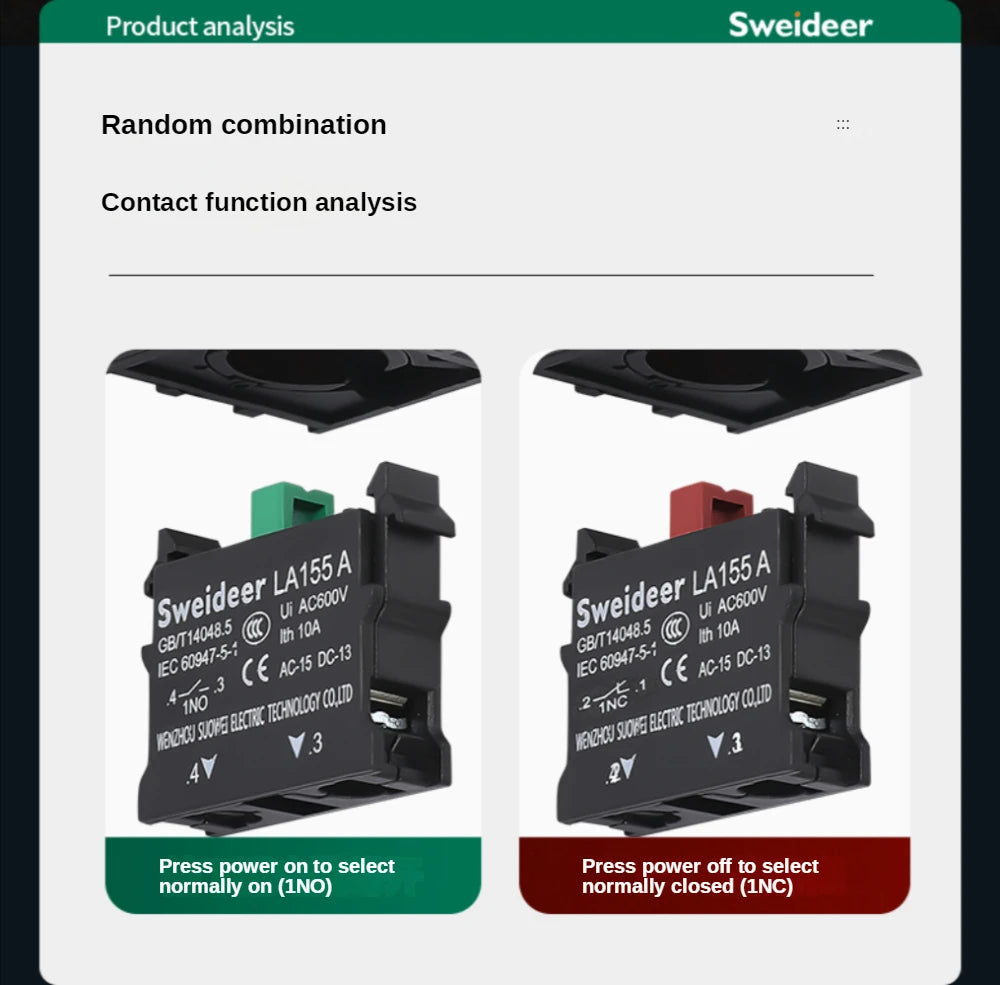

Contact modular combination
NO(normally open) and NC(normally closed ) contact can replace and add at any time .It can hold 1-6 pcs Contact modules at most.

NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.

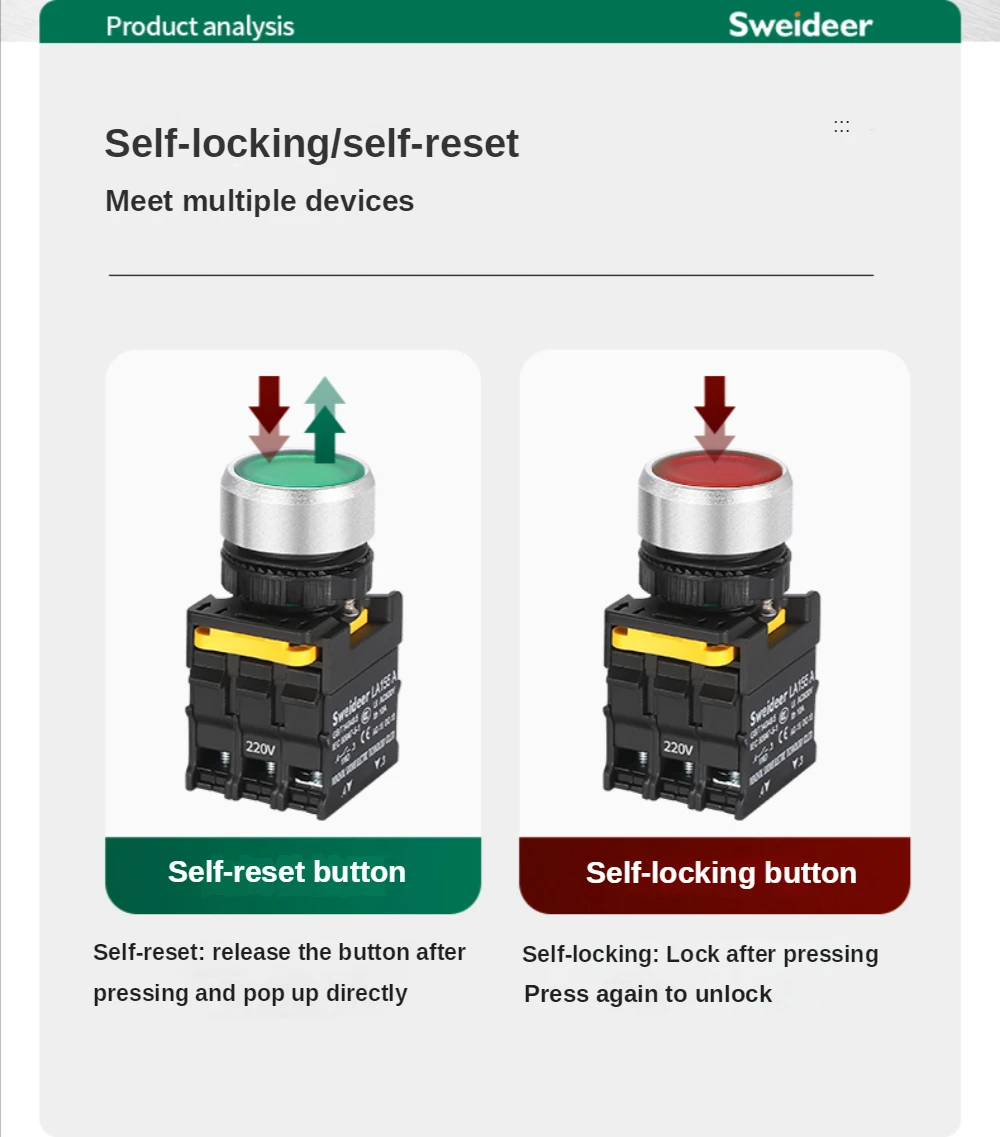

Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.
