SPECIFICATIONS

Baud rate: 600 bps~230.4Kbps

Brand Name: PUSR

Certification: CE,FCC

Config Method: Built-in Webpage, ConfigSoftware, AT Command

Edge Computing: YES, up to 128 points

Encryption: MQTT+SSL, TCPC+SSL

Frequency: 400MHz

High-concerned chemical: none

Interface Type: RS-232

LAN Ports: 0

Max. LAN Data Rate: 100Mbps

Modbus Gateway: Modbus RTU/TCP protocol conversion, Multi-host polling: up to 16 hosts

Network protocol: IP, TCP, UDP, HTTP, MQTT, SSL/TLS, ARP, ICMP, DHCP, DNS

Origin: Mainland China

Port Number: 1 x RJ45, 10 /100 Mbps, auto MDI/MDX, 1.5KV electromagnetic isolation,1 x RS232, DB9-male, 1 x RS485, 3-pin terminal block,

Processor: ST Solution, Cortex-M7

Wi-Fi Transmission Standard: 802.11b

Work Mode: TCP Server/TCP client/UDP Server/UDP Client/HTTPD client

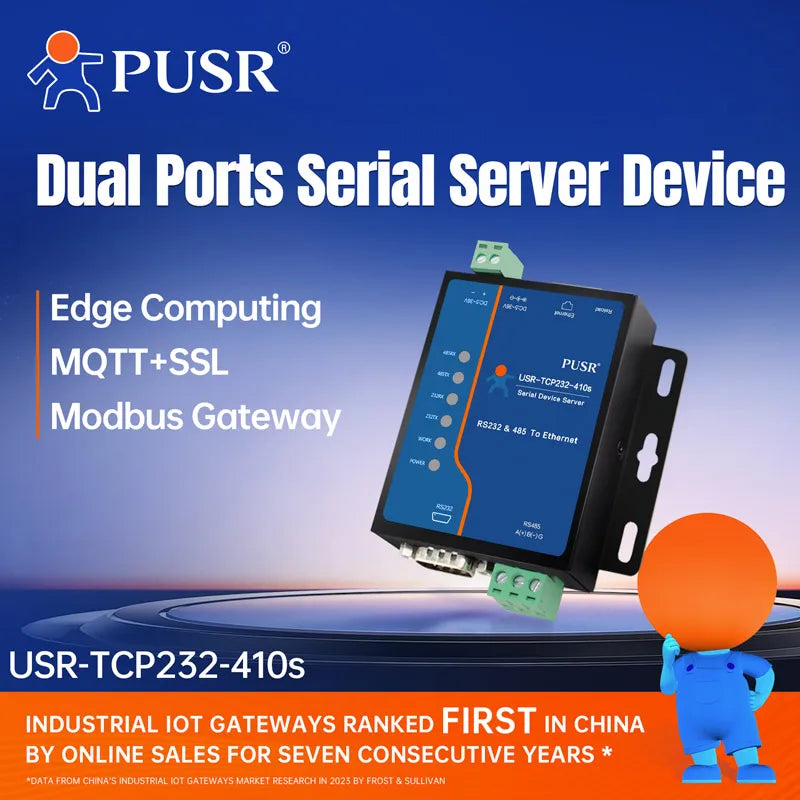

RS485+RS232, MQTT+SSL, Modbus Gateway, Edge Computing

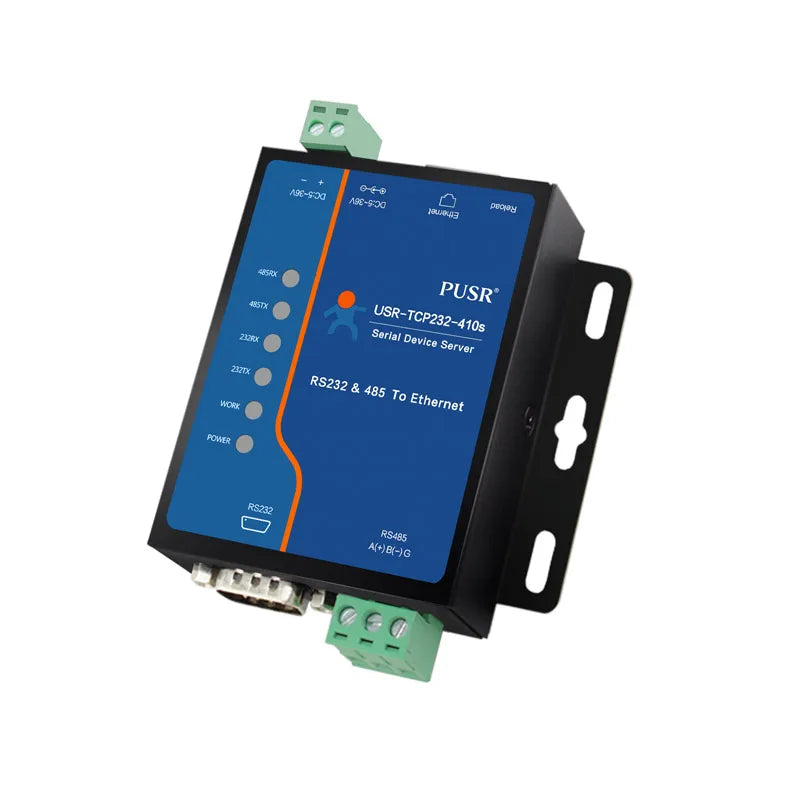

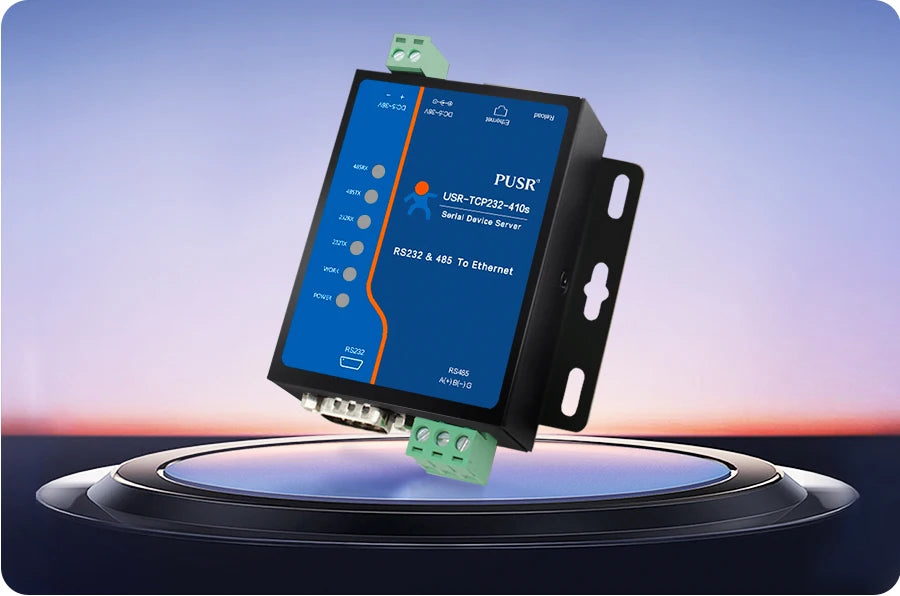

410s is 2 serial Port Secure Serial Device Server which can connect 1*RS232 and 1*RS485 serial devices to the

TCP/IP network. It supports bidirectional communication, Modbus RTU/TCP protocol conversion, edge

computing and other advanced features. This product features for its CortexM7 core and the main frequency is up to 400MHz, which can ensure the high processing speed and stable data transmission.

Key Features

Dual Serial Ports: RS485+RS232, can work simultaneously.

MQTT: Can connect to IoT platform with standard MQTT.

SSL Encryption: To ensure data communication security.

Edge computing: Up to 300 points, reporting data in JSON format.

Modbus Gateway: Modbus TCP/RTU protocol conversion.

Industrial Design: -40℃~+85℃, 5-36V DC power.

Rich Procotol: TCP/UDP/MQTT/HTTP.

Usr-defined Webpage: User can customize the webpage.

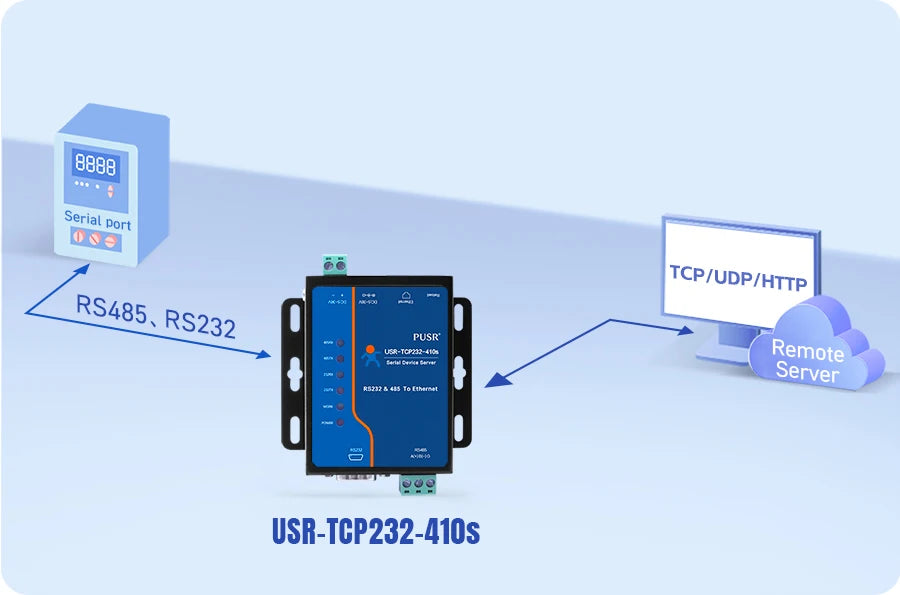

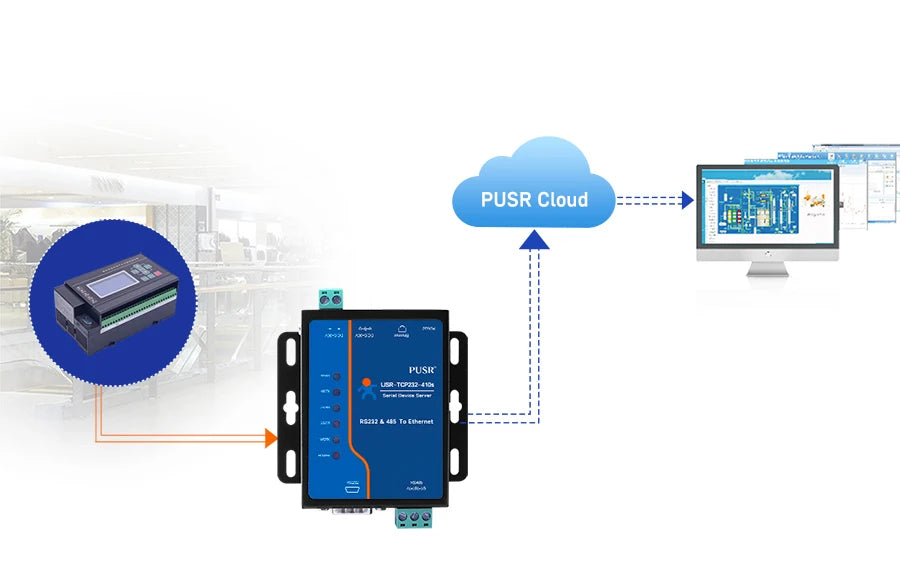

Serial to Ethernet, Bidirectional Transparent Data Transmission

With serial device server, traditional serial devices can be connected to local networks and the Internet, then

users can transform traditional serial device into loT device to acheive remote monitoring/controlling.

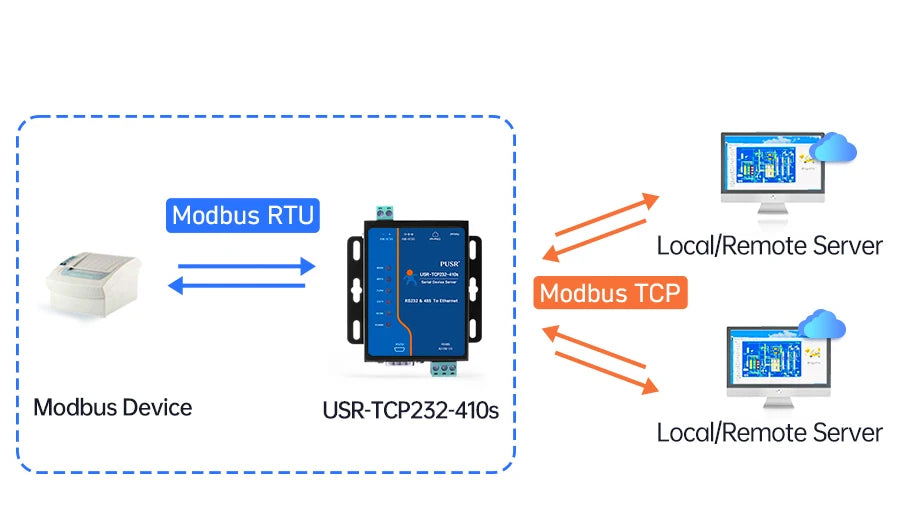

One More Thing, Modbus Gateway

Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring. Modbus RTU to

Modbus TCP Multi-Host Modbus Polling.

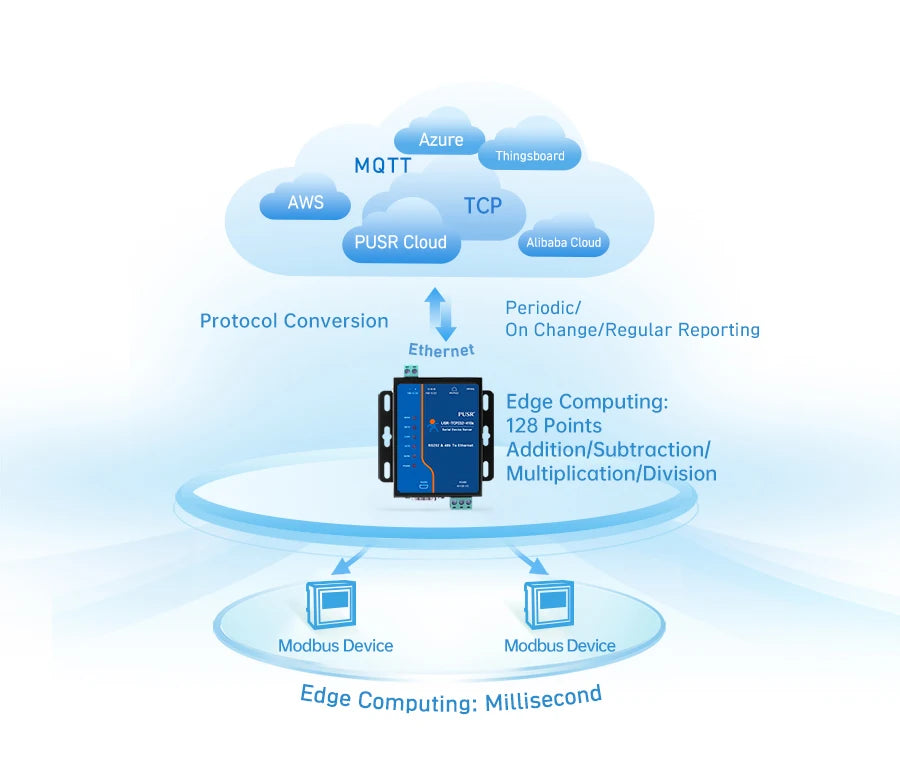

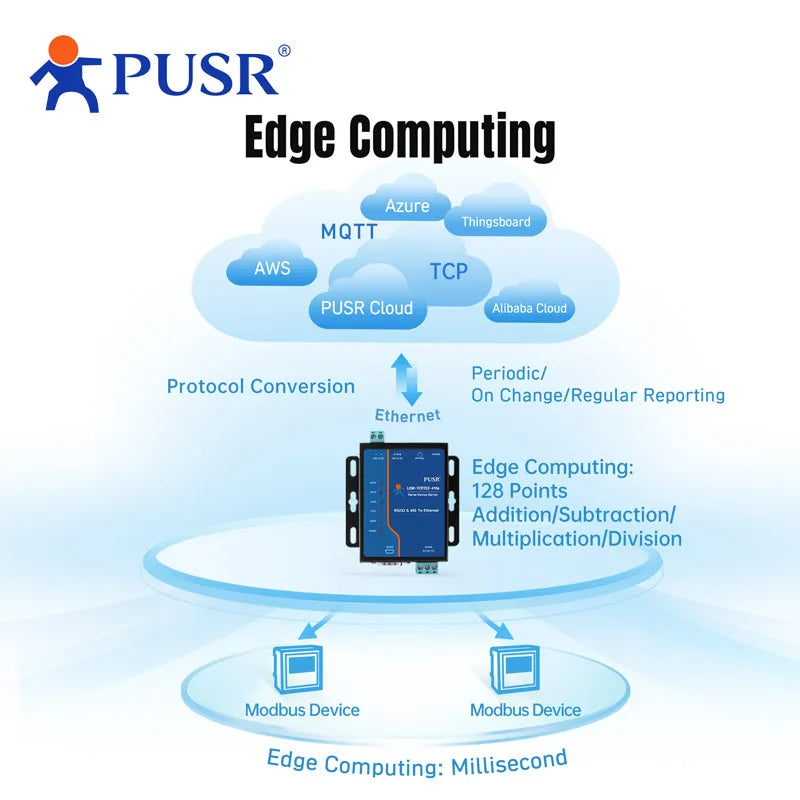

Edge Computing, Enabling Edge Device Connectivity In The IIOT Era

410s can collected data in Modbus RTU, Modbus TCP protocol and reporting data to IoT cloud in JSON format

using MQTT or TCP/UDP/HTTP protocol. It supports up to 128 data points, and can decode and compute the

collected data to reduce server’s pressure.

 Custom Json

JSON message custom conversion;
Supports protocol of various servers and can be used without complicated changes.

Data Dransmission Encryption

Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes.
Supports two-way certificates authentication.

High Reliablity Design

• Metal Housing: effective cooling.

• Wide Power Input: DC 9-36V, with reverse polarity protection.

• Wide Operating Temp: -40℃ ~ +85℃, industrial grade design.
  High EMC Protection: ensuring stable operation in harsh environments

• Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.


Hardware Interface

• Serial port: RS232 and RS485 serial ports can work simultaneously, the baud rate range is 600-230.4K (bps), and support hardware (CTS/RTS) and software(XON/XOFF) flow control.

• Ethernet port: 10/100M MDI/MDIX, auto switch between cross and direct connection, 1.5KV electromagnetic isolation.

• Power Supply: DC socket and terminal block connector.

• Installation: Wall mounting

• Reload button: In the case of forgetting the parameters, long press to restore the factory settings.

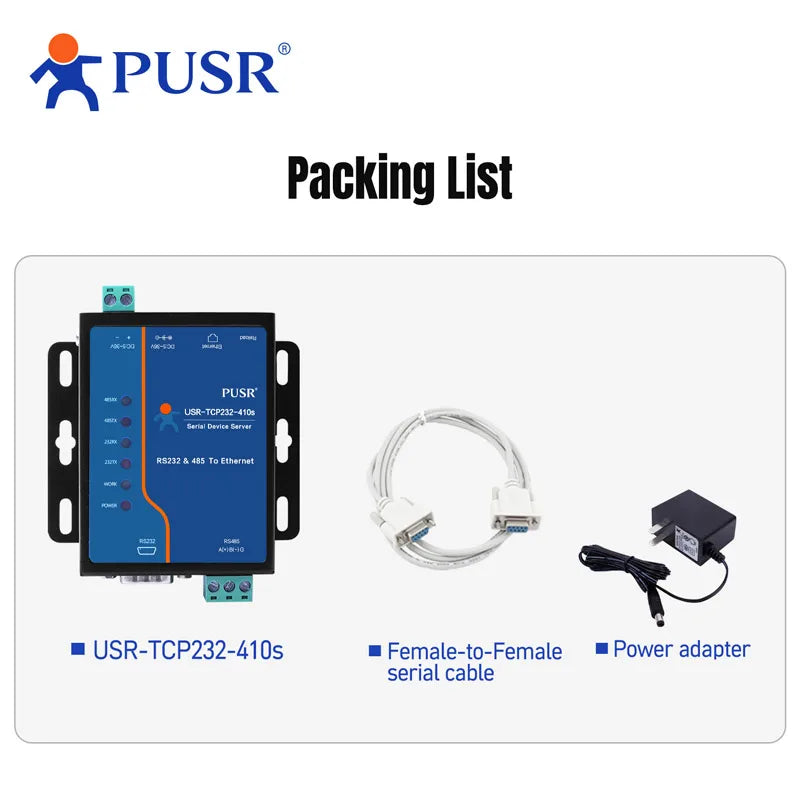

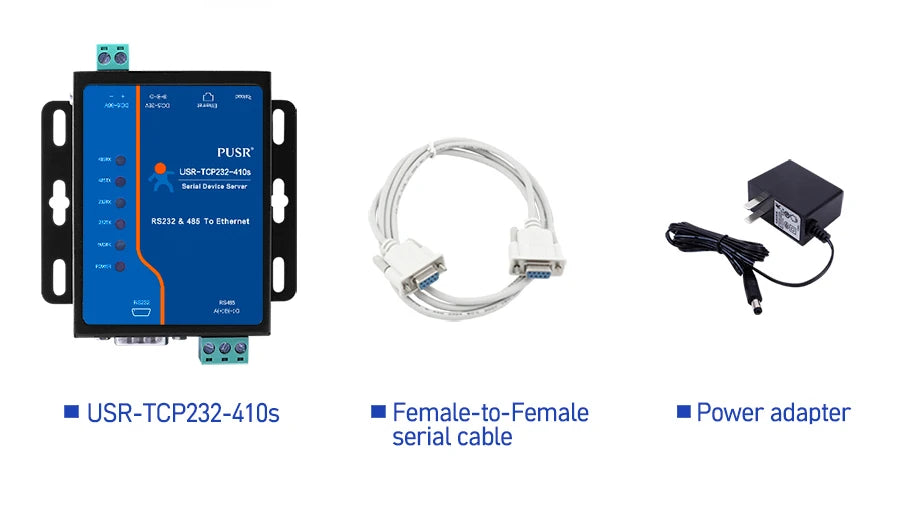

Packing List

USR-TCP232-410s*1
Power adapter*1
Female-to-Female serial cable*1

Application in Intelligent Electrical Fire Warning System

Connect fire alarm sensor to TCP232-410s via RS485/232, and TCP232-410s can send the alarm information to the remote server to remind the staff to eliminate the fire.

Smart Lighting Facilities in Factories and Mines Monitoring

The traditional lighting facilities in factories and mines are mostly controlling by people, and cannot realize

linkage between manufacture and monitoring, and lead to energy wasting. USR-TCP232—410S communicates with serial lighting equipment via network, it is convenient for lighting control and can

actively report the mistakes of the equipment.

Water Service System Monitoring

For now, the communication of water supply system in waterworks is still based on serial, and it is only suitable   for single-machine operation and limited transmission distance, system maintenance is difficult. USR-TCP232-410s supports serial port to network, monitor the work of the equipment via TCP Server mode at any time.
