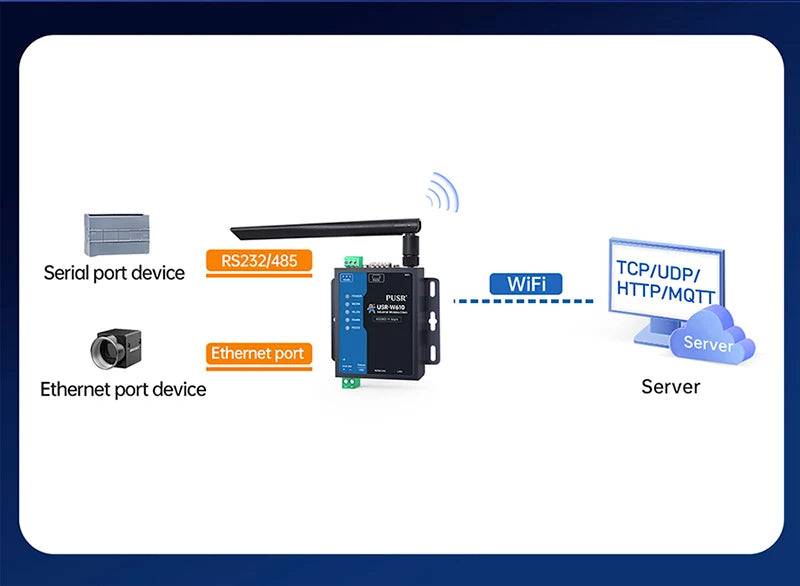

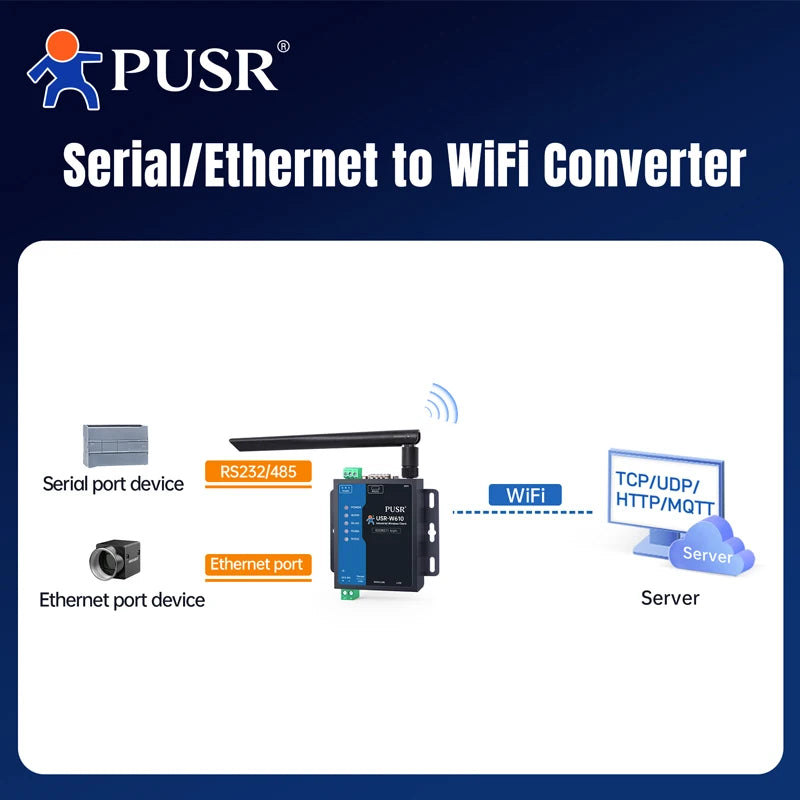

Serial/Ethernet to Wi-Fi Converter

With the help of USR-W610(Qualcomm version), you can achieve data transmission between serial port devices, network port devices, and WiFi devices, as well as remotely monitor the operational status of field devices.

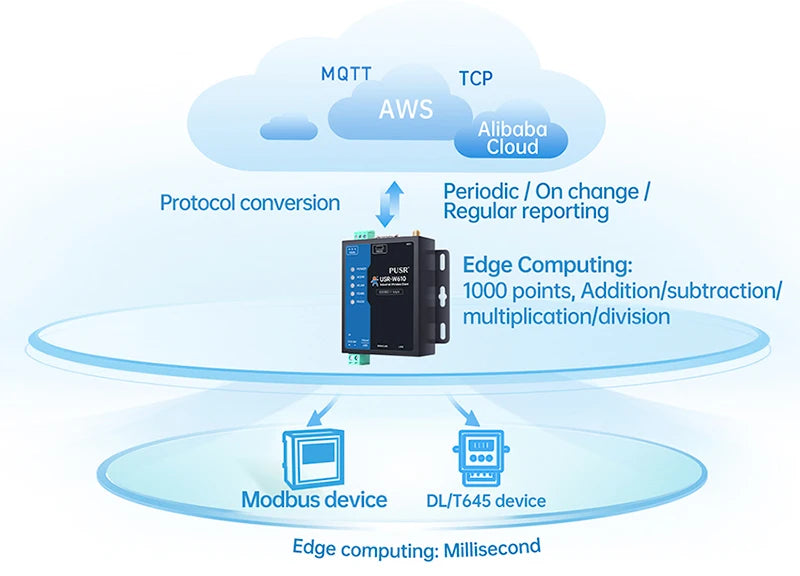

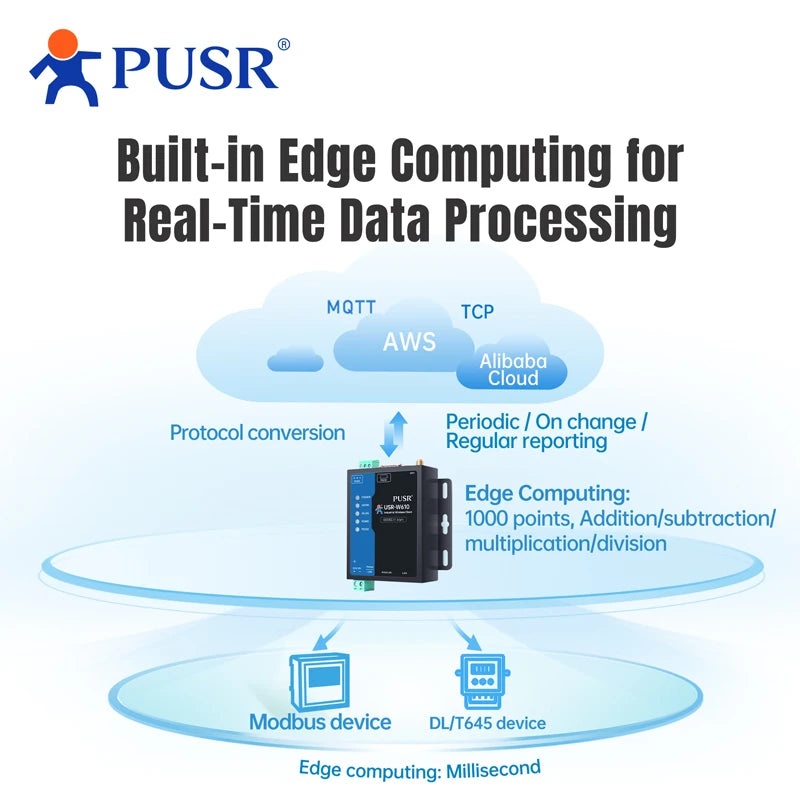

Built-in Edge Computing for Real-Time Data Processing

The USR-W610s integrates edge data acquisition and processing functions to reduce cloud dependency and improve real-time performance. Users can configure acquisition rules, parse device data, perform local calculations, package data in JSON format, and transmit information to remote servers.

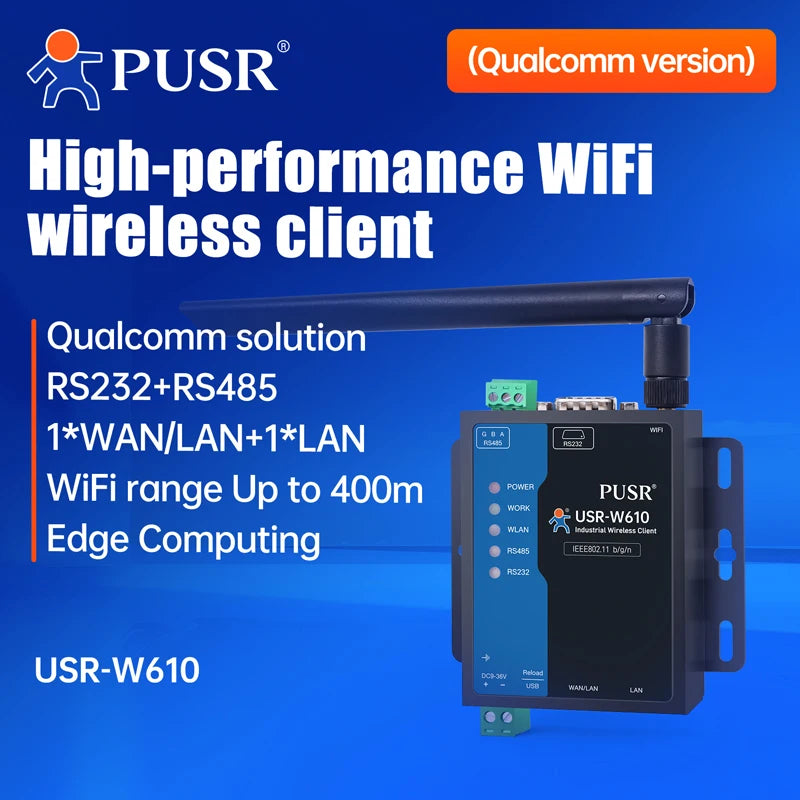

Qualcomm Chip,Powerful and reliable

(1) Powerful and reliable Qualcomm processor to ensure the stable.

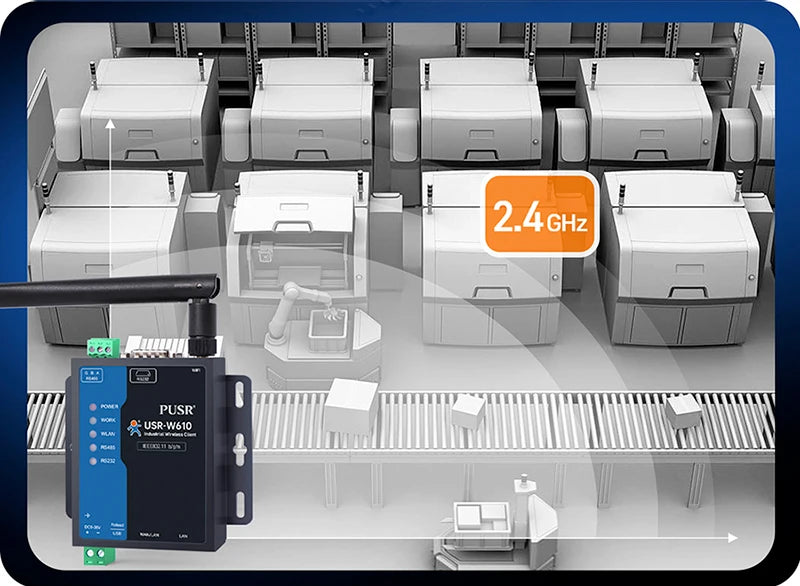

(2) 2.4GHZ WiFi, offering the advantages of strong anti-interference capability, high speed, and wide coverage. In an open environment, the coverage range can reach up to 400 meters.

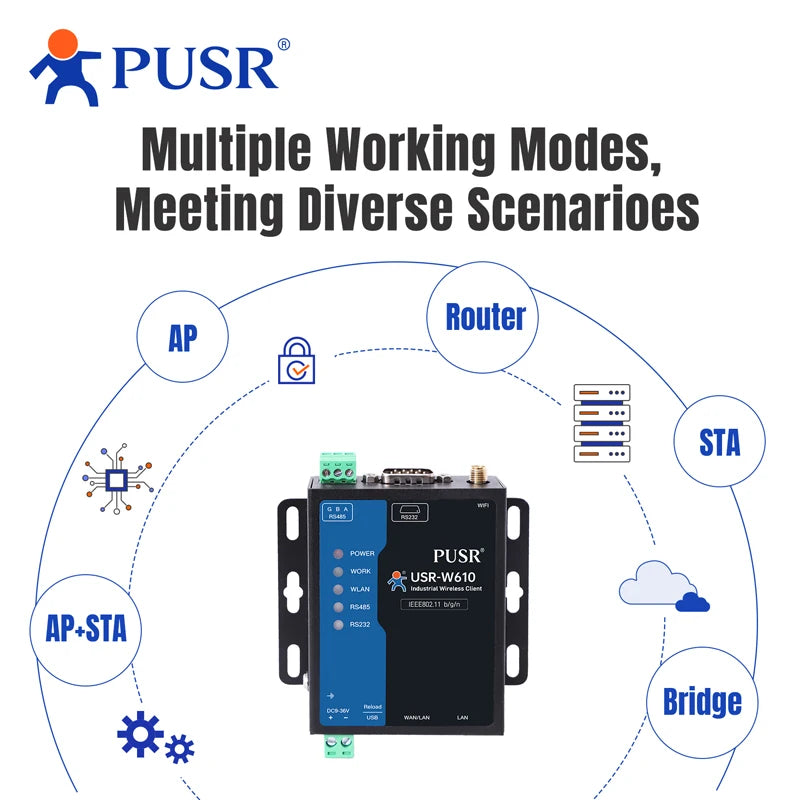

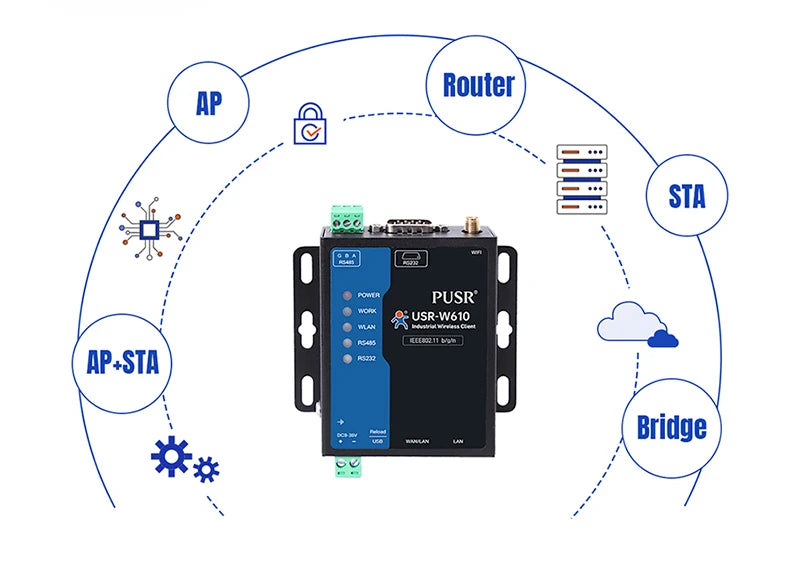

Multiple Working Modes, Meeting Diverse Scenarioes

The USR-W610(Qualcomm version) provides a wealth of networking methods to meet customer networking needs.

• AP mode: Allow network devices to access USR-W610(Qualcomm version) via Wi-Fi or Ethernet.

• STA mode: USR-W610(Qualcomm version) as a network device accesses other networks via Wi-Fi.

• AP+STA mode:  Work in AP and STA mode simultaneously.

• Bridge mode:  The device connected to the Ethernet port of W610(Qualcomm version) is equivalent to directly connecting to the upper-level network, and the W610(Qualcomm version) is equivalent to being transparent.

• Router mode: The device connected to the Ethernet port of W610(Qualcomm version) will be assigned an IP by the W610(Qualcomm version).

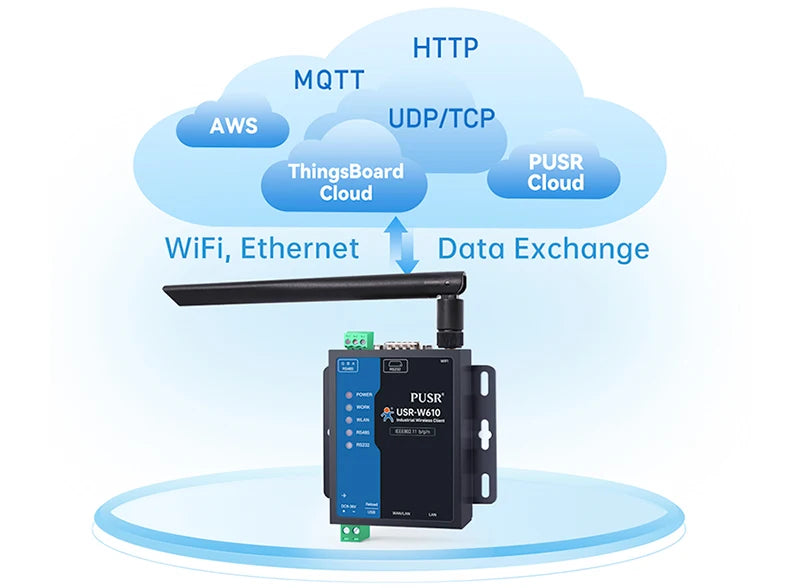

MQTT Cloud Connectivity

Optional TLS encryption protects data transmission, while cloud connectivity can be achieved without an additional gateway PC.

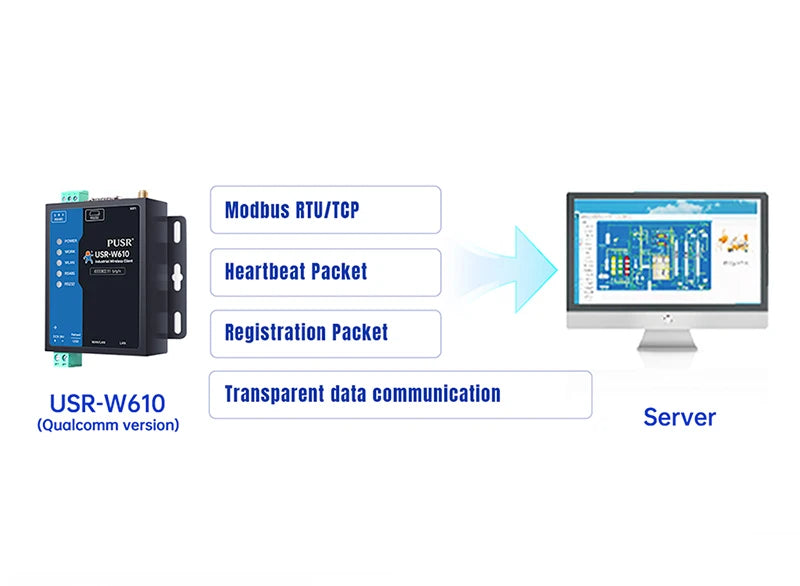

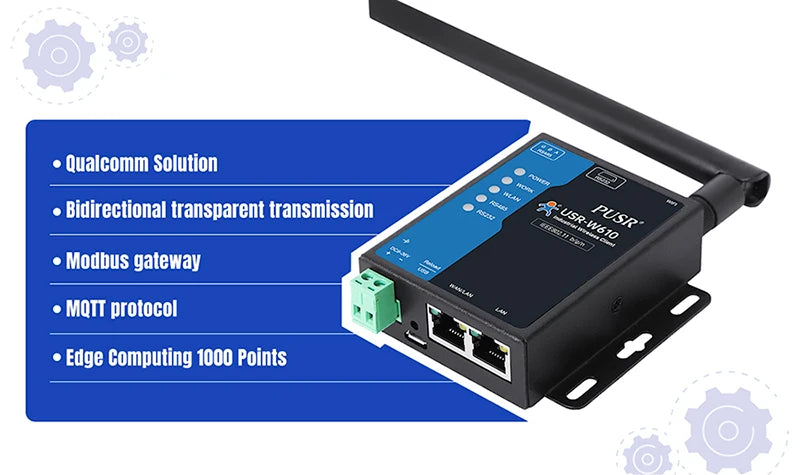

Rich Product Features

• Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.

• Support Transparant MQTT/TCP/UDP/HTTP data communication.

• Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.

• Registration Packet Funciton: The server can identify different clients by usingregistration packets.

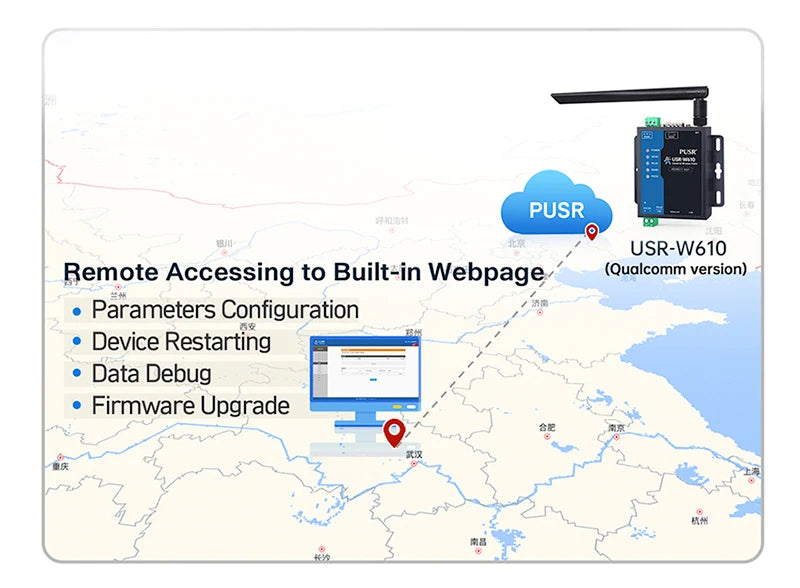

Remote Management, Anytime, Anywhere

PUSR Platform: USR-W610(Qualcomm version) cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.

Ordering Guide

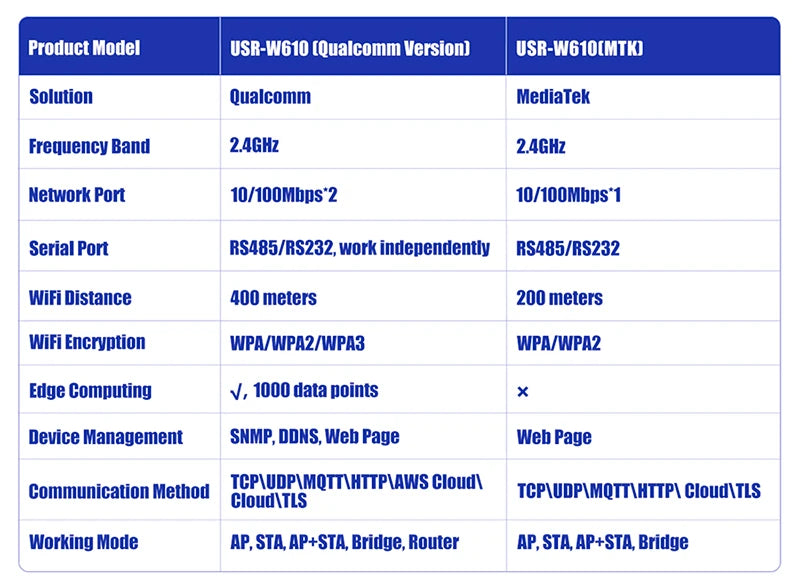

USR-W610 and USR-W610(Qualcomm version) are two industrial wireless WiFi clients . For the convenience of customers' choice, the picture lists the main differences between the two products for reference.

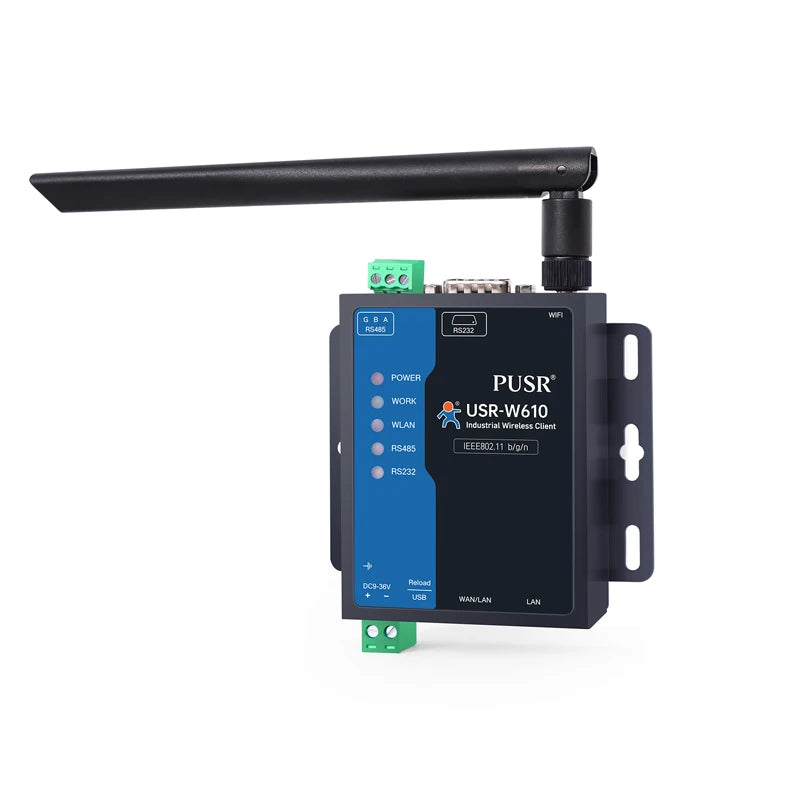

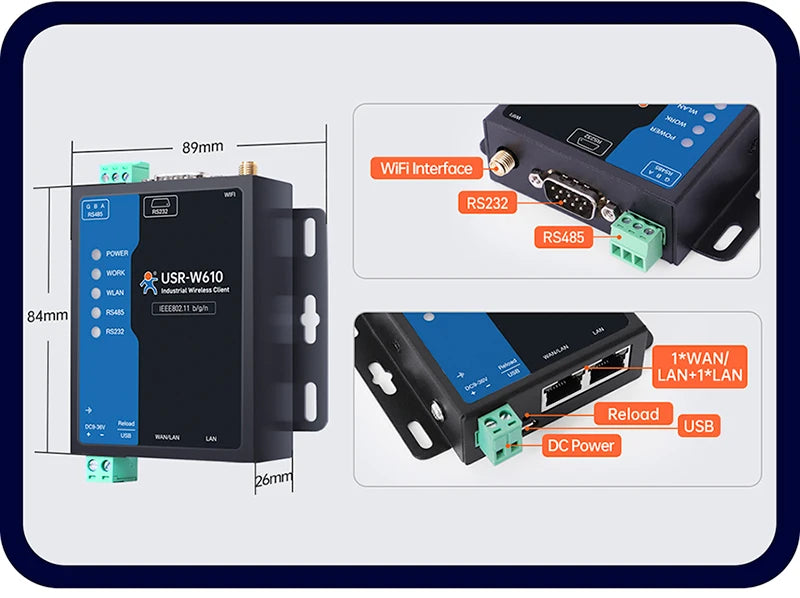

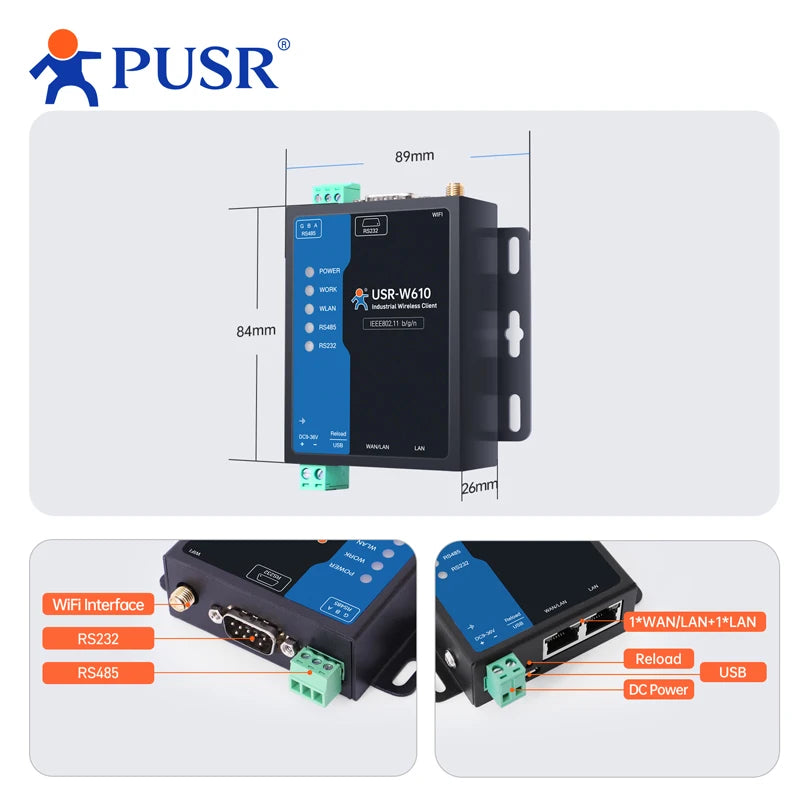

Dimension & Interface

• Dimension: 84*89*26mm

• Serial port: 1*RS232, 1*RS485.

• Baud rate range: 1200~230.4Kbps. The two serial port can work simultaneously.

• ETH ports: 1*WAN/LAN, 1*LAN (10/100Mbps)

• Power supply: DC 9-36V, 1*terminal block connector

• Installation: Wall mounting, desktop placement

• Reload button: In the case of forgetting the parameters, long press to restore the factory settings.

• Antenna Connector: 1*SMA-Female

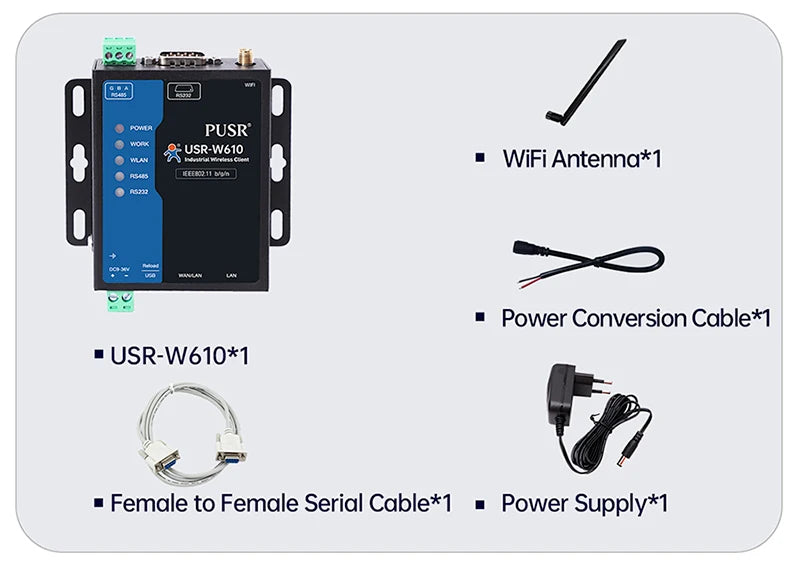

Packaging List

USR-W610*1 Power Supply*1

Power Conversion Cable*1

Female to Female Serial Cable*1

WiFi Antenna*1

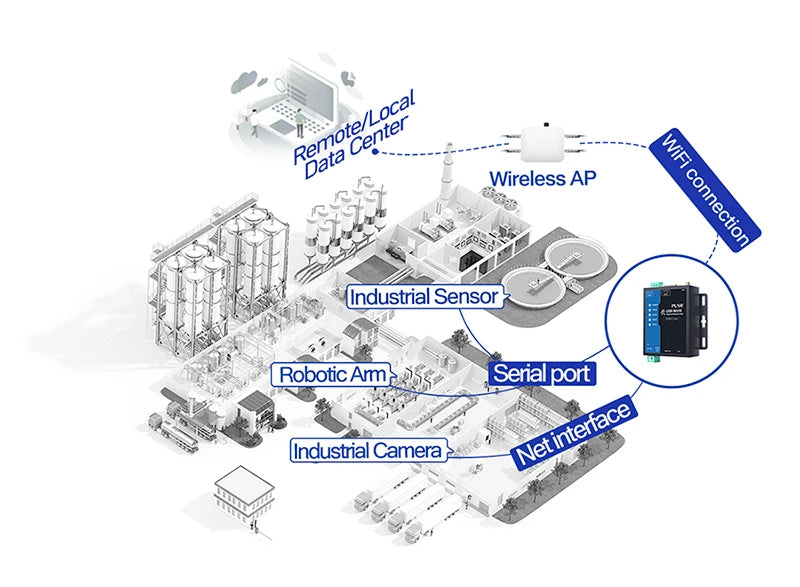

Smart Factory Application

Connect with the serial port/network port equipment in the factory, and upload the equipment operation data to the local monitoring platform or remote platform in real time; the staff can dynamically understand the operation status of the monitored equipment through the monitoring platform.

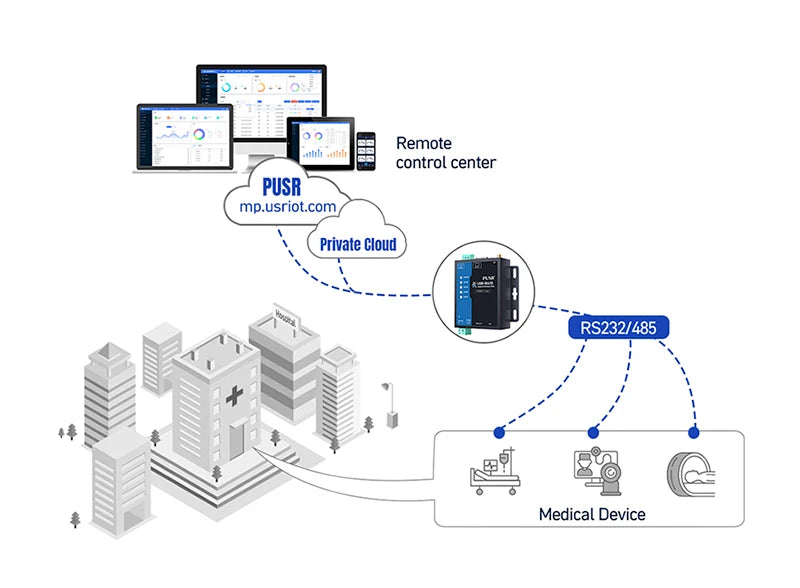

Medical Device Data Transmission Solution

The medical equipment transmits the entered data to the cloud server in real time through Wi-Fi network of W610(Qualcomm version).Users can quickly complete the collection, storage and analysis of important data.
