SPECIFICATIONS

Audio Encoding: Multichannel

Audio Sensitivity: >90dB

Brand Name: puzu

Certification: CE,FCC

Color Name: black

DSP resolution: 64bit

Damping factor: >100

Frequency Range (Hz): 20Hz~20KHz

Impedance: 4ohm

Item Size: 240x150x42mm

Item Type: AMPLIFIERS

Item Weight: 2.8

Material: Aluminum

Model Name: PZ-X6800S

Origin: Mainland China

Out Power: 500W RMS power

Signal To Noise Ratio: >108dB

Special Features: bluetooth

THD: <0.015%

Working voltage: 10.5~16Volts

android app: available

bluetooth version: 5.0

input channels: 6

output channels: 10

windows software: available

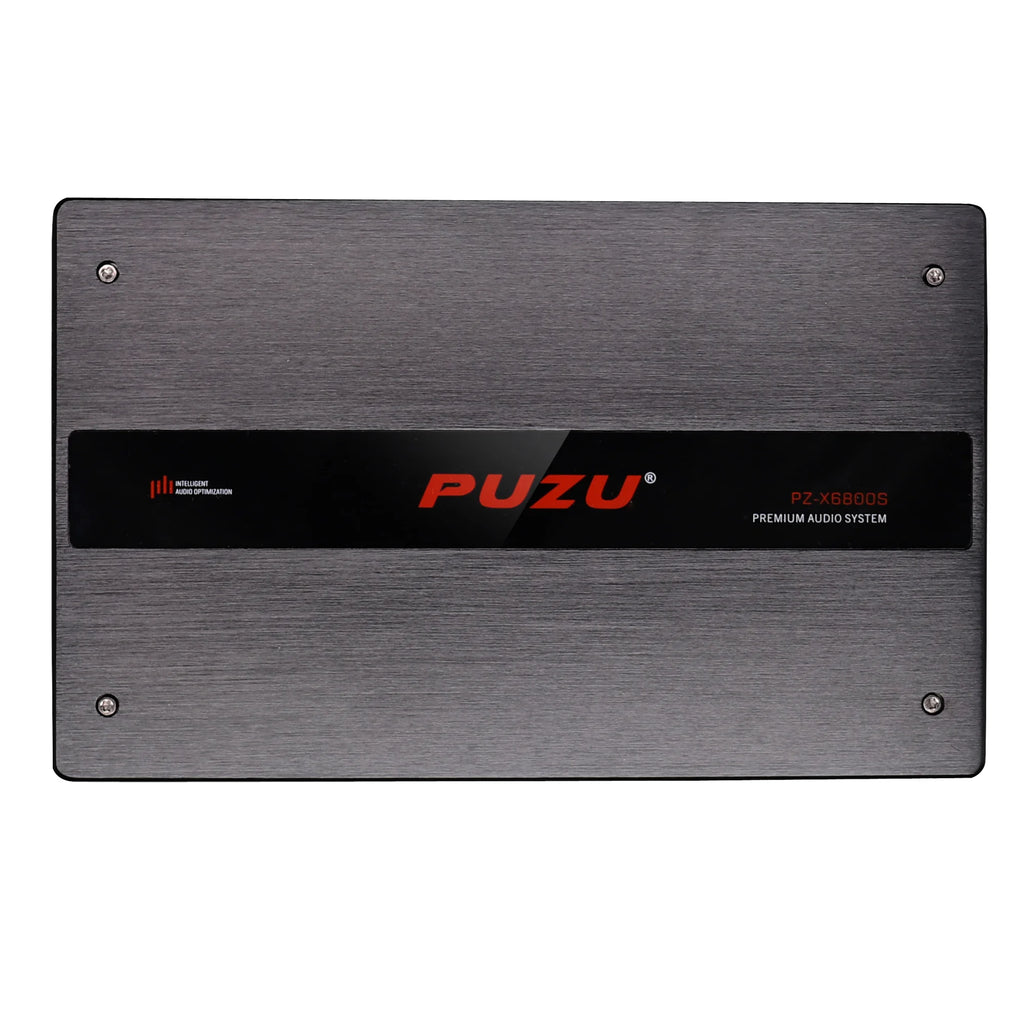

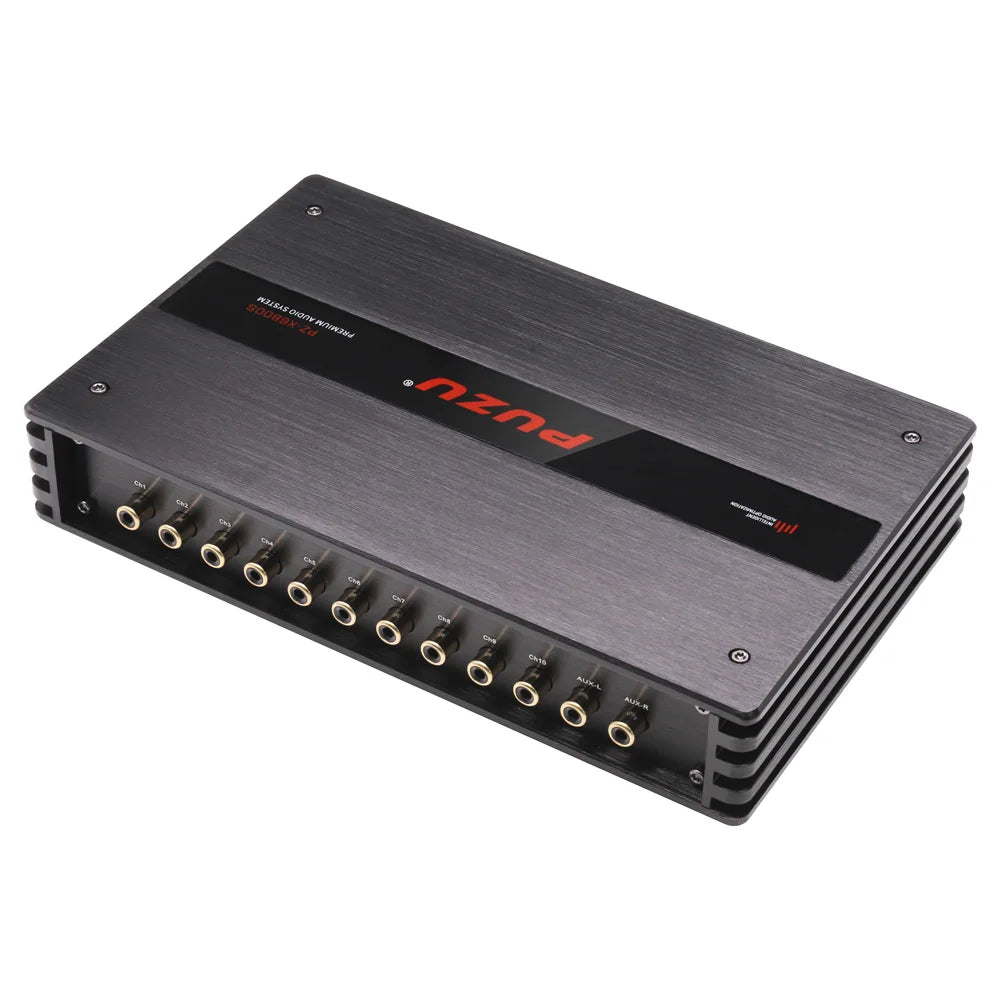

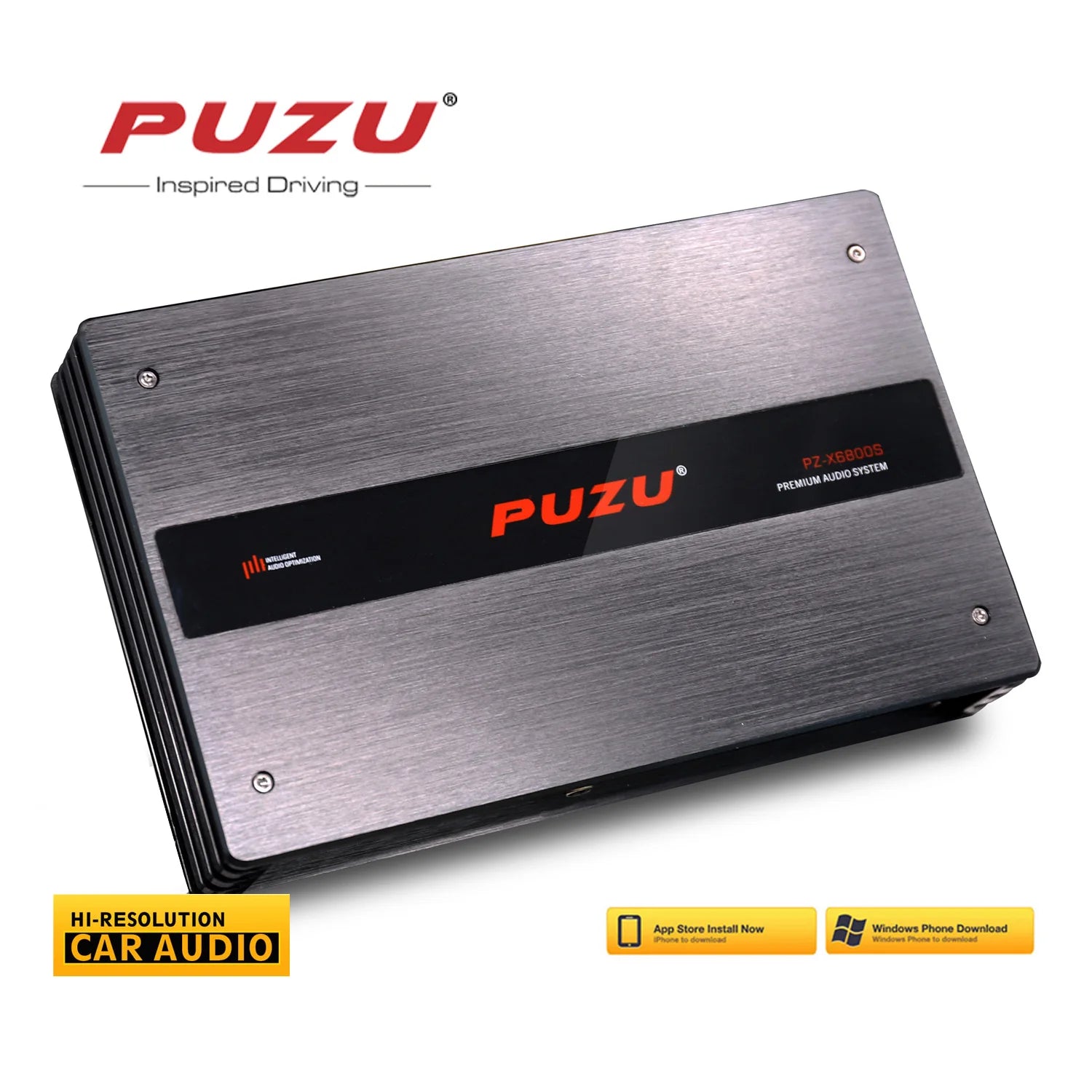

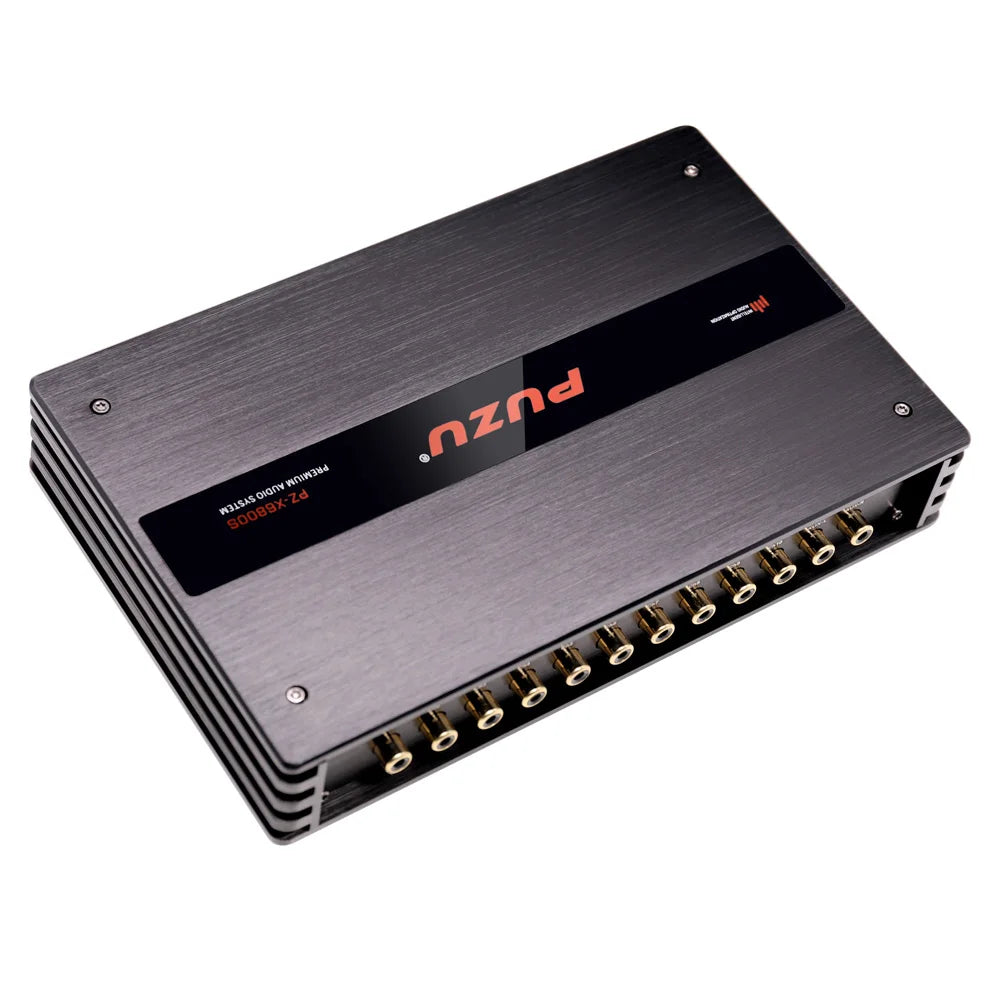

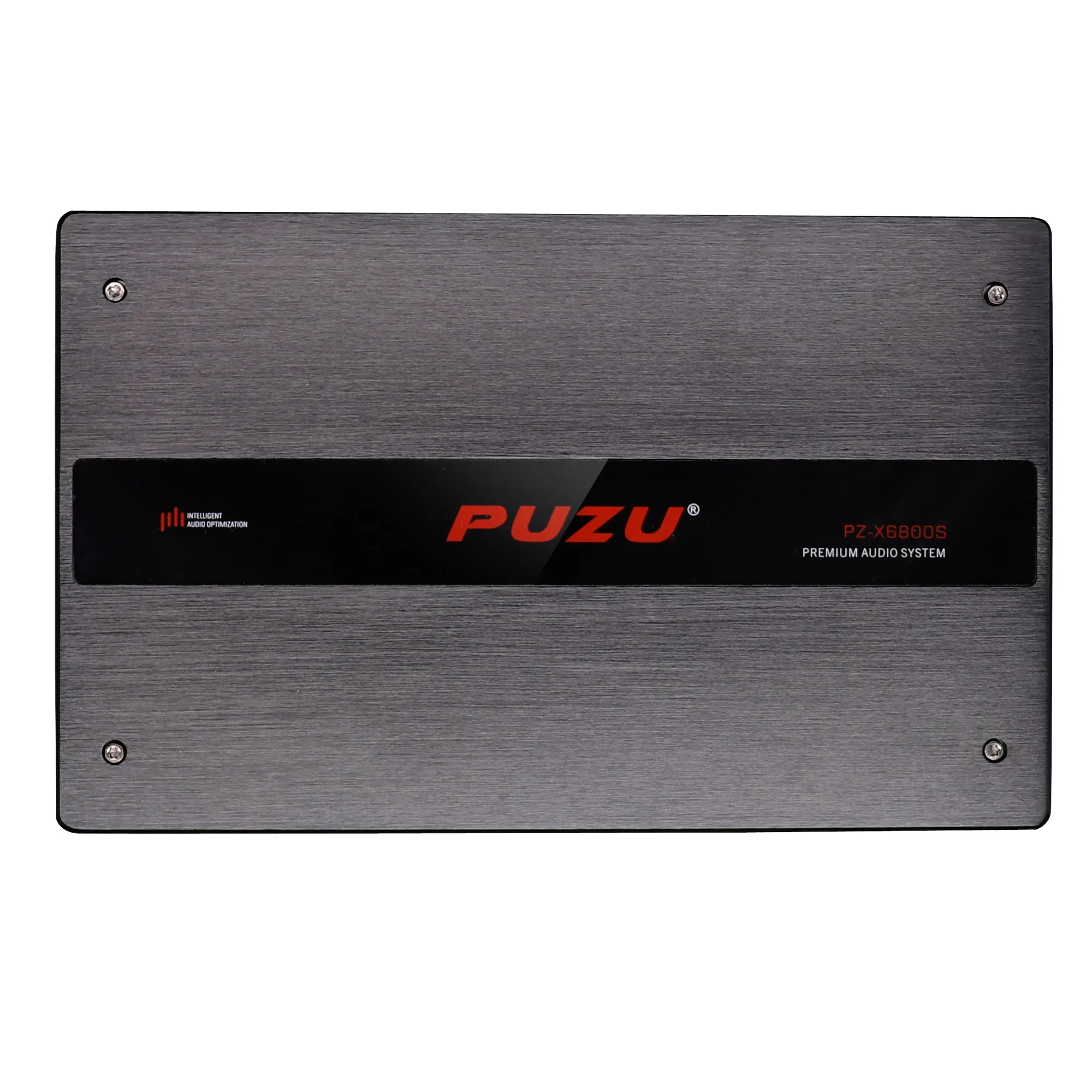

PUZU PZ-X6800S 6ch to 10ch Premium Car Audio DSP processor built in 8ch amplifier output power 500W RMS app and software control

Introduction of PZ-X6800S
PZ-X6800S is a Premium Car Audio 8CH Amplifier with 10CH DSP Processor upgrade for those car with factory OEM Amplifier
like Bose/JBL/Harman Kardon/BMW HiFi,L7/Burmester/Infinity/Dynaudio/etc.Which is easily do the installation by plug & play,it keep safety & save space for your
car.invisible installation,You can put it under your seat.keep tiny & clean

PZ-X6800S model PUZU delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels power output, including a freely configurable 10-Channel DSP. 6ch high level input with 10ch output freely input & out mixer, PZ-X6800S Amp offers multi upgrade solutions for you, CH1~CH4 with 4X50W RMS which you can drive for your normal speakers like tweeter and rear door speakers CH5~CH8with 4X75W output power which you can drive for your under seat woofers and front door speakers. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.

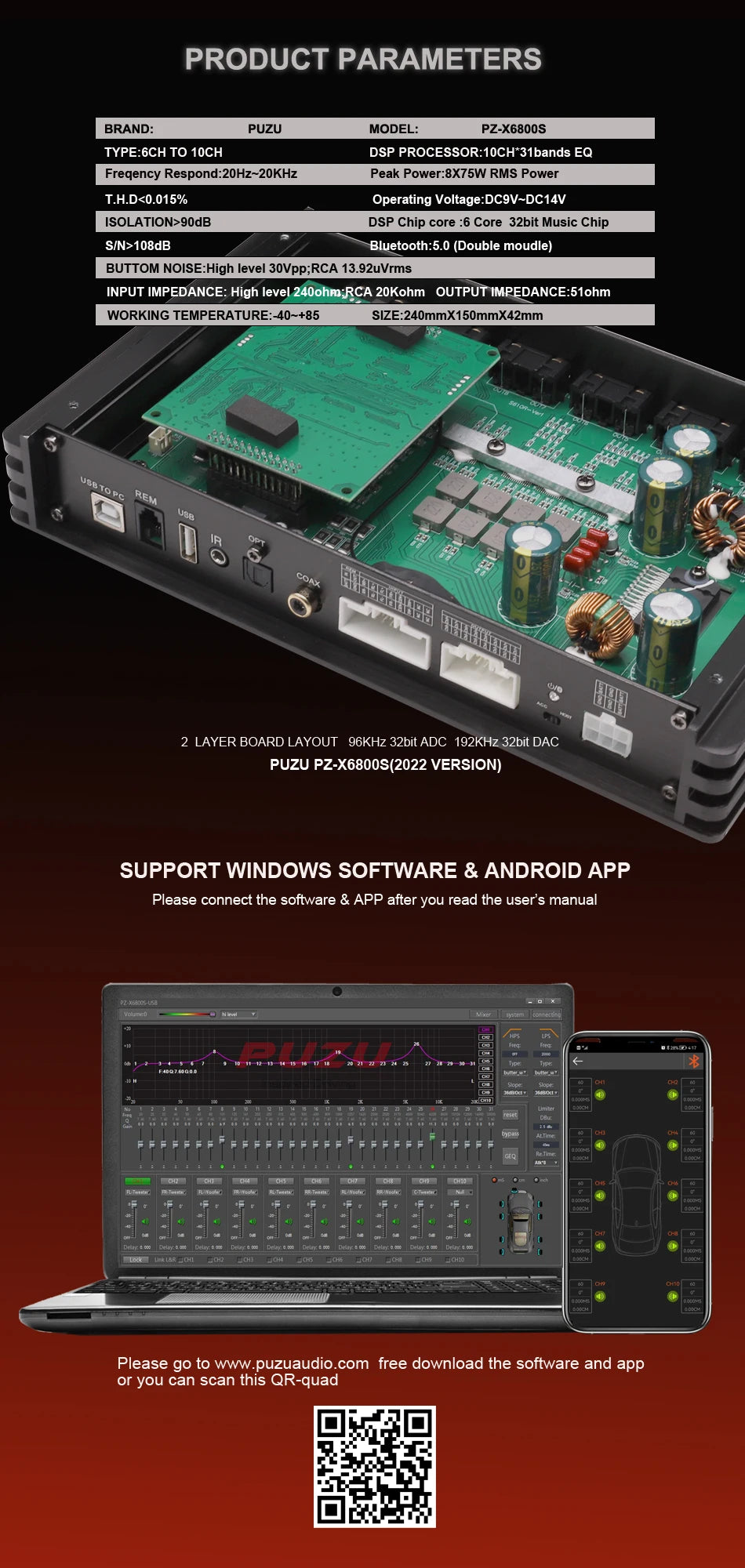

Technical Date
output power RMS/MAX
CH1~CH8  4ohm——————-front 4X50/150W(CH1~CH4)
                                                  rear  4X75/180W(CH5~CH8)
CH1~CH8  2ohm——————-front 4X110/260W(CH1~CH4)
                                                 rear 4X150/320W(CH5~CH8)

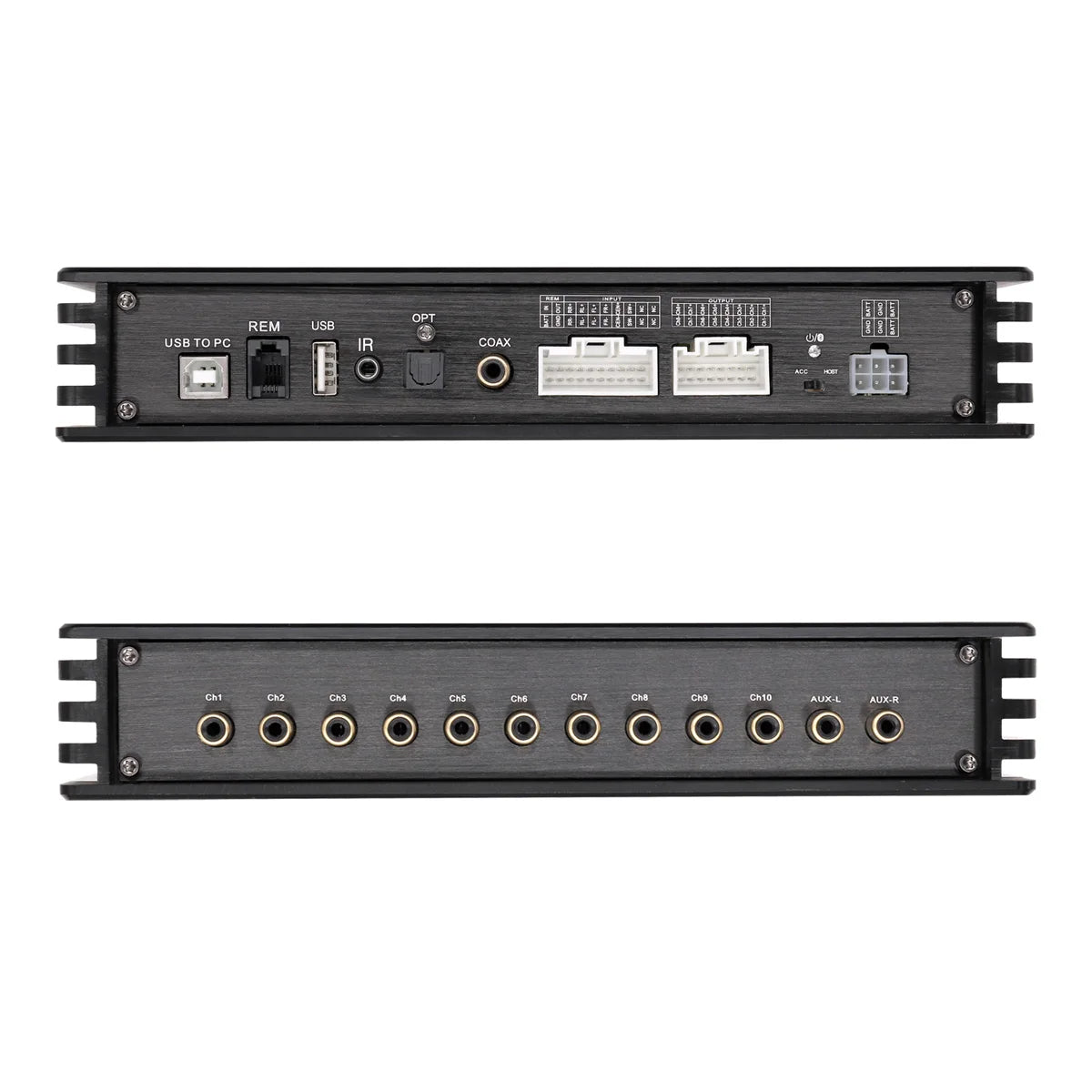

Input——————————–6X high level speaker input
Optical SPDIF input
USB inputCoaxial input
Bluetooth input
2CH RCA (AUX L/R) input
input sensitivity———————5~11volts
Out puts—————————–8X speaker
10x RCA low level output
Output voltage RCA—————-0.8~3V
Frequency responds—————-20Hz~20KHz
DSP resolution———————-64bit
DSP power—————————295MHz
S/N———————————->108dB
Isolation—————————-->90dB
Working voltage——————–10.5~16Volts
Product size————————-240X150X42(mm) 94.4X59X16.5(inch)
THD———————————-<0.015%
Damping factor———————->100

Sound tuning software main parameters
Frequency range 20Hz~20KHz,1Hz steps
– Q:0.40~128 0.01 steps
– Gain:-20.0dB~+20dB,0.1dB steps
– High pass,low pass
– Phase control
– Specialized type fitering:Butterworth,Linkwitz-Rile,Bessel
– Filter crossover pionts:20Hz-20KHz,1Hz steps
– Slopes:6dB,12dB,18dB,24dB,30dB,36dB,42dB,48dB
– up to 20ms of time delay per channel delay unit (ms,cm,inch)
– Save and share tuning presets (8 presets mode available)
– Sources:Bluetooth audio,High-level input (head unit signal),optical SPDIF,Coaxial input,U disc,Analog AUX inputs
(aftermarket head unit signal)
– LCD remote control for volume,preset store/recall,source selection (exta selection)
– Matrix mixing allows for summing and input/output signal management.
– Android app free download
– Windows system software free download
– Limiter:0.1dBu~6dBu 0.1dBu steps
-Release Time: Atk*2,Atk*4,Atk*6,Atk*8,Atk*16,Atk*32
– AT.time:0.3ms~100ms 0.1ms steps

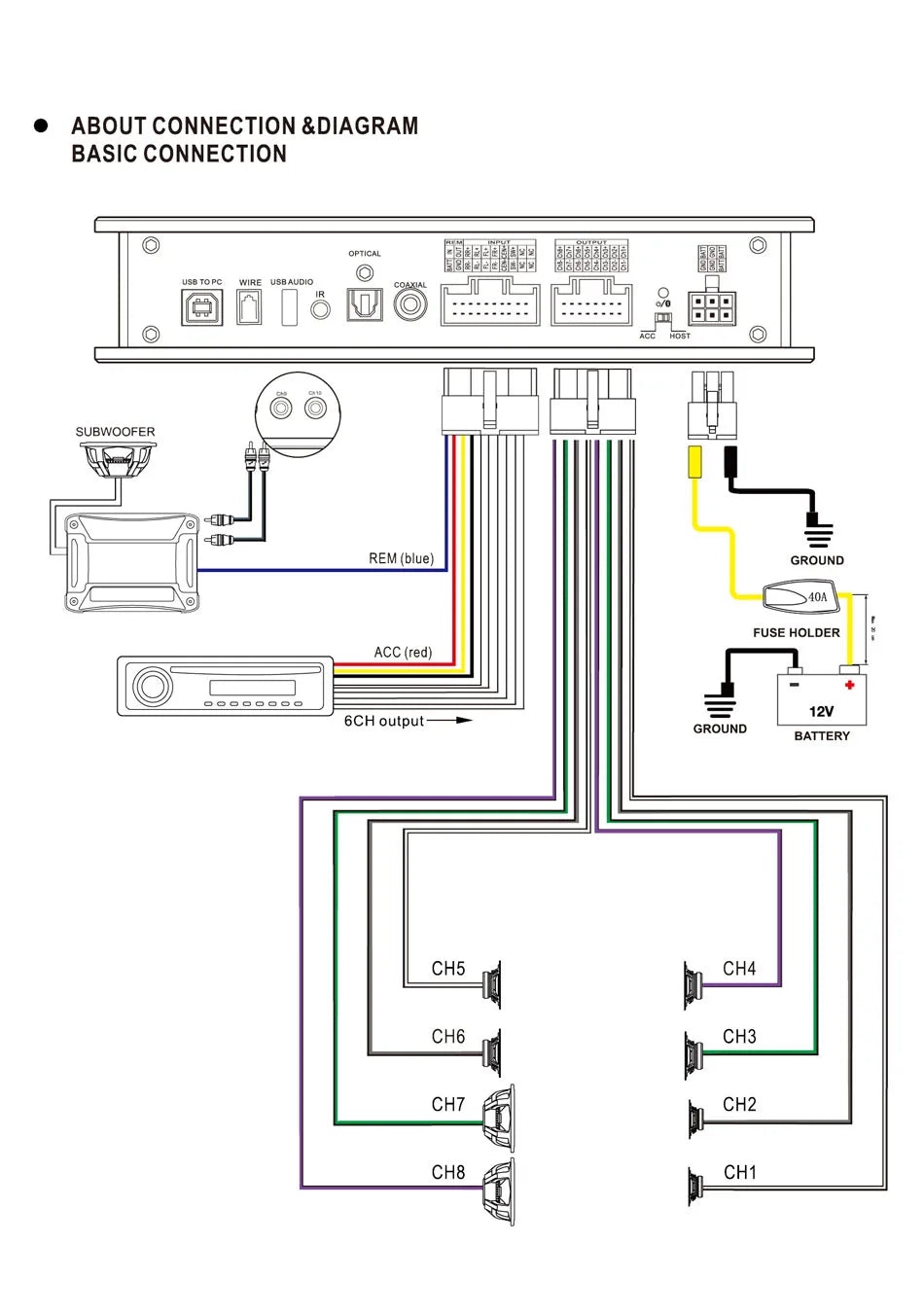

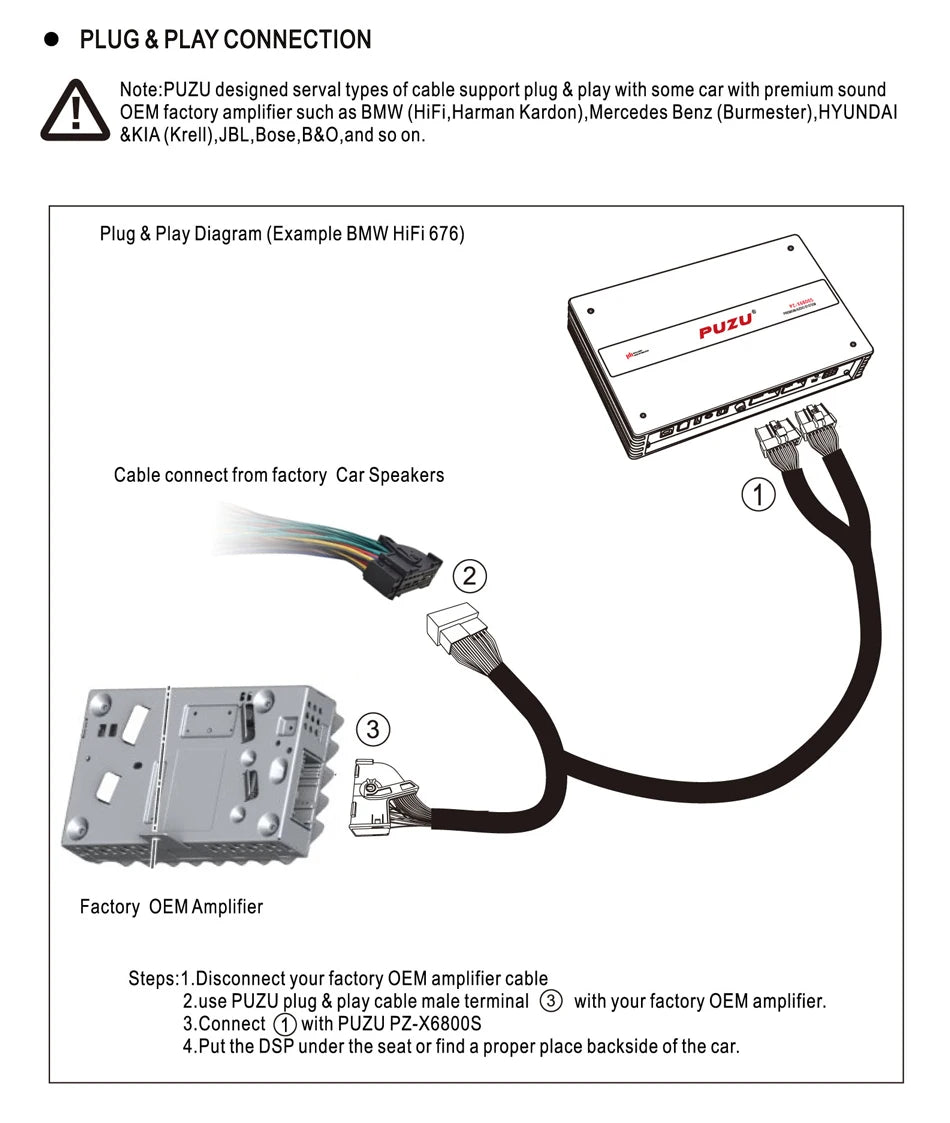

About plug & play diagram please check it below

Price only for PZ-X6800S main unit,not including the harness and remote controller,please select the following proper accessories.
Buy following plug & play harness cable together with main unit of PZ-X6800S upgrade for specific cars,we will ship them in the same package.Please kindly note it,thanks!

Continue updating more car models with plug & play.Please kindly wait it,If you not find the harness cable for your car from above list,you have to use Adapter cables (Universal wire+adaptor male& female socket) you may need check the page here,press herewell if you just want to use universal cable to modify for your car sound system,please clink following link

You can buy optional remote controller to control the volume /switch modes/select input sources/select next or previous songs
