Description

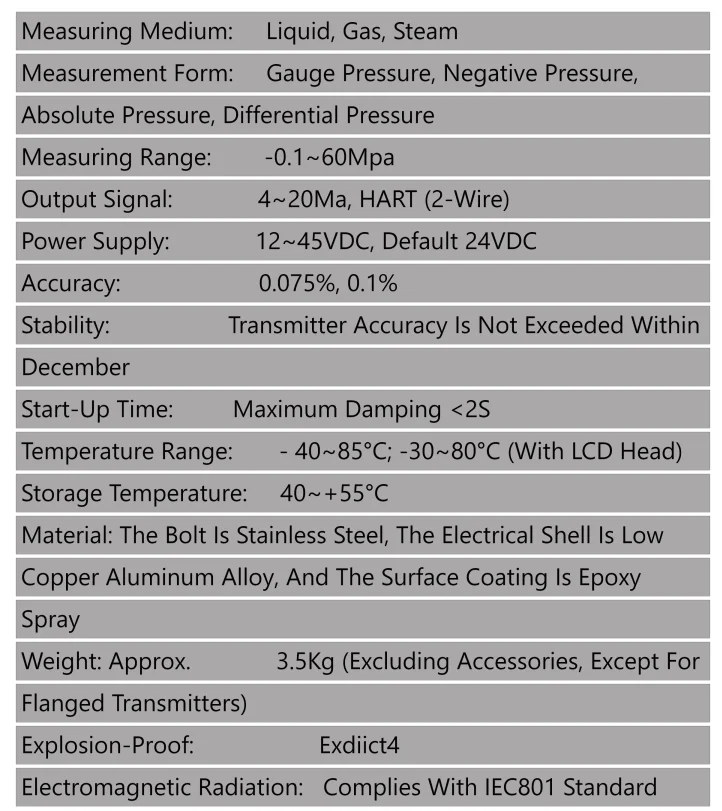

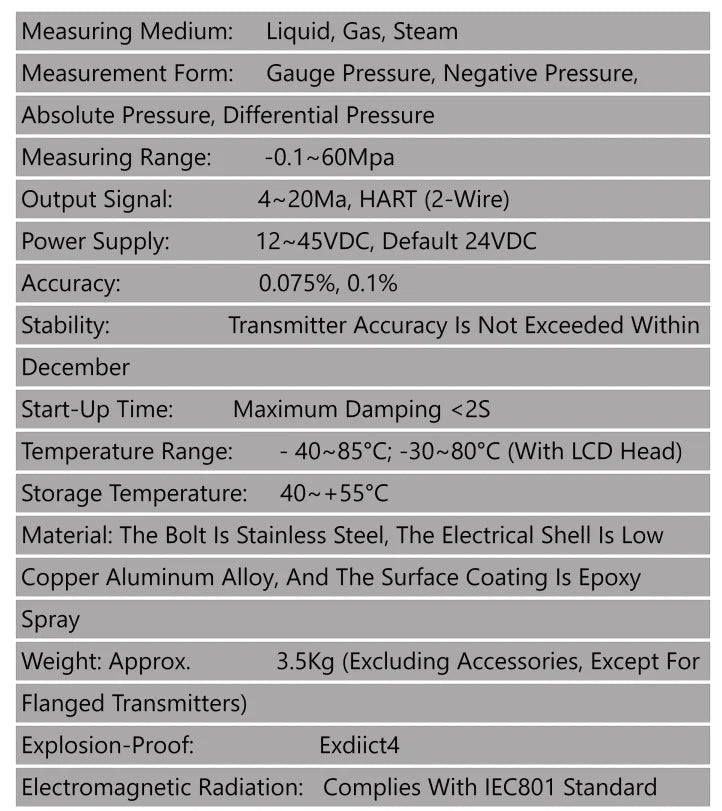

SPECIFICATIONS

Accuracy: 0.1% 0.075%

Battery Included: no

Brand Name: NONE

Certification: CE,FCC,RoHS

High-concerned chemical: none

Material: stainless steel

Max Measuring Range: 59 Bar & Under

Measuring Range: 0-10Mpa

Model Number: QD-3051

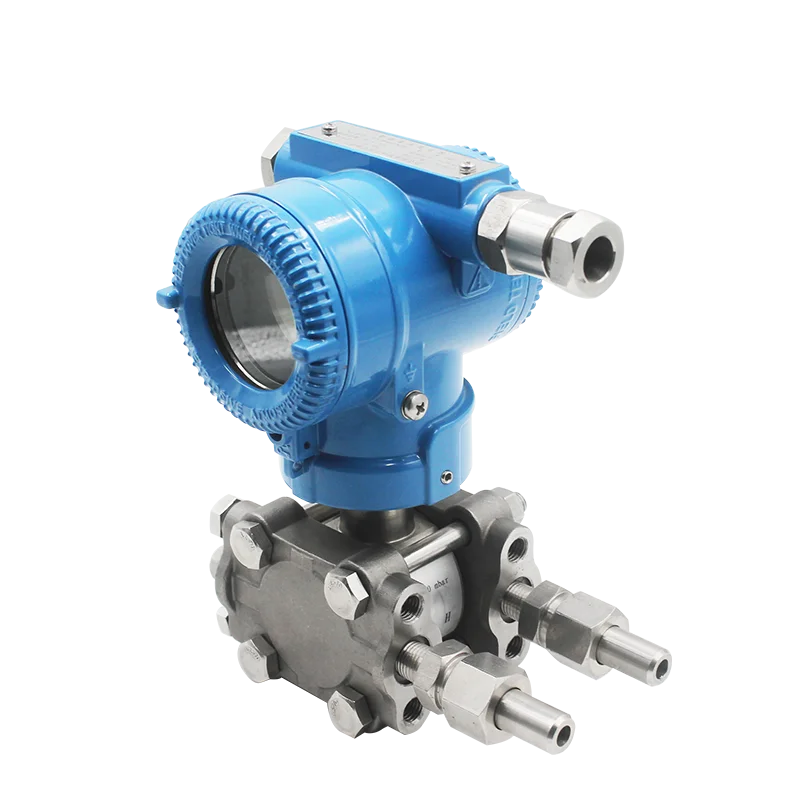

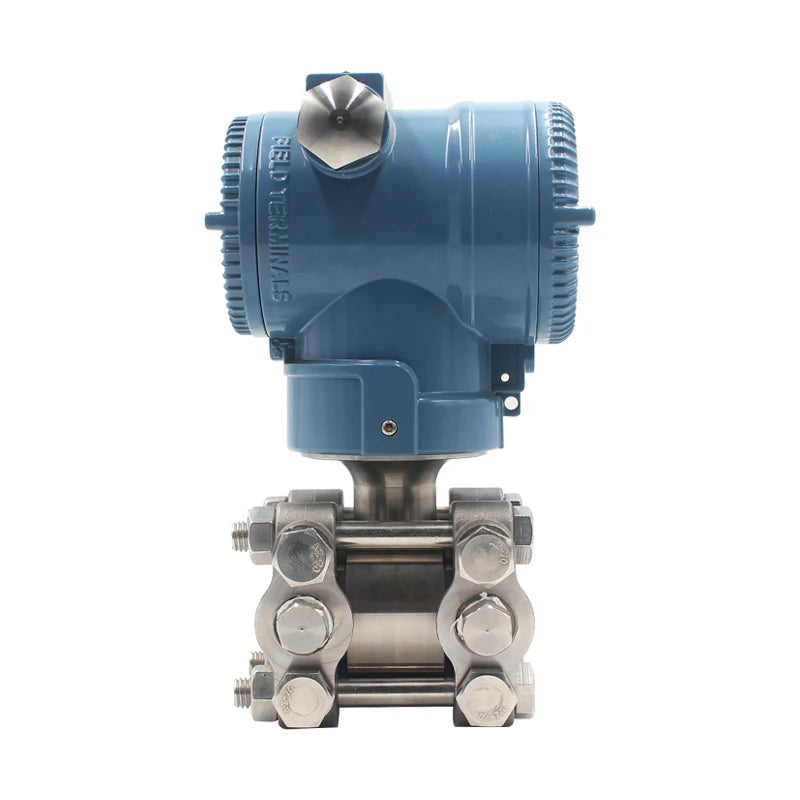

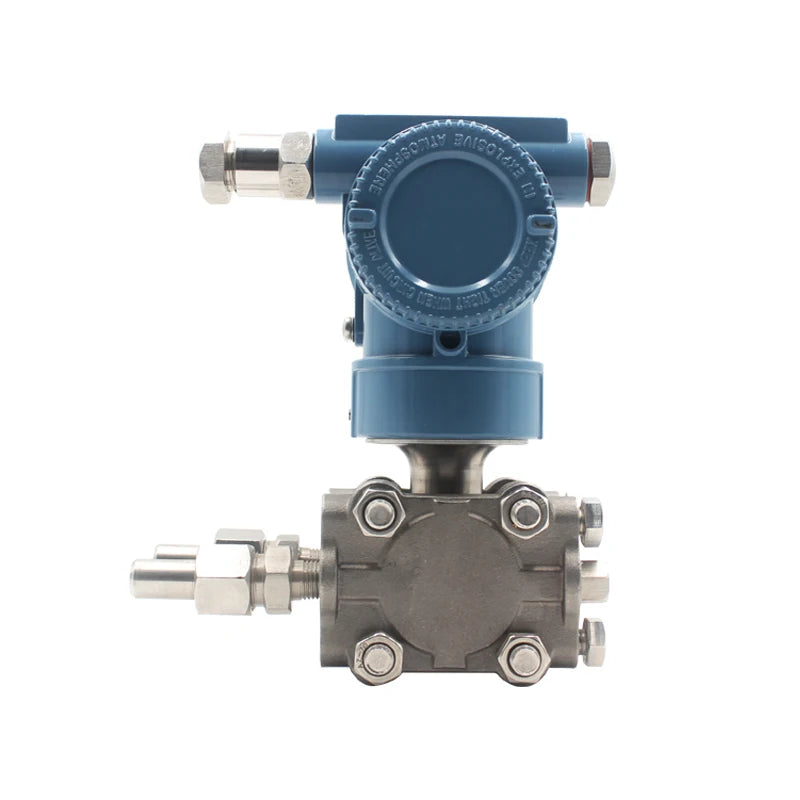

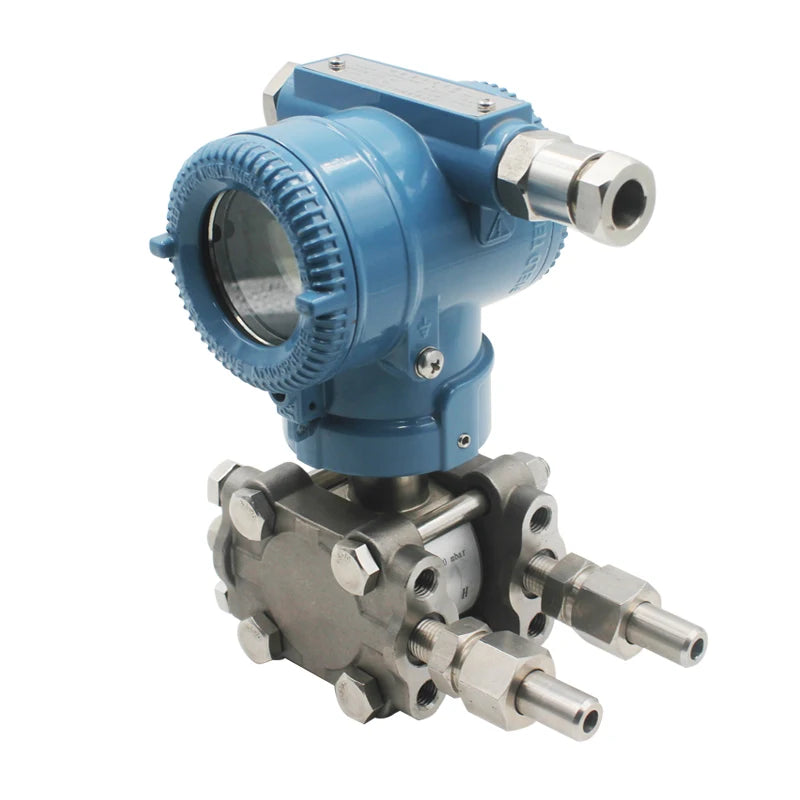

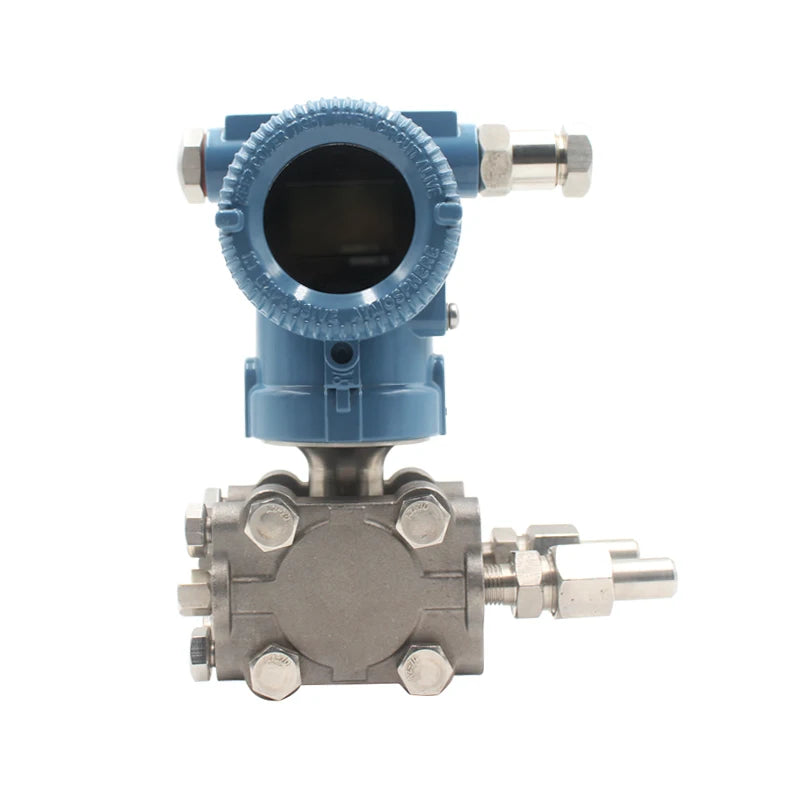

Name: 3051 Intelligent Micro Differential Pressure Sensor

Origin: Mainland China

Output Signal: 4-20mA hart

Power: DC24V

Semi-finishedproduct: No

Description

QD-3051CS series intelligent differential pressure/pressure transmitter is an intelligent field instrument conforming to HART

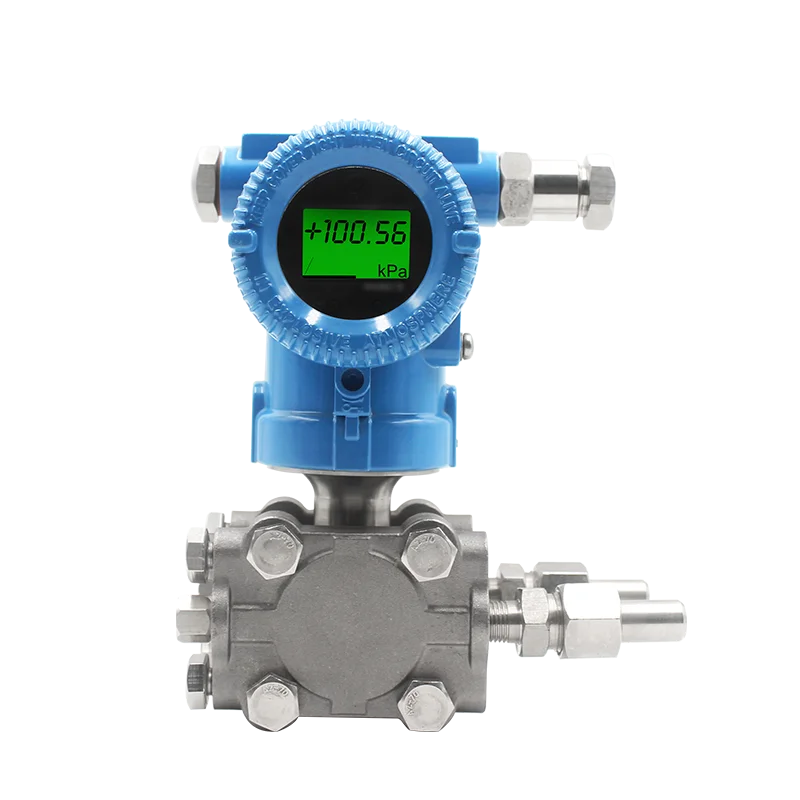

protocol. The original imported diaphragm is used in the design, and the microprocessor and HART communication circuit are used, which can carry out two-way communication with any host computer software that supports the HART communication protocol or 475 and other hand-held devices that conform to the HART communication protocol,. The liquid crystal display can display the differential pressure/pressure value, output current value and output percentage value on site. It is very convenient to debug, realizes the digital and intelligent functions of the transmitter, and is compatible with the traditional 4~20mA analog output signal so that it can be used in different situations. In the case of changing the control system, the exchange with the analog watch can be realized.
