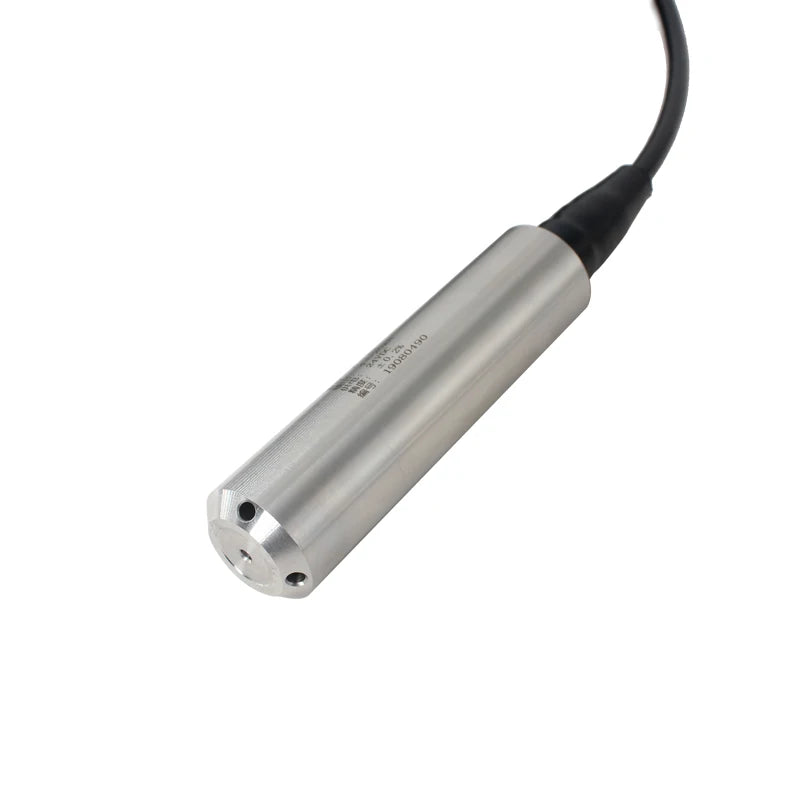

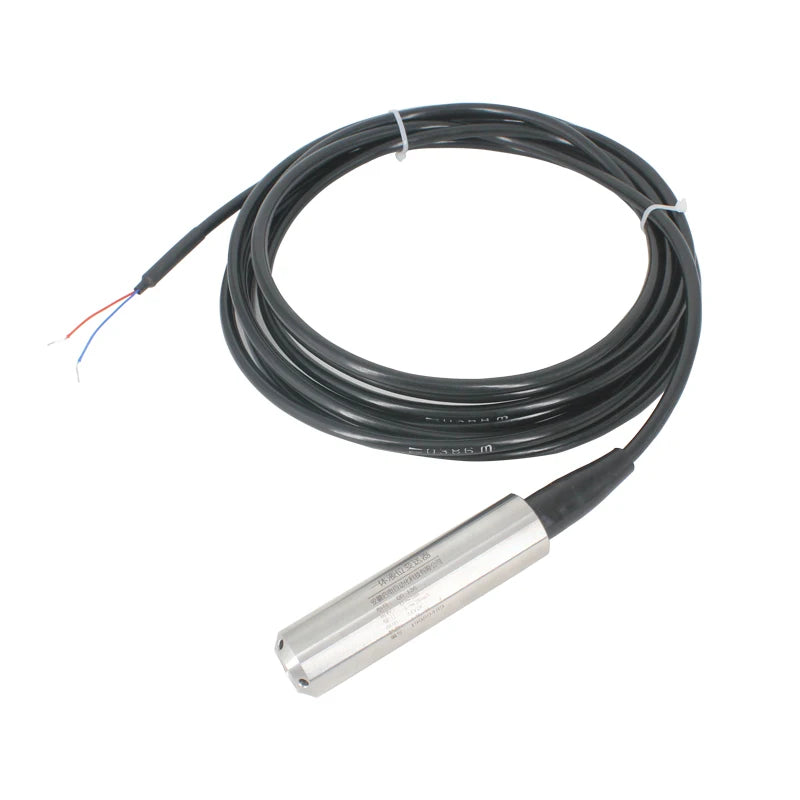

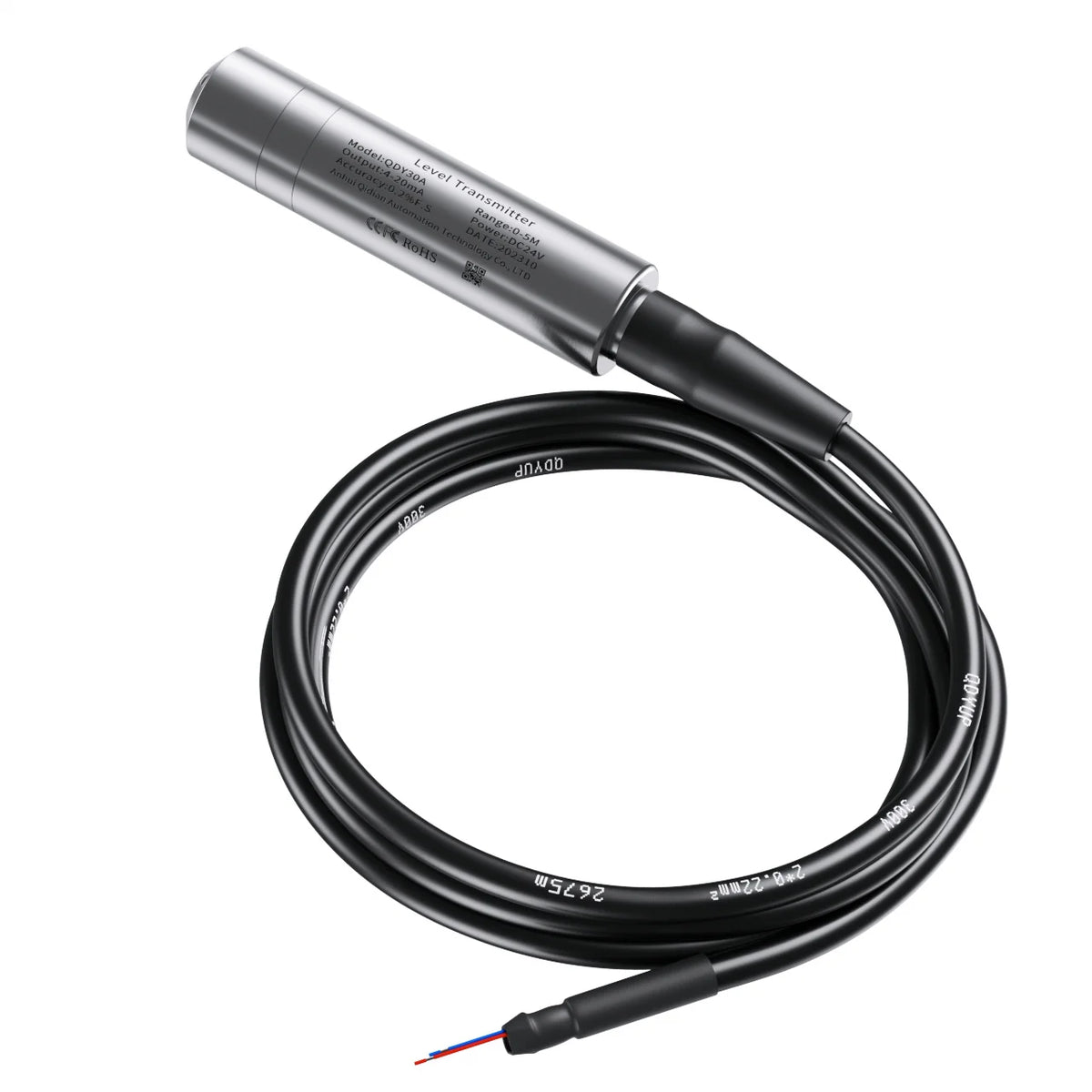

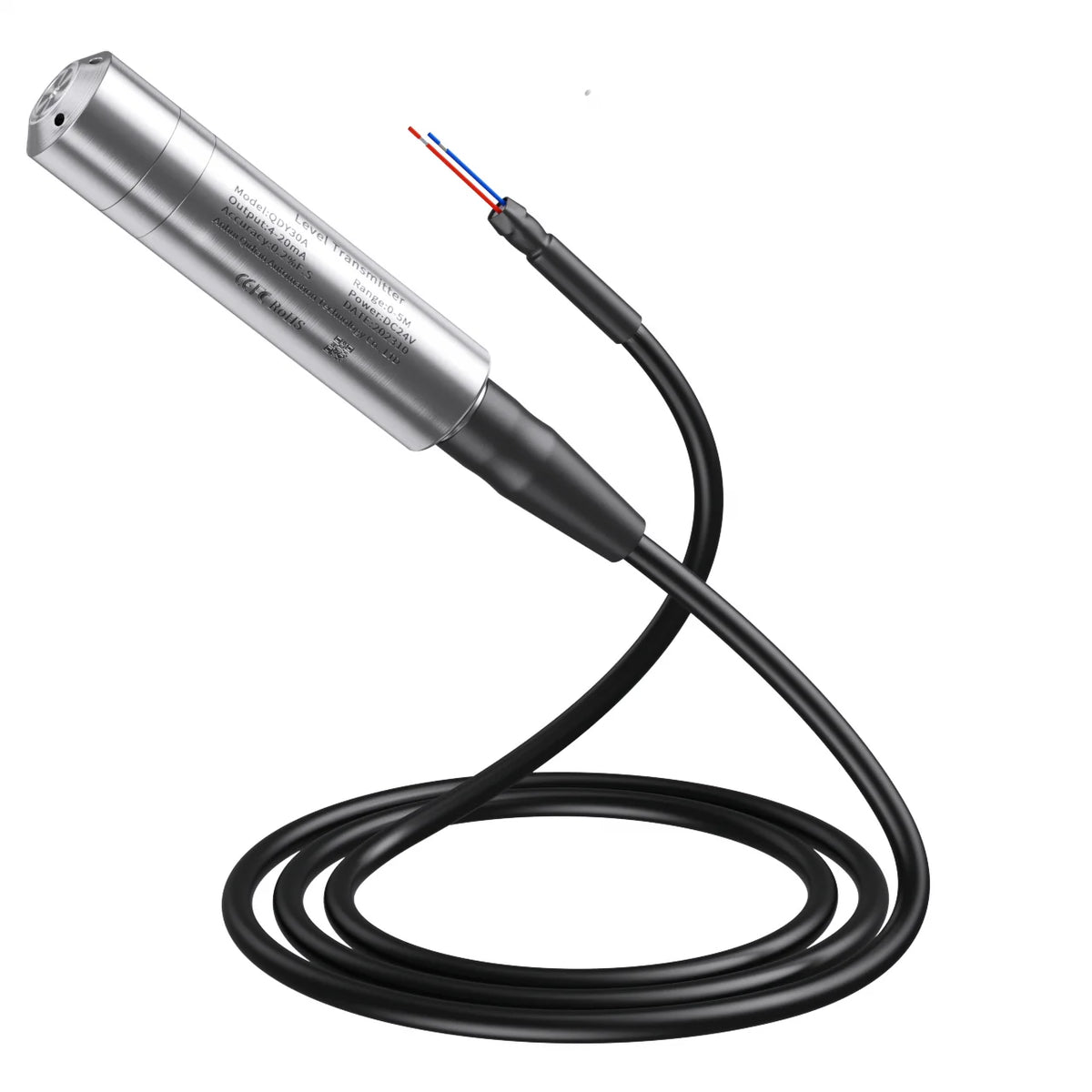

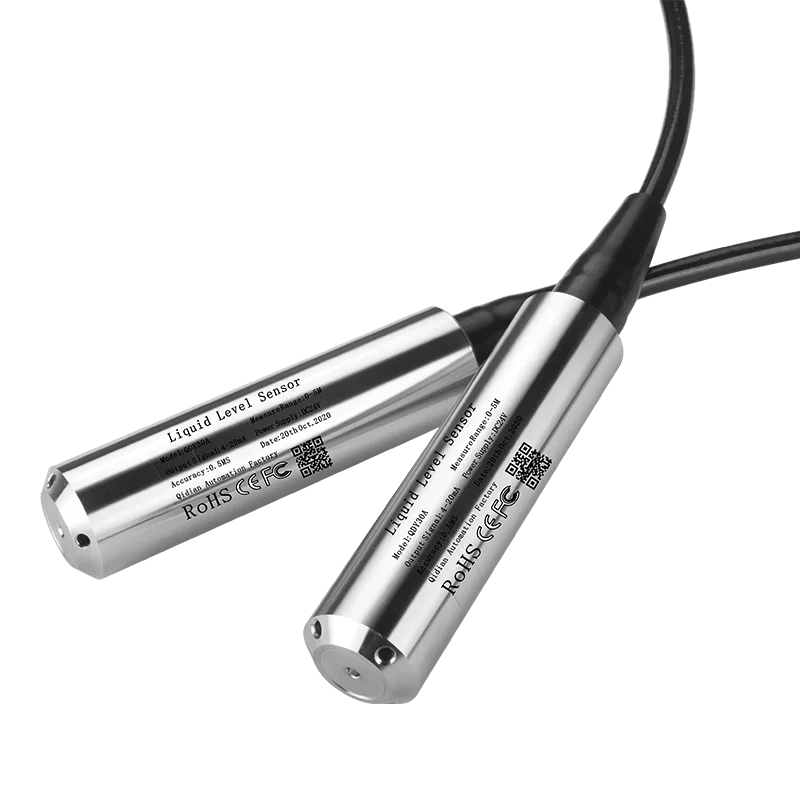

QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter

QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter

4-20mA output / 6m range 6m cable
$218.97
$218.97 $0.00
Skip to product information
QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
  • QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
QDY30A Hydrostatic Water Pressure Level Sensor Probe 4-20mA 0-3.3V Signal Output Liquid Level Transmitter
$218.97
$218.97 $0.00
Color
Measuring Range
Description

SPECIFICATIONS

1: water level transmitter

2: liquid level sensor meter

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Model Number: QDY30A

Origin: Mainland China

Output signal: 4-20mA,0-10V,0-5V,RS485

Power supply: DC24V,(dc12-36v)

Product name: QDY30A water level sensor

Semi-finishedproduct: No

cable lengh: Default 5m,can be customized

range: 0-500m H2O customized





Default power supply is DC24V . (DC10-30V can be used ,wide range of voltage supply )

0-3.3V ,0.5-4.5V output ,power supply is DC5V
OEM ODM is acceptable
If you need other specification: measuring range,output signal,cable lengh,power supply, pls contact us for a customization!!! TKS
Any questions ，pls contact us or send to this mail :sales009@qd-zdk.com





Spcecifications

Item Type: Liquid Level Sensor
Tested Medium: Water (liquid that does not corrode stainless steel)
Measuring Range: 00-500m H2O customized
Measurement Accuracy: 0.2% FS
Output Signal: 4-20mA 0-10v,1-5v ，rs485 can be customized
Supply Voltage: 12-36VDC （Default DC24V）
Ambient Temperature: -30-80 ℃
Temperature Compensation: -10-70 ℃
Overload Capacity: <200%
Protection Level: IP68
Long-term Stability: ± 0.2% FS / year
Product Material: 304 stainless steel

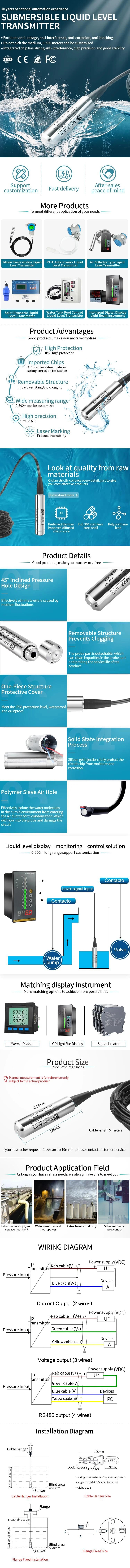

Introduction:

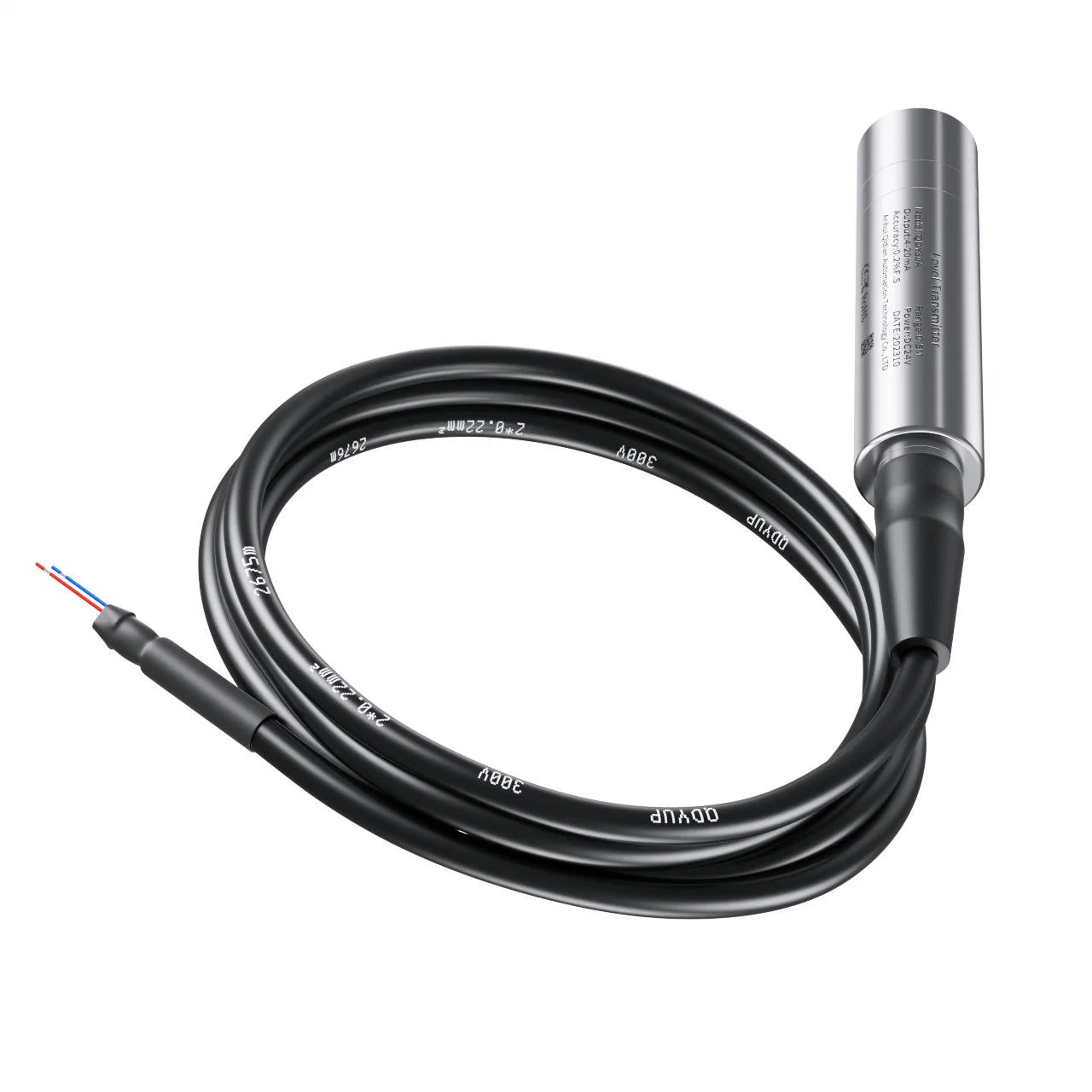

<1>. QDY30A submersible Water Level Sensor, its 304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils.

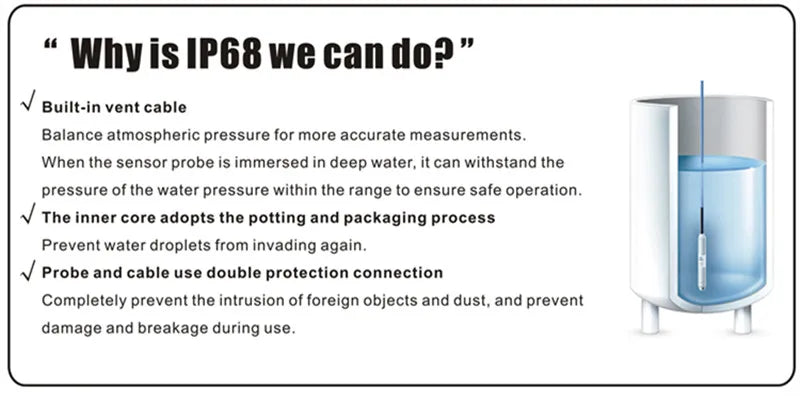

<2>. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.


Features:

  • High accuracy

  • High sensitivity

  • Good stability

  • All stainless steel structure probe

  • Anti-corrosion material optional

  • Easy Installation


Technical parameters:


Model

QDY30A liquid water level sensor

Measuring Range

0~0.5~500m H2O

Power supply

24VDC

Output Signal

4-20mA, 0-10V, 0~5V, RS485

Accuracy

0.5%FS

Response Time

≤1ms (up to 90%FS)

Long-term Stability

±2F.S/Year

Medium Temperature

-20~85℃

Working Temperature

-40~80℃

Overload Capacity

200%F.S

Insulation Resistance

100MΩ/250VDC

Sensitivity Drift

±2%F.S

Zero Drift

±2%F.S

Protection

IP68

Measuring Medium

Various medium which is compatible with SS304

Mechanical Vibration

20g (20~5000Hz)

Impact

100g (11MS)100g (11MS)

Material

Junction box: Low content Cu-Al alloy

Probe: Stainless steel

Cable: Polyurethane cable

Application

Static liquid level, Liquid tank, Sewage water, Well, Lake,etc.

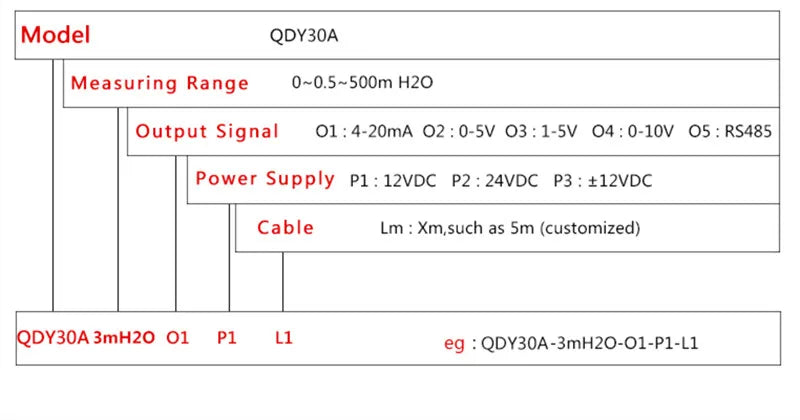

Ordering Guide:
