QL Series SCT031QL Input 100A 200A 300A 400A 500A 600A Output 0.333V/0.1A Accuracy 1% Split Core Current Transformer
QL Series SCT031QL Input 100A 200A 300A 400A 500A 600A Output 0.333V/0.1A Accuracy 1% Split Core Current Transformer
$80.28
$80.28 $0.00
Color
Description

SPECIFICATIONS

Brand Name: YHDC

Certification: CE

Coil Number: current transformer

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SCT031QL

Origin: Mainland China

Phase: SINGLE

Use: Current

is_customized: Yes

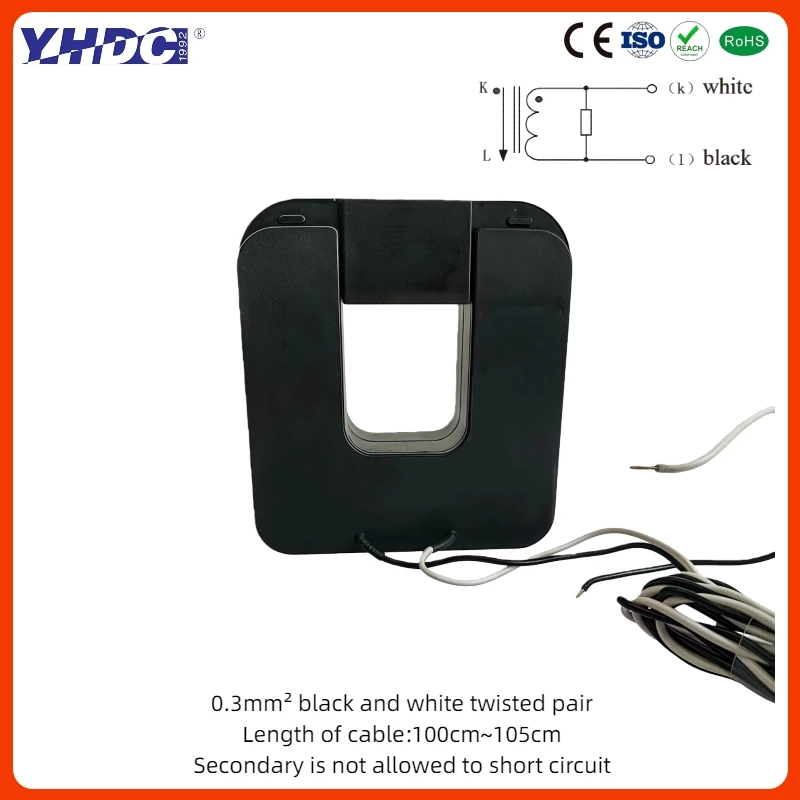

YHDC 31mm hole Split Core Current Transformer, Current Clamp SCT031QL

Split-core current transformers, which feature a removable "leg" for easy, non-intrusive installation, are specifically engineered for retrofit applications.

Application:

Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.


Characteristic:

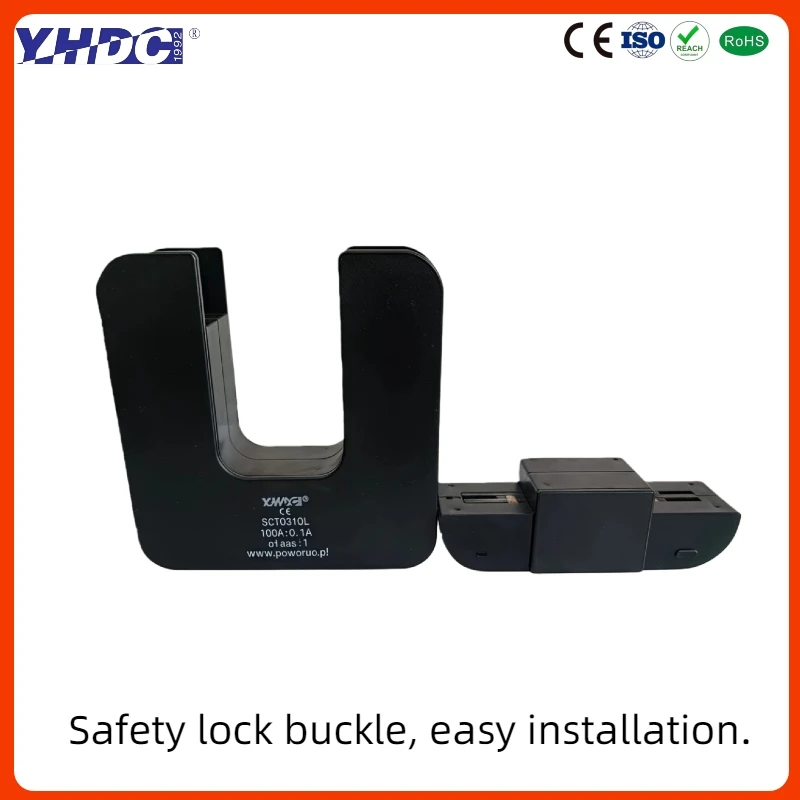

Safety lock buckle, easy installation.

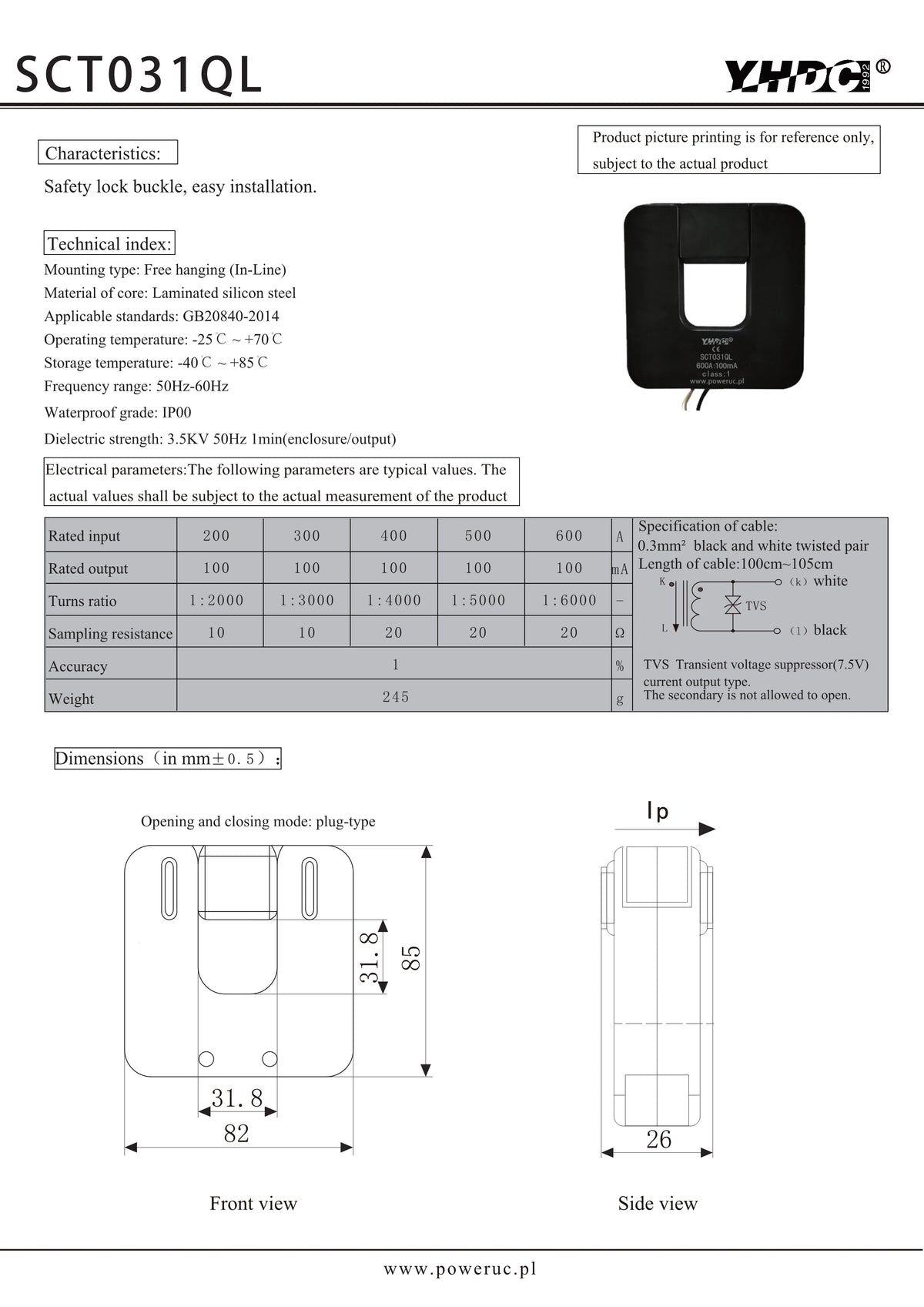

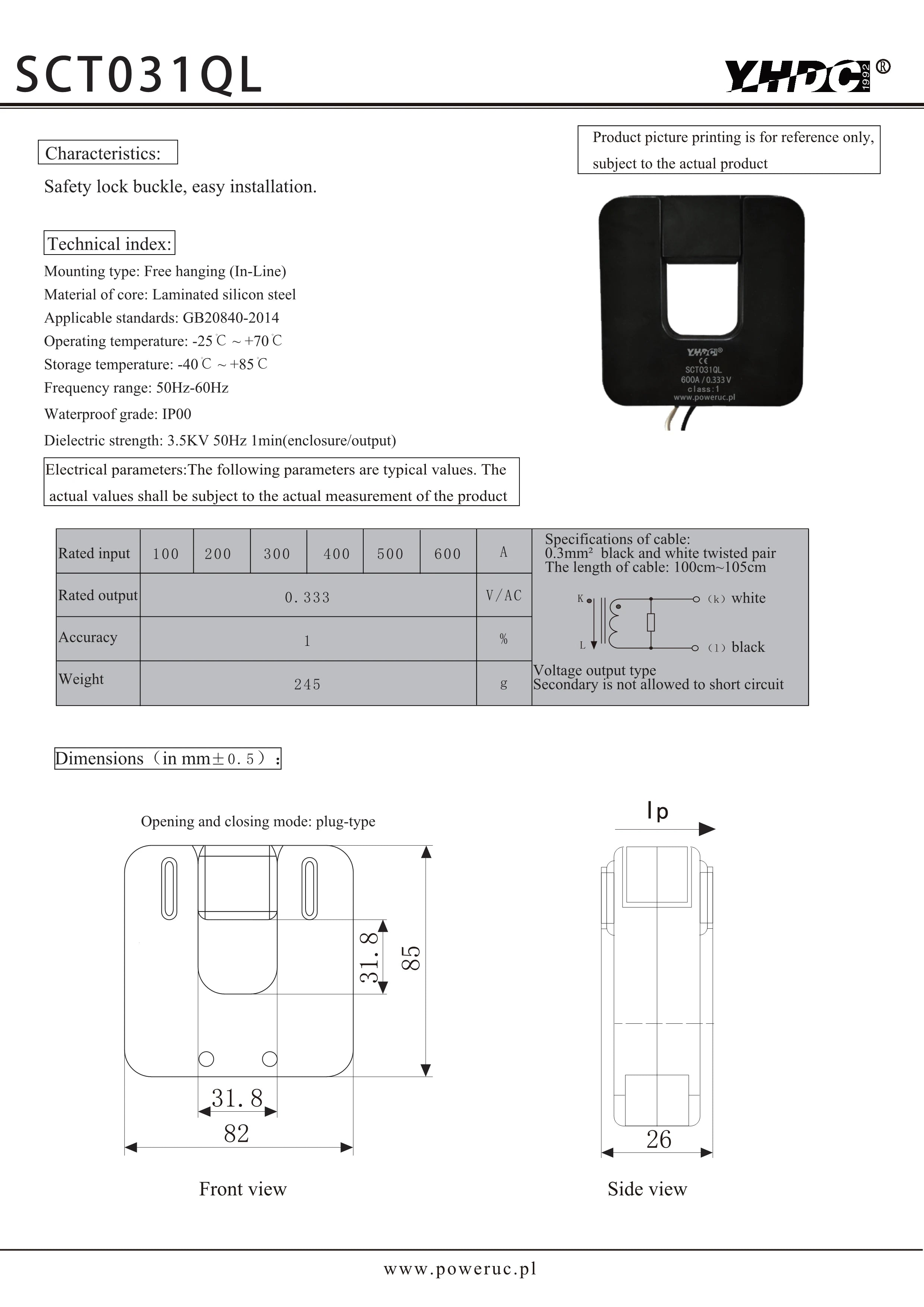

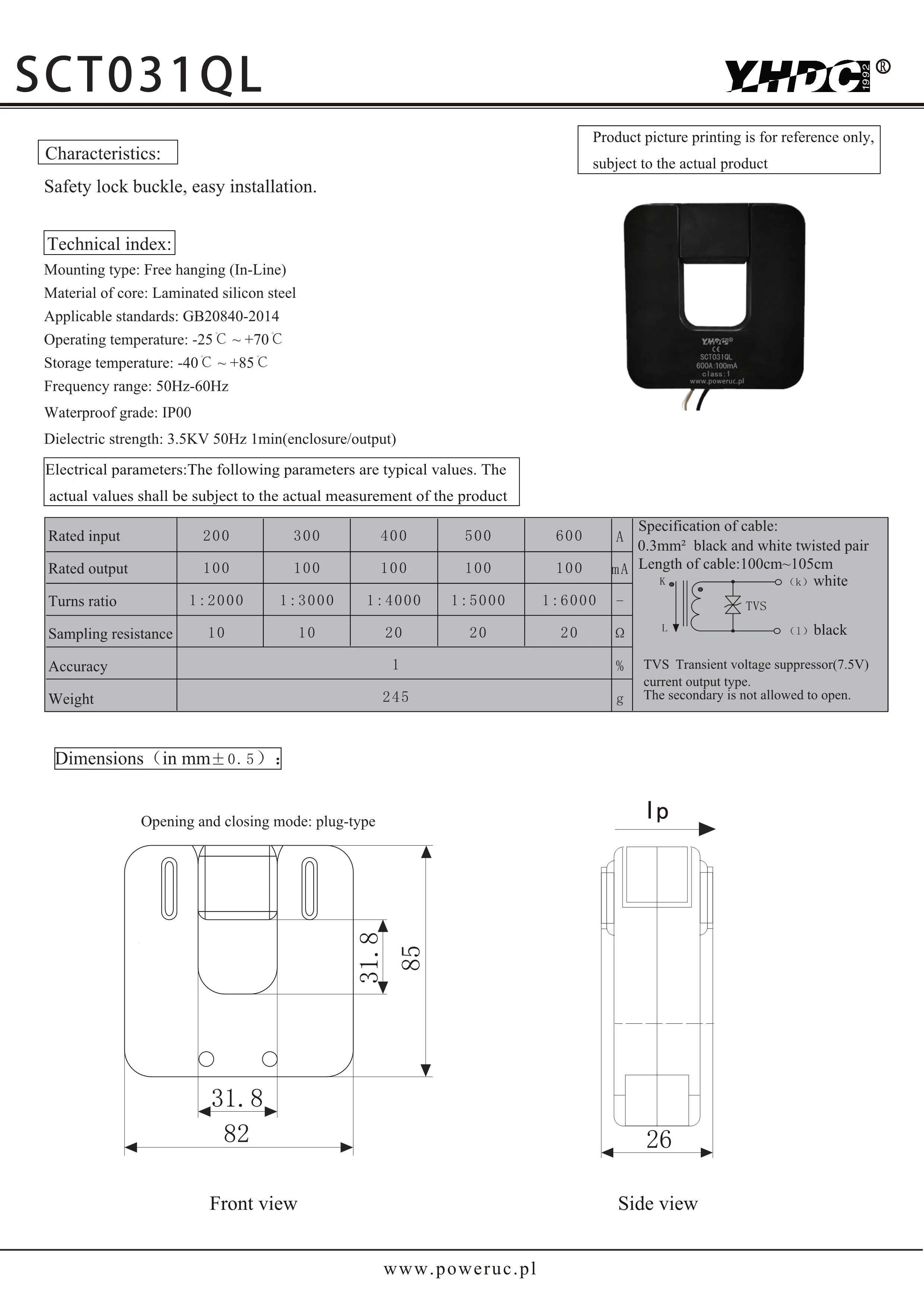

Technical index:

Mounting type: Free hanging (In-Line)

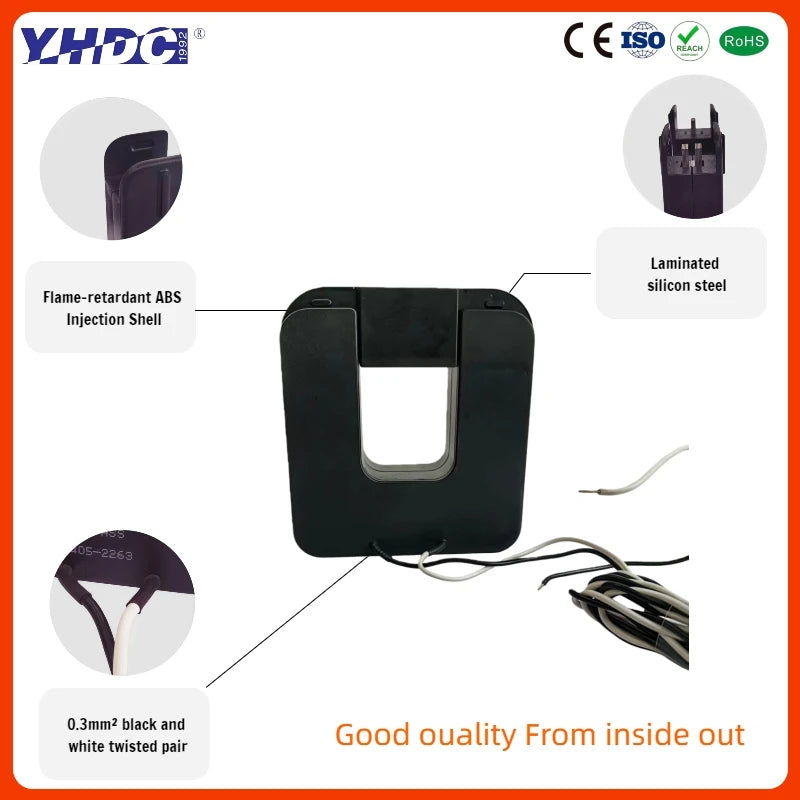

Material of core: Laminated silicon steel
Applicable standards: GB20840-2014
Operating temperature: -25ºC ~ +70ºC
Storage temperature: -40ºC ~ +85ºC
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz
Output/Housing AC 3.5KV/1min 50Hz

Product Parameters:




Main Product:

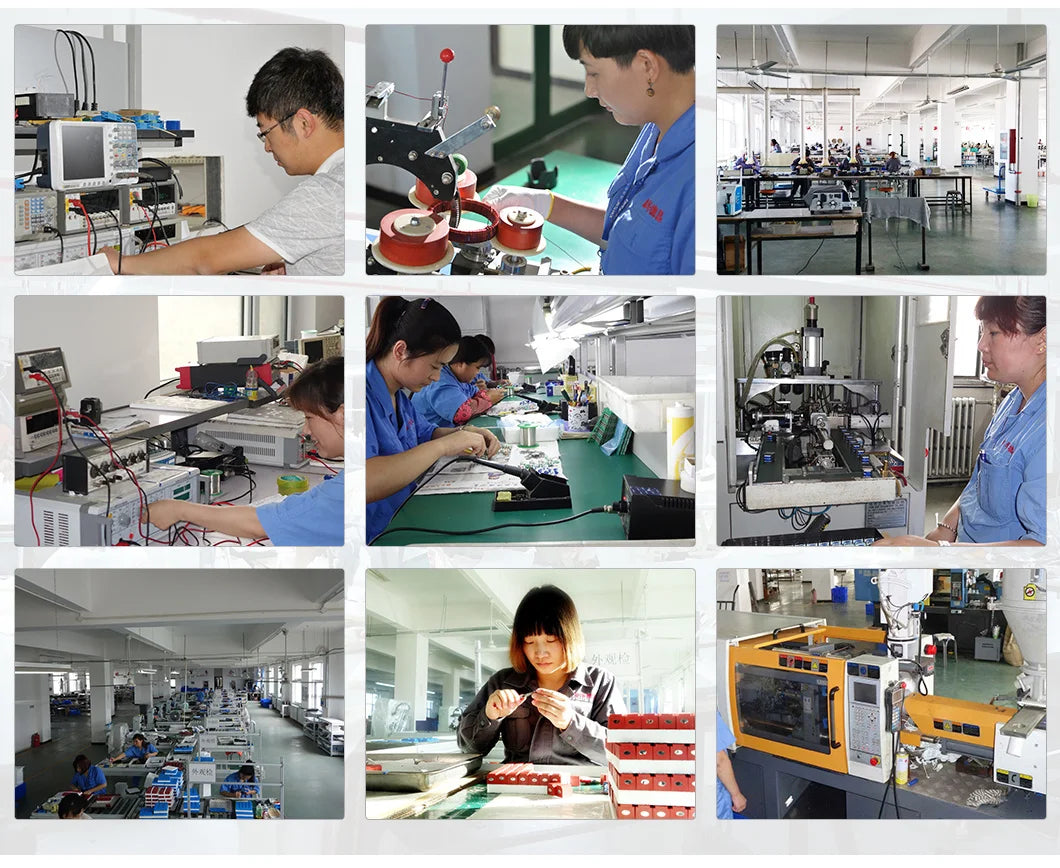

Company Profile:



YHDC was established in 1992 and is a leading manufacturer of electromagnetic components and devices. Our products are widely used in industrial equipment, precision instruments and meters, aerospace, medical, railway, electric power, wind power and other high end industries that require high performance and reliability.  The product range includes power transformers, current transformers, SCR trigger transformers, DC current sensors, residual/leakage current transformers and sensors, and Rogowski coils. YHDC's R&D team is constantly developing new high performance devices every year .  The company is equipped with mold manufacturing and injection molding workshops .  Over the years , we have designed and developed hundreds of products, including non standard products according to customer requirements.  Focus on the design and manufacture of high-quality products, adapt to severe environments, long term reliable operation , and a service life of up to 20 years.  YHDC has a number of patents, which are widely used in power, Internet of Things and other industries.



Our Advantages:



We value our customers Timing Reply in 24 hours, showcasing our passion and patience. According customers' require- ment recommend the suitable product. We provide 1 year warranty, If you have any problems during use, our technical team will provide technical support.



Certifications:



Exhibition:



Packaging & Shipping:



Package:


· All our CT will be well packed with box in a carton.
· You can design your own label and package
· Can be netural packing or OEM. Shipping
· Products are shipped via DHL/ FedEx /UPS /TNT, etc. (door to door), or air & sea shipment for larger qty.




Q: Can the product be customized?

A: Yes.


Q: How long is your delivery time?

A: 3-5 working days .


Q:Are you trading company or manufacturer?

A:We are factory.


Q:How can I place an order?

A: You can contact us by email about your order details, or place order online directly.
