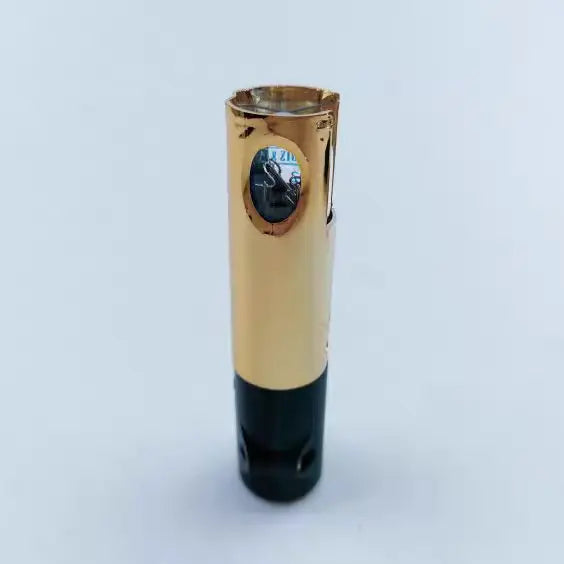

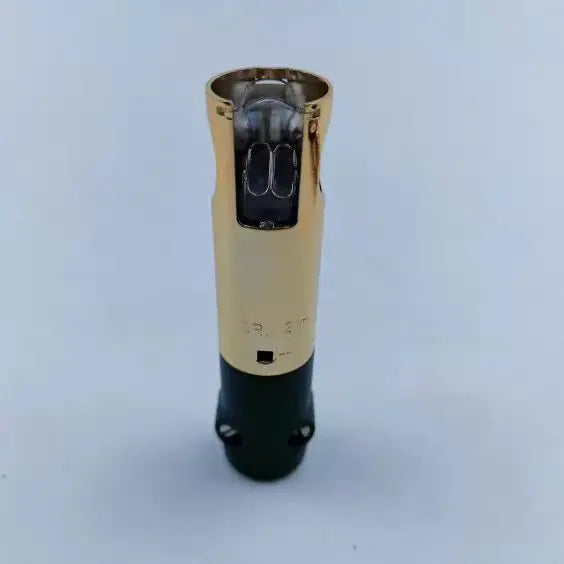

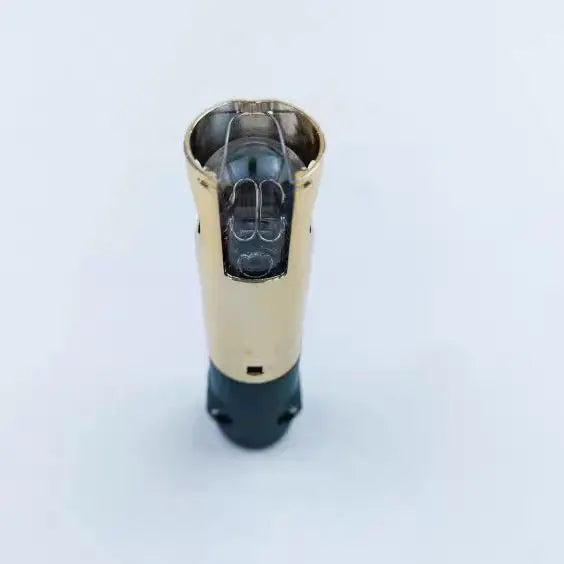

QRA2 Burner UV Flame Sensor Probe Photocell Electric Eye

QRA2 Burner UV Flame Sensor Probe Photocell Electric Eye

$180.27

$180.27 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

QRA2 / QRA2M UV flame detector is ultraviolet flame sensing component used for gas burners, compatible replacement for original flame photocell.

Model: QRA2, QRA2M. This UV probe captures ultraviolet radiation generated by gas flame, transmits flame signal to burner controller to realize continuous flame monitoring. It detects flame existence rapidly; once flame loss occurs, it sends feedback signal to trigger safety interlock and cut off gas supply, prevent gas accumulation and explosion risk. Widely matched with industrial gas burners equipped with corresponding combustion program controllers, applicable on steam boilers, hot water boilers, thermal oil furnaces and heating kilns.

Applicable fuel: Natural gas, LPG and other gaseous fuels with ultraviolet flame radiation.

General Unified Technical Parameters

Model: QRA2, QRA2M
Type: UV ultraviolet flame sensor / photocell / electric eye
Detection spectrum: Ultraviolet band
Working voltage: Matches standard burner flame amplifier base
Working ambient temperature: -20℃ ~ +80℃
Function: Real-time flame detection, flame loss safety protection
Feature: Fast response, strong anti-interference, stable signal output
Matching standard: Installation dimension, interface consistent with original QRA2 QRA2M, direct replacement

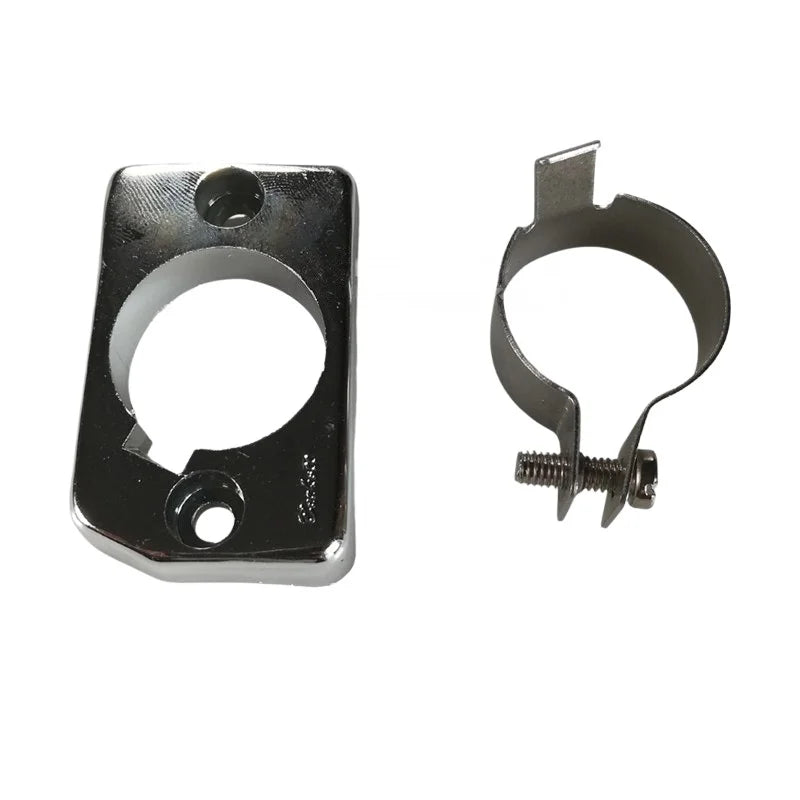

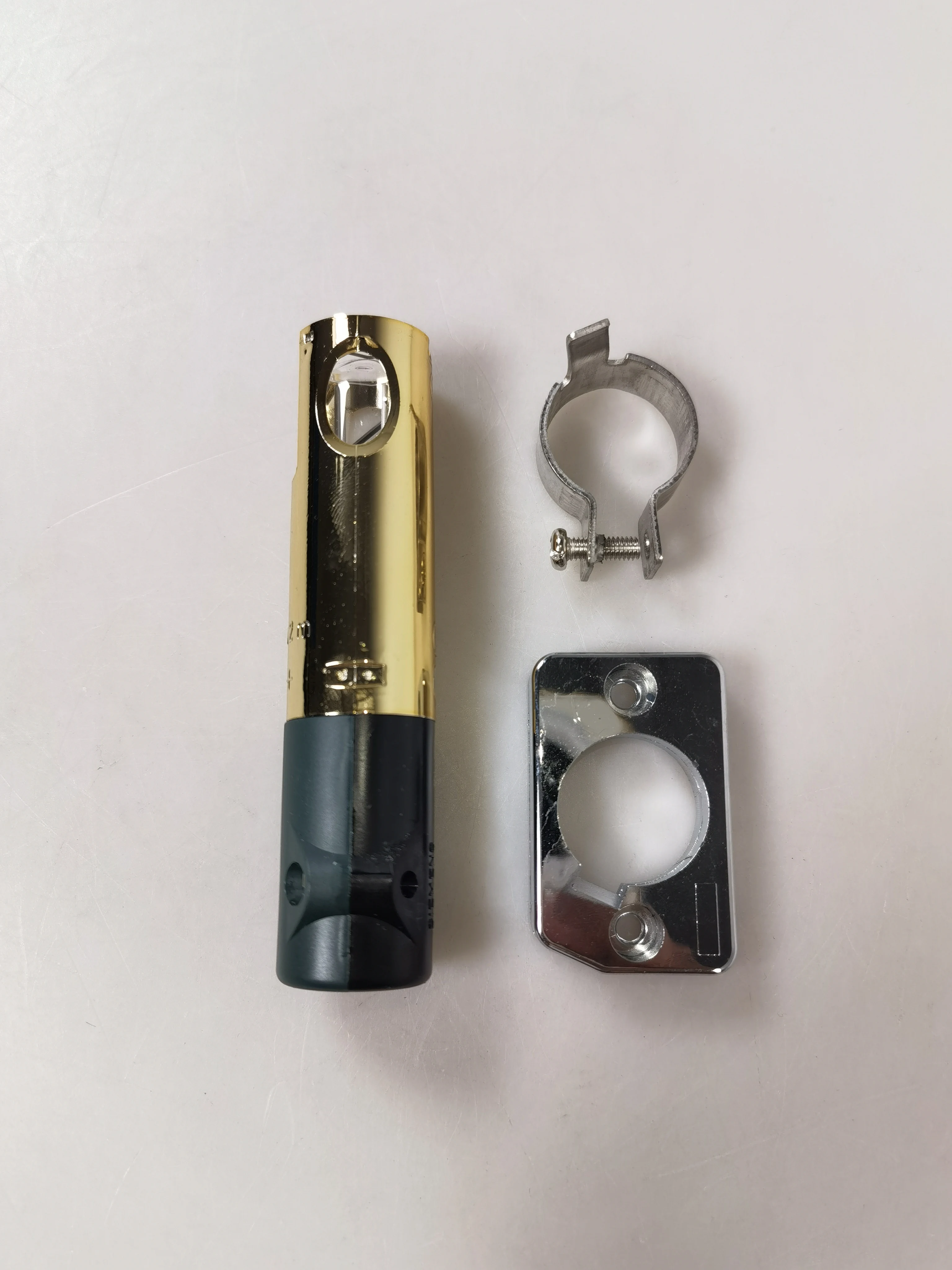

Installation position: Burner observation sight port, matched dedicated detector base

Model Matching Classification

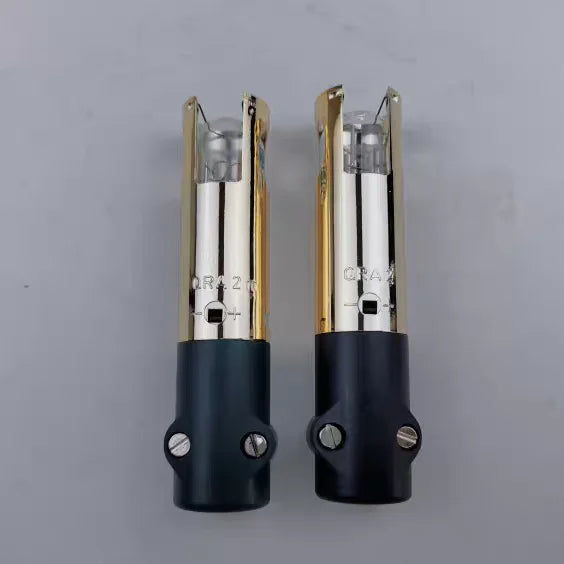

QRA2 UV Flame Detector

Standard type UV probe, widely matched with common gas burner control boxes
QRA2M UV Flame Detector

Upgraded version, enhanced anti-light interference performance, suitable for complex industrial site environment

Core Advantages

High-sensitivity ultraviolet sensing chip, quickly identify flame UV signal, avoid false flame signal.
Good anti-interference capability, resist interference from visible light, infrared and ambient stray light.
Stable long-term operation, slow aging rate, reduce frequent maintenance frequency.
Same mounting size and wiring interface as original QRA2 QRA2M, plug-and-play without modification.
Reliable flame loss detection function, ensure burner safety interlock works normally.
Cost-effective OEM alternative spare part, lower maintenance cost compared with original sensor.

Installation & Safety Instructions

Confirm controller base model before purchase, ensure compatibility with QRA2 / QRA2M detector.
Power off burner system before installation and wiring work.
Install the probe facing flame, keep sight path unobstructed without dust, smoke or obstruction.
Avoid direct sunlight or strong external light shining onto UV probe to prevent false alarm.
Regularly clean lens surface dust and carbon deposit to guarantee detection sensitivity.
Replace immediately if signal instability, slow response or lens aging appears.

Application Scope

Industrial gas burners, steam & hot water boilers, heat conduction oil furnaces, heating kilns, burner flame safety monitoring system, replacement spare parts for QRA2 QRA2M UV photocell electric eye.
