SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Product Description

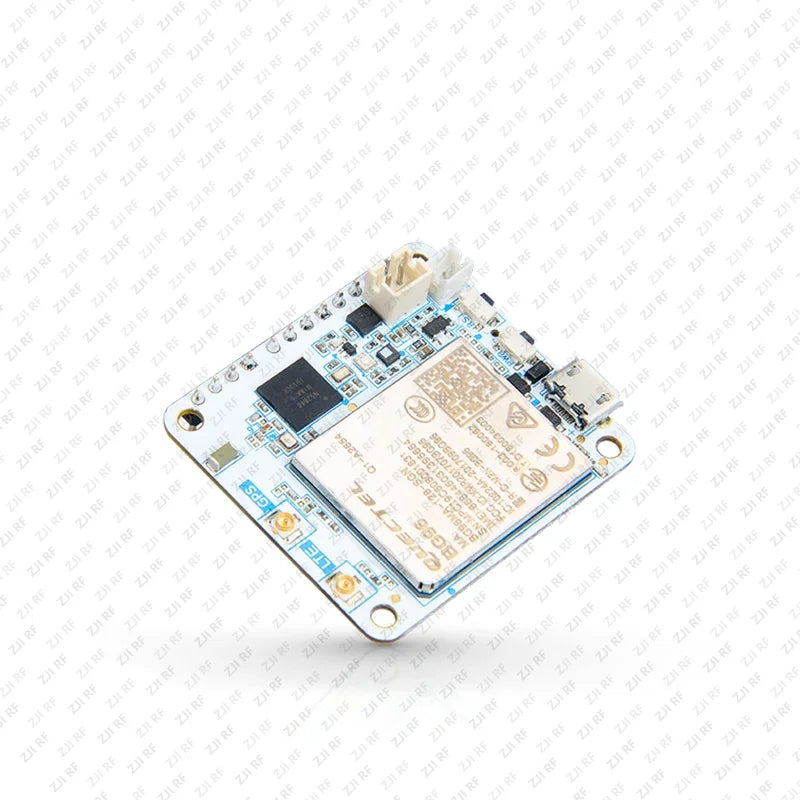

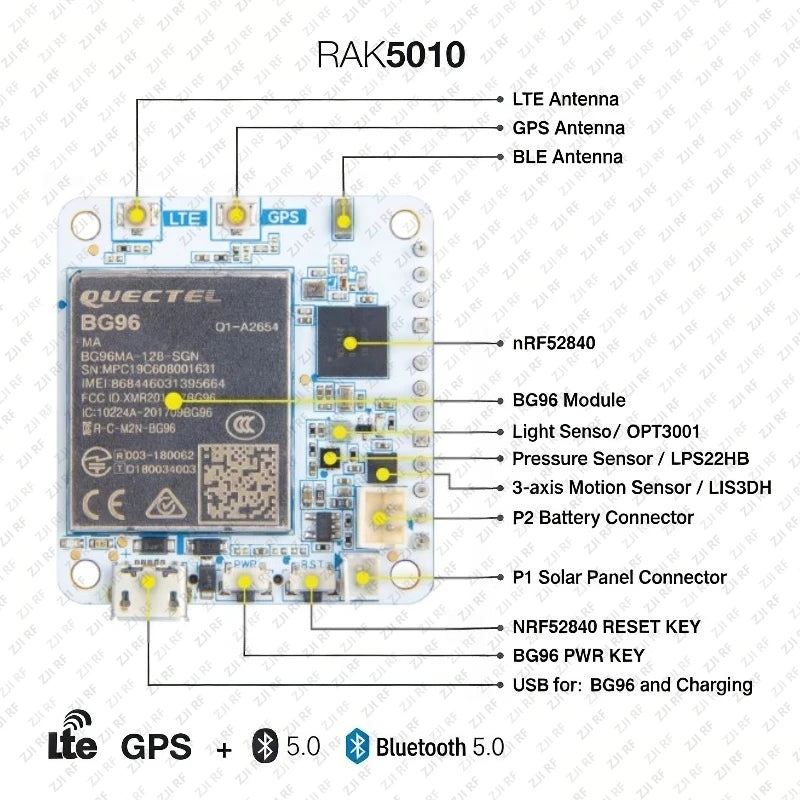

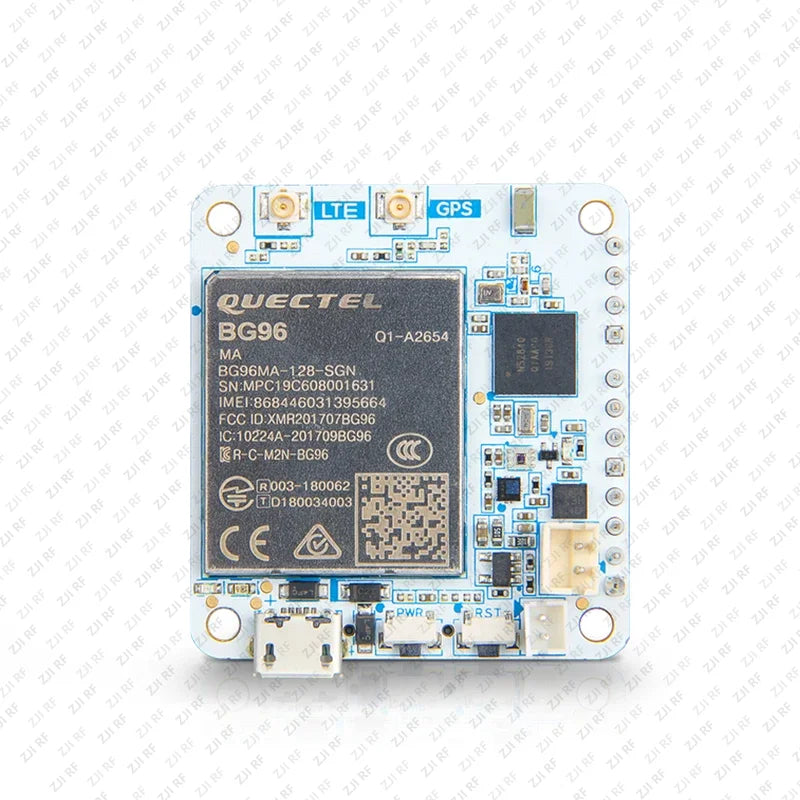

WisTrio NB-IoT Tracker Pro (RAK5010) is a tracking device integrated with LTE CAT M1 & NB1, GPS, BLE, and multiple sensors. It is built on the Quectel BG96 LTE CAT M1 & NB1 module, which features an integrated GPS receiver. The main controller (MCU) running on the board is a Nordic nRF52840.

Equipped with both GPS and BLE dual-mode positioning capabilities, it is suitable for indoor and outdoor scenarios requiring location-based services.

The RAK5010 standard model comes with built-in temperature and humidity sensor, motion sensor, pressure sensor, and ambient light sensor. The RAK5010-M simplified model retains only the temperature and humidity sensor and 3-axis motion sensor at a more cost-effective price. The extended IOs allow adding additional sensors beyond the on-board ones.

This development board is particularly suitable as a quick testing and prototyping tool for applications requiring NB-IoT connectivity. Application development is supported in the GCC environment.

Features

Quectel BG96 module, supporting LTE CAT M1, LTE NB1 networks, and GNSS positioning
Nordic nRF52840 controller, supporting BLE5.0 and long-range BLE communication
nRF52840 integrates an ultra-low-power Cortex-M4 architecture microprocessor (64MHz clock speed)
Built-in sensors of RAK5010 model:
- Temperature and humidity sensor
- Pressure sensor
- 3-axis motion sensor
- Ambient light sensor
IPEX connectors for LTE and GPS antennas, and an on-board ceramic antenna for BLE

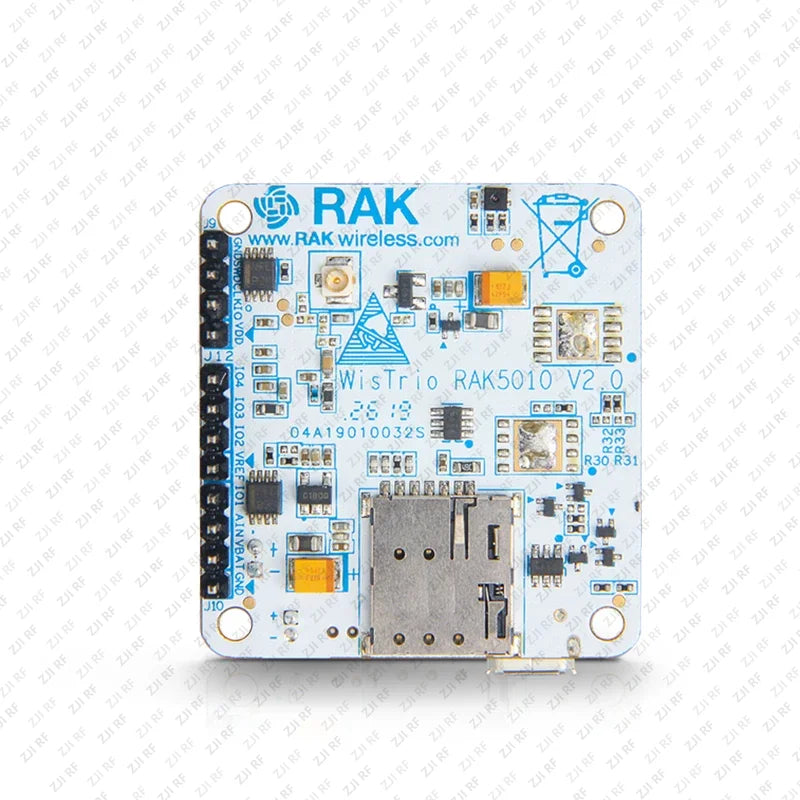

Supports nano-SIM and eSIM options
Flexible power supply: Micro USB, 3.7V rechargeable battery, or 5V Solar Panel Port

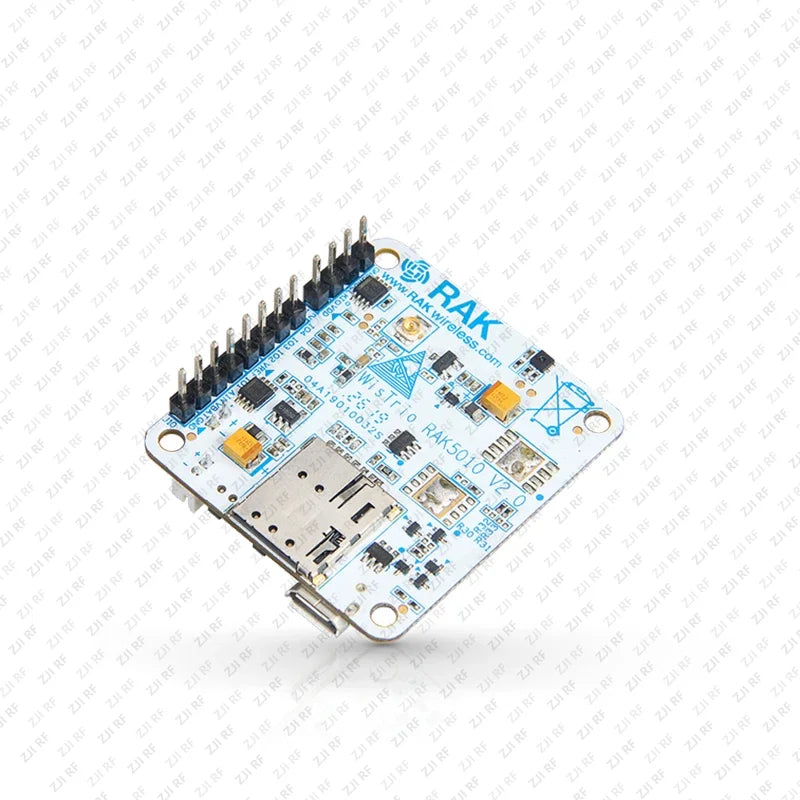

Rich interface configuration: I2C, UART, GPIO, ADC

Key Features

Quectel BG95-M3 module, supporting LTE CAT M1, LTE NB1 networks, and GNSS positioning
Nordic nRF52840 controller, supporting BLE5.0 and long-range BLE communication
nRF52840 integrates an ultra-low-power Cortex-M4 architecture microprocessor (64MHz clock speed)
Built-in sensors of RAK5010-BG95 model:
- Temperature and humidity sensor
- Pressure sensor
- 3-axis motion sensor
- Ambient light sensor
Built-in sensors of RAK5010-M model:
- Temperature and humidity sensor
- 3-axis motion sensor
IPEX connectors for LTE and GNSS antennas, and an on-board ceramic antenna for BLE
Supports nano-SIM and eSIM options
Flexible power supply: Micro USB, 3.7V rechargeable battery, with a 5V Solar Panel Port for battery charging
Rich interface configuration: I2C, UART, GPIO, ADC
