SPECIFICATIONS

Brand Name: JINYUSHI

High-concerned chemical: none

Model Number: EC25,EC25-E/EC25-AU/EC25-AF/EC25-EU/EG25-G/EC25-V/EC25-EC

Origin: Mainland China

Package: Yes

Products Status: STOCK

Style: External

Telecomcableconnected: No

Type: Wired

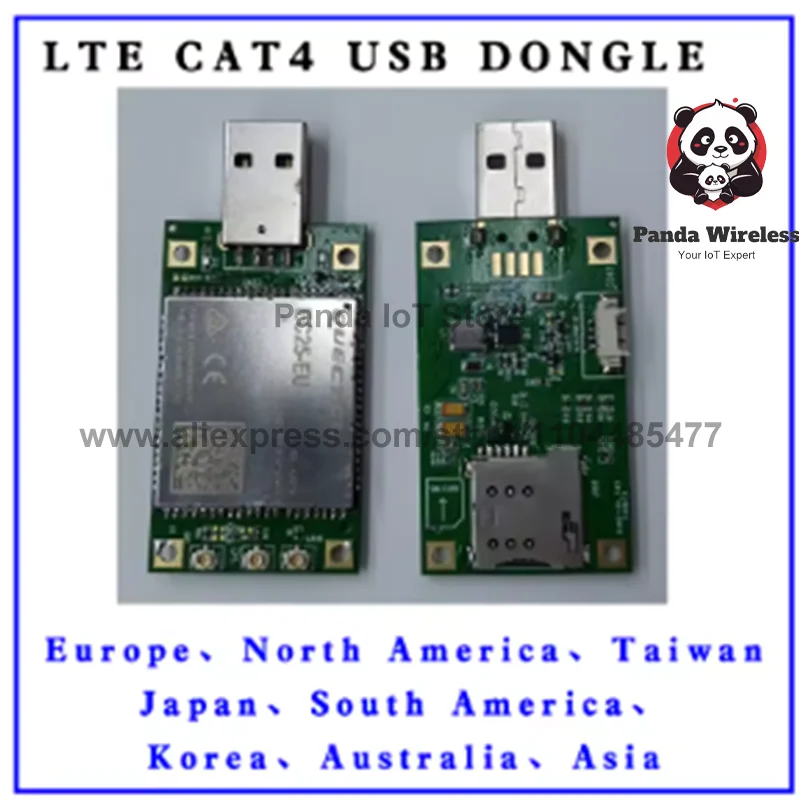

Quectel EC25-E/EC25-AU/EC25-AF/EC25-EU/EG25-G/EC25-V/EC25-EC CAT4 LTE+GPS EC25 USB DONGLE testing kit for Europe North America

Quectel EC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates. Designed in the compact and unified form factor, EC25 is compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20/EC21 module, which allows for flexible migration among them in design and manufacturing.

Quectel EC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates. Designed in the compact and unified form factor, EC25 is compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20/EC21 module, which allows for flexible migration among them in design and manufacturing.

EC25 contains 10 variants: EC25-E, EC25-EU, EC25-EC, EC25-A, EC25-V, EC25-AF, EC25-AU, EC25-AUT, EC25-AUTL and EC25-J. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EC25 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.

Key Benefits

● LTE category 4 module optimized for M2M and IoT applications

● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

● Feature refinements: supports DFOTA*, eCall* and DTMF

● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

EC25-E: B1/B3/B5/B7/B8/B20@FDD LTE B38/B40/B41@TDD LTE; B1 B5 B8 @WCDMA

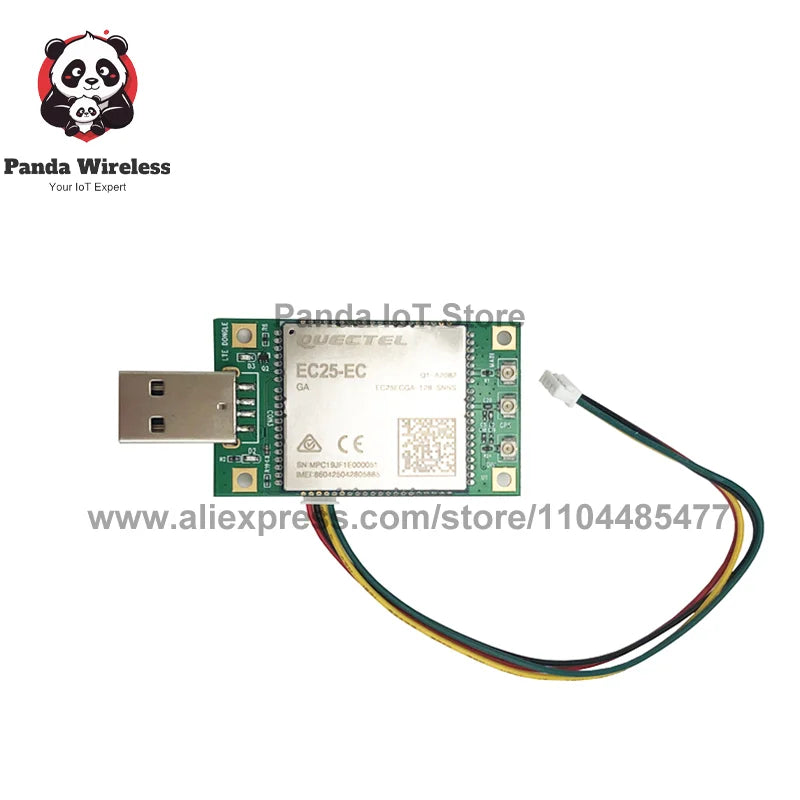

EC25-EC:B1/B3/B5/B7/B8/B20/B28A@FDD LTE B38/B40/B41@TDD LTE; B1 B5 B8 @WCDMA

EC25-V:B4/B13

EC25-A:B2/B4/B12 WCDMA:B2/ B4/ B5

EC25-AF:B2/B4/B12/B14/B66/B71,WCDMA:B2,B4,B5

EC25-AU:B1/B2/B3/B4/B5/B7/B8/B28/B40,WCDMA:B2/B3/B5/B8@GSM

EC25-J: B1/B3/B8/B18/B19/B26 @FDD B41@TDD B1/B6/B8 /B19@WCDMA

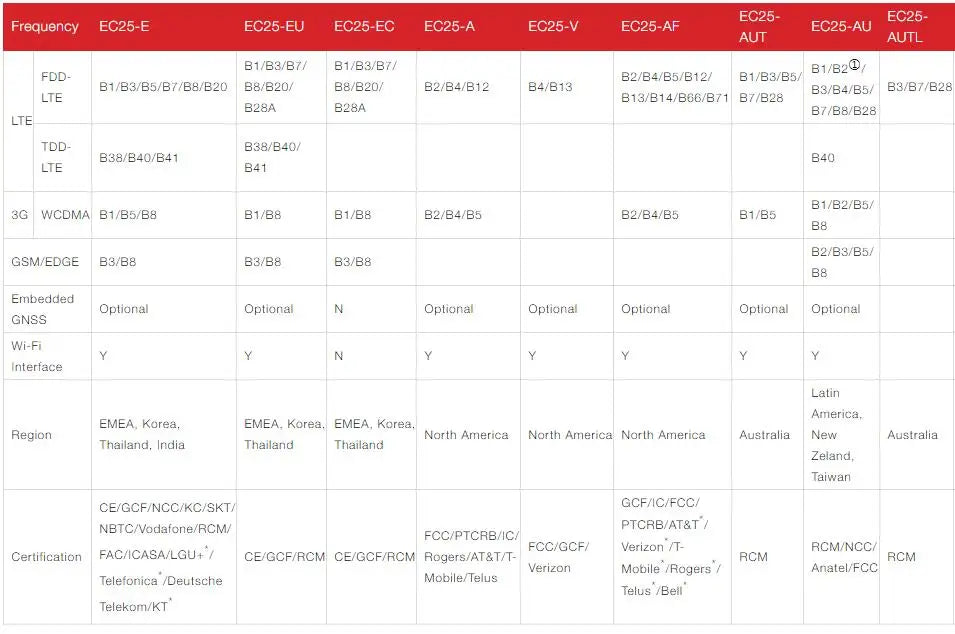

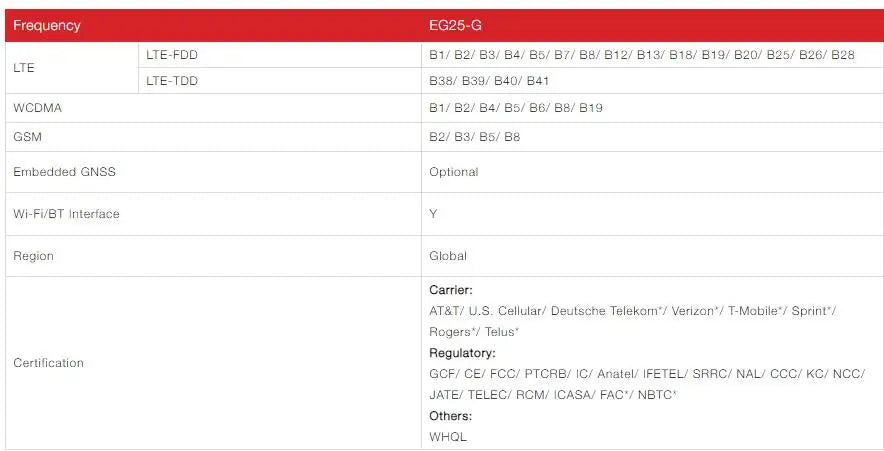

Please kindly check below table and avoid the mistake purchasing.
USBDONGLE (EC25AU): Dual 4G antenna, GPS support, remote DFOTA differential remote upgrade, major countries and regions: Latin America / New Zealand / / Australia Taiwan

If you need datasheet for this item.Please also just feel free to contacet us.

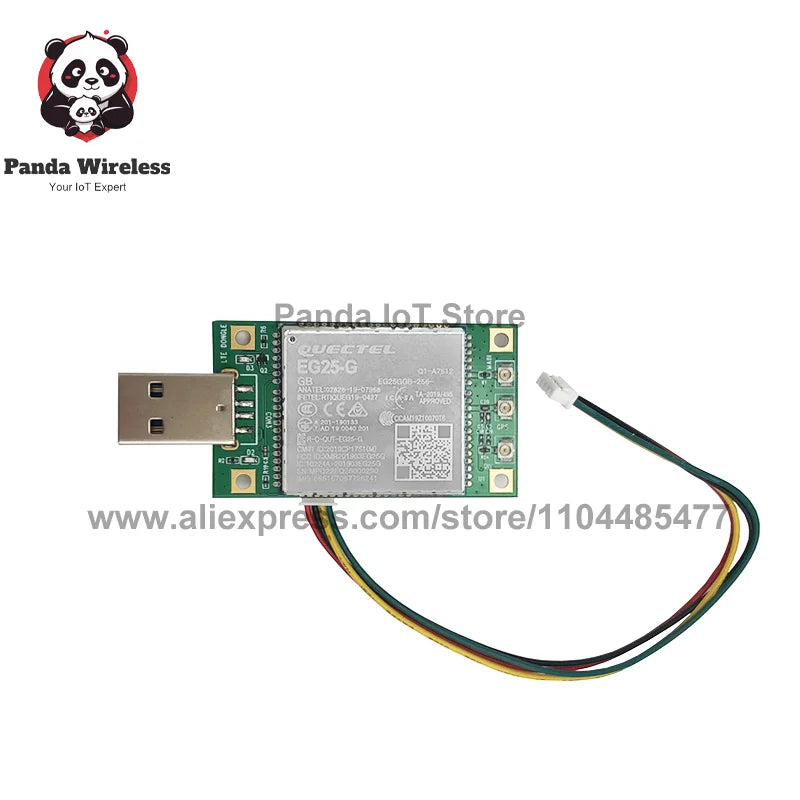

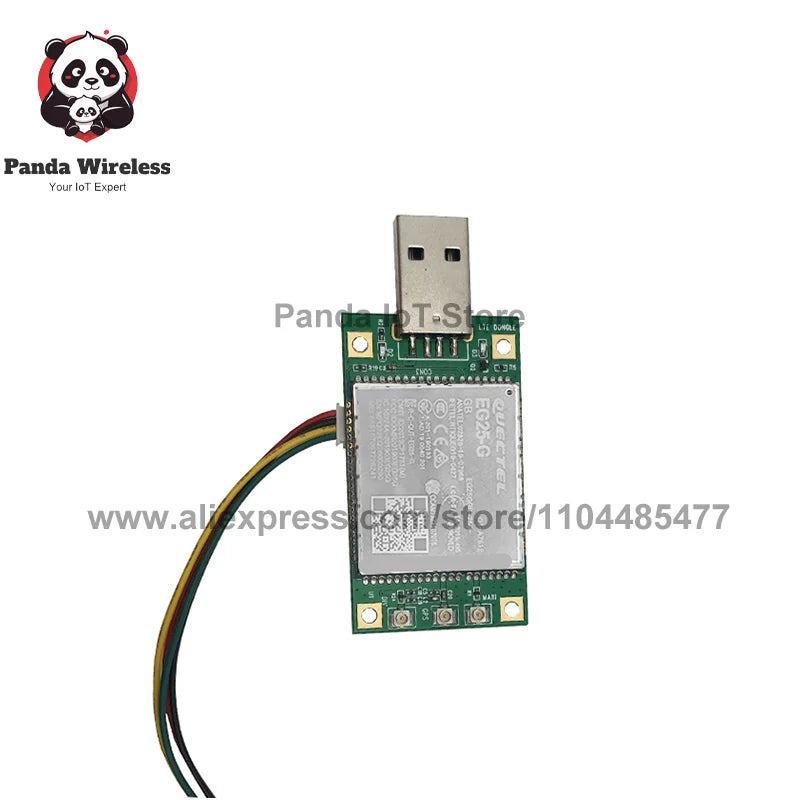

Option1: 1PCS EG25-G USB DONGLE

Option2: 1PCS EC25-AF USB DONGLE
