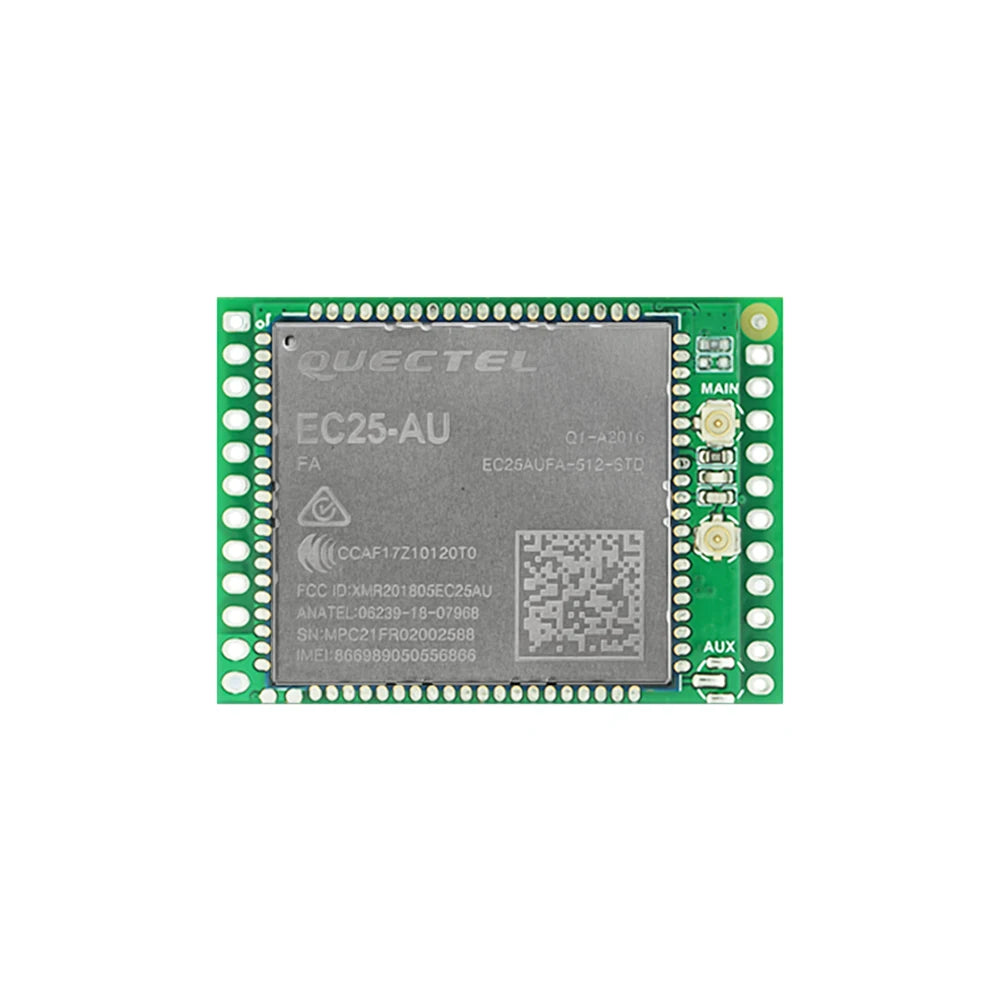

Quectel EC25EFA 4G CAT 4 GNSS Module Double-row Needle Core Board Development Board EC25JFA EC25AUFA Breakout Kit with Antenna

Quectel EC25EFA 4G CAT 4 GNSS Module Double-row Needle Core Board Development Board EC25JFA EC25AUFA Breakout Kit with Antenna

$348.04

$348.04 $0.00

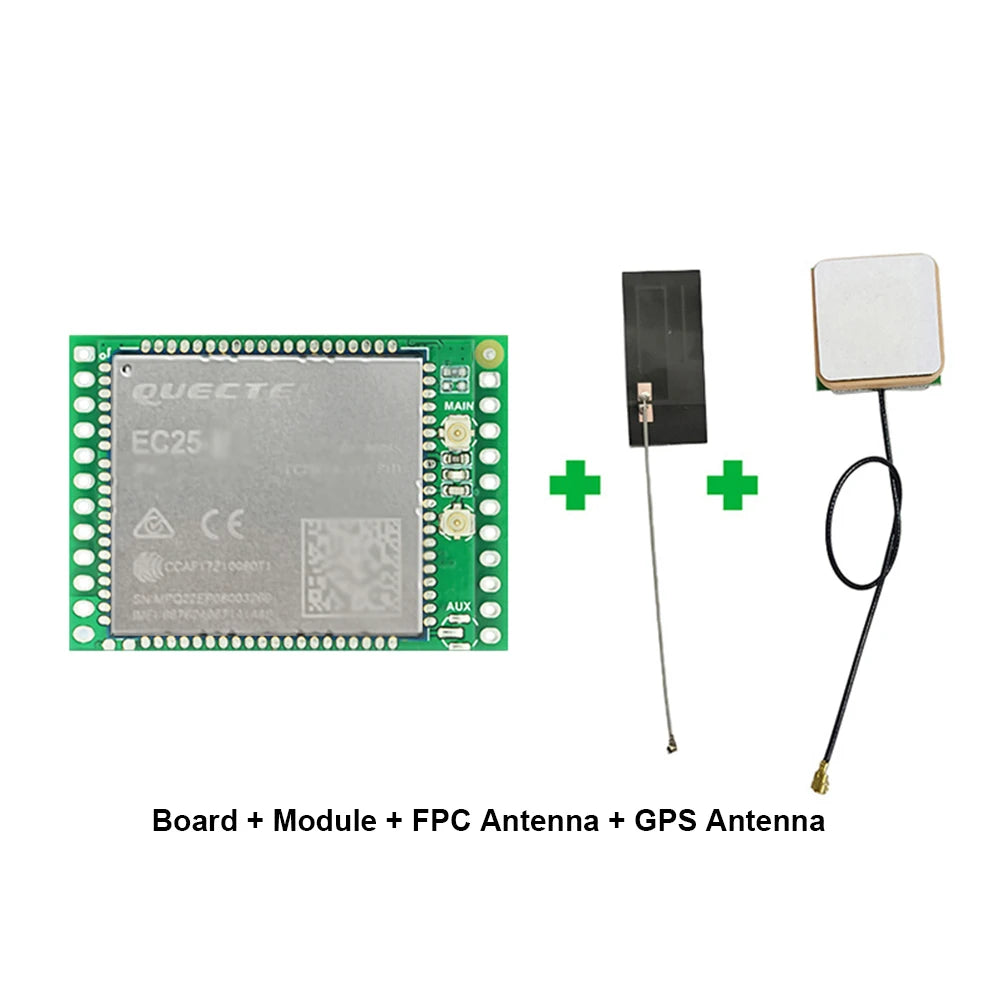

Color Module and Board only board no module with module FPC GPS

Model Number EC25AUFA EC25EFA EC25JFA

Ships FromChina Mainland

Description

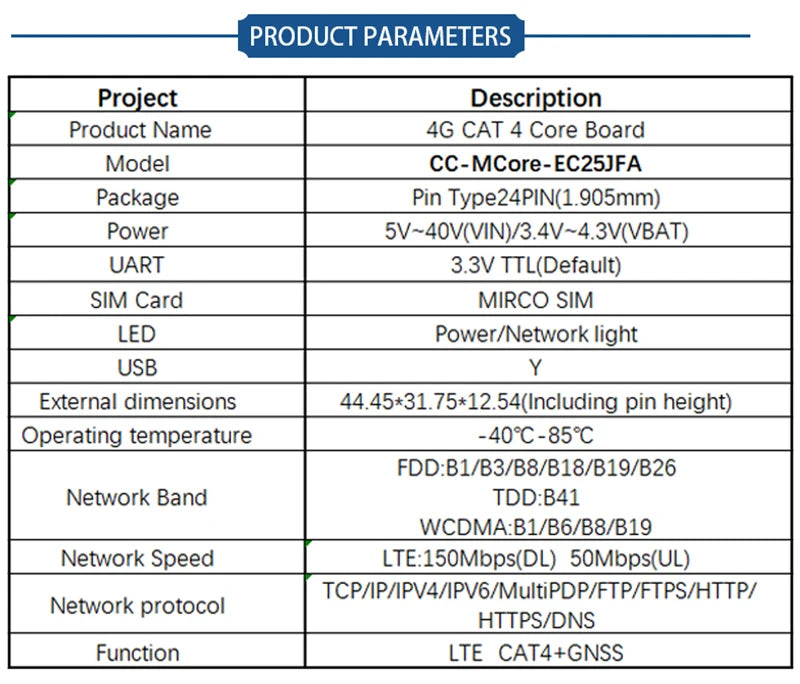

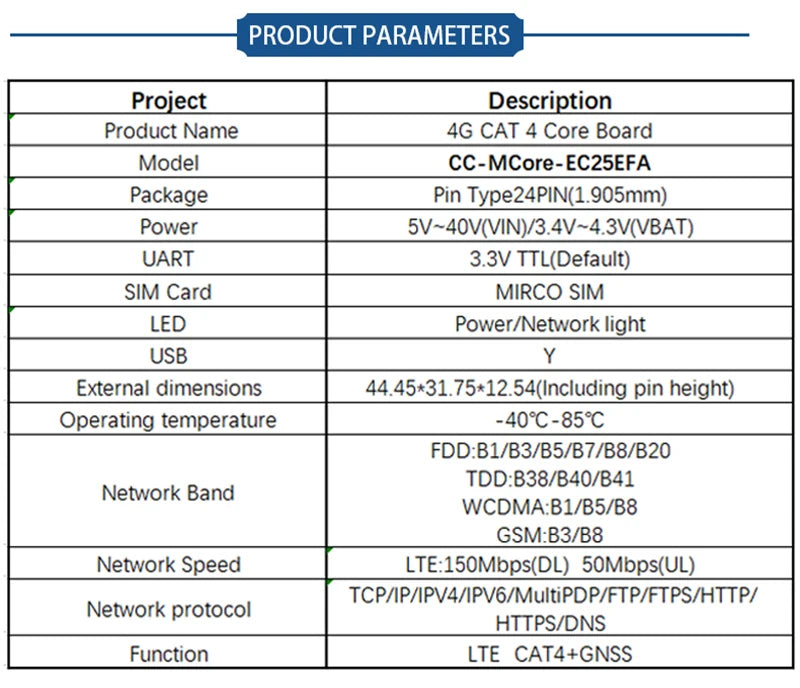

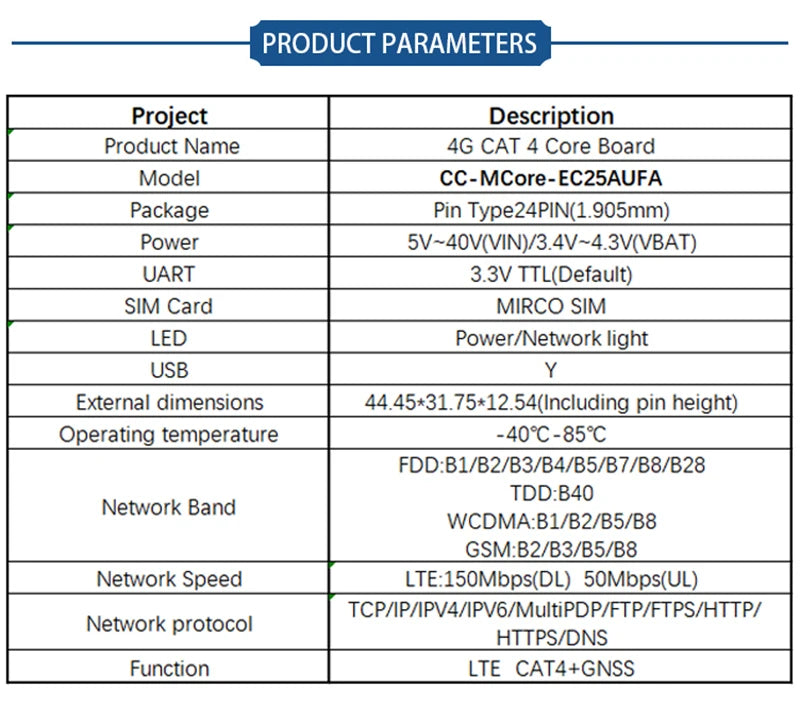

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

Supply Voltage: 5V~40V(VIN)/3.4V~4.3V(VBAT)

Type: Core boar

module size: 32.0mm*29.0mm*2.4mm

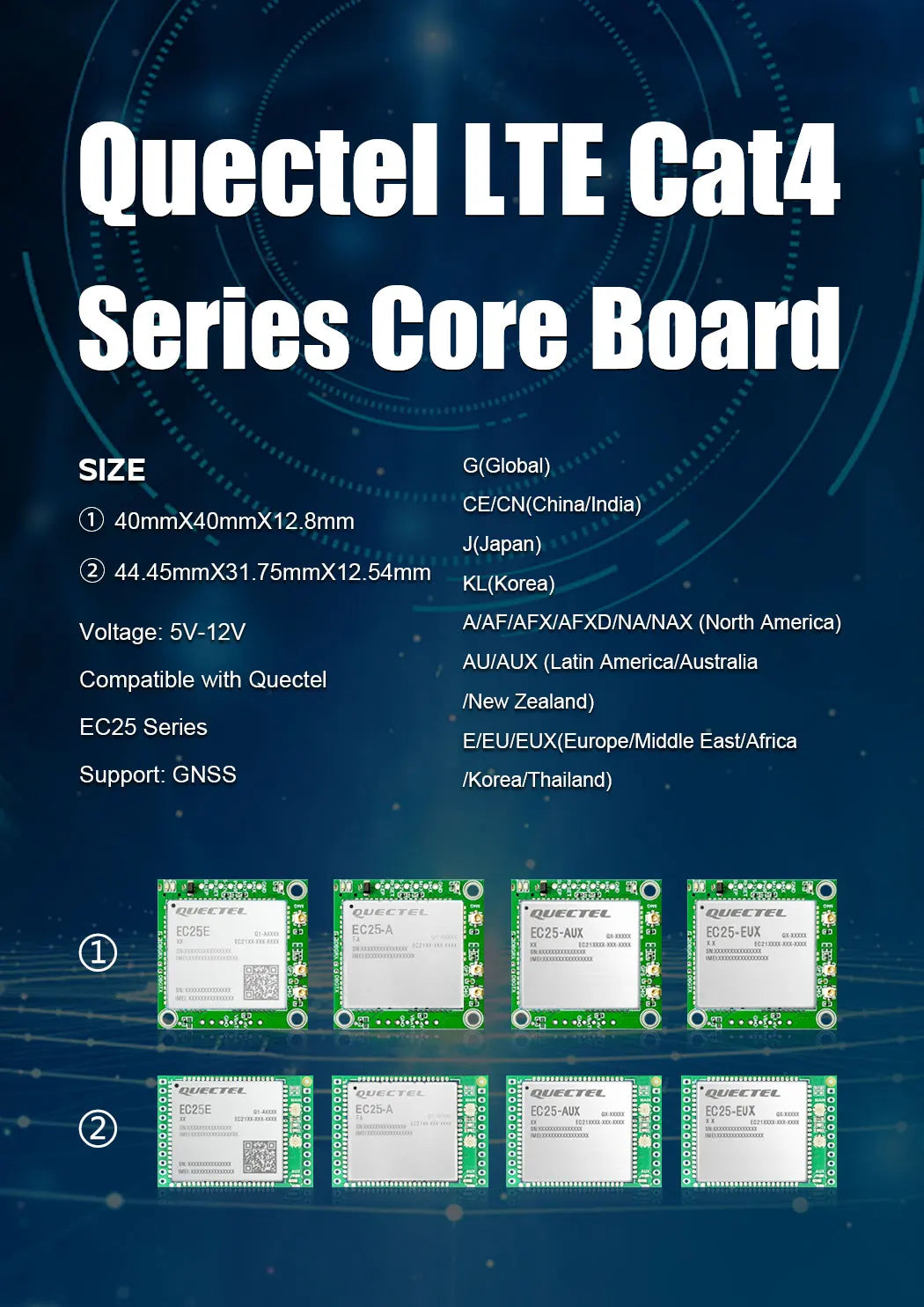

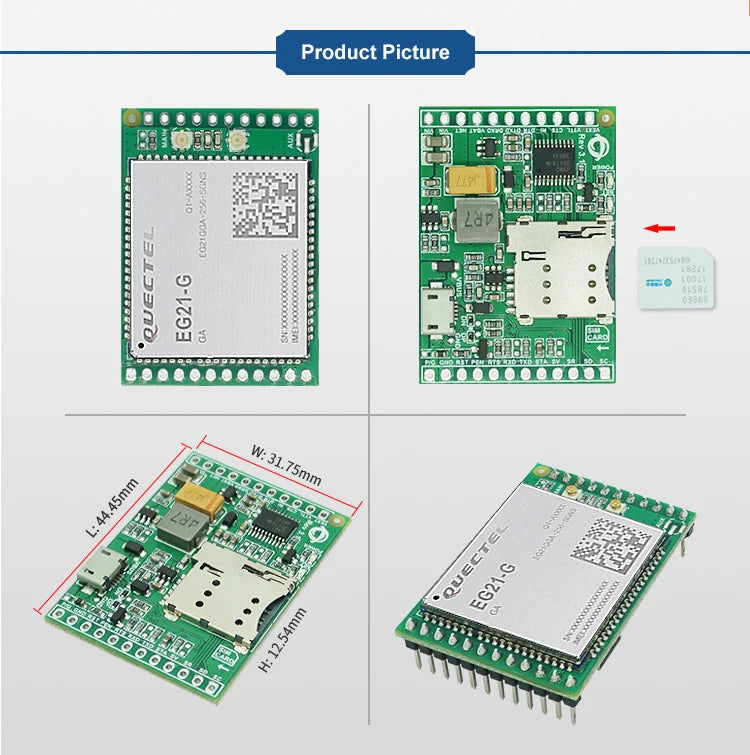

size (mm): 44.45*31.75*12.54(ncluding pin height)

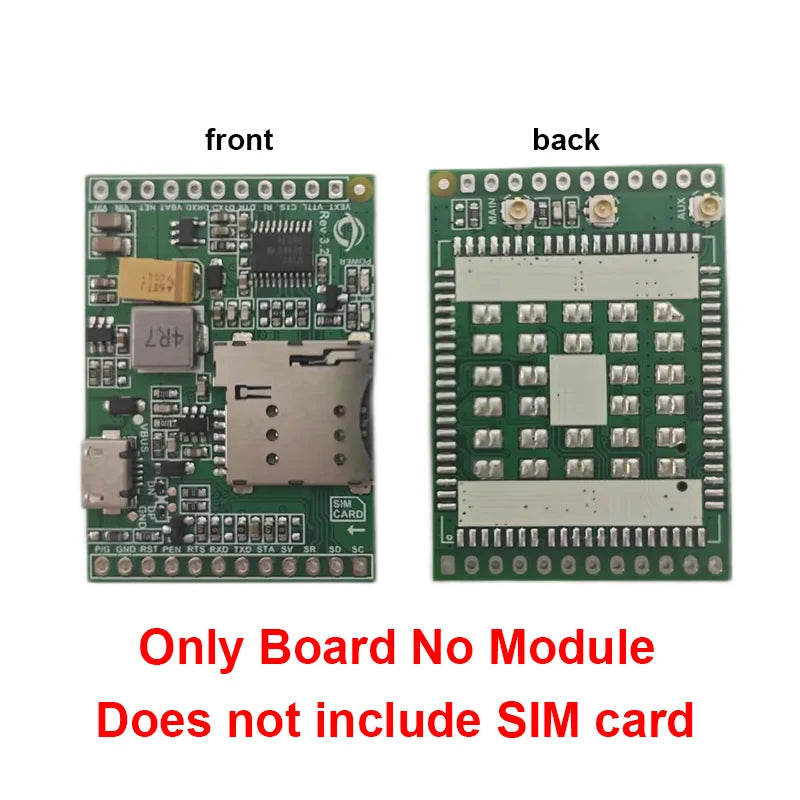

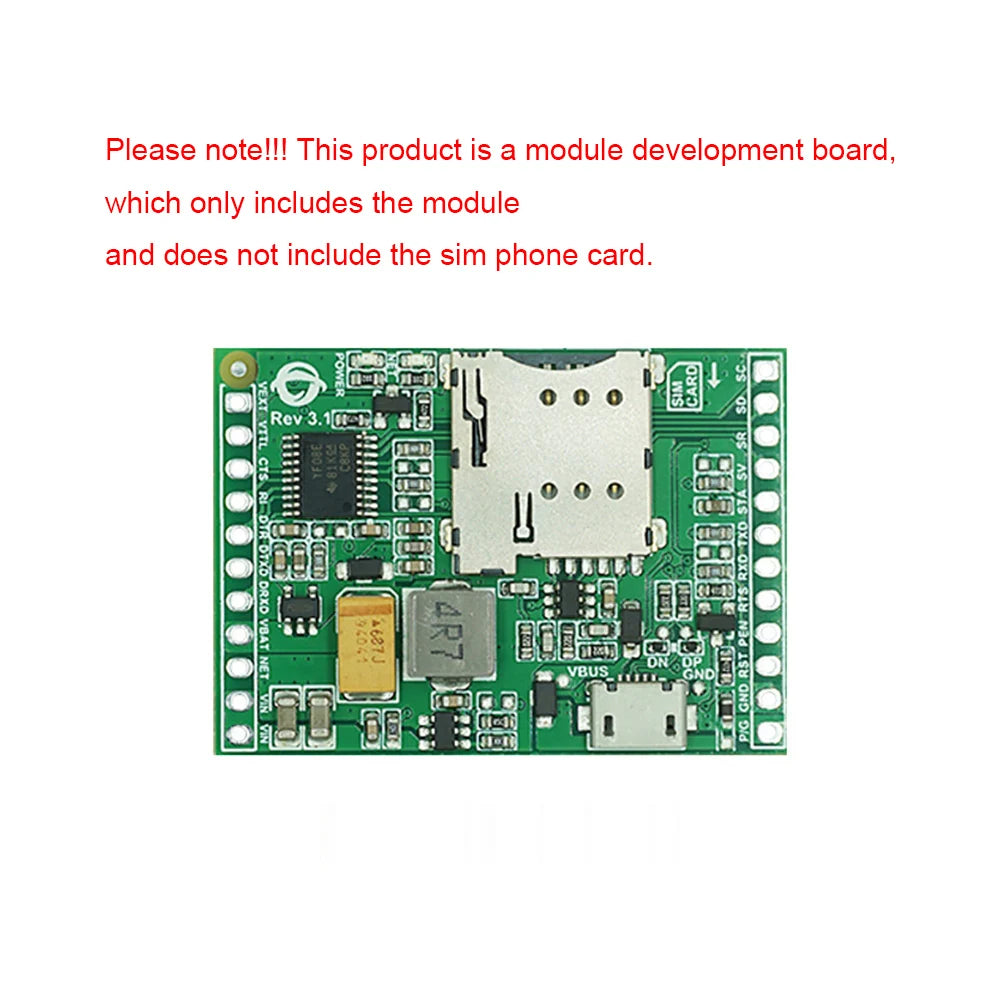

Please note!!! This product is a module Core board, which only includes the module and does not include the sim phone card.

The module suffix indicates the applicable country

Quectel

G(Global) CE/CN(China/India) J(Japan) KL(Korea)

A/AF/AFX/AFXD/NA/NAX(NorthAmerica) AU/AUX (Latin America/Australia/New Zealand)

E/EU/EUX(Europe/Middle East/Africa/Korea/Thailand)

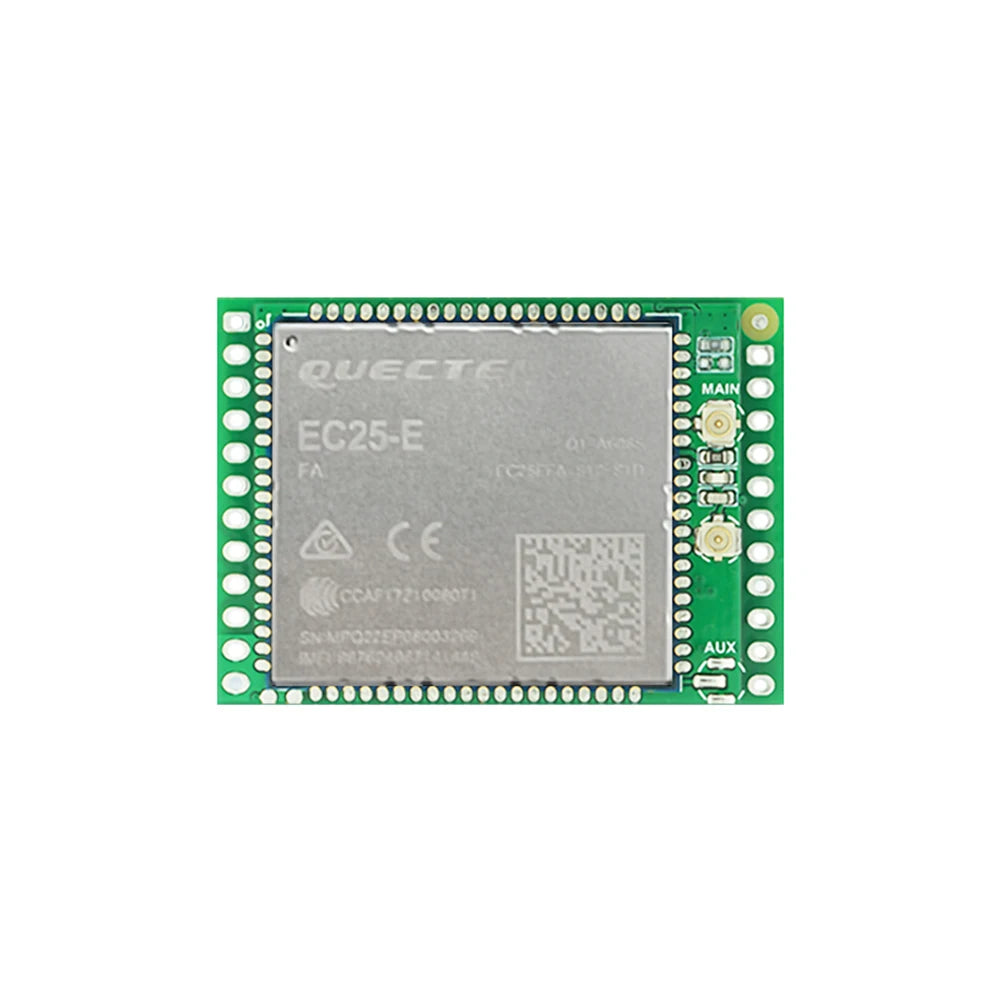

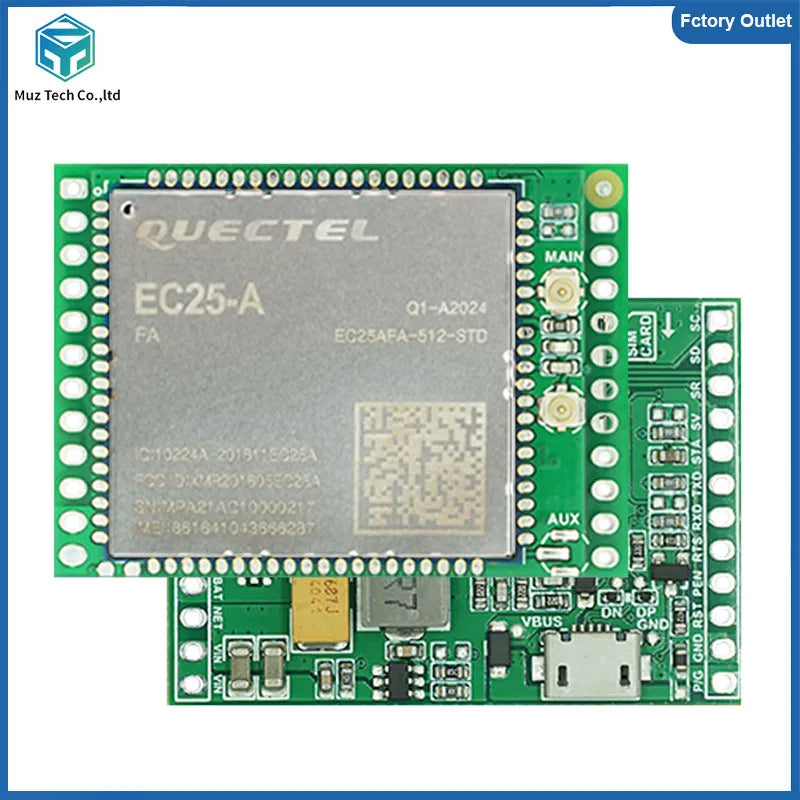

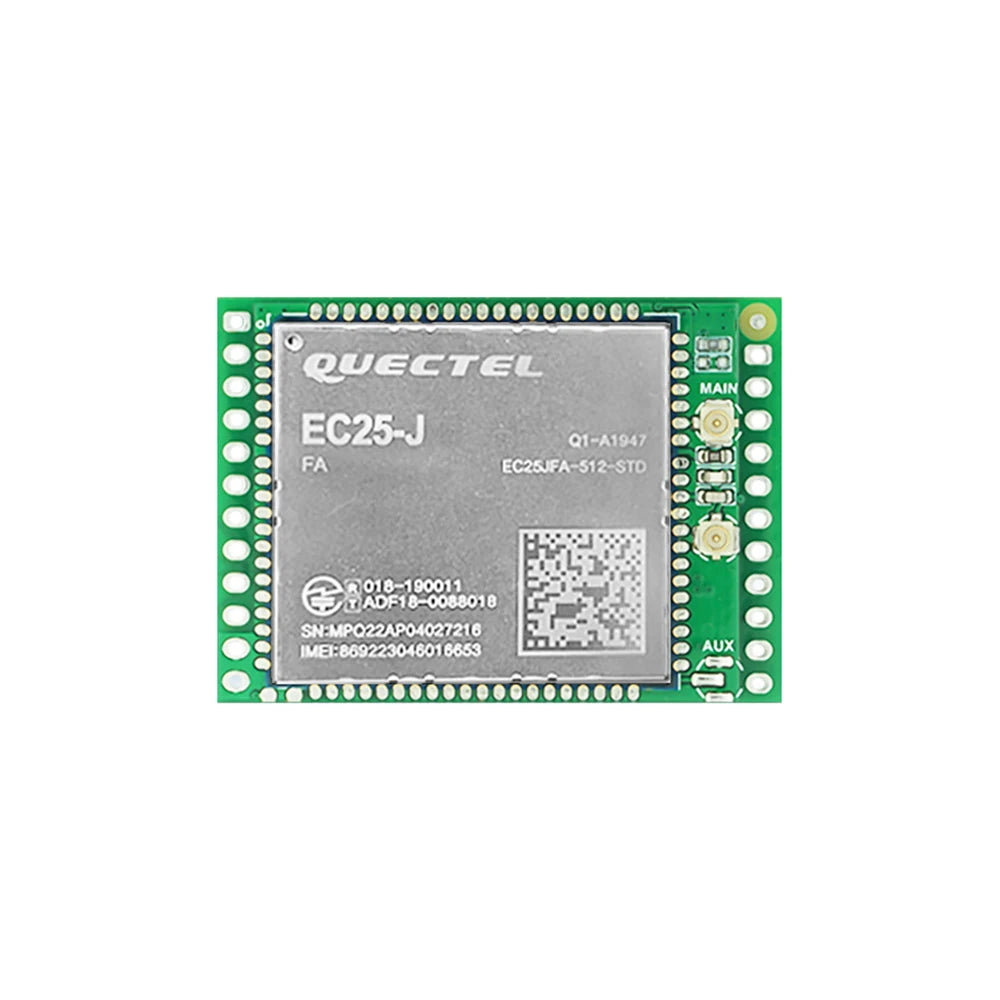

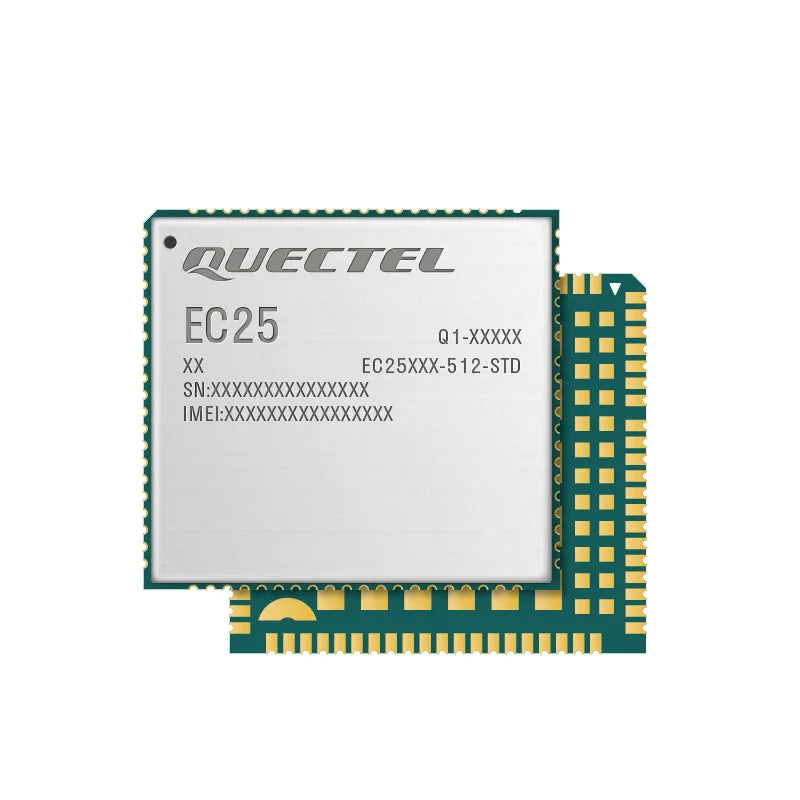

Quectel EC25 is a series of LTE Cat 4 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 150 Mbps downlink and 50 Mbps uplink. Designed in the compact and unified form factor, EC25 series is compatible with Quectel multi-mode LTE Standard EC21 series/EC20-CE/EG25-G/EG21-G modules and UMTS/HSPA+ UC200A-GL module, which allows for flexible migration among them in design and manufacturing.

EC25 series contains 14 variants: EC25-A, EC25-ADL, EC25-V, EC25-AF, EC25-AFDL (Data-only), EC25-AFX, EC25-AFXD (Data-only), EC25-AU, EC25-AUX, EC25-J, EC25-EU, EC25-EUX, EC25-E and EC25-EM. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EC25 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial routers, industrial PDAs, video transmission, rugged tablet PCs, and digital signage.

Key features

1. Supports DFOTA

2. Supports DTMF

3. Supports MIMO

4. Supports VoLTE (optional)

5. Multi-constellation GNSS receiver available
