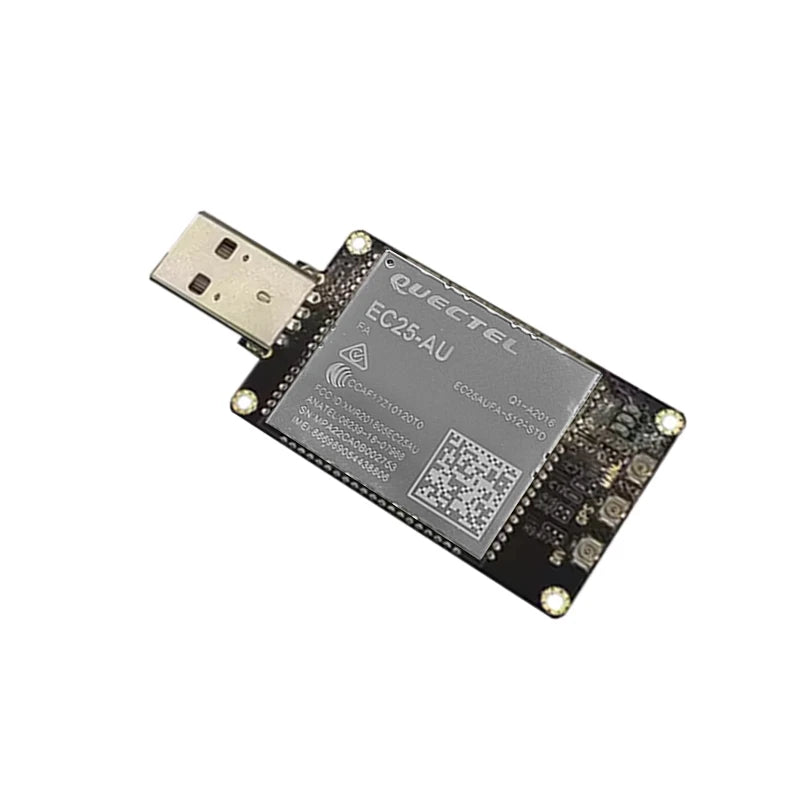

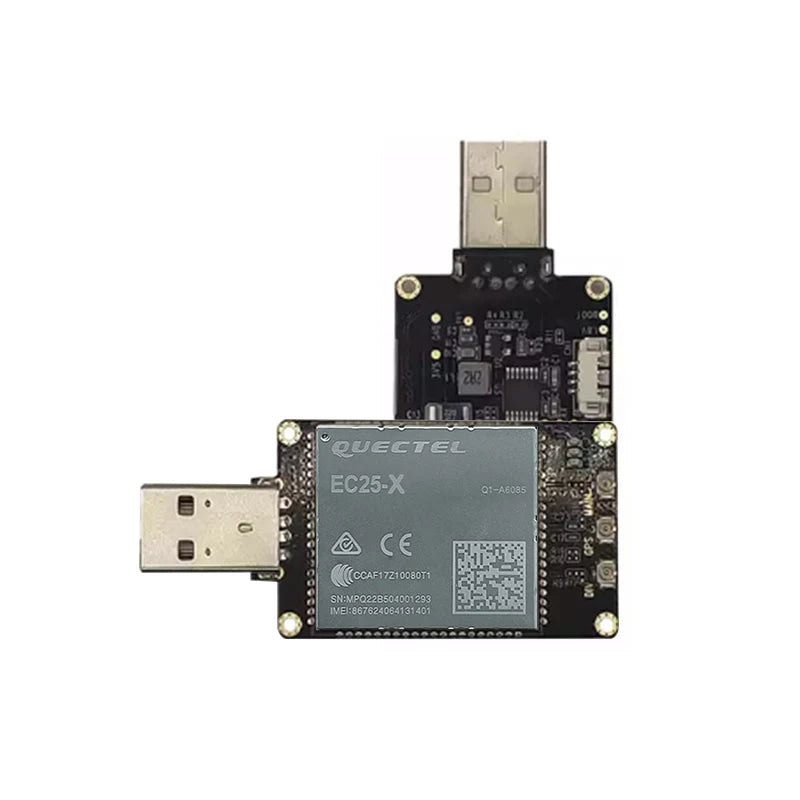

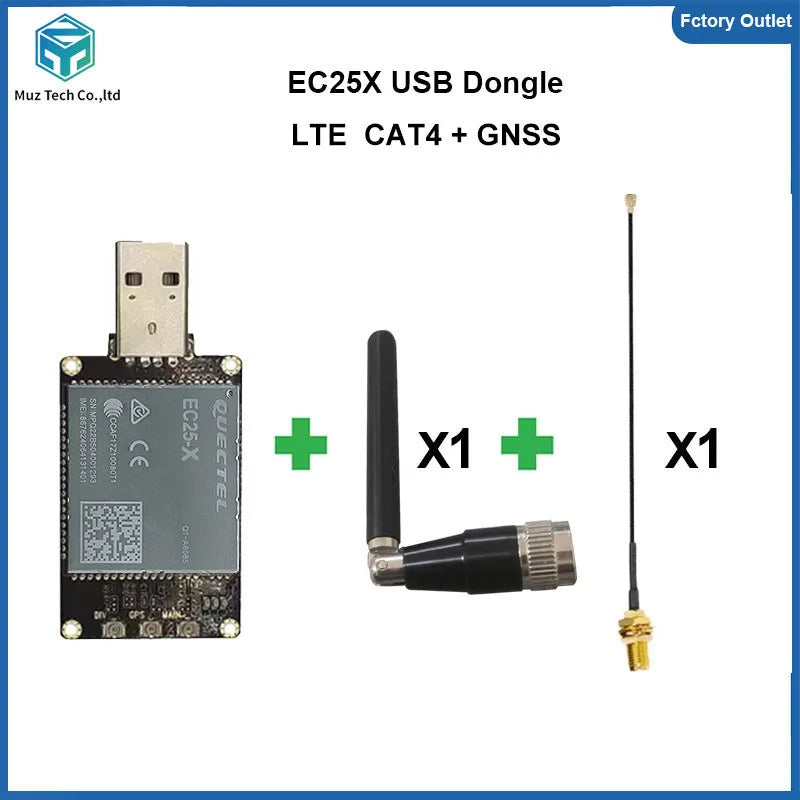

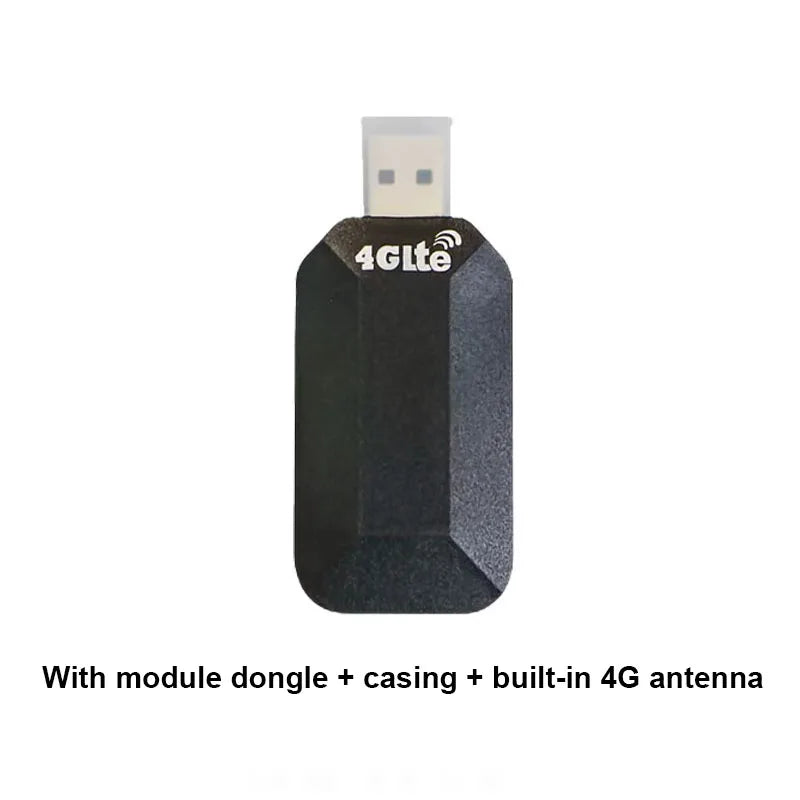

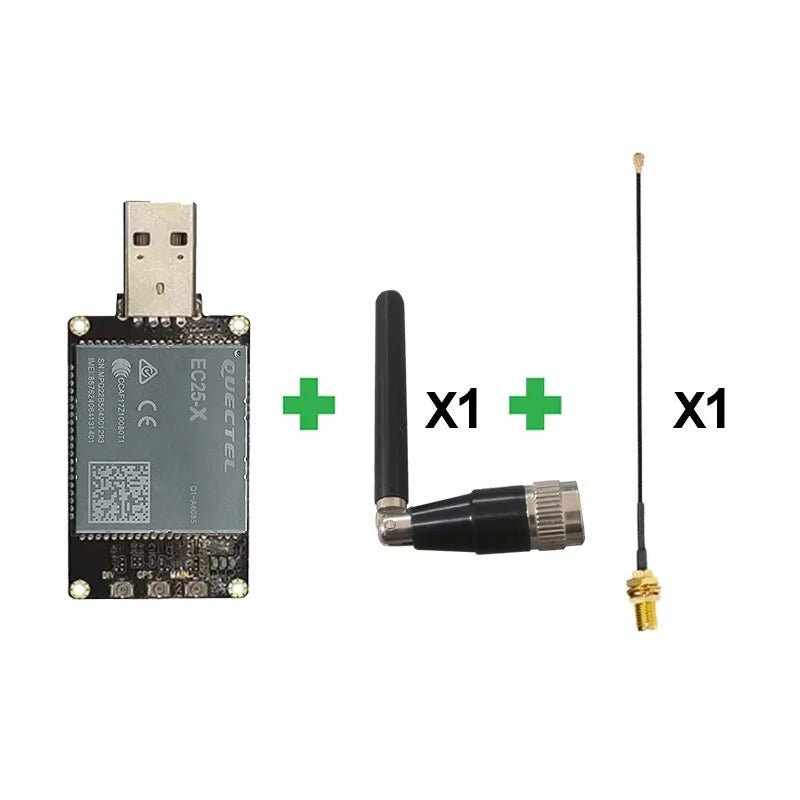

Quectel EC25EFA USB Dongle With Case EC25AUFA EC25JFA LTE CAT4 module support GNSS EC25 Series module with Antenna breakout kit

Quectel EC25EFA USB Dongle With Case EC25AUFA EC25JFA LTE CAT4 module support GNSS EC25 Series module with Antenna breakout kit

$304.72

$304.72 $0.00

Color Combination Two Combination One module

Model Number EC25JFA EC25EFA EC25AUFA

Ships FromChina Mainland

Description

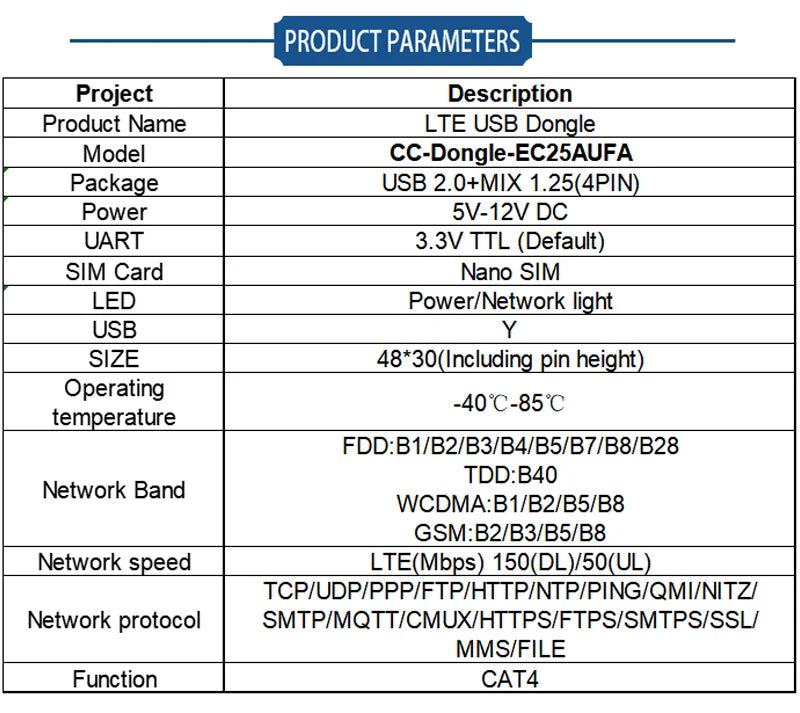

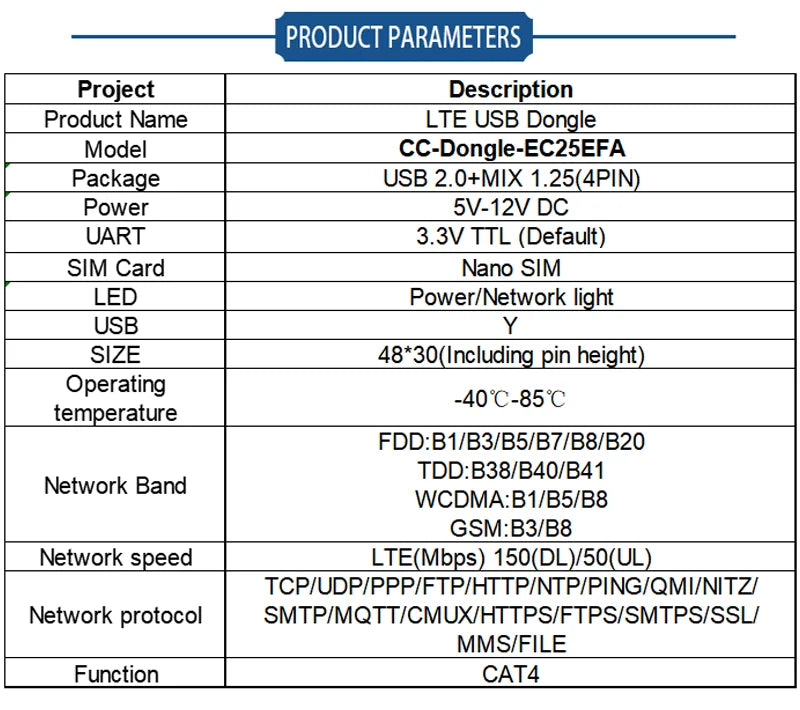

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

Supply Voltage: 5V-12VDC

Type: USB Dongle

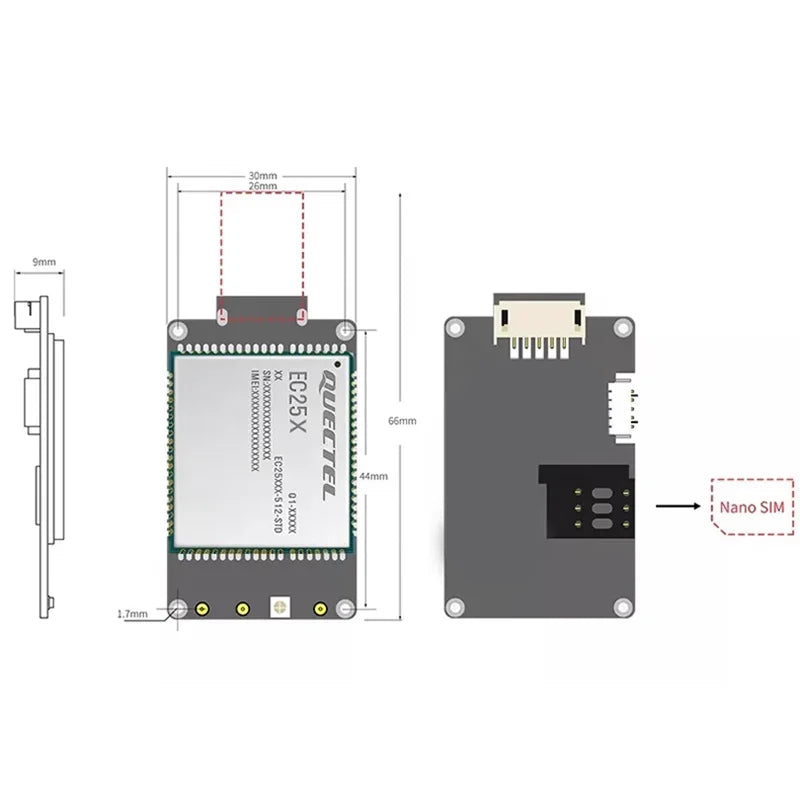

module size: 32.0mm*29.0mm*2.4mm

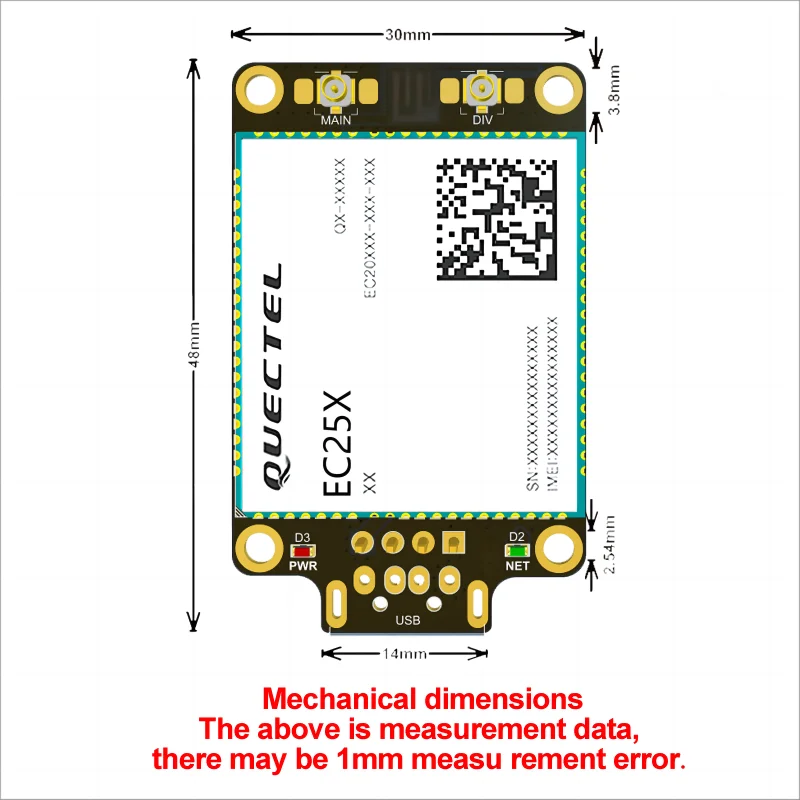

size (mm): 48*30(Including pin height)

The module suffix indicates the applicable country

Quectel

G(Global) CE/CN(China/India) J(Japan) KL(Korea)

A/AF/AFX/AFXD/NA/NAX(NorthAmerica) AU/AUX (Latin America/Australia/New Zealand)

E/EU/EUX(Europe/Middle East/Africa/Korea/Thailand)

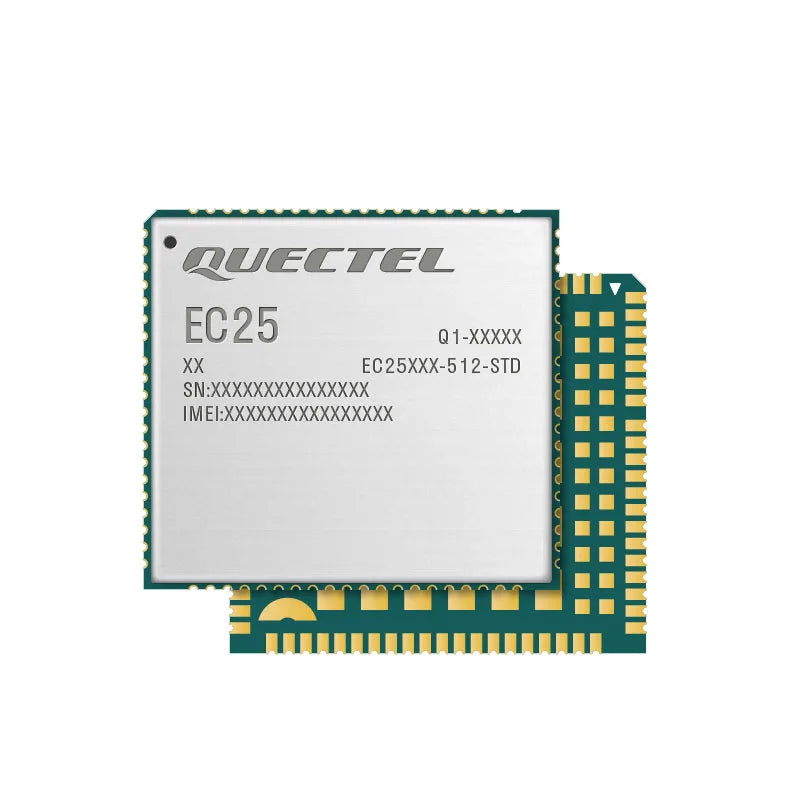

Quectel EC25 is a series of LTE Cat 4 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 150 Mbps downlink and 50 Mbps uplink. Designed in the compact and unified form factor, EC25 series is compatible with Quectel multi-mode LTE Standard EC21 series/EC20-CE/EG25-G/EG21-G modules and UMTS/HSPA+ UC200A-GL module, which allows for flexible migration among them in design and manufacturing.

EC25 series contains 14 variants: EC25-A, EC25-ADL, EC25-V, EC25-AF, EC25-AFDL (Data-only), EC25-AFX, EC25-AFXD (Data-only), EC25-AU, EC25-AUX, EC25-J, EC25-EU, EC25-EUX, EC25-E and EC25-EM. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EC25 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial routers, industrial PDAs, video transmission, rugged tablet PCs, and digital signage.

LTE Cat 4 module

32.0mm × 29.0mm × 2.4mm

Max. 150Mbps downlink / 50Mbps uplink

LCC form factor

Extended temperature range of -40°C to +85°C

Key features

1. Supports DFOTA

2. Supports DTMF

3. Supports MIMO

4. Supports VoLTE (optional)

5. Multi-constellation GNSS receiver available

Features

Adopting an industrial grade LTE Cat 4 wireless communication module, ASR/Qualcomm's solution supports multiple countries and regions at home and abroad, with a downlink speed of up to 150Mbps and an uplink speed of up to 50Mbps. It supports two communication modes: USB/USRT. Multiple systems support Windows, Linux, Android, 4G three network communication, and China Mobile Telecom, with an industrial grade of -35-80 ℃.

Applications

Industrial equipment networking, unmanned self-service equipment, industrial control computers, Industrial PC computer, Raspberry Pi, Transportation interconnection, Industrial router

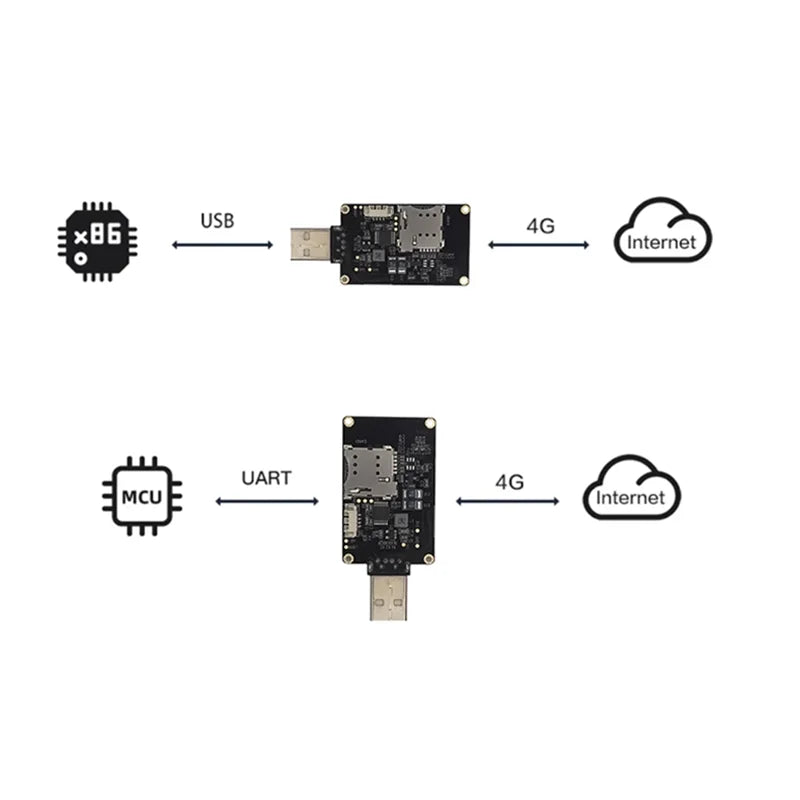

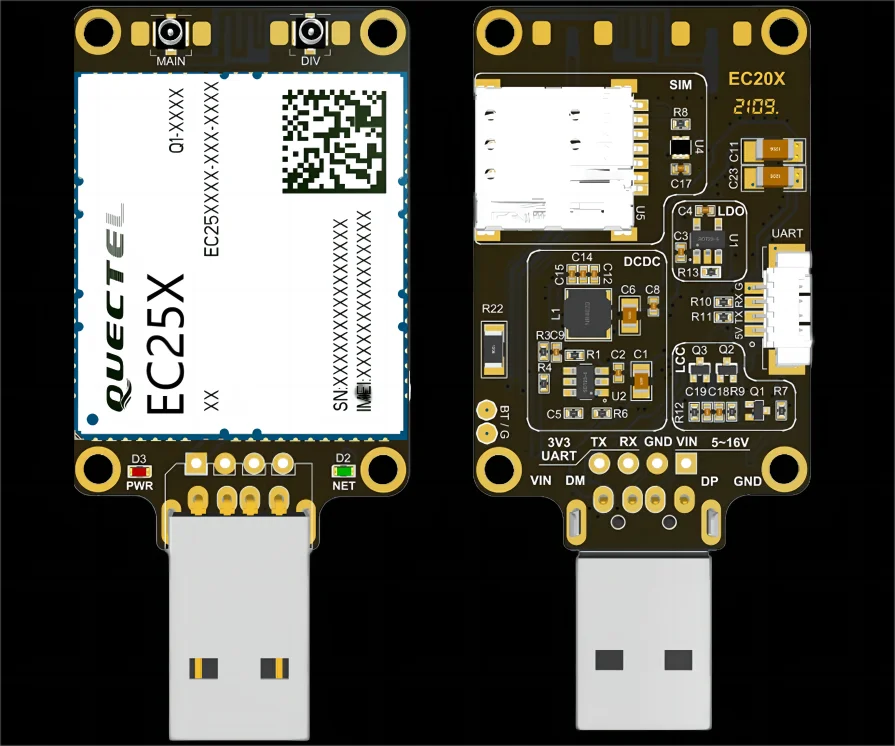

Communication function diagram

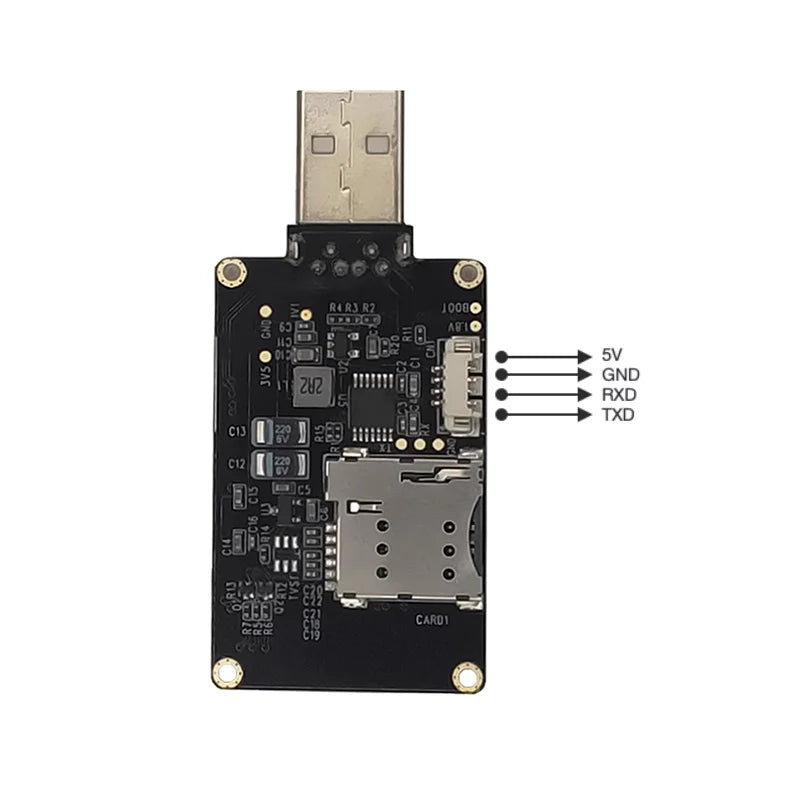

Users can choose the connection mode according to the device interface type, including USB interface,5-PIN USB interface or TTL serial port.
