Quectel EG25-G 4G LTE Cat 4 IoT Module EG25 G MiniPCIe Series Wireless Communication Module EG25G EG25GGB EG25GGB-MINIPCIe

Quectel EG25-G 4G LTE Cat 4 IoT Module EG25 G MiniPCIe Series Wireless Communication Module EG25G EG25GGB EG25GGB-MINIPCIe

$429.32

$429.32 $0.00

Description

SPECIFICATIONS

Antennas: LTE BT

Application: m2m IOT

Brand Name: XMSJ

Certification: CE FCC

Chipset: Eg25

Communication Interface: PCIe, Wi-Fi, Bluetooth, USB, uart, SPI, RS-232

Function: LTE Smart module

High-concerned chemical: none

Model Number: Eg25

Origin: Mainland China

Place of Origin: Guangdong, China

Power Source: DC 3.3V

Supplier Type: whole sale

protocol: TCP/IP

Hello dear customer, this product is a customized product and the price may vary depending on your needs. Please consult customer service for more details.

Product Description

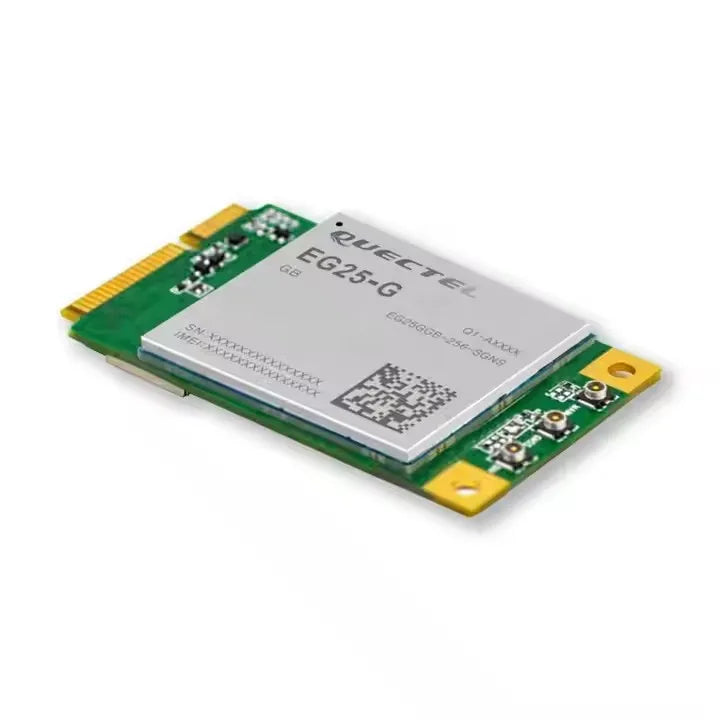

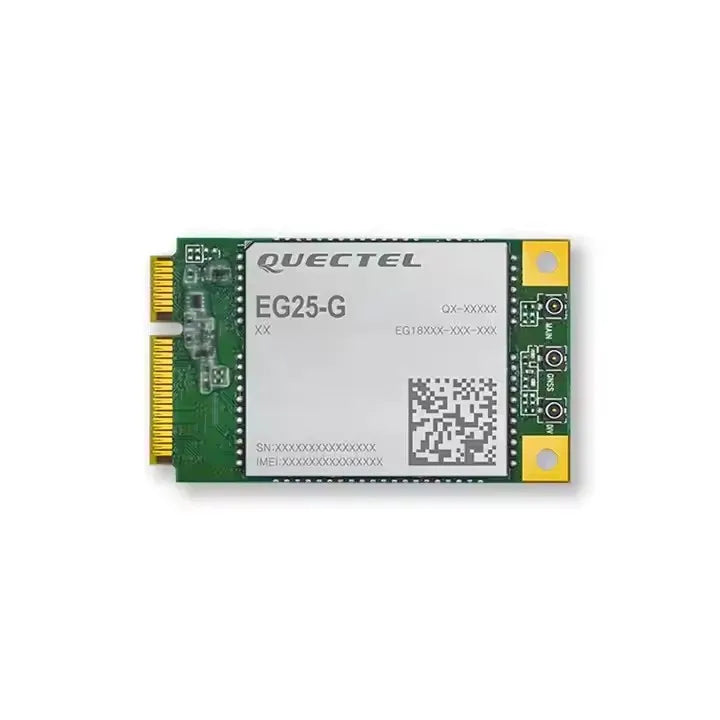

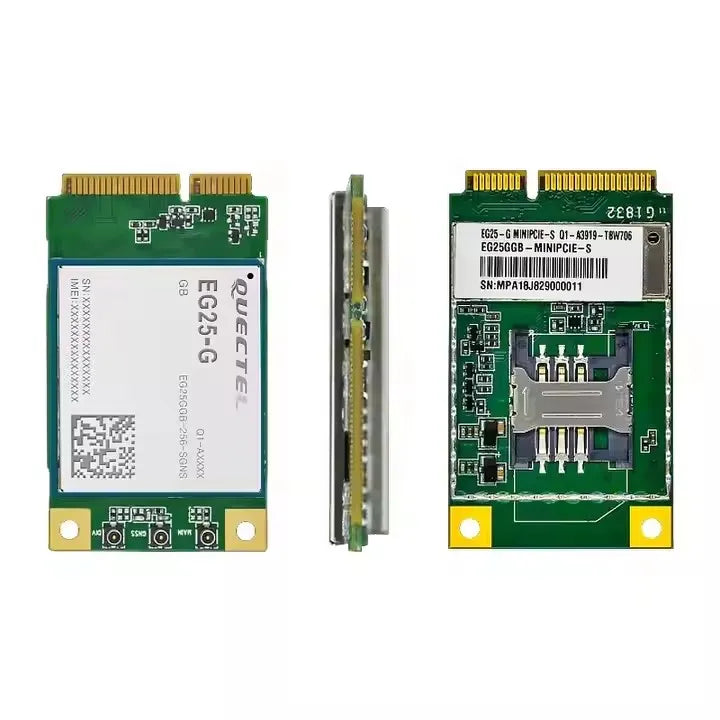

EG25-G MiniPCIe Package

EG25-G Mini PCIe is an LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink.

EG25-G Mini PCIe is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EG25-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc. www.hurryup.en.alibaba.com

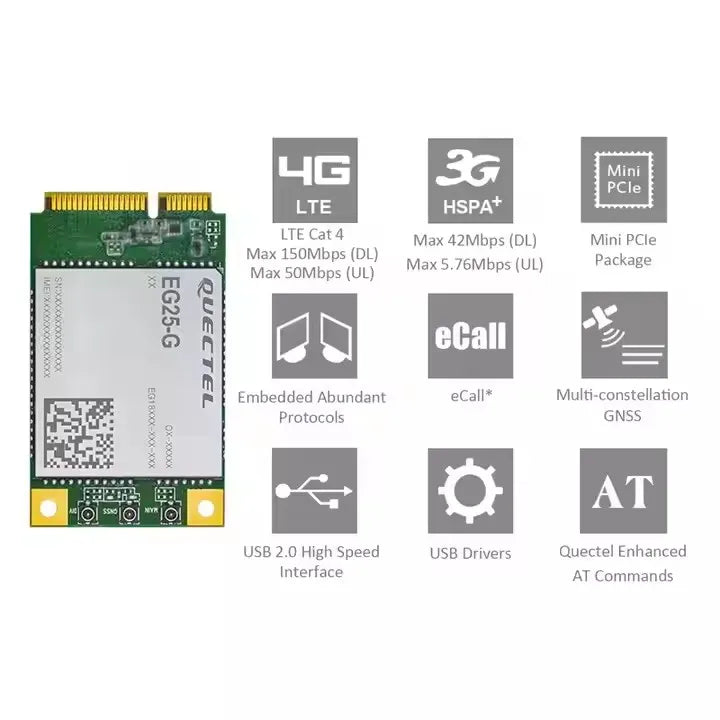

Key Benefits

● LTE category 4 module optimized for broadband IoT applications

● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage

● Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices

● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in
any environment

Frequency Bands

EG25-G Mini PCIe:

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28

LTE-TDD: B38/B39/B40/B41

WCDMA: B1/B2/B4/B5/B6/B8/B19

GSM: B2/B3/B5/B8

Data

LTE:

LTE-FDD: Max 150Mbps (DL)/Max 50Mbps (UL)

LTE-TDD: Max 130Mbps (DL)/Max 30Mbps (UL)

UMTS: DC-HSDPA: Max 42Mbps (DL)

HSUPA: Max 5.76Mbps (UL)

WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)

GSM:

EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)

GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

Voice

Speech Codec Modes:
HR/FR/EFR/AMR/AMR-WB

Echo Arithmetic:

Echo Cancellation/Noise Suppression

Audio:

Digital Audio and VoLTE (Voice over LTE)
(Optional)

General Features

Operation Temperature Range: -35°C ~ +75°C

Extended Temperature Range: -40°C ~ +80°C

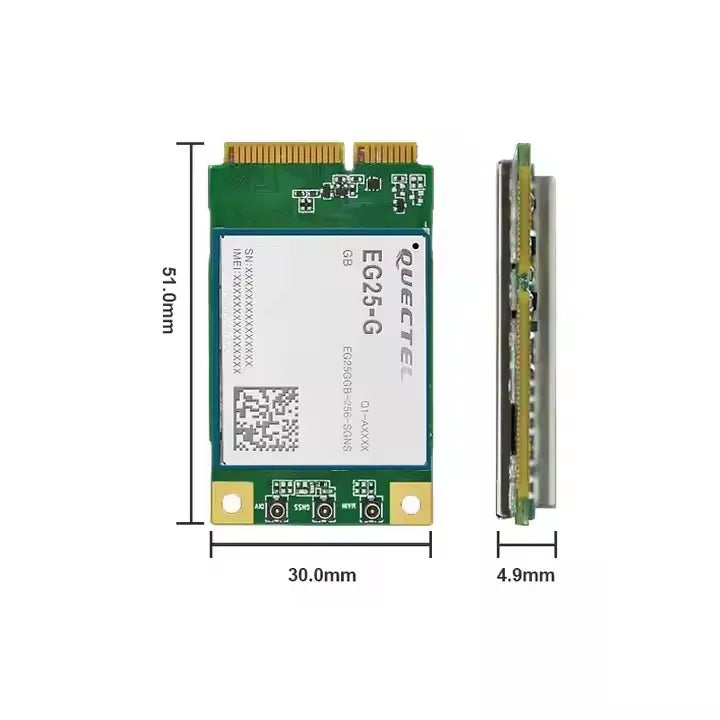

Dimensions: 51.0mm x 30.0mm x 4.9mm

Weight: Approx. 9.8g Mini PCIe Package Supply Voltage: 3.0V~3.6V, 3.3V Typ.

3GPP E-UTRA Release 11

Bandwidth: 1.4/3/5/10/15/20MHz 3GPP TS27.007 and Enhanced AT Commands
