SPECIFICATIONS

Antennas: no

Application: 5G application

Battery Included: no

Brand Name: XMSJ,Quectel

Certification: CE

Chipset: Qualcomm Snapdragon X75 chip platform, Qualcomm SDX75

Communication Interface: Ethernet

Enhanced Features: eSIM/DTMF/DFOTA/(U)SIM Card Detection

High-concerned chemical: none

Model Number: RM551E-GL

Origin: Mainland China

Place of Origin: Guangdong, China

Power Source: no

Product name: 5G Module

Size: 30.0mm*52.0mm*2.3mm

Supplier Type: Original

Voice: Digital Audio & VoLTE/ VoNR

protocol: Zigbee

If you have any questions, Please contact our customer service
whatsApp：+86 15131351114
Email：yierguoji02@163.com

Why Choose Us

Product Details

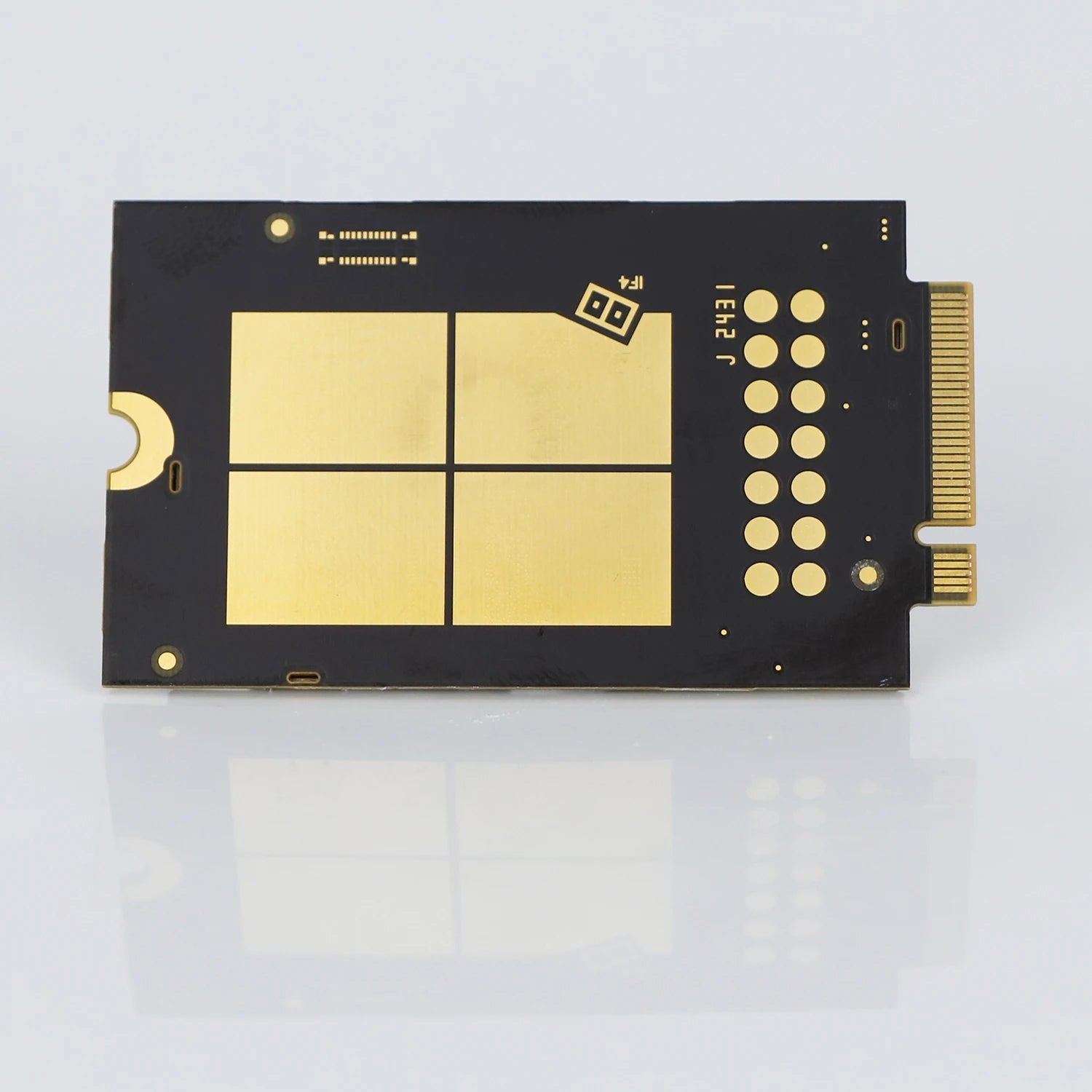

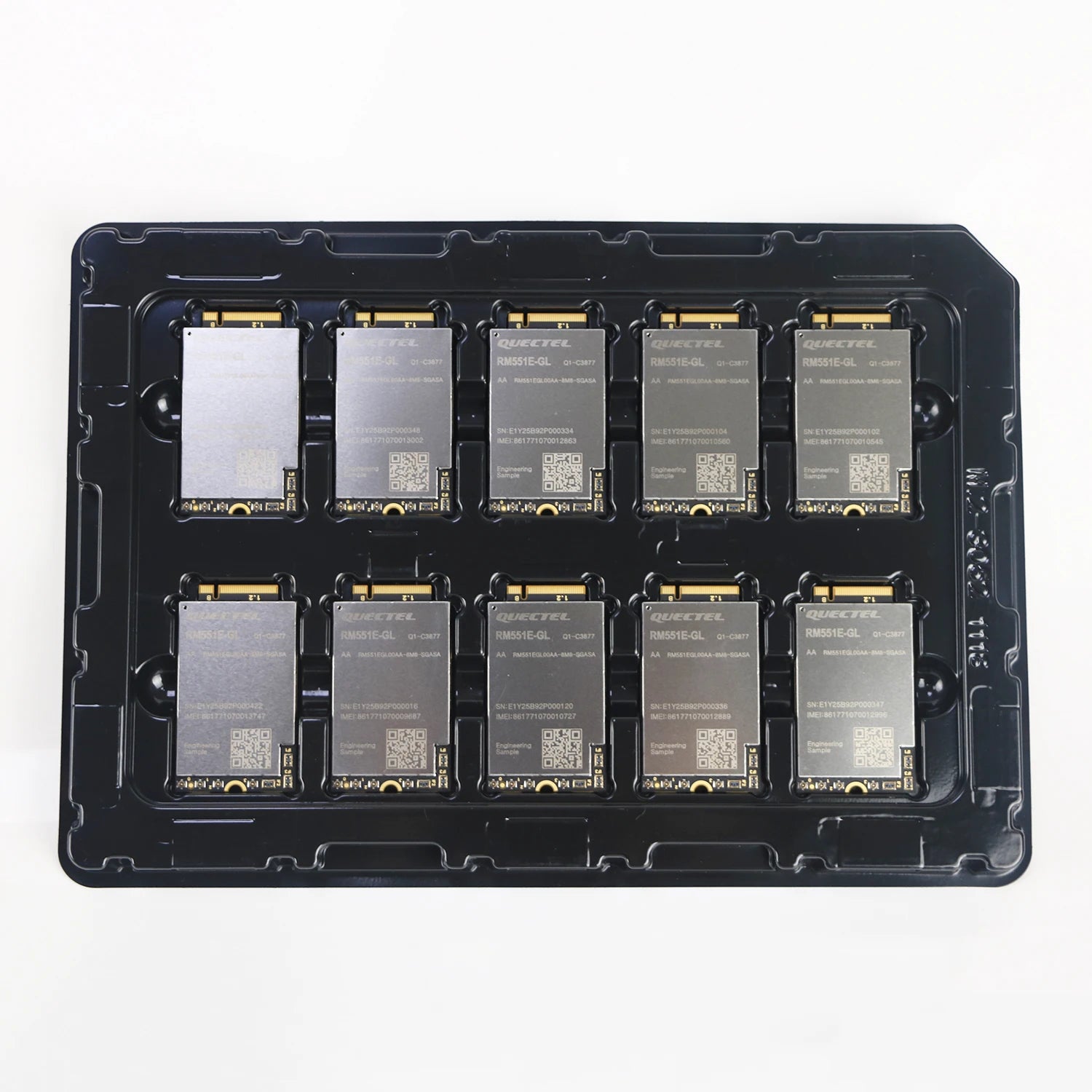

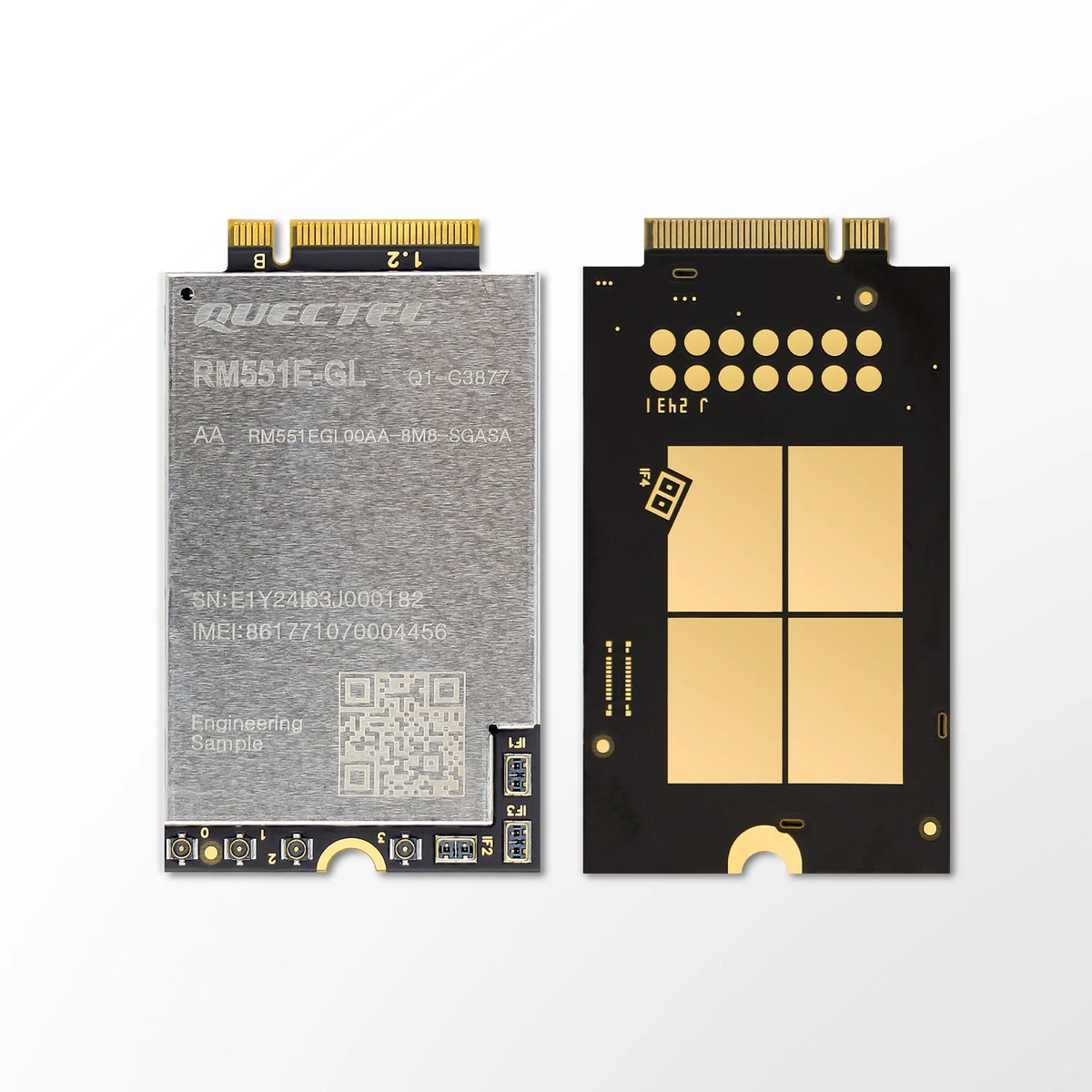

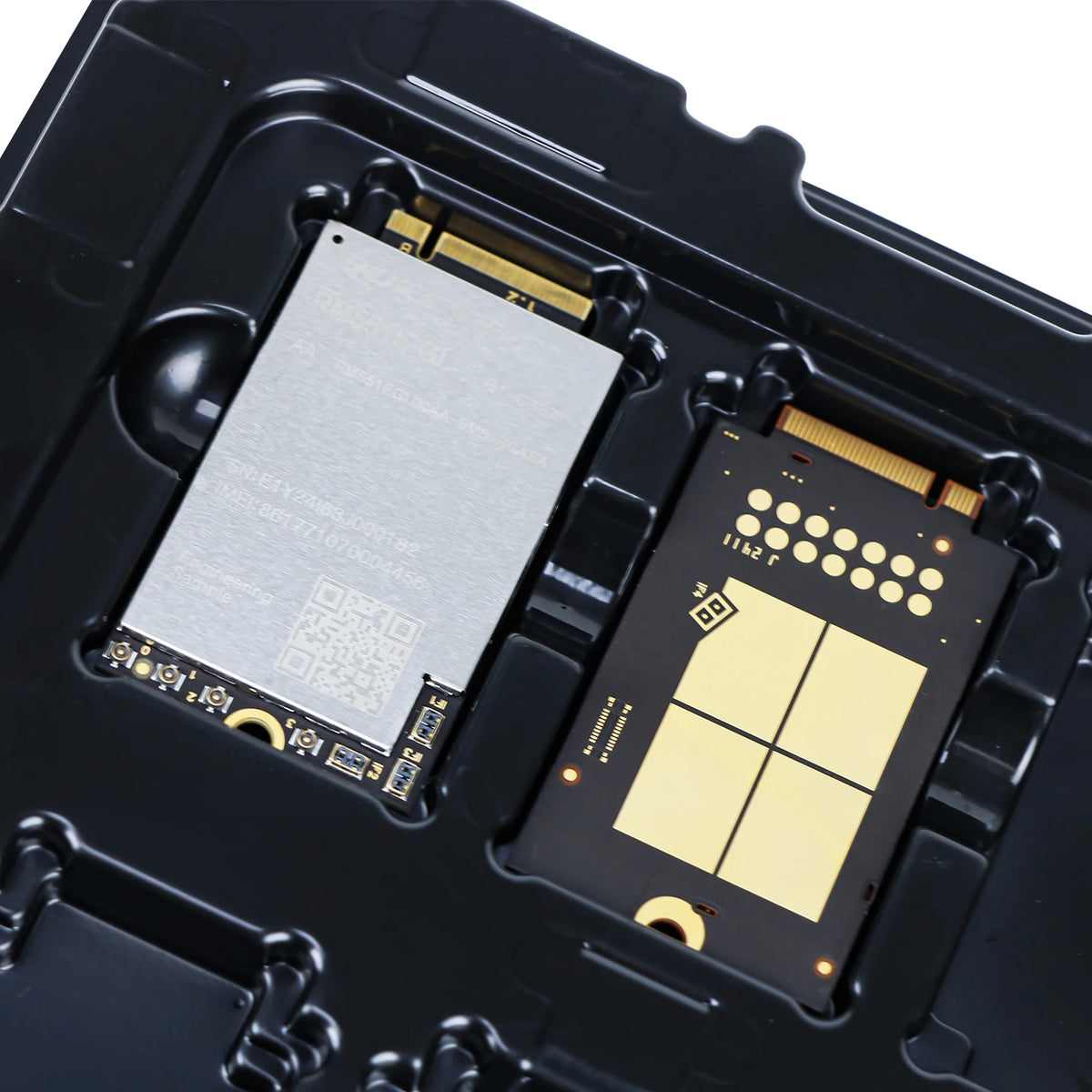

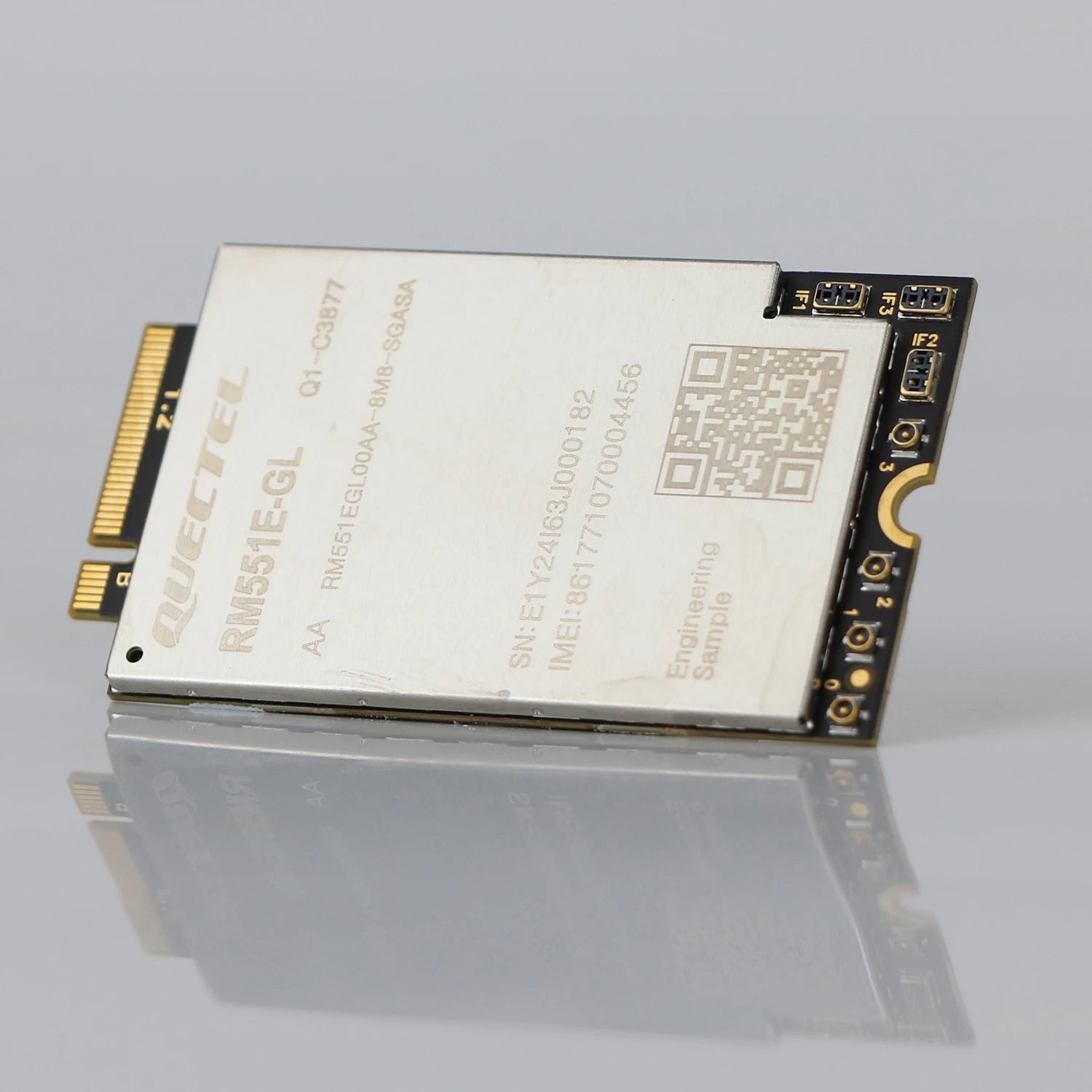

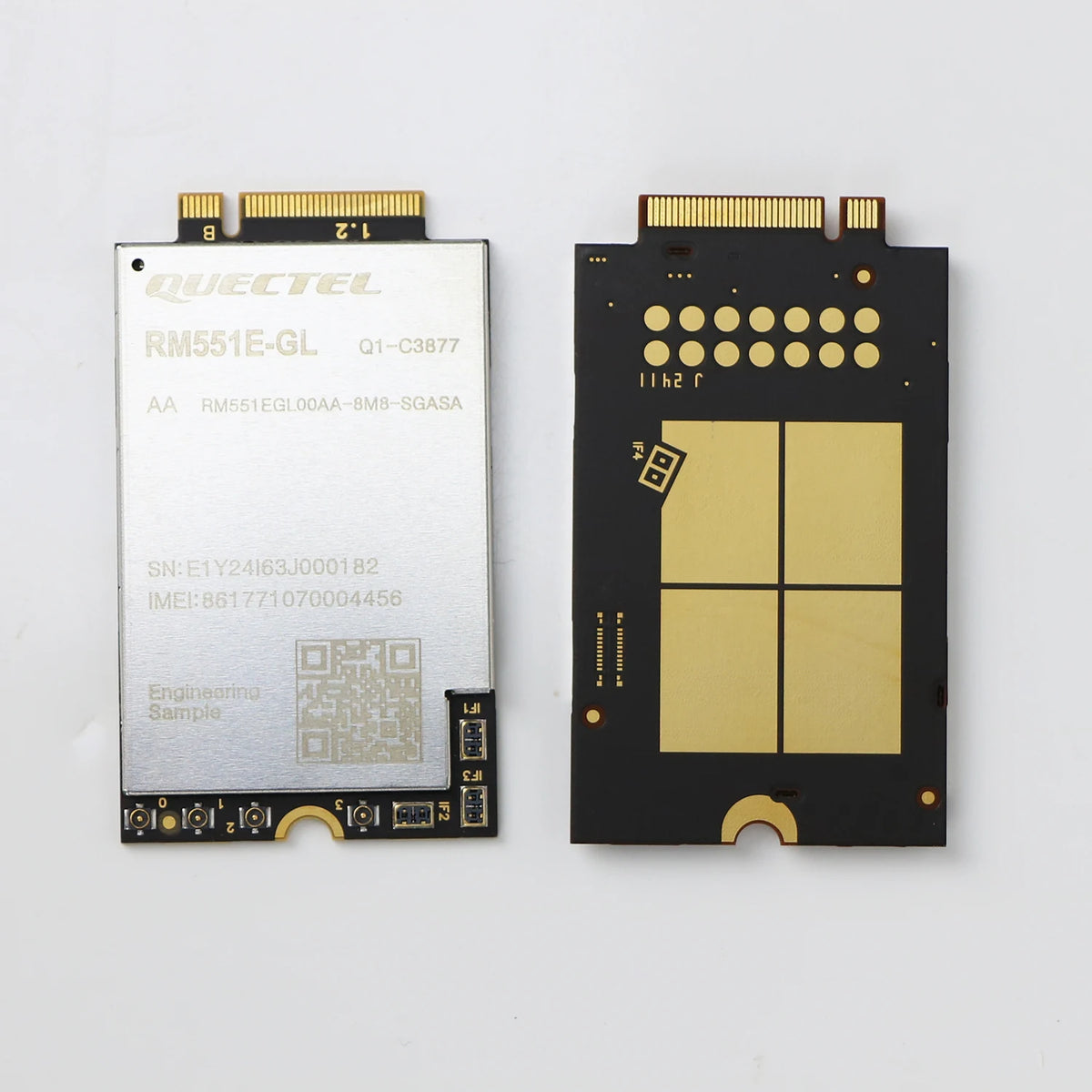

Quectel RM551E-GL is a 5G module that is specially optimized for IoT/ eMBB applications. Adopting 3GPP Rel-17, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM551E-GL is compatible with Quectel 5G module RM530N series, which facilitates customers’ compatible design for Sub-6-only and Sub-6 & mmWave device.
RM551E-GL is an industrial-grade module for industrial and commercial applications.

The global version RM551E-GL covers all of the main operators worldwide. The module can supports Qualcomm® IZatTM location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS receiver greatly simplifies the product design, and also provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionality (USB and PCIe drivers for operating systems Windows 8/ 8.1/ 10/ 11, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as industrial router, home gateway, CPE, industrial and consumer laptop,industrial PDA, rugged tablet PC, video transmission and digital signage, etc.

5G Sub-6 & mmWave			RM551E-GL
Region/Operator			Global
Dimensions (mm)			30.0 × 52.0 × 2.3
Weight (g)			Approx. 8.7
Supply Voltage Range (V)			3.135–4.4, typical 3.7
3GPP Standard Compliance			3GPP Release 17
Temperature range
Operating temperature			-30 °C ~ +75 °C
Extended temperature			-40 °C ~ +85 °C

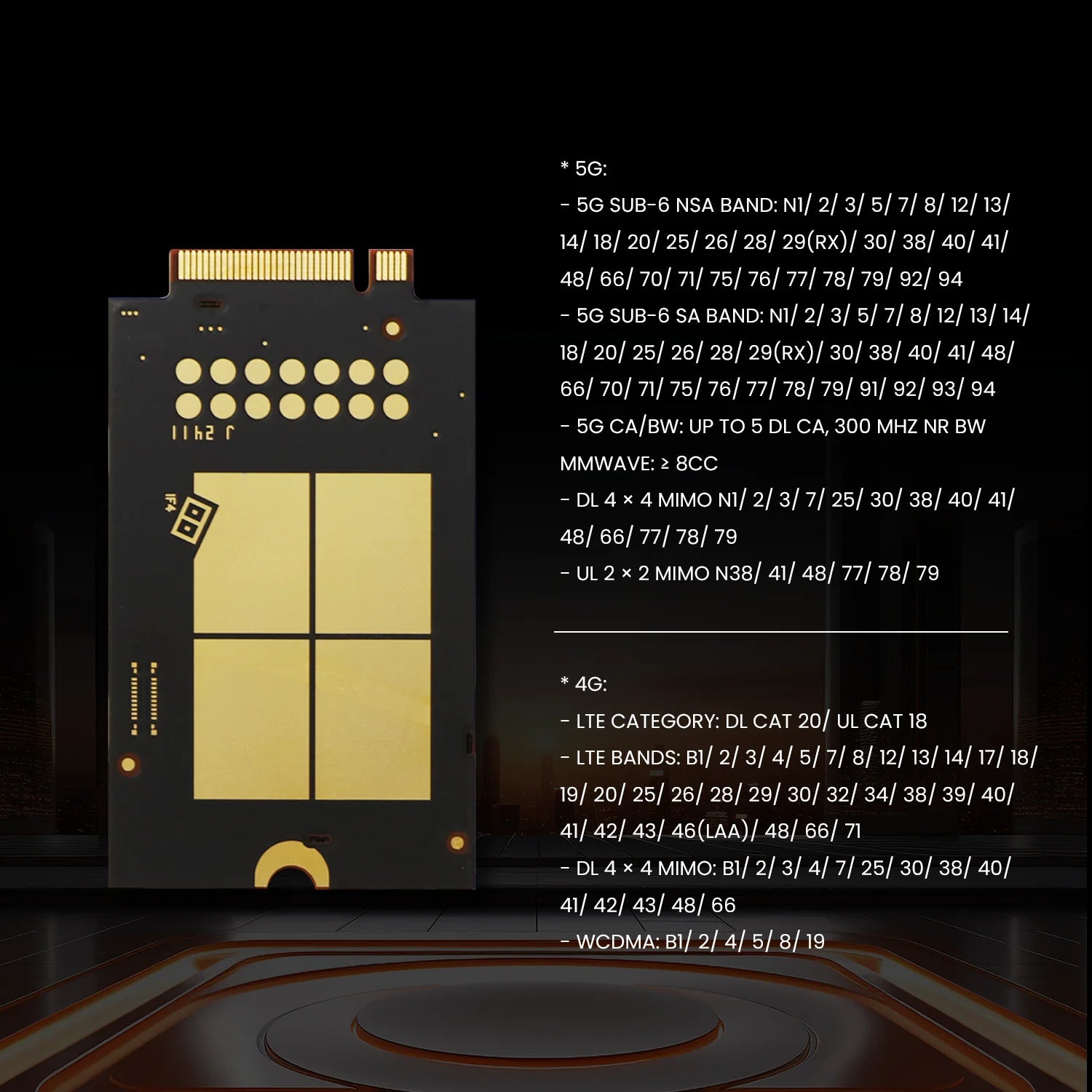

Frequency Bands
5G NR	NSA	n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29(Rx)/ 30/ 38/ 40/ 41/ 48/ 53/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ 92/ 94/ 257/ 258/ 260/ 261
		SA	n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29(Rx)/ 30/ 38/ 40/ 41/ 53/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ 91/ 92/ 93/ 94/ 257/ 258/ 260/ 261
LTE	LTE-FDD	B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 70/ 71
		LTE-TDD	B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48/ 53
		LAA	B46(Rx)
UMTS	WCDMA	B1/ 2/ 4/ 5/ 8/ 19
GNSS			GPS/ GLONASS/ BDS/ Galileo/ QZSS
Certification
Regulatory			GCF*/ PTCRB*/ CE*/ Anatel*/ CCC*/ RCM*/ IC*/ FCC*/ JATE*/ TELEC*/ KC*/ NCC*
Carrier			T-Mobile*/ Verizon*/ AT&T*/ NTT DOCOMO*/ Deutsche Telekom* /Telstra*
Others			RoHS
Data Rate (Max.) ①
5G SA Sub-6			DL: 7.01 Gbps; UL: 1.25 Gbps
5G NSA Sub-6			DL: 5.47 Gbps; UL: 730 Mbps
5G NSA mmWave			DL: 10.94Gbps; UL: 4.16Gbps
LTE			DL: 2 Gbps; UL: 211 Mbps
WCDMA			DL: 42 Mbps; UL: 5.76 Mbps
interface
(U)SIM × 2 USB 2.0 × 1 USB 3.0/3.1 × 1 PCIe 4.0 × 1 Antenna × 7 (Sub-6 & GNSS: × 4; mmWave: × 3)
Voice			Digital Audio & VoLTE/ VoNR

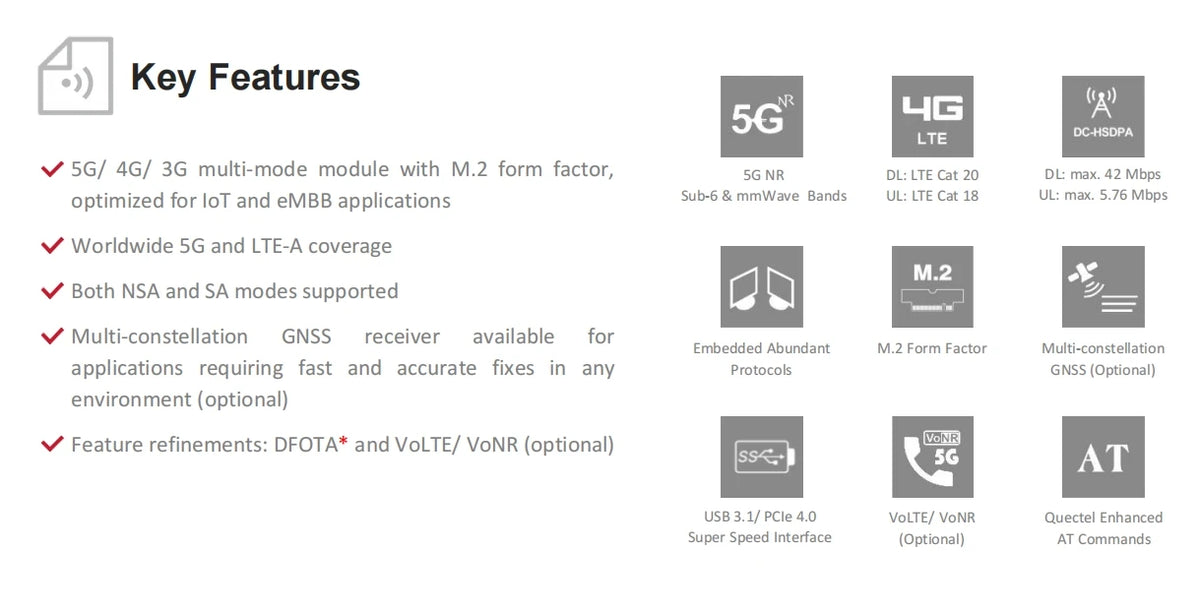

Outstanding Features
eSIM/DTMF/DFOTA/(U)SIM Card Detection
