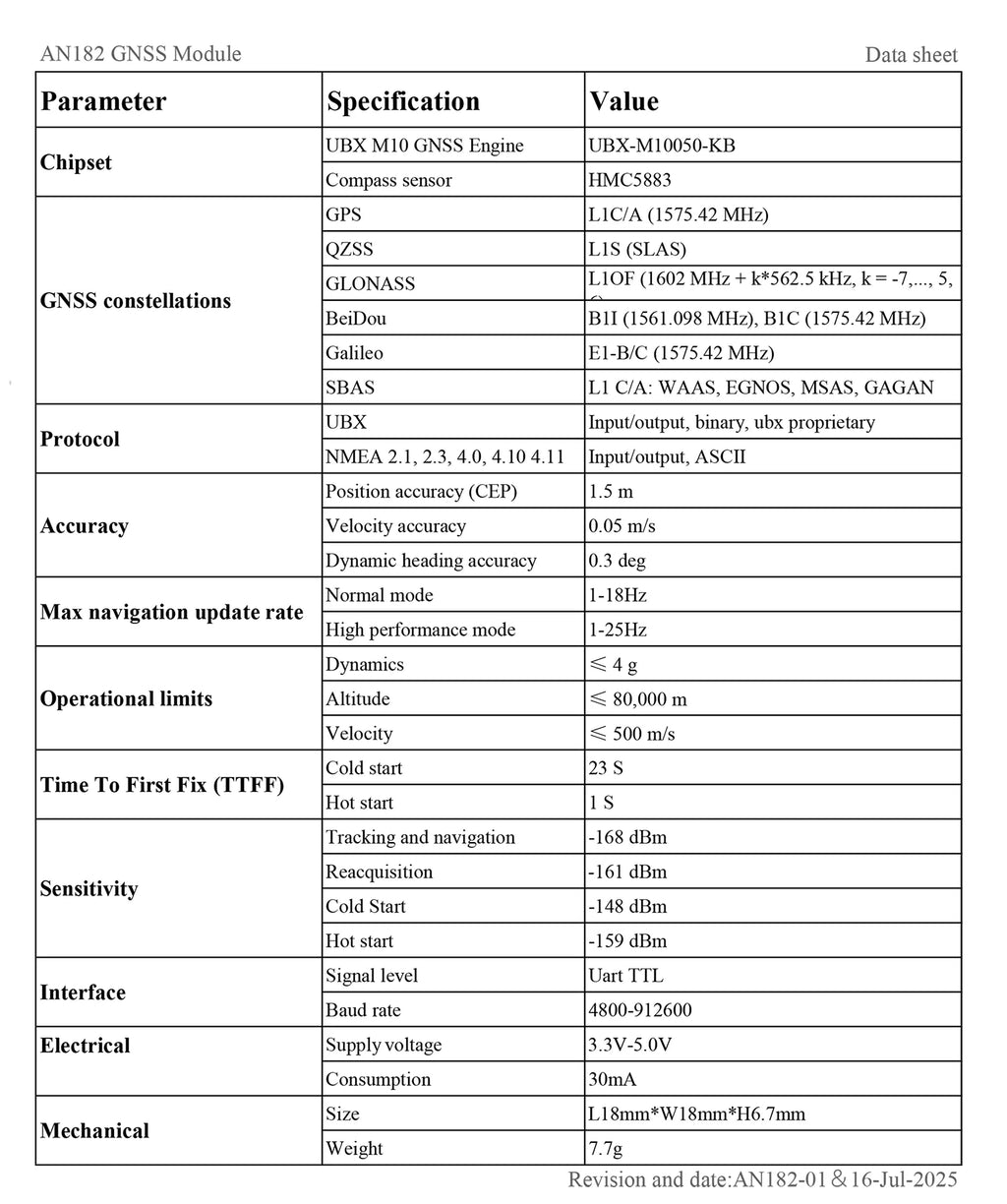

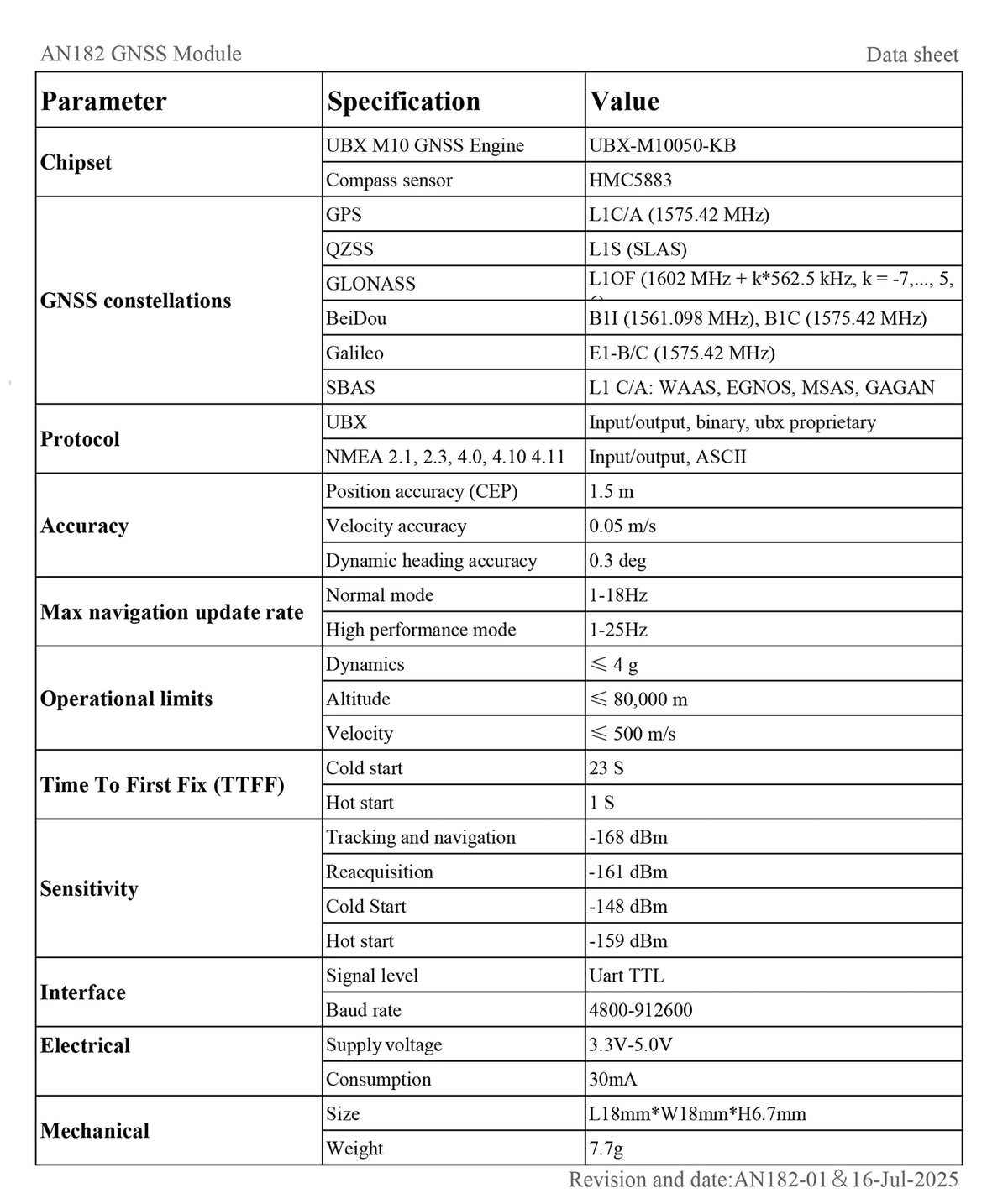

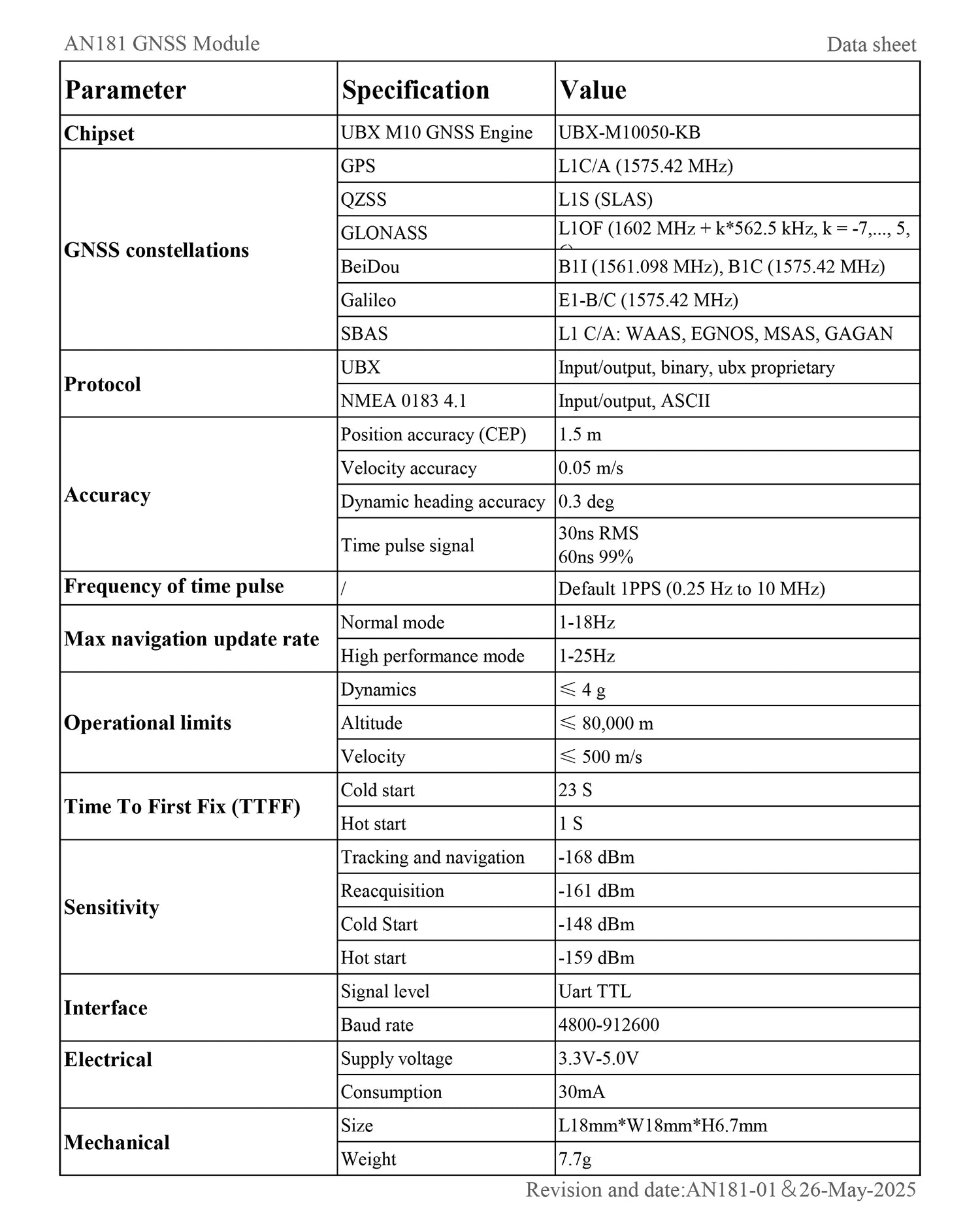

SPECIFICATIONS

Overview

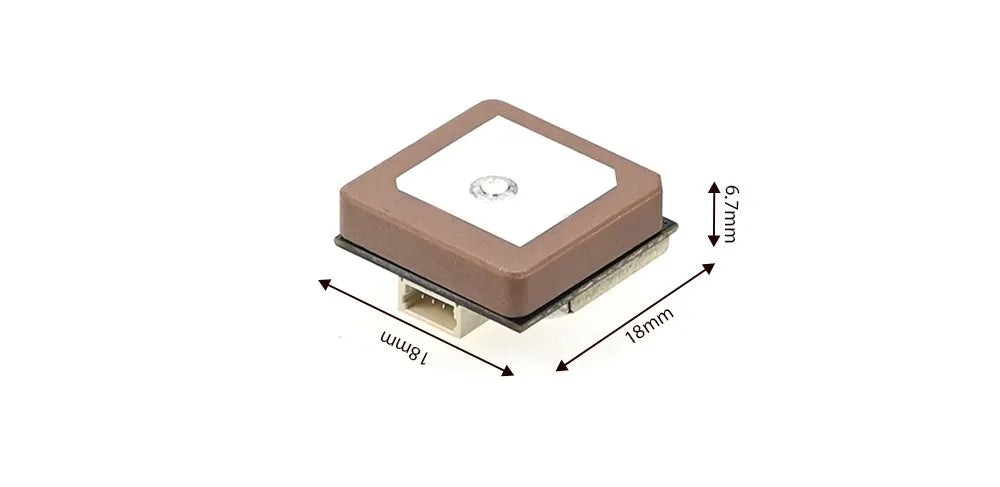

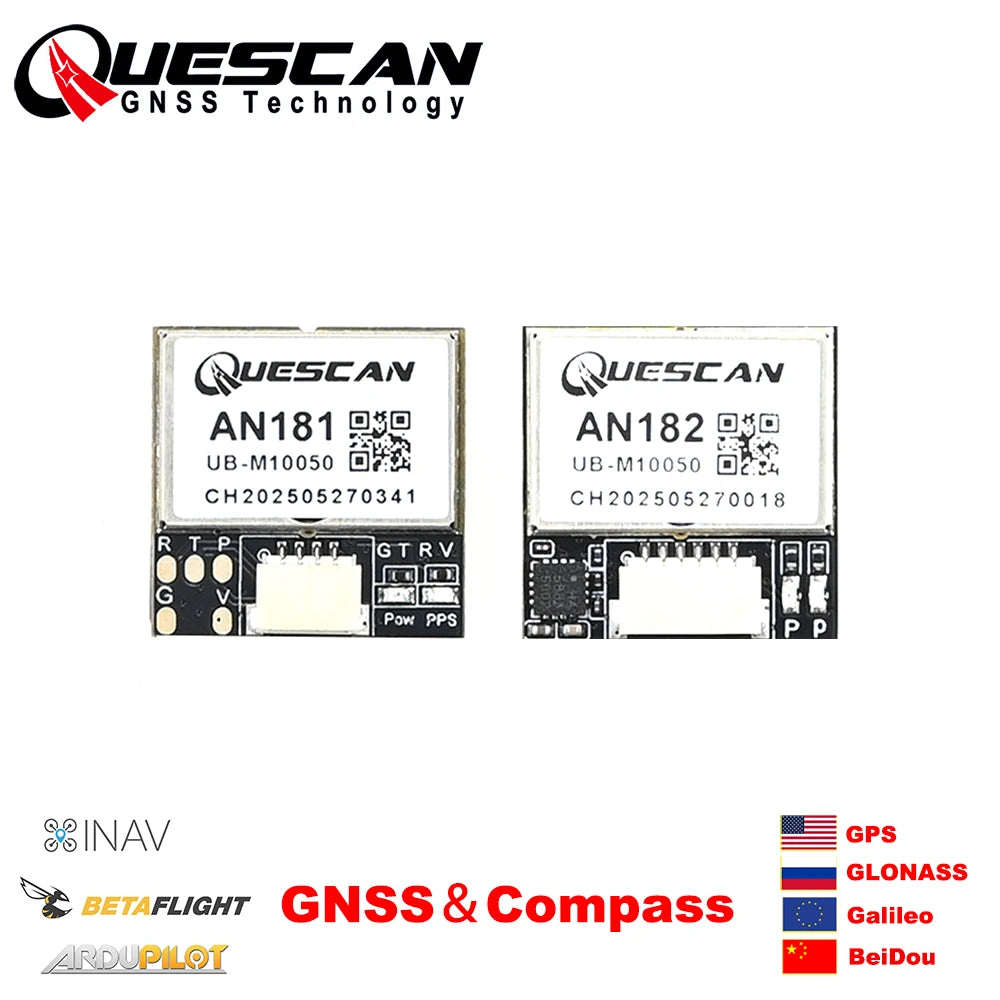

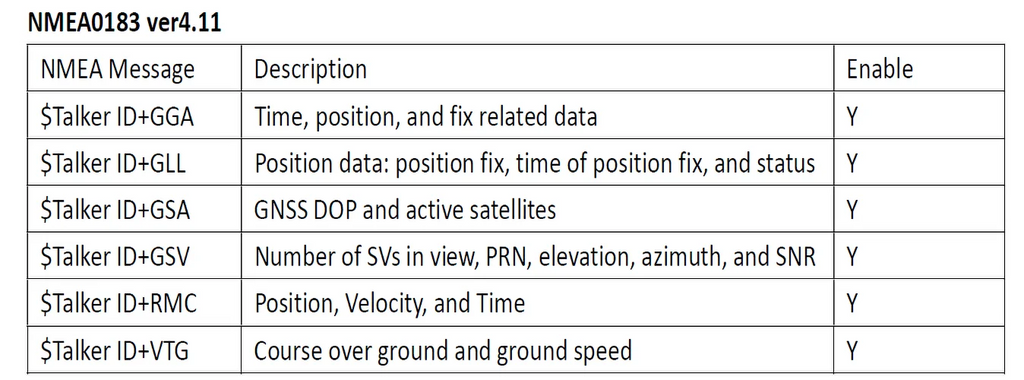

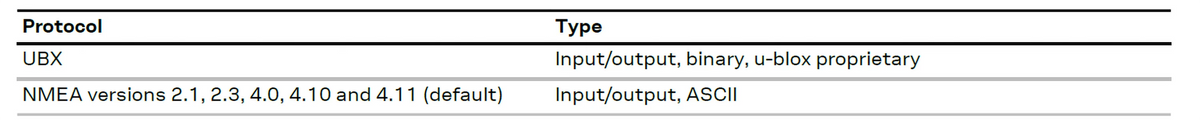

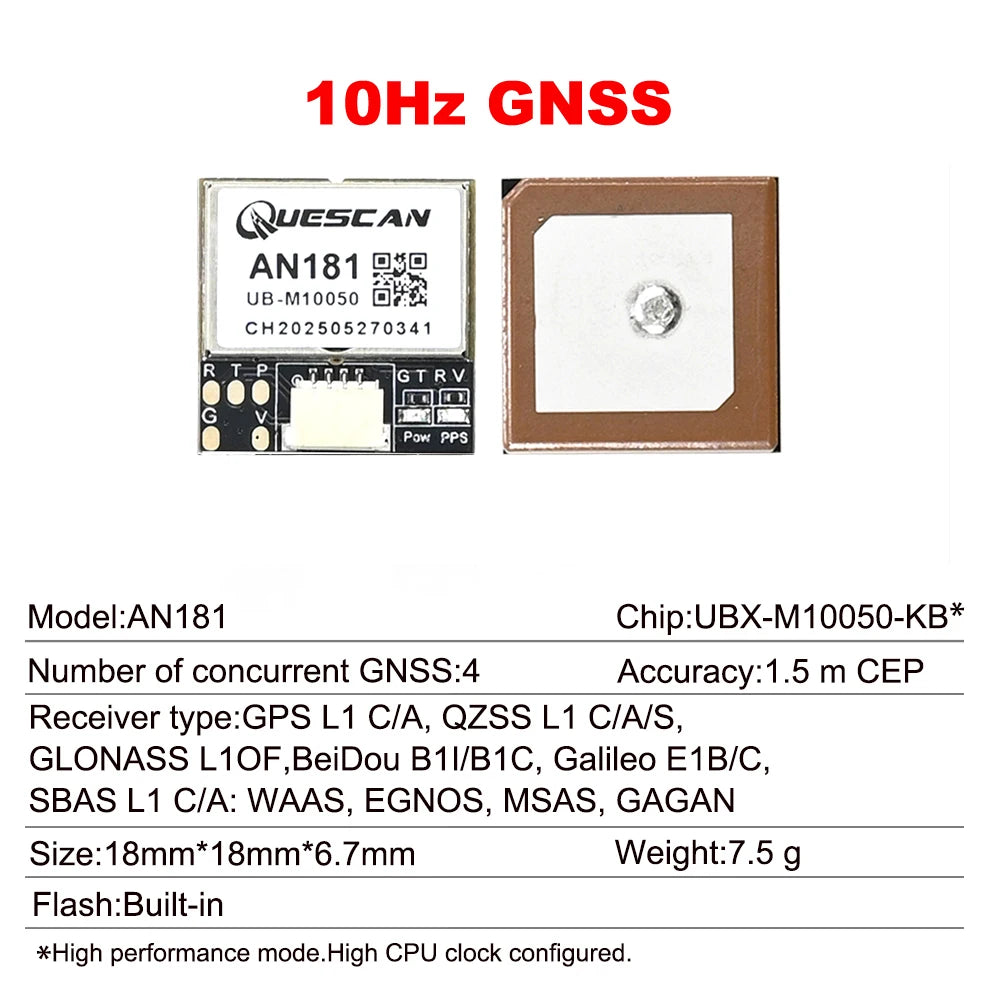

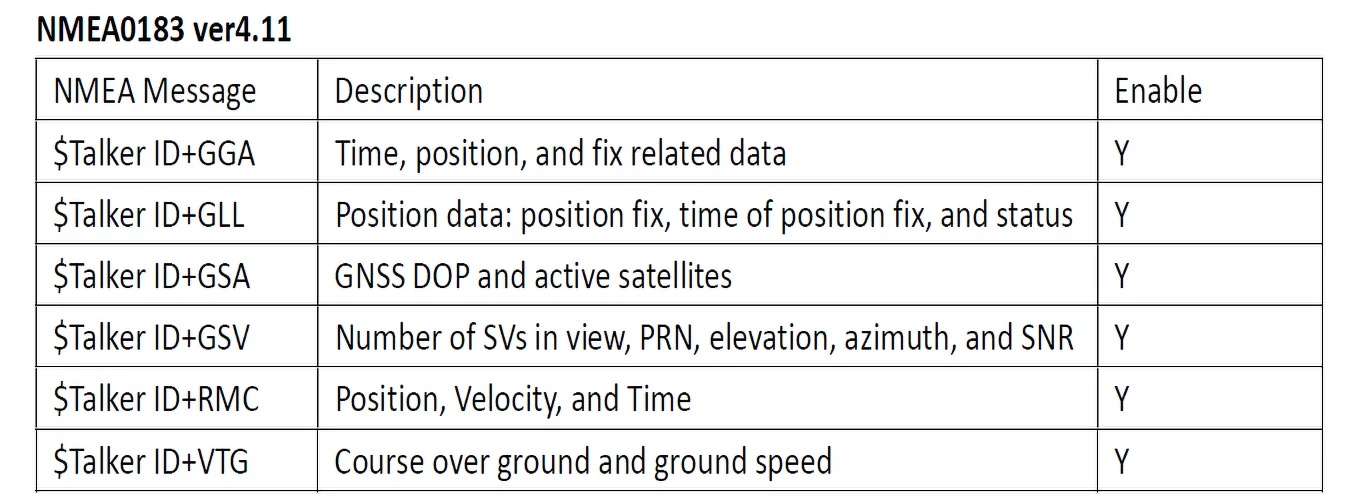

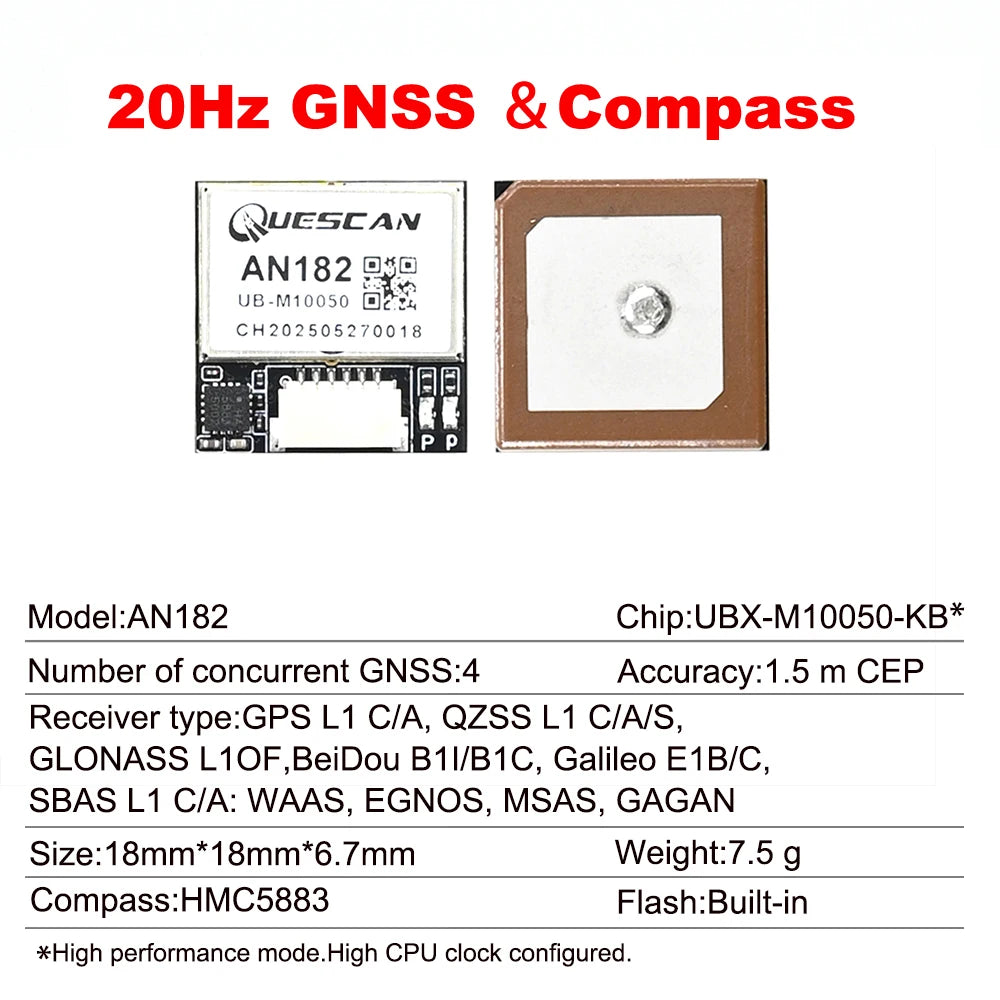

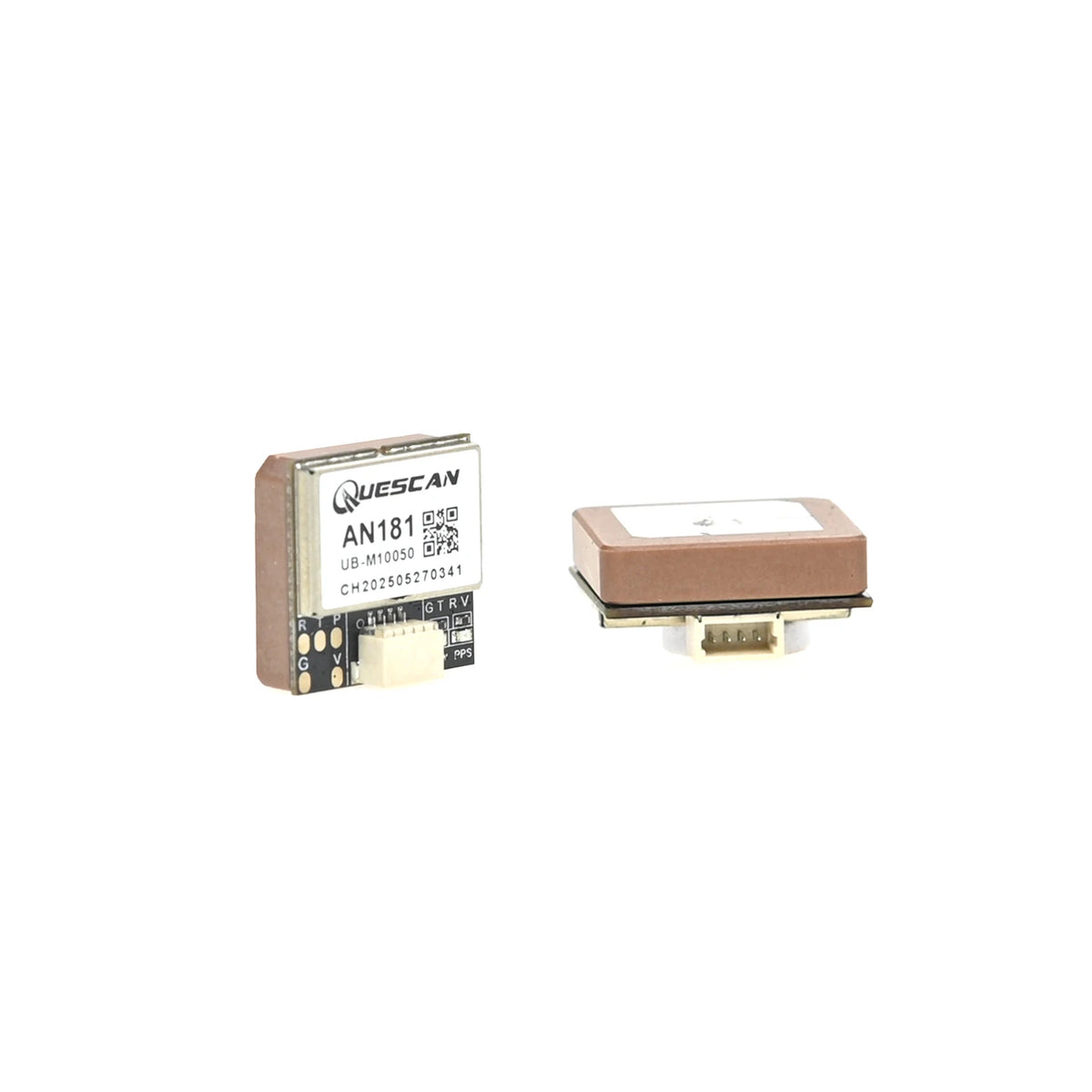

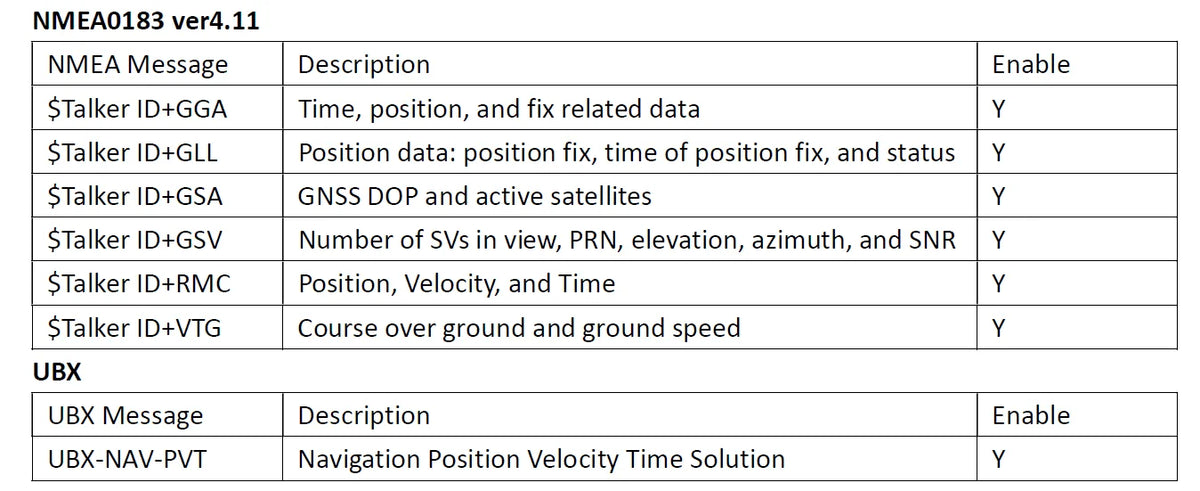

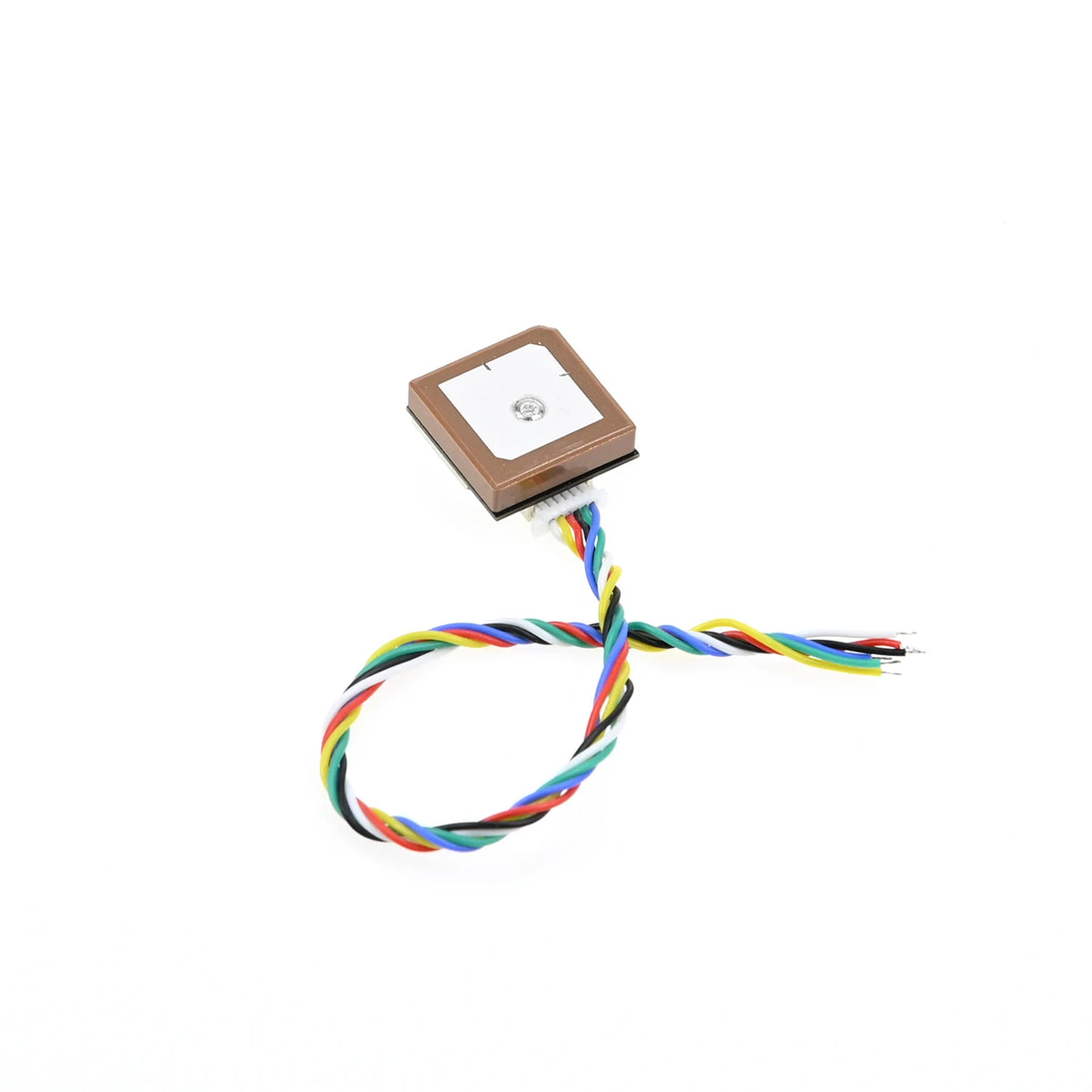

AN182 module integrates GNSS and Compass sensors, with a navigation rate of 25Hz. The AN181 navigation rate is 10Hz and is not equipped with Compass. The AN181/AN182 GNSS modules are equipped with UBX M10 chip, which supports simultaneous reception of global navigation satellite systems (GPS, GLONASS, Galileo, and Beidou). A large number of visible satellites enable the receiver to select the optimal signal. AN181/AN182 support NMEA and UBX dual protocol outputs. The high gain 18x18x4mm antenna provides the best performance for global navigation satellite system receivers. The omnidirectional antenna radiation pattern increases the flexibility of equipment installation.This module is suitable for FPV/drone/robots,boats,speedometer,etc. This module is suitable for various flight controllers, such as Ardupilot INAV Betaflight Pixhawk APM, etc.

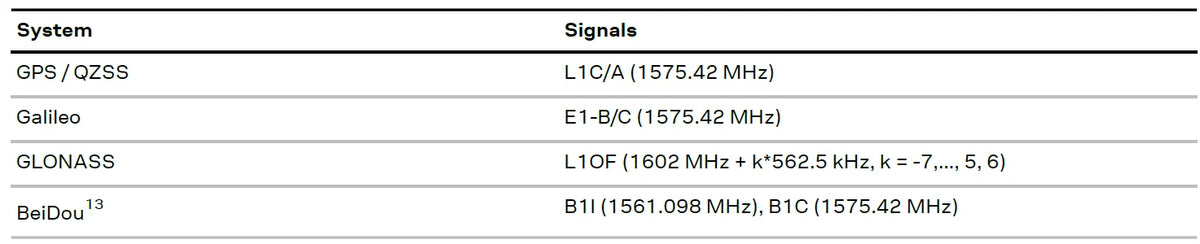

The UBX-M10050-KB chip features the ubx M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition times for all L1 GNSS signals.The extremely low power consumption in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising on GNSS performance . The UBX-M10050-KB supports concurrent reception of up to four GNSS (GPS, GLONASS, Galileo, and BeiDou).Up to more than 50 satellites can be catched.The high number of visible satellites enables the receiver to select the best signals. This maximizes the position accuracy, in particular under challenging conditions such as in deep urban canyons.
UBX Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy with small antennas or in non-line-of-sight scenarios.
