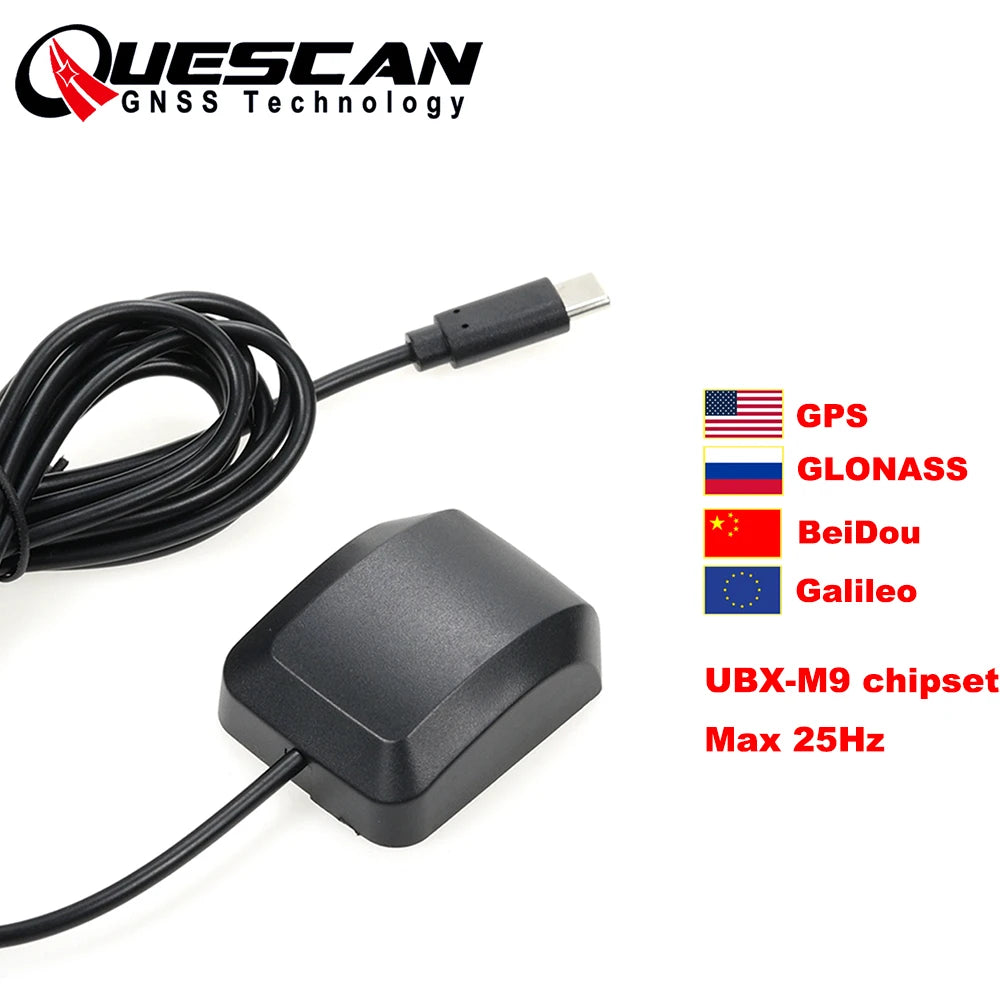

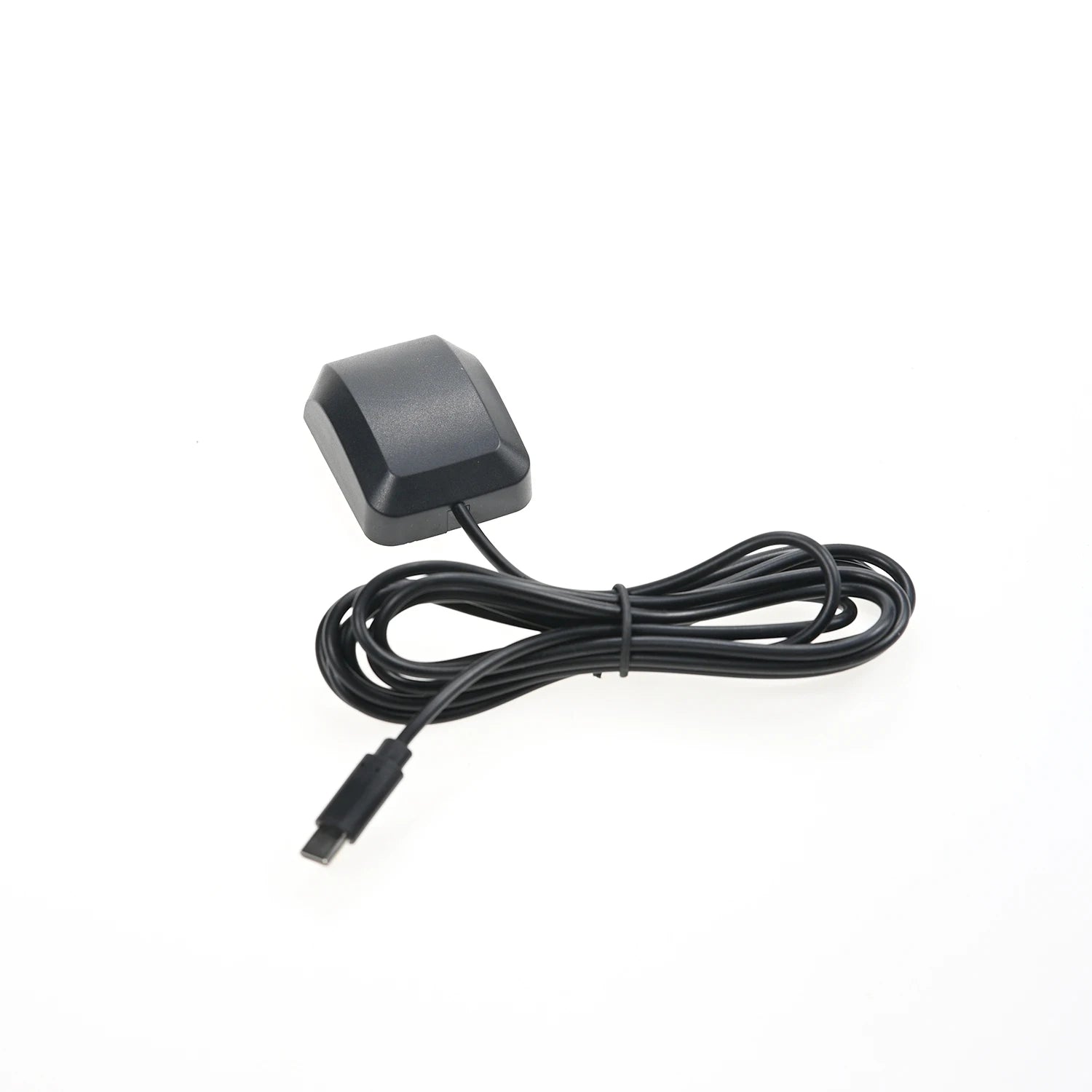

QUESCAN Android USB Type C GPS GNSS Receiver USB-C M9 M9N GPS Galileo GLONASS BeiDou QZSS 1-25Hz NMEA RTCM Protocol,UBX-M9140-KB

QUESCAN Android USB Type C GPS GNSS Receiver USB-C M9 M9N GPS Galileo GLONASS BeiDou QZSS 1-25Hz NMEA RTCM Protocol,UBX-M9140-KB

$110.48

$110.48 $0.00

Description

SPECIFICATIONS

Bottom: Magnetic

Brand Name: QUESCAN

Cable Length: 2 meters

Channel: 92

Chipset: UBX-M9140-KB

GNSS: GPS/QZSS GLONASS Galileo BeiDou SBAS

GPS type: Receiver & Antenna

High-concerned chemical: none

Horizontal Accuracy: 1.5m CEP

Interface: USB-C/Type C

Model Name: QUM9NCL

NMEA messages: RMC GGA GSA GSV GLL VTG

Origin: Mainland China

Protocol: NMEA 0183/UBX/RTCM

Sensitivity: -167dBm@Tracking

Update rate: Max 25Hz

Waterproof level: IP67

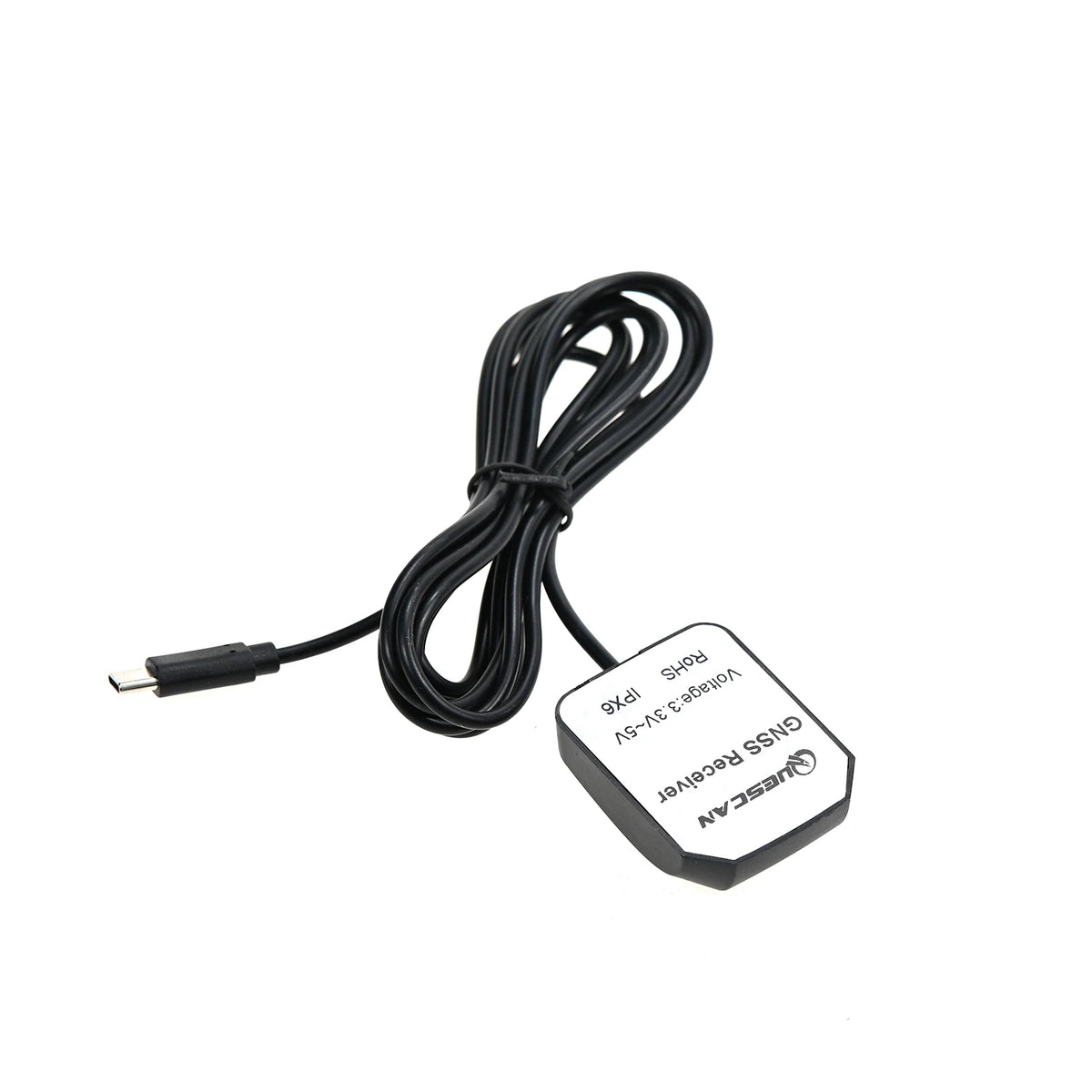

Overview

This item is a multimode USB-C GPS receiver equipped with UBX M9 module (M9140 chip).The max positioning update rate of this GPS receiver is 25Hz, and it can simultaneously receive GPS GLONASS Galileo BeiDou satellite signals(Including auxiliary positioning system QZSS and SBAS), improve positioning accuracy and shorten the time of fix. The accuracy reaches 1.5m cep，and the average cold start time is 23s.It also has built-in small battery to support receiver hot start.It is widely used in PC navigation, car navigation, sea navigation, ranging, automatic driving travel, fleet management, vehicle tracking, etc.This product supports Windows and Android 4.0 and above systems, download the APP(GPS Connector.APK)for Android systems, and set mock location.Get more accurate positioning for your Android smart device！
Highlights:
■ Chipset: UBX-M9140-KB
■ GPS+GLONASS+Galileo+BeiDou+QZSS+SBAS
■ Built-in LNA signal amplifier
■ High sensitivity ceramic antenna
■ Max. 25Hz positioning update rate

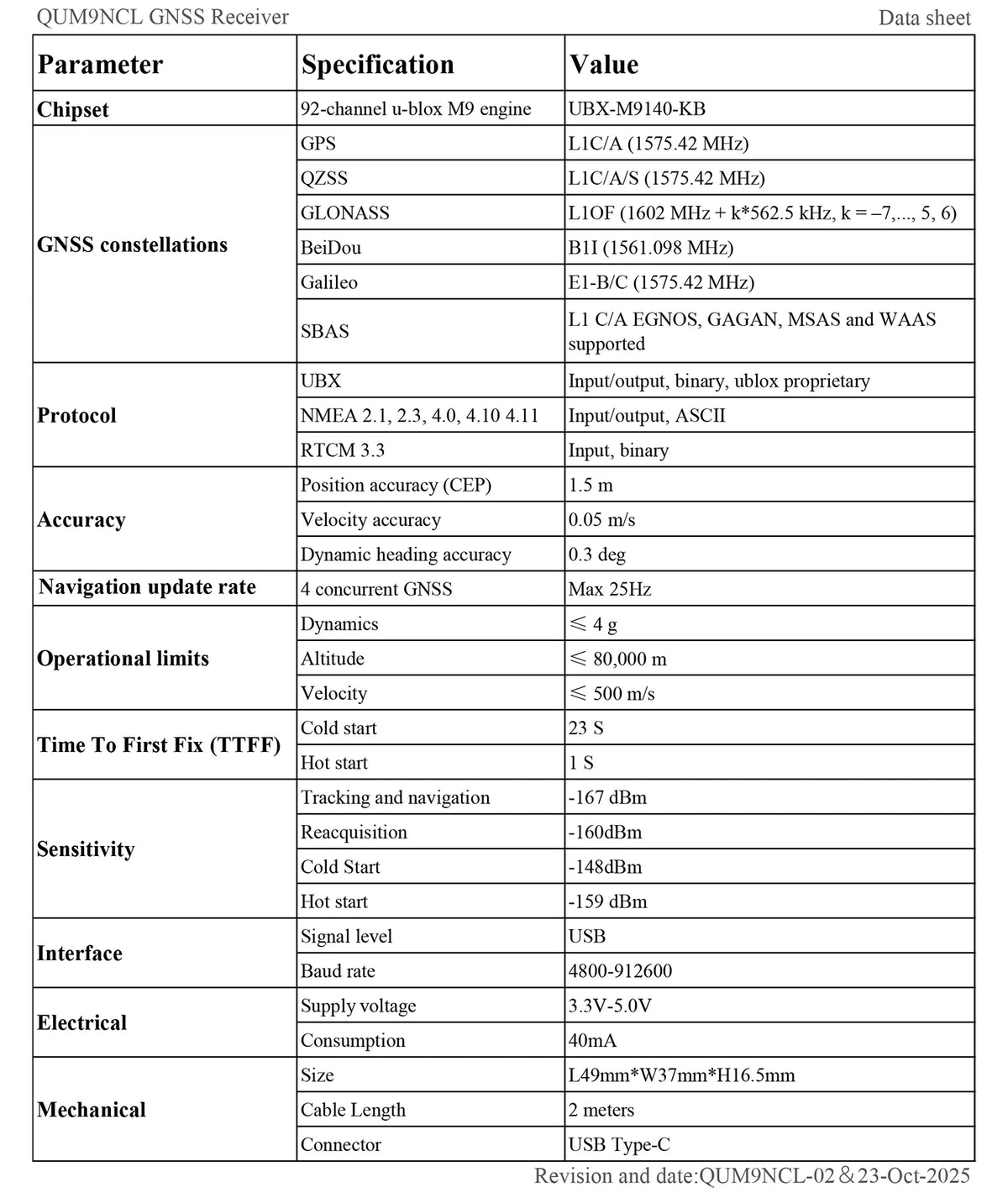

Specification

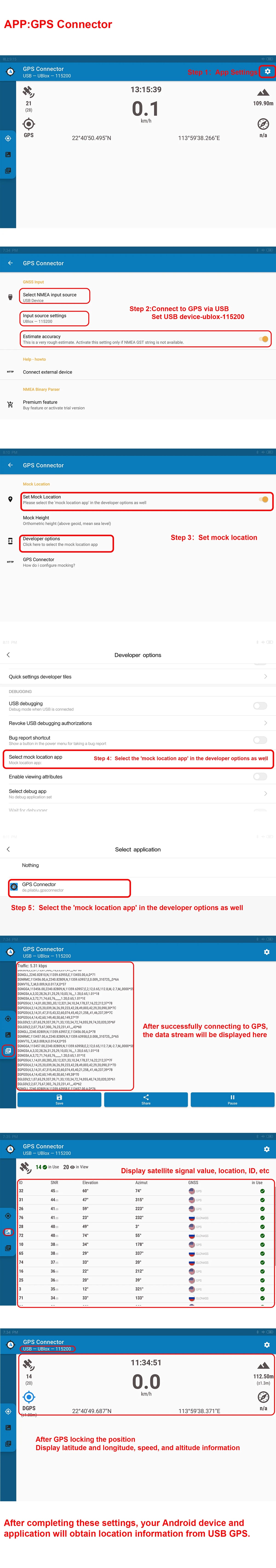

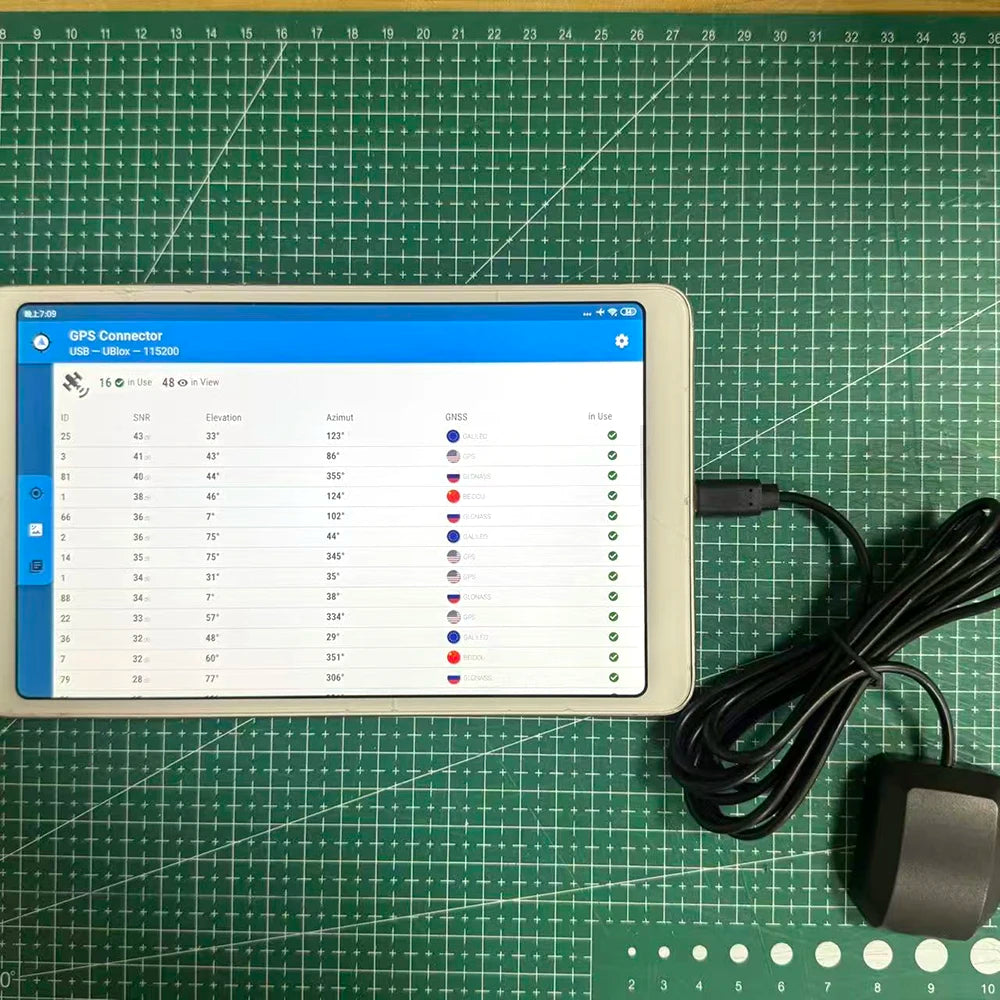

Android Settings Guide

Supported GNSS constellations

QUM9NCL is a concurrent GNSS receiver which can receive and track multiple GNSS systems. This receiver can be conﬁgured for concurrent GPS, GLONASS, Galileo and BeiDou plus SBAS and QZSS reception. If power consumption is a key factor, then the receiver can be conﬁgured for a subset of GNSS constellations.

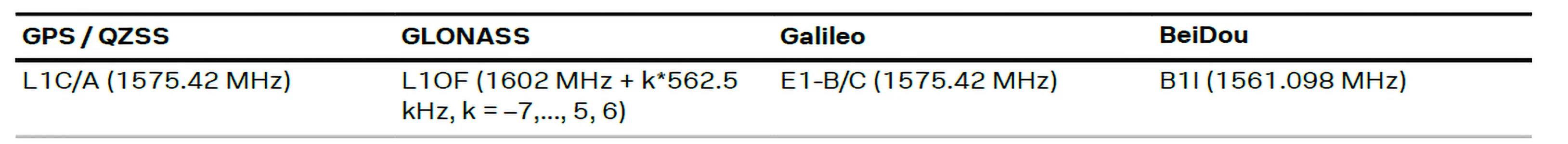

The following GNSS and their signals are supported:

Factory Settings

•GPS+GLONASS+Galileo+BeiDou+QZSS+SBAS
•115200 baud, 8 bits, no parity bit, 1 stop bit.
•1Hz navigation update rate.
•NMEA version 4.10.
•Input messages: NMEA and UBX.

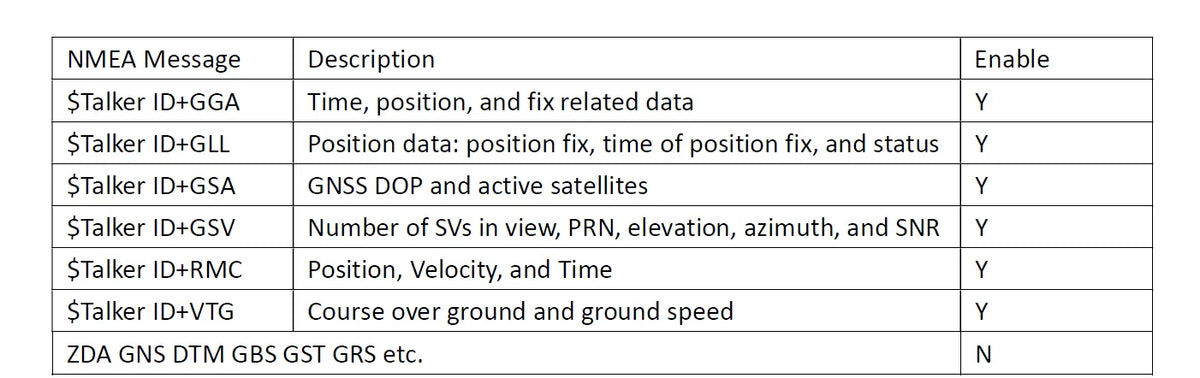

•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT.
