SPECIFICATIONS

Overview

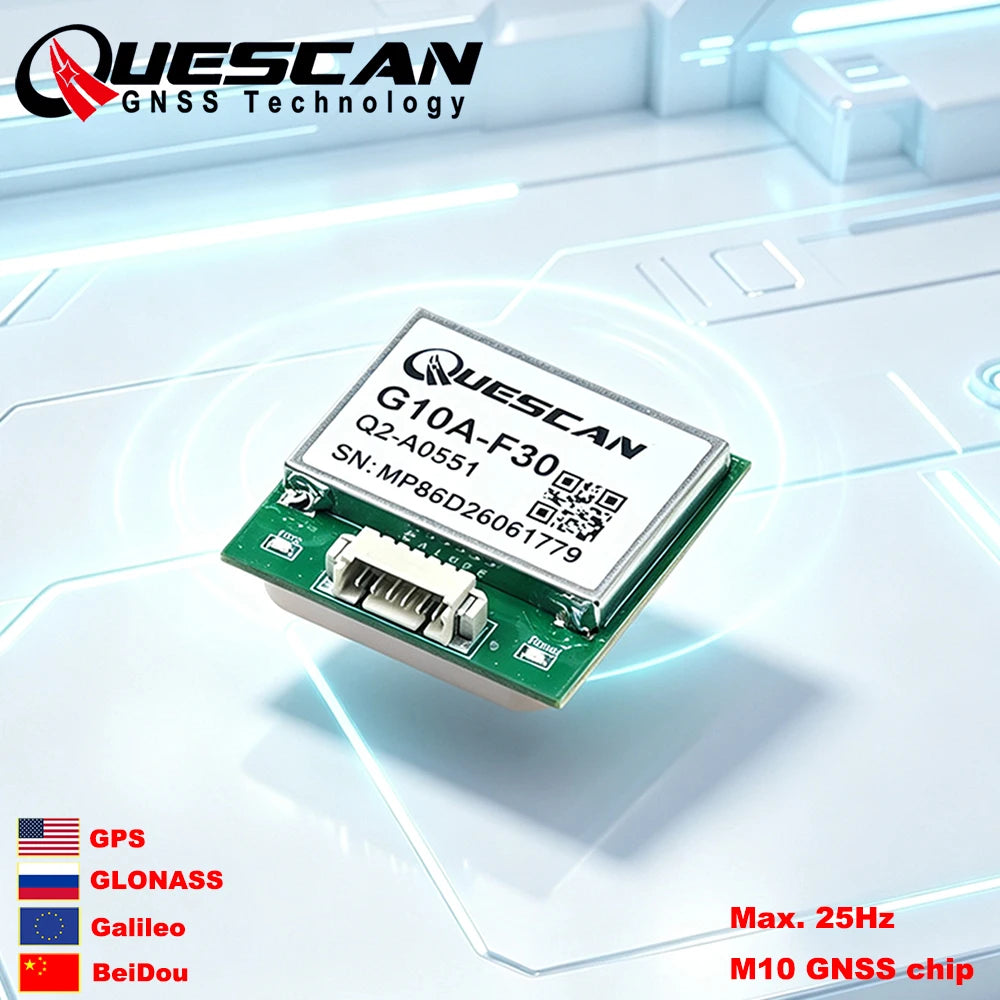

The G10A-F30 GNSS module adopts the UBX-M10 standard precision positioning platform, delivering outstanding signal sensitivity and ultra-fast signal acquisition performance for all L1-band GNSS signals. It supports a maximum positioning refresh rate of 25 Hz (configurable via high-performance operating mode), making it a highly cost-effective single-band L1 GNSS positioning solution.
Powered by the M10 positioning platform, the module simultaneously receives four global navigation satellite systems: GPS, GLONASS, Galileo and BeiDou, with QZSS and SBAS functional support enabled by default. Access to a large pool of visible satellites allows the receiver to automatically select optimal navigation signals, drastically boosting positioning availability and reliability — especially in complex harsh environments such as dense urban canyon areas.
Equipped with UBX Super-S (Super-Signal) proprietary technology, the module achieves excellent RF receiving sensitivity. It delivers improved dynamic positioning accuracy even when paired with miniature antennas or operating under non-line-of-sight (NLOS) signal conditions.
The G10A-F30 supports bidirectional input and output of both NMEA and UBX protocols. For mainstream controller integration, the UBX-NAV-PVT message under the UBX protocol is strongly recommended for stable data interaction.
Built-in onboard Flash memory is integrated into the module, allowing full customization of all internal positioning parameters and operational configurations.

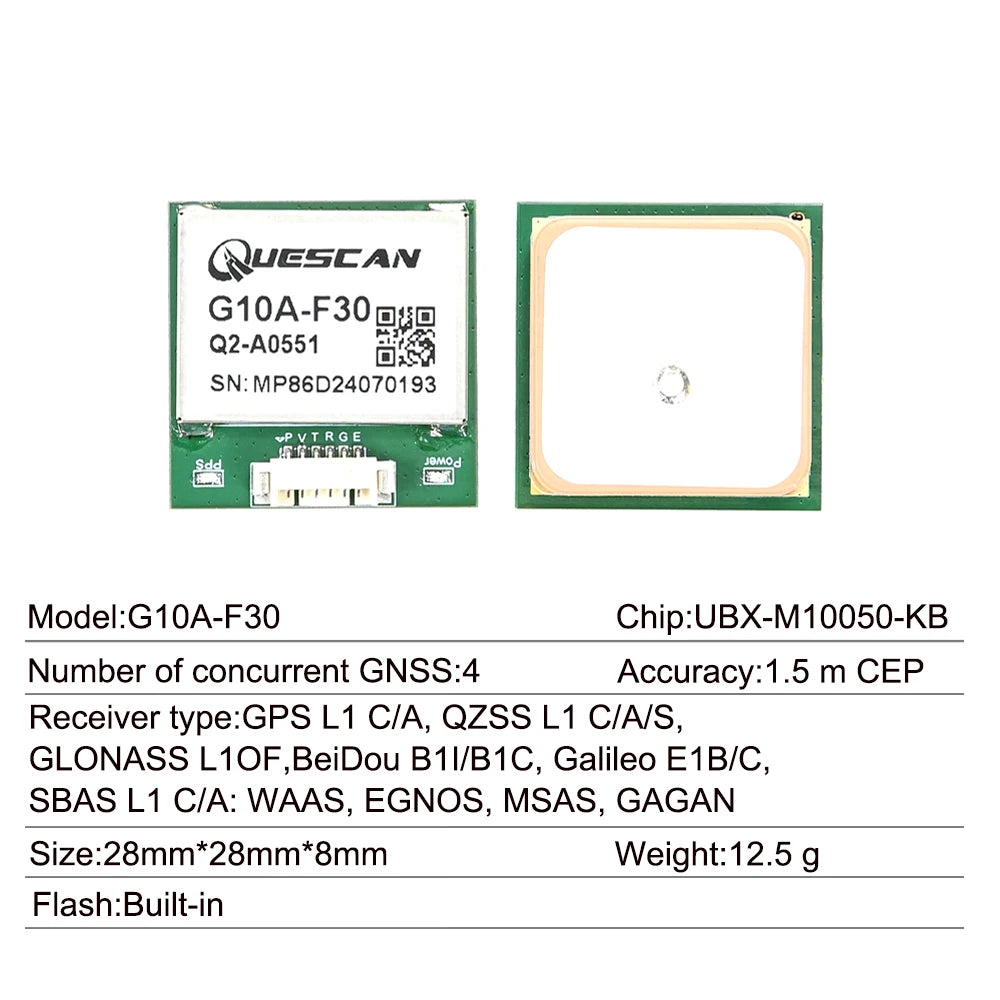

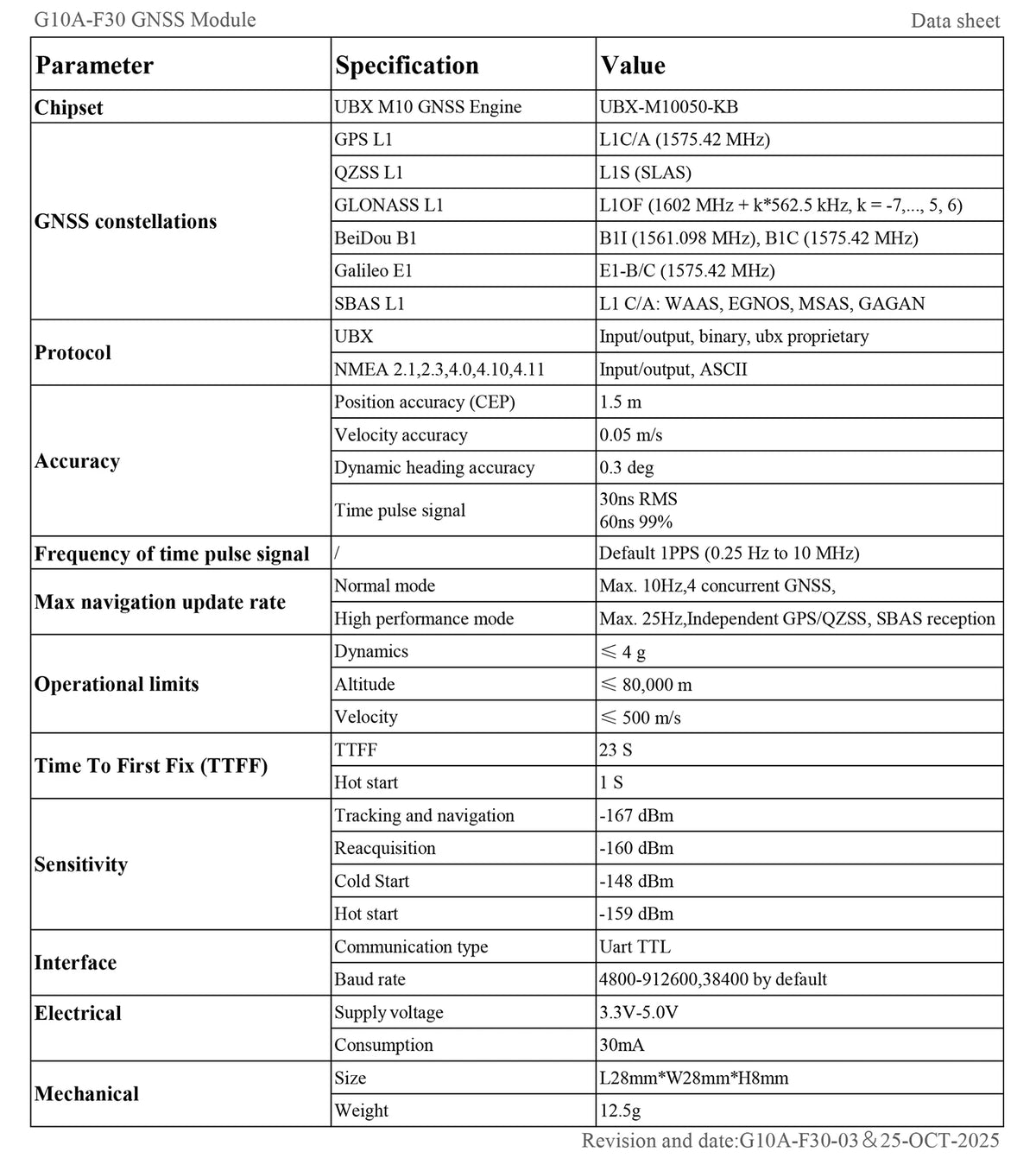

Specification

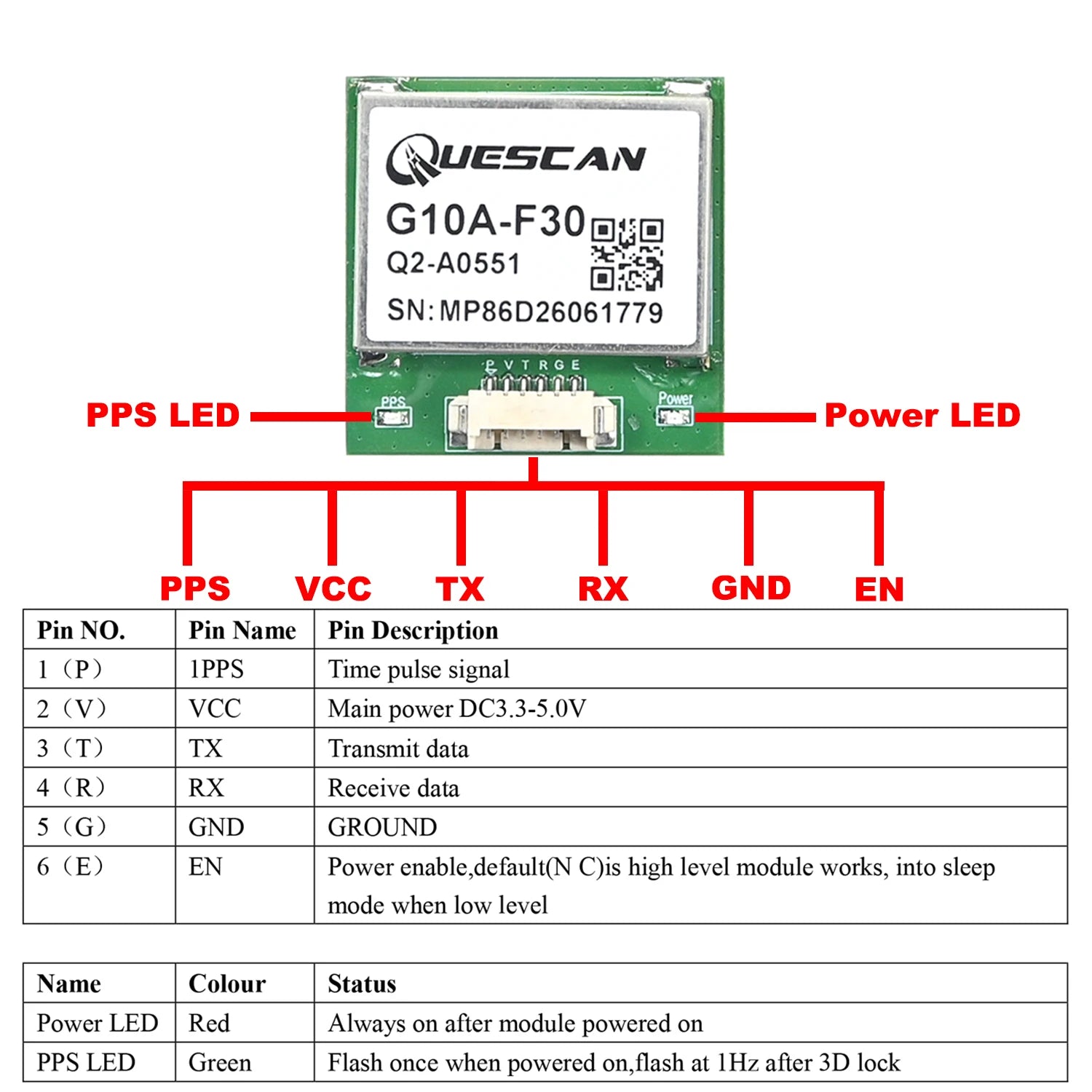

Pin Definition

Supported GNSS constellations

G10A-F30 is a concurrent GNSS receiver that can receive and track multiple GNSS systems. The single RF front-end architecture enables concurrent reception of multiple GNSS constellations. The receiver can be configured for a subset of GNSS constellations to achieve lower power consumption.
The factory configuration on G10A-F30 is concurrent reception of GPS,Galileo,GLONASS and BeiDou B1C with QZSS and SBAS enabled.

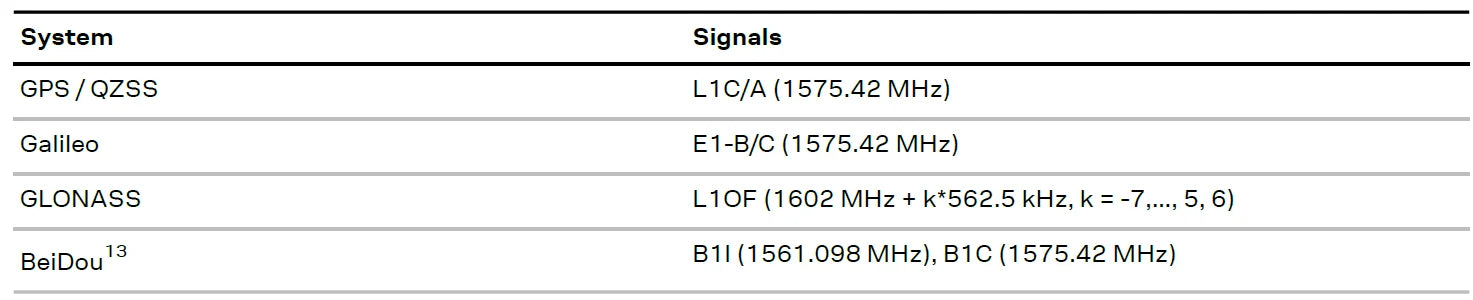

The following GNSS and their signals are supported:

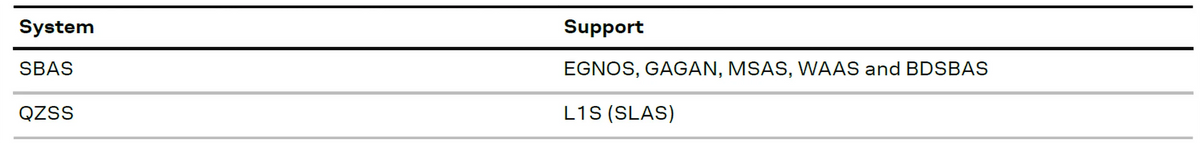

The following augmentation systems are supported:

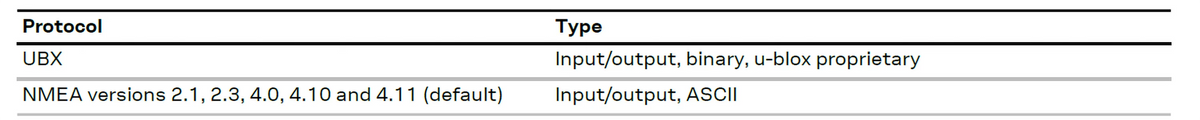

Supported protocols

For more details, please refer to official documents.

Dynamic platform

The dynamic platform model can be configured through the CFG-NAVSPG-DYNMODEL
configuration item. For the supported dynamic platform models and their details please refer to the table below. The default dynamic model is Portable.

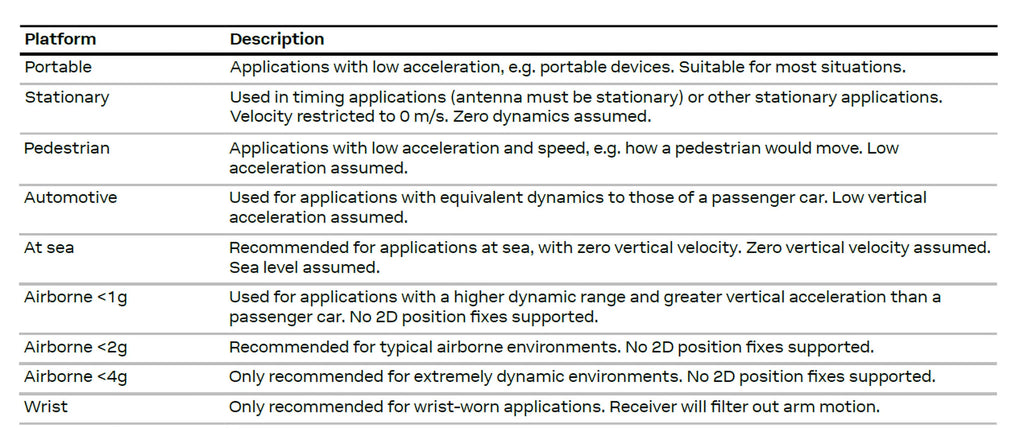

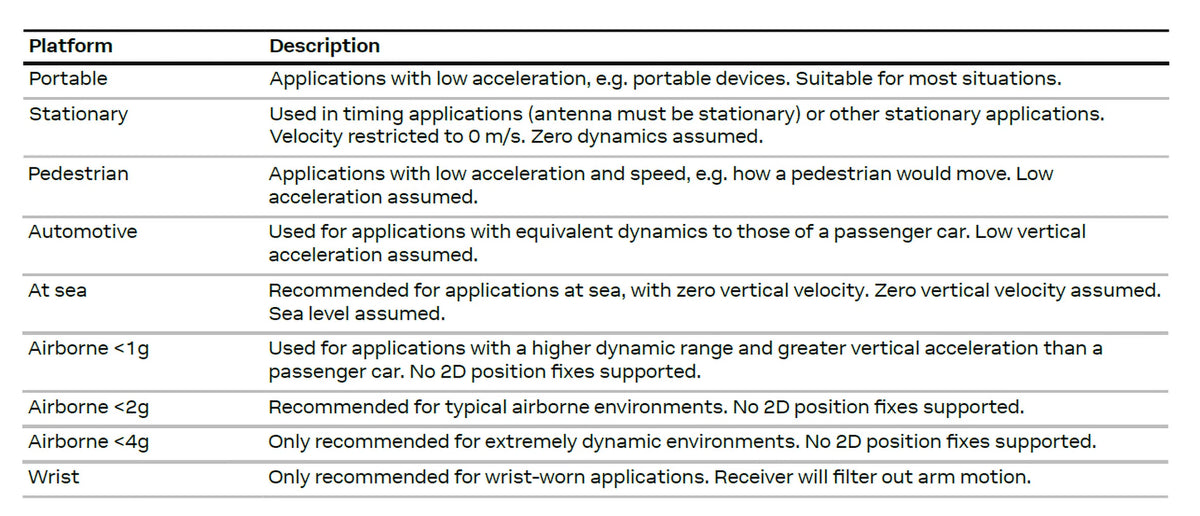

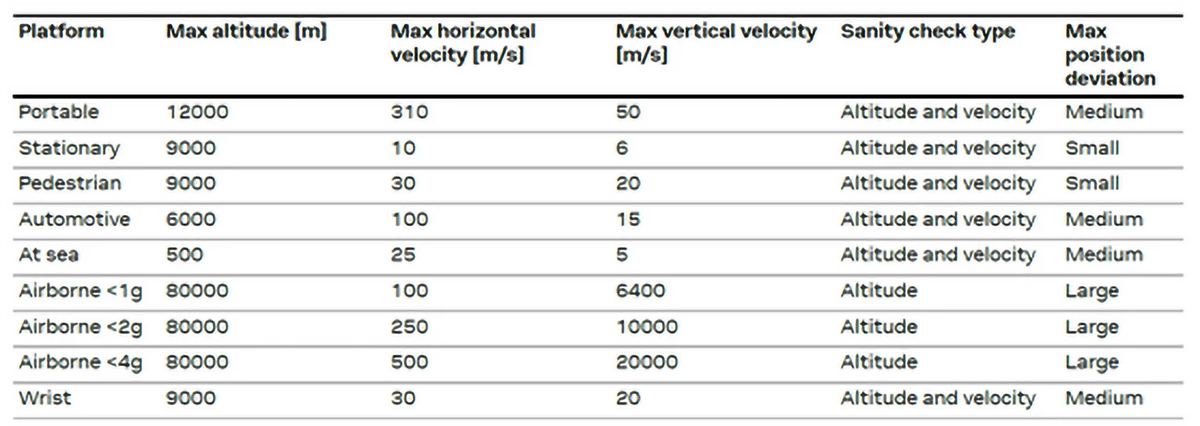

Dynamic platform models and details:

Factory Settings

•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS
•38400 baud, 8 bits, no parity bit, 1 stop bit.
•1Hz navigation update rate.
•1PPS time pulse

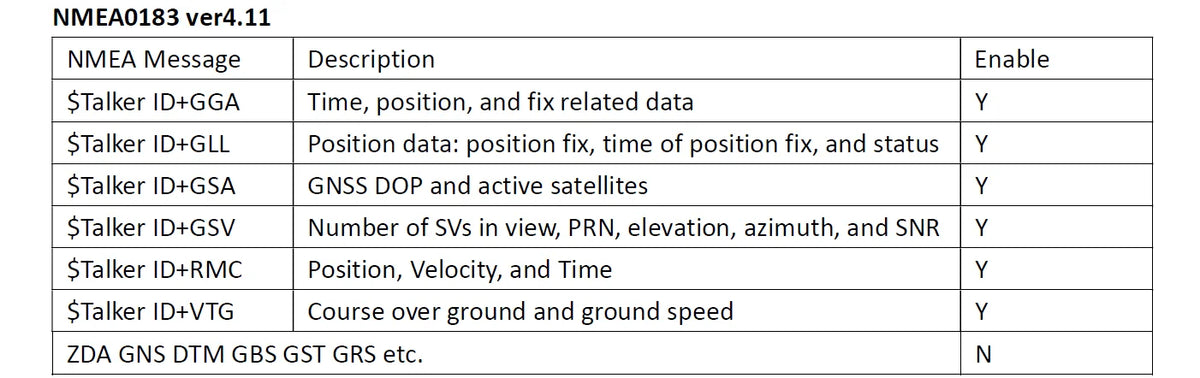

•NMEA version 4.11.
•Input messages: NMEA and UBX.
•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT.

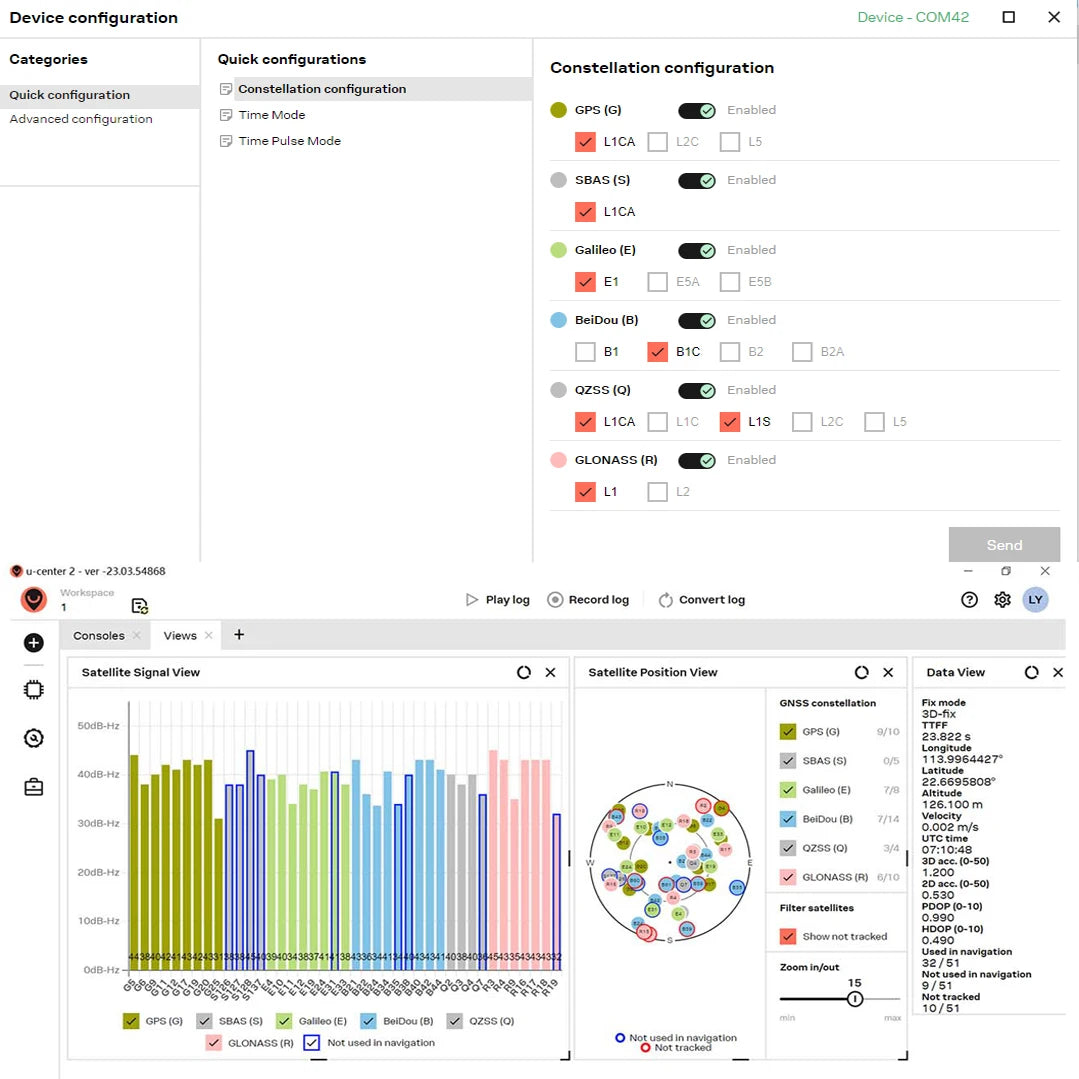

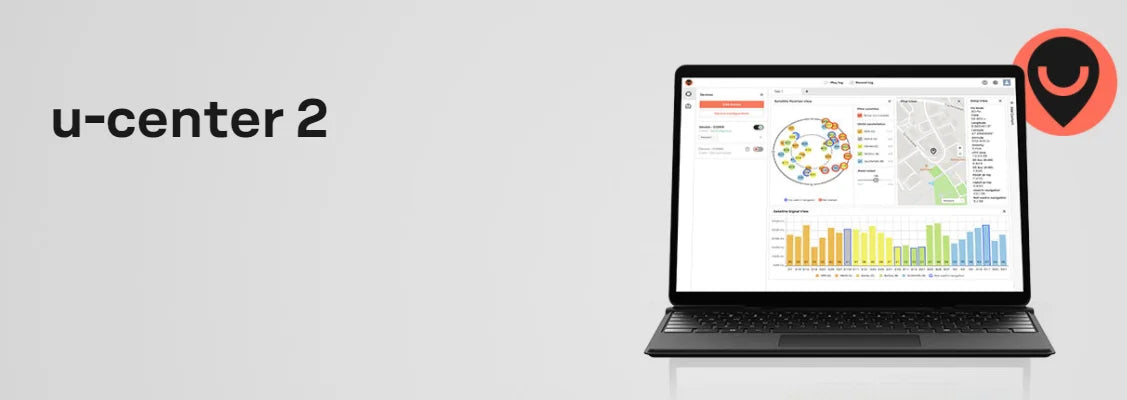

Configuration software

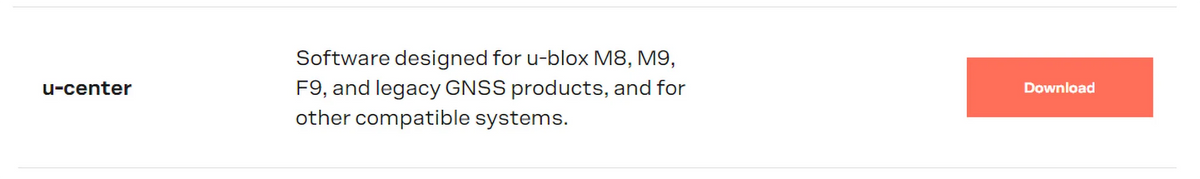

Official GNSS evaluation software for Windows:
u-center

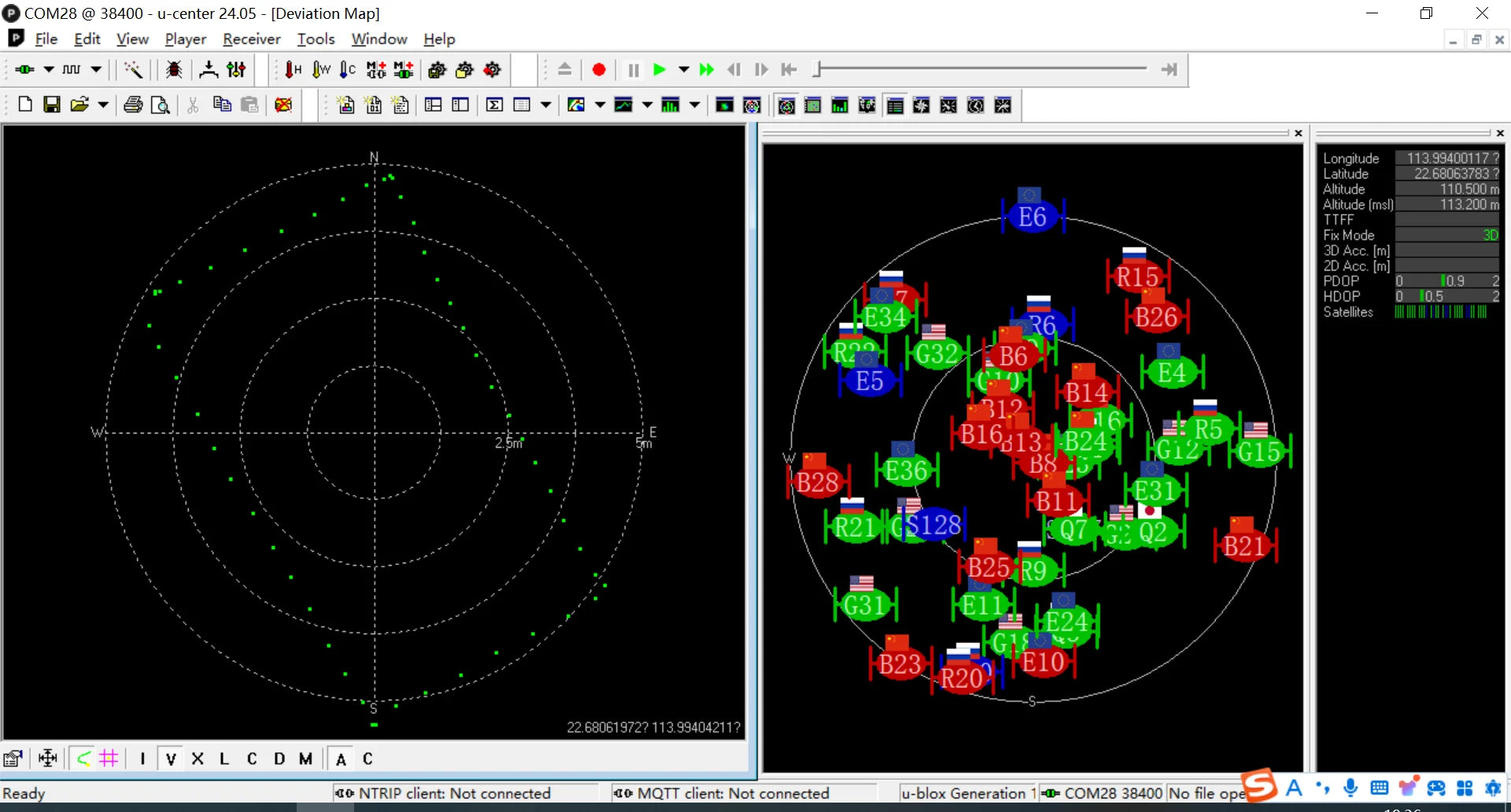

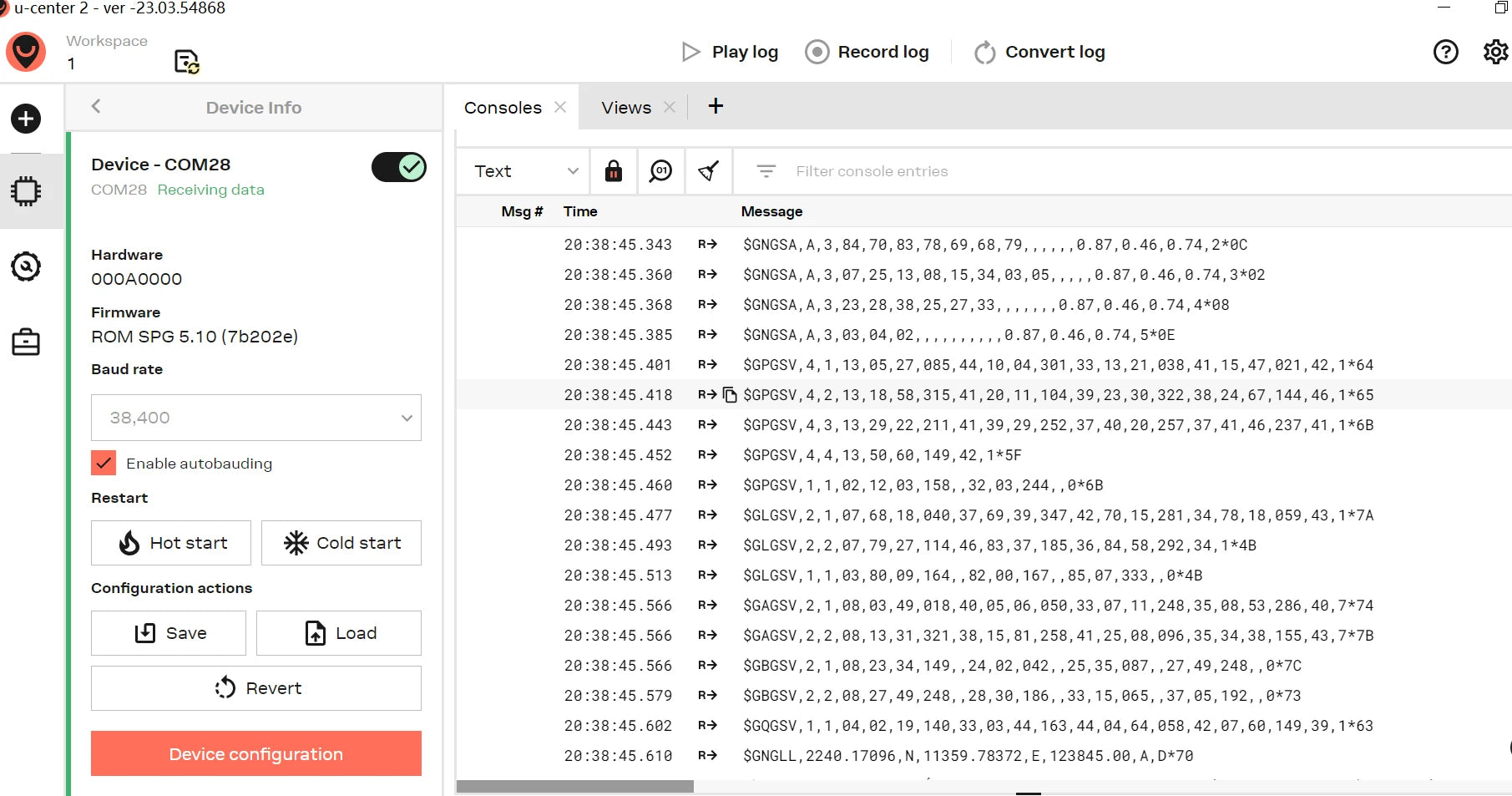

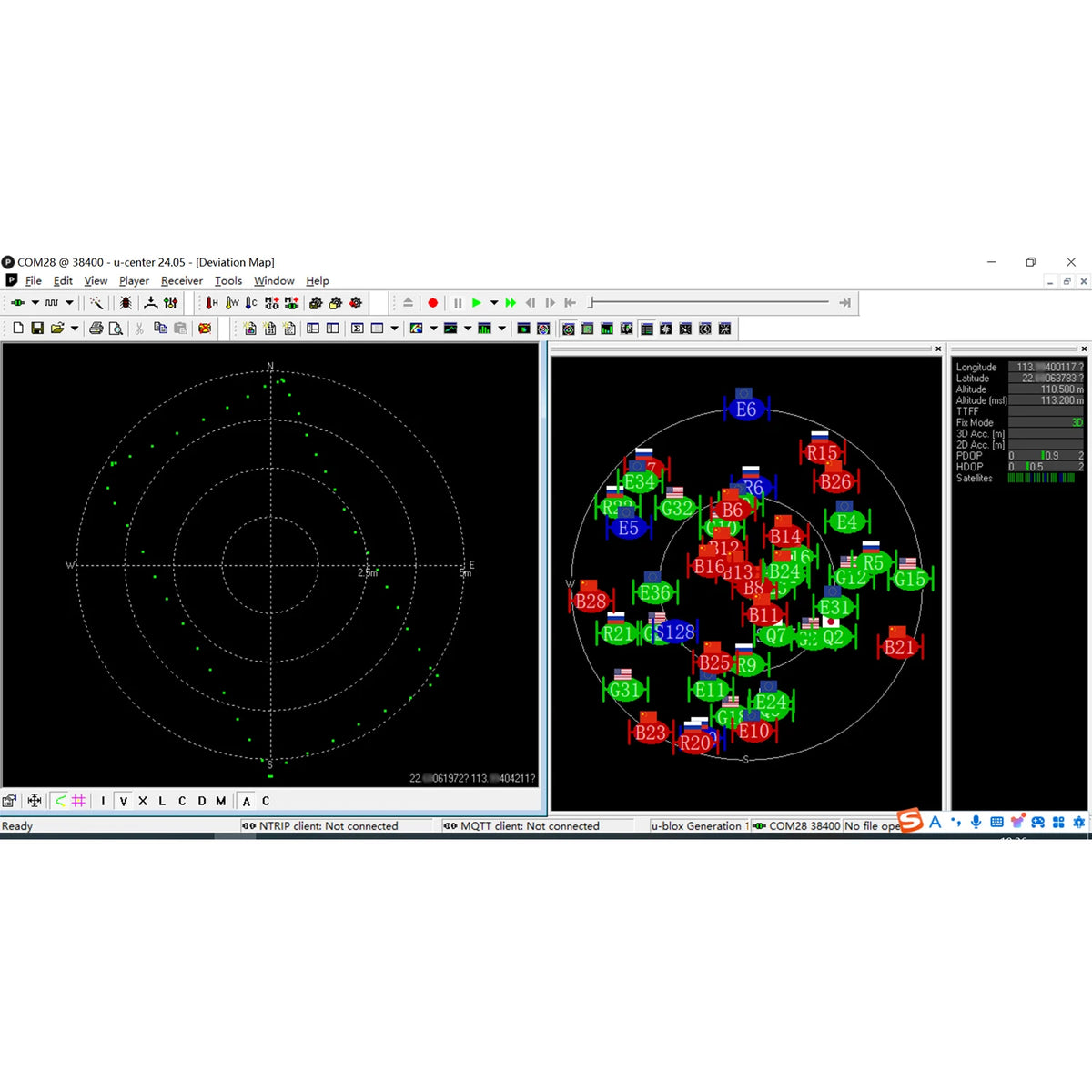

Satellite Tracking Test

U-center

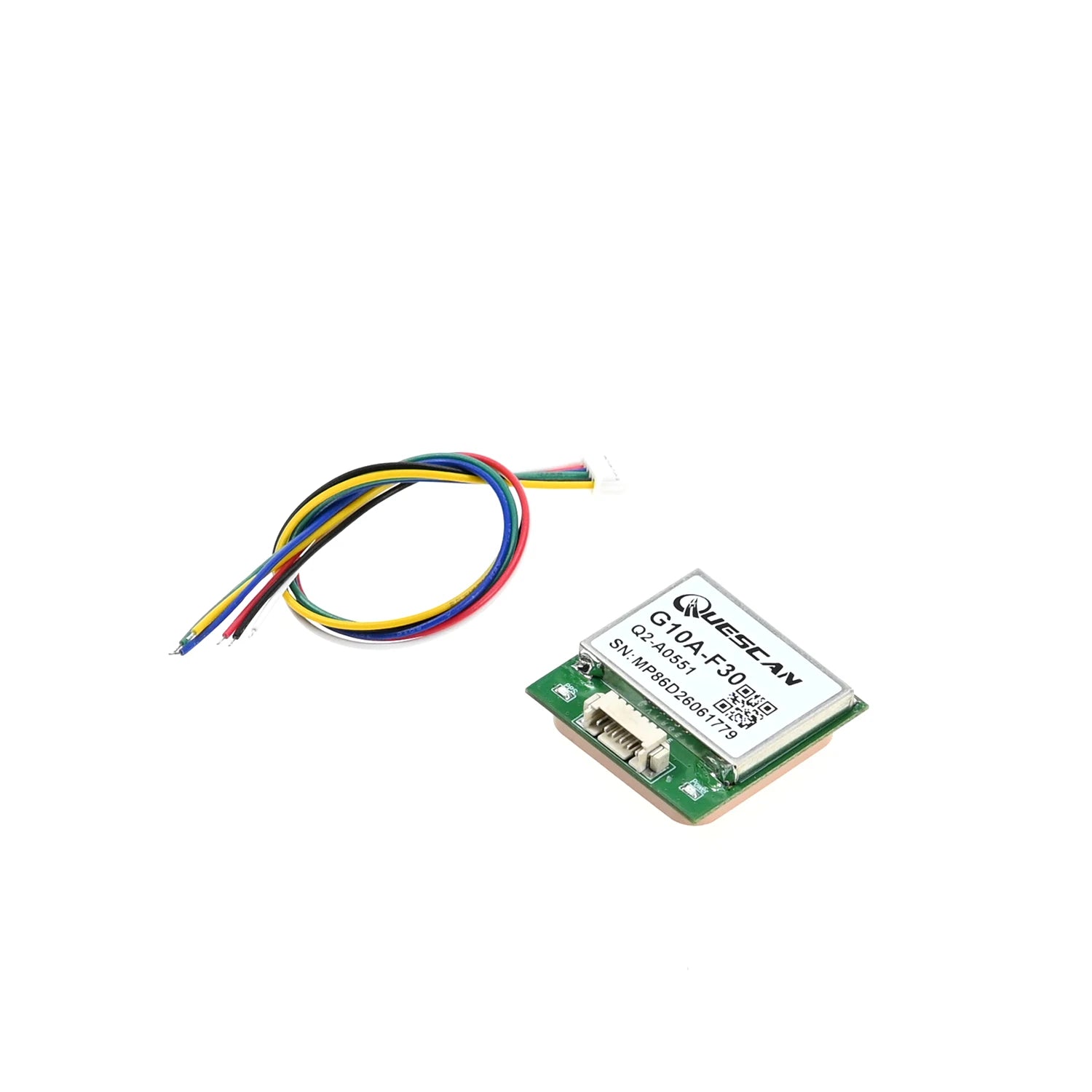

Packing list

G10A-F30 module*1
Pin out cable*1
