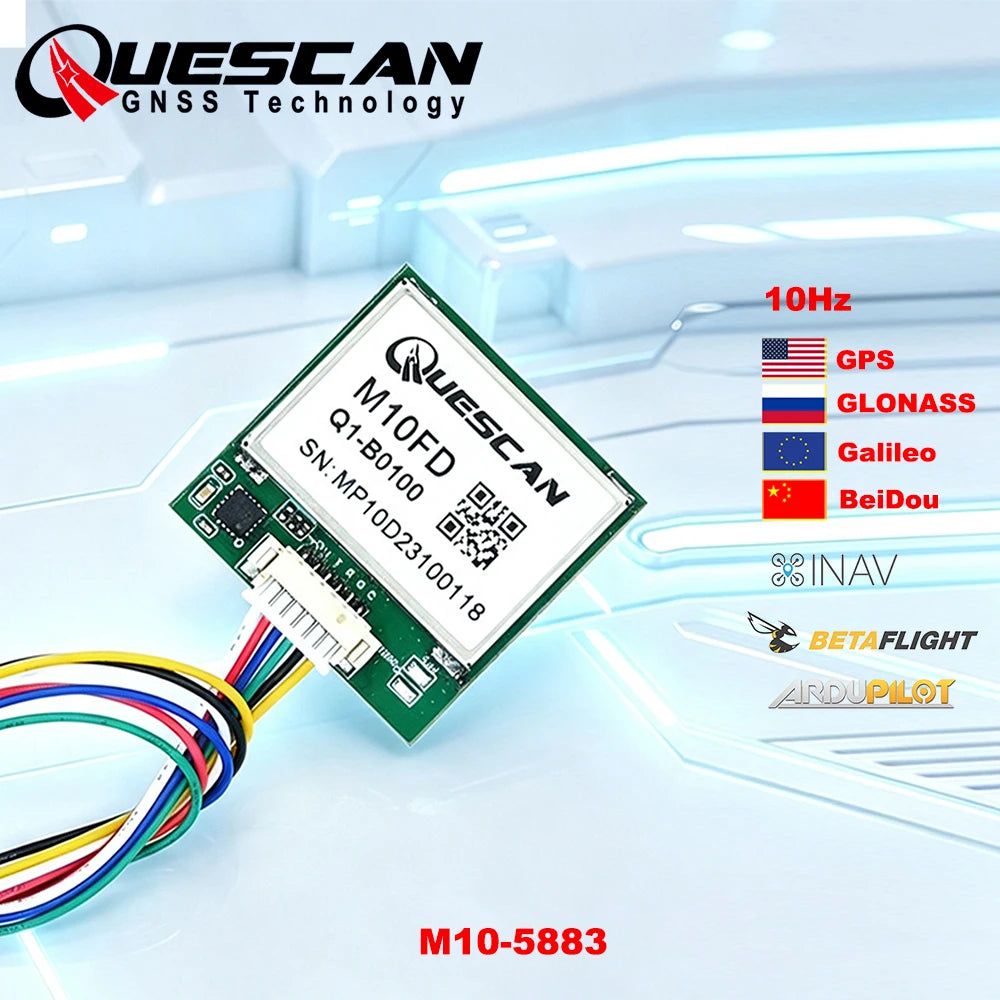

QUESCAN M10FD 10Hz UBX M10 GPS GNSS Module with Compass QMC5883L FPV Drone Flight Controller GPS GLONASS Galileo BeiDou Receiver

QUESCAN M10FD 10Hz UBX M10 GPS GNSS Module with Compass QMC5883L FPV Drone Flight Controller GPS GLONASS Galileo BeiDou Receiver

$52.16

$52.16 $0.00

Description

SPECIFICATIONS

Baudrate: default 115200,4800-921600

Brand Name: QUESCAN

Chipset: UBX M10

Connector type: 1.25mm 6pins

Flash: Supported

GNSS: GPS GLONASS Galileo BeiDou QZSS SBAS

GPS type: Receiver & Antenna

High-concerned chemical: none

Hot Start: 1S

IS It With PCB: Yes

Input voltage: DC 3.3V-5V

Magnetometer: QMC5883L

Model Name: M10FD

Origin: Mainland China

Positioning accuracy: 1.5m CEP

Protocol: NMEA0183 and UBX

TTFF: 23S

Update Rate: 10Hz,Max 25Hz

Overview

M10FD GNSS module is powered by UBX‑M10050‑KB chip, built on UBX‑M10 standard‑precision GNSS platform. It supports concurrent reception of GPS, GLONASS, Galileo and BeiDou four major satellite systems, capturing over 50 satellites to select optimal signals for better positioning performance. Outstanding accuracy is achieved even in tough environments like deep urban canyons.

Benefiting from UBX Super‑S (Super‑Signal) technology, it delivers excellent RF sensitivity and improves dynamic positioning accuracy with small antennas or under non‑line‑of‑sight conditions. Extremely low power consumption in continuous tracking mode guarantees long battery runtime for battery‑powered devices without sacrificing GNSS performance.

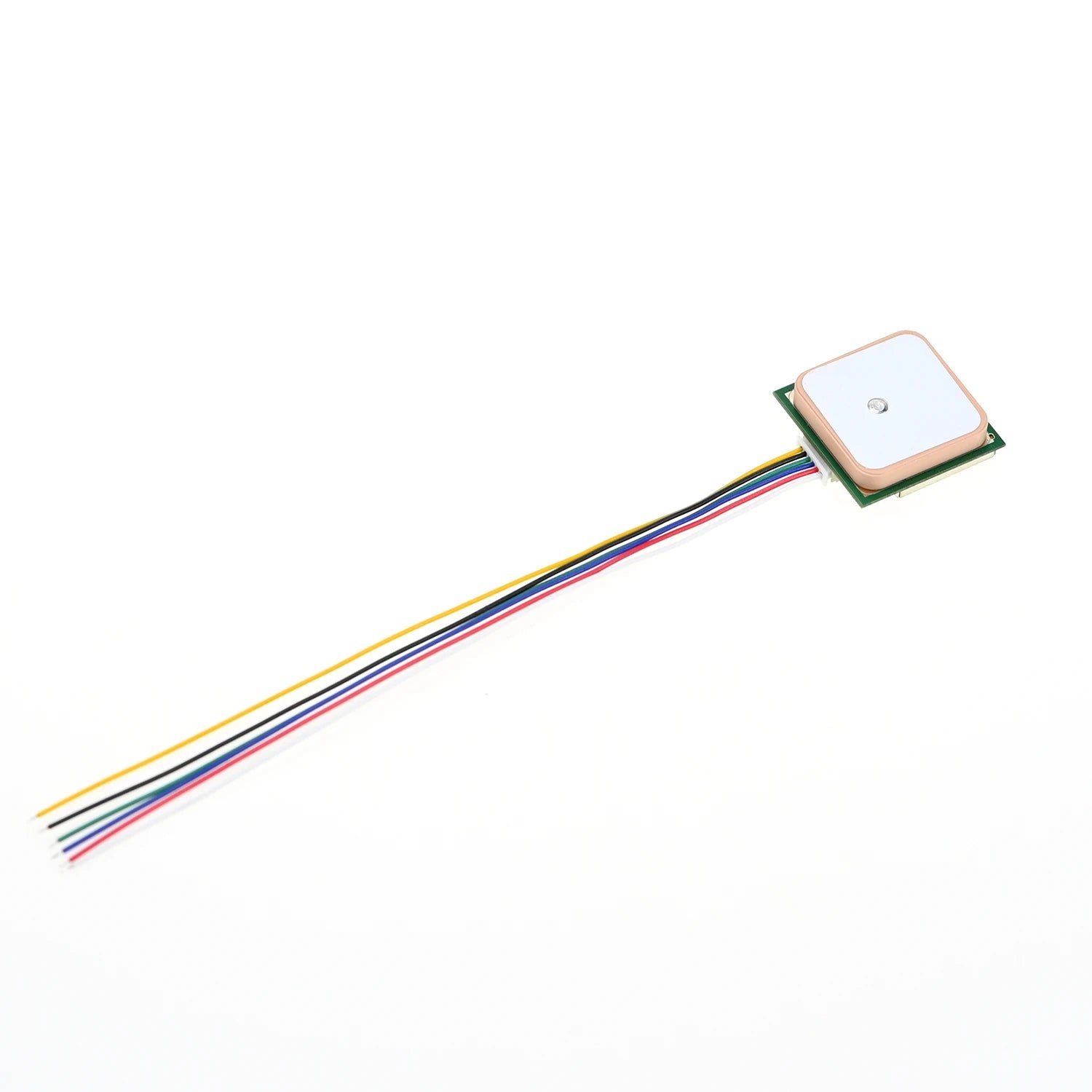

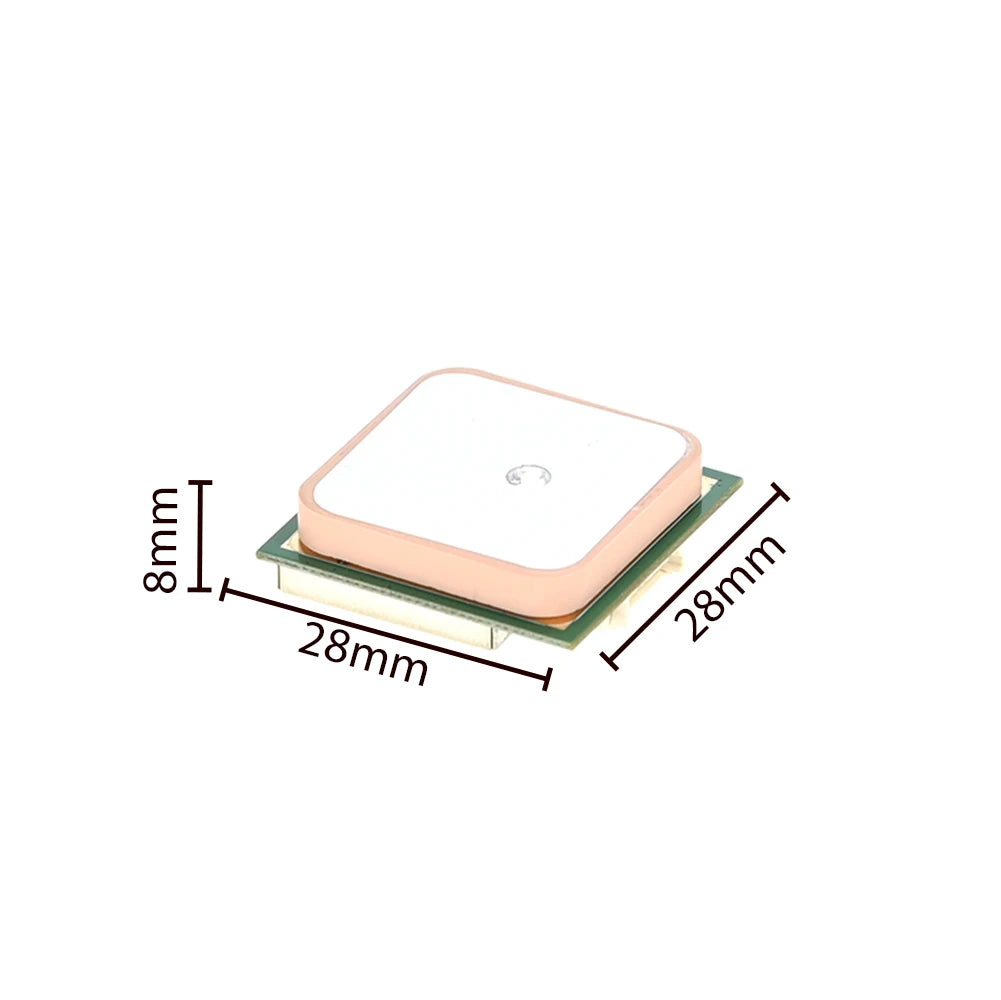

It outputs both NMEA and UBX protocols. Default positioning update rate is 10 Hz, max up to 25 Hz. Fitted with a 25×25×4 mm high‑gain antenna with omnidirectional radiation pattern for flexible installation. On‑board QMC5883L magnetometer and programmable flash memory expand application possibilities.

Perfectly compatible with Ardupilot, INAV, Betaflight, Pixhawk, APM and other mainstream flight controllers. Widely used for FPV drones, robots, boats, speedometers and more. Greatly upgraded performance compared with classic M8N module. Worth a try!

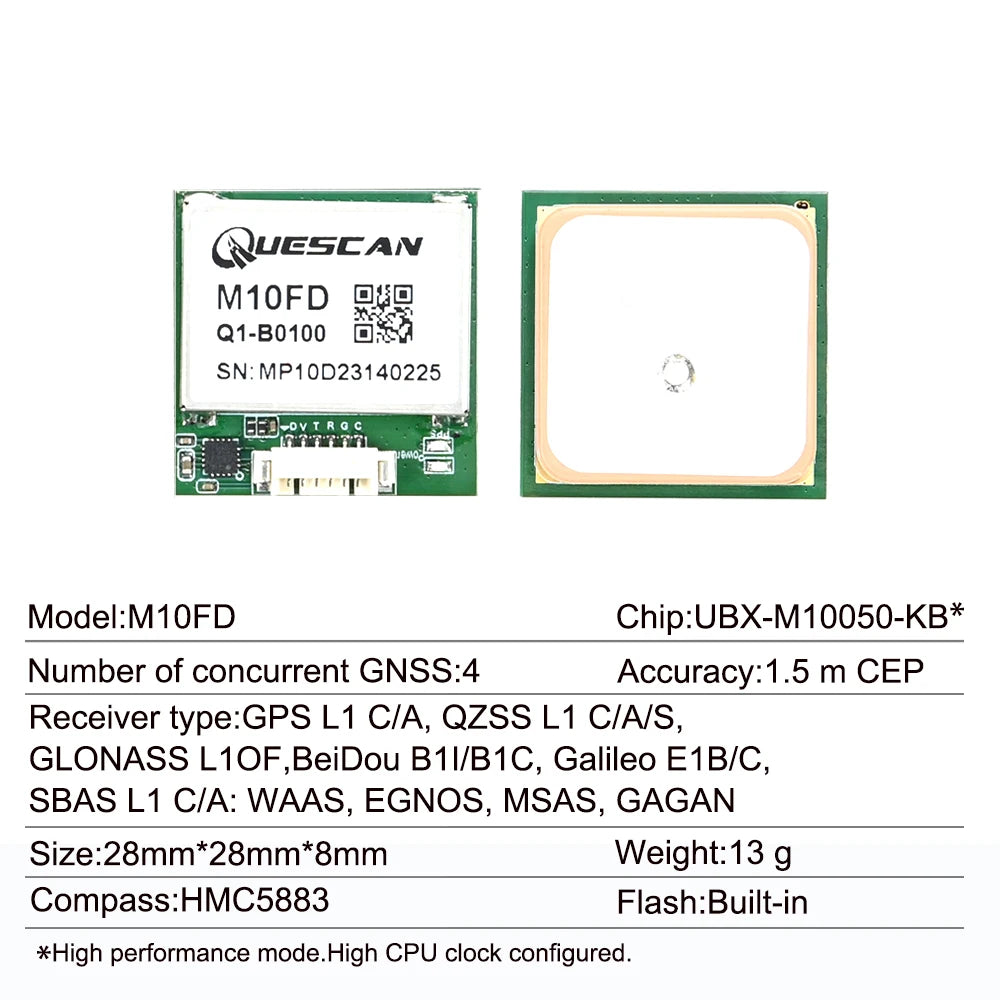

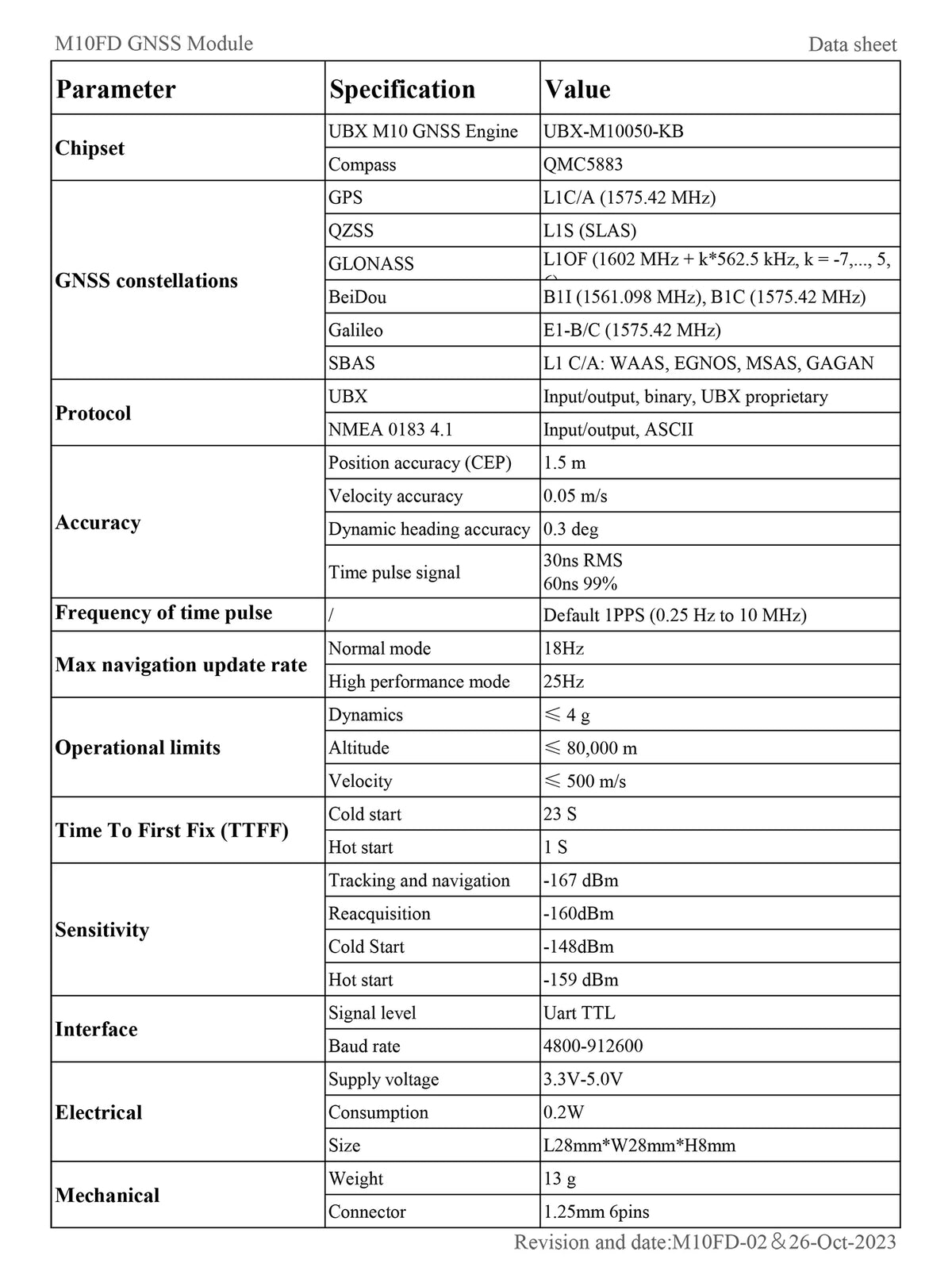

Specification

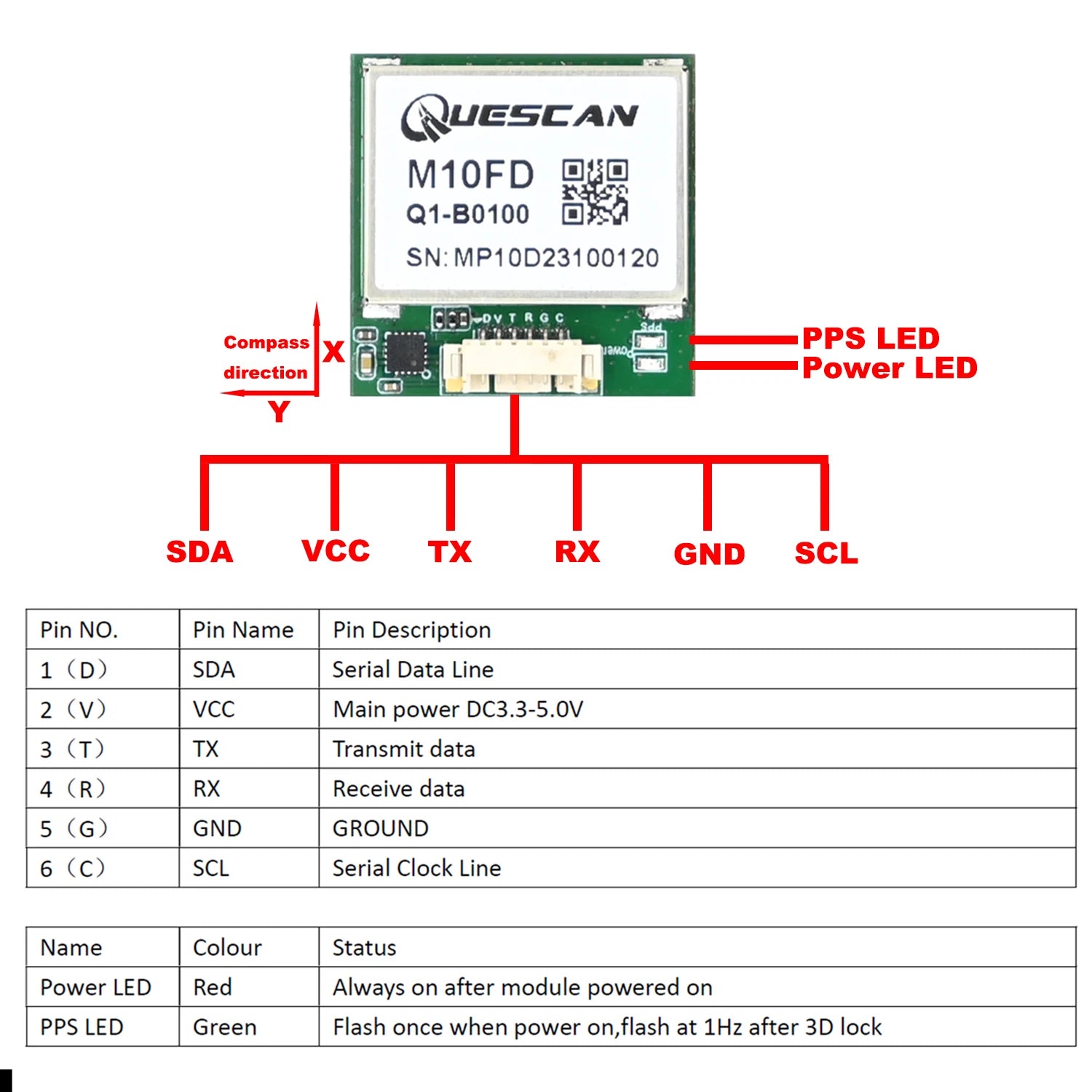

Pin Definition

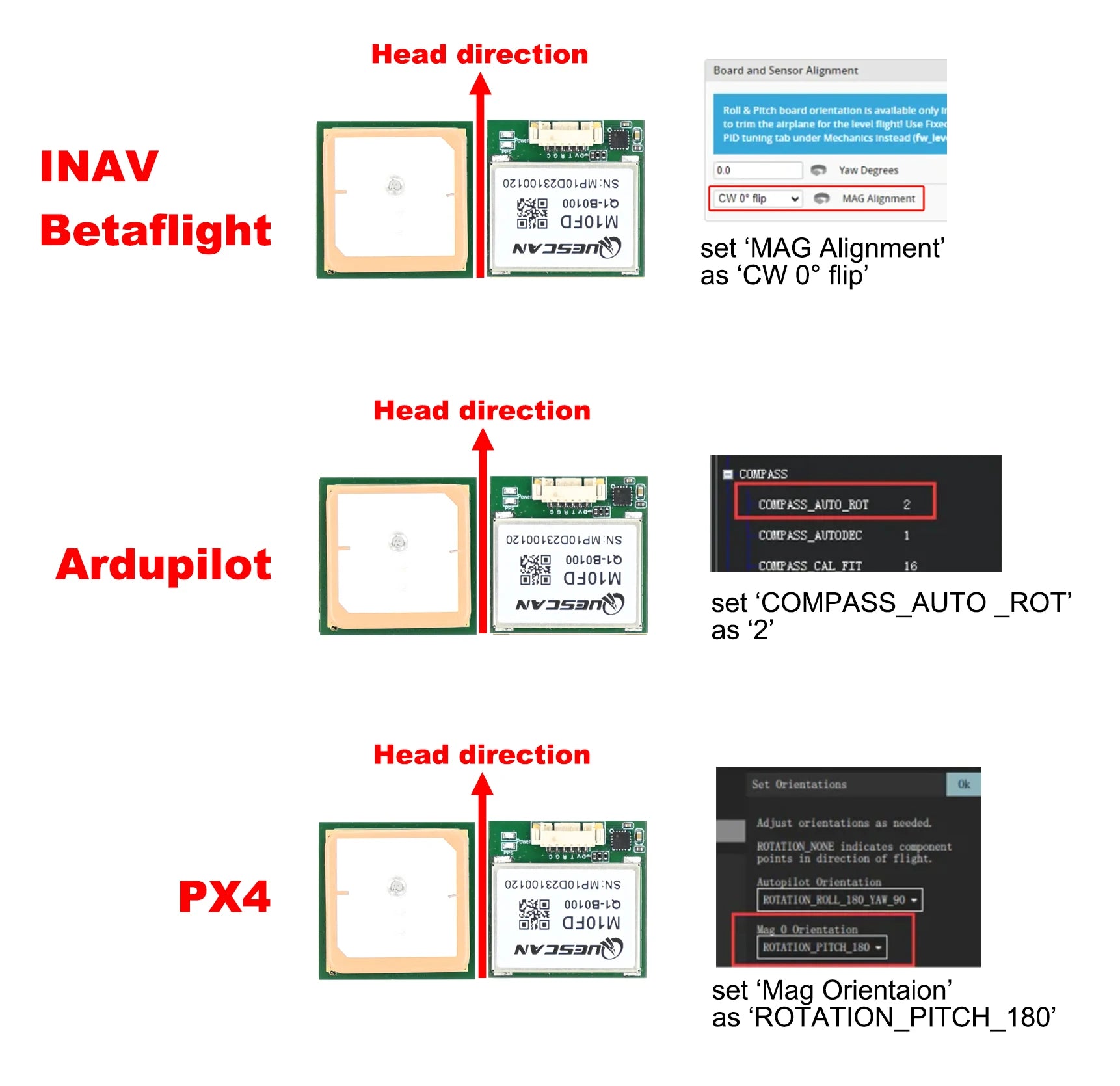

Compass Setting Guide

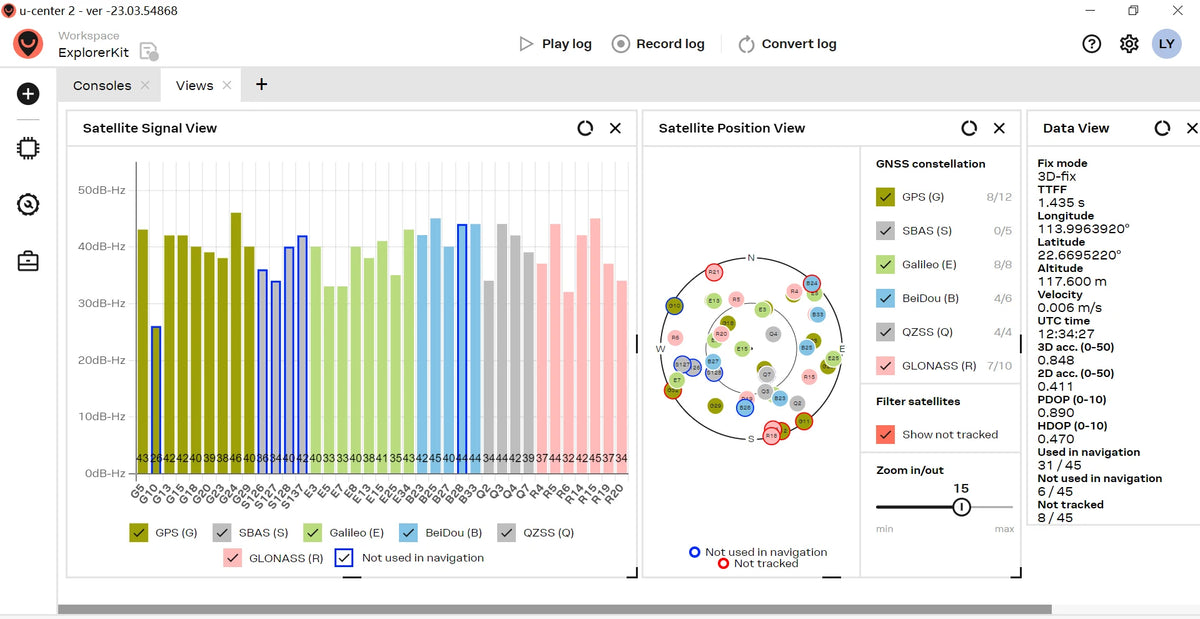

Supported GNSS Constellations

M10FD is a concurrent GNSS receiver that can receive and track multiple GNSS systems. The single RF front-end architecture enables concurrent reception of multiple GNSS constellations. The receiver can be conﬁgured for a subset of GNSS constellations to achieve lower power consumption.
The factory conﬁguration on M10FD is concurrent reception of GPS, Galileo, GLONASS and BeiDou B1C with QZSS and SBAS enabled.

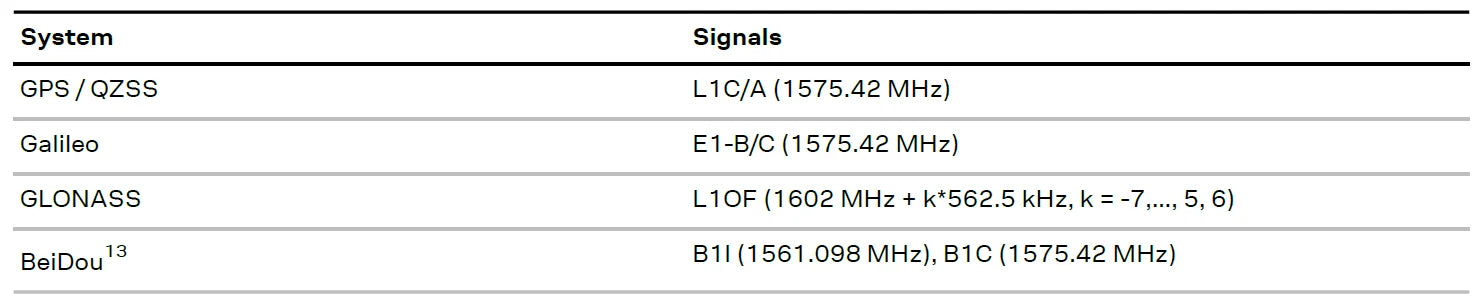

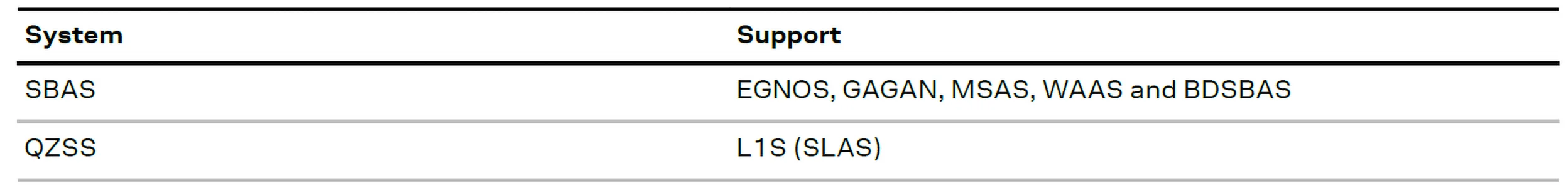

The following GNSS and their signals are supported:

1.BeiDou B1I cannot be enabled simultaneously with BeiDou B1C or GLONASS L1OF.
2.The augmentation systems SBAS and QZSS can be enabled only if GPS operation is also enabled.

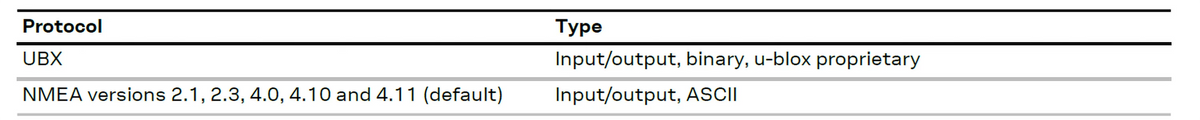

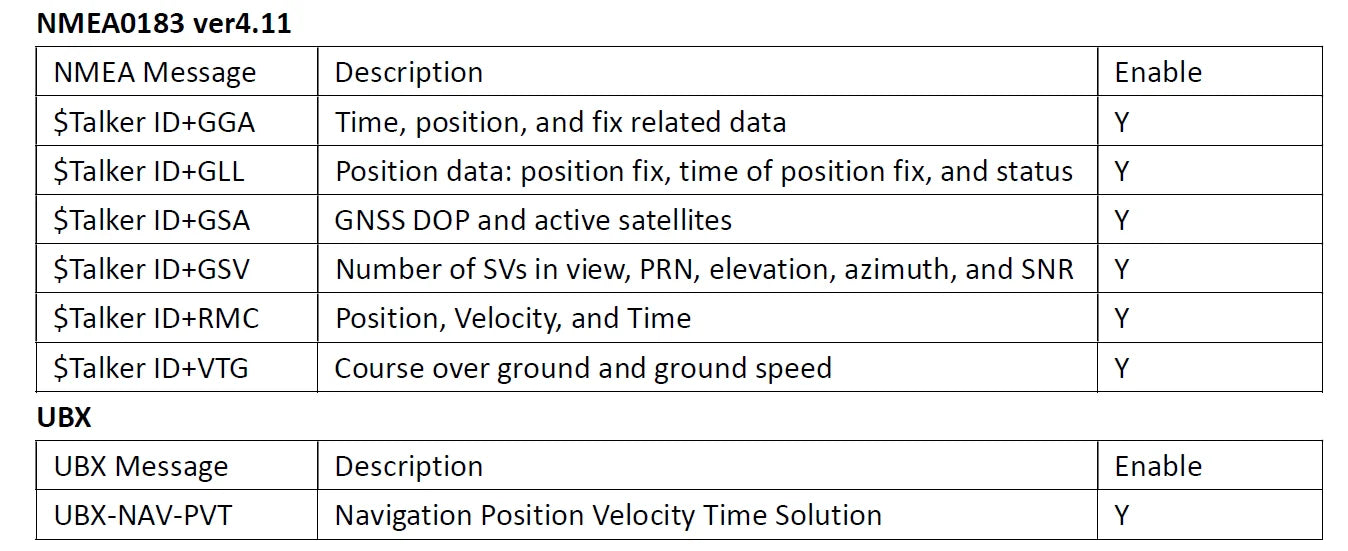

Supported Protocols

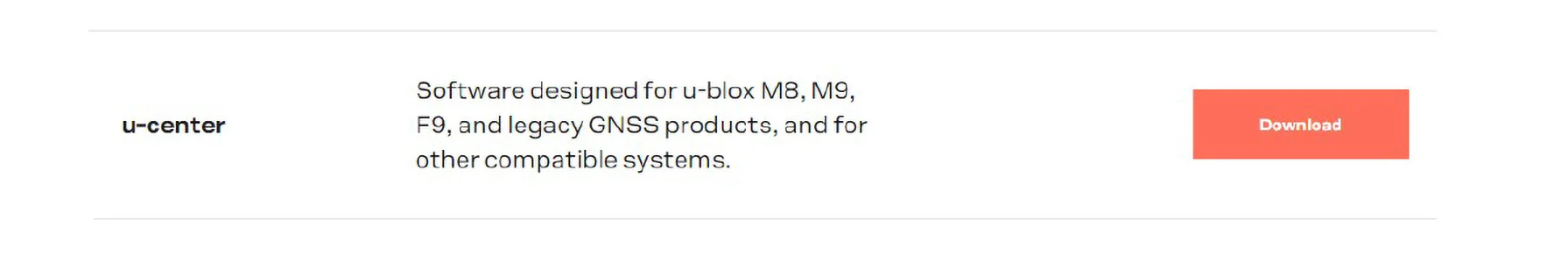

For more details, please refer to official documents.

Pre-configuration

•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS.
•115200 baud, 8 bits, no parity bit, 1 stop bit.
•High performance mode.
•10Hz navigation update rate.
•Input messages: NMEA and UBX.
•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT./UBX-NAV-PVT.
