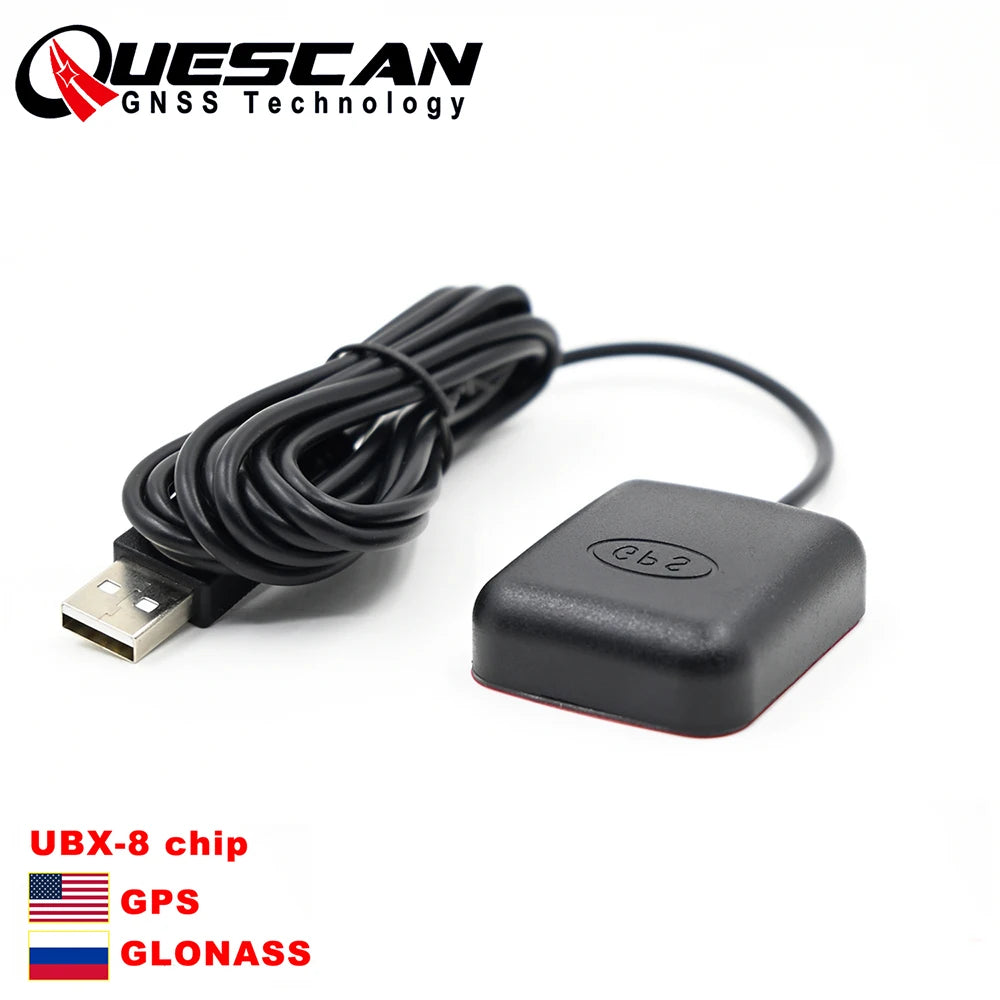

QUESCAN NEO-M8N USB GPS GLONASS Antenna Receiver M8 USB GNSS for Android Window Linux Original USB GPS Receiver 1-10Hz UBX M8030

QUESCAN NEO-M8N USB GPS GLONASS Antenna Receiver M8 USB GNSS for Android Window Linux Original USB GPS Receiver 1-10Hz UBX M8030

$62.96

$62.96 $0.00

Description

SPECIFICATIONS

Accuracy: 2.0 m CEP

Brand Name: QUESCAN

Cable length: 2 meters

Chipset: M8N/UBX-M8030-KT

GNSS constellations: GPS GLONASS Galileo BeiDou QZSS SBAS

GPS type: Receiver & Antenna

High-concerned chemical: none

Max navigation update rate: 10Hz

Model Name: QU8A

Origin: Mainland China

Protocol: NMEA/UBX

Sensitivity: -167 dBm

Time To First Fix (TTFF): 26s

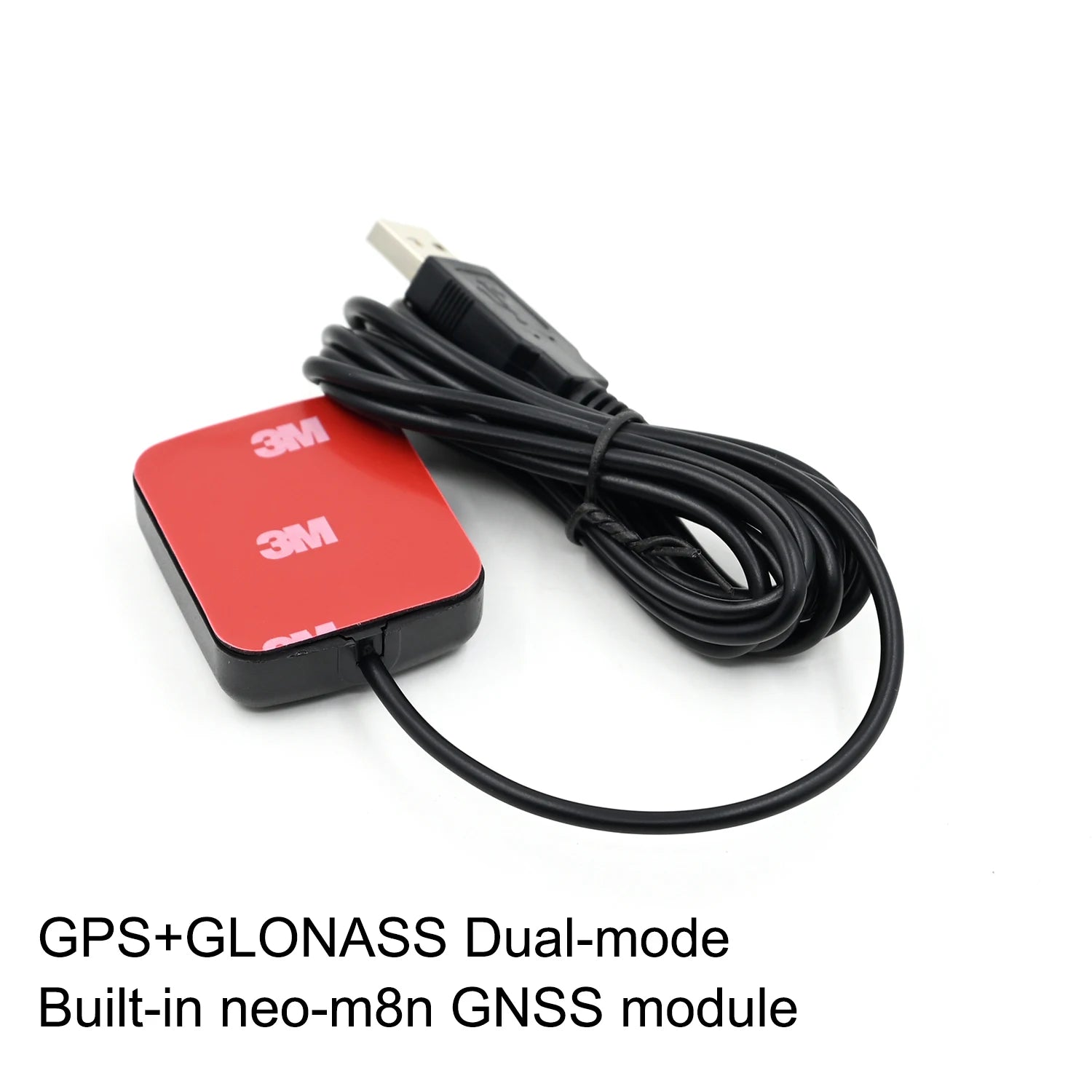

Overview

This item is a multi-mode USB GNSS receiver that supports GPS GLONASS (or Galileo Beidou) and QZSS SBAS. The receiver is equipped with UBX-M8030 high-performance GNSS chip and built-in 4m flash memory, allowing users to personalize the system configuration of the receiver. This product can simultaneously track GPS and GLONASS satellite signals (including auxiliary positioning systems QZSS and SBAS), improving positioning accuracy and shortening positioning time. The horizontal accuracy can reach 2.0m CEP, and the average cold start time is 26s. It also has a built-in backup battery and the receiver supports fast hot start. It is widely used in PC navigation, car navigation, maritime navigation, distance measurement, autonomous driving travel, fleet management, vehicle tracking, and more.
Highlights:
■ Product main chip: neo-m8n(UBX M8030)
■ GPS+GLONASS+QZSS+SBAS
■ Built-in LNA signal amplifier
■ Built-in 4M Flash
■ High sensitivity ceramic antenna
■ 1-10Hz positioning nav rate

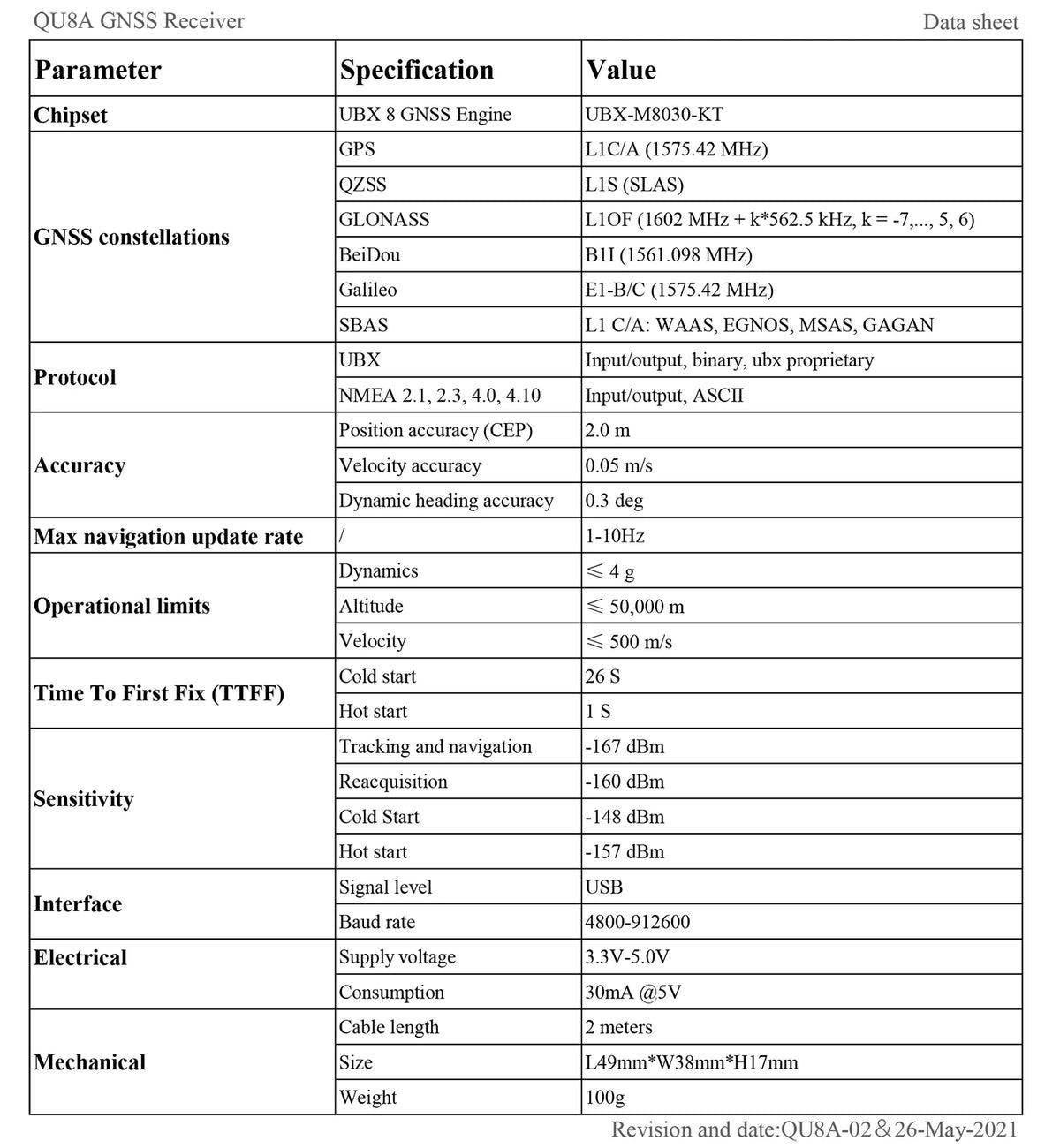

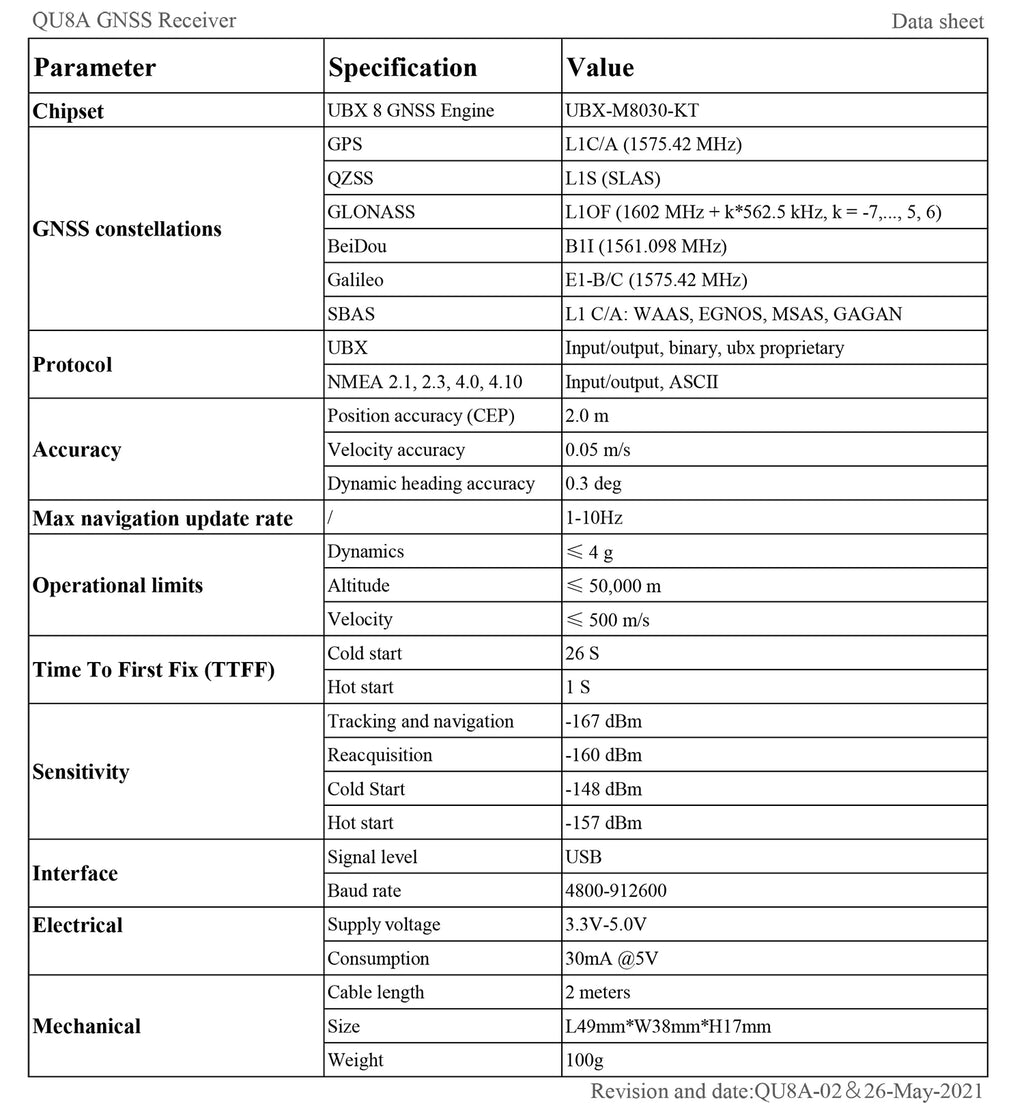

Specification

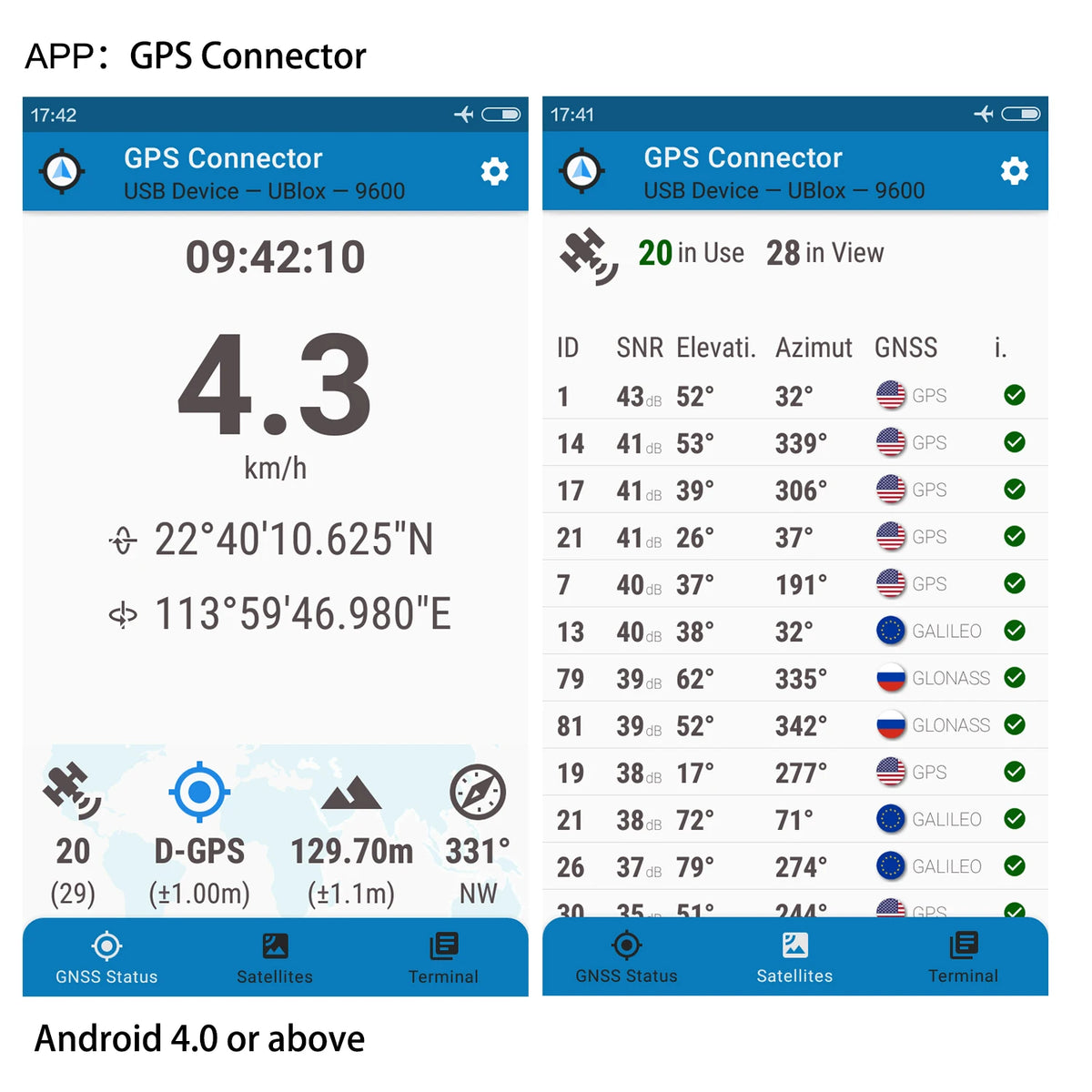

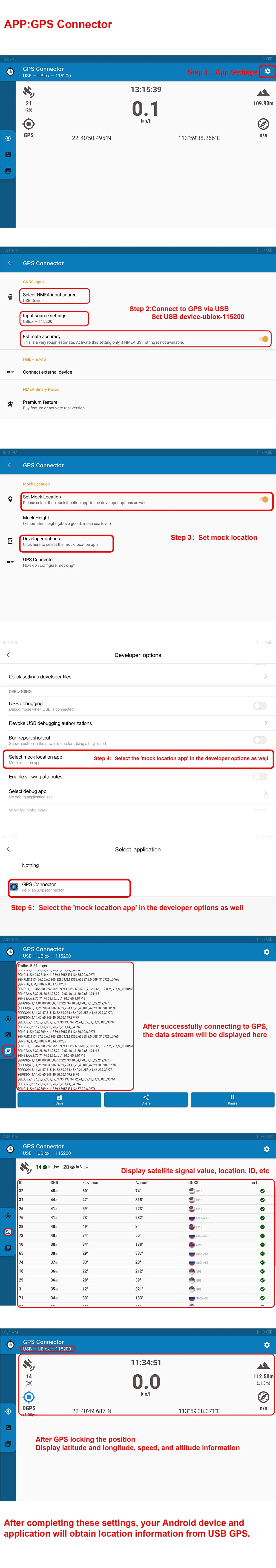

Android Settings Guide

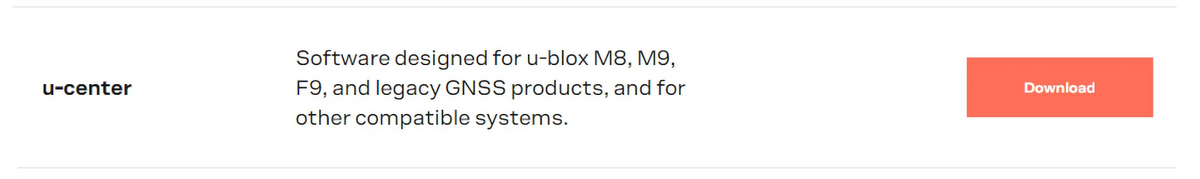

Configure software

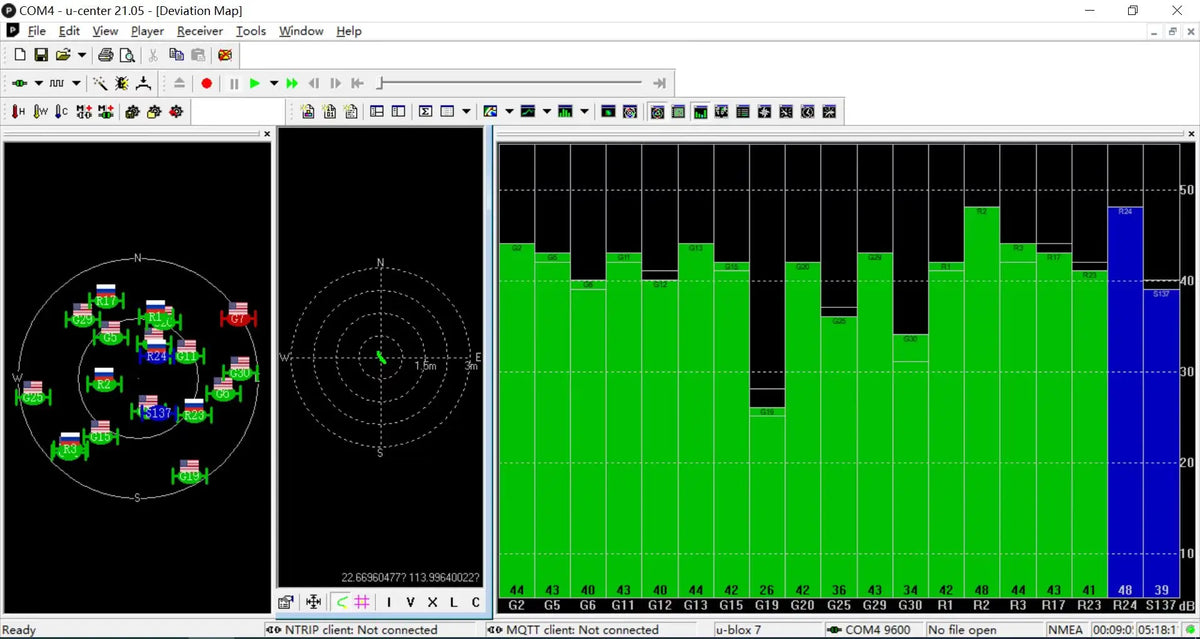

u-center

Factory configuration

•GPS+GLONASS+QZSS+SBAS
•9600 baud, 8 bits, no parity bit, 1 stop bit.
•1Hz navigation update rate.
•NMEA version 4.10.
•Input messages: NMEA and UBX.
•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT.

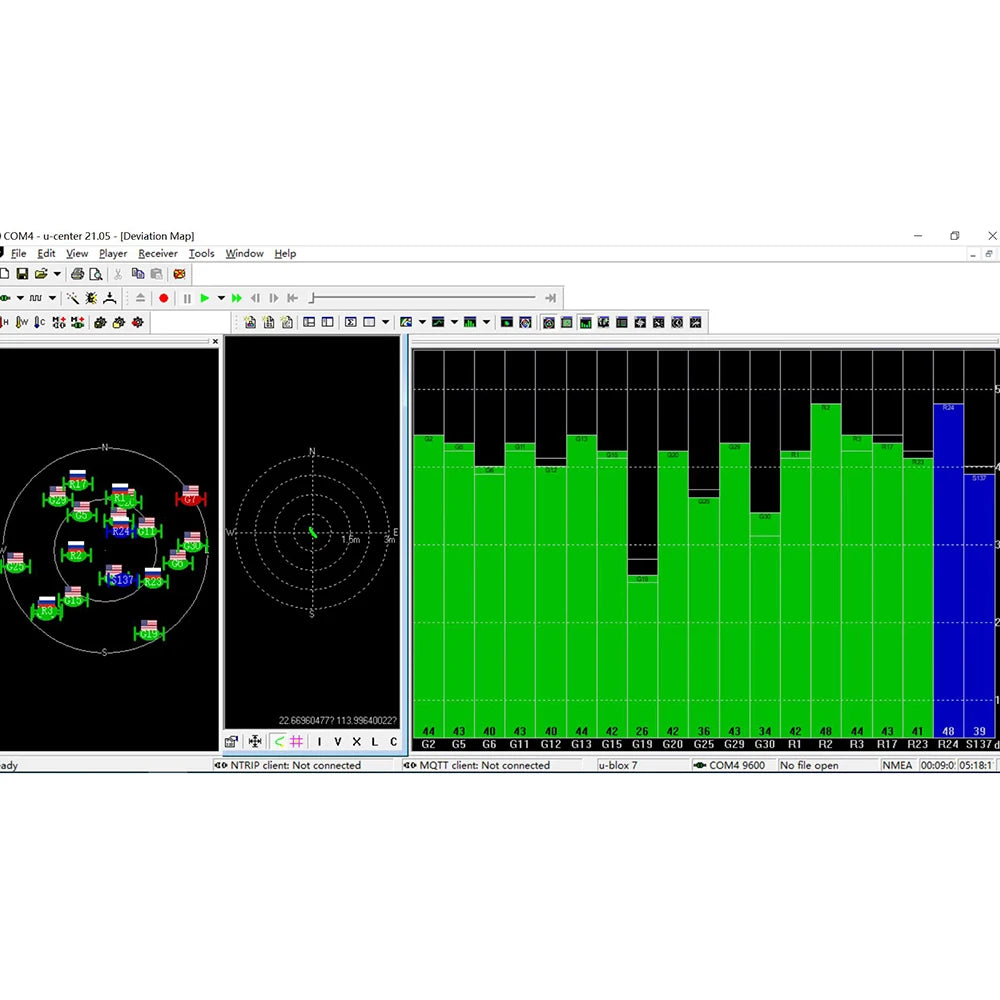

Performance

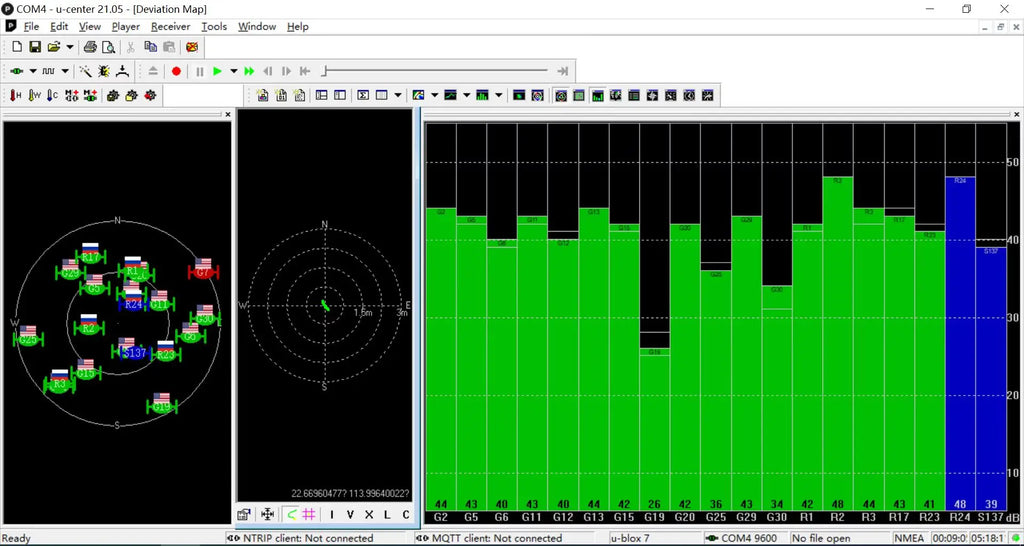

u-center
