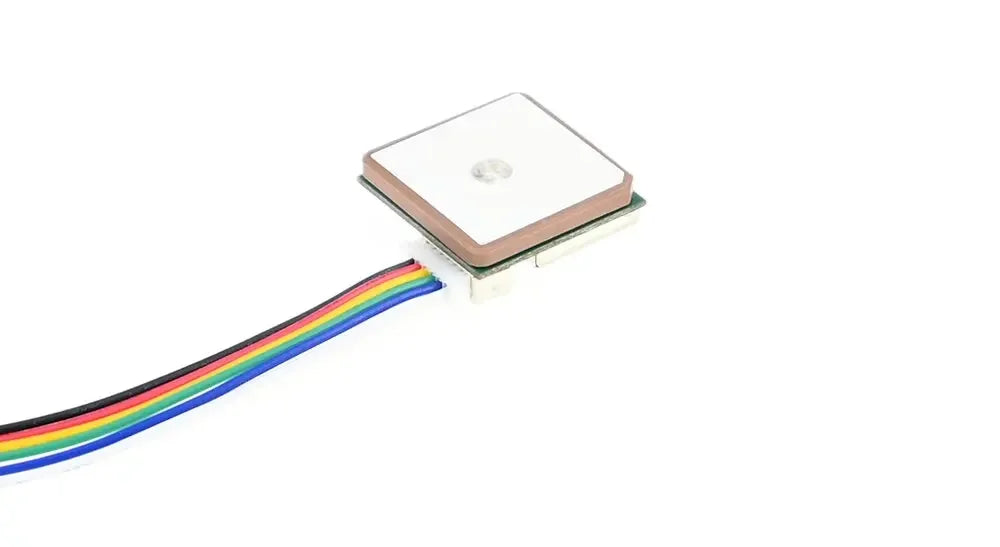

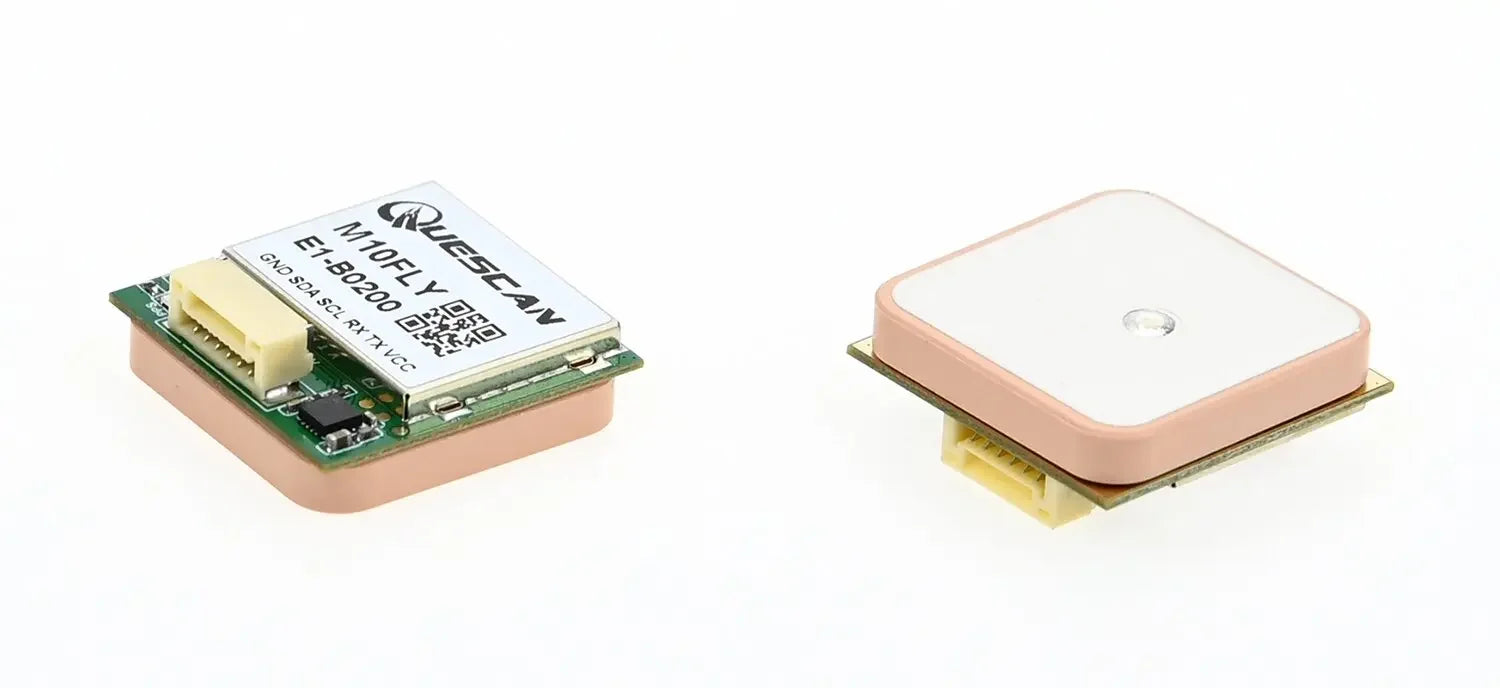

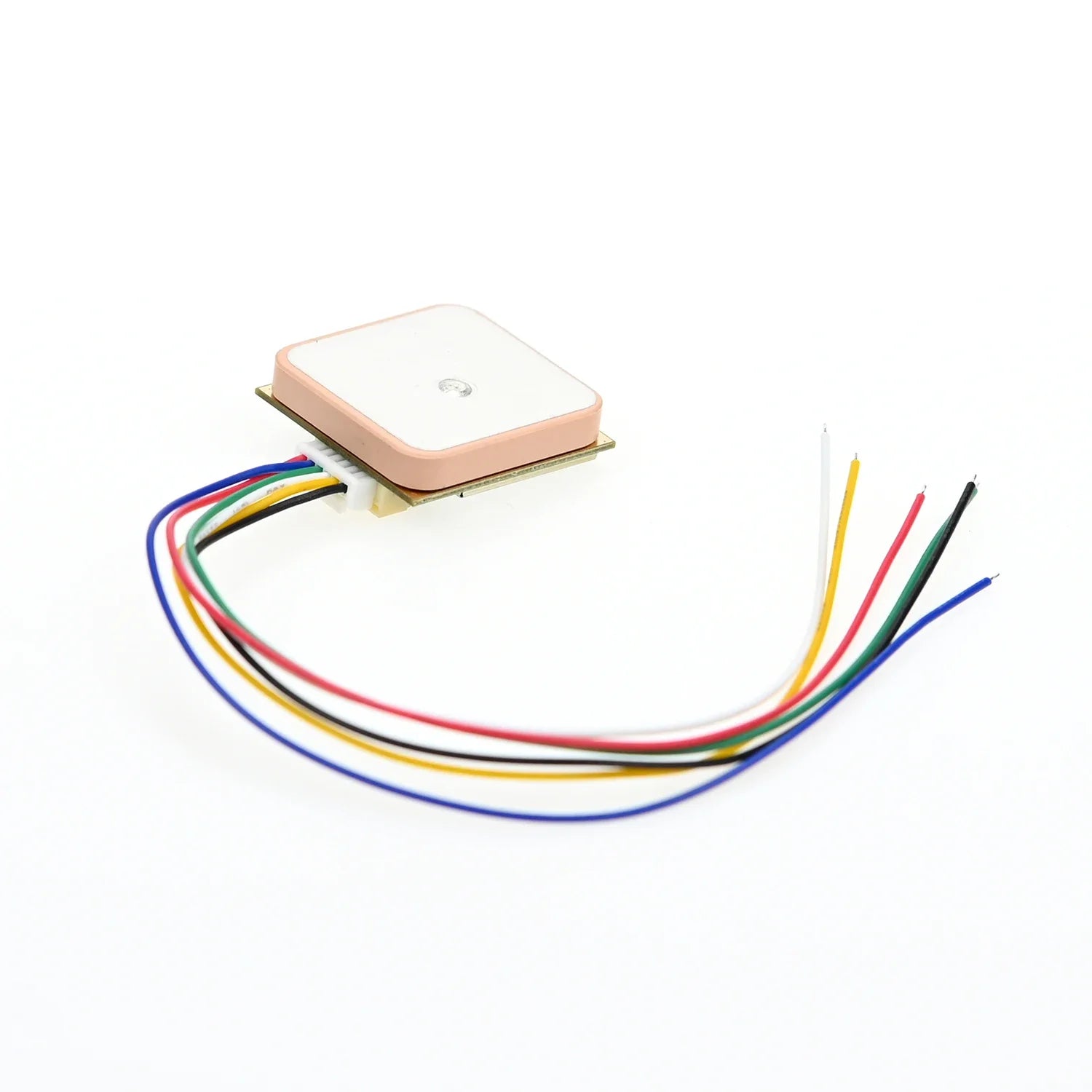

QUESCAN Ublox M10 10Hz GPS Compass Module for FPV Drone Flight Controller ArduPilot Betaflight INAV GPS Galileo GLONASS BeiDou

QUESCAN Ublox M10 10Hz GPS Compass Module for FPV Drone Flight Controller ArduPilot Betaflight INAV GPS Galileo GLONASS BeiDou

$45.08

$45.08 $0.00

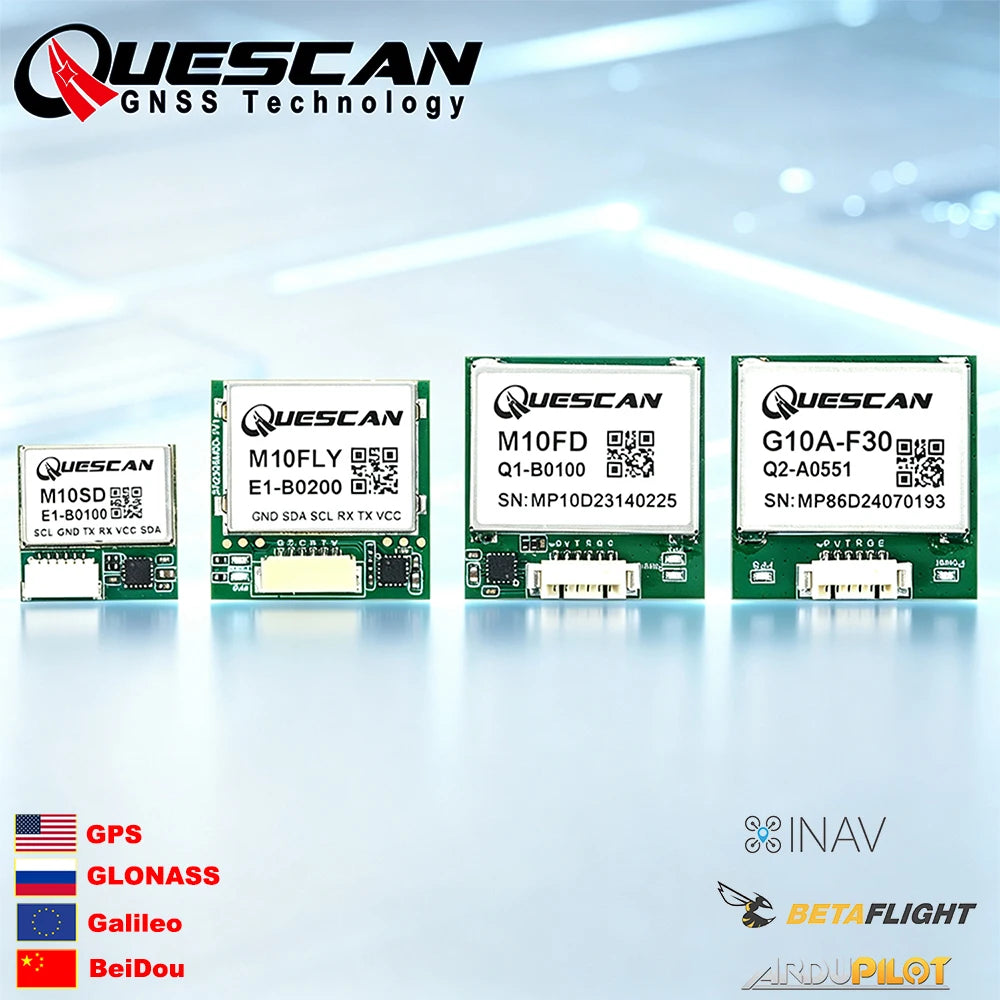

Color G10A-F30 M10SD M10FLY M10FD

Description

SPECIFICATIONS

Brand Name: NONE

Chipset: UBX-M10050-KB

Flash memory: Support

GNSS platform: GPS GLONASS Galileo BeiDou QZSS SBAS

High-concerned chemical: none

Hot start: 1S

Inout voltage: DC 3.3V-5V

Model: M10 series

Number of concurrent GNSS: 4

Origin: Mainland China

Positioning accuracy: 1.5 m CEP

Protocol: UBX/NMEA

Signal level: TTL

TTFF: 23S

Type: others

Overview

These GNSS modules are built around the UBX‑M10050‑KB chip, supporting concurrent multi‑constellation reception for GPS, GLONASS, Galileo and BeiDou. Capable of tracking over 50 satellites simultaneously, the receiver picks optimal satellite signals to deliver reliable positioning, even in complex urban canyon environments.

It supports dual‑protocol output: NMEA‑0183 and UBX. Standard positioning update rate is 10 Hz, with maximum 25 Hz supported. Equipped with a high‑gain antenna featuring omnidirectional radiation pattern, it ensures excellent GNSS performance and grants higher flexibility for equipment mounting.

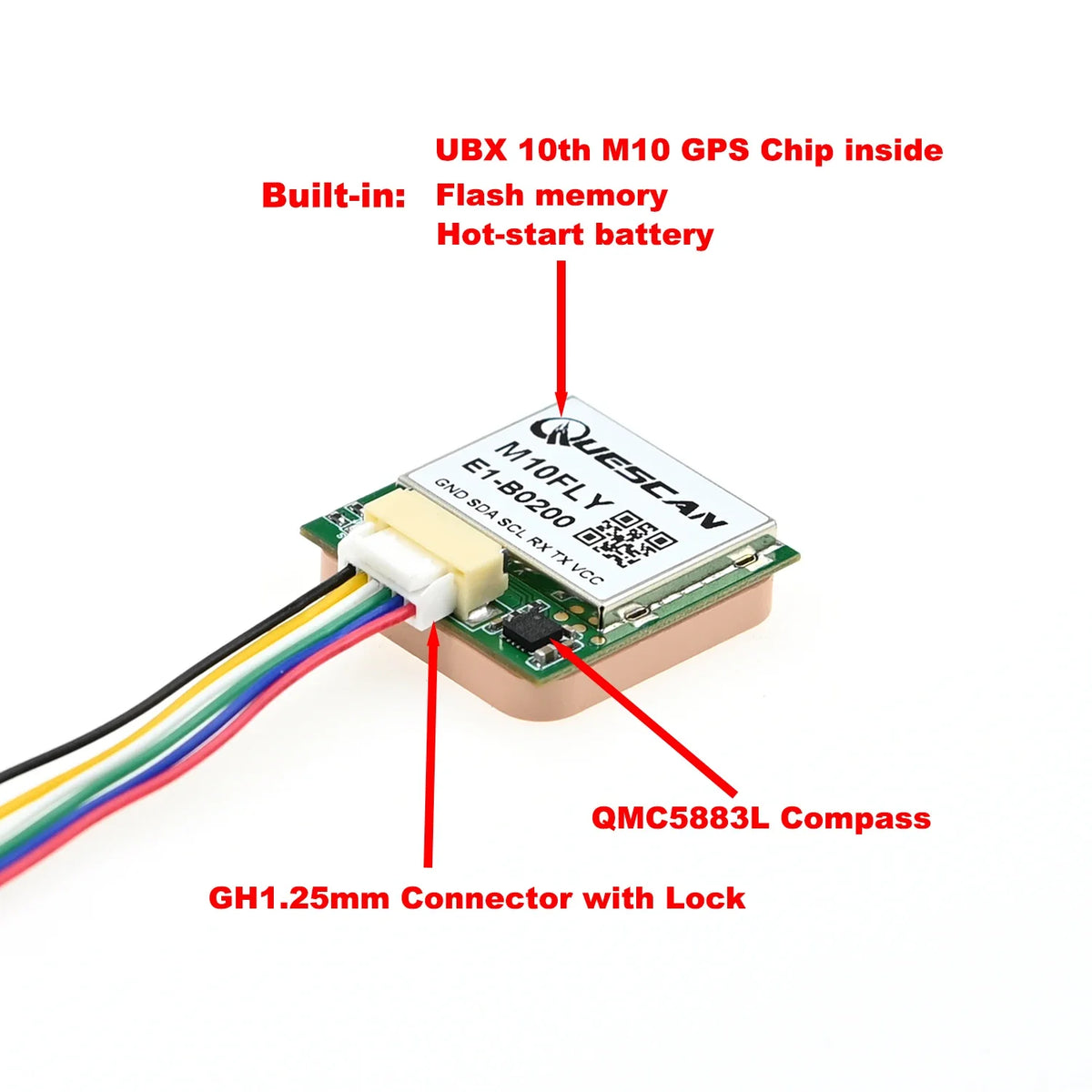

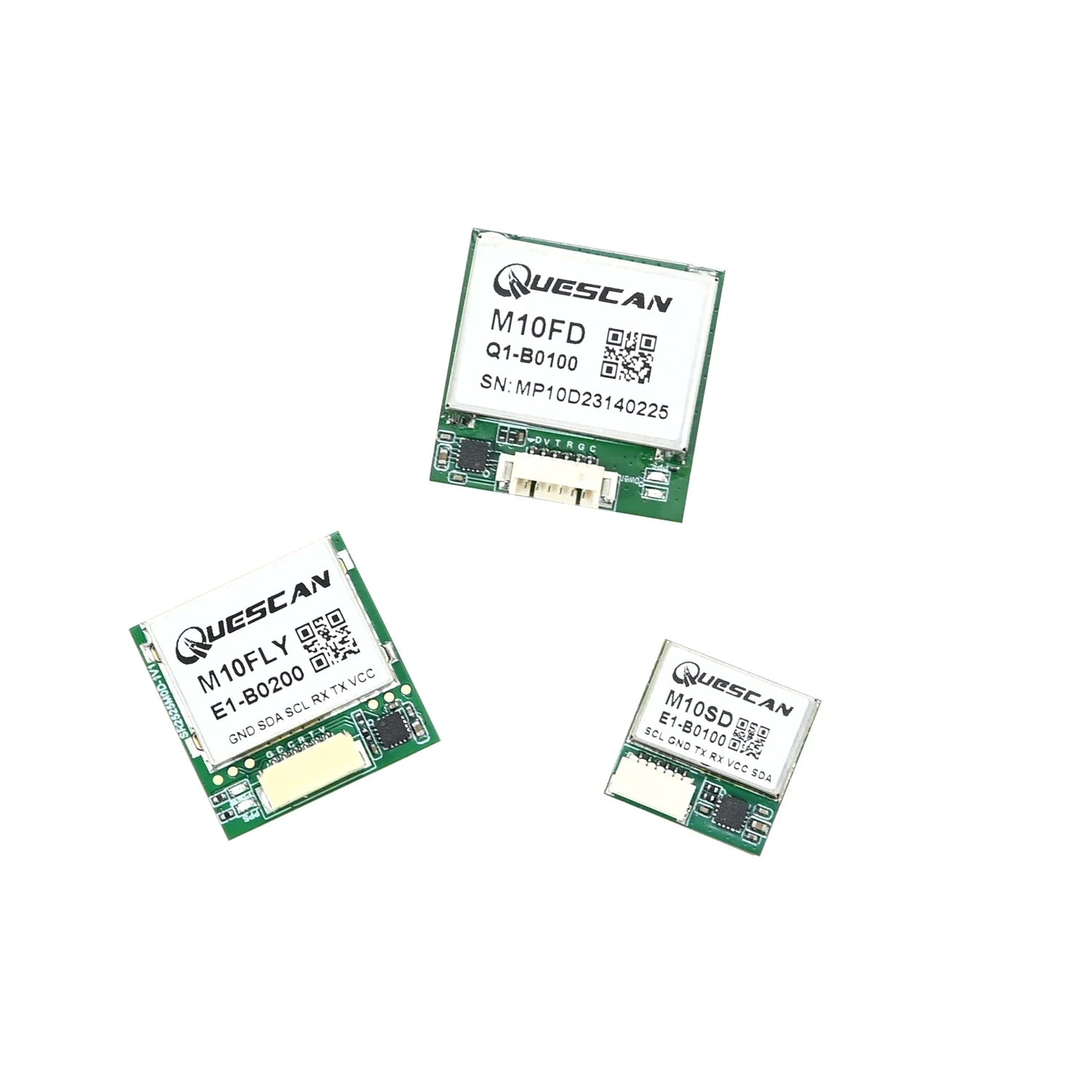

Model Note: M10SD, M10FLY and M10FD come with onboard QMC5883L magnetometer.G10A‑F30 does NOT include magnetometer.

Perfect for FPV drones, robots, marine vessels, speedometers and other projects. Fully compatible with mainstream flight controllers including ArduPilot, INAV, Betaflight, Pixhawk, APM. It delivers substantially better performance than legacy M8N modules.

Powered by the UBX‑M10 high‑precision GNSS platform, the chip achieves outstanding sensitivity and fast signal acquisition across all L1‑band GNSS signals. Continuous‑tracking mode features ultra‑low power draw, extending battery life for battery‑powered devices like asset trackers without sacrificing positioning accuracy.

UBX Super‑S (Super‑Signal) technology boosts RF receiving sensitivity, improving dynamic positioning accuracy when using small‑size antennas or operating under non‑line‑of‑sight conditions.

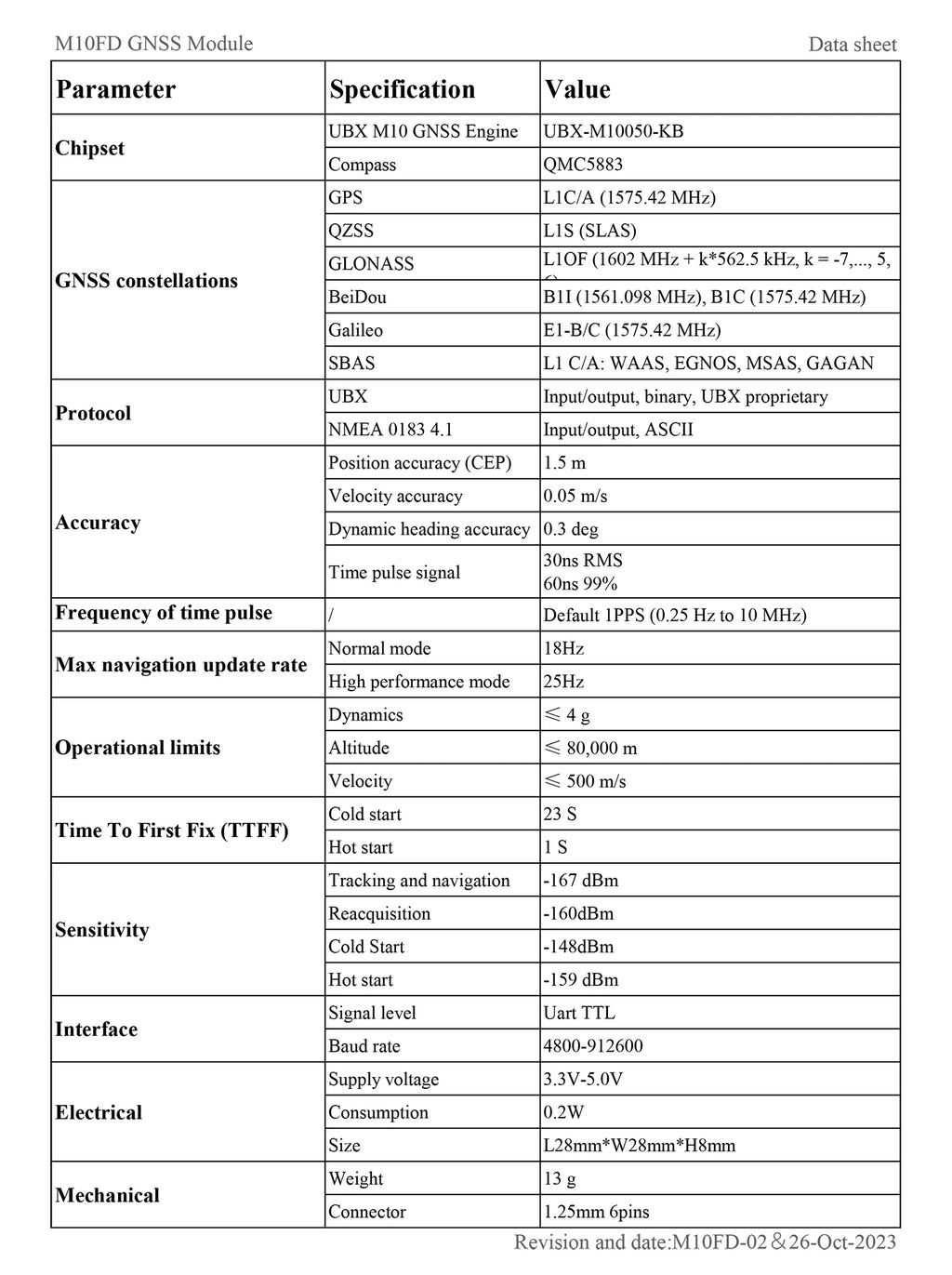

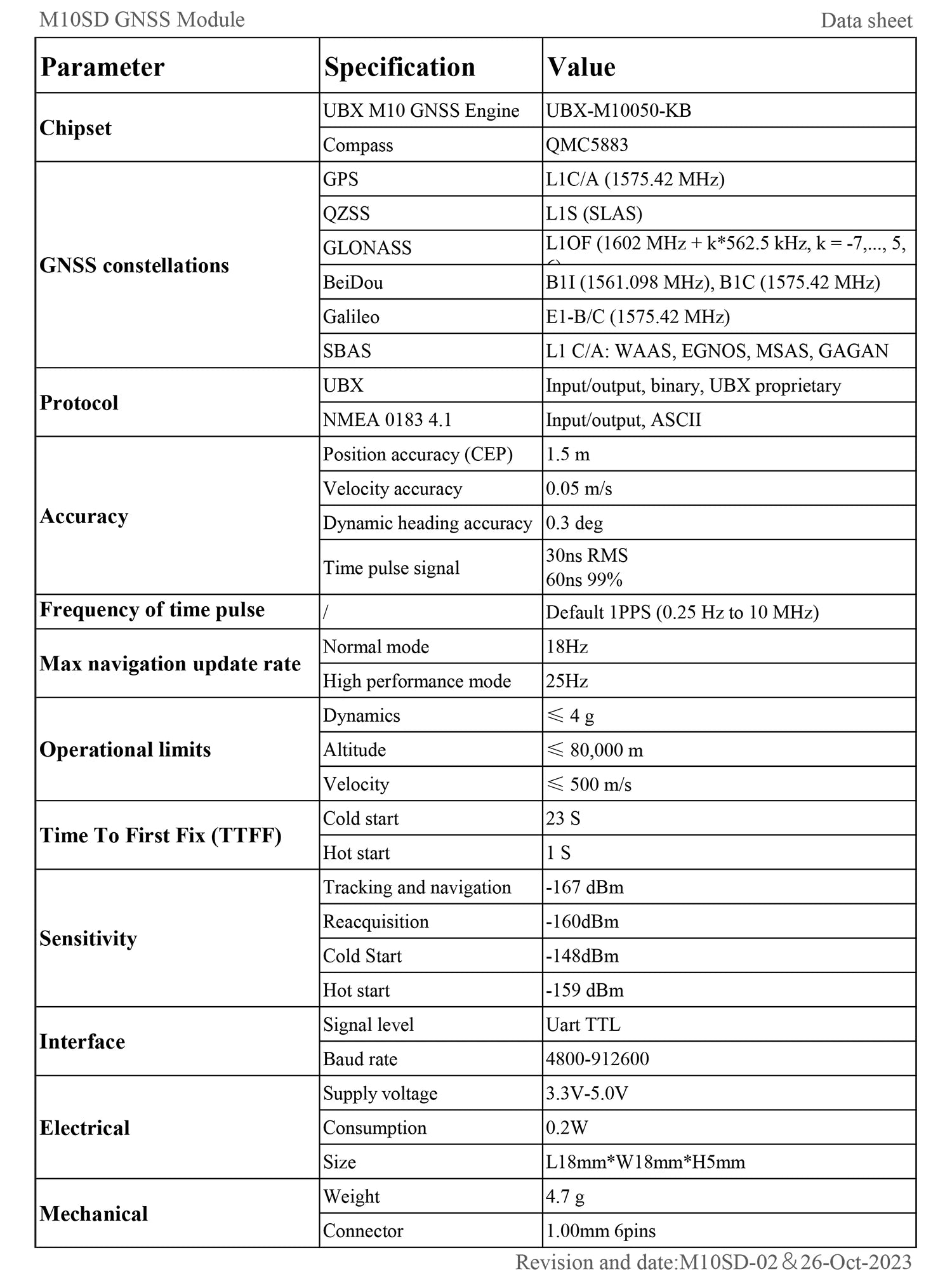

Specification

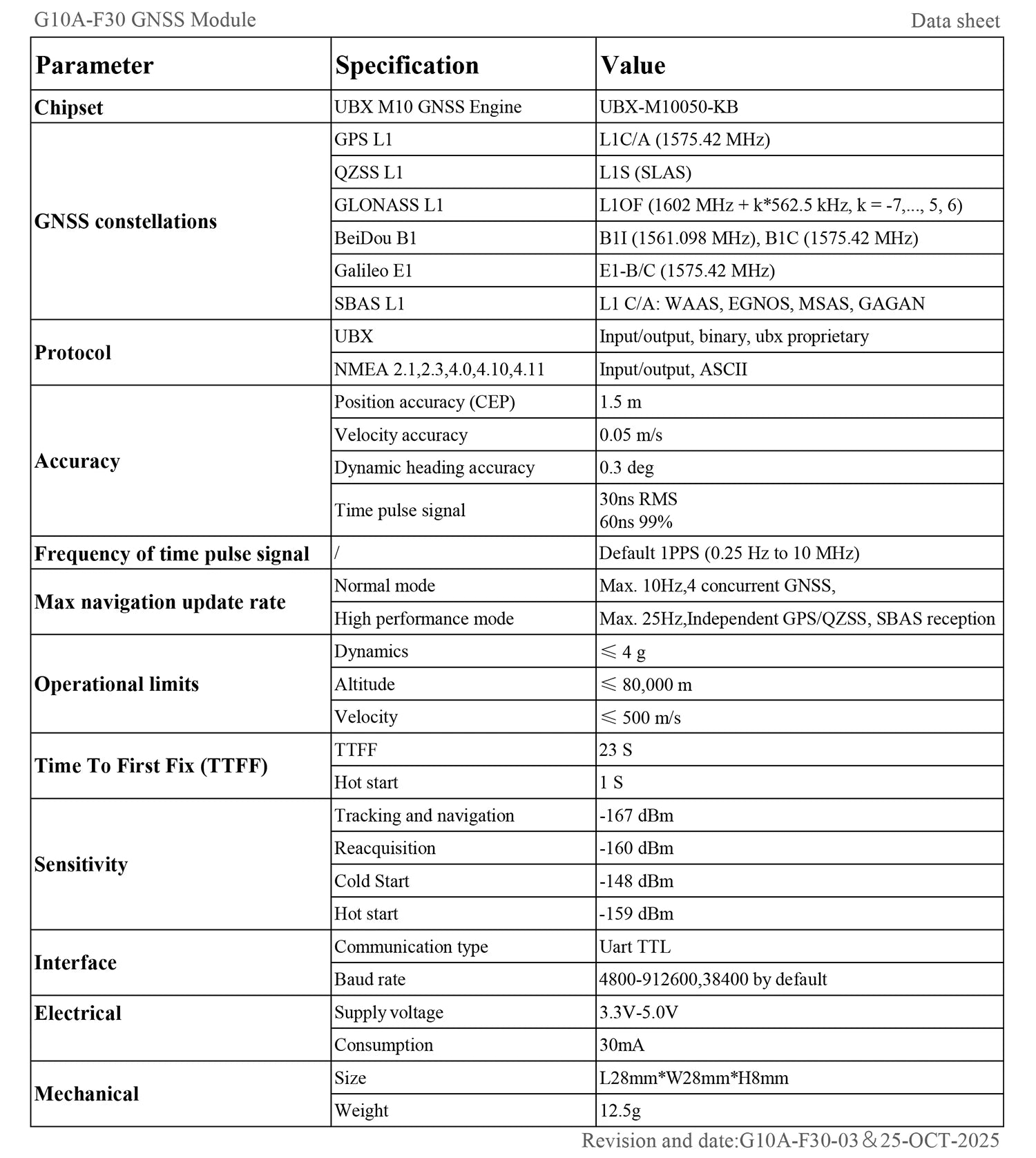

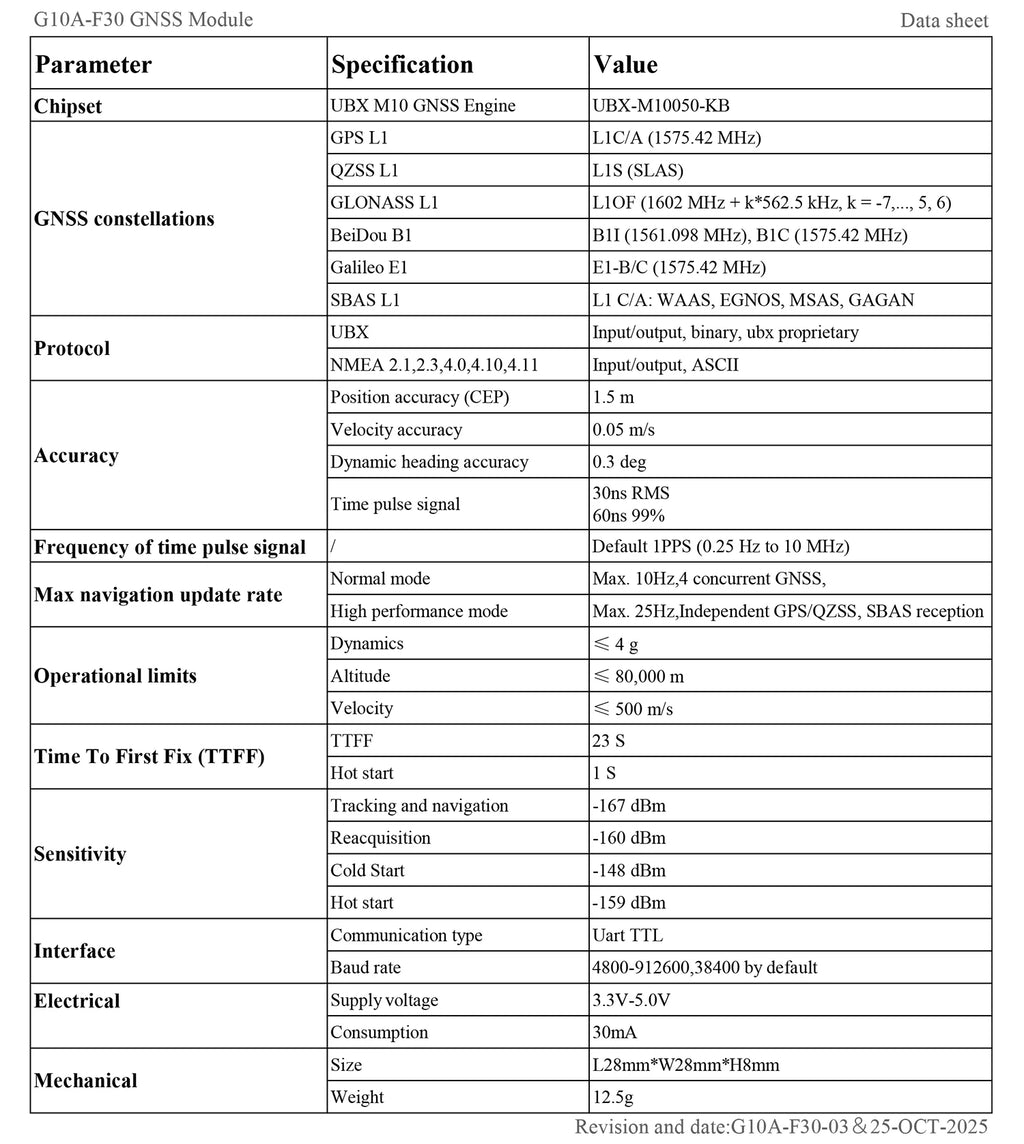

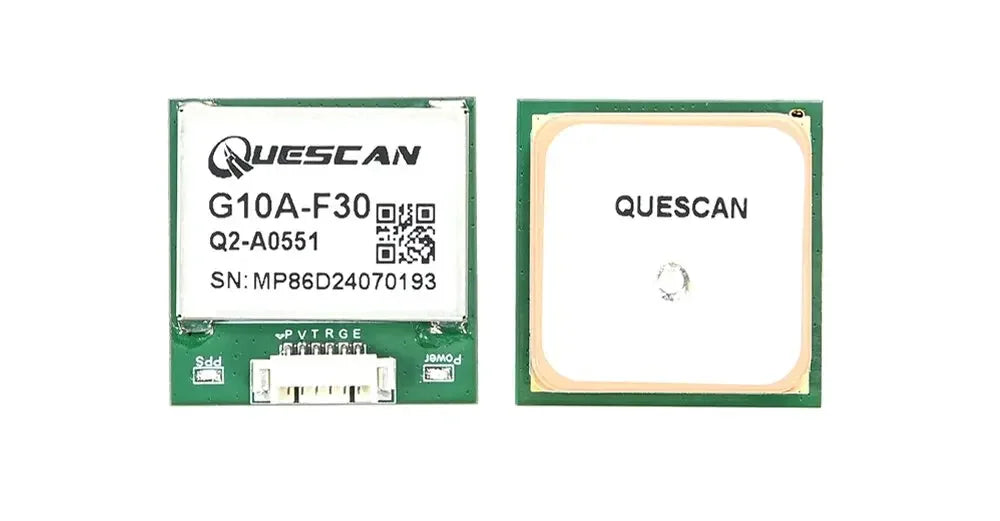

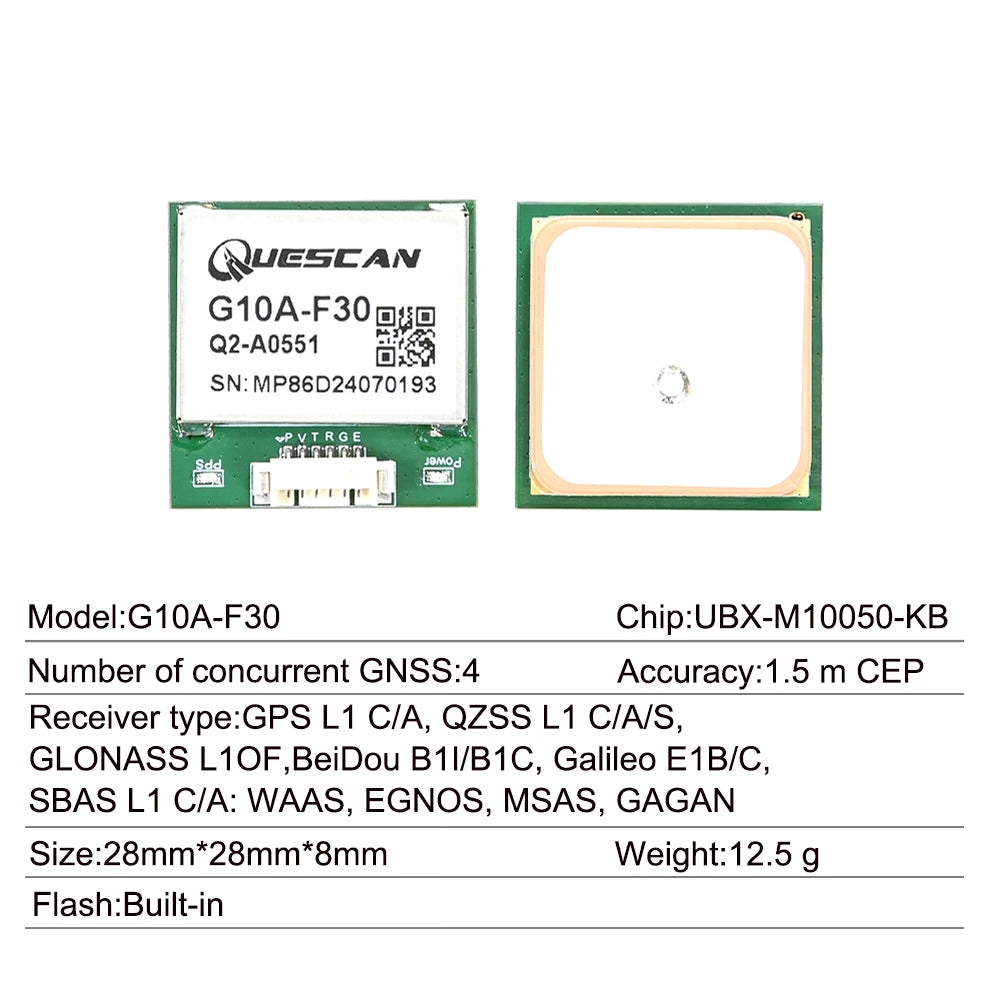

G10A-F30

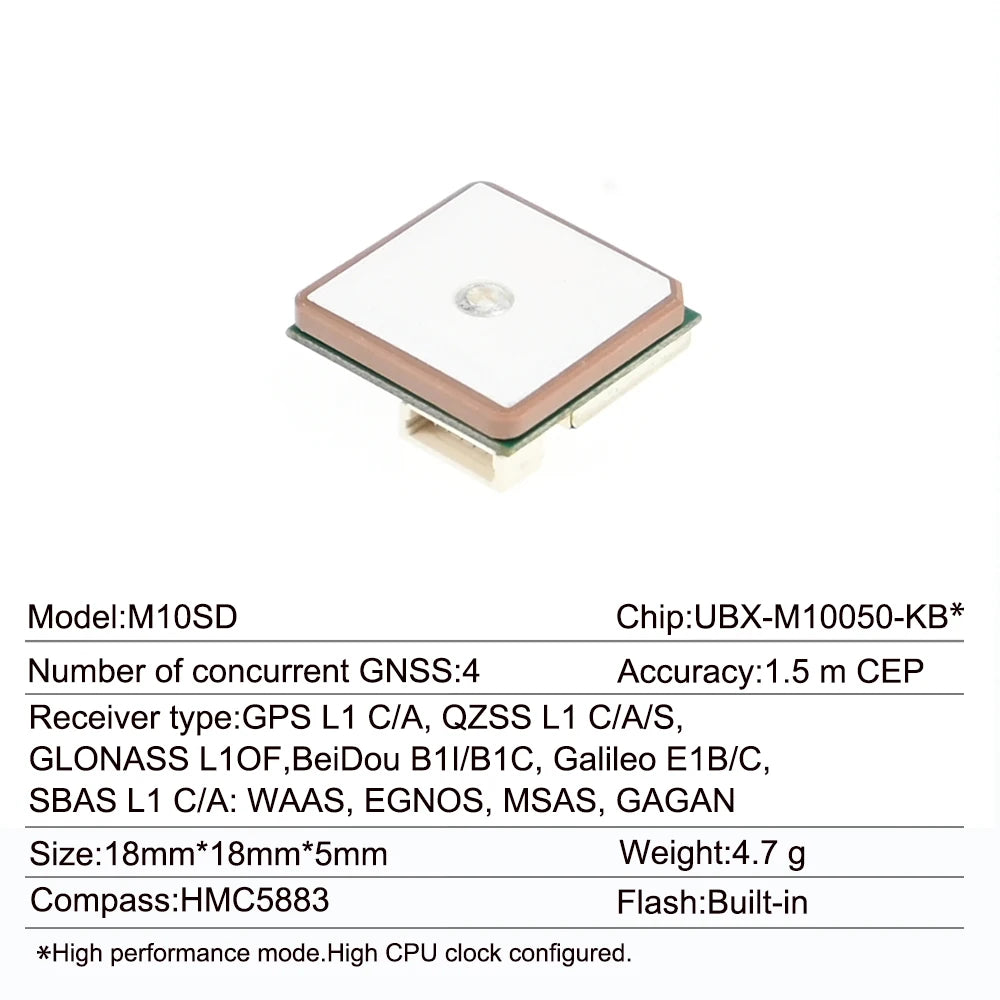

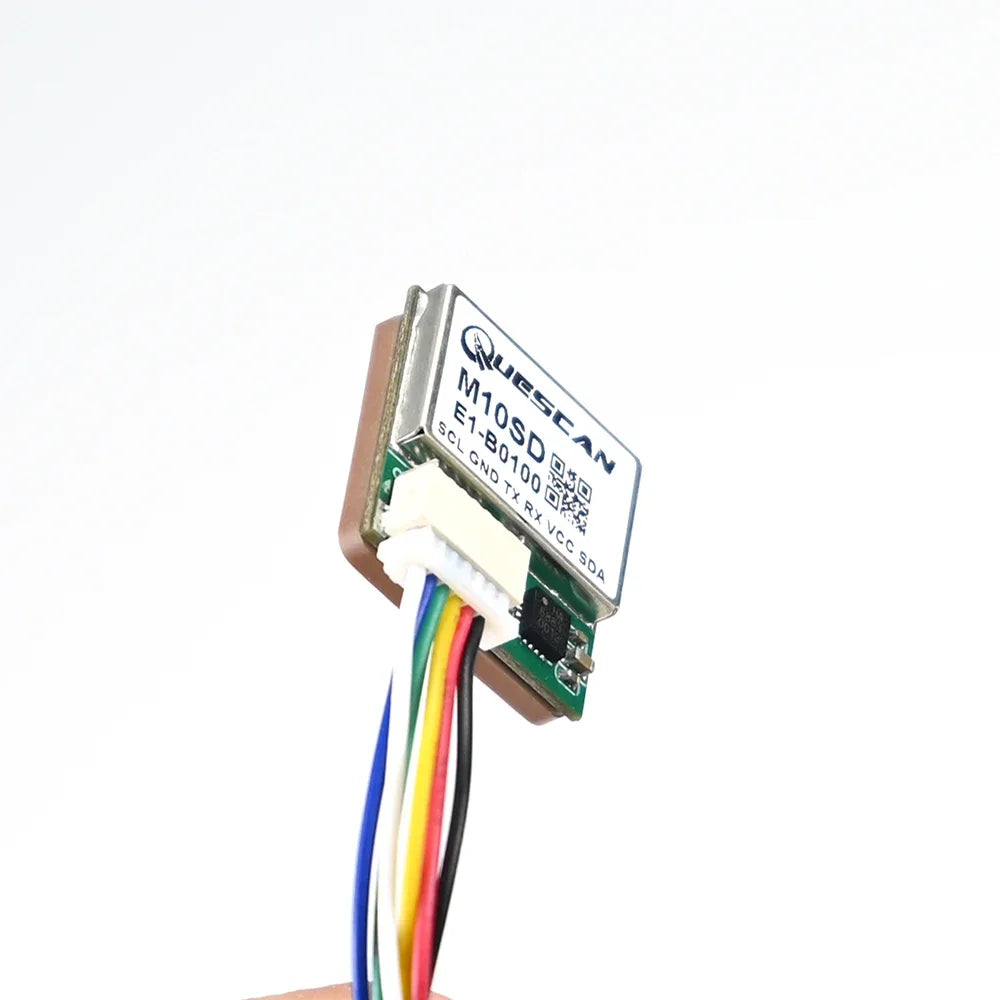

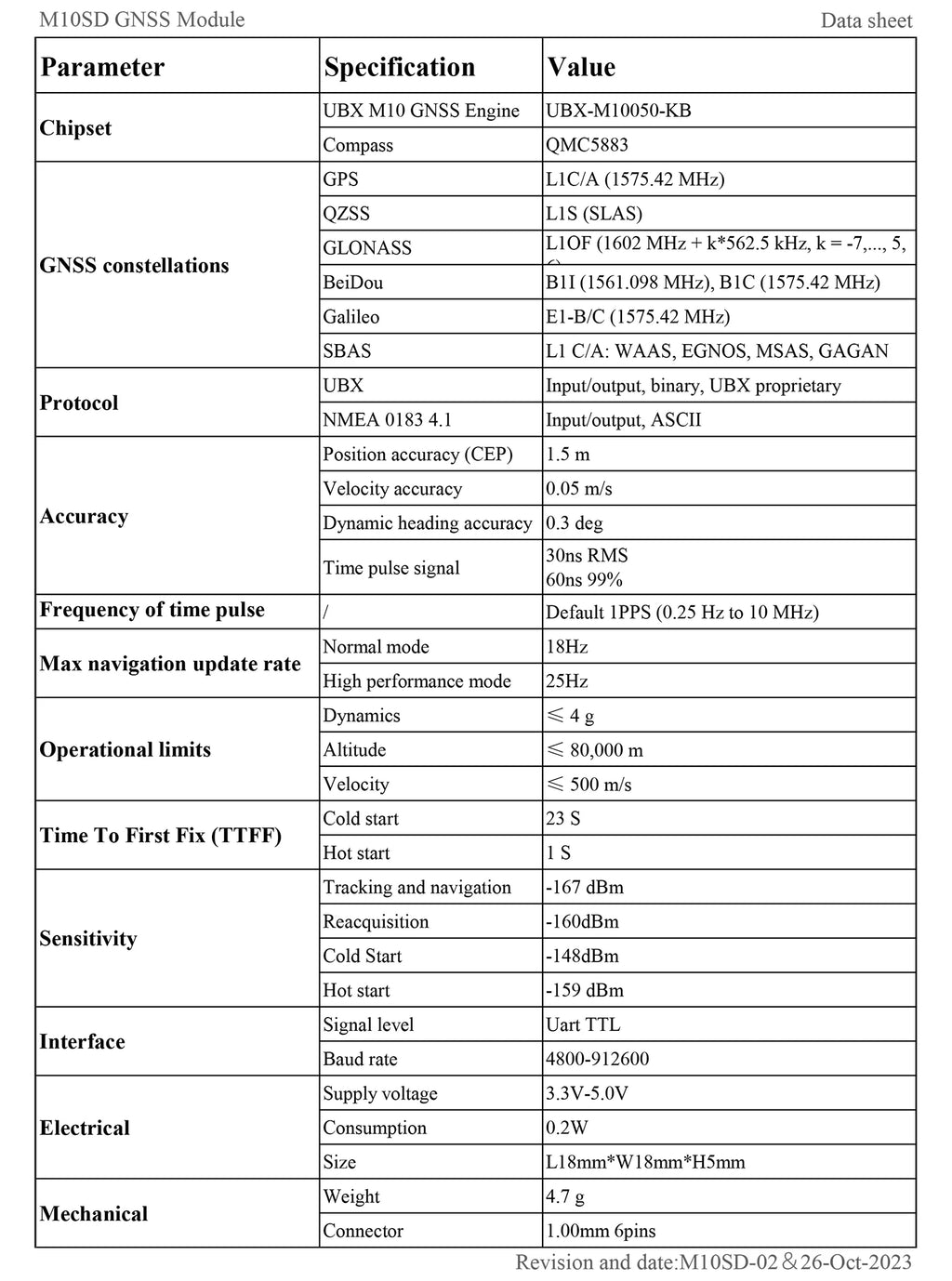

M10SD

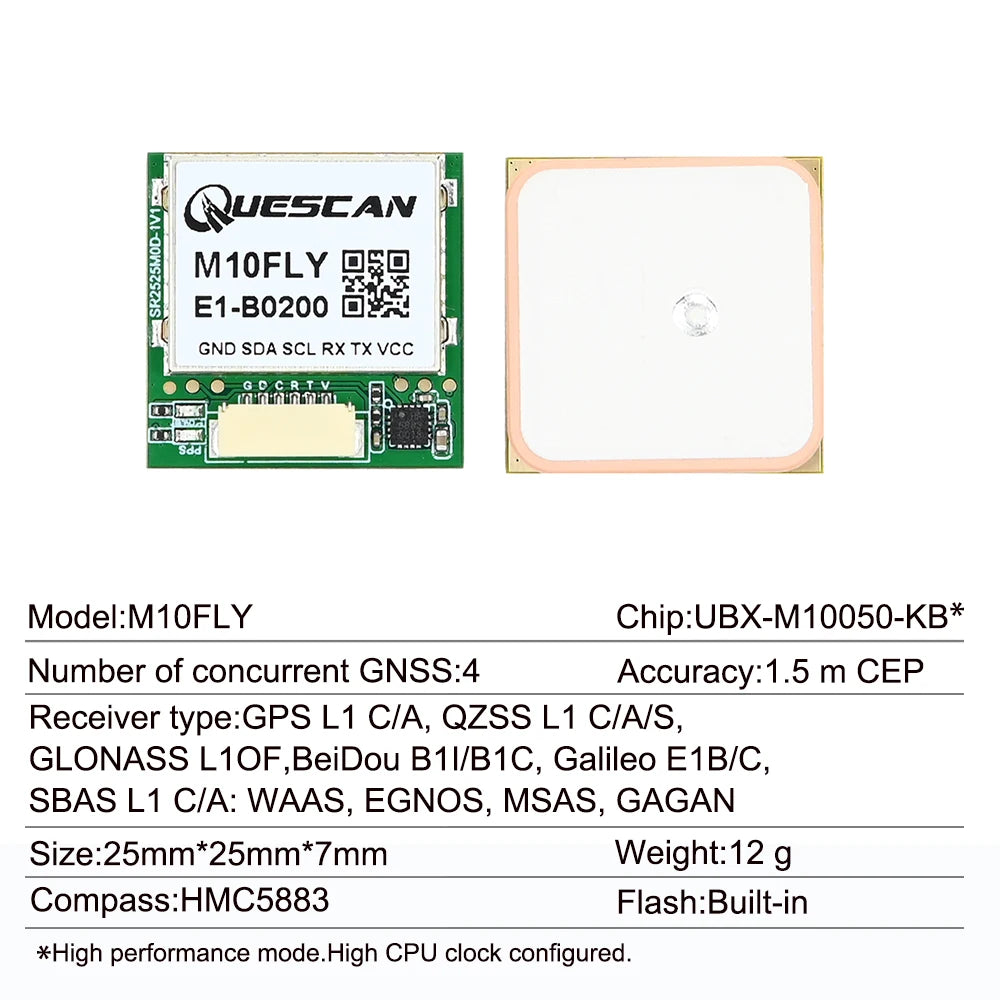

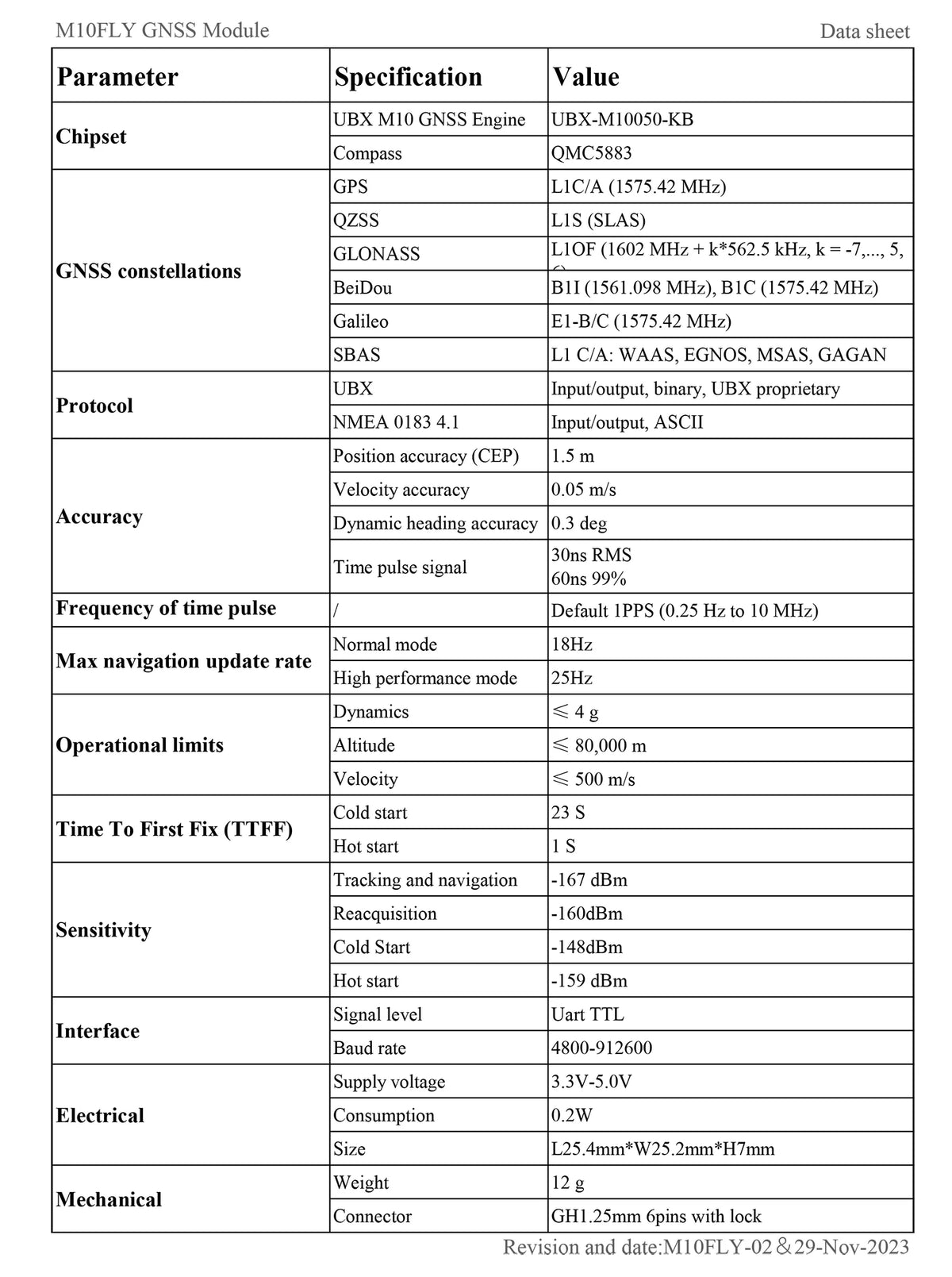

M10FLY

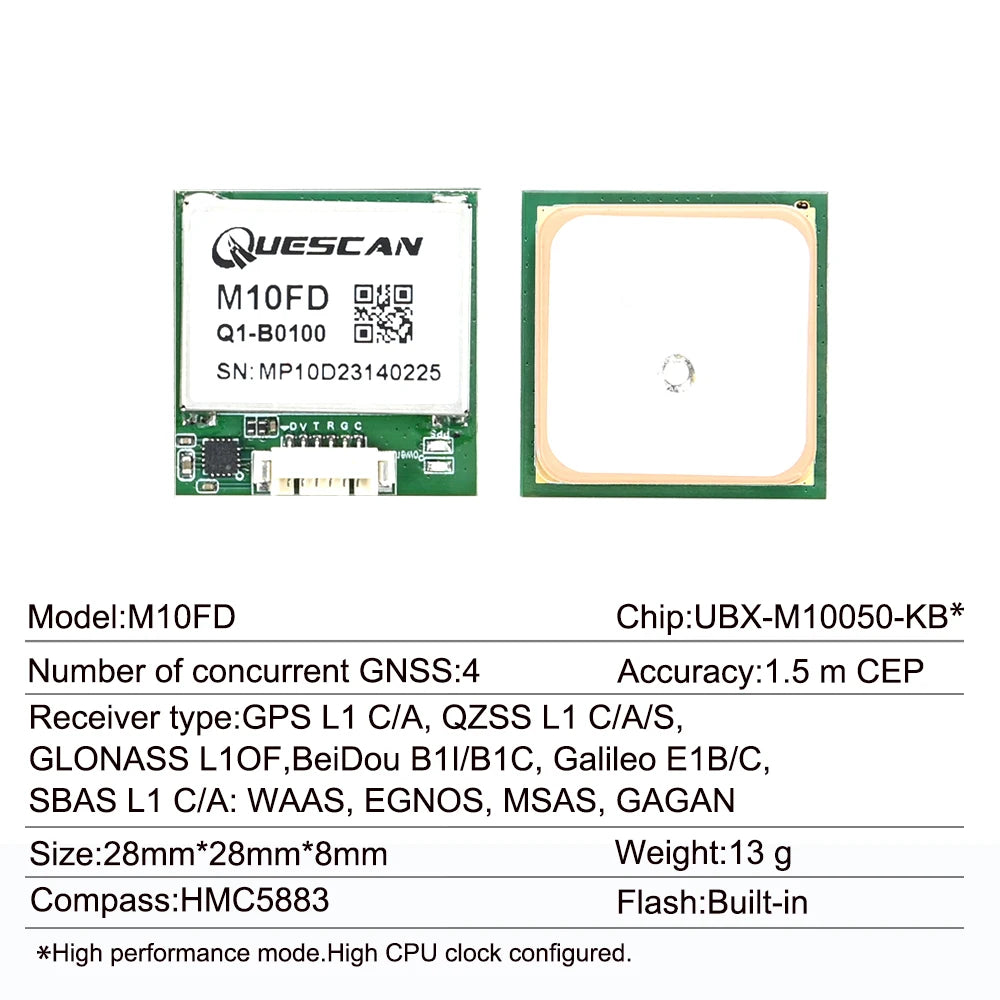

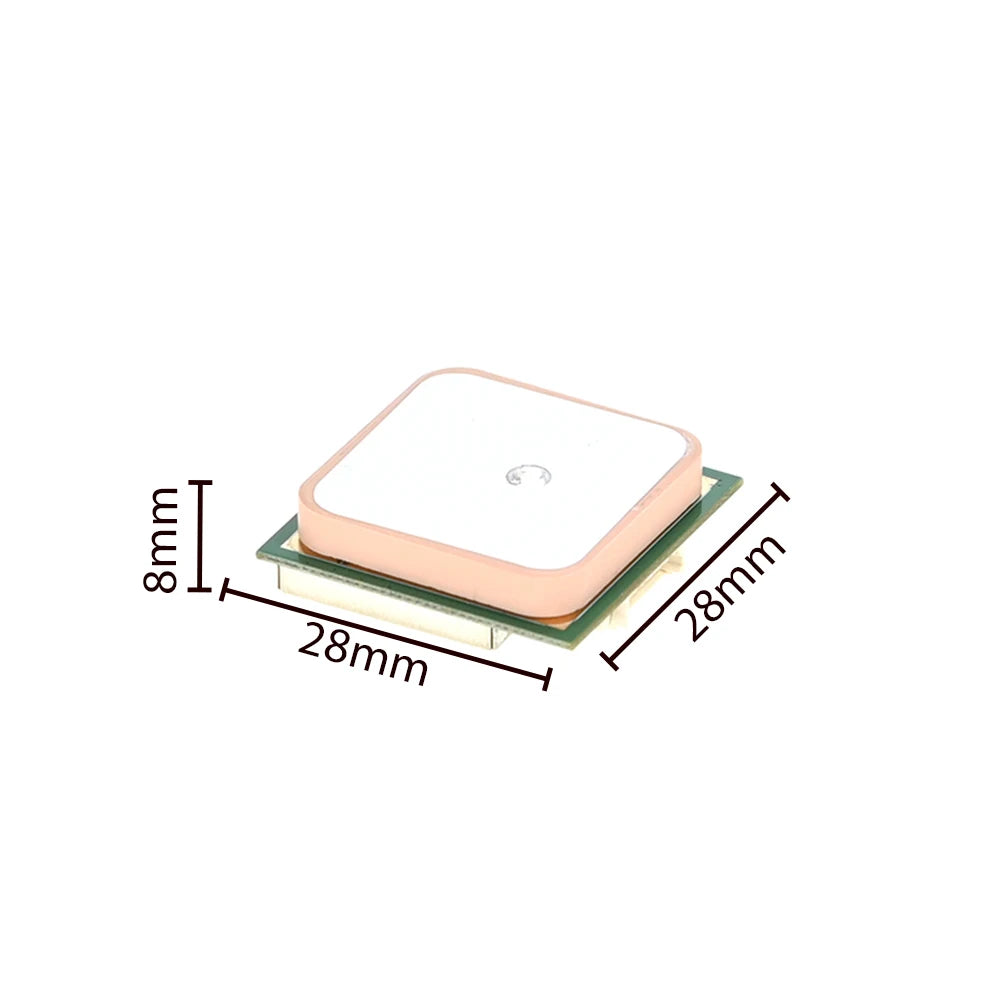

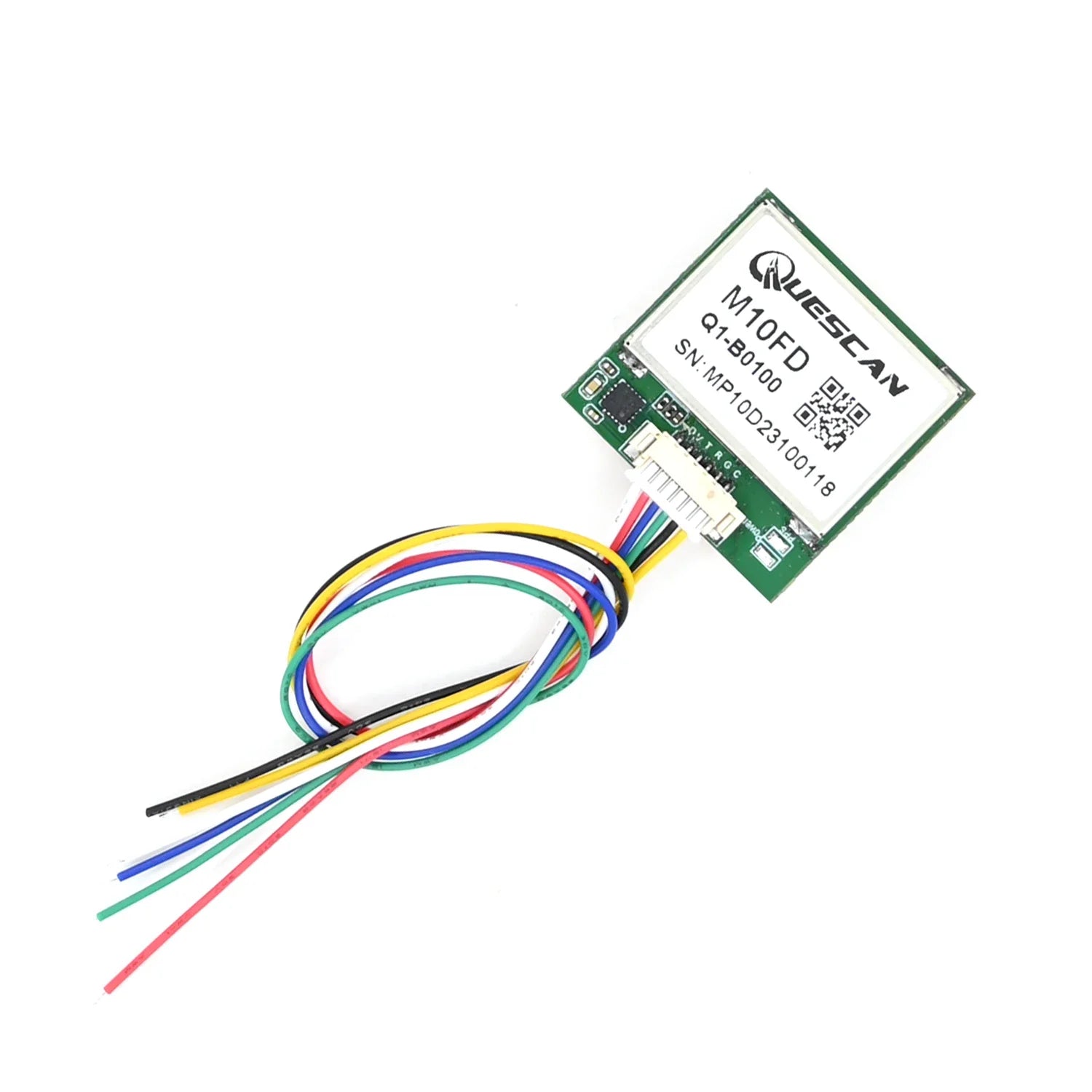

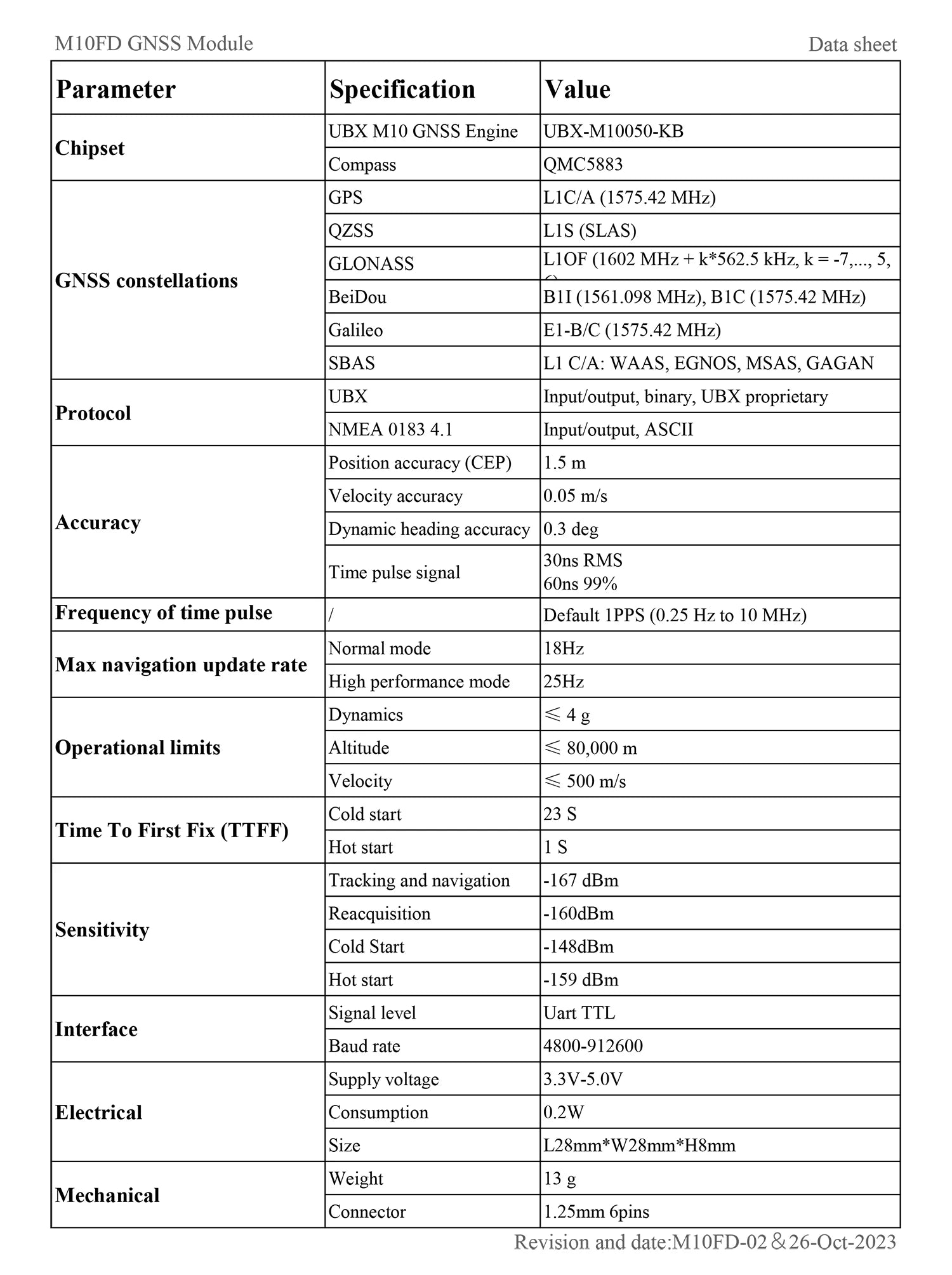

M10FD

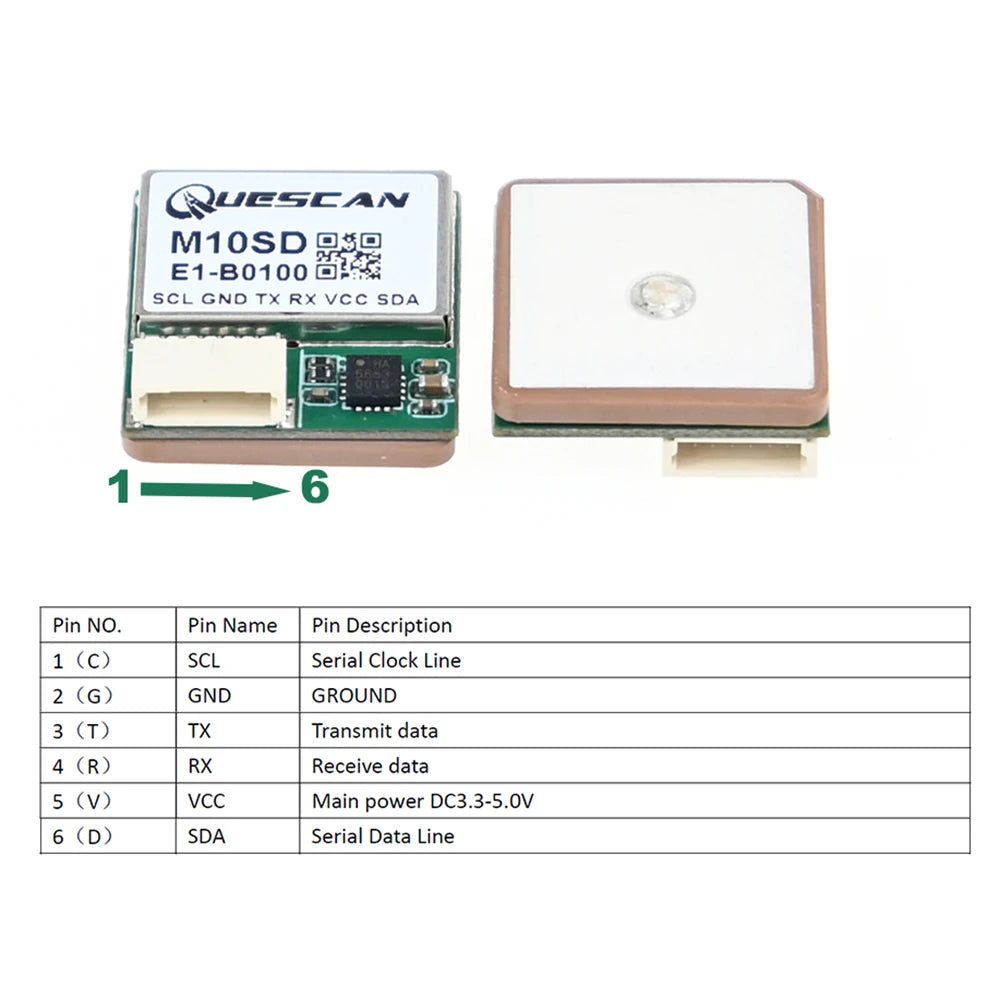

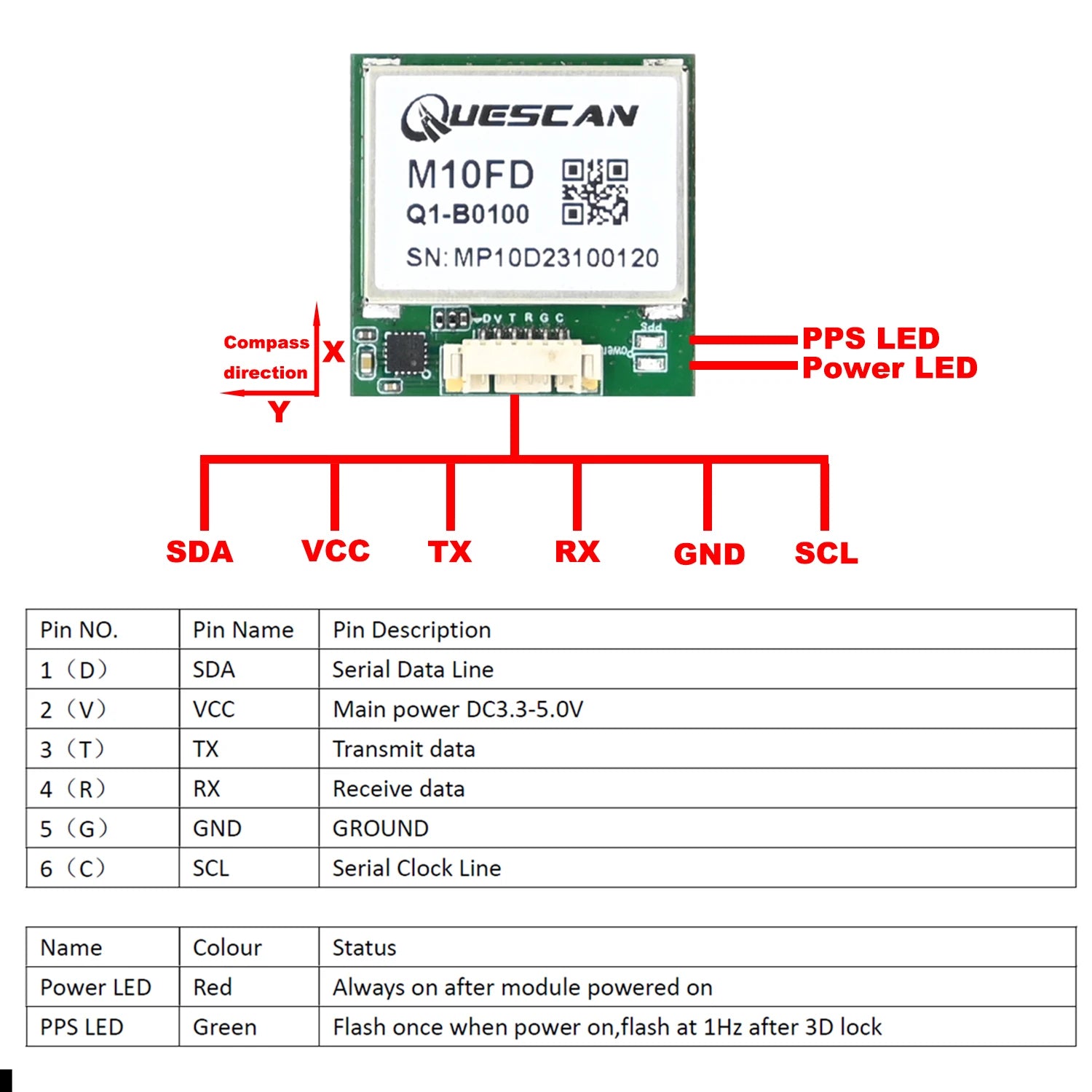

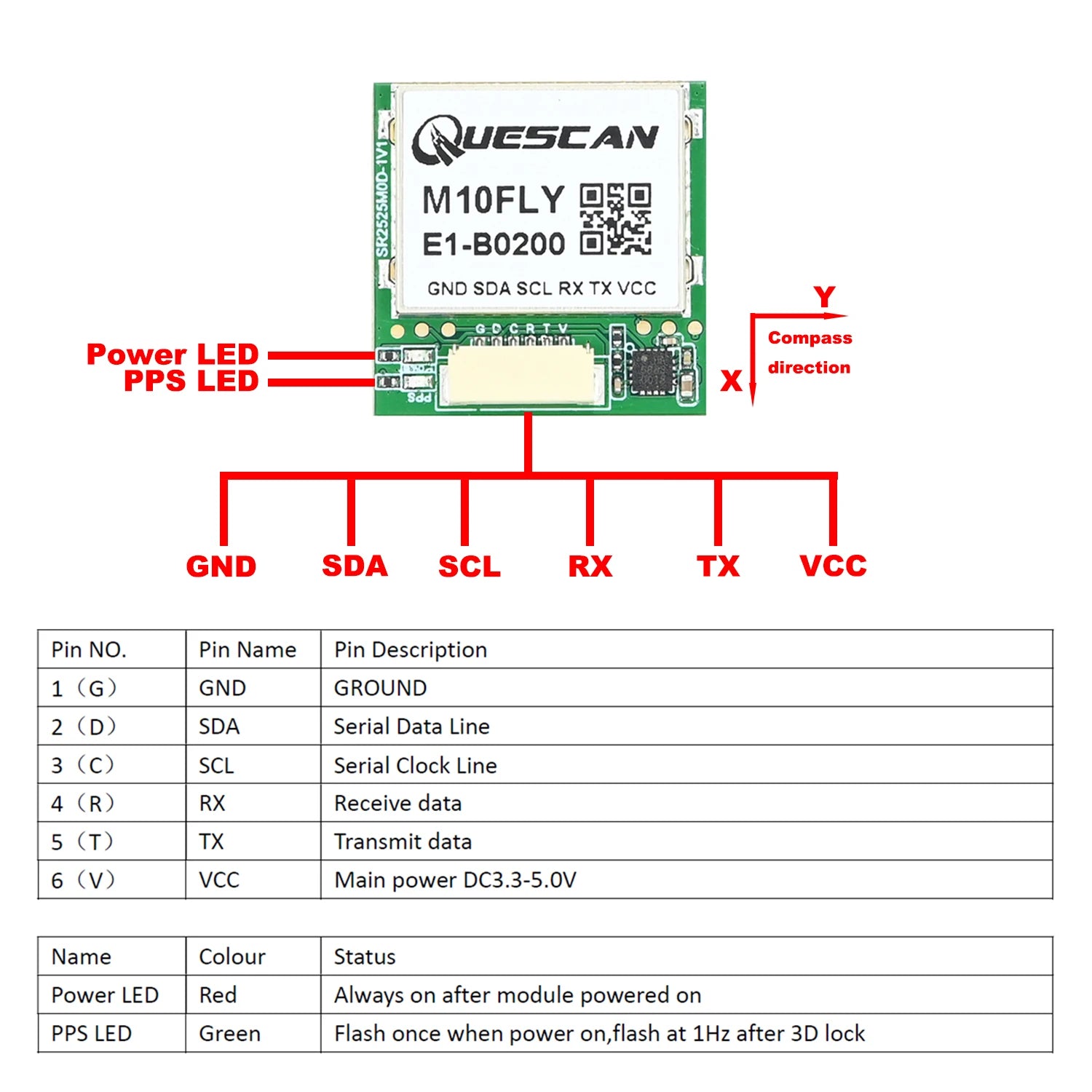

Pin Description

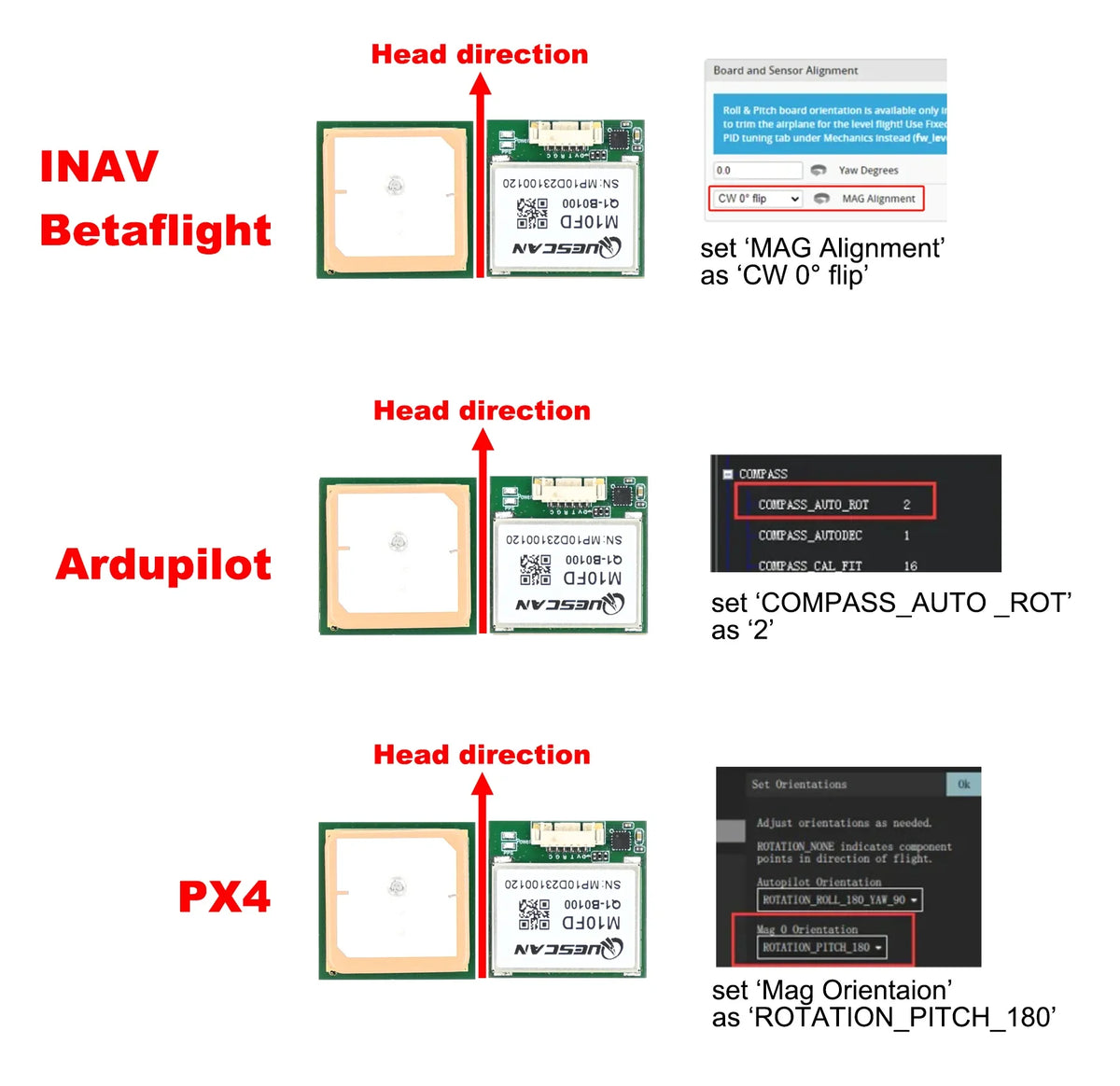

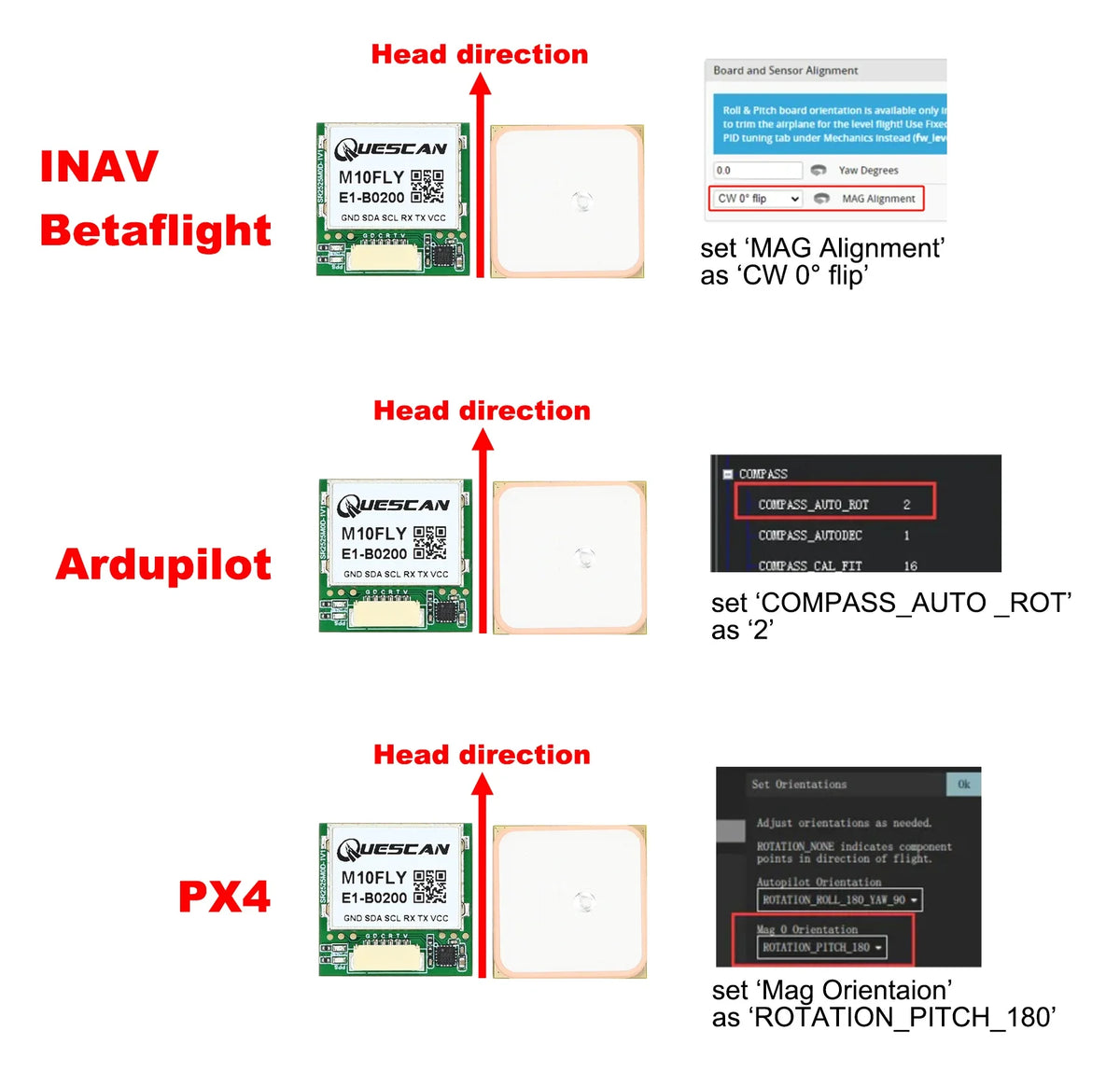

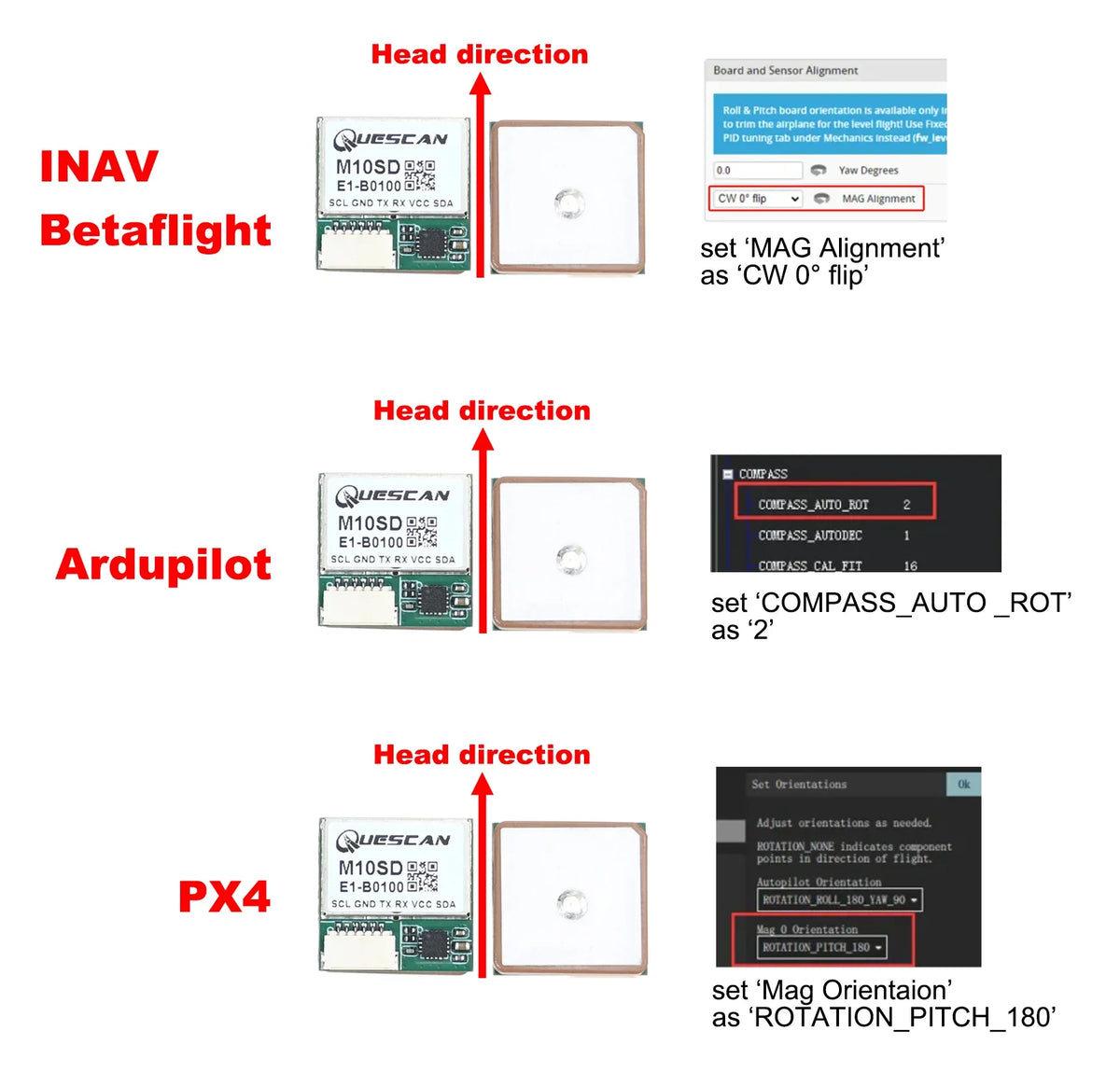

Compass Settings Guide

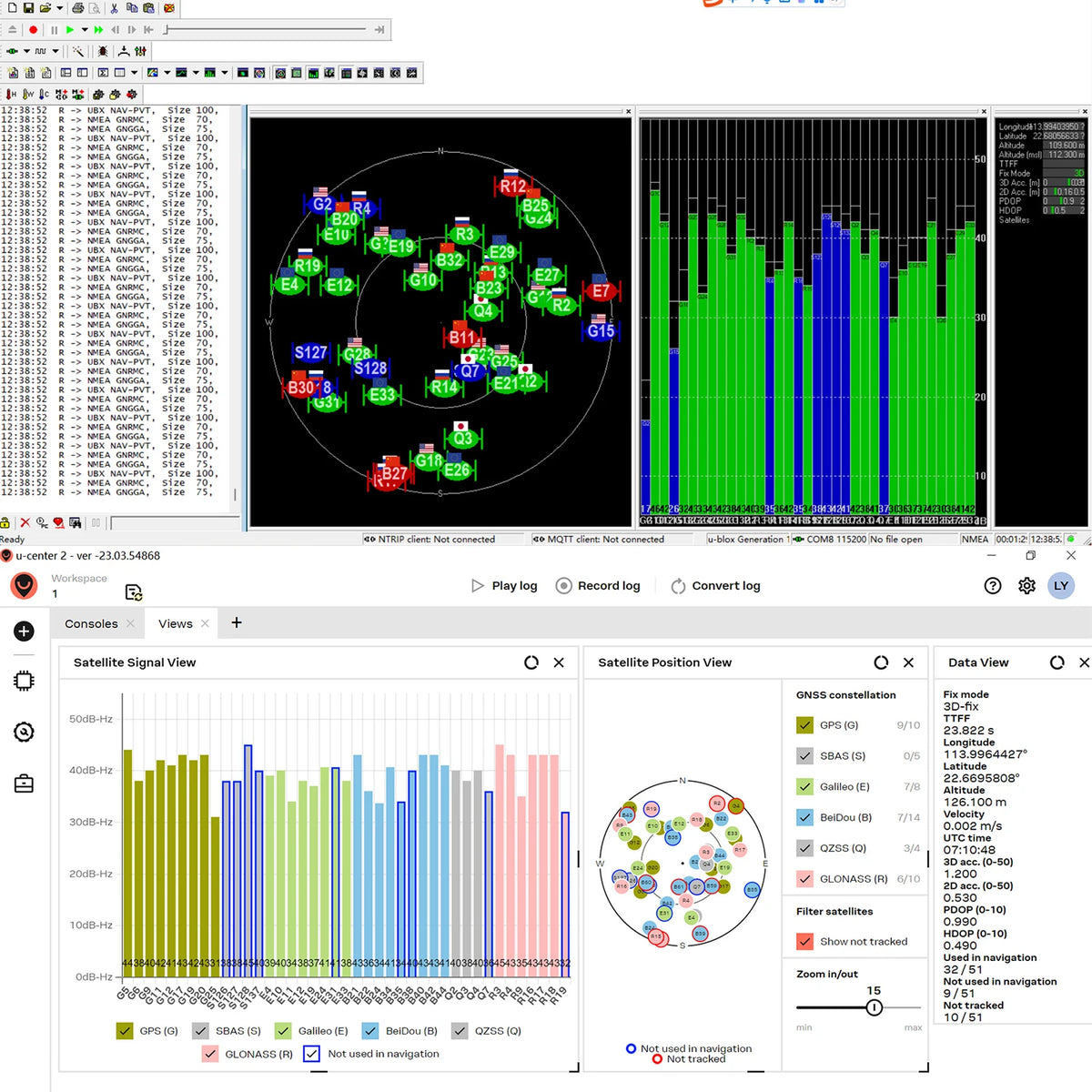

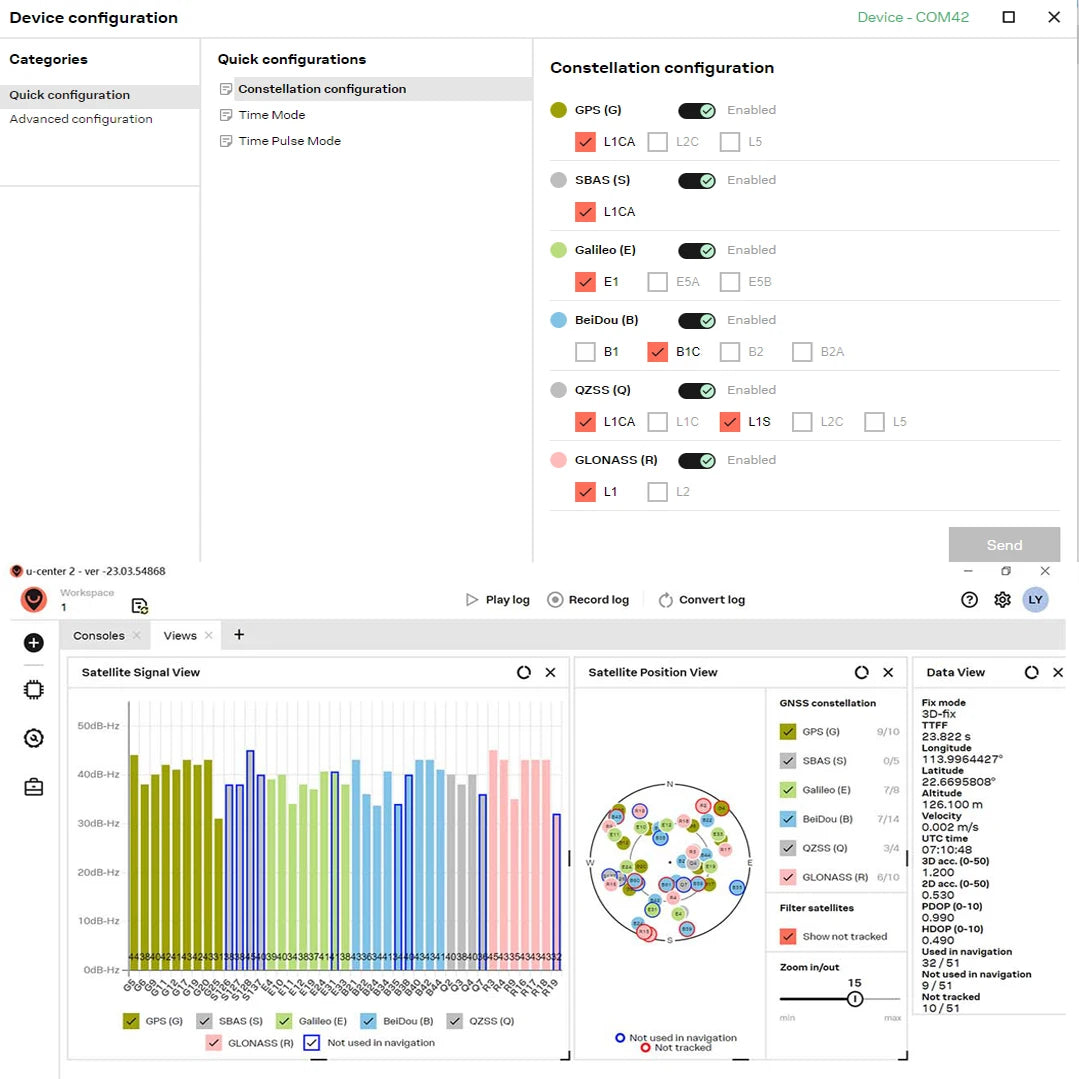

Supported GNSS Constellations

UBX-M10050-KB is a concurrent GNSS receiver that can receive and track multiple GNSS systems. The single RF front-end architecture enables concurrent reception of multiple GNSS constellations. The receiver can be conﬁgured for a subset of GNSS constellations to achieve lower power consumption.
The factory conﬁguration on modules is concurrent reception of GPS, Galileo, GLONASS and BeiDou B1C with QZSS and SBAS enabled.

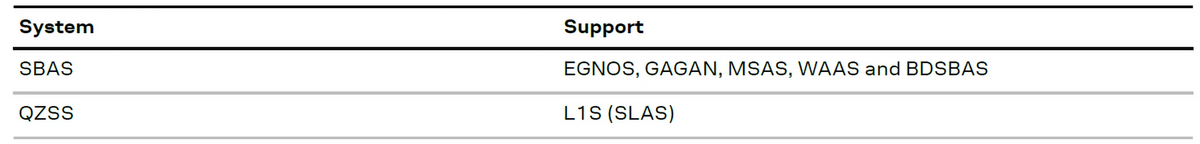

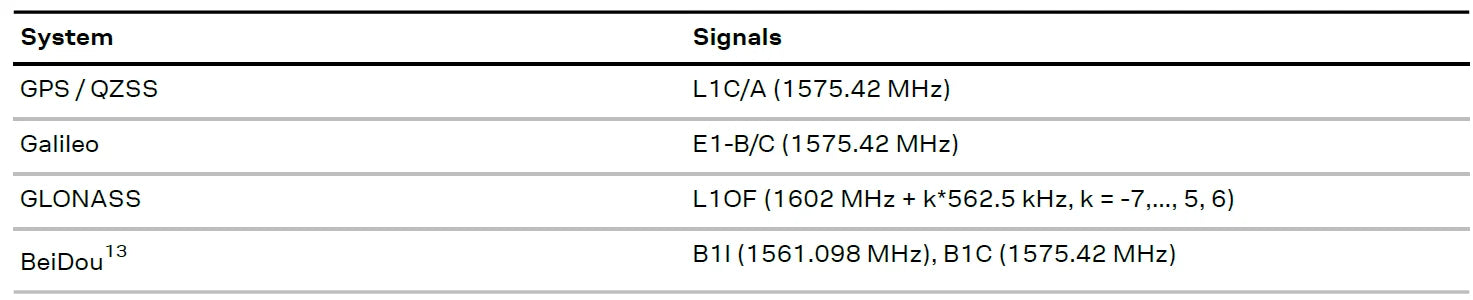

The following GNSS and their signals are supported:

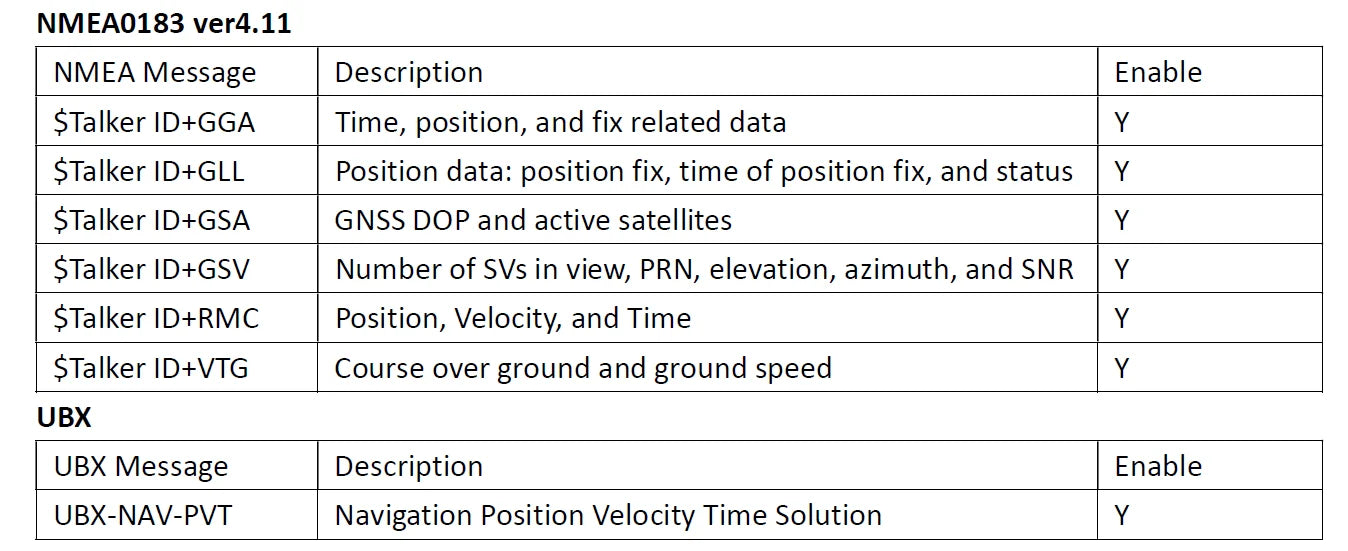

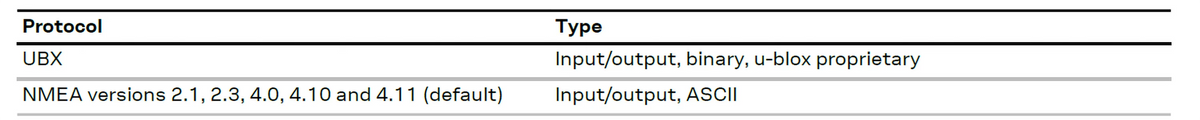

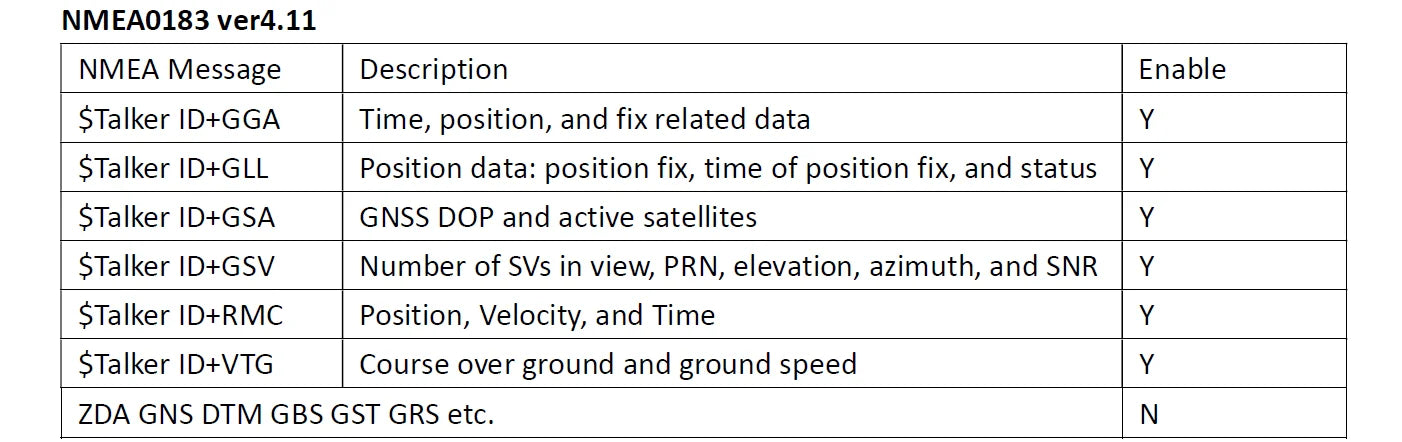

Supported Protocols

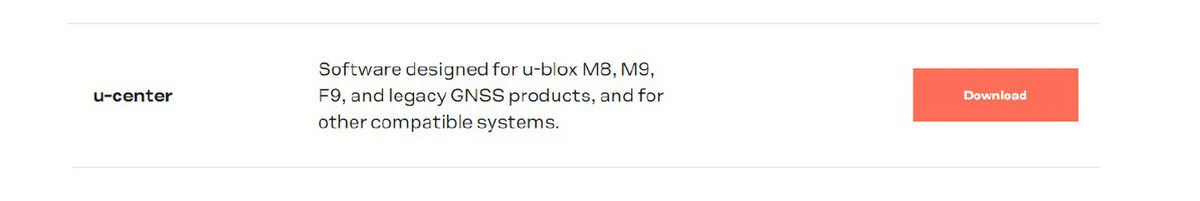

For more details, please refer to official documents.

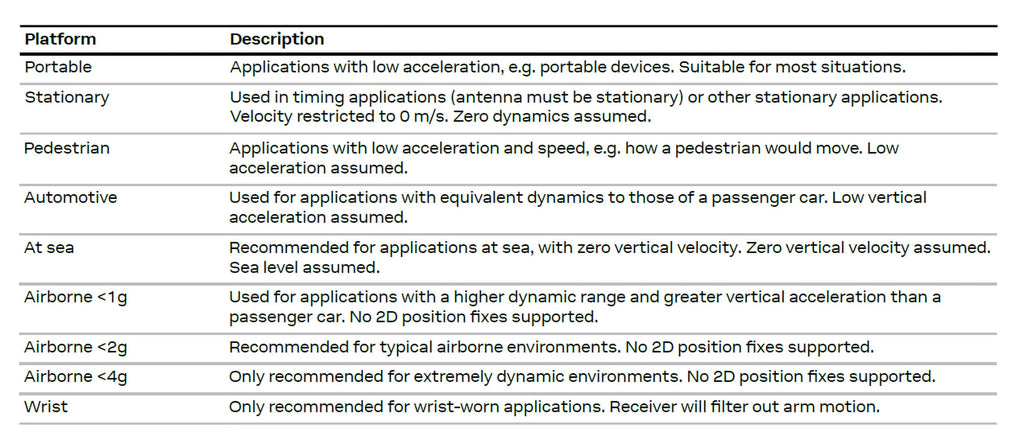

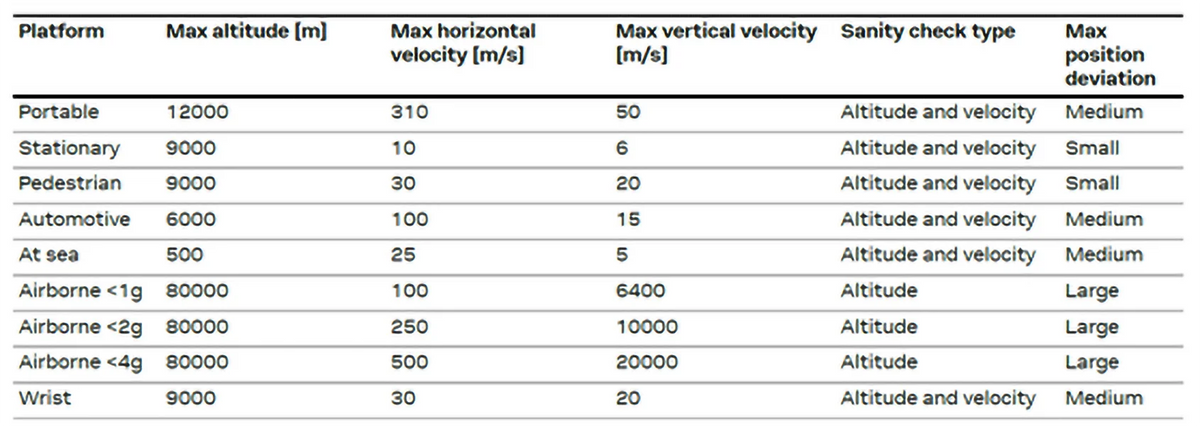

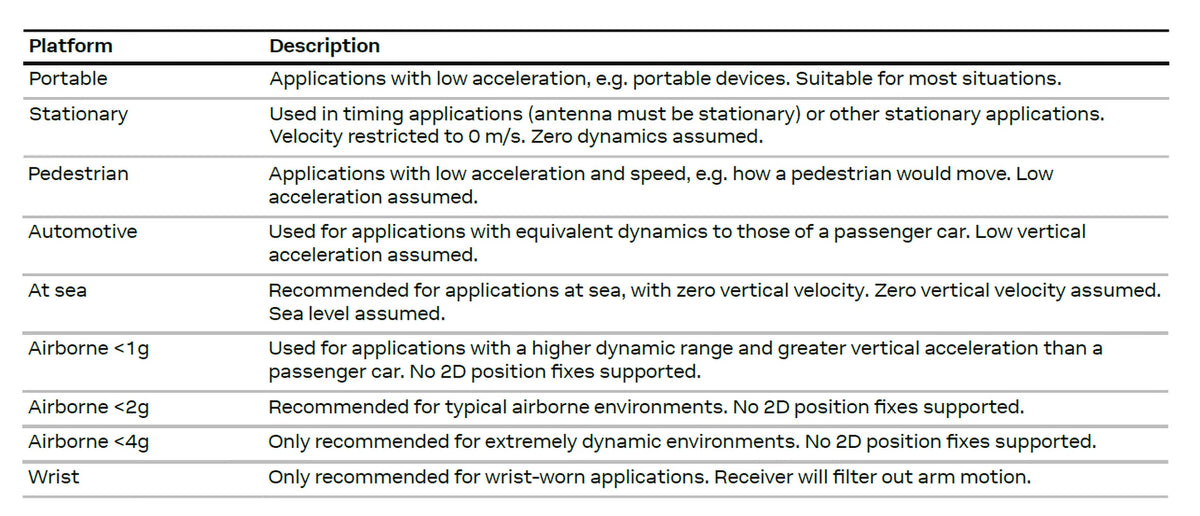

Dynamic Platform

The dynamic platform model can be conﬁgured through the CFG-NAVSPG-DYNMODEL
conﬁguration item. For the supported dynamic platform models and their details please refer to the table below. The default dynamic model is Portable.

Pre- configurations

G10A-F30:
•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS
•38400 baud, 8 bits, no parity bit, 1 stop bit.
•1Hz navigation update rate.
•1PPS time pulse
•NMEA version 4.11.
•Input messages: NMEA and UBX.
•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT.

M10SD M10FLY M10FD:
•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS.
•115200 baud, 8 bits, no parity bit, 1 stop bit.
•High performance mode.
•10Hz navigation update rate.
•Input messages: NMEA and UBX.
•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT./UBX-NAV-PVT
