$70.76
$70.76 $0.00
Color
Description

SPECIFICATIONS

Brand Name: NONE

Flash memory: Support

GNSS platform: GPS GLONASS Galileo BeiDou QZSS SBAS

High-concerned chemical: none

Inout voltage: DC 3.3V-5V

Model: M9 M10 series

Number of concurrent GNSS: 4

Origin: Mainland China

Signal level: TTL

Type: others

Overview

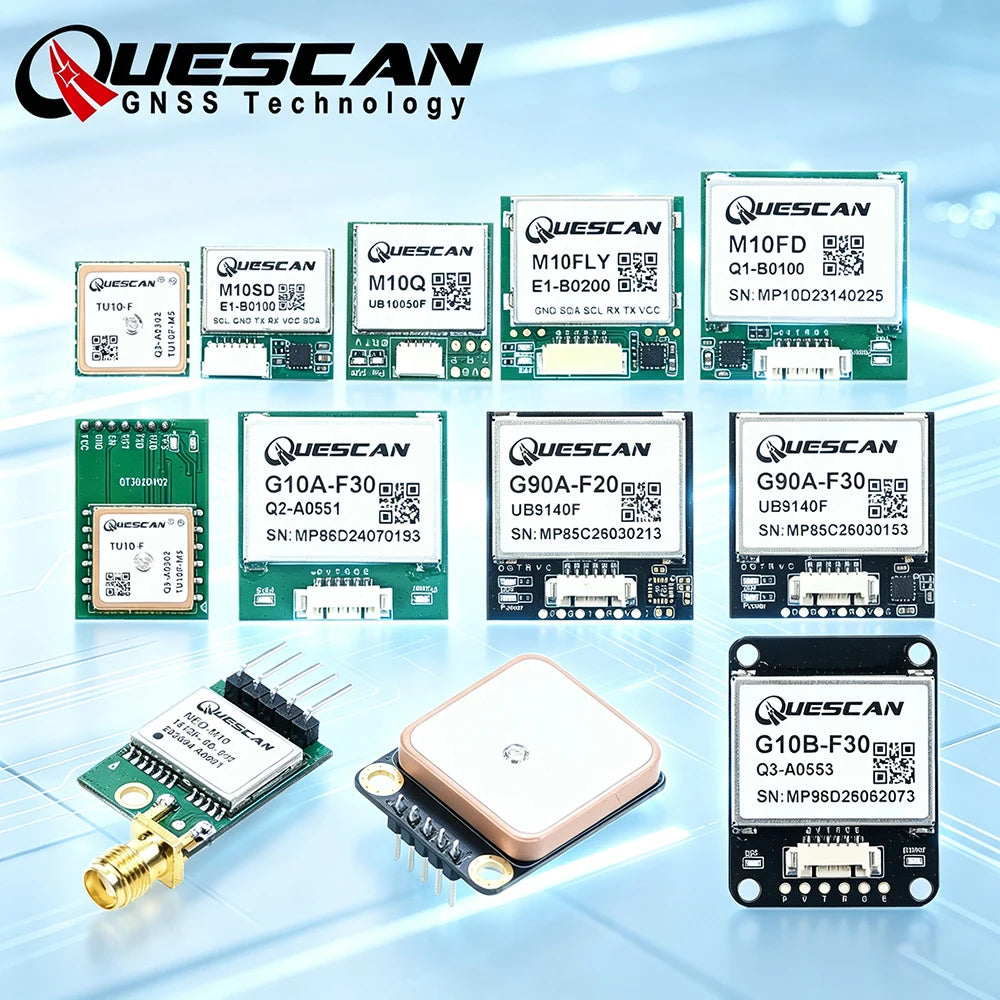

QUESCAN GNSS module series built on u‑blox M9 and M10 chip platforms.

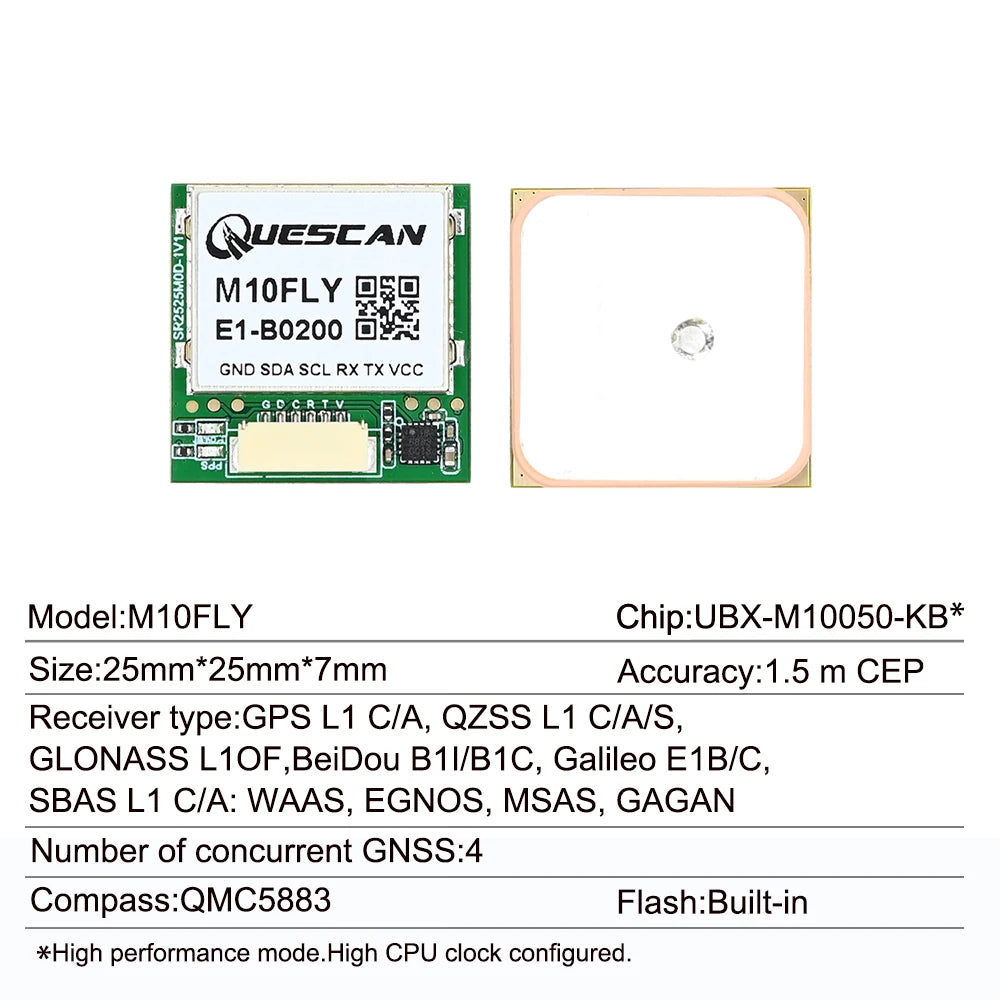

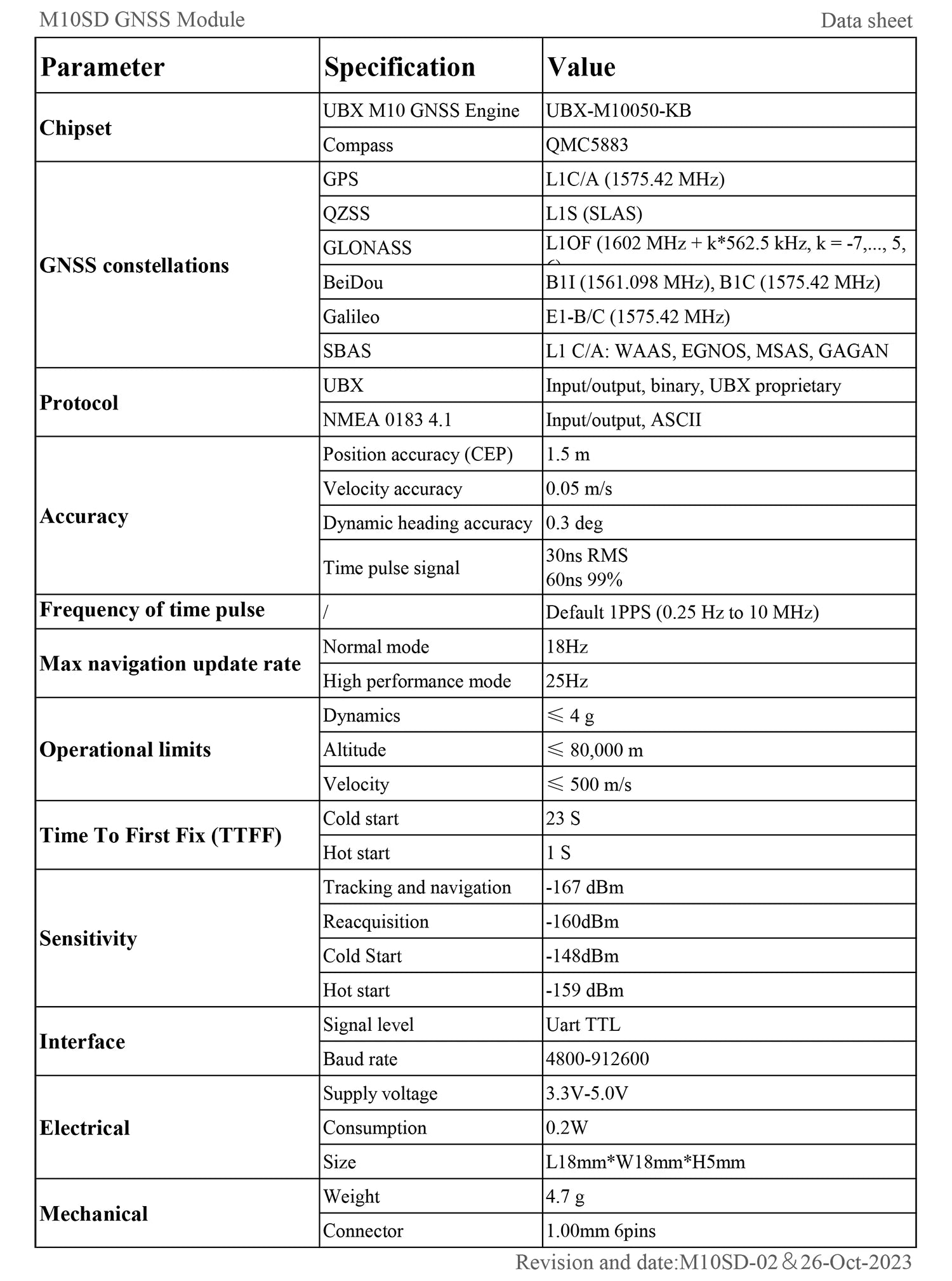

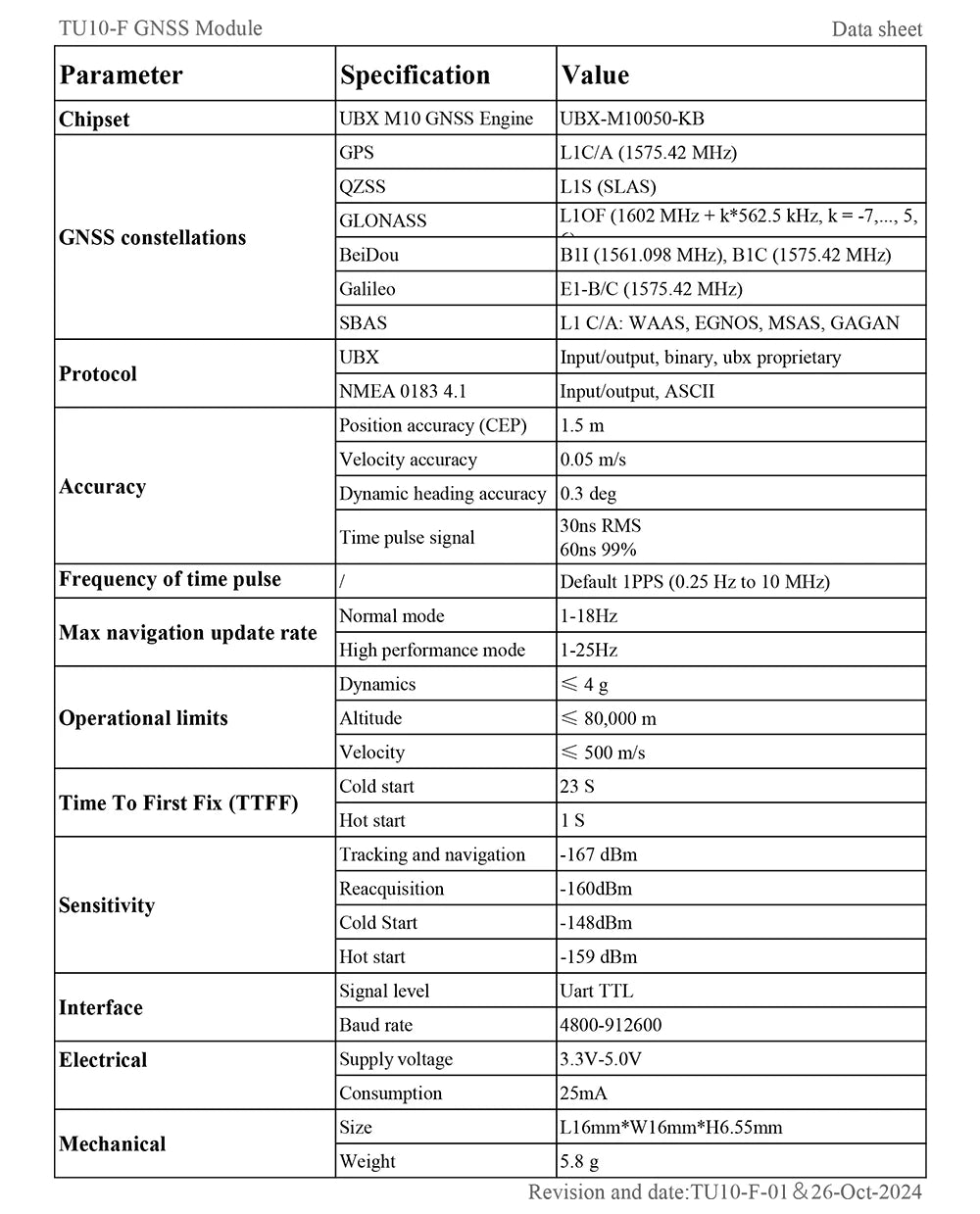

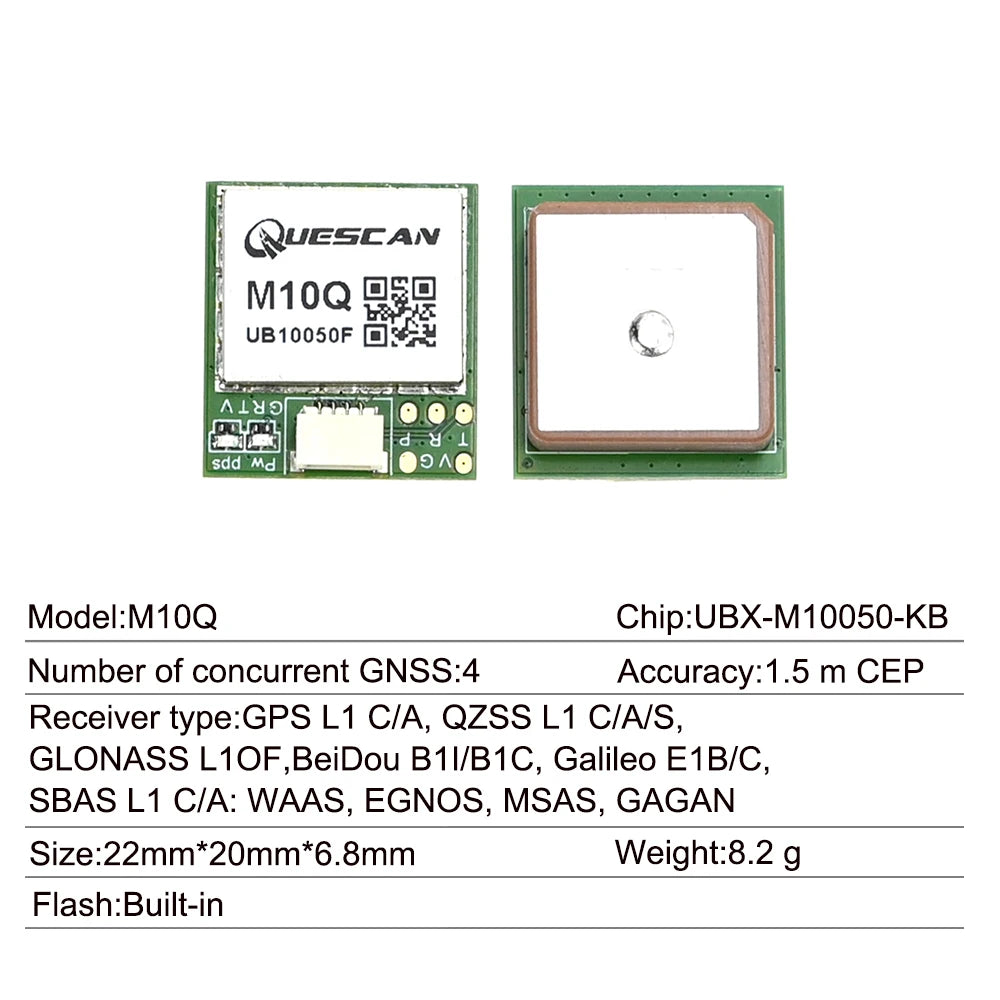

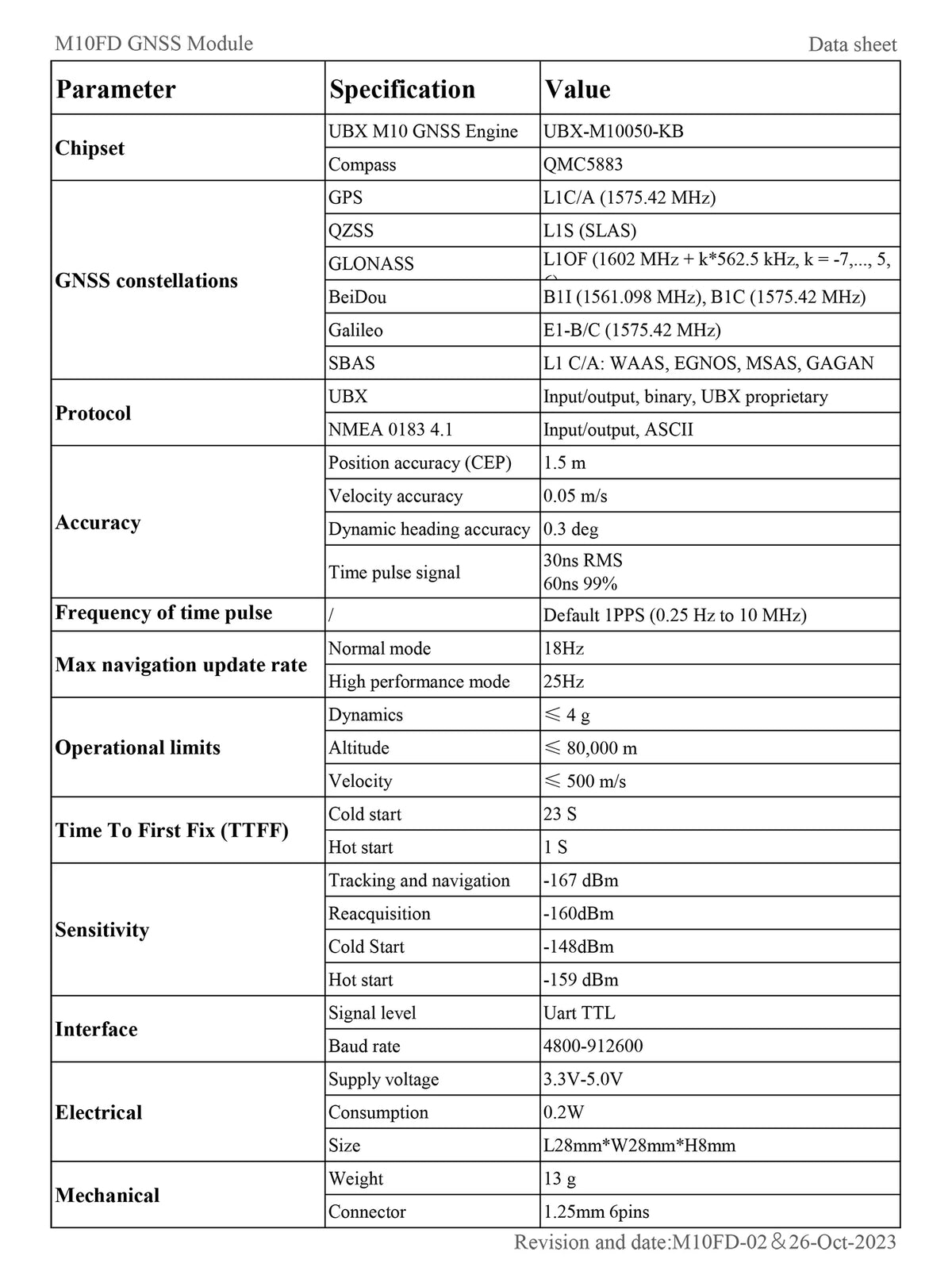

(TU10-F,M10SD,M10Q,G10A-F30,G10B-F30,M10FLY,M10FD,M10-16112,AN3126)
u‑blox M10 based modules: Ultra‑low‑power multi‑constellation receivers for GPS, BeiDou, Galileo, GLONASS. Equipped with Super‑S weak‑signal technology, improved anti‑jamming & anti‑spoofing performance. Some models integrate compass (magnetometer) for flight controller usage. Output rate up to 25 Hz, support NMEA and UBX protocols. Ideal for drones, battery‑power trackers, vehicle telematics and IoT devices.

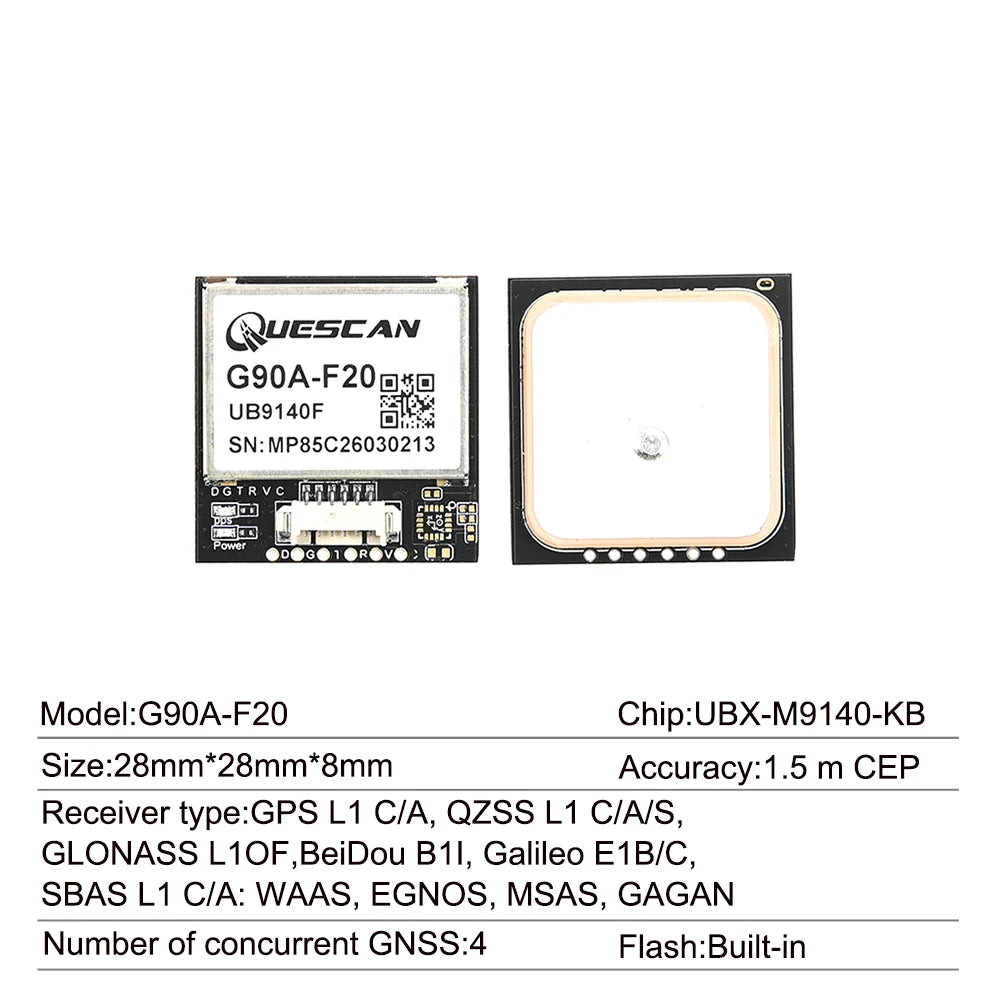

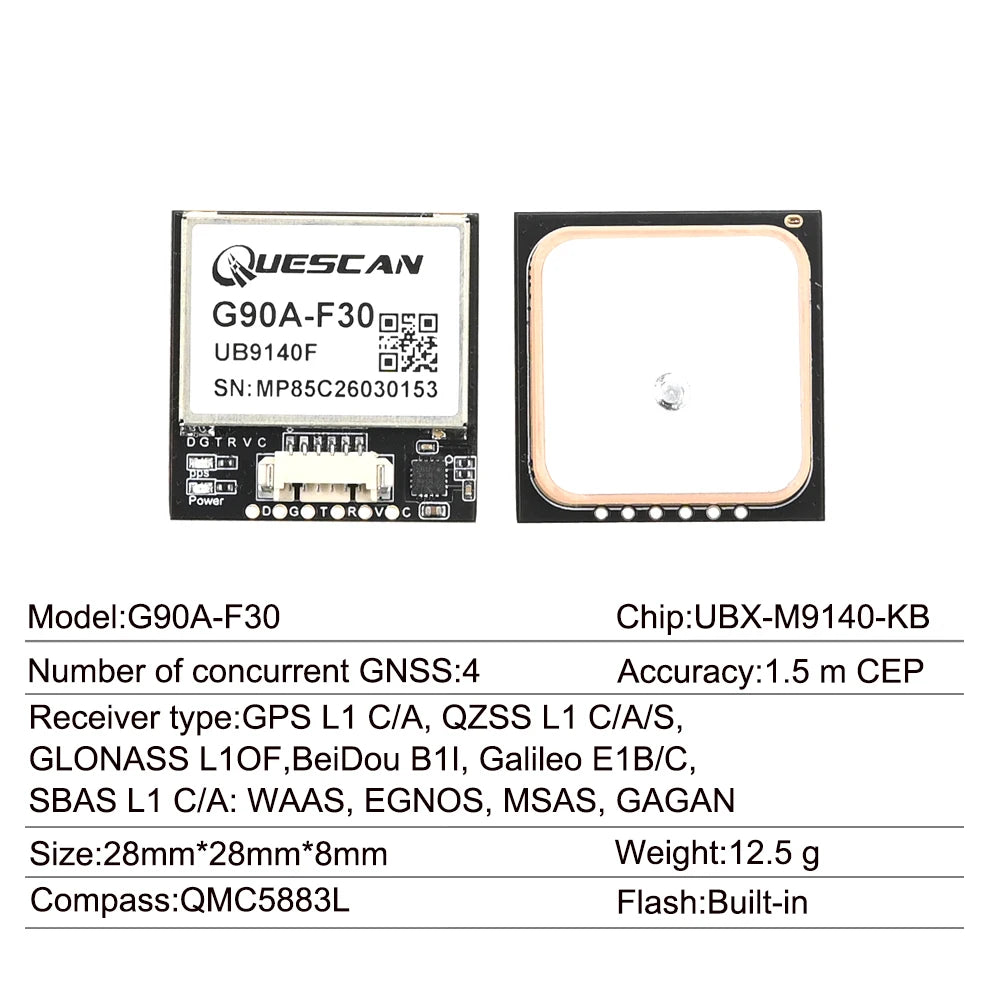

(G90A-F20,G90A-F30)
u‑blox M9 based modules: Proven stable multi‑GNSS solution with good cost‑performance. Compatible with PX4 / ArduPilot flight stack and most MCU systems. Widely used in robotics, AGV, marine navigation and vehicle tracking.

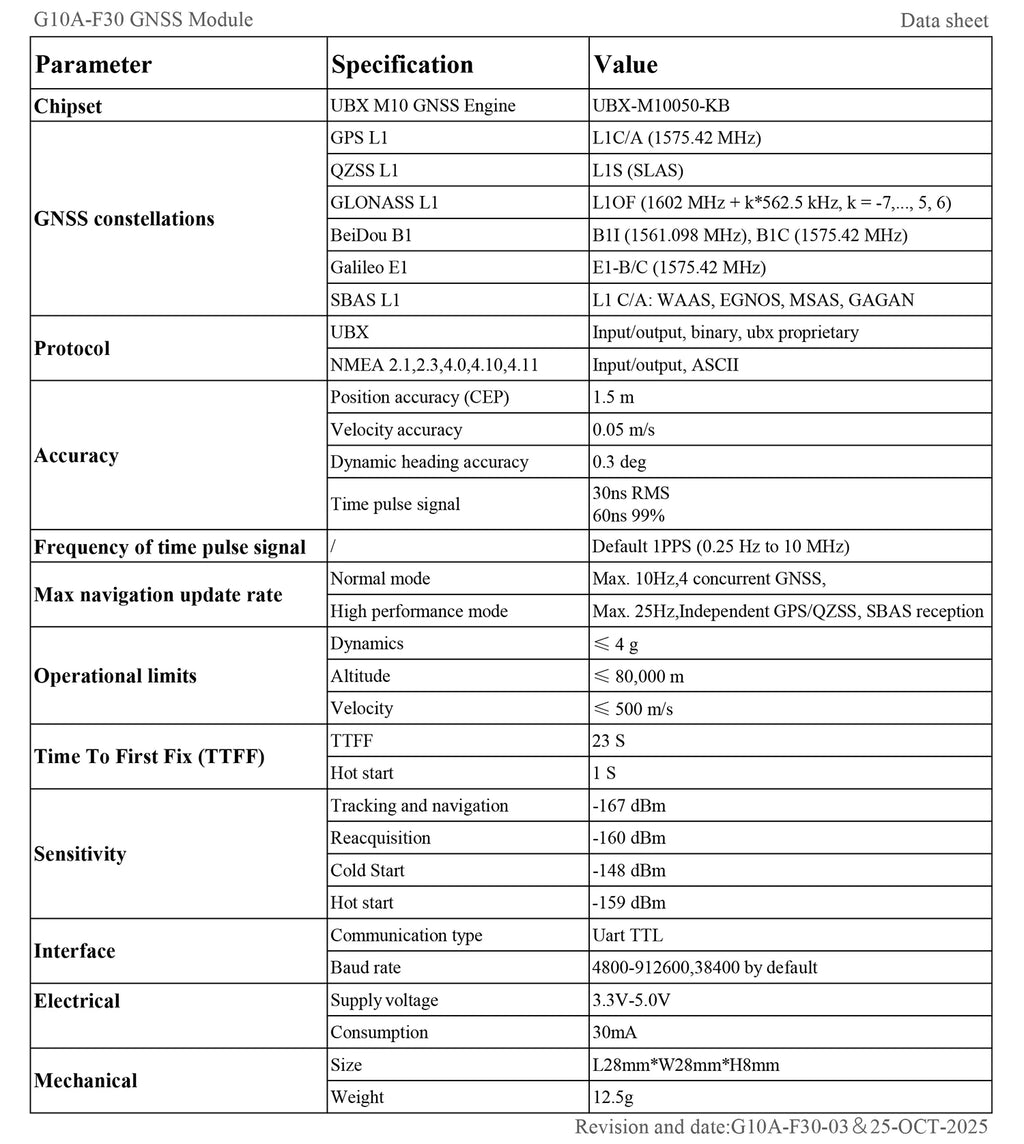

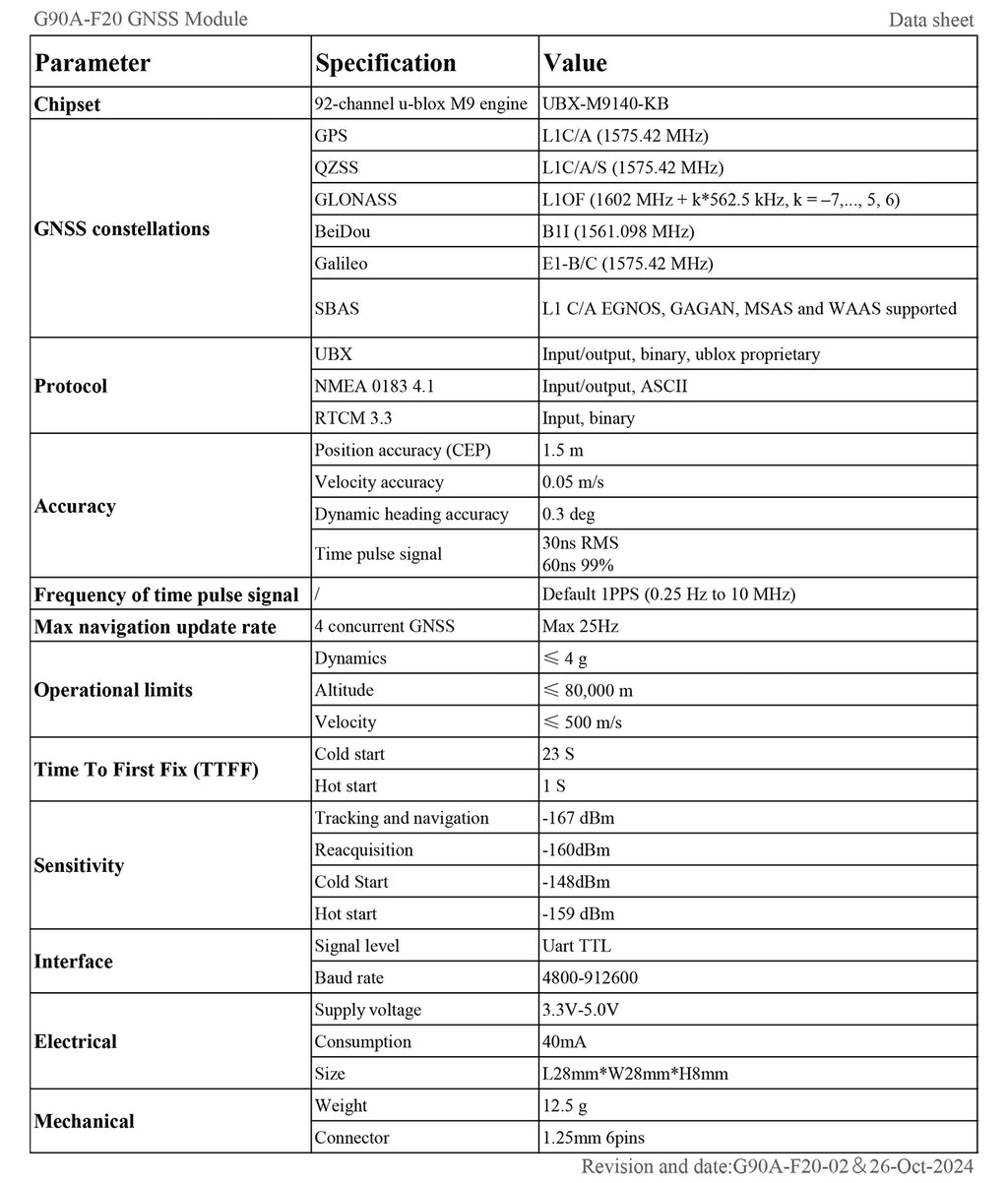

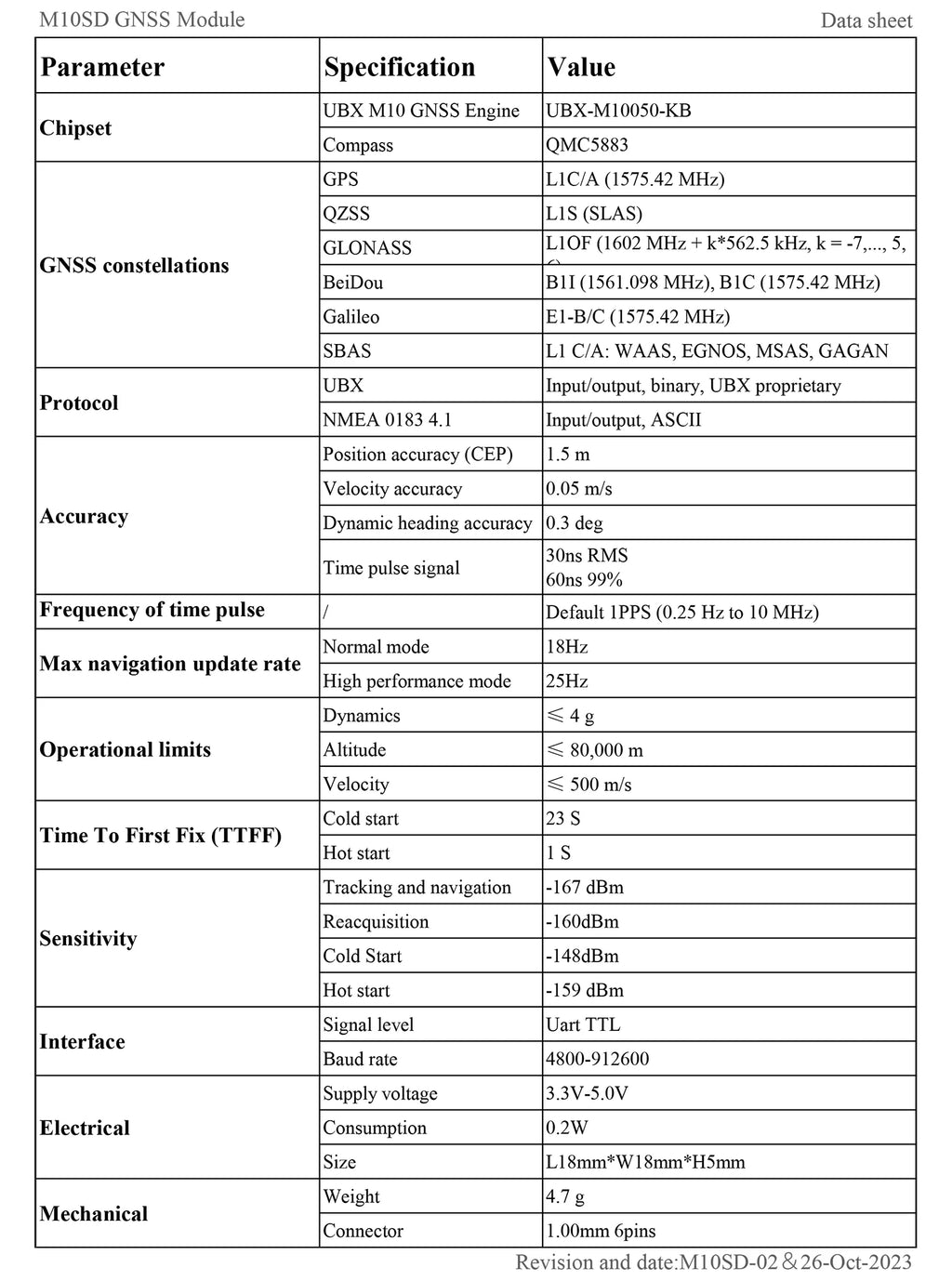

Specification

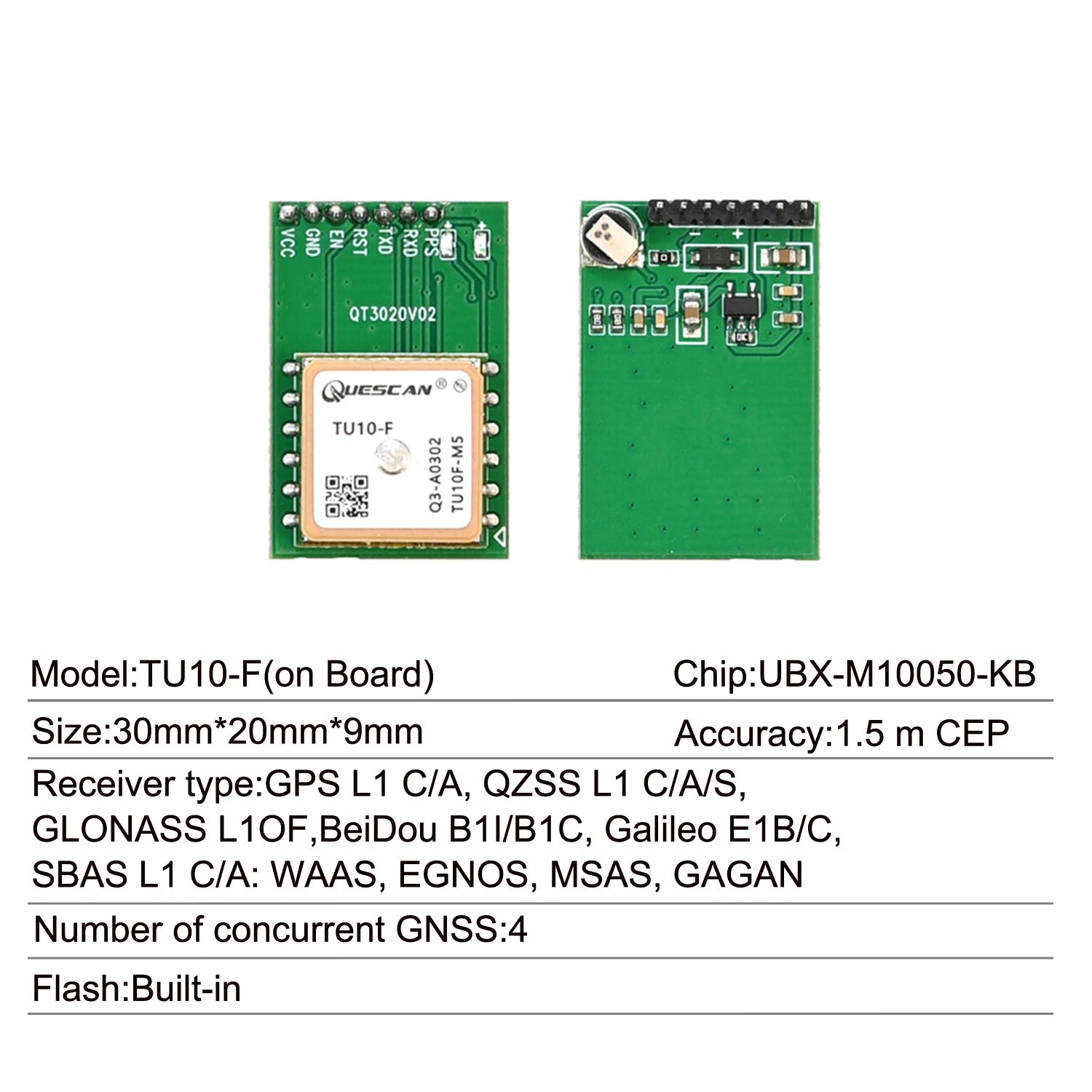

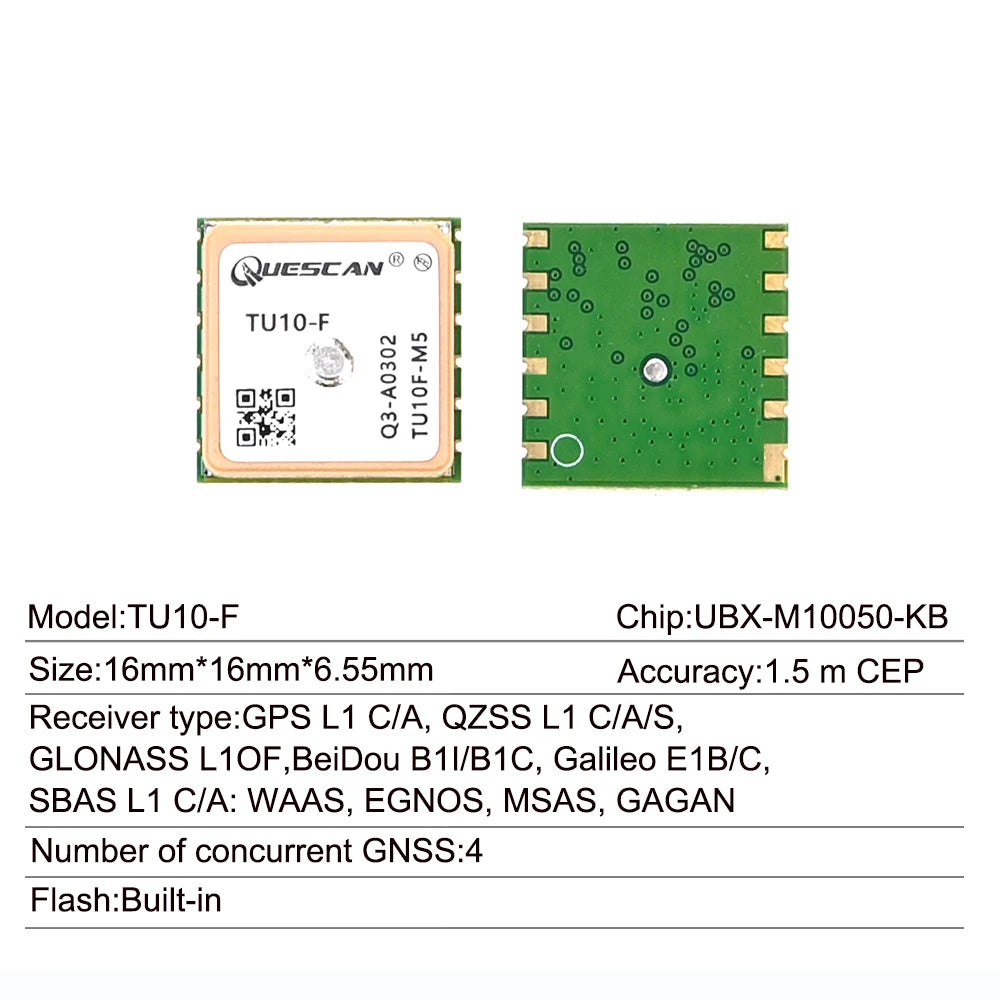

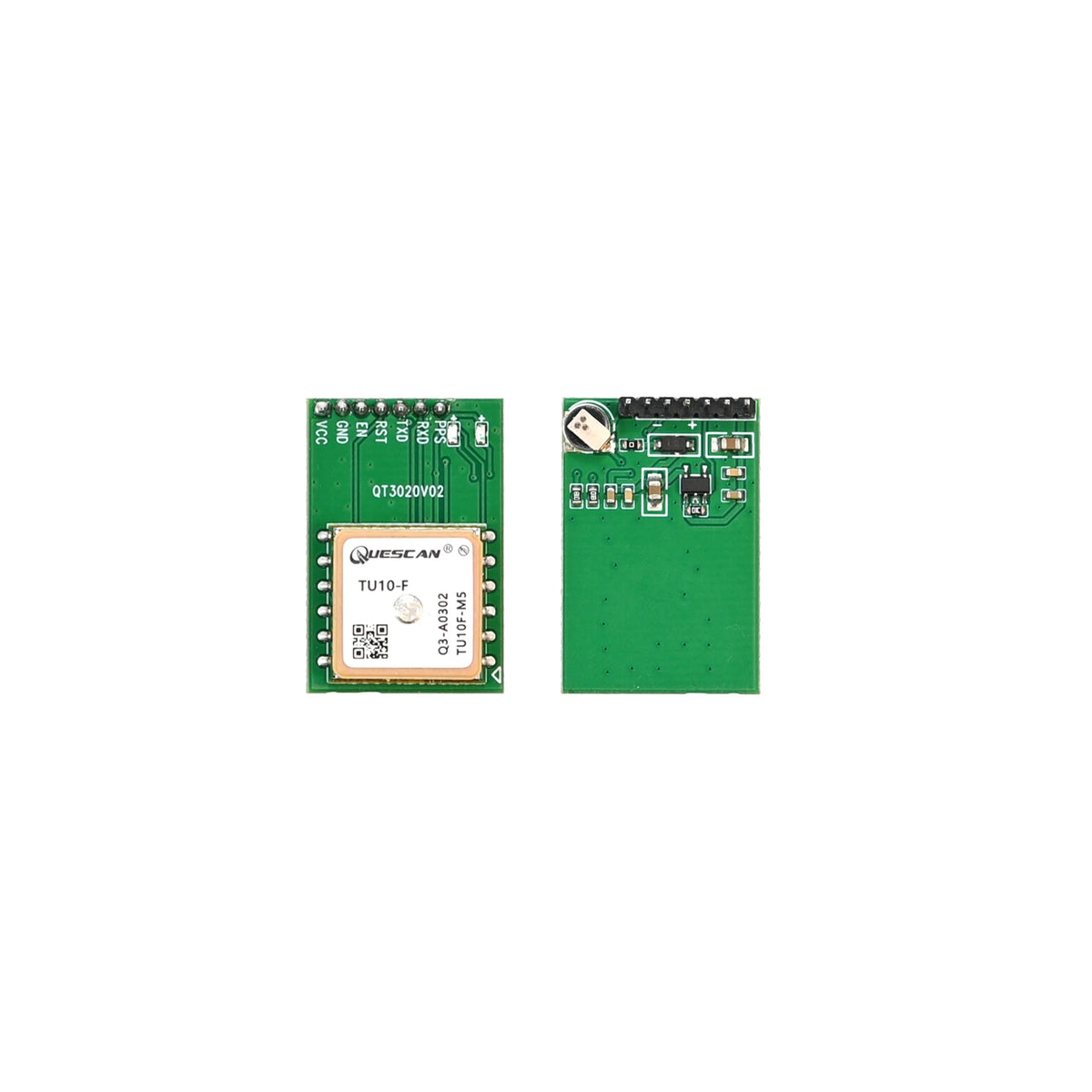

TU10F

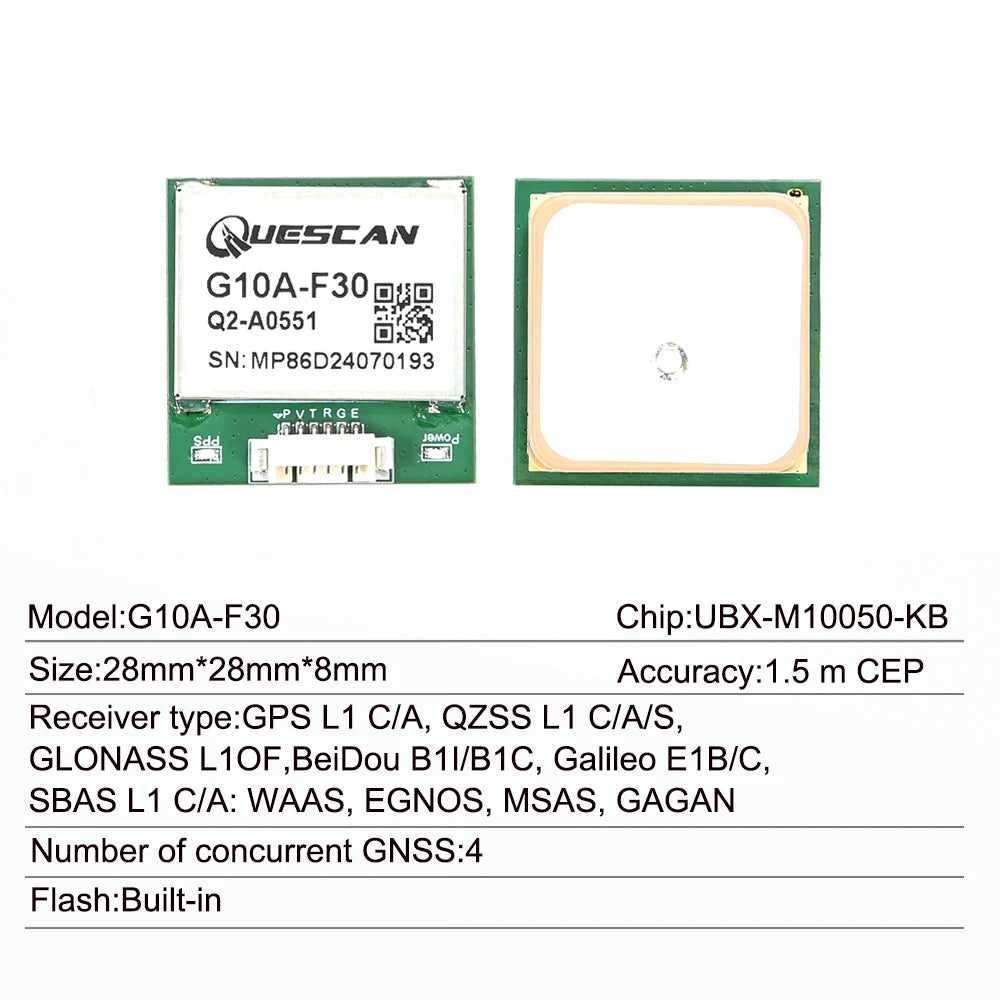

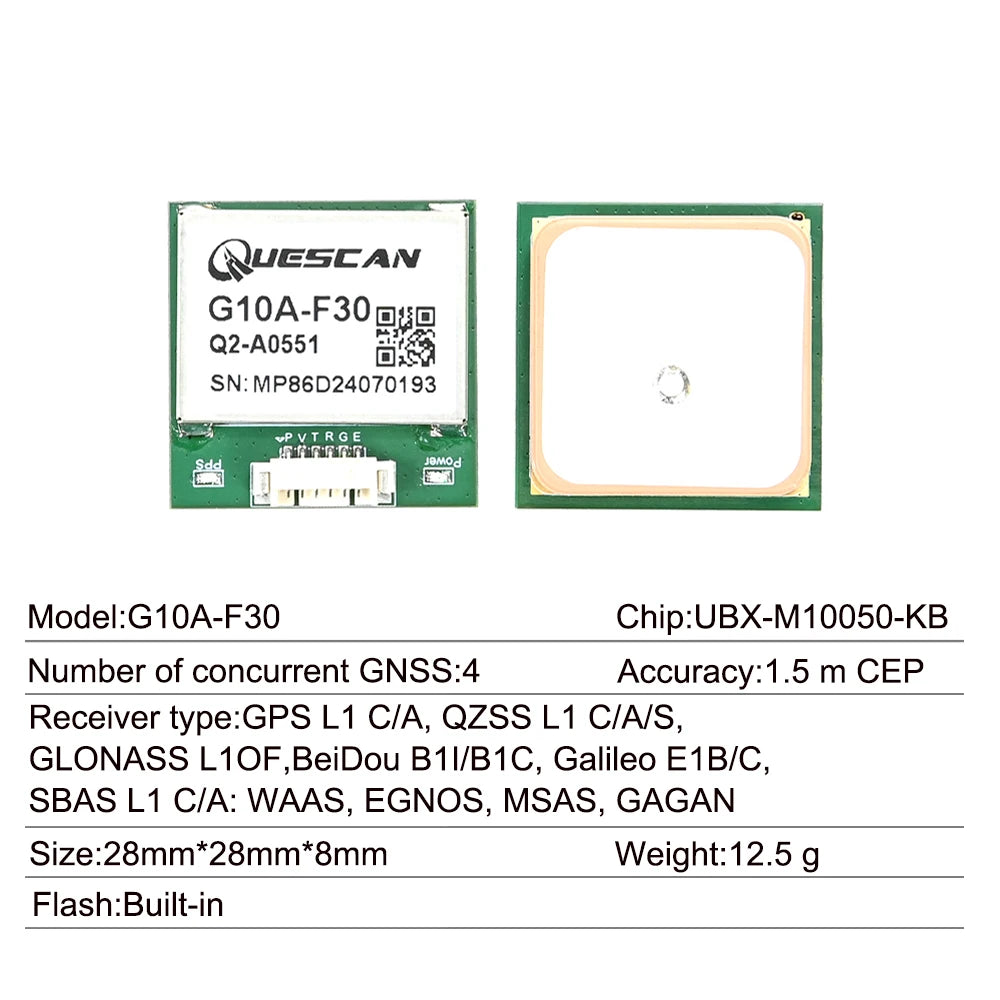

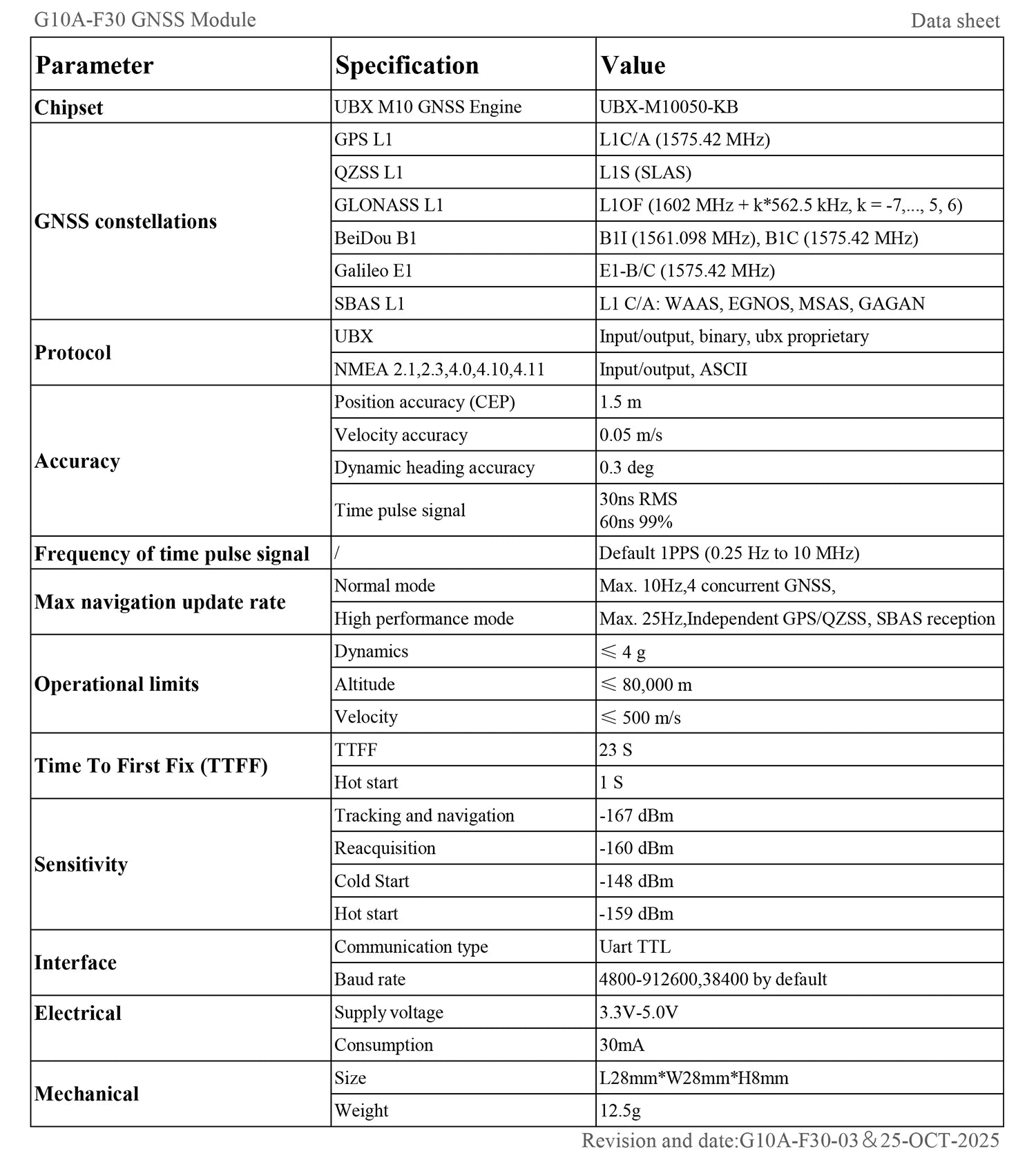

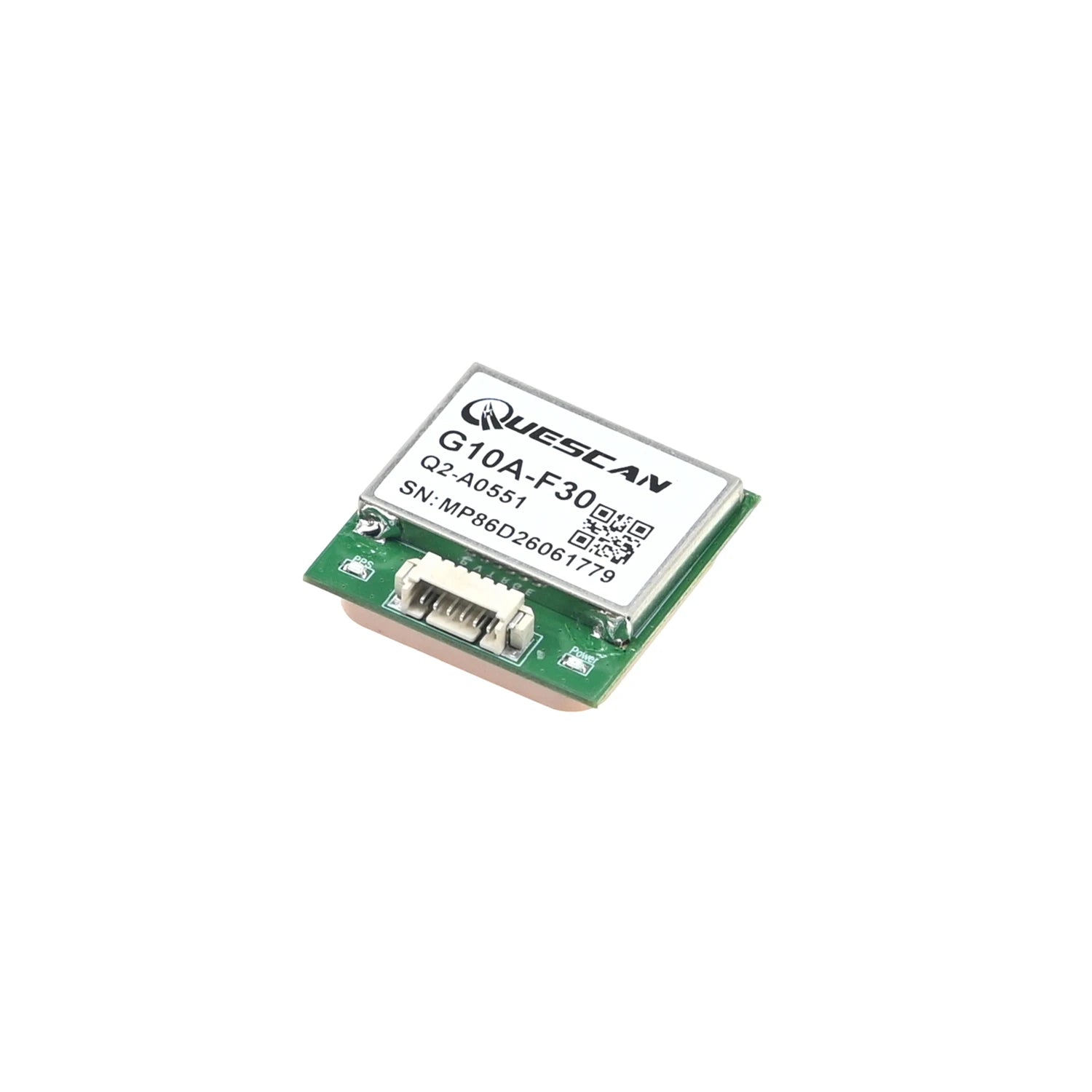

G10A-F30

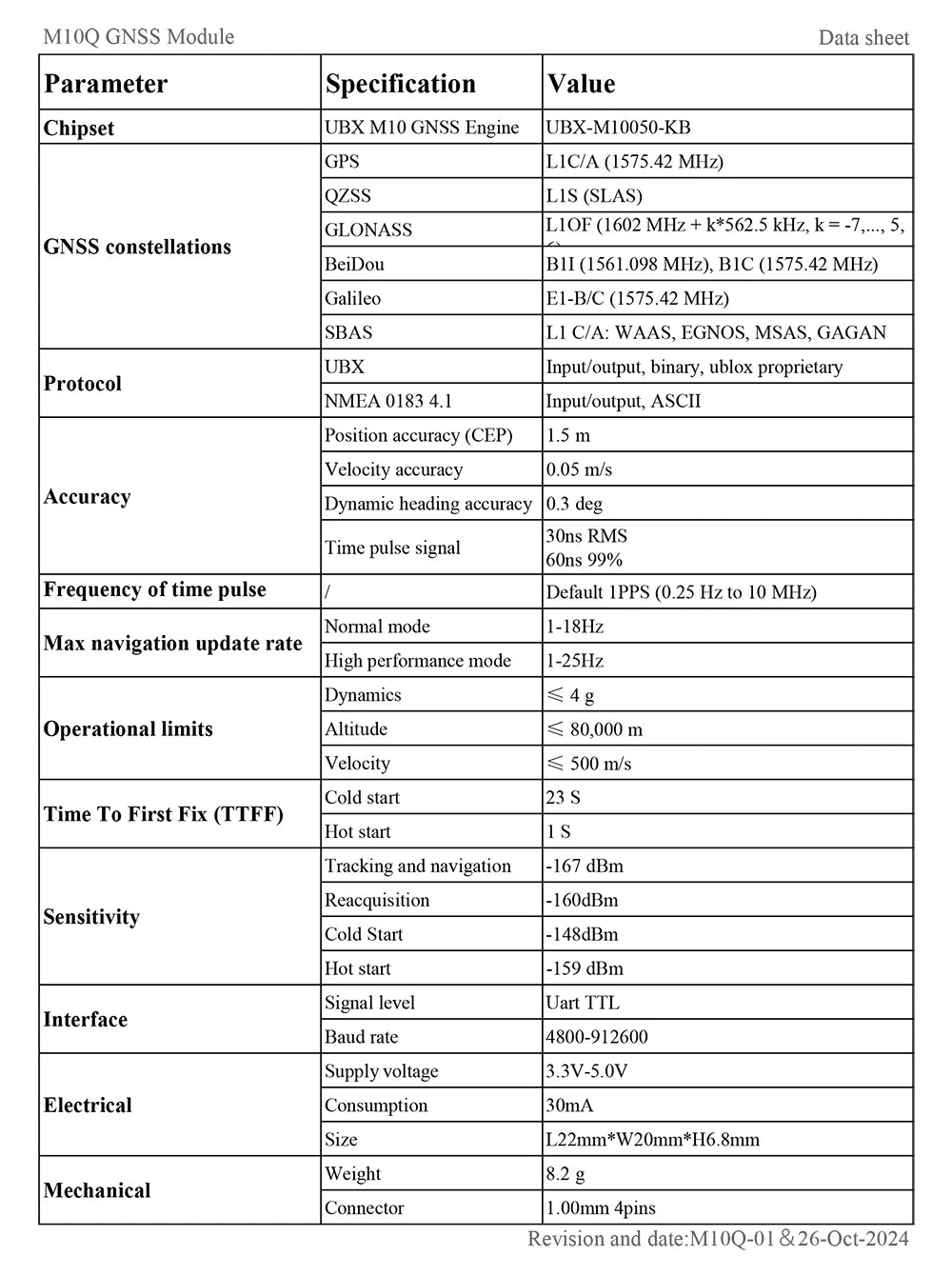

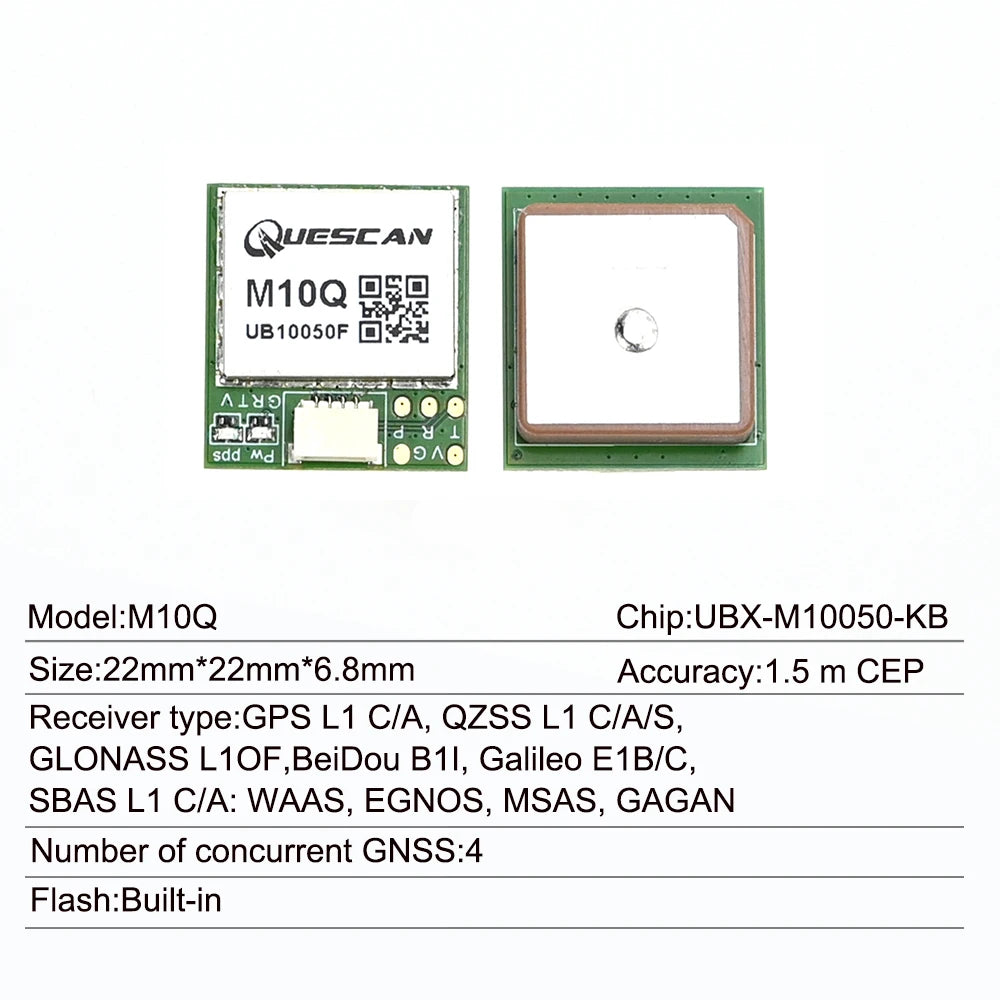

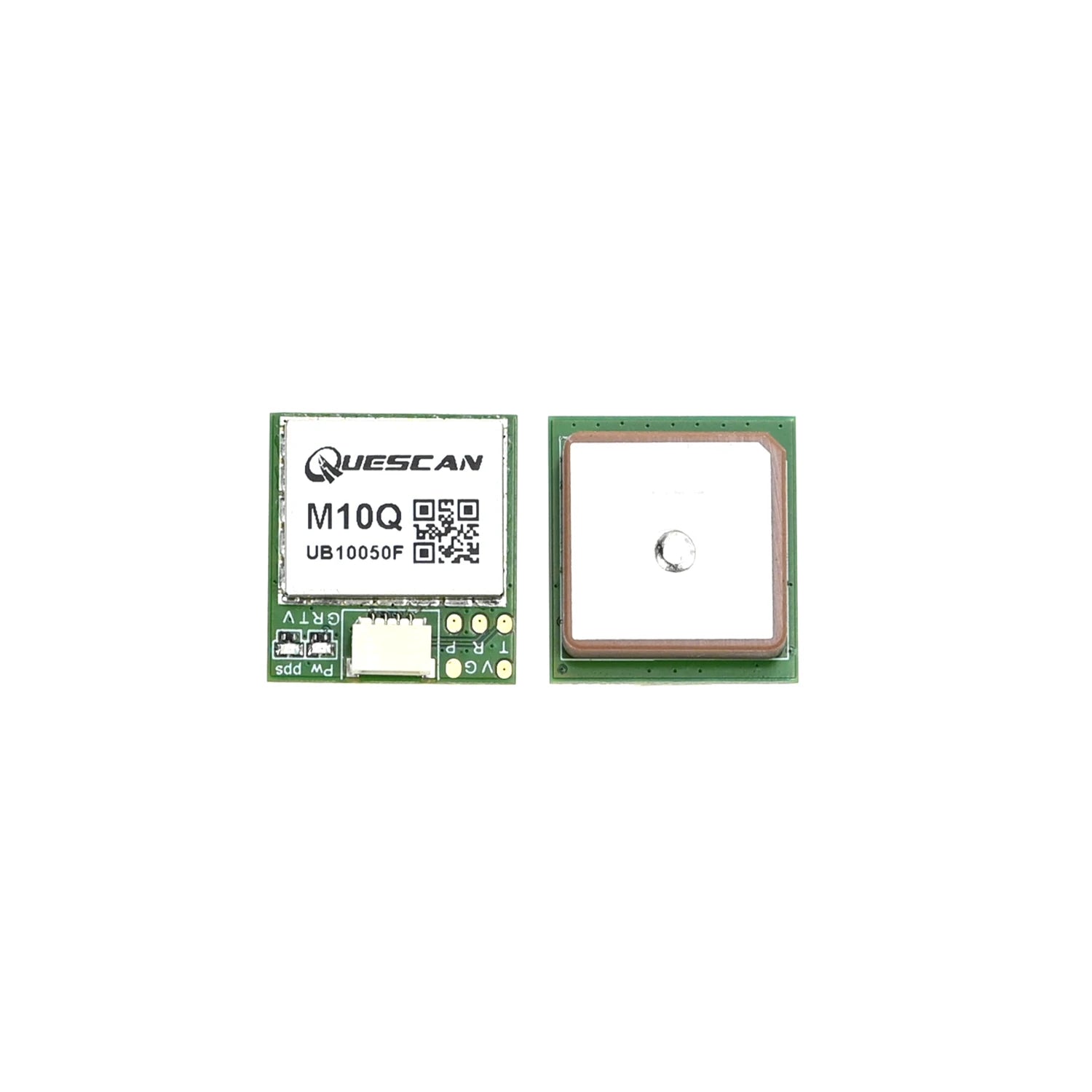

M10Q

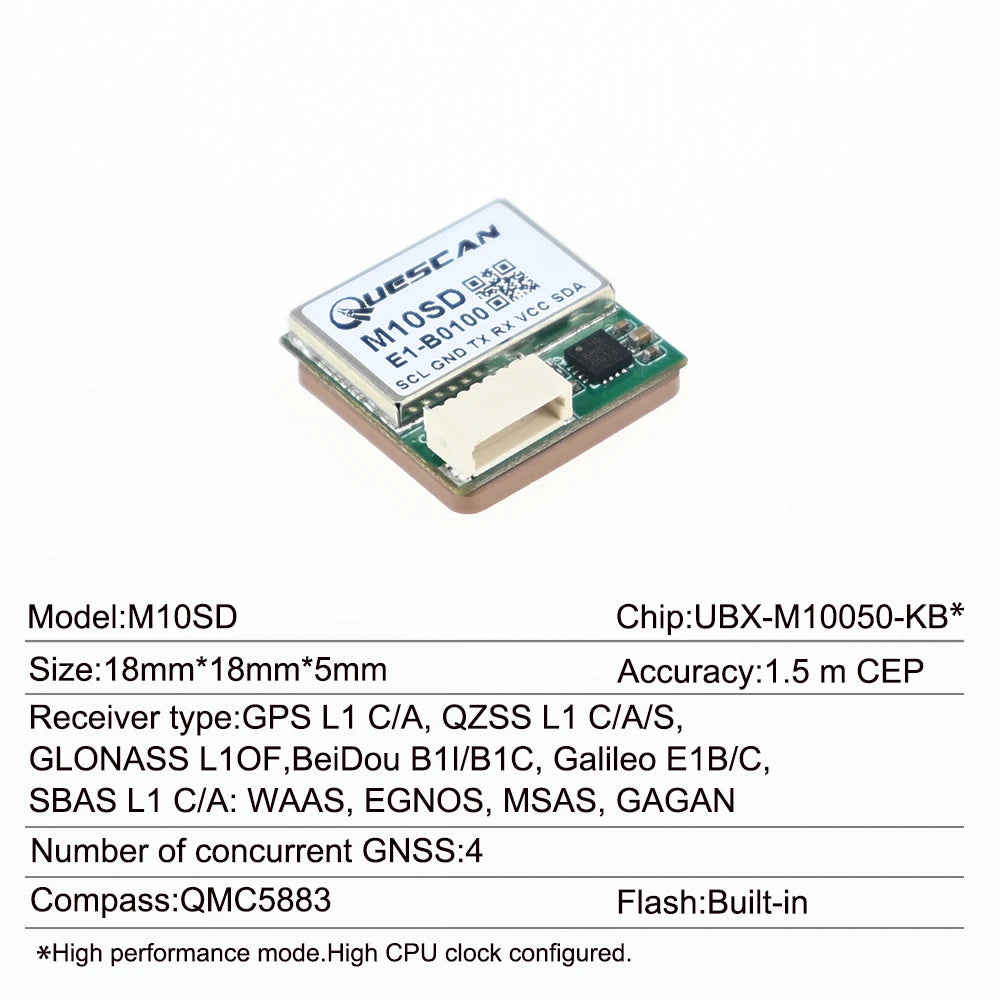

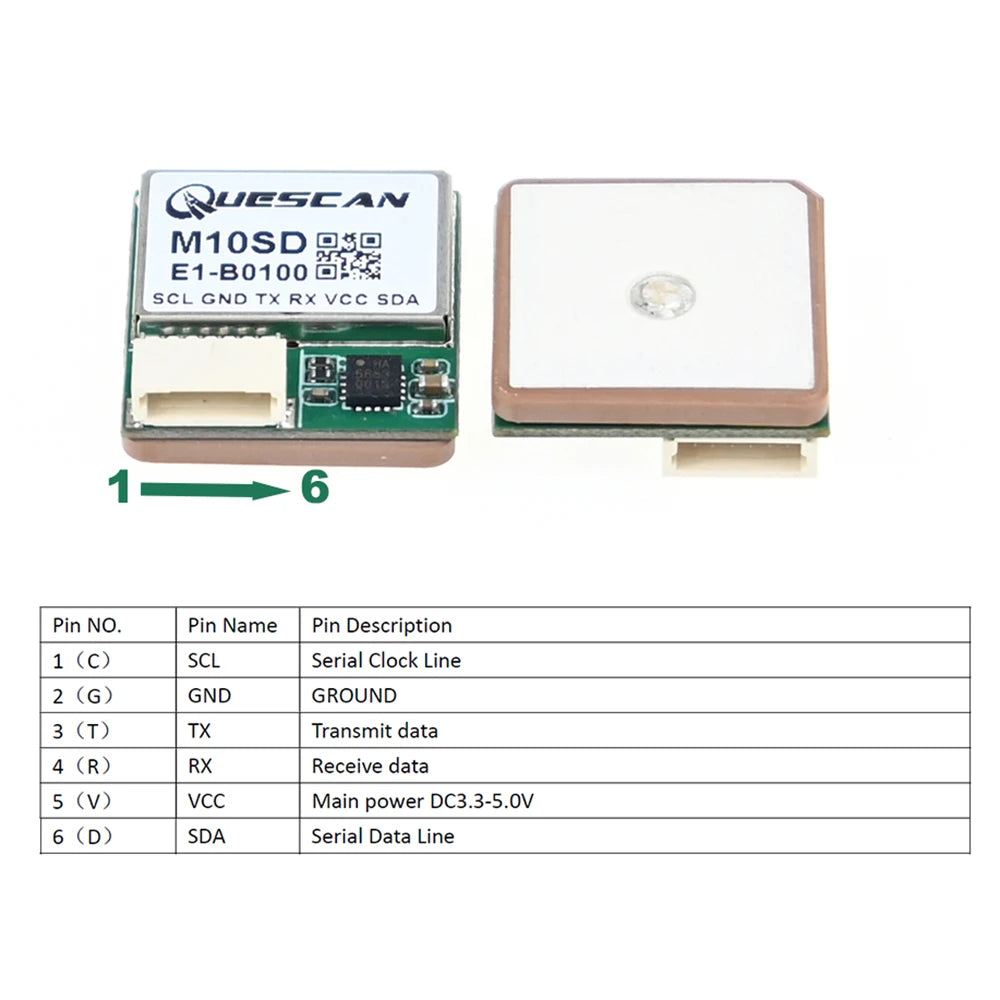

M10SD

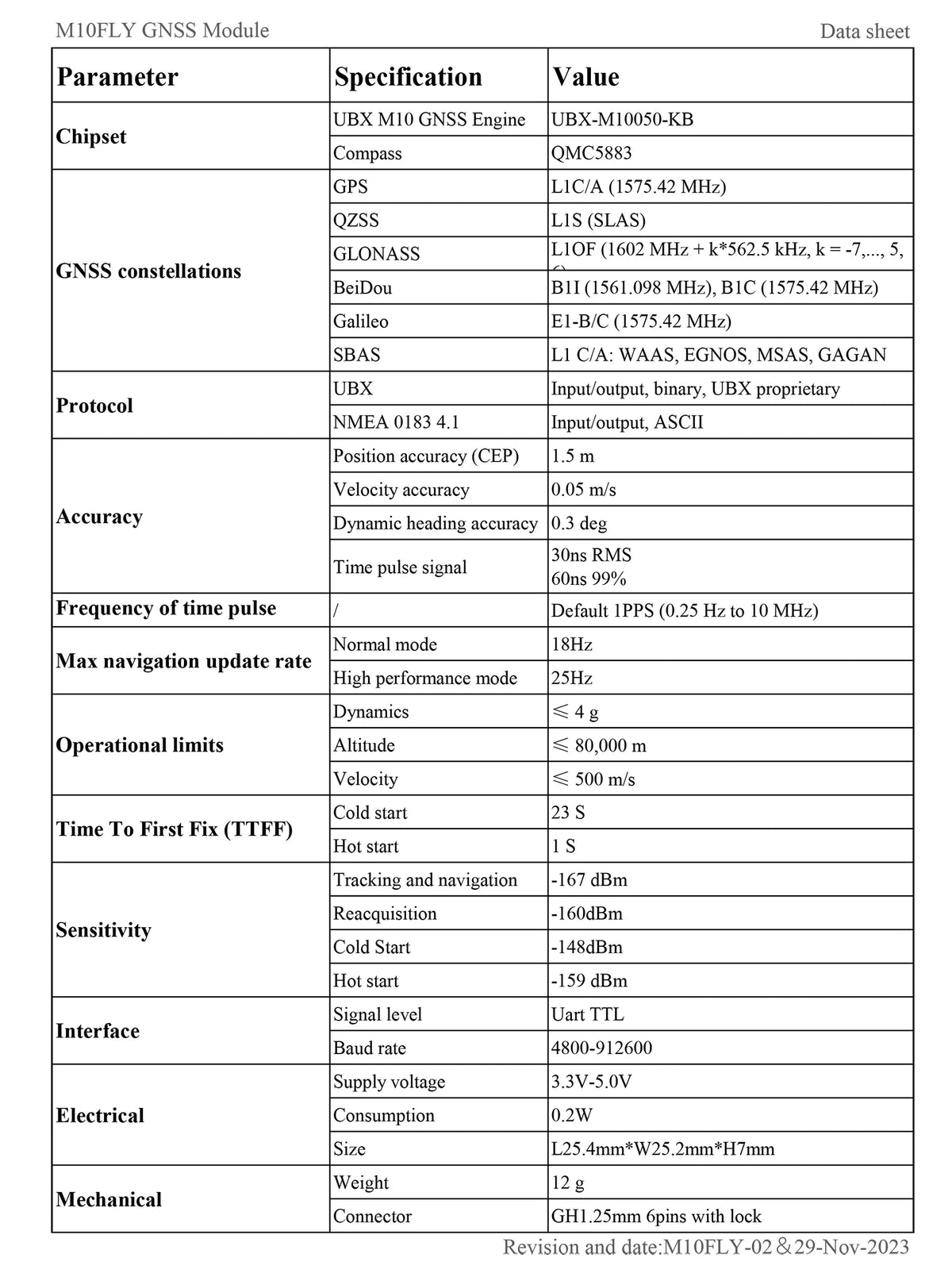

M10FLY

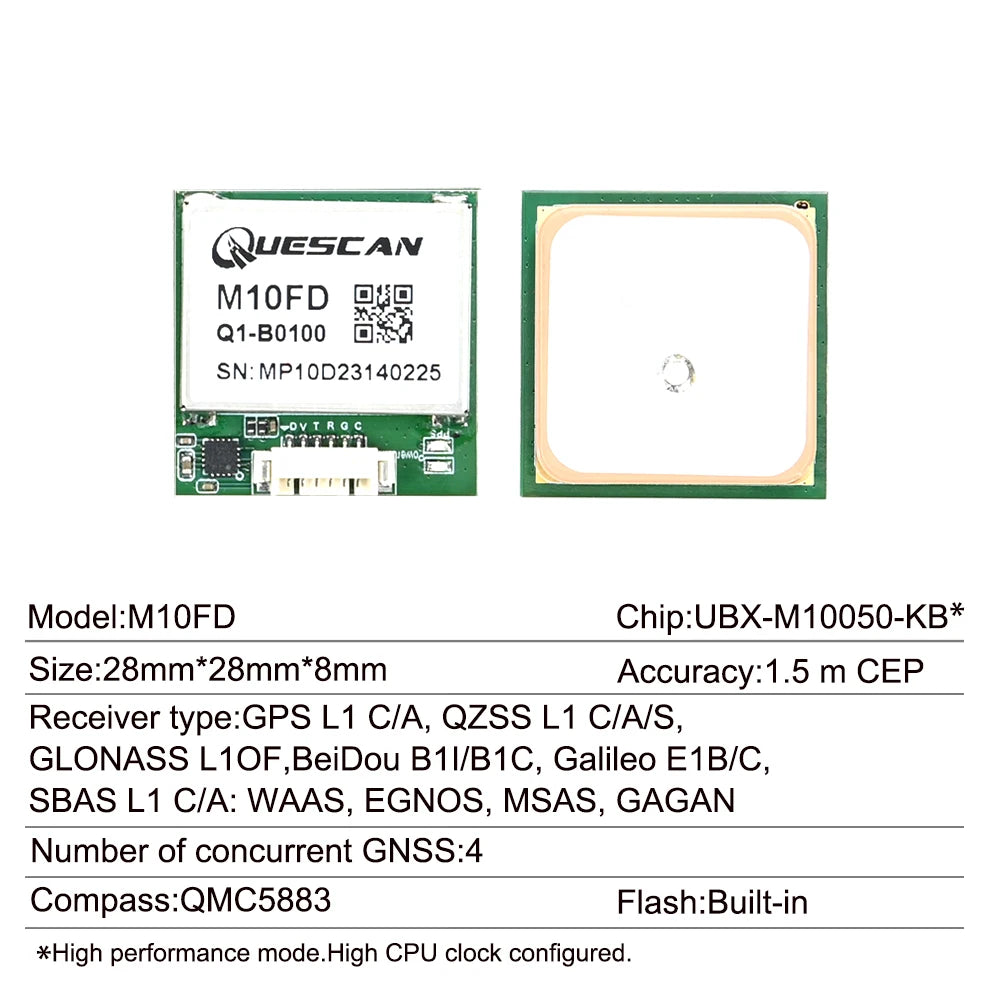

M10FD

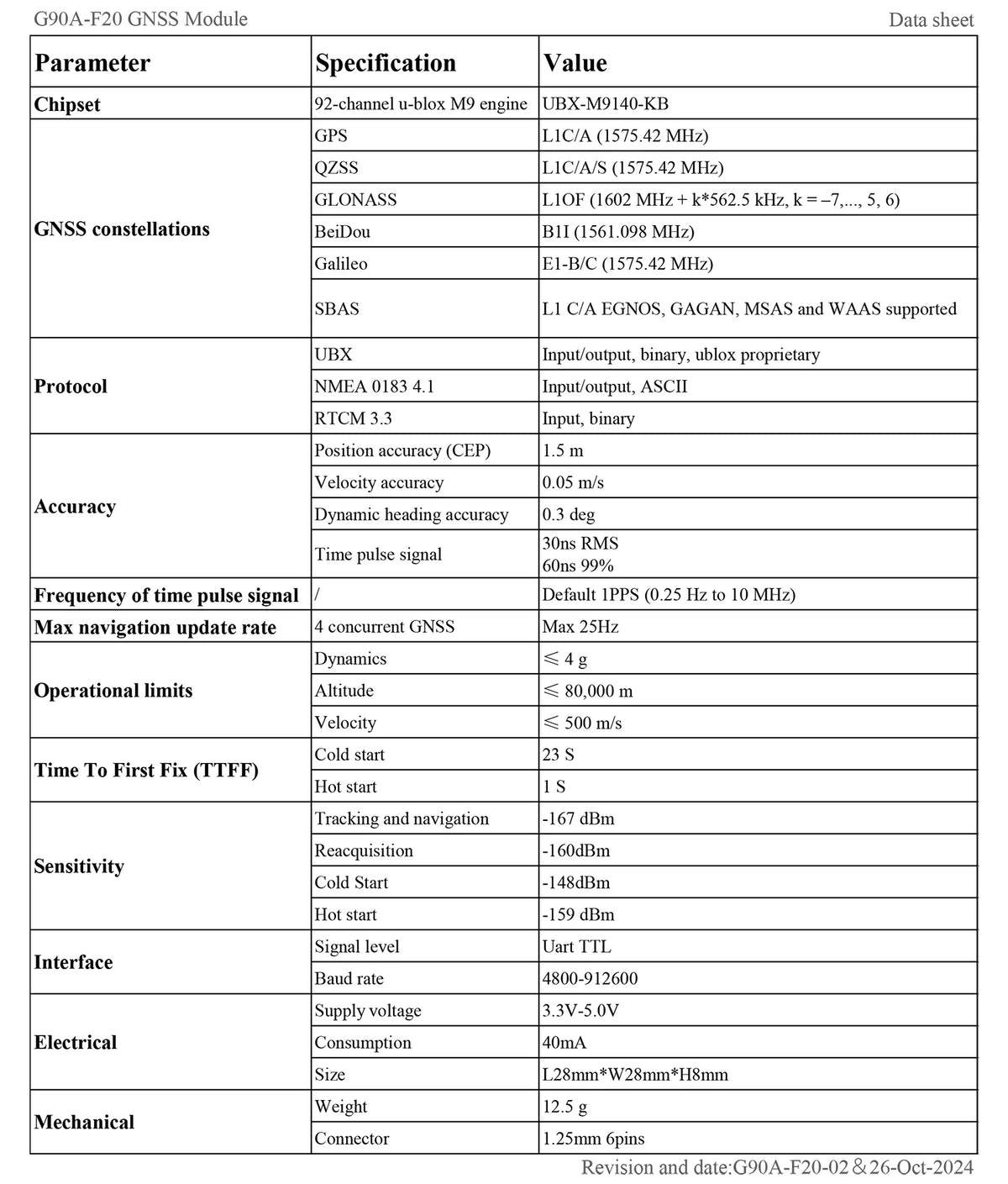

G90A-F20

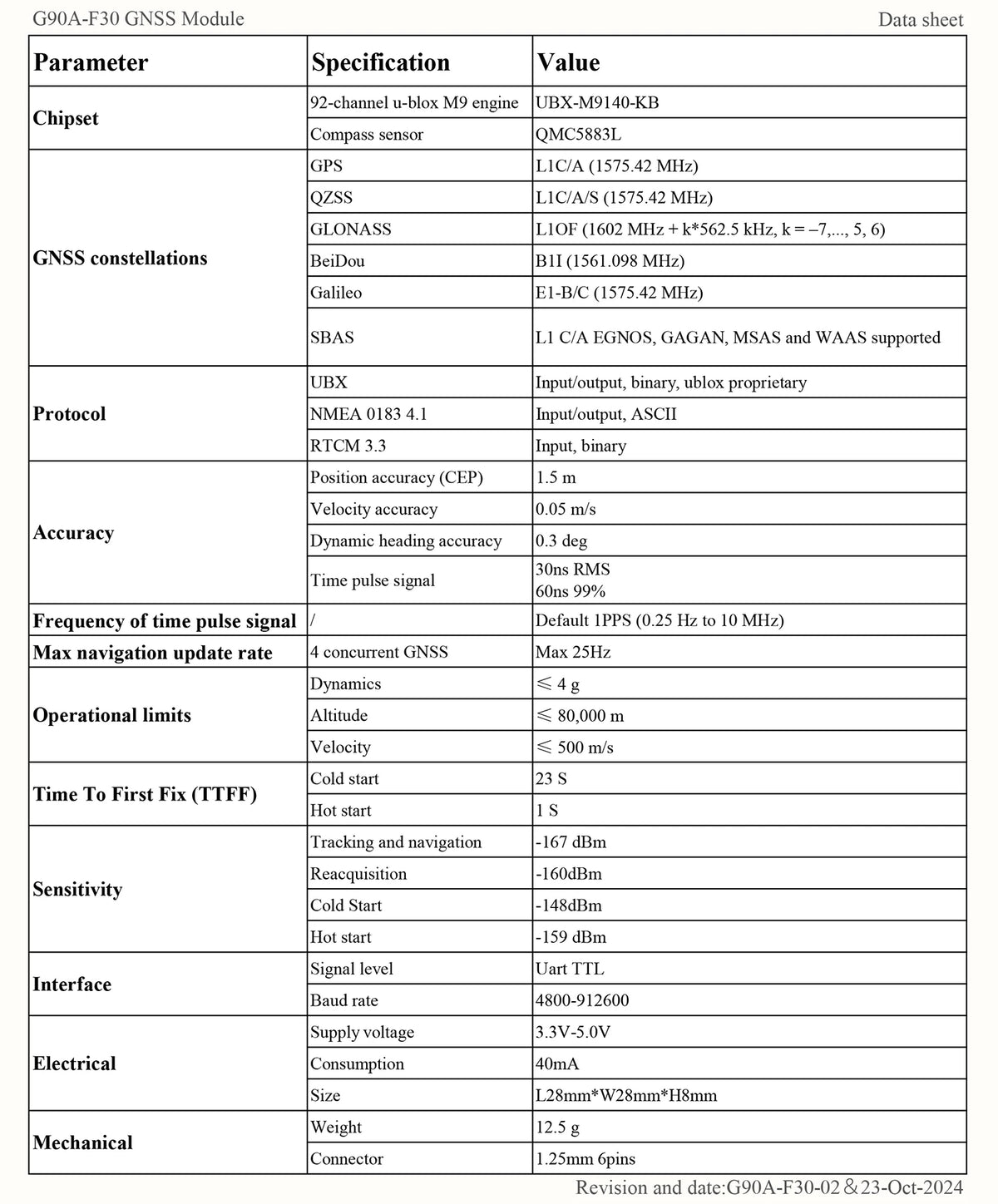

G90A-F30

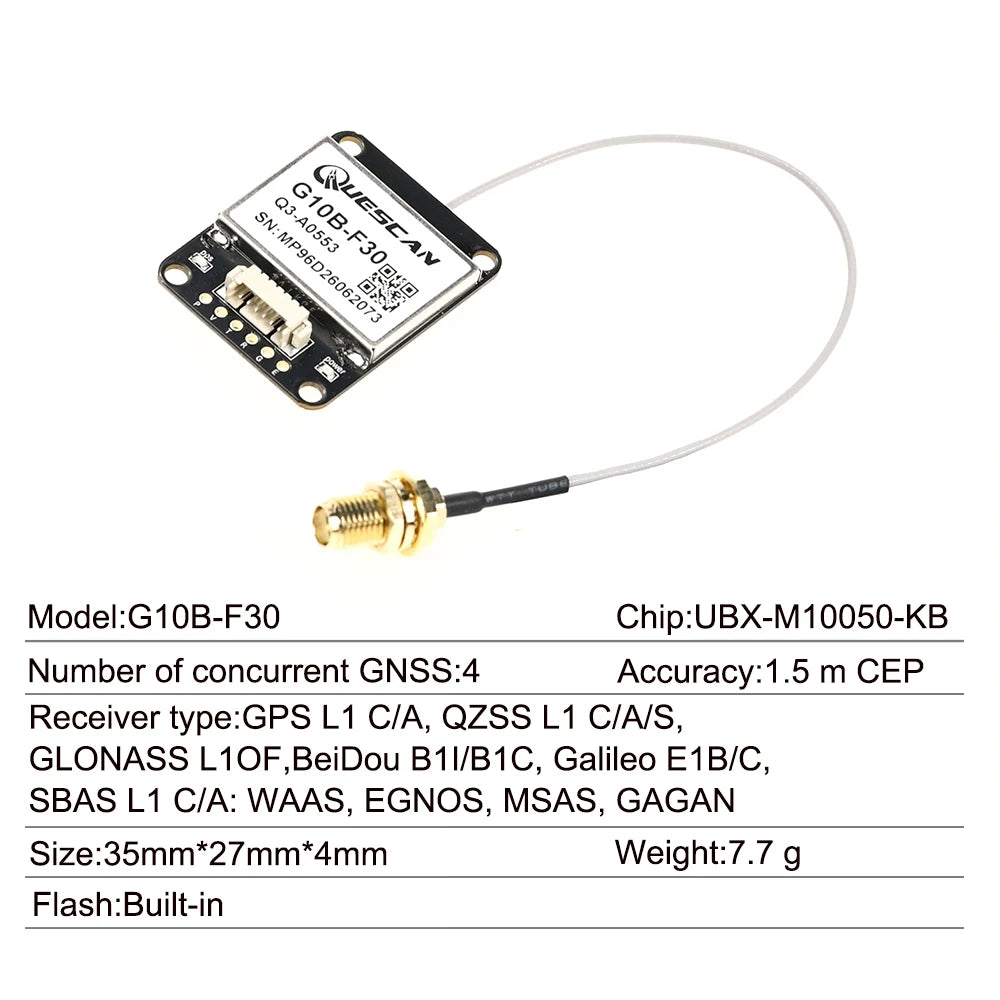

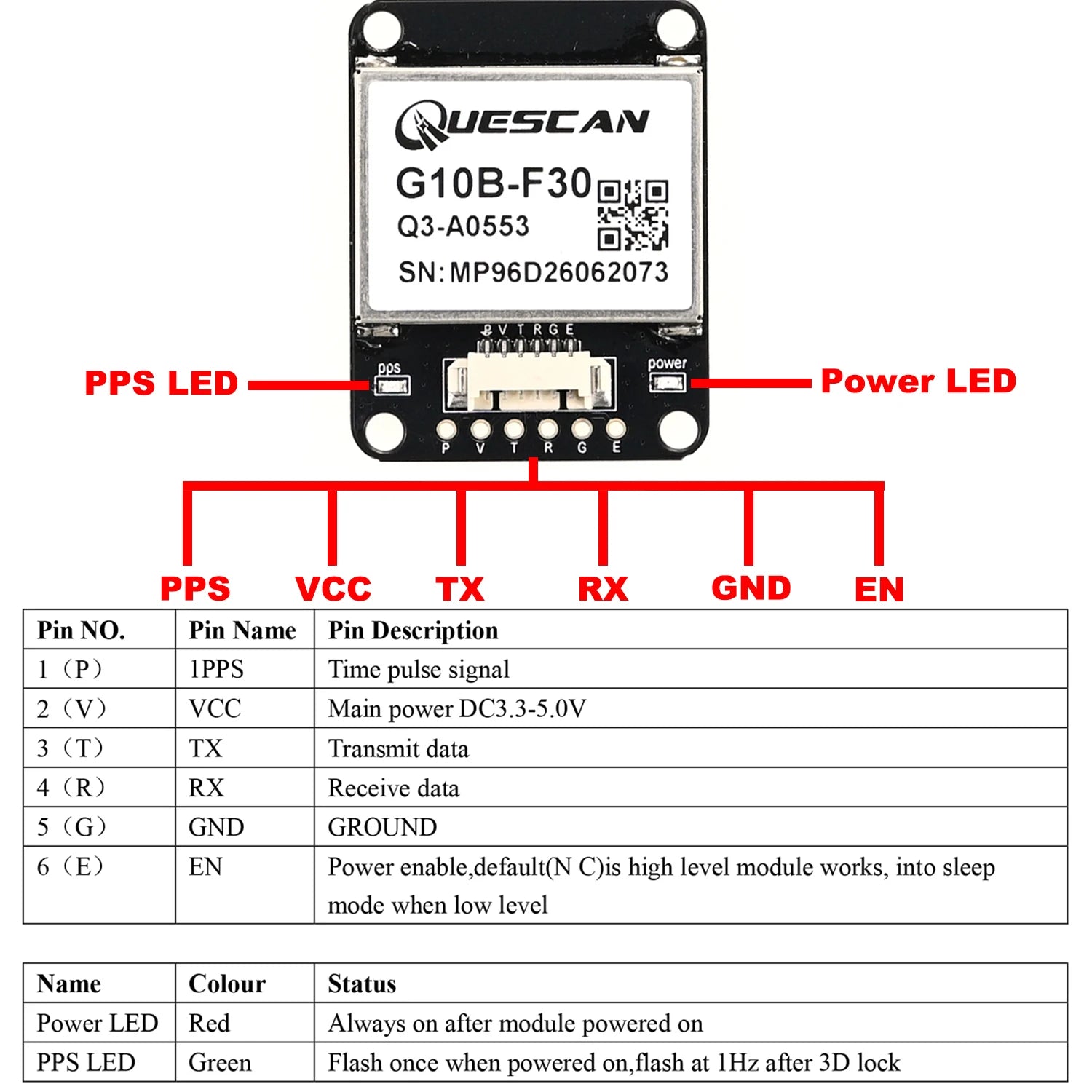

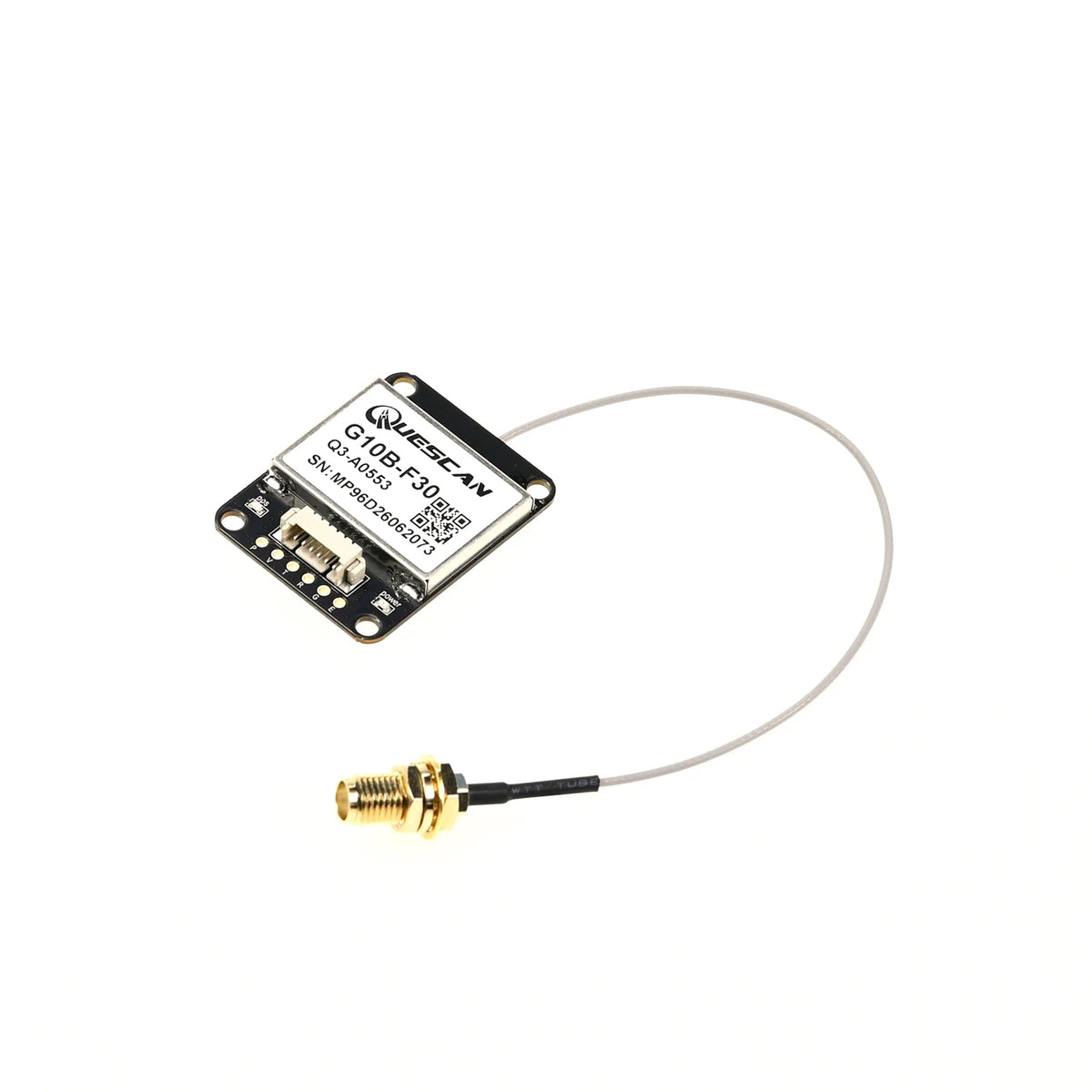

G10B-F30

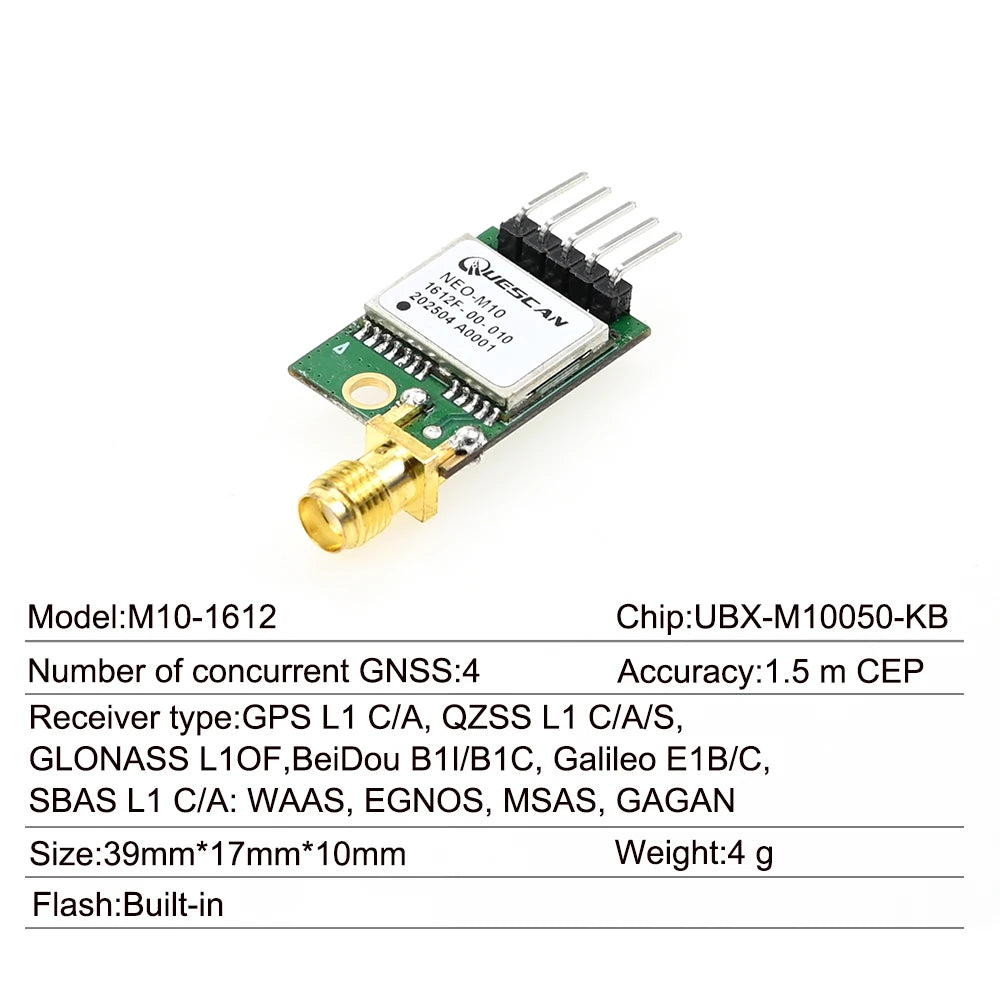

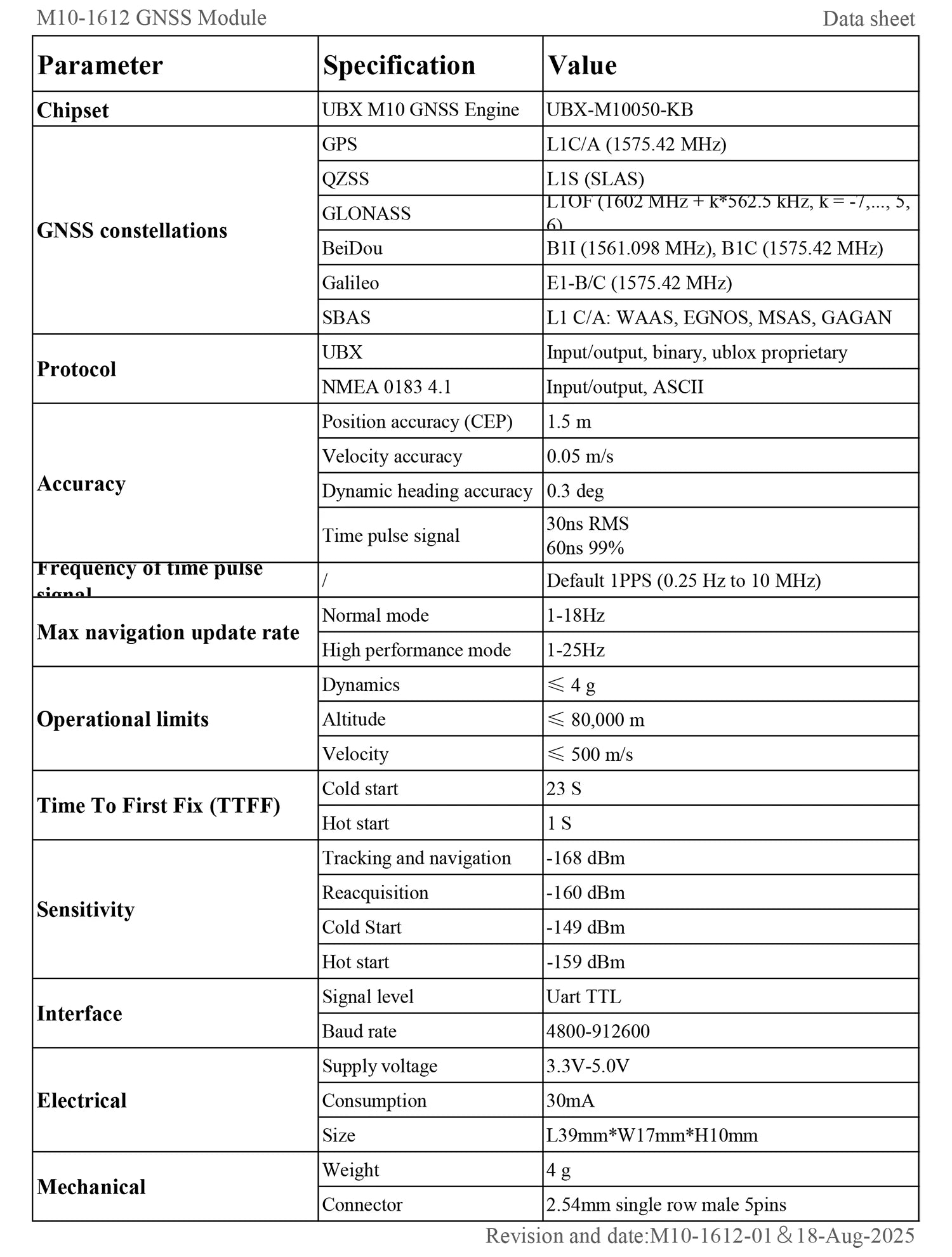

M10-1612

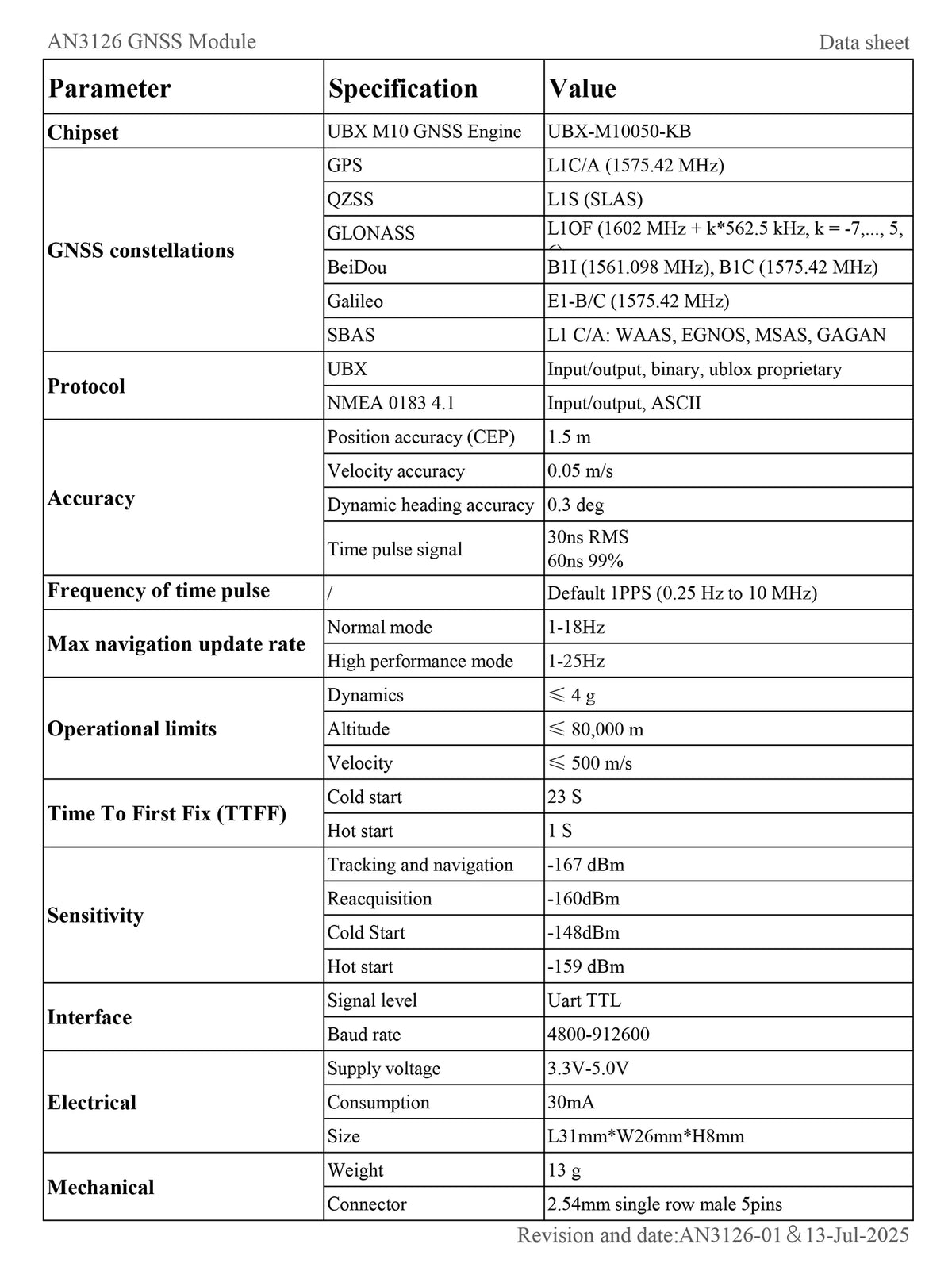

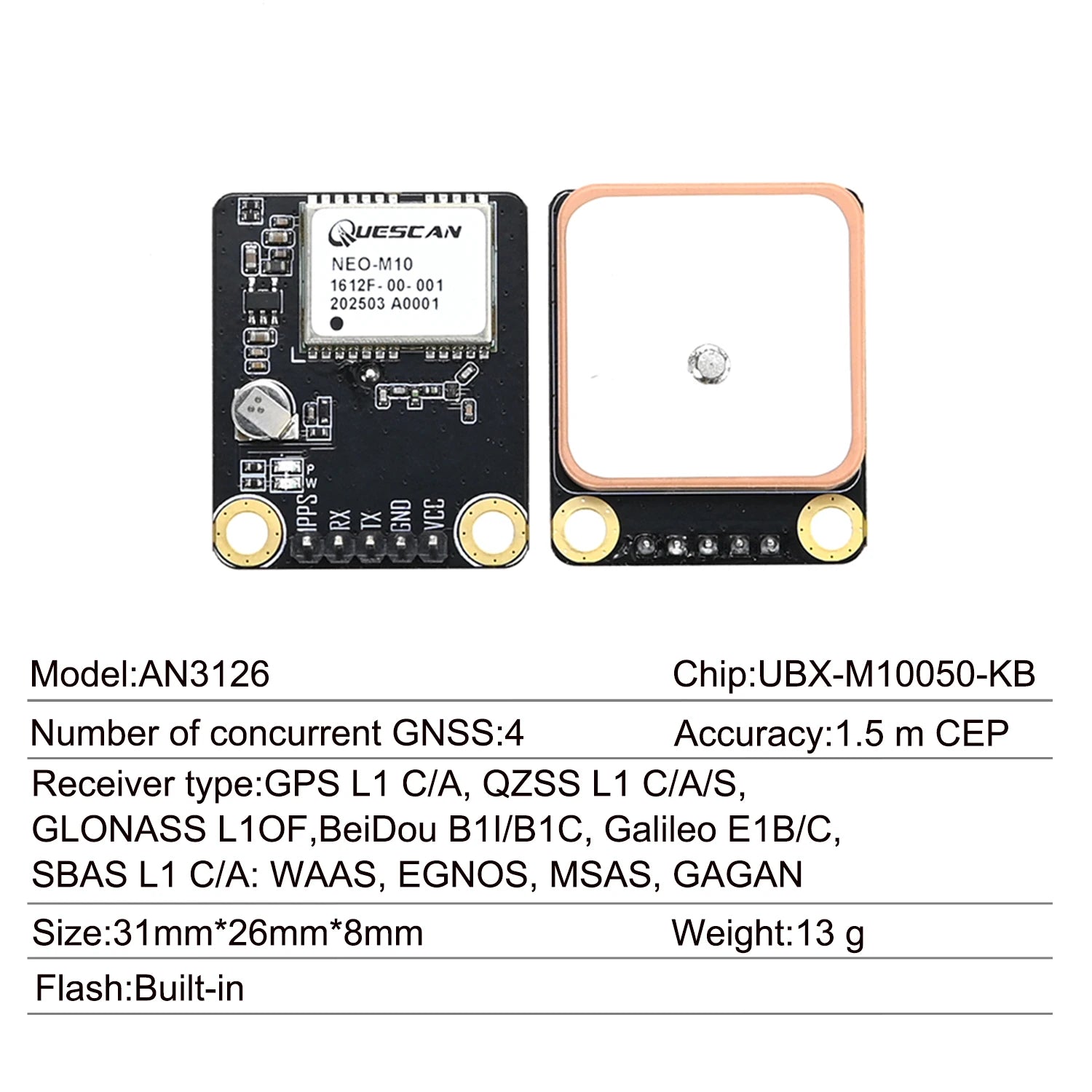

A3126

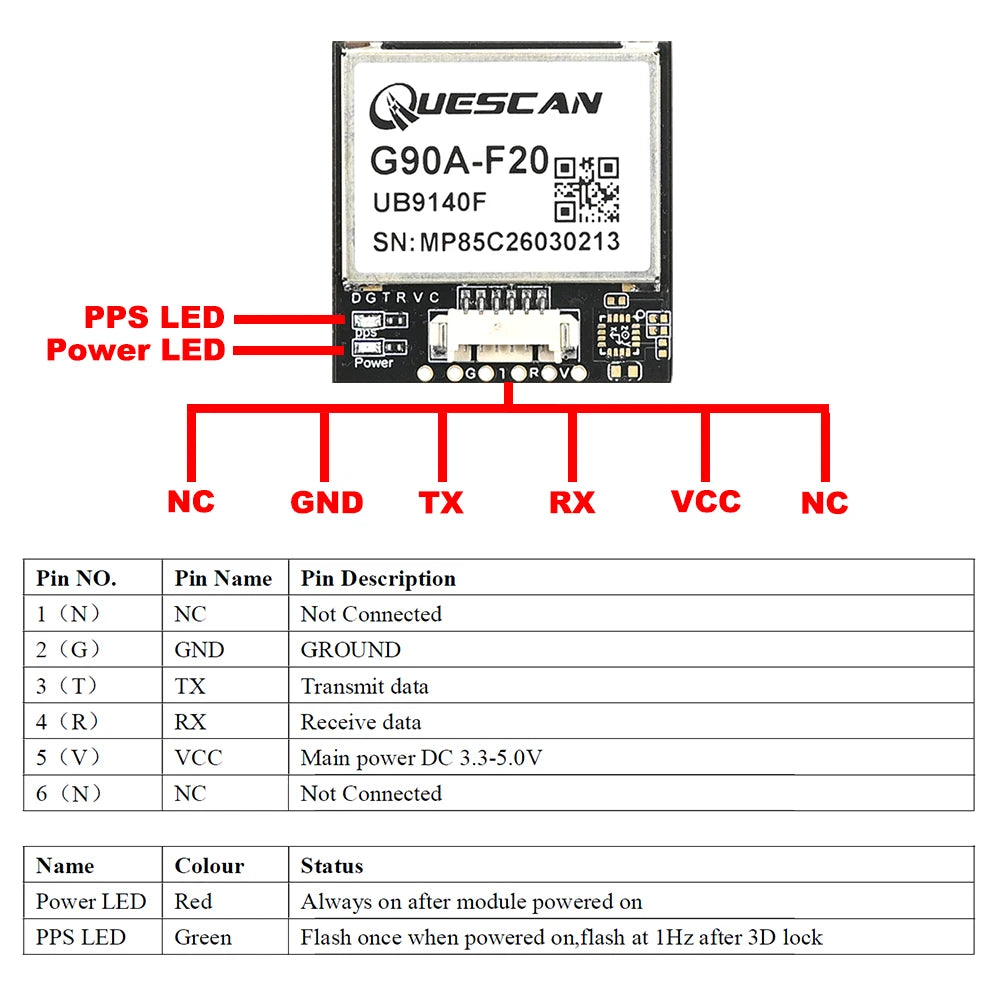

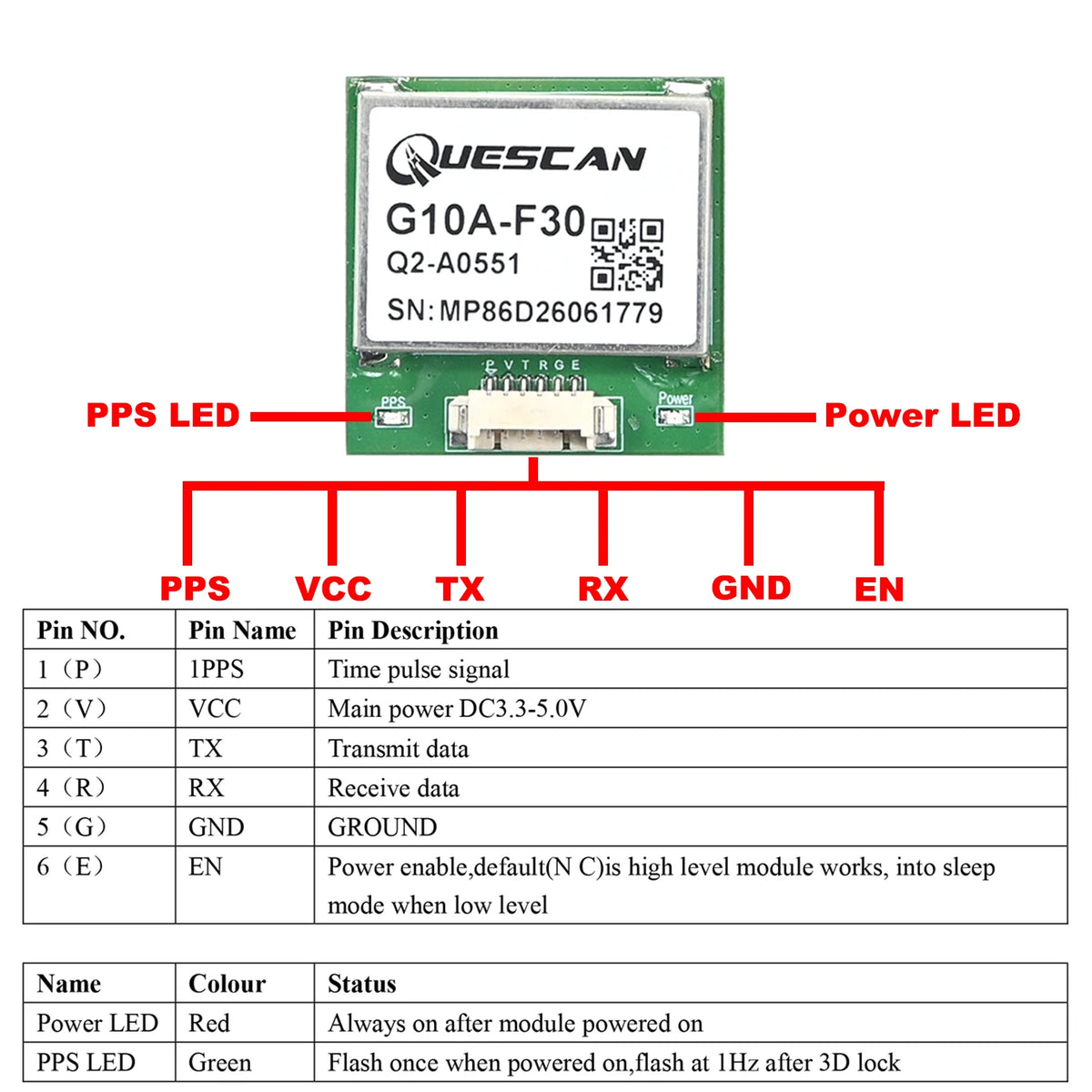

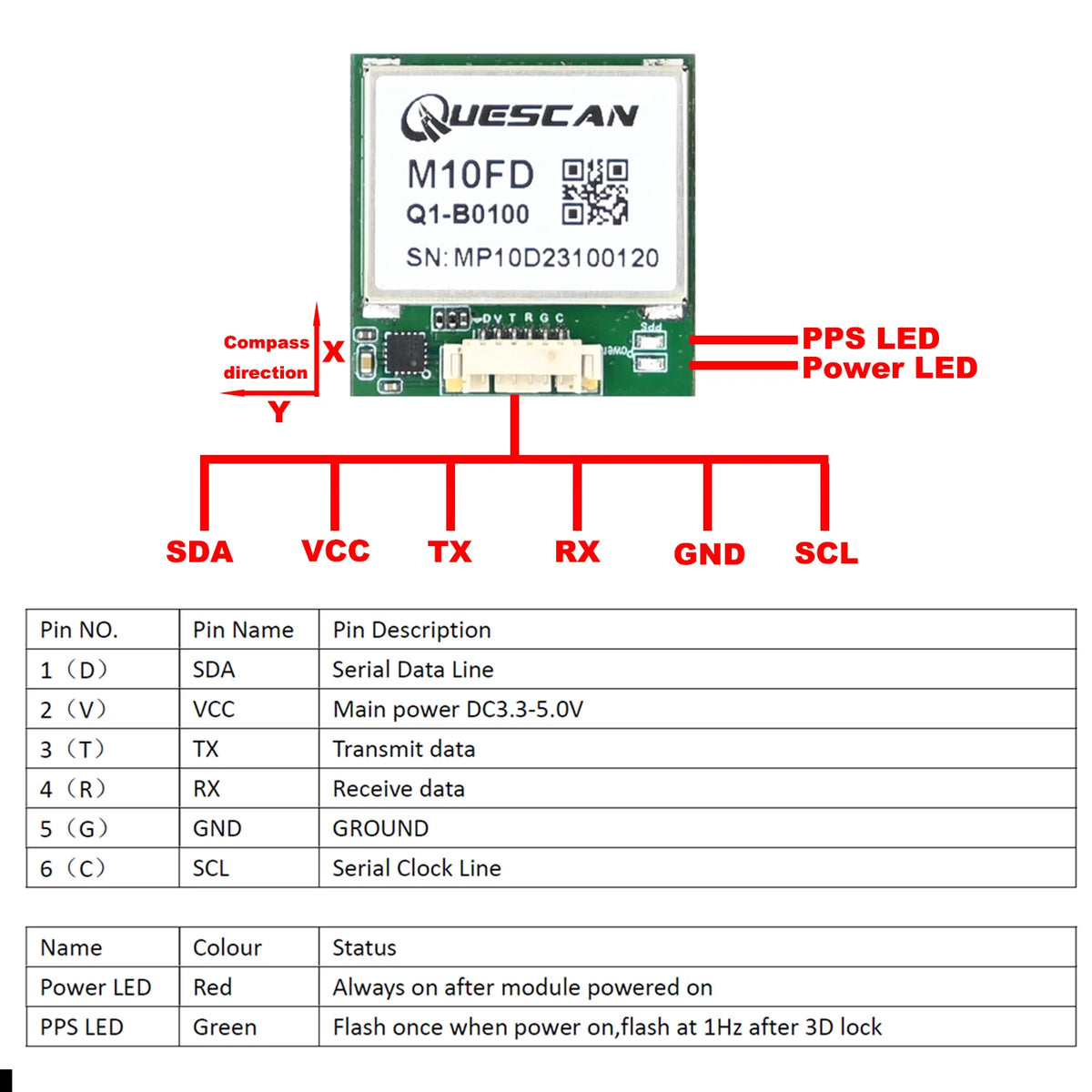

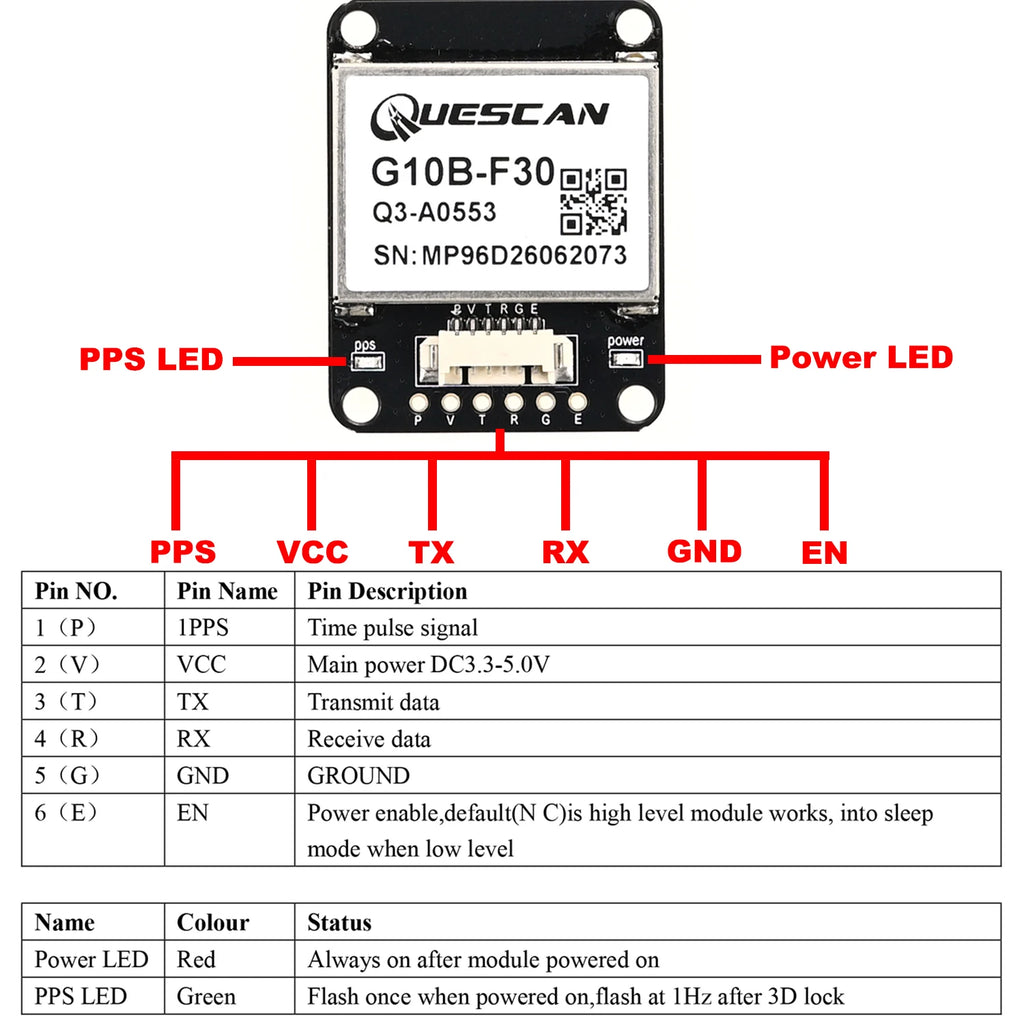

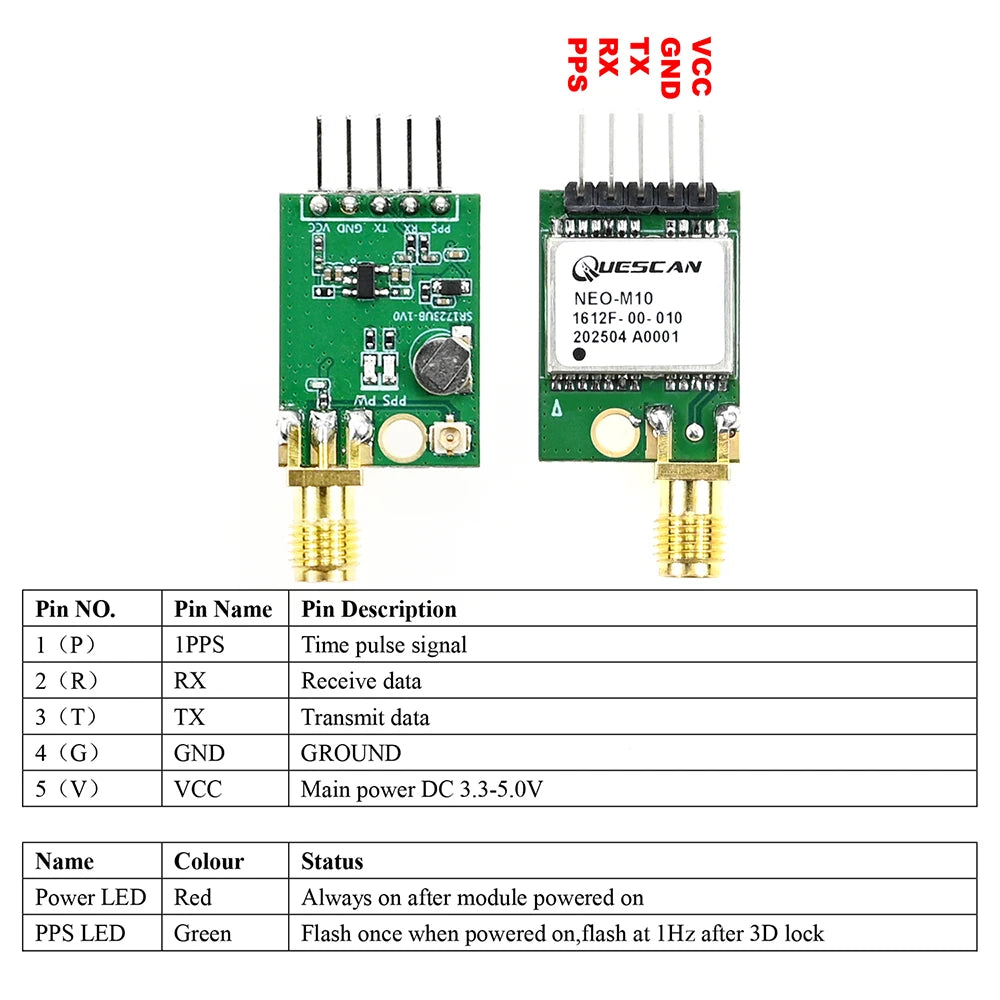

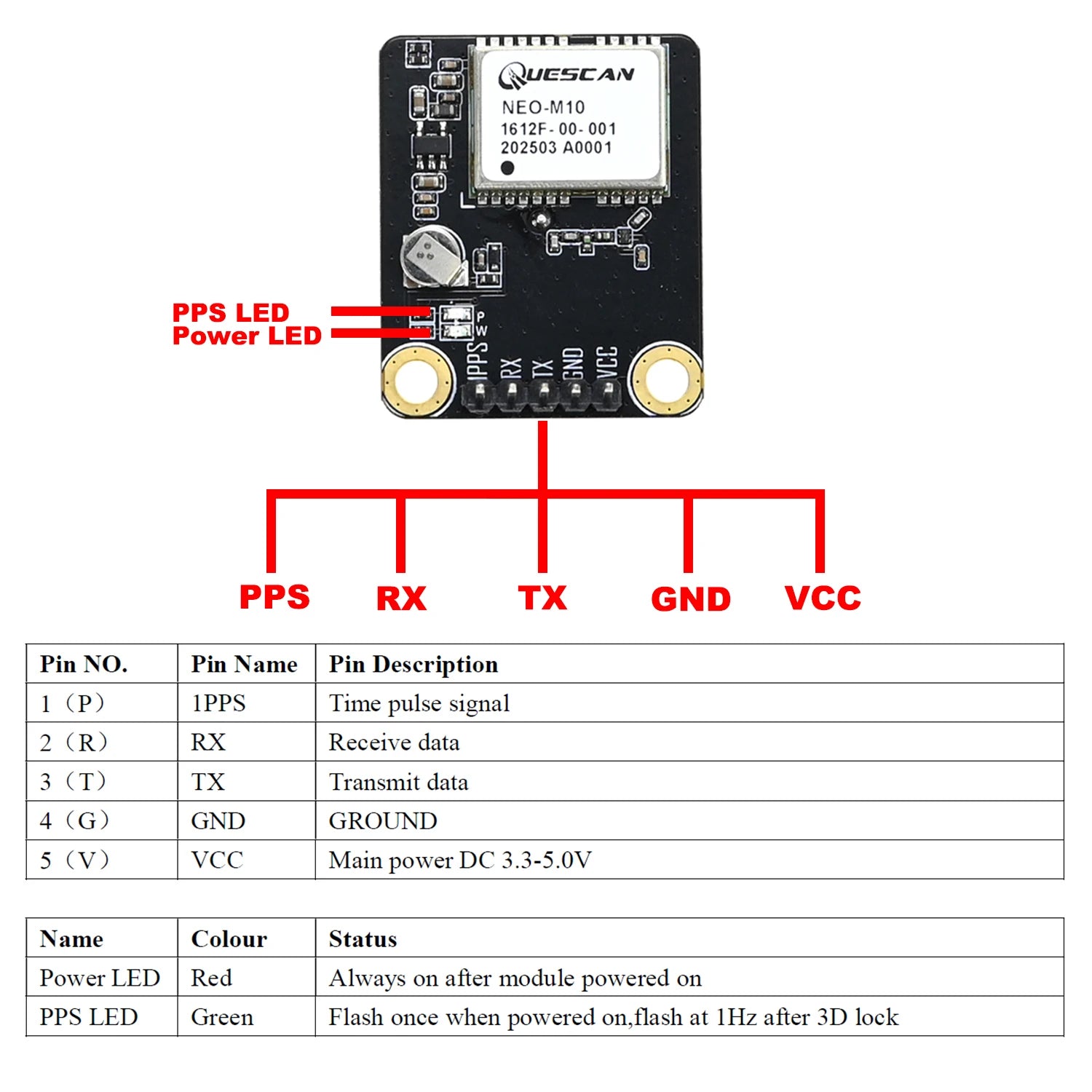

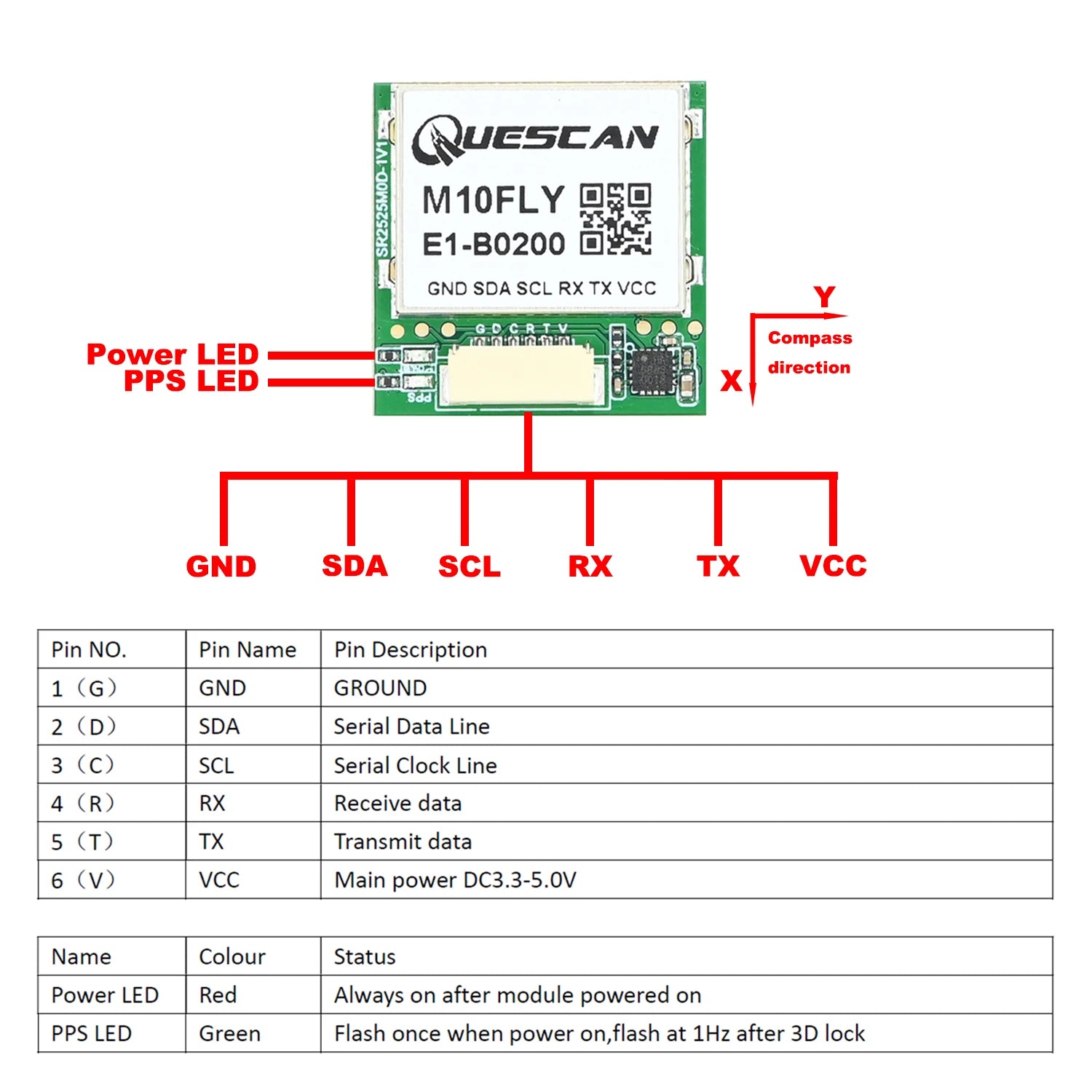

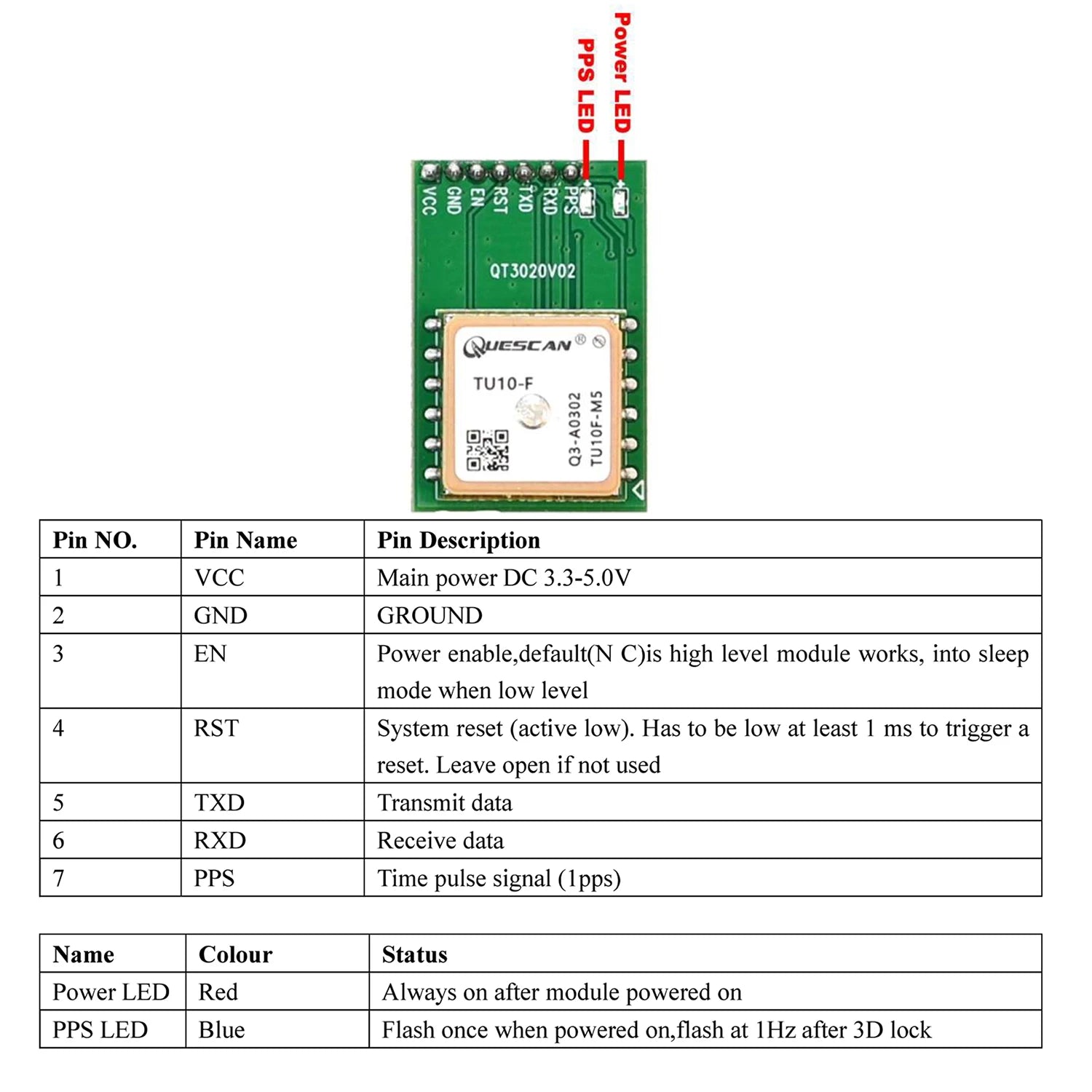

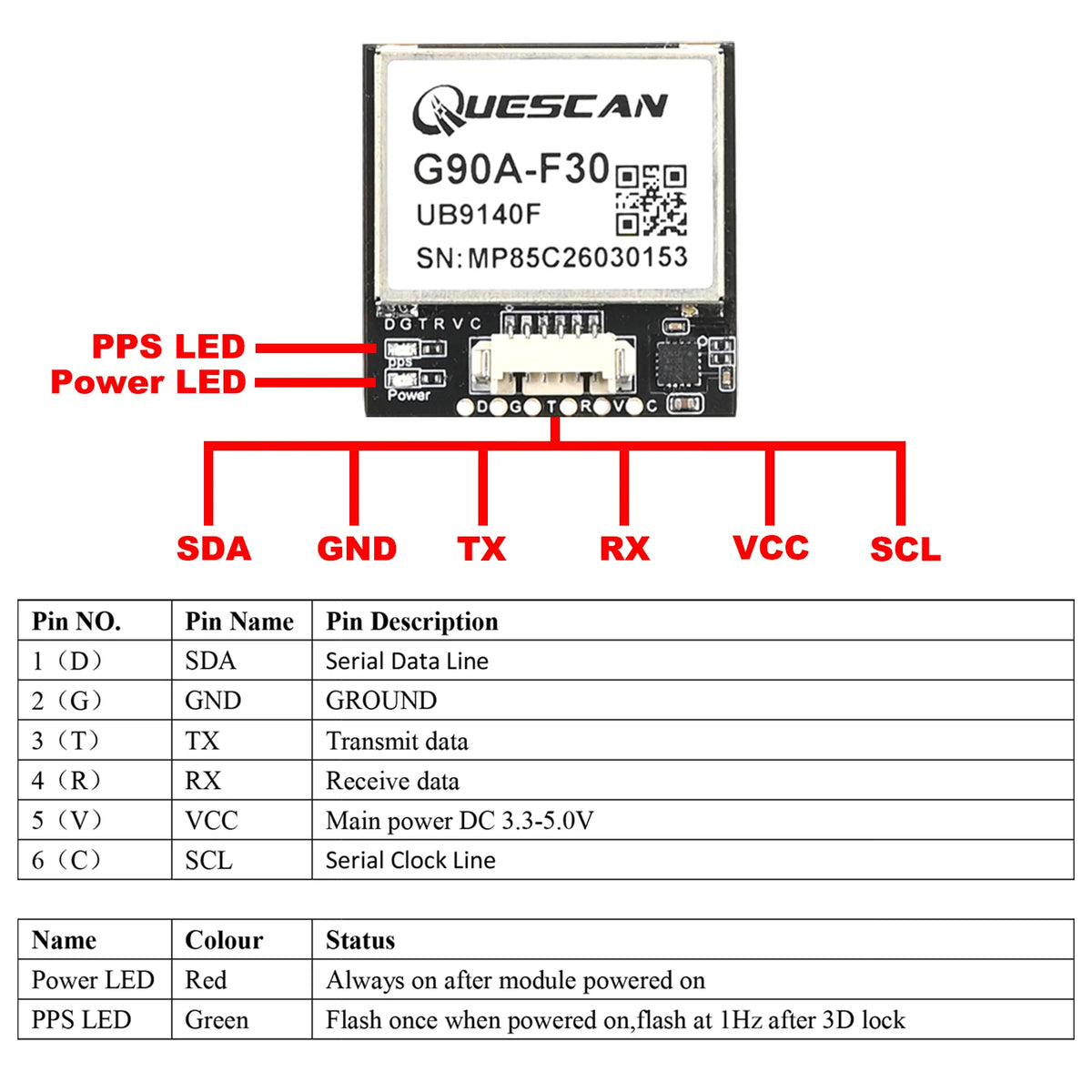

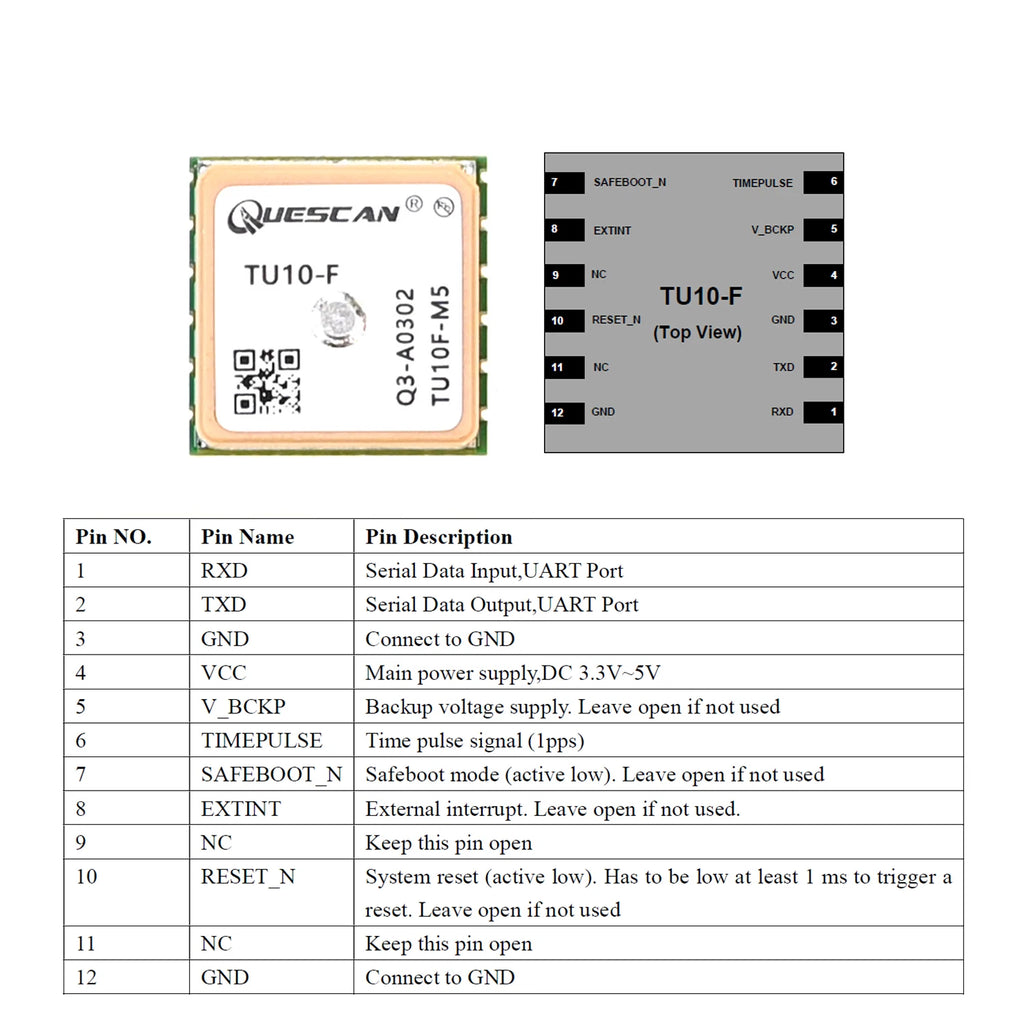

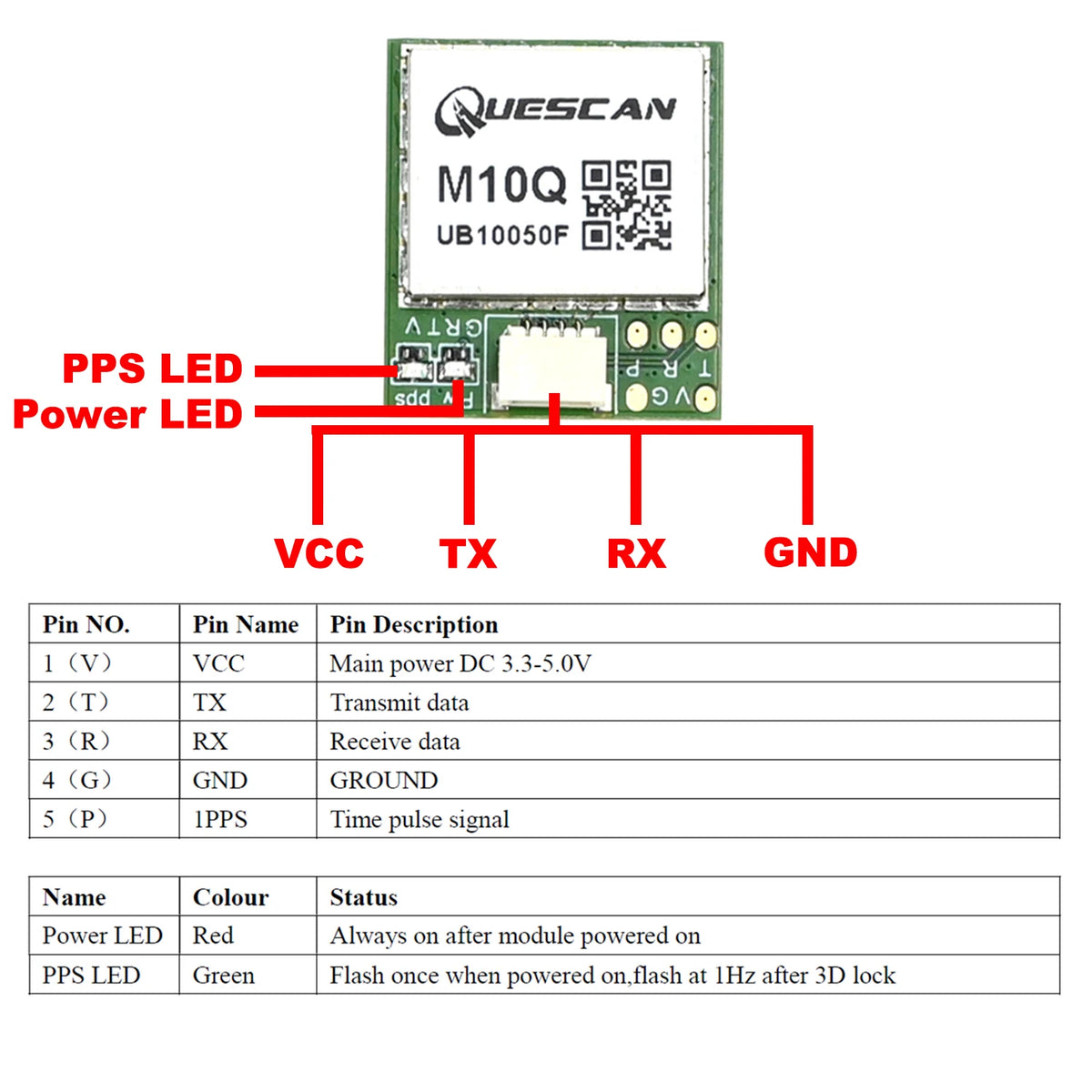

Pin Description
