QUESCAN UBX M9 M10 GPS GNSS Module with Compass GPS Galileo BeiDou GLONASS Antenna Module GNSS Receiver M10050 M9140 Chipset
AN3126
$43.60
Sale price
$43.60
Regular price
$0.00
Skip to product information
QUESCAN UBX M9 M10 GPS GNSS Module with Compass GPS Galileo BeiDou GLONASS Antenna Module GNSS Receiver M10050 M9140 Chipset
$43.60
Sale price
$43.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: QUESCAN
Chipset: UBX-M10050-KB,UBX-M9140-KA
Flash: Supported
GNSS: GPS Galileo GLONASS BeiDou QZSS SBAS
GPS type: Receiver & Antenna
High-concerned chemical: none
IS It With PCB: No
Model Name: UBX-M10050-KB
Origin: Mainland China
Protocol: NMEA UBX RTCM
Overview
QUESCAN GNSS module series built on u‑blox M9 and M10 chip platforms.

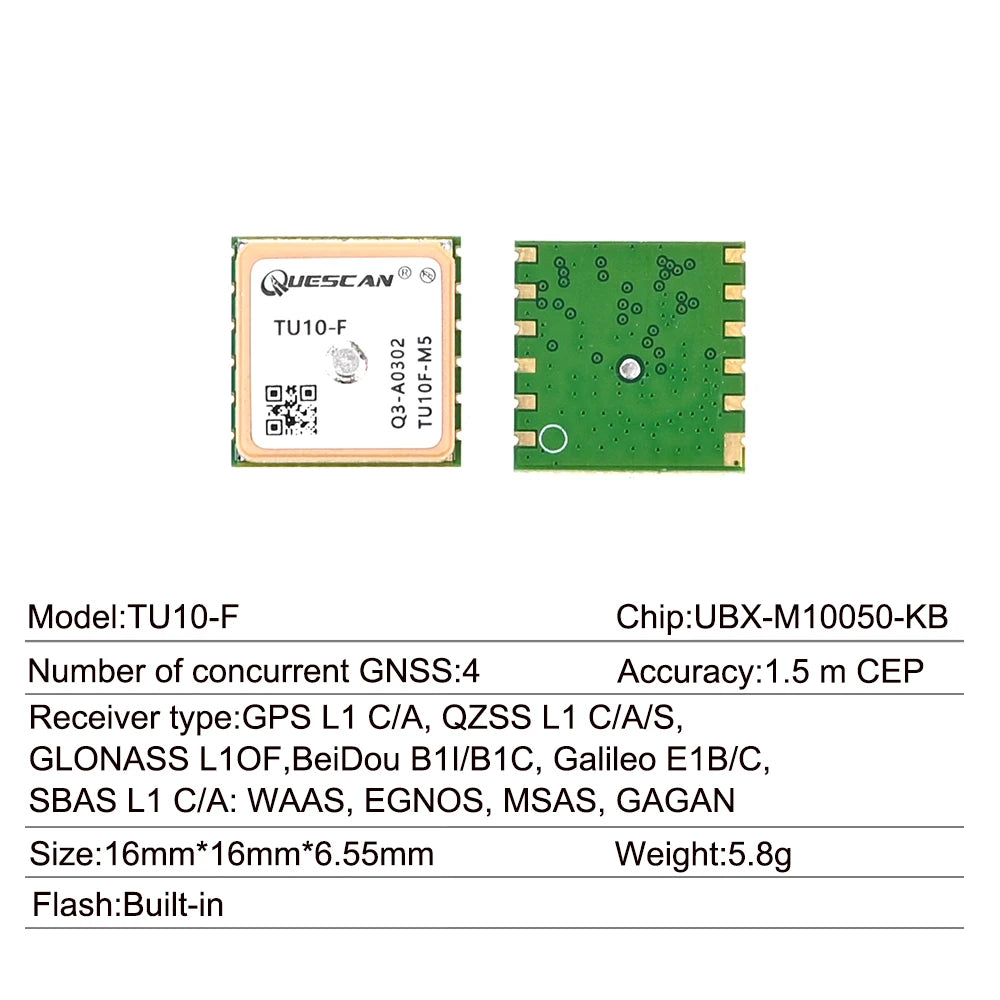

(TU10-F,M10SD,M10Q,G10A-F30,G10B-F30,M10FLY,M10FD,M10-16112,AN3126)
u‑blox M10 based modules: Ultra‑low‑power multi‑constellation receivers for GPS, BeiDou, Galileo, GLONASS. Equipped with Super‑S weak‑signal technology, improved anti‑jamming & anti‑spoofing performance. Some models integrate compass (magnetometer) for flight controller usage. Output rate up to 25 Hz, support NMEA and UBX protocols. Ideal for drones, battery‑power trackers, vehicle telematics and IoT devices.

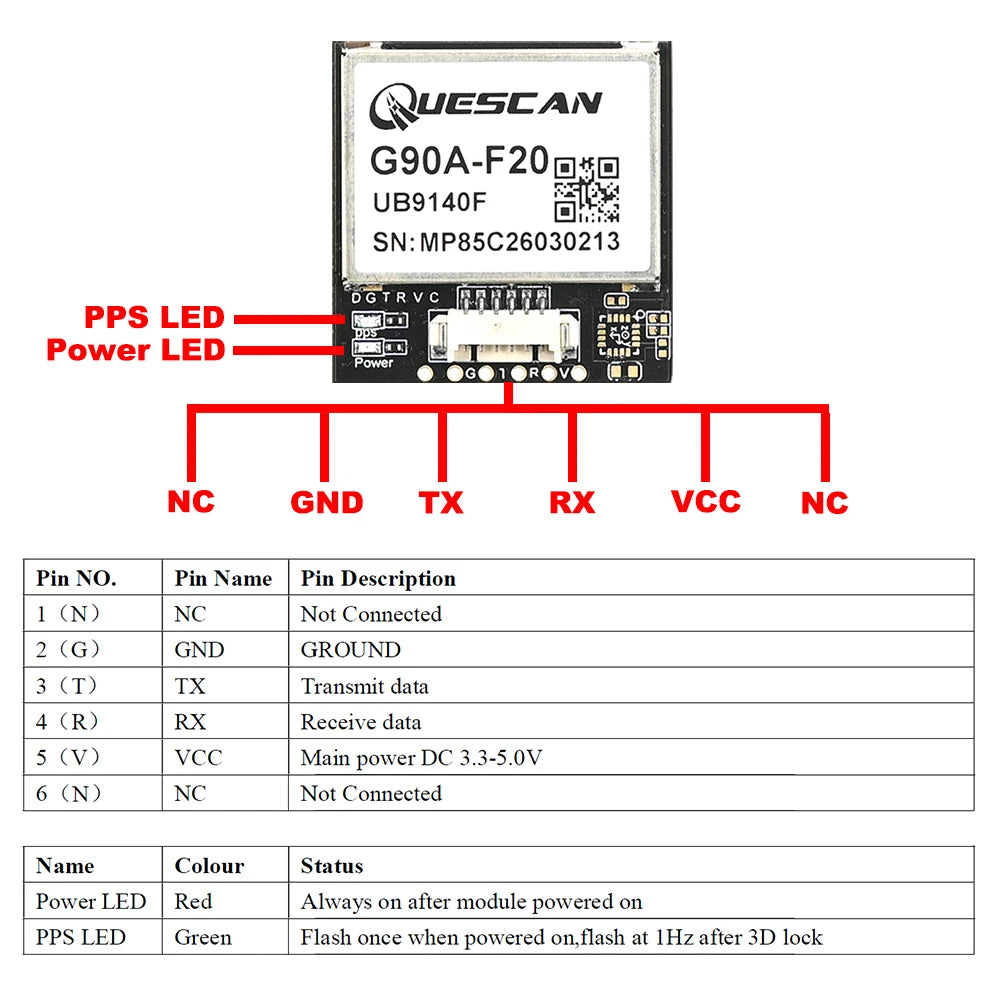

(G90A-F20,G90A-F30)
u‑blox M9 based modules: Proven stable multi‑GNSS solution with good cost‑performance. Compatible with PX4 / ArduPilot flight stack and most MCU systems. Widely used in robotics, AGV, marine navigation and vehicle tracking.
Specification
