RadioMaster Bandit Micro Nano ExpressLRS 915MHz RF Module T Antenna OLED 1000mW 30dBm SX1276 200Hz WiFi Bluetooth FPV

RadioMaster Bandit Micro Nano ExpressLRS 915MHz RF Module T Antenna OLED 1000mW 30dBm SX1276 200Hz WiFi Bluetooth FPV

$289.76

$289.76 $0.00

Description

SPECIFICATIONS

Brand Name: MKronRC

Colour: Black

For: RadioMaster RadioKing Frsky Jumper

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Bandit Micro ExpressLRS 915MHz Module

High-concerned chemical: none

Material: Composite Material

Model Number: Bandit Micro ExpressLRS 915MHz Module

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: 65x50x35mm

Technical parameters: KV1100

Tool Supplies: Battery

Upgrade Parts/Accessories: Bandit Micro ExpressLRS 915MHz Module

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

RadioMaster Bandit Micro Nano ExpressLRS 915MHz RF Module T Antenna OLED 1000mW 30dBm SX1276 200Hz WiFi Bluetooth FPV

🚀 Long-Range ExpressLRS Performance
Built for the 915MHz FCC regulatory domain and powered by the SEMTECH SX1276 RF chip, the RadioMaster Bandit Micro provides a stable, low-latency signal with excellent long-range performance for FPV drones and RC aircraft.

🔥 High Power Output up to 1000mW / 30dBm
With a maximum RF output of 1000mW (30dBm), this module delivers stronger signal penetration and extended range, making it ideal for long-range freestyle, racing, and cinematic FPV flights.

📟 Built-in OLED Display with WiFi & Bluetooth
The integrated OLED screen shows real-time system status at a glance, while built-in WiFi and Bluetooth make wireless firmware updates and device configuration quick and hassle-free.

⚡ Flexible Refresh Rate from 25Hz to 200Hz
Supports packet rates ranging from 25Hz up to 200Hz, giving you responsive, smooth control whether you're flying casual cruises or high-speed competitive races.

🔧 Easy Binding & Broad Compatibility
Requires ExpressLRS V3.0.0 or later and works seamlessly with JR/Nano standard module bays. Bind easily via the Bandit menu, your radio's ELRS LUA script, or a bindphrase.

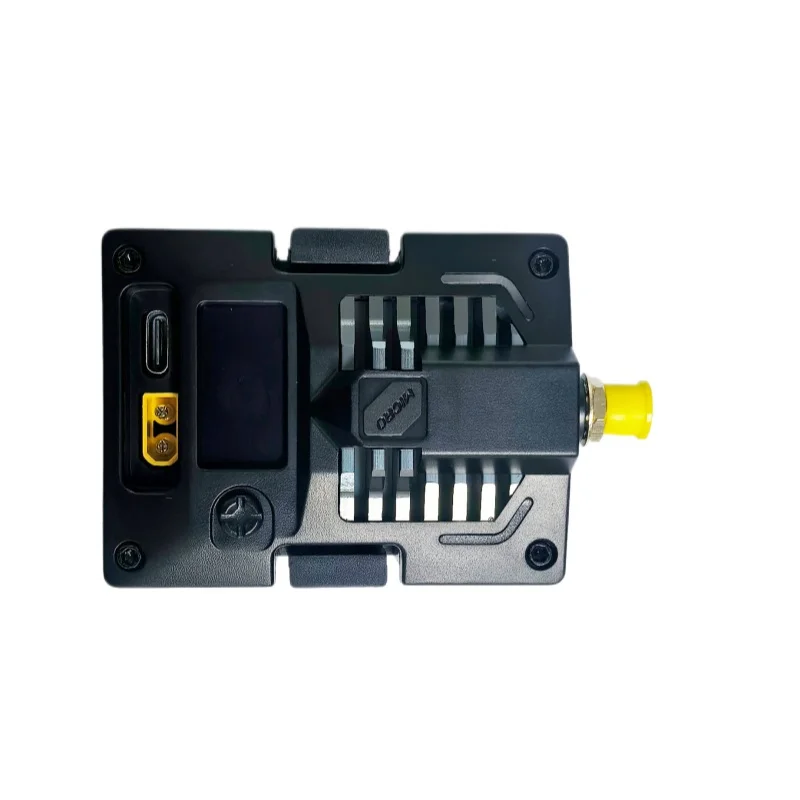

Item: Bandit Micro ExpressLRS RF Module
Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
RF Output Power: 1000mW/30dBm
Micro Standard 5pin Connector: Yes
Built‑in OLED Screen: Yes
XT30 Power Supply Voltage: DC 6V ~ 16.8V
Weight: 78.00g (with T antenna)

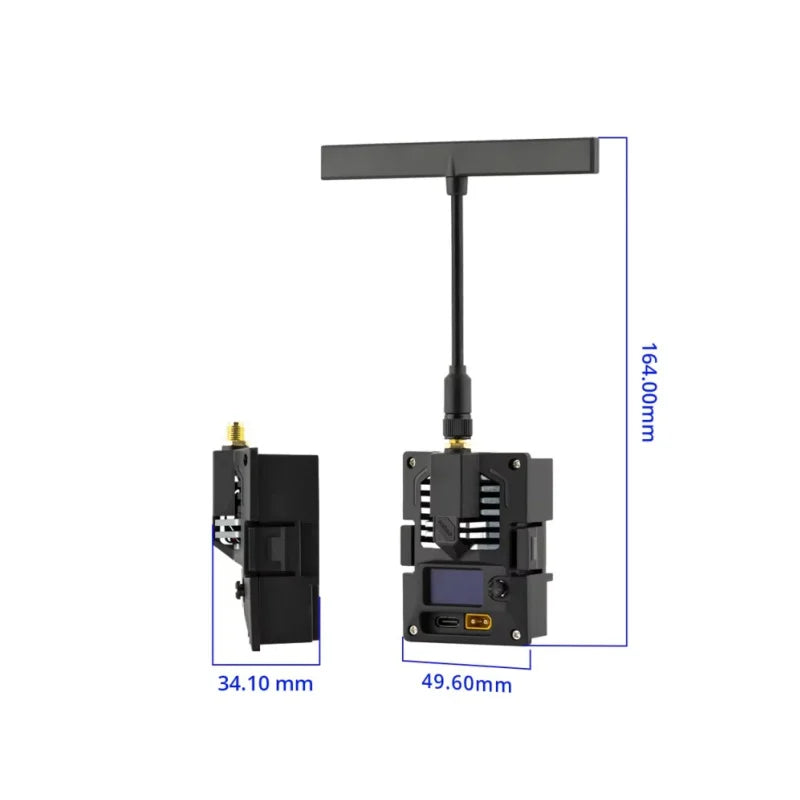

Dimension: 64.10×49.60×34.10mm

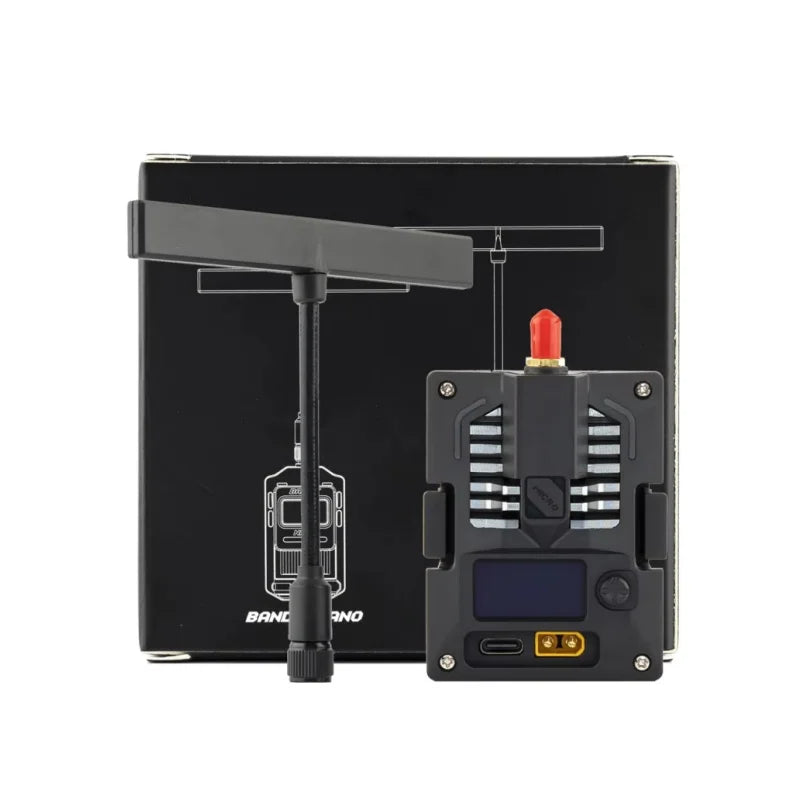

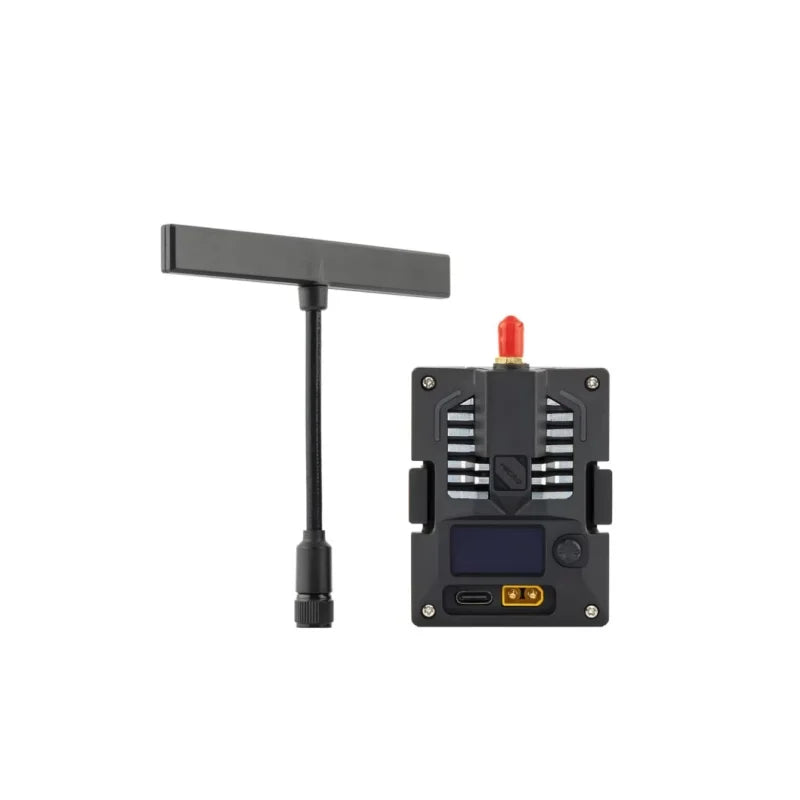

Packing List:

1 * Bandit Micro ExpressLRS RF Module
1 * 900Mhz T Antenna
1 * Manual

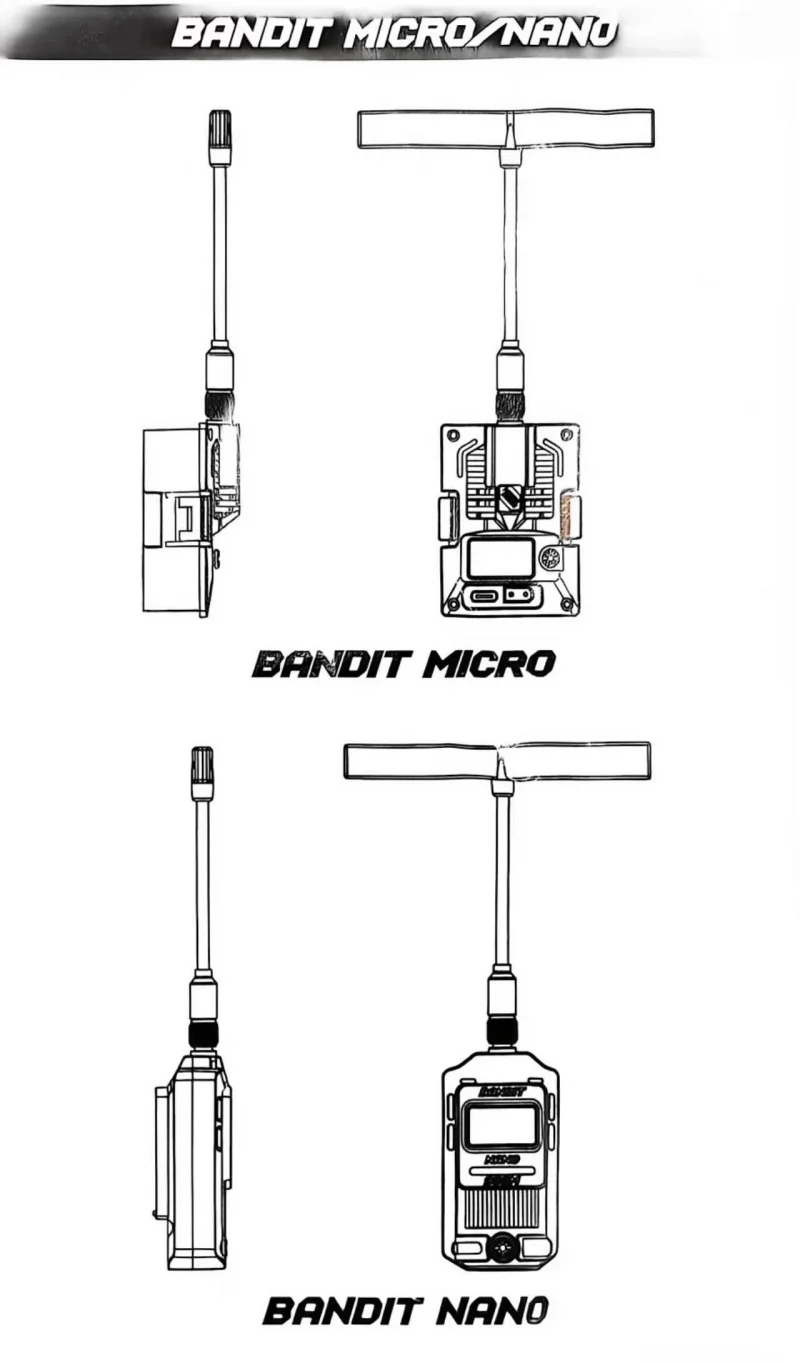

BANDIT MICRO/NANO

Features

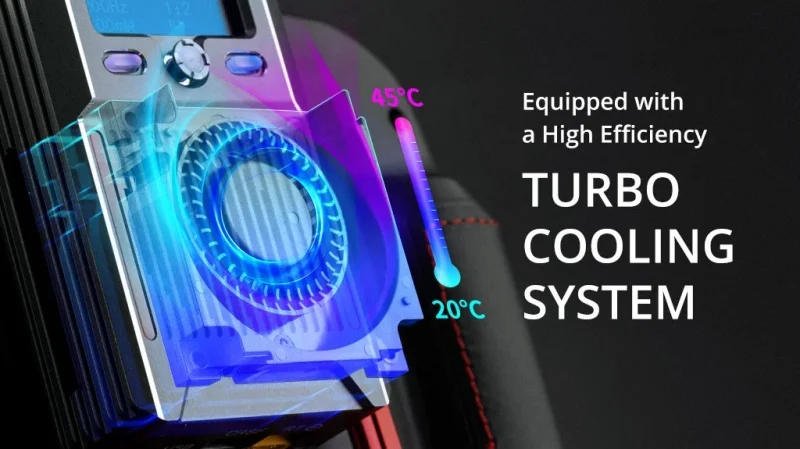

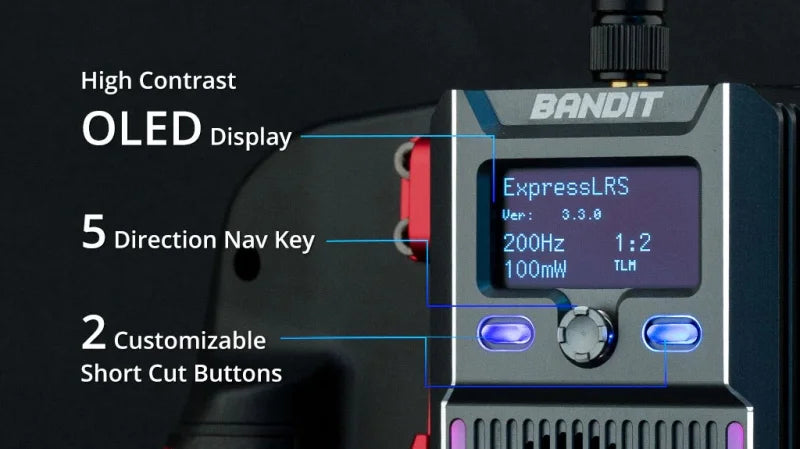

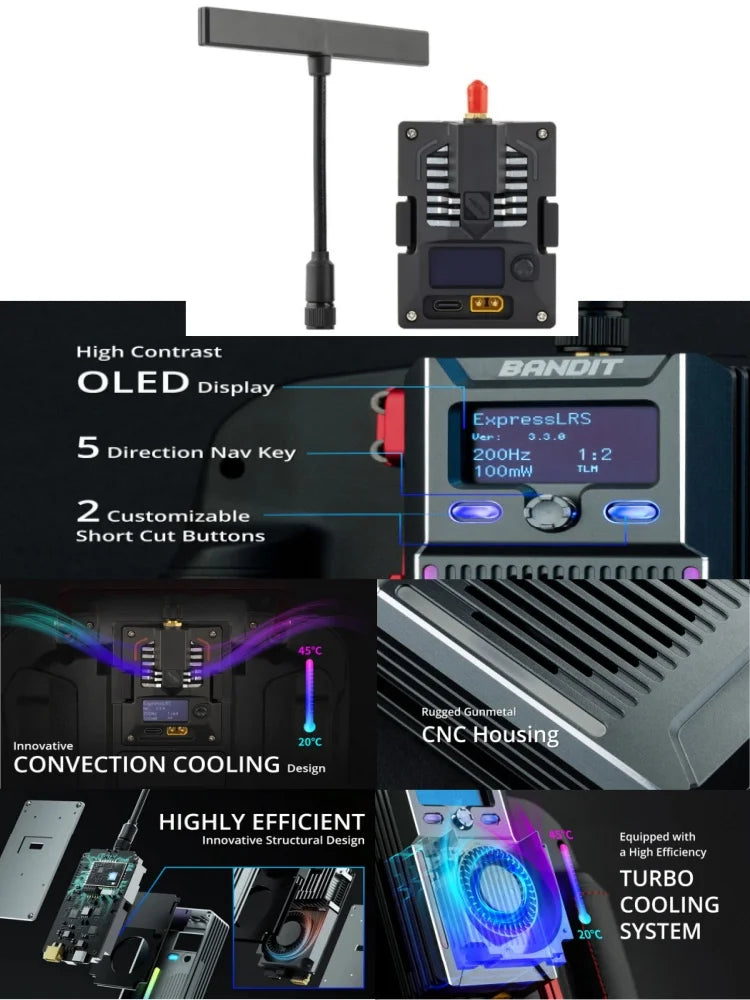

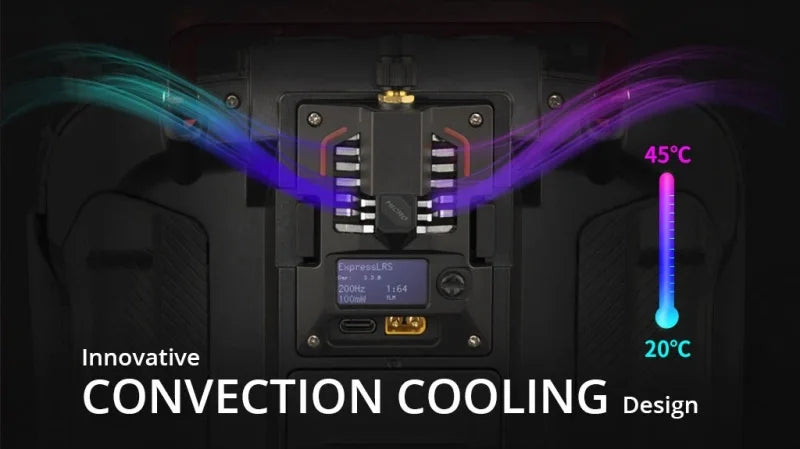

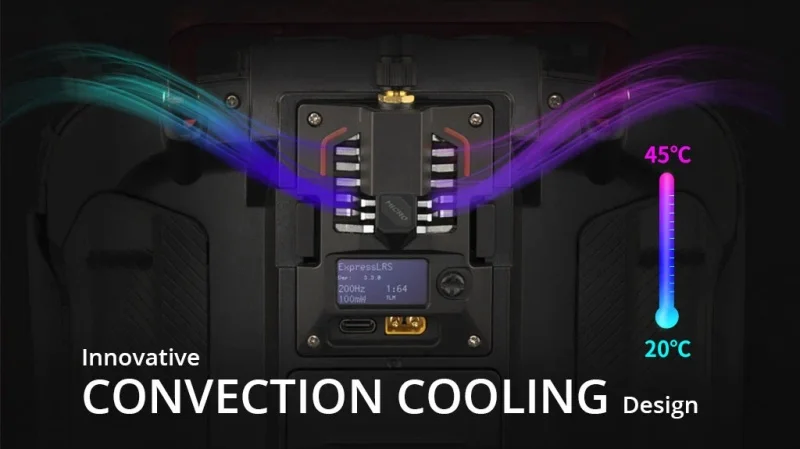

High efficiency cooling system OLED Display Wifi and Bluetooth support Packet rates up to 200Hz Directional Nav key and customizable shortcut buttons

Specifications

Regulatory Domain: 868/915Mhz

MCU:ESP32(main),ESP8285(aux, as ESP backpack)

RF chip: SX1276

Maximum receiver refresh rate: 200Hz

Minimum receiver refresh rate: 25Hz

JR standard 5pin socket (Micro/Nano)

Nano standard 8pin socket

Builtin RGB Lights

Builtin OLED screen

XT30 Power supply voltage: DC 6V ~ 16.8V

Weight: Micro 78 grams / Nano 62 grams (with antenna )

Dimension: Micro 4933.573mm / Nano 41X27X79mm

How to bind

Bandit module require ELRS V3.0.0 or later. Please ensure your receiver is using V3.0.0 or later first. There are two ways to bind with RX.

Bind by Bandit

1: Long press Bandit 5way button, then press up/down to "BIND" menu, press right to enter. 2: Repower 3 times your ELRS RX, make sure it on bind mode (LED double blink) 3: Press middle button to bind.

Bind by Radio LUA

1: Enter radio ELRS LUA 2: Repower 3 times your ELRS RX, make sure it on bind mode (LED double blink). 3: Press "Bind" on LUA menu.

Bind with Bindphrase

How and when to use your Moxon or TAntenna

Type: MOXON The Moxon directional antenna is intended for long range and has a more narrow field of operation. It is important to keep the Moxon antenna pointed in the general direction of your aircraft. Antenna polarization: vertical/horizontal polarization

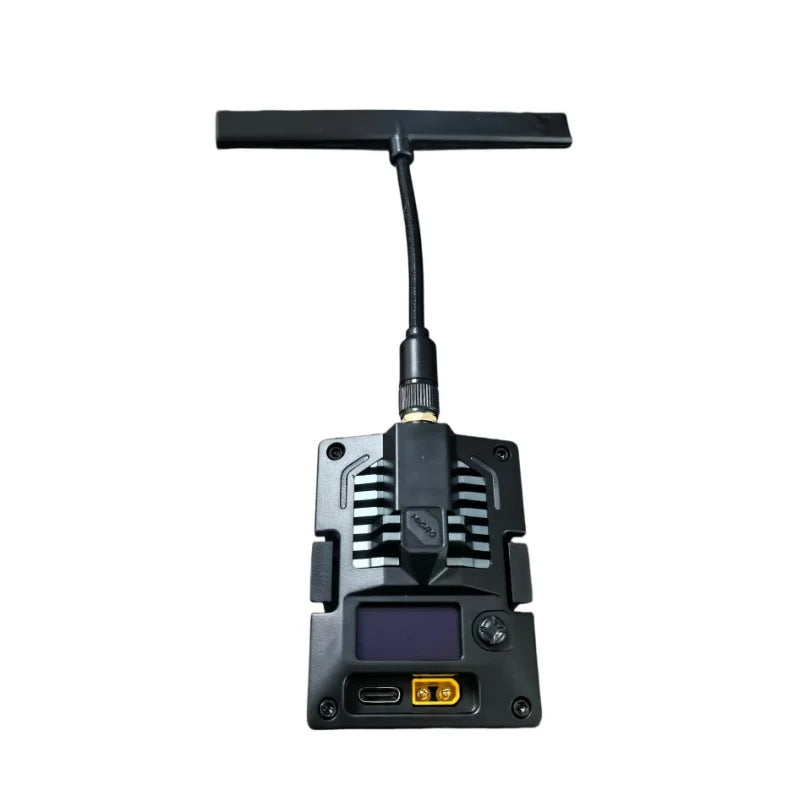

Type:TAntenna The TAntenna is an omnidirectional antenna. it is intended for short to medium range and is suitable for most conditions. Antenna polarization:vertical/horizontal polarization
