SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: 23778

Origin: Mainland China

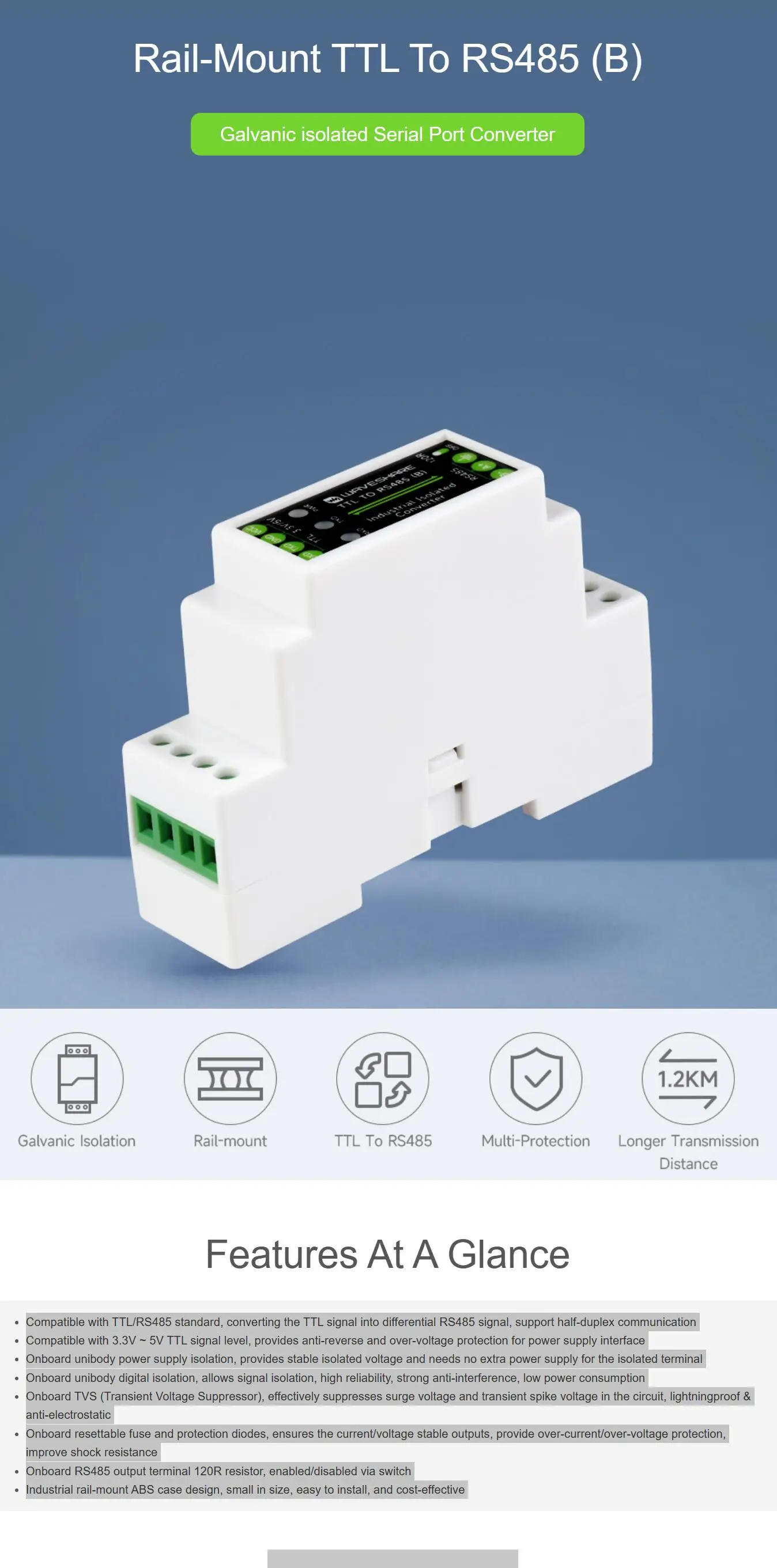

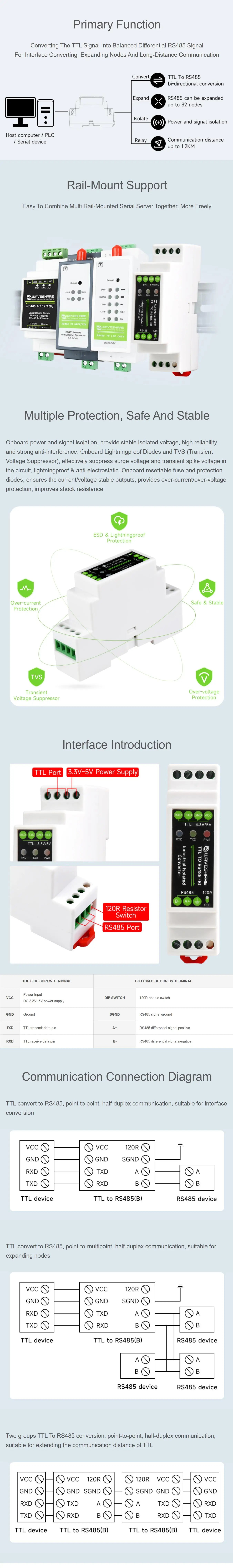

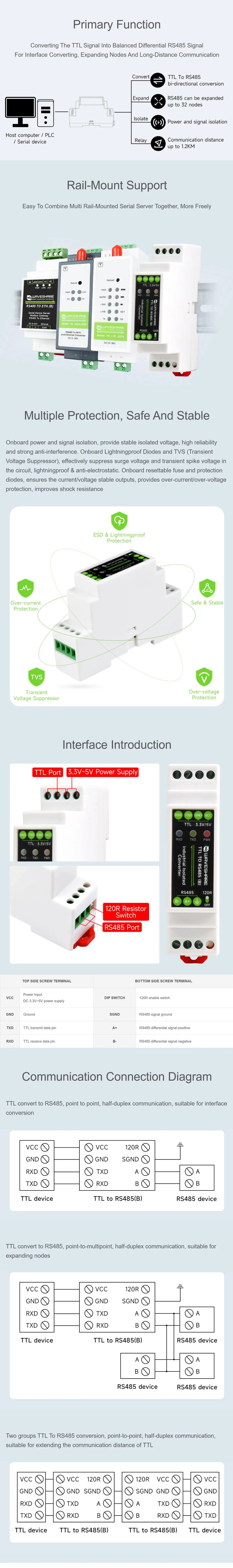

Features At A Glance

Compatible with TTL/RS485 standard, converting the TTL signal into differential RS485 signal, support half-duplex communication
Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance
Onboard RS485 output terminal 120R resistor, enabled/disabled via switch

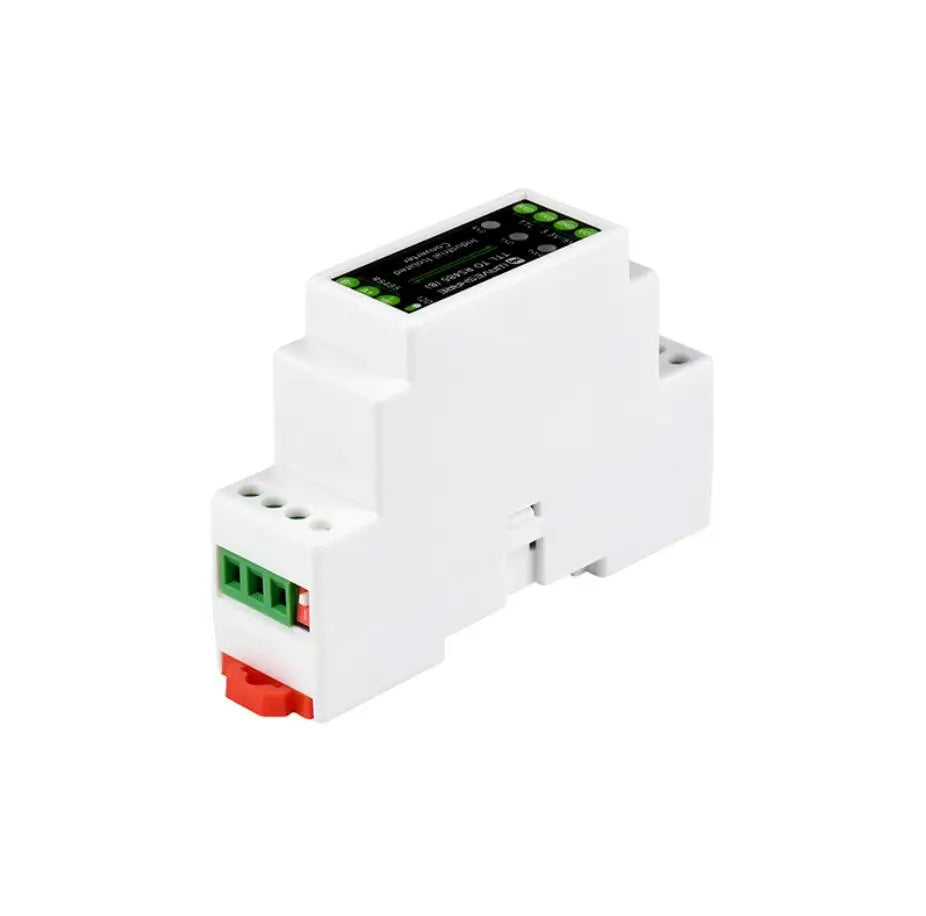

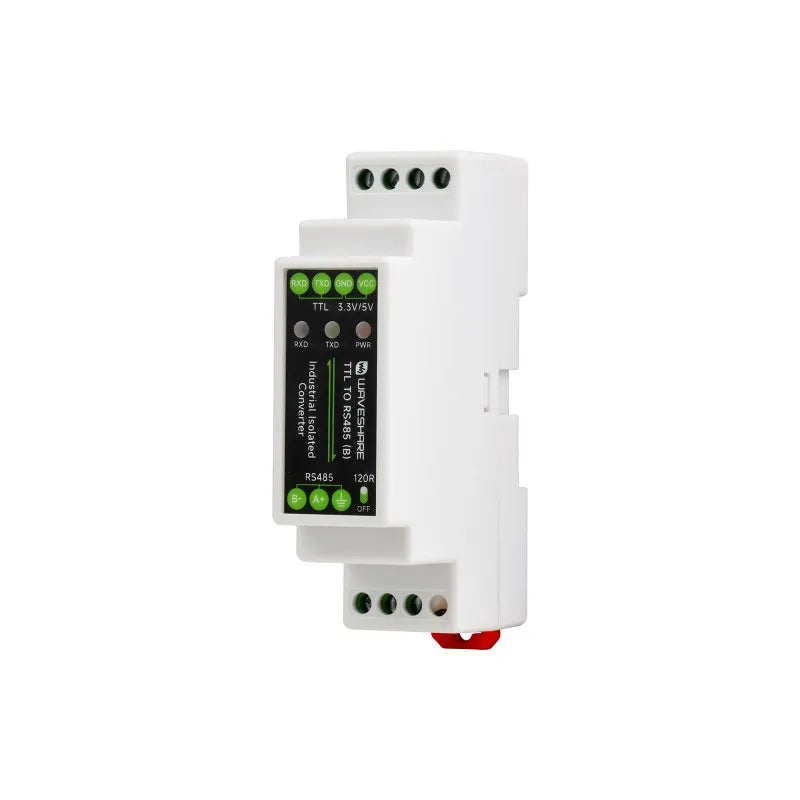

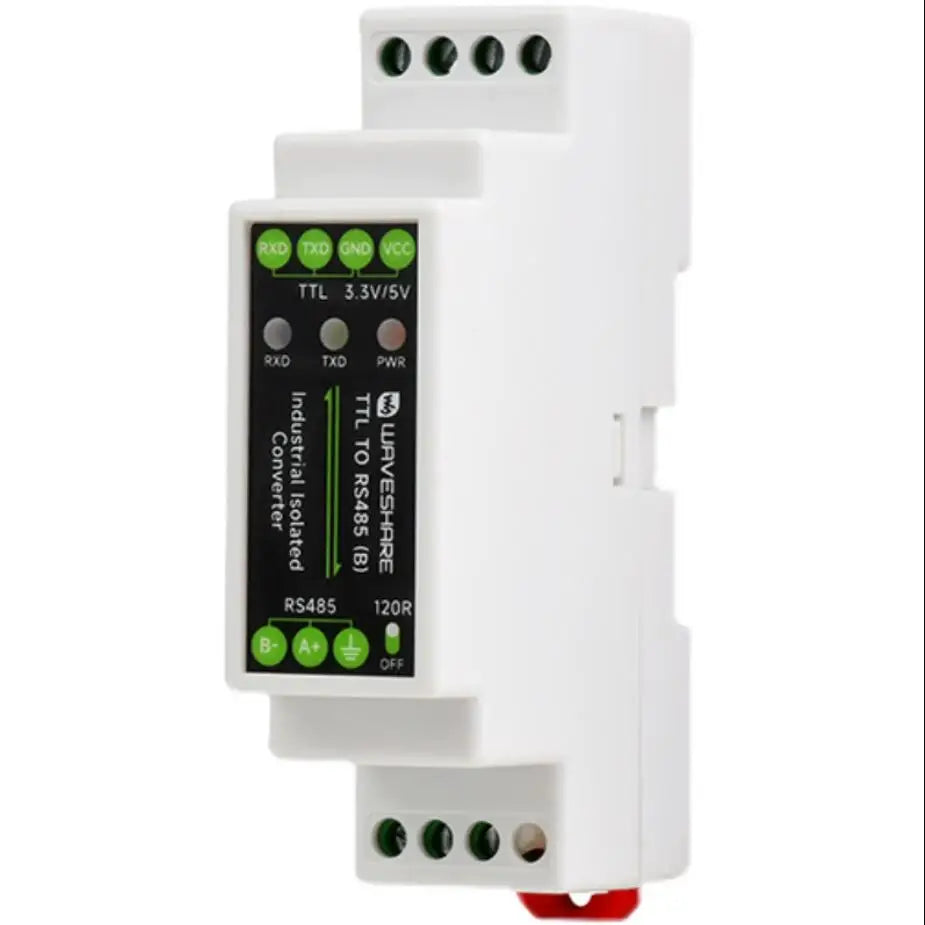

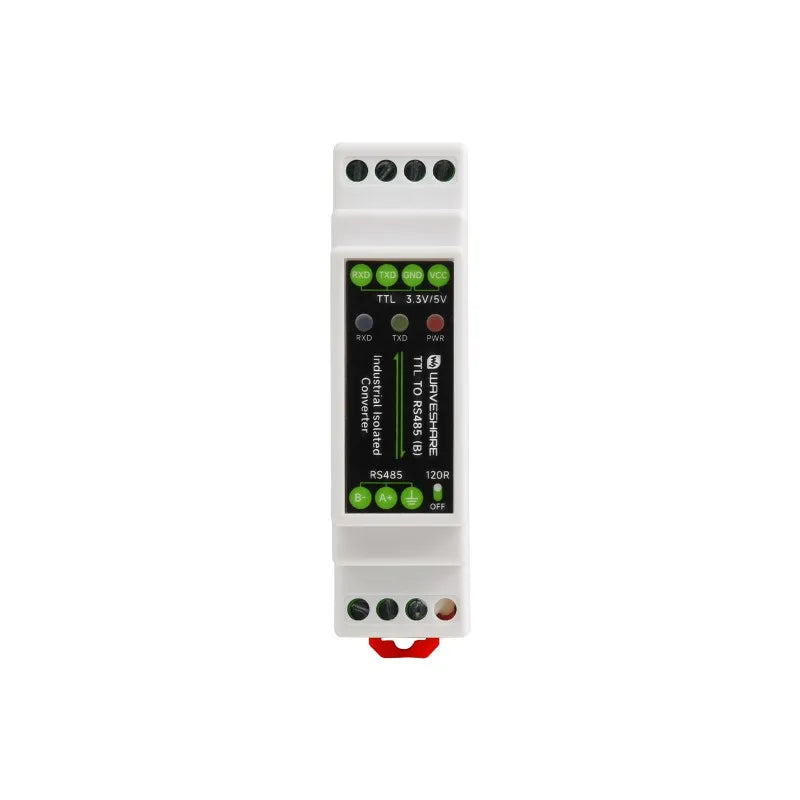

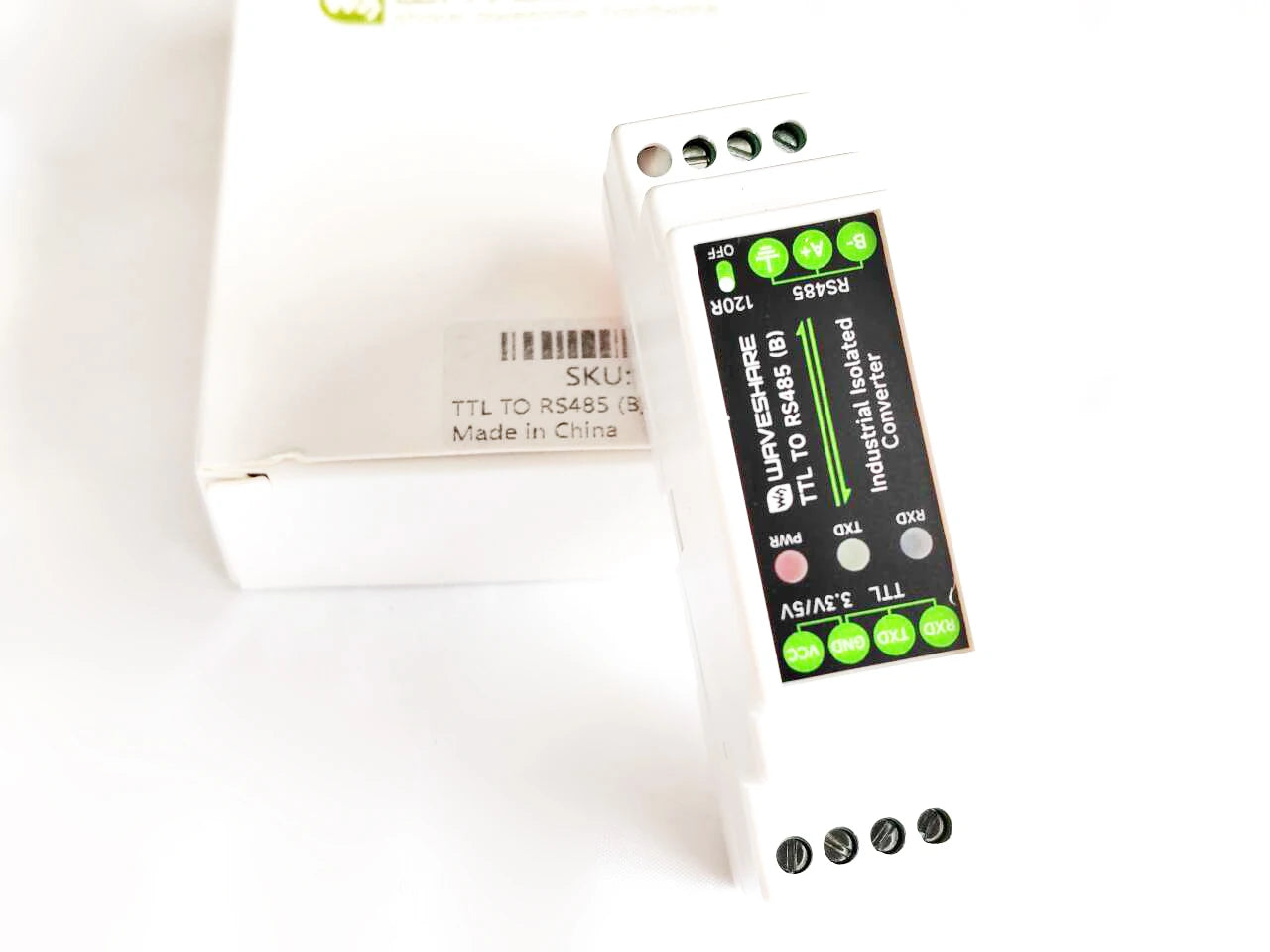

Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Specifications

PRODUCT TYPE	Galvanic isolated TTL To RS485 converter
POWER SUPPLY INTERFACE	Power supply	3.3V ~ 5V
POWER SUPPLY INTERFACE	Protection	over-voltage, reverse-proof
DEVICE PORT	TTL/RS485 standard compatible
TTL	Connector	screw terminal
	Transmission distance	about 10m
	Transmission mode	point-to-point
RS485	Connector	screw terminal
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection
	Terminal resistor	120R, enabled/disabled via switch
	Transmission Distance	About 1.2km
	Transmission Mode	point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

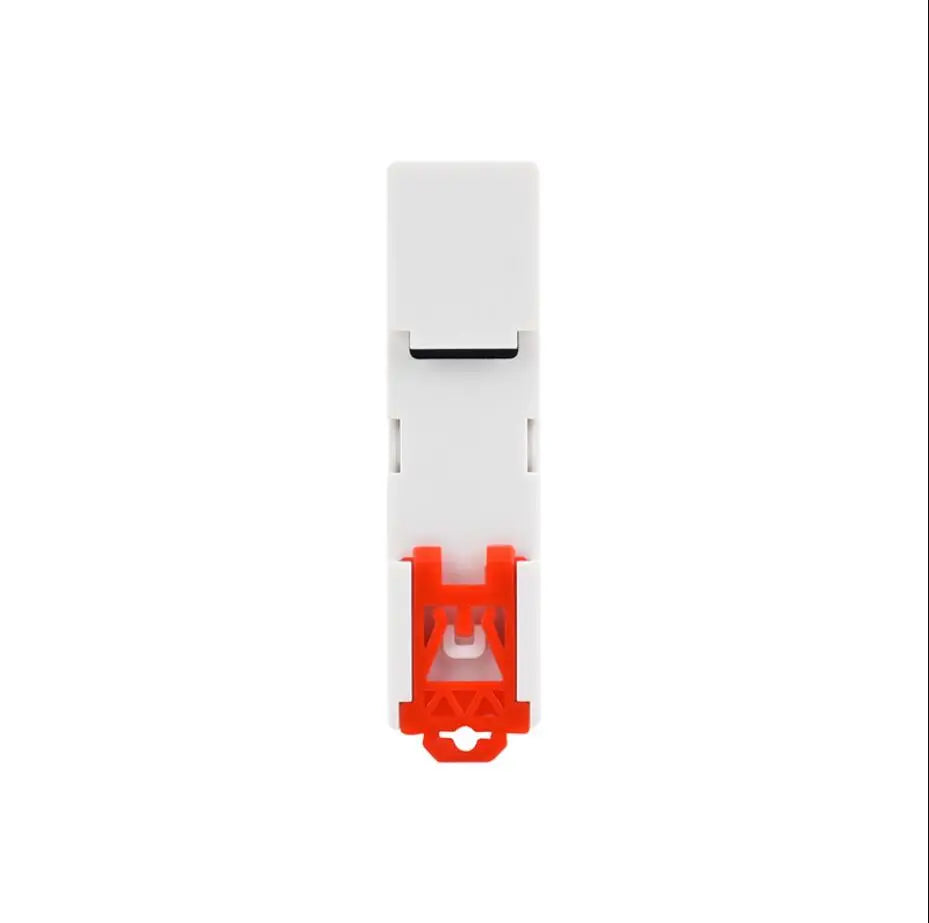

APPEARANCE	Case	Rail-mount ABS case, suitable for 35mm DIN rail

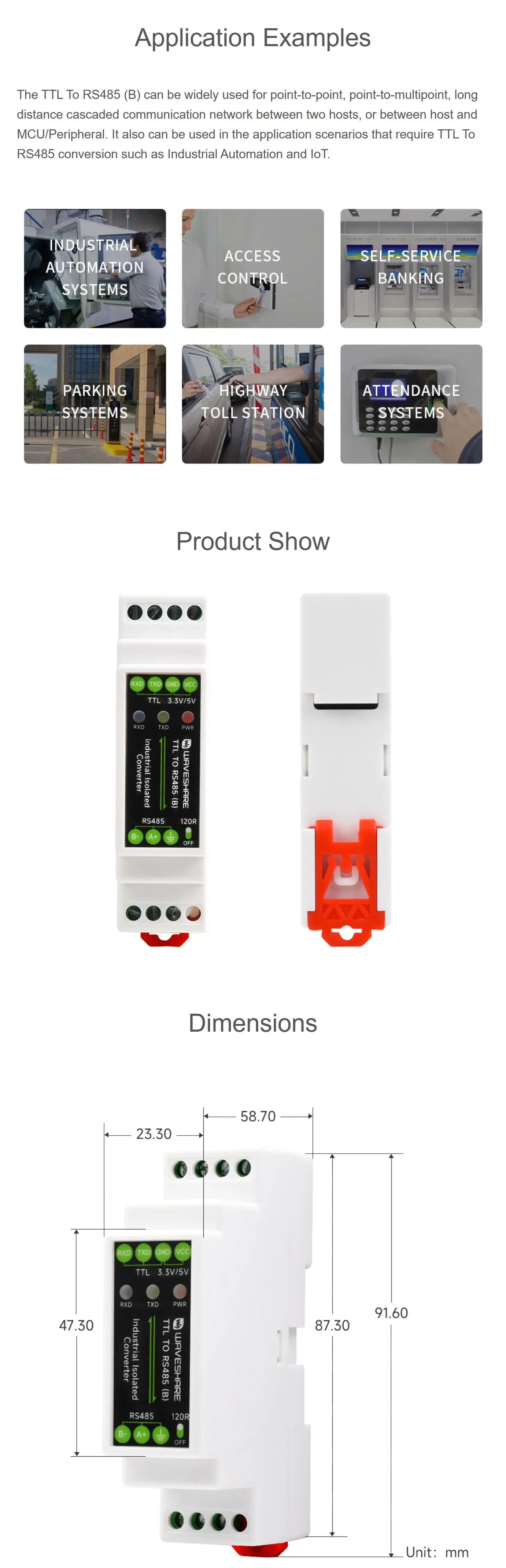

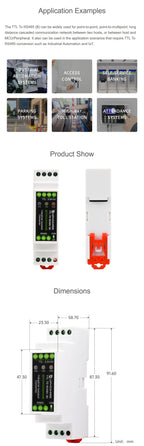

APPEARANCE	Dimensions	91.6 × 58.7 × 23.3mm
