SPECIFICATIONS

Brand Name: RAK

High-concerned chemical: none

Origin: Mainland China

Type: Lora Module

Type1-RAK4631 Arduino               Type2- RAK4631 RUI3

Request Quote for Custom WisBlock Module

Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

The module is available in two variants:

• RAK4631 RUI3 is for low-power applications designed with RUI3.

• RAK4631 is for use with the Arduino IDE BSP and Meshtastic.

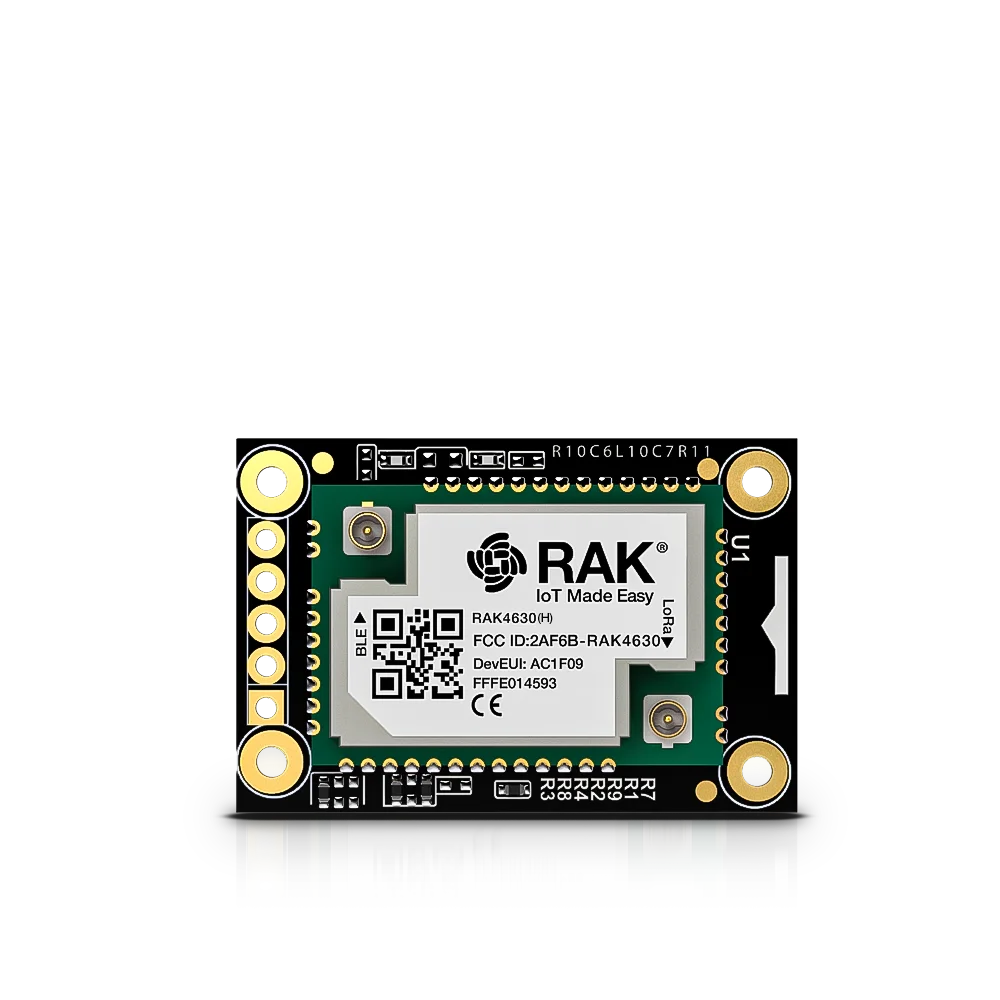

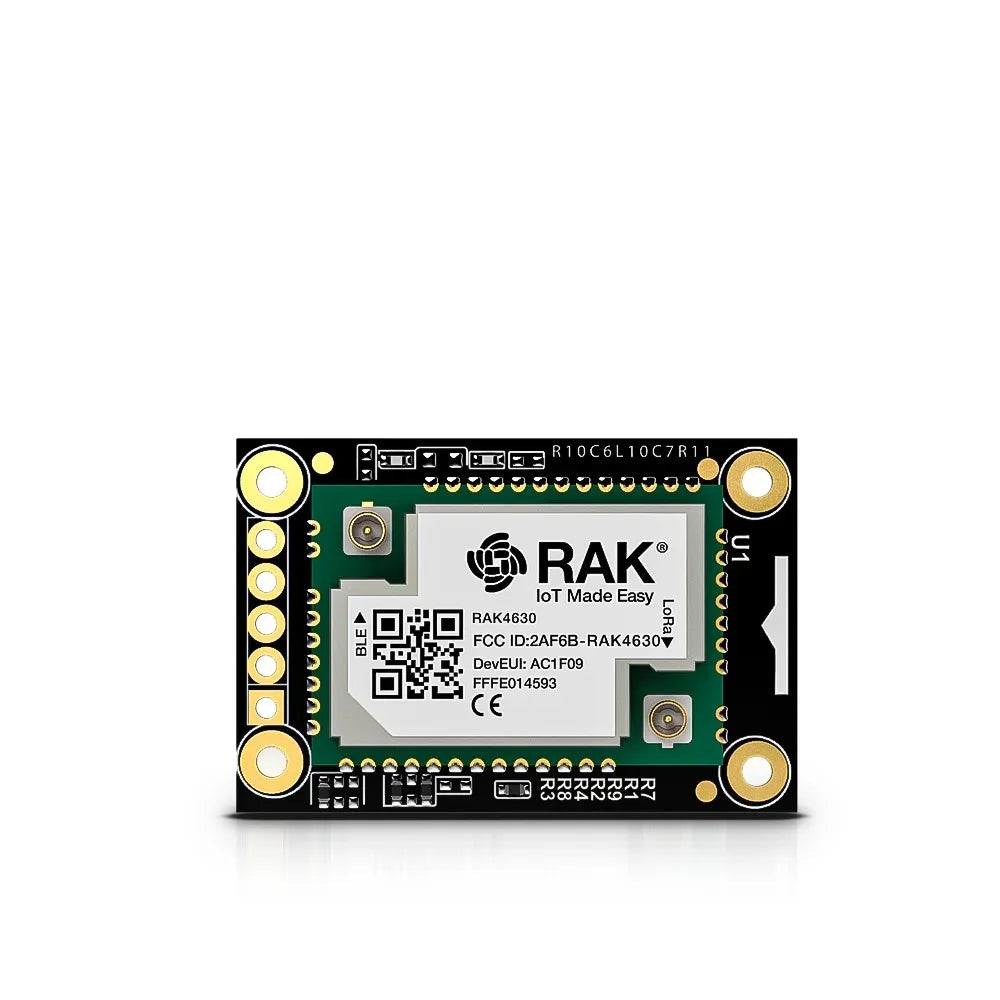

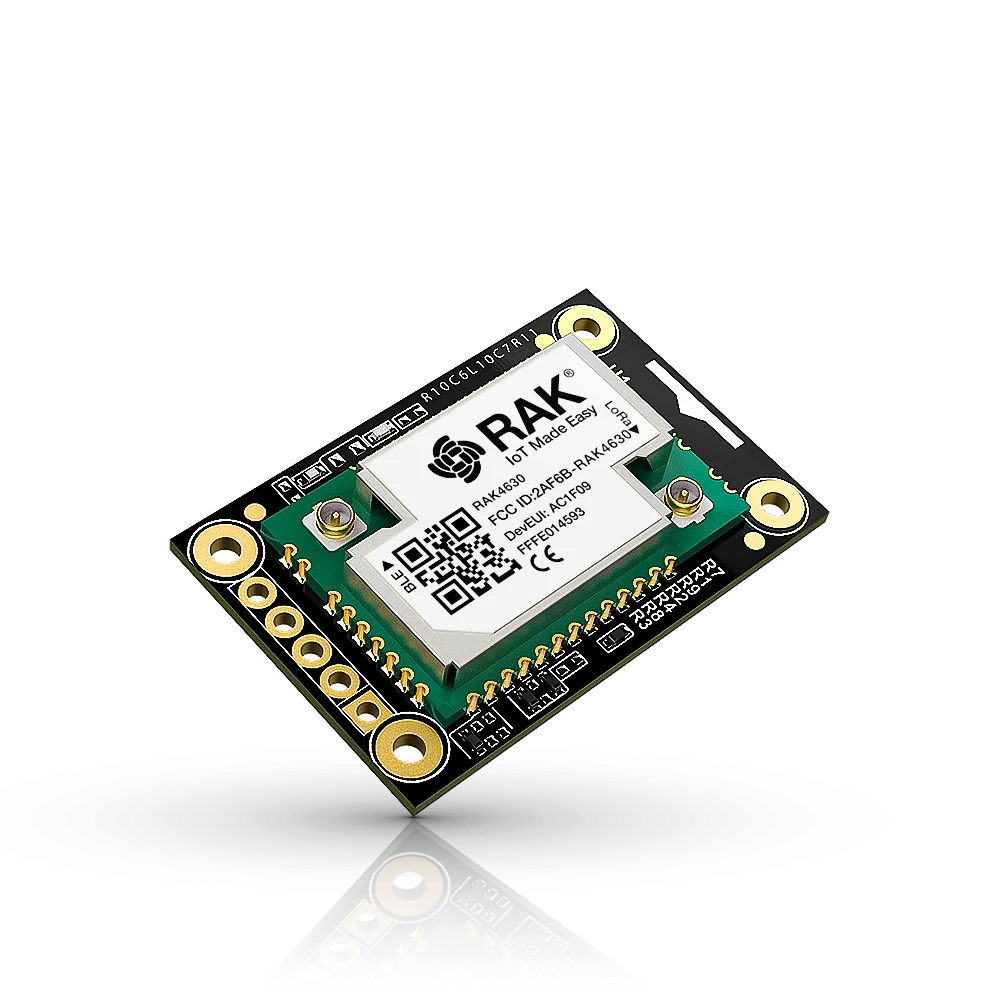

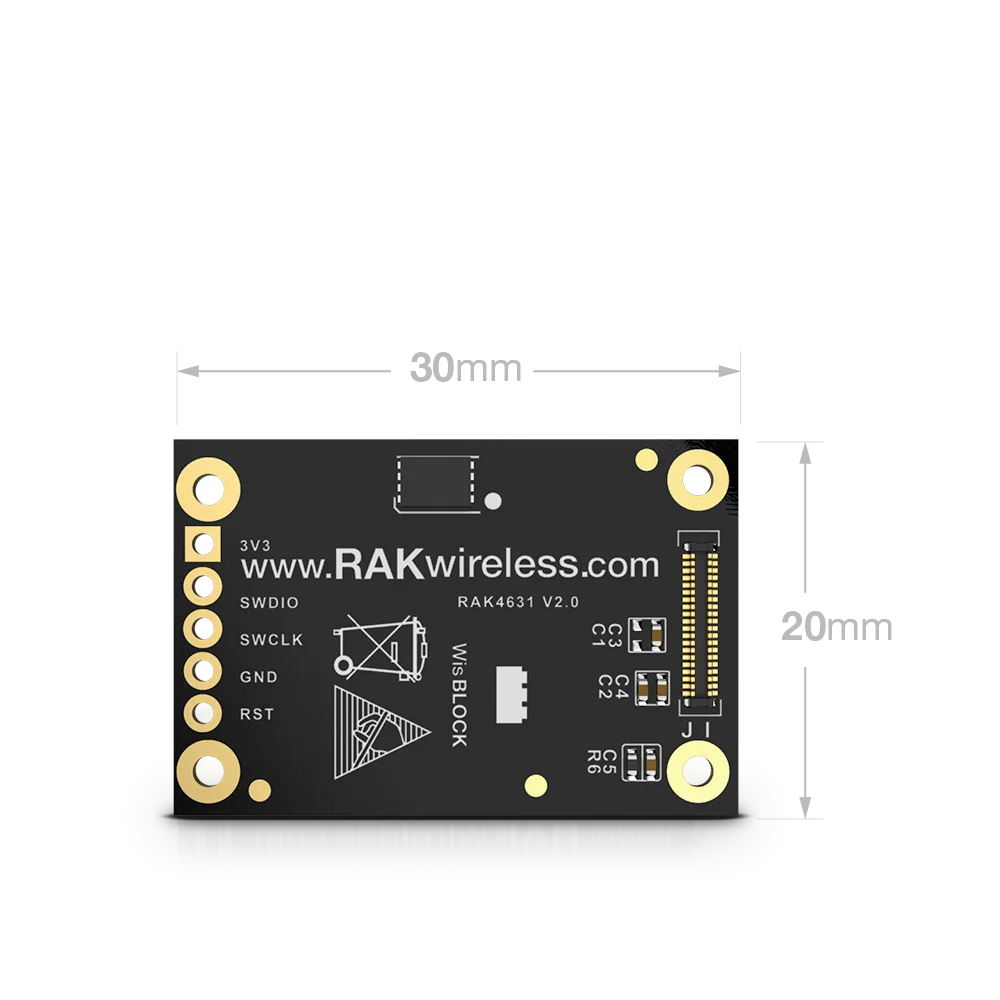

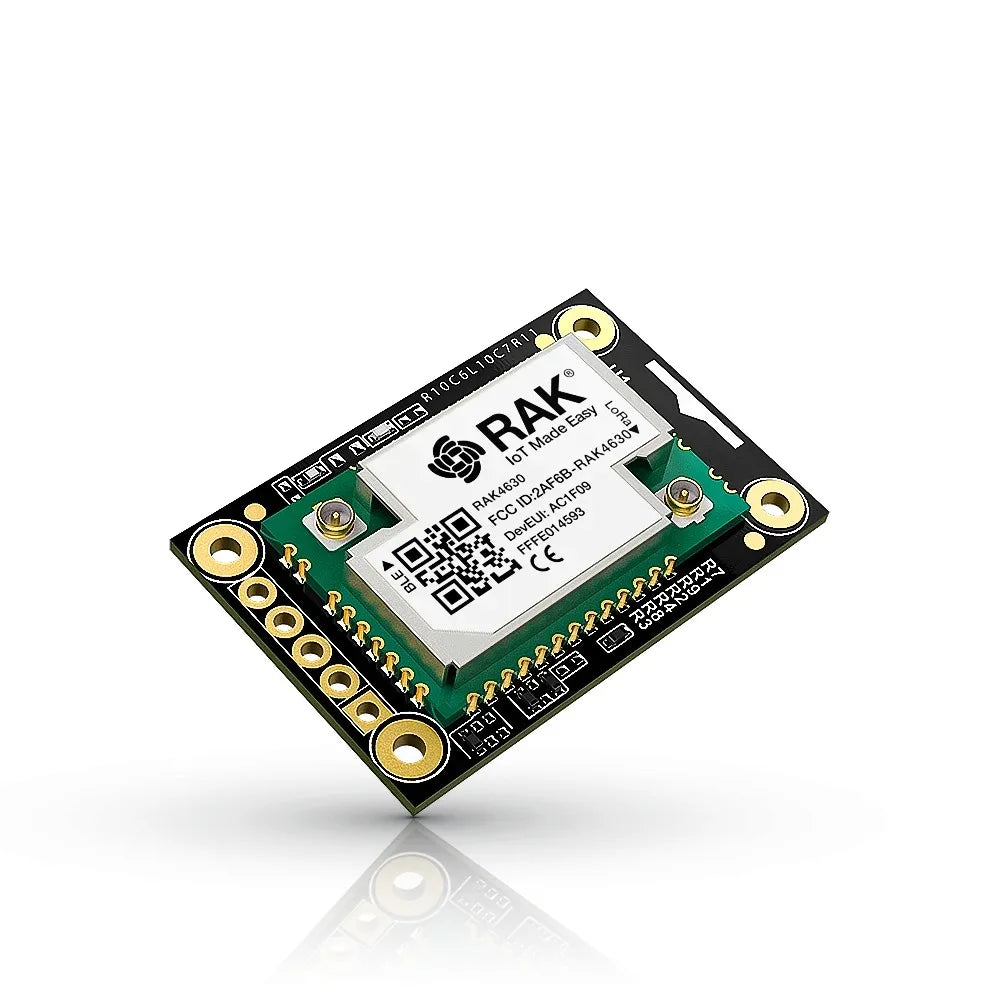

The RAK4631 WisBlock LPWAN is a WisBlock Core module which delivers a powerful Nordic nRF52840 MCU with BLE 5.0 paired to the latest LoRa® transceivers from Semtech, the SX126x series.

Compared to the older SX127x series the Semtech SX126x transceivers offer improved power consumption and the improved power amplifier can now transmit at up to +22dBm, with a total link budget up to 170dB for extended communication range. This makes the RAK4631 our best ever long range capable, ultra-low-power communication solution.

Designed for global deployment, the RAK4631 WisBlock Core comes in two variants, RAK4631(H) supporting ISM bands from 779-923MHz, including those typically used in Europe, USA, India, and the RAK4631(L) variant for the 433-470Mhz bands aimed at China and 433Mhz specific deployments.

The module also includes a temperature-controlled crystal oscillator (TXCO) for correct operation across a wide range of temperature and bandwidth requirements as well as multiple communication interfaces including UARTs, I2C, SPI, ADC, USB and GPIOs.

RAK4631 together with one of our WisBlock Base modules can be easily expanded with many available sensors and IO boards. This is the ideal LoRa® end node for battery and/or solar-powered applications in remote locations.

The Arduino version can be easily programmed with the Arduino IDE or the PlatformIO extension for IDE's like Atom, MS Visual Studio Code, or Clion using our Arduino BSP. Please check our RAK4631 documentation.

The Cyberon version is the same as the Arduino version with the addition of a license to run the Cyberon Voice Processing software. Please check our Cyberon documentation.

The RUI3 version can be easily programmed with the Arduino IDE or Visual Studio using our RUI3 Arduino BSP. Please check our RAK4631-R documentation.

Please refer to the table below for variant RAK4631 module based on your region:

Key Features

• RAK4631 and RAK4631 Voice Processing: LoRaWAN® 1.0.2 protocol stack (supports Class A & C)

• RAK4631 RUI3: LoRaWAN® 1.0.3 protocol stack (supports Class A, B & C)

• Bluetooth Low Energy 5.0 protocol stack

• Nordic nRF52840:

  • Ultra-low-power MCU

  • 32-bit ARM® Cortex-M4F CPU

  • 64MHz CPU clock

  • 1 MB Flash, 256 KB RAM

• Wide range of connections:

  • I2C, SPI, Analog inputs,

  • Digital inputs and outputs

• Semtech SX1262:

  • Low power high range

  • LoRa® transceiver

Package Inclusion

• 1pc RAK4631

• 1 pc PCB Antenna for LoRa (MHF-1 Connector)

• 1 pc 2.4GHz WiFi/BLE PCB Antenna (MHF-1 Connector)

Documentation

RAK4631

• RAK4631 Quick Start Guide

• Datasheet

• WisBlock Quick Start Guide

• WisBlock Source Code Repository(opens new window)

• Arduino IDE BSP

• PlatformIO BSP

• Bootloader source code and ready to flash file(opens new window)

• RAK4631 3D Model(opens new window)

• 40-Pin Male Connector 3D File(opens new window)

Examples:

• RAK4631 example codes on folders RAK4630 and common(opens new window)

• Sample Code: LoRa(opens new window)

• Sample Code: BLE(opens new window)

• Sample Code: Battery Level

RAK4631-R

• RAK4631-R Quickstart Guide

• Example Applications

• AT Command Manual

• DFU - Device Firmware Upgrade

• Datasheet

• RAK4631-R 3D Model(opens new window)

• 40-Pin Male Connector 3D File

Tutorials

• WisBlock Starter Kit and RAK Edge Gateway Complete LoRaWAN Guide

• Installation of Board Support Package in Arduino IDE

• The Icing on the Cake: A Template to Innovate Custom IoT Applications with RAKwireless and Datacake

Check Hackster Projects

Articles

• Choosing Between WisBlock Modules For Your Next IoT Project? Take A Quiz!

• Why We Make WisBlock: The Story Behind RAK’s Modular IoT Platform

• Build your IoT Breakthroughs Fast with the WisBlock System!

• RAKwireless Announces Partnership with One Planet Education Network (OPEN) to Launch STEM IoT Sensor Kits for Schools Worldwide

• RAKwireless Launches New Modular Product Series - WisBlock

• New WisBlock Modules in RAK Autumn Launch

WisBlock Success Stories

• Enology + IoT = Great Wine A winery modernization by Enotek

• Saving the Wetlands with a Solution from The Group Lab

Q & A:

Q:

Do these modules come with an antenna ordo l need to buy one separately?

A:

You don't need to purchase the antenna separately. The antenna is included in the order.

Q:

what's the difference between type1 EU433and type2 EU433?

A:

Type 1 is based on Arduino, and Type 2 is based on RUI3.
