SPECIFICATIONS

The WisBlock Microphone Starter Kit provides all the elements required to get your WisBlock listening to you!

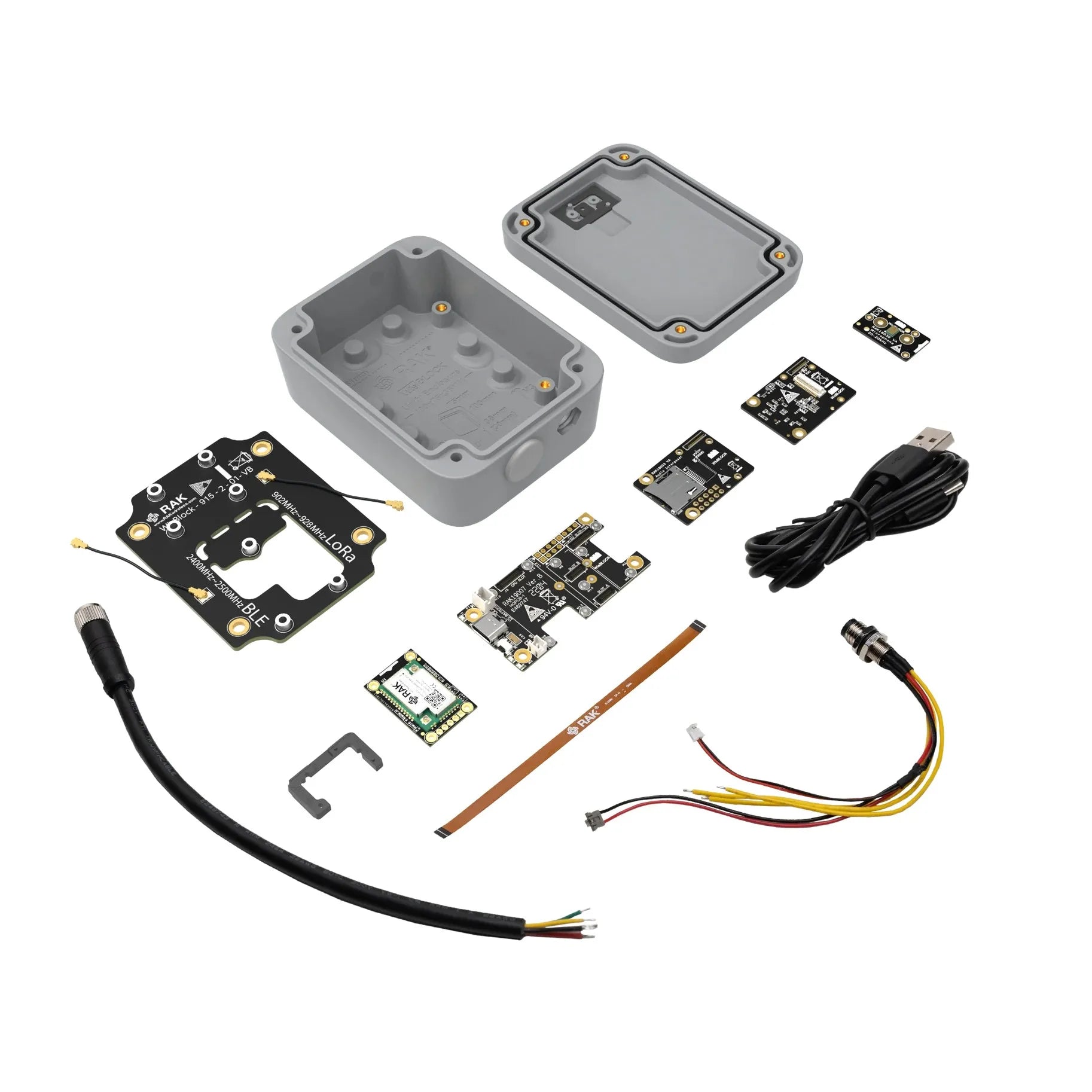

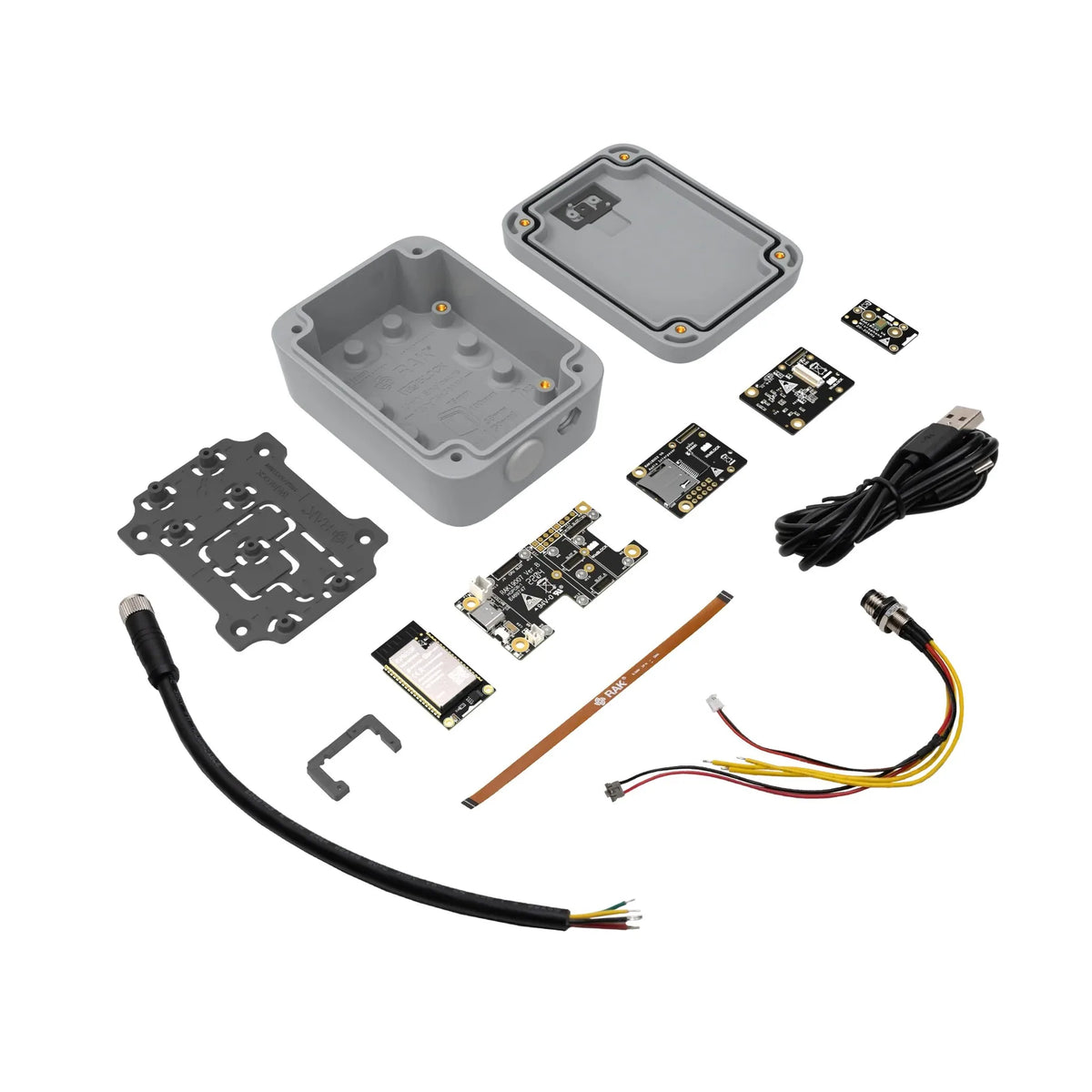

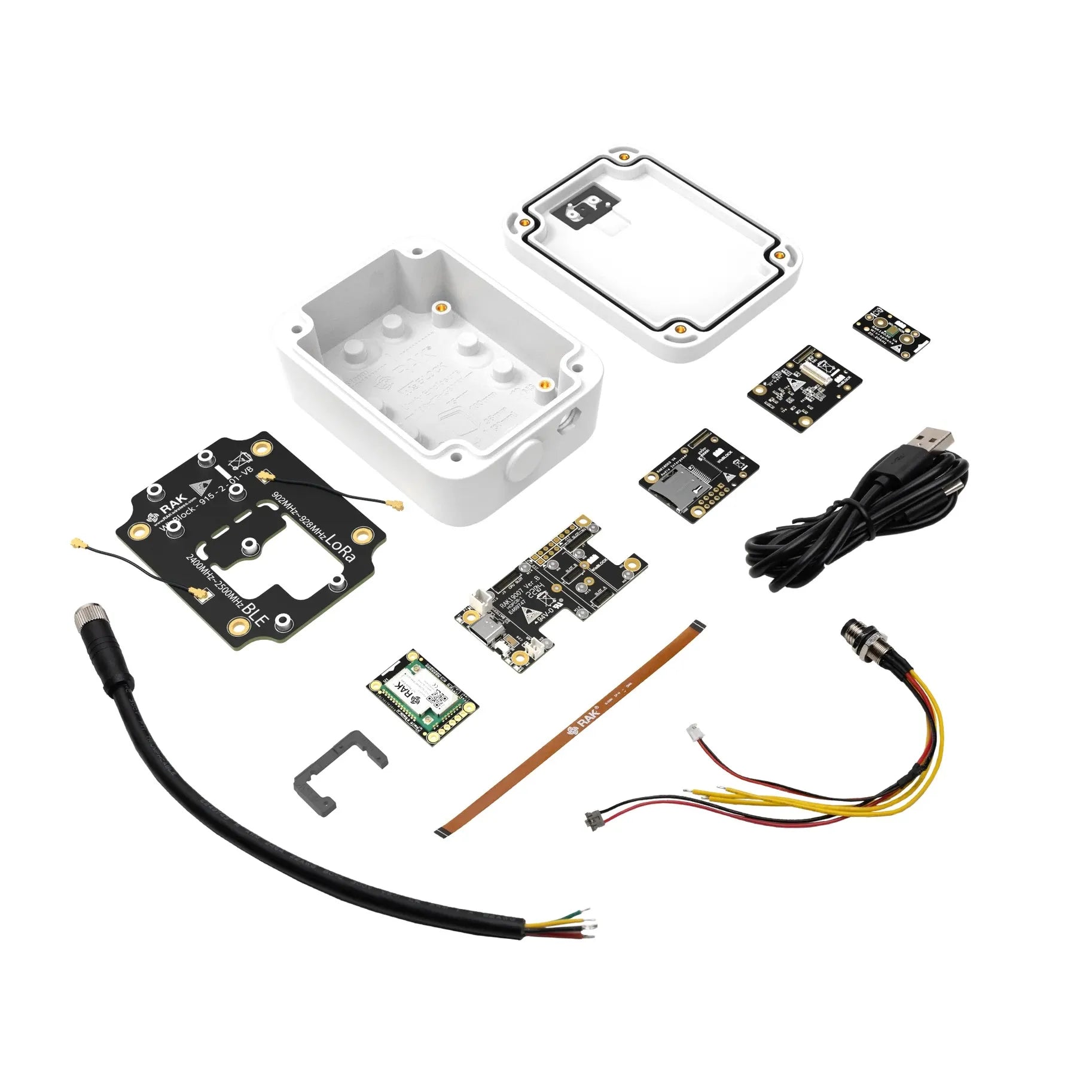

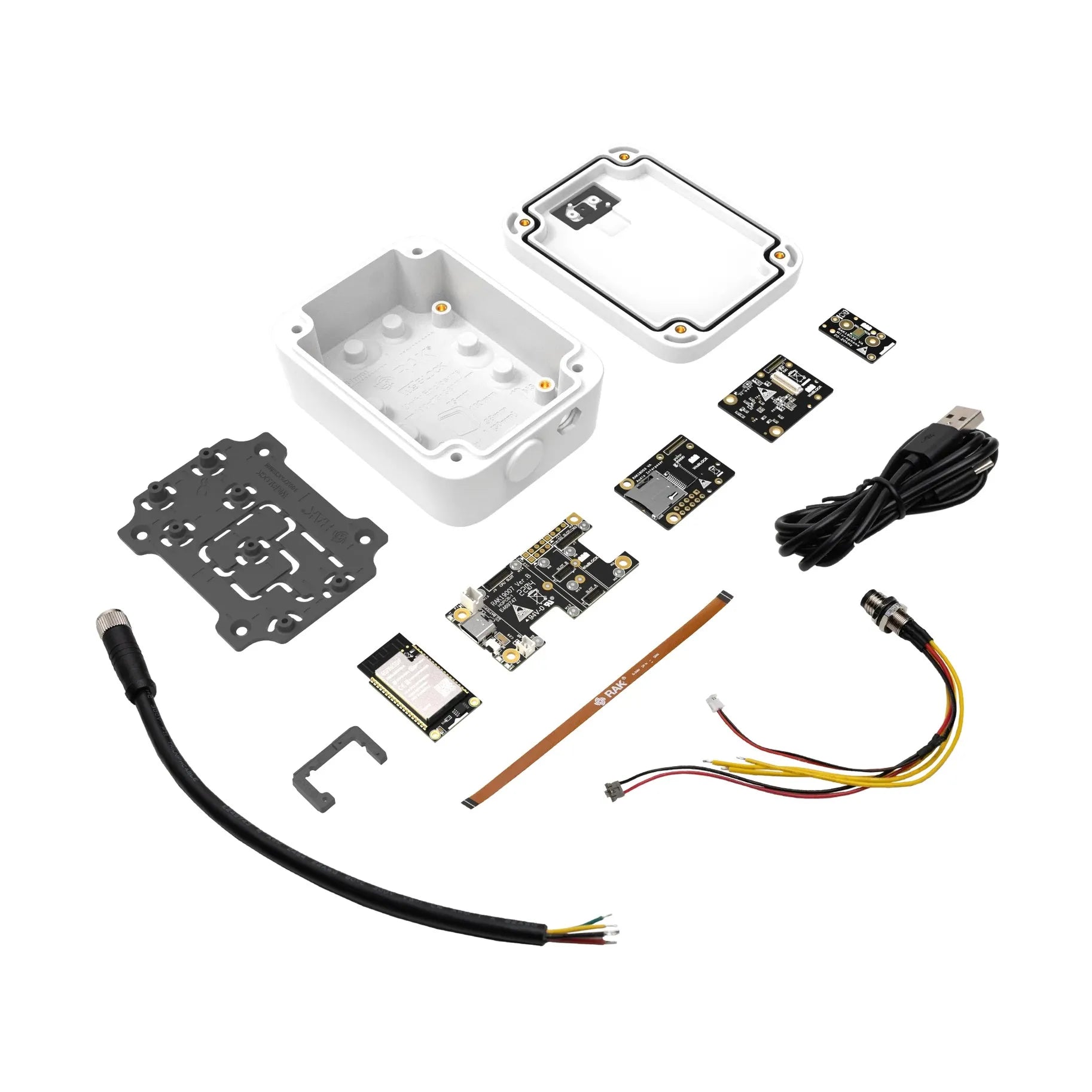

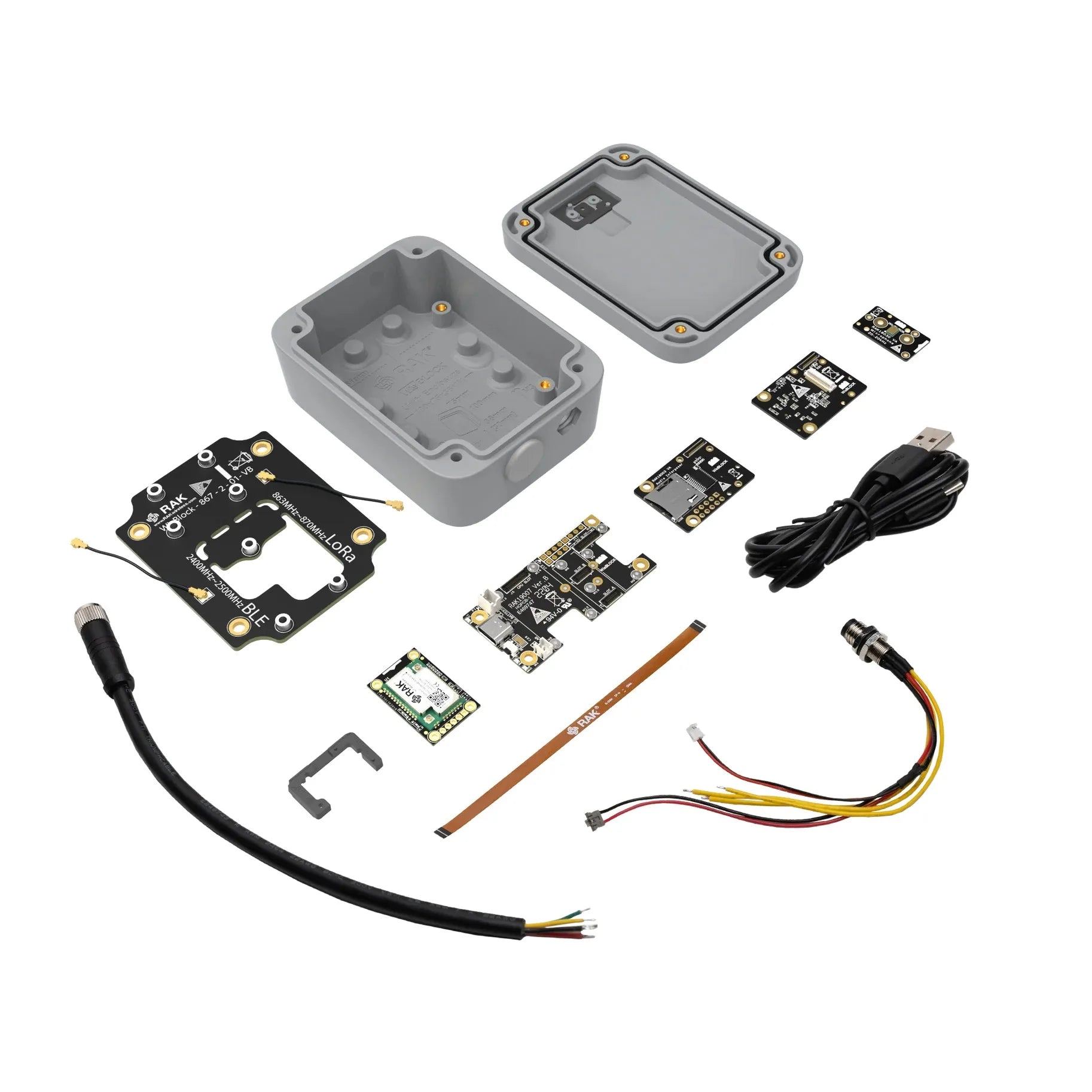

It includes a WisBlock Audio Core module of your choice and a microphone assembled into a Unify Enclosure.

More tutorials and example codes are available and make it easy to explore the world of voice processing.

The Arduino and Voice Processing versions can be used with WisBlock Audio. The Voice Processing version includes a Cyberon License. Please check our Comparison Table for more information.

Please select a LoRaWAN region according to this table:

Features

• Selection of one WisBlock Core module

  • RAK4631

  • RAK11200

• RAK19007 WisBlock Base Board with 4 sensor slots and 1 IO slot

• Audio Interposer module (RAK18003) to stack all the boards on a single IO slot

• RAK18030 Microphone module

• RAK18080 DSP module for the audio processing

• Speaker

• Unify Enclosure prepared for the microphone

• M8 Cable

• Unify mounting plate

  • Variant with RAK4630 -> Mounting plate with built-in LoRa antenna

  • Variant with RAK11200 -> Standard mounting plate

• All screws and cables required to stack the modules together and mount the WisBlock in the Unify enclosure

Documentation

• Build Your Own Voice Recognition Device Using Wisblock Audio

• WisBlock Quick Start Guide

• WisBlock Source Code Repository

• 40-Pin Male Connector 3D File

• WisBlock IO Tutorial
