SPECIFICATIONS

Brand Name: RAK

High-concerned chemical: none

Origin: Mainland China

Type: others

Build your ideal Meshtastic node with Meshtastic Designer. This online tool helps you select the right WisBlock modules and enclosures for Meshtastic Client, Tracker, or Router roles in your LoRa mesh network.

The WisMesh Base Board RAK19026 is the perfect start to explore and use the Meshtastic LoRa Mesh Network. It comes with an nRF52840 RAK4630 LoRa module pre-flashed with the Meshtastic firmware. It integrates a 1.3” OLED display, onboard GNSS location module (u-blox ZOE-M8Q), onboard motion sensor (ST LIS3DH), and additional two WisBlock Sensor and one WisBlock IO module slot. This combination includes everything required to build a Meshtastic device matching your requirements.

For improved user experience, it has an integrated user-programmable button and an on/off switch that disconnects the battery completely from the electronics but allows to recharge the battery through USB or solar battery.

With the Meshtastic Getting Started Guidethe WisMesh BaseBoard is ready for use within a short time.

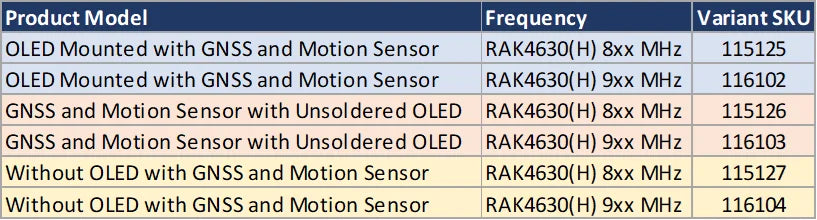

Choose your WisMesh Base Board according to the table below:

Product Features

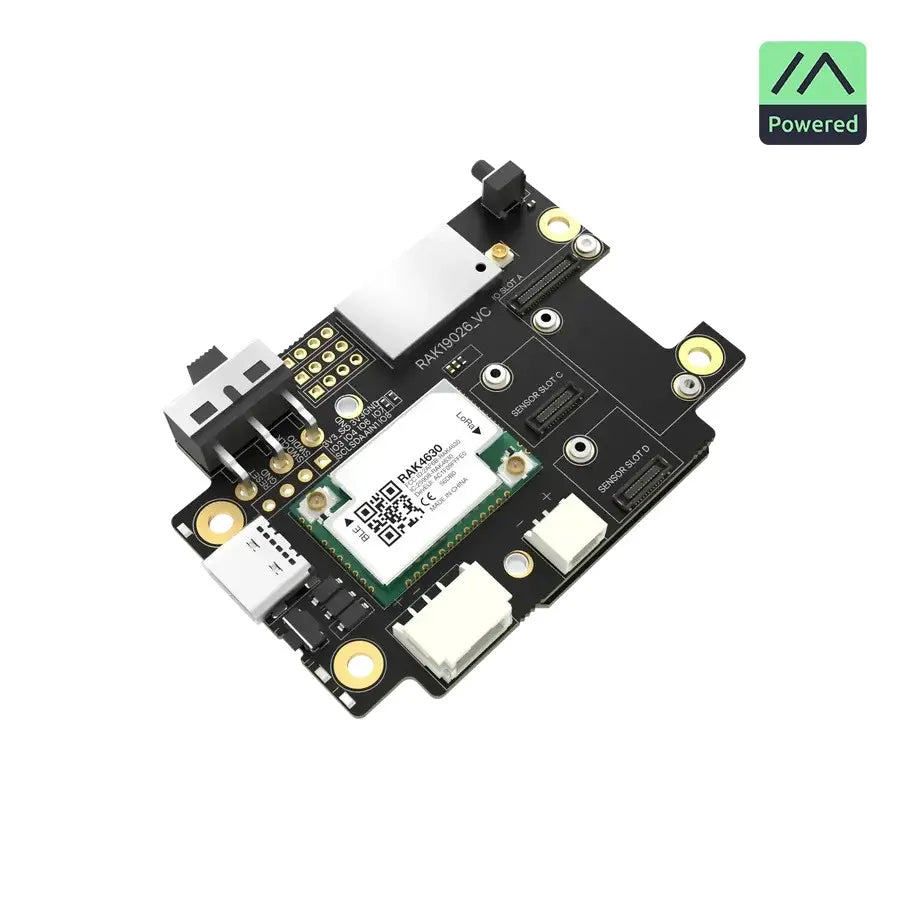

RAK4630 WisDuo module, pre-flashed with the Meshtastic firmware
- Nordic nRF52840:
  - Ultra-low-power MCU
  - 32-bit ARM® Cortex-M4F CPU
  - 64MHz CPU clock
  - 1 MB Flash, 256 KB RAM
- Semtech SX1262:
  - Low power high range
  - LoRa® transceiver
2 sensor slots
1 IO slot
Battery switch
User button
Connector for OLED display
GPIO exposure on pin header

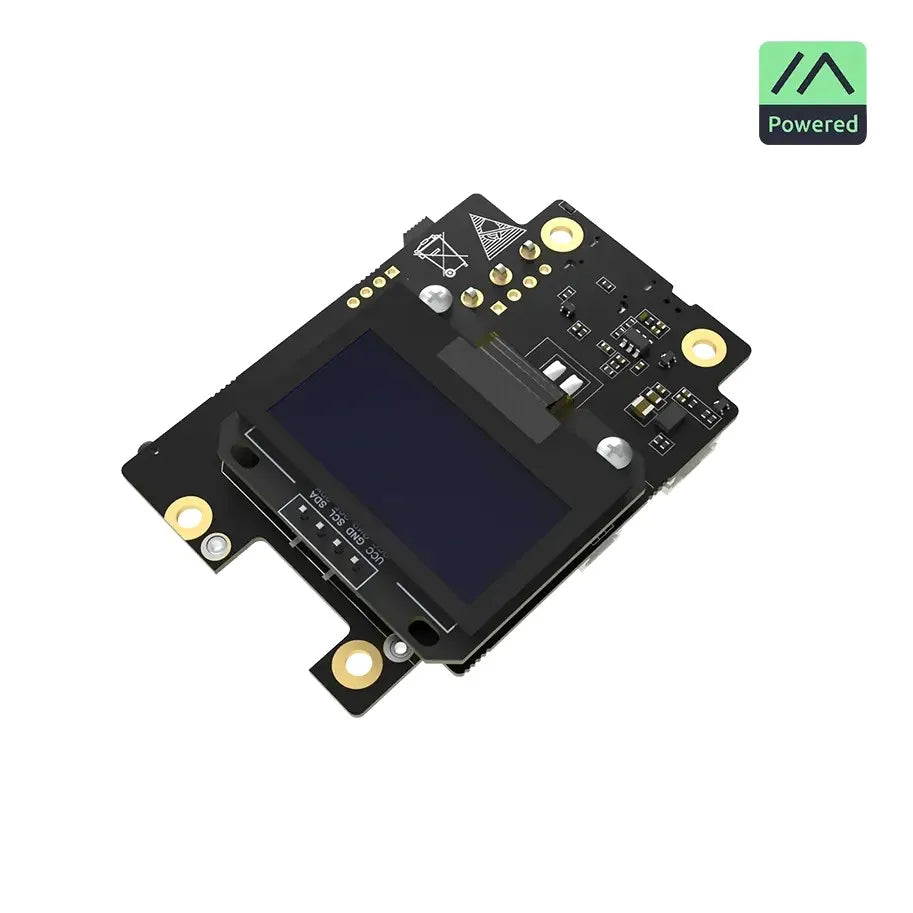

1.3” OLED display (pre-mounted or optional connected through a pin header)
U-Blox ZOE-M8Q GNSS location module onboard
ST LIS3DH motion sensor onboard

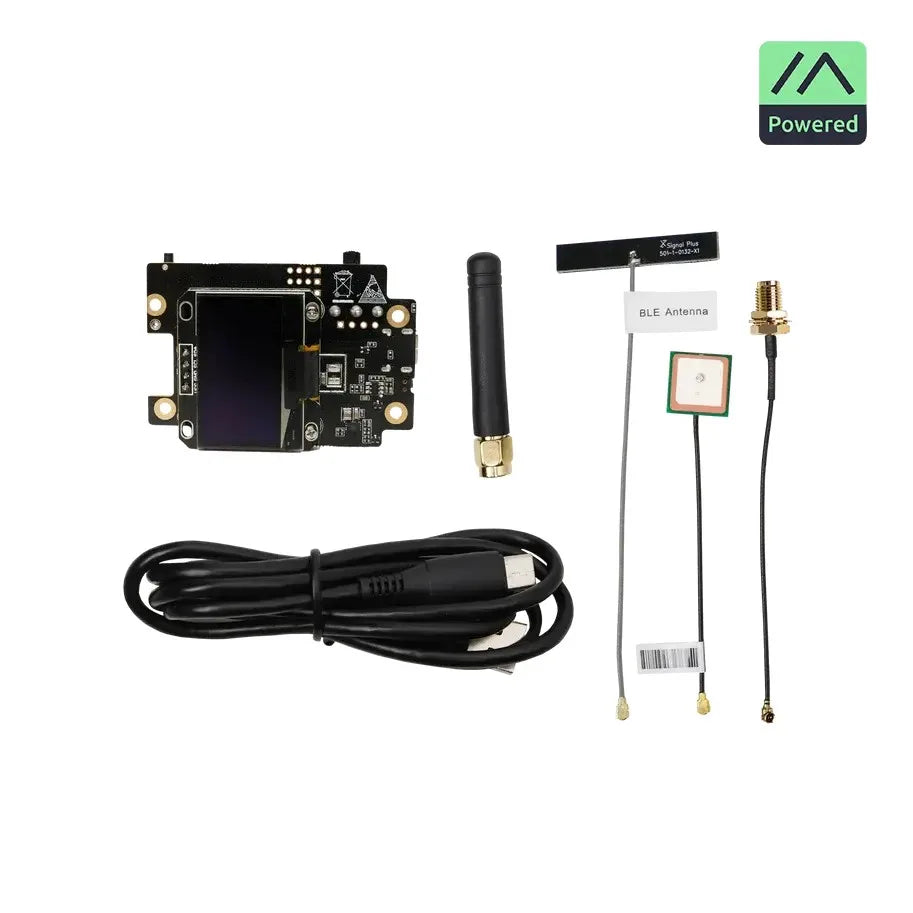

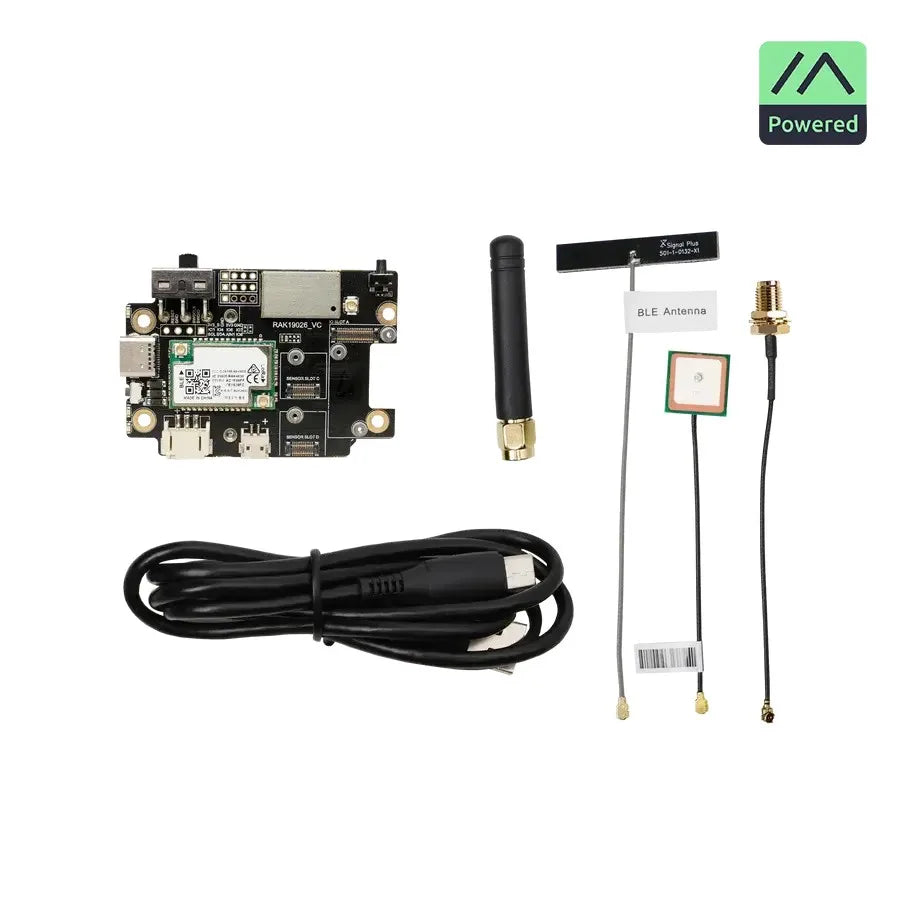

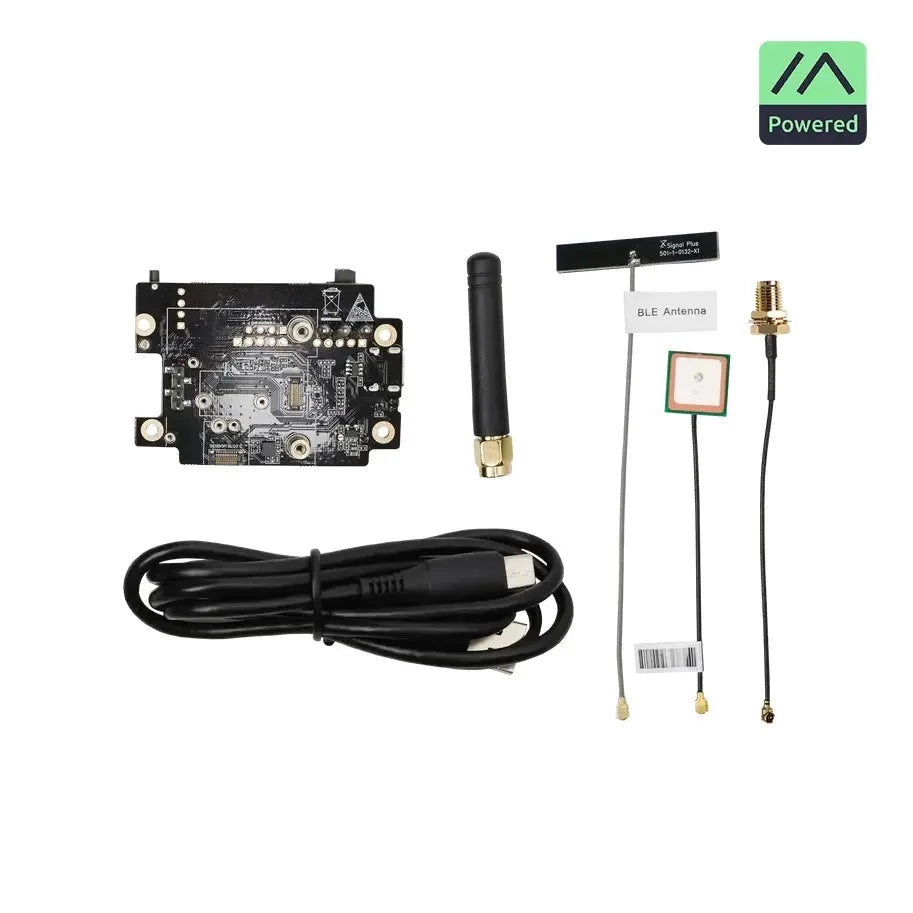

LoRa and BLE antenna included
