Raspberry Pi 3 B+/Zero W RS485 expansion board CAN module UART communication module
Default Title
$64.76
Sale price
$64.76
Regular price
$0.00
Skip to product information
Raspberry Pi 3 B+/Zero W RS485 expansion board CAN module UART communication module
$64.76
Sale price
$64.76
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Choice: yes
Condition: New
Dissipation Power: 1
High-concerned chemical: none
Origin: Mainland China
Supply Voltage: 1
Type: Voltage Regulator
is_customized: Yes
Does not include the Raspberry Pi module
Raspberry Pi 3 B+/Zero W RS485 expansion board CAN module UART communication module

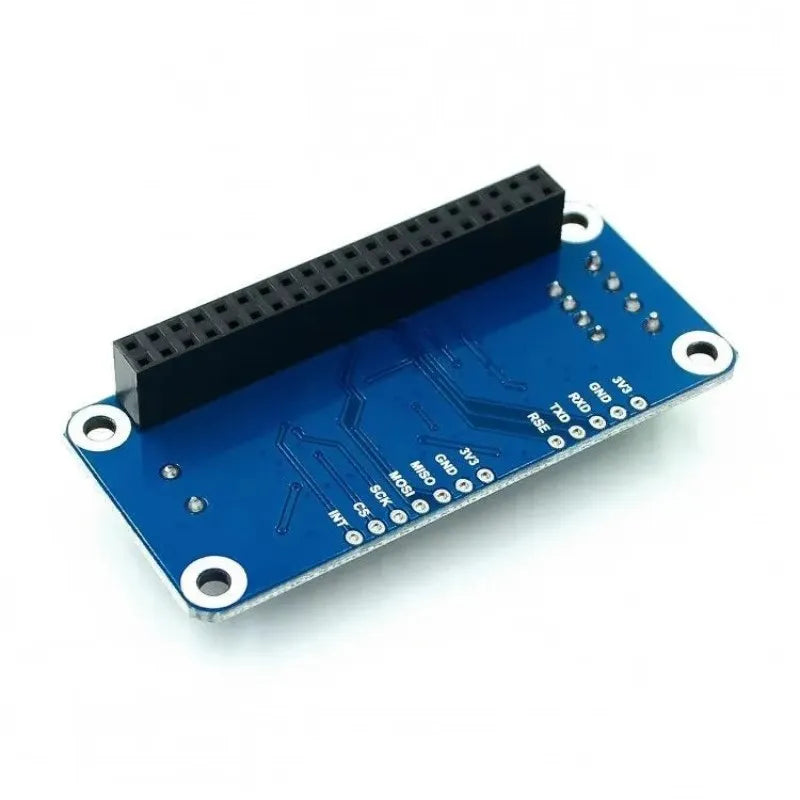

| Function pin | Raspberry Pi Interface (BCM) | description |
|---|---|---|
| 3V3 | 3V3 | 3.3V power supply is positive |
| GND | GND | Power ground |
| SCK | P11 / SCLK | SPI clock input |
| MOSI | P10 / MOSI | SPI data input |
| MISO | P9 / MISO | SPI data output |
| CS | P8 / CE0 | SPI chip select signal |
| INT | P25 | Interrupt output |
| RXD | P15 / RXD | RS485 serial port receiving |
| TXD | P14 / TXD | RS485 serial port transmission |
| RSE | P4 | RS485 transceiver settings (default automatic transmission and reception, must be changed to manual), high level transmission, low level reception |
Item Description:

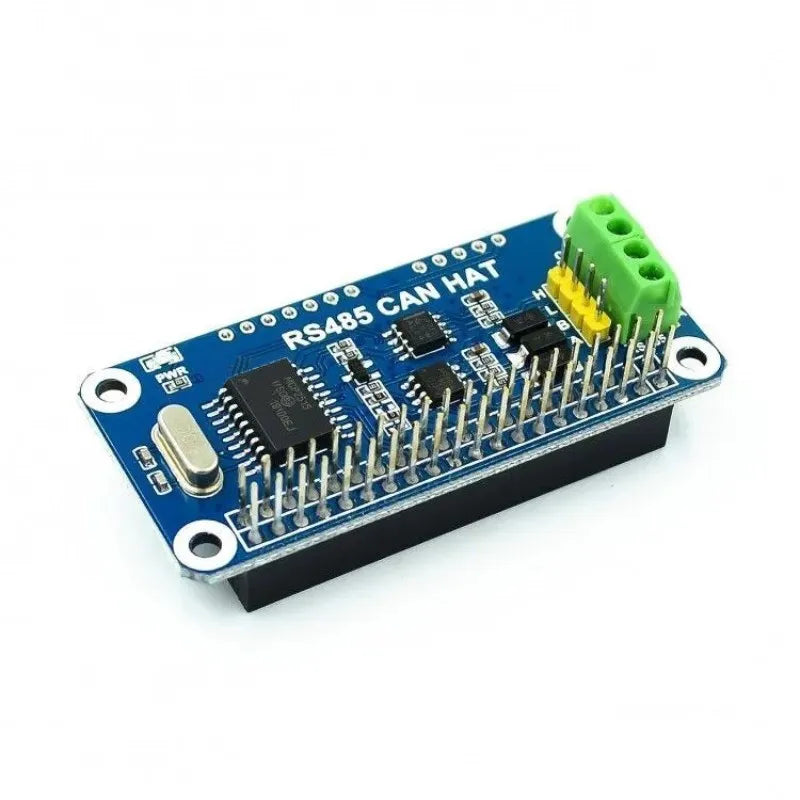

The RS485 CAN HAT will enable your Pi to communicate with other devices in long-distance via RS485/CAN functions.
Features:
Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

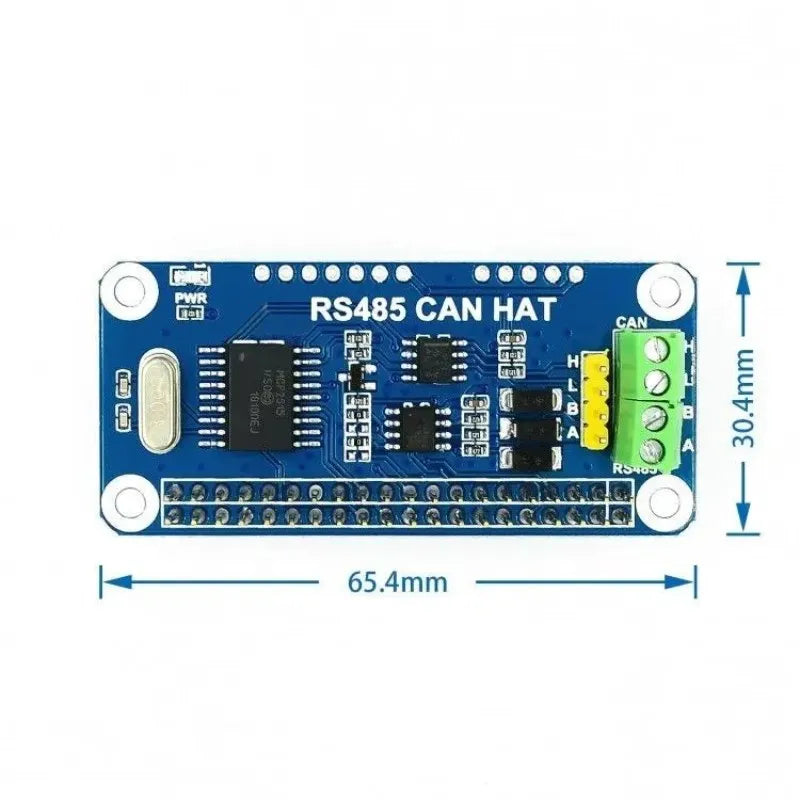

CAN function, onboard CAN controller MCP2515 via SPI interface, with transceiver SN65HVD230
RS485 function, controlled via UART, half-duplex communication, with transceiver SP3485
Reserved control pins, allows to work with other control boards
Comes with development resources and manual (examples in wiringPi/python)
Item Specification:
Operating voltage: 3.3V
CAN controller: MCP2515
CAN transceiver: SN65HVD230
485 transceiver: SP3485
Dimension: 65mm x 30mm
Mounting hole size: 3.0mm
Packing Listing:

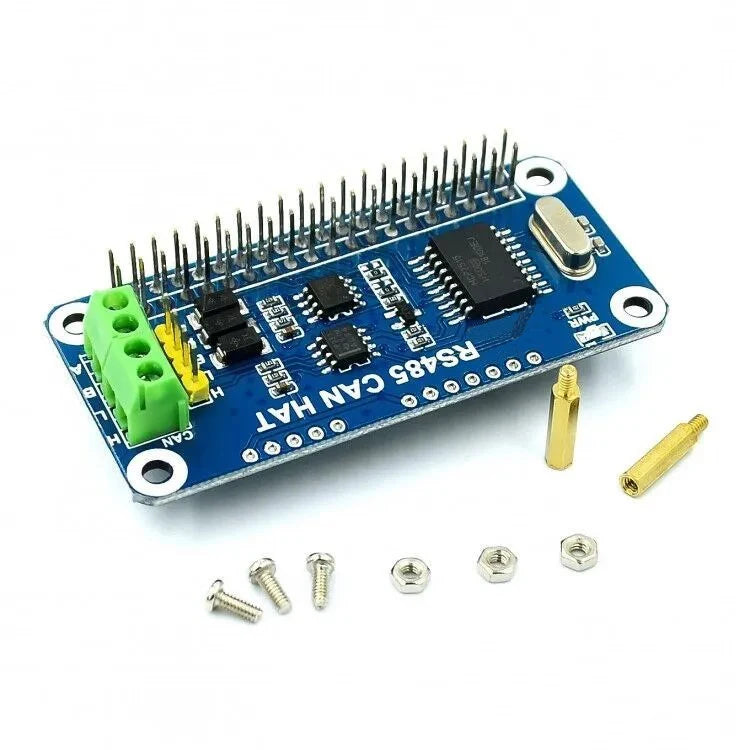

RS485 CAN HAT *1
RPi screws pack (2pcs) *1
