SPECIFICATIONS

Application: Computer

Brand Name: STJF

Condition: New

Dissipation Power: 1

High-concerned chemical: none

Origin: Mainland China

Package: DIP

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

Product description

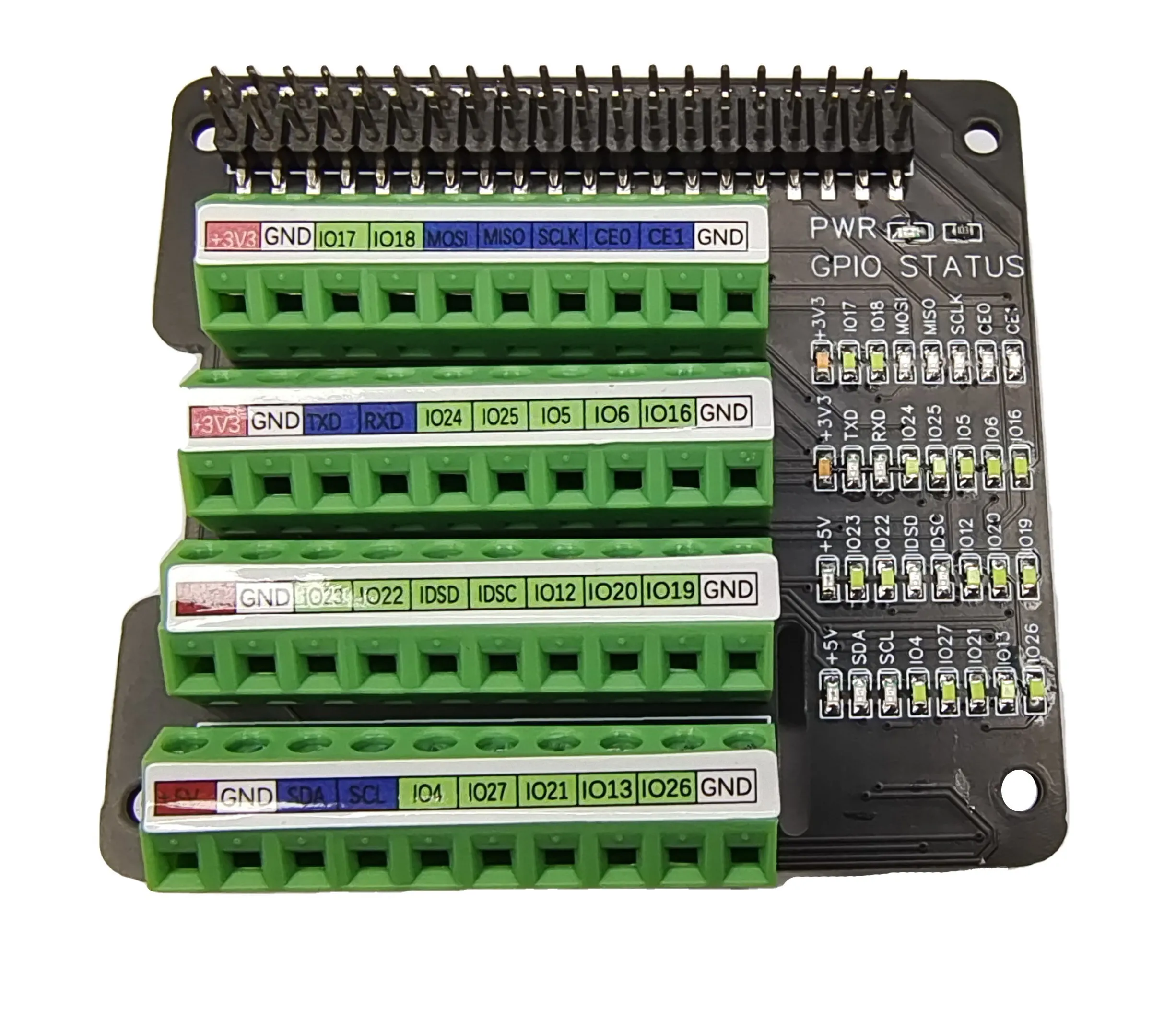

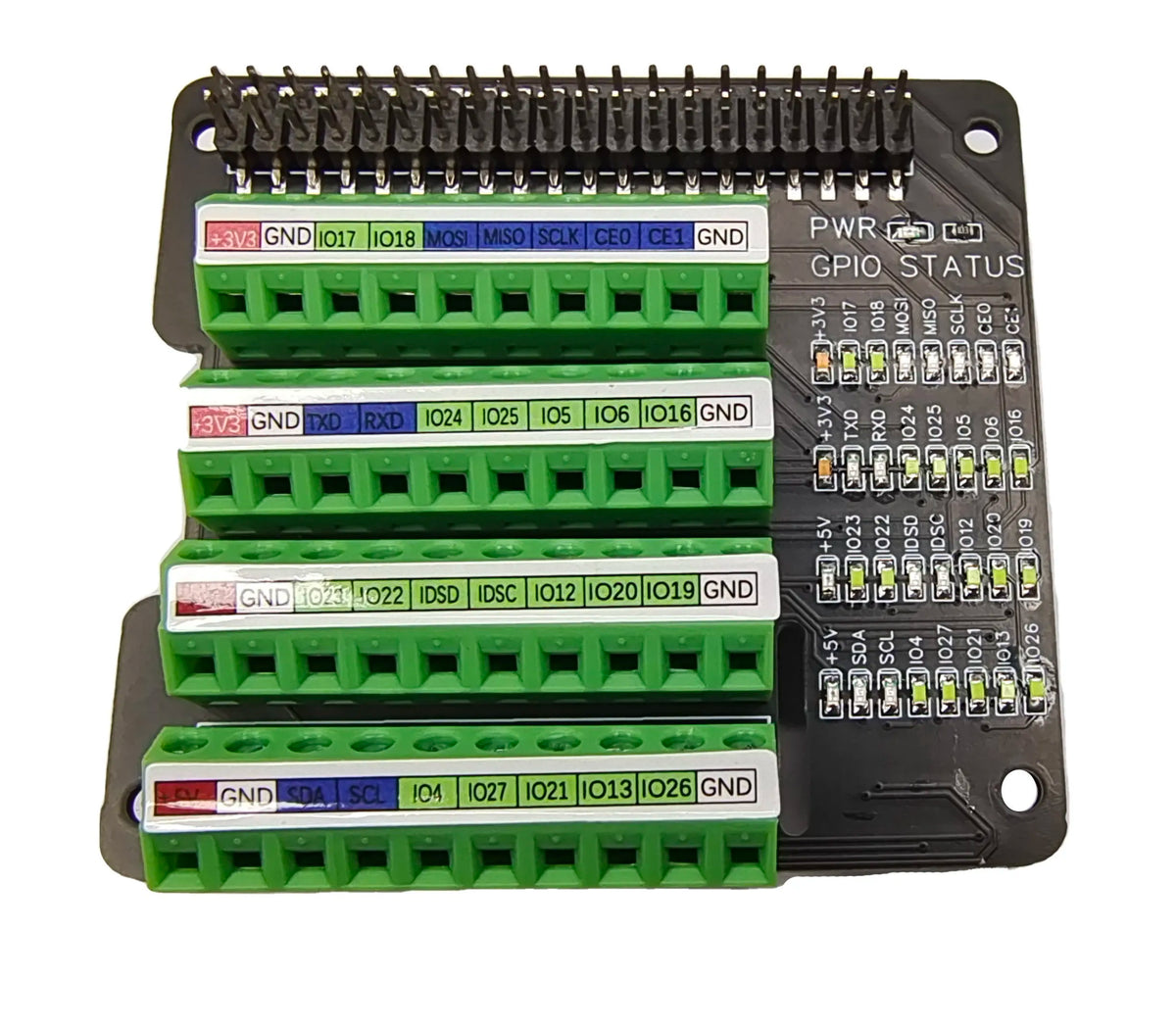

This is a very beautiful screw terminal expansion board, has 40 pin pin for raspberry pie expanded, and provides a good screen printing side tip and the LED display, through the fixed screw terminal, dupont line is not easy to fall off, you will be very strong, in the electronic experimental, everyone can easily connect, And there is information about the pin arrangement of GPIO pins on the top and side of the terminal. Those colored LED lights can display pin status information, and different colors to display different types of pin status. For example, the 5V power supply light is red, while the 3.3V power supply light is pink, the special function pin light is dark blue, and the normal GPIO pin light blue. You can determine whether the pin configuration is valid by observing it. Convenient connection, is a good helper for electronic experiments.

Product features

Easy to assemble

\. GPIO status can be observed

\. Screw terminal fixed cable

\. Fine screen printing of terminals

\. GPIO can be multiplexed
