SPECIFICATIONS

【Overview】

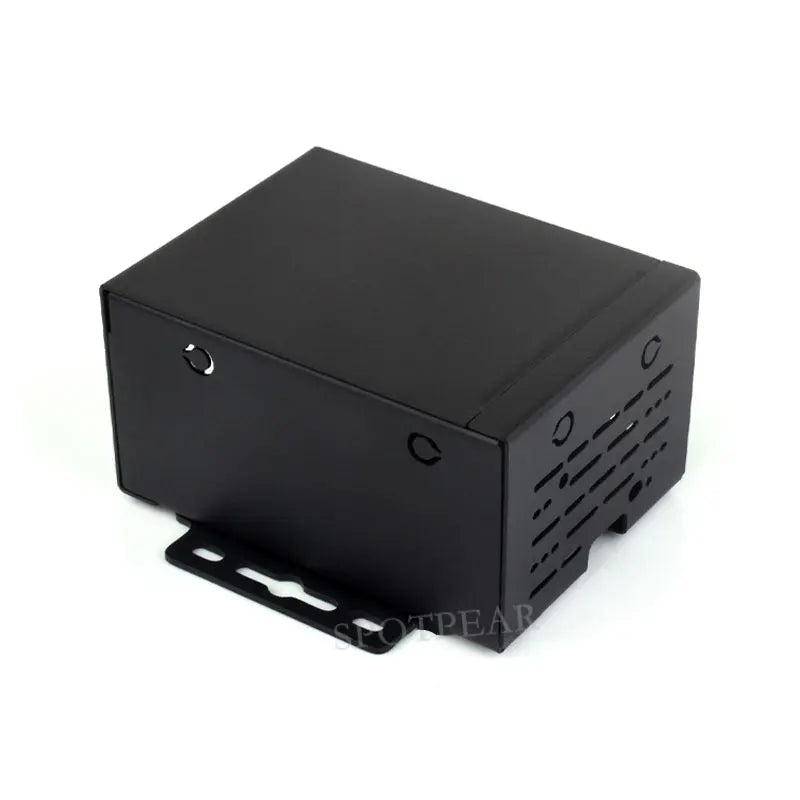

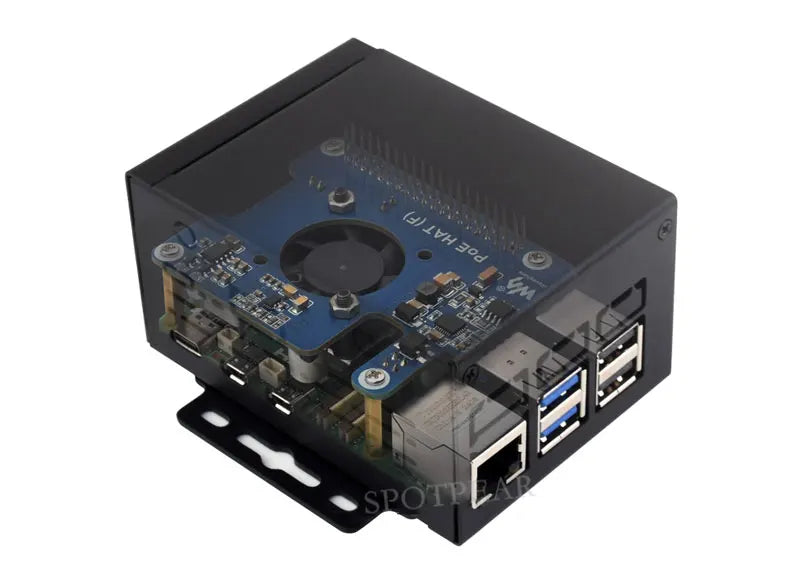

[] Industrial Metal Case For Raspberry Pi 5

[] Rail-Mount And Wall-Mount Support, Larger Internal Space, Supports Installing Various HATs And Expansion Boards

* for reference only, the Raspberry Pi 5 is NOT included.

【Larger Internal Space】

[] Metal Case With Simple Appearance Design, Compatible With Most HATs/Modules And Accessories Of Raspberry Pi 5

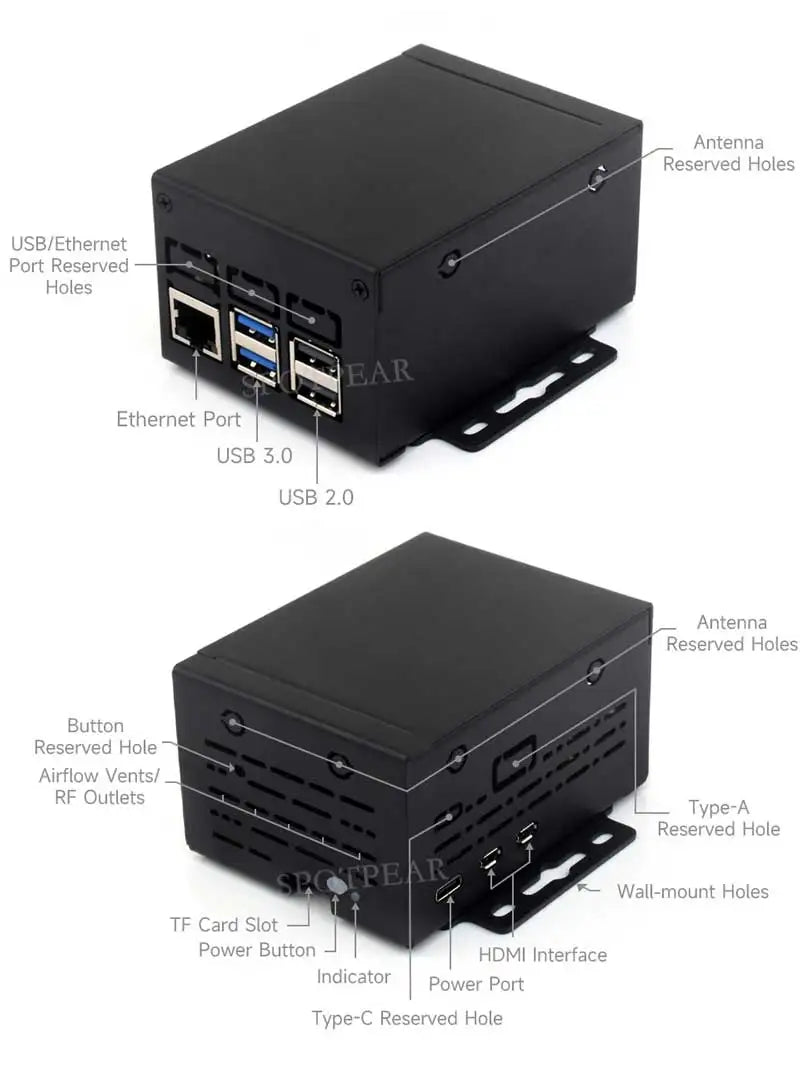

【Precise Cut-Out Design】

[] Each Cut-Out Is Completely Aligned With The Interfaces Of Raspberry Pi 5, With Removable Reserved Holes. It Also Compatible With WiFi And Bluetooth Communication For Reducing Signal Attenuation

Note: The reserved holes are designed with removable panels. Users can cut them open with needle-nose pliers according to the interface requirements of internal HAT or expansion board.

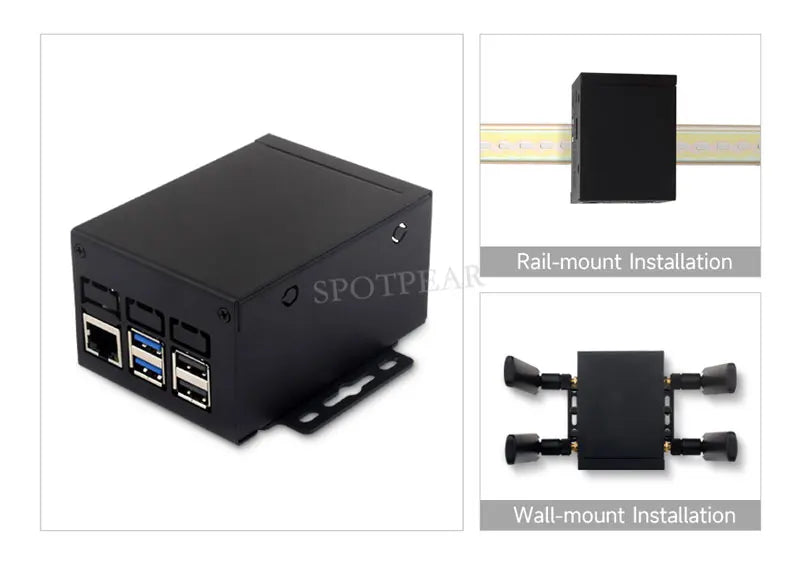

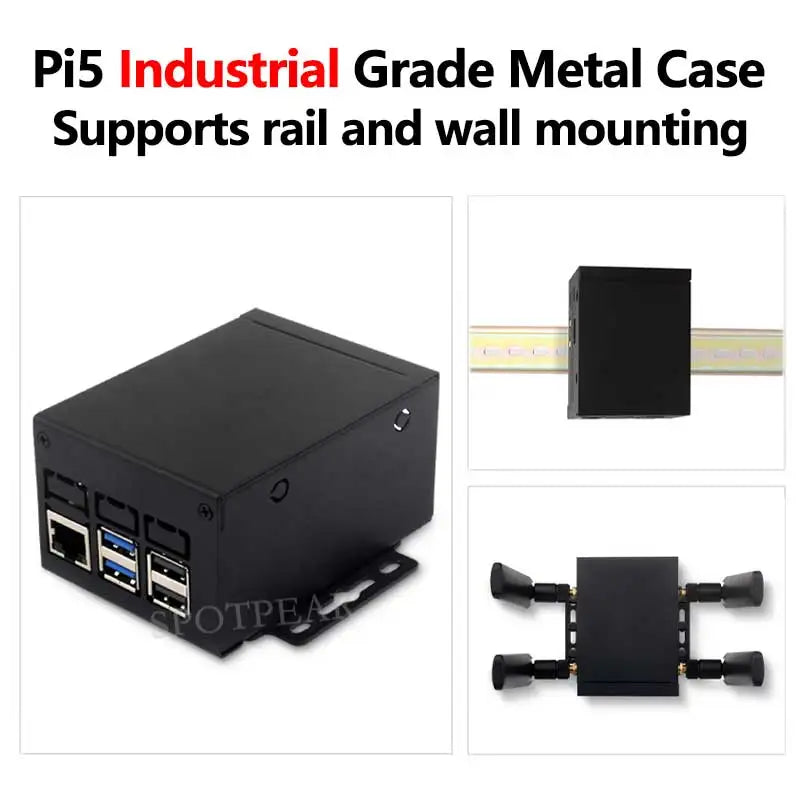

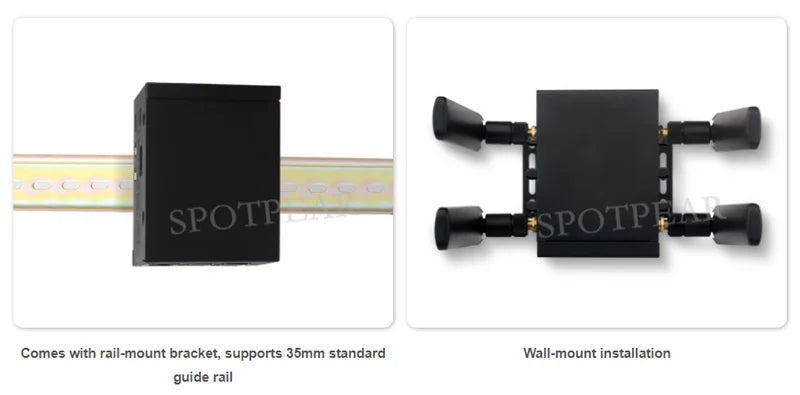

【Wall Mount & Rail-Mount Support】

[] More Flexible For Industrial Installation And Use

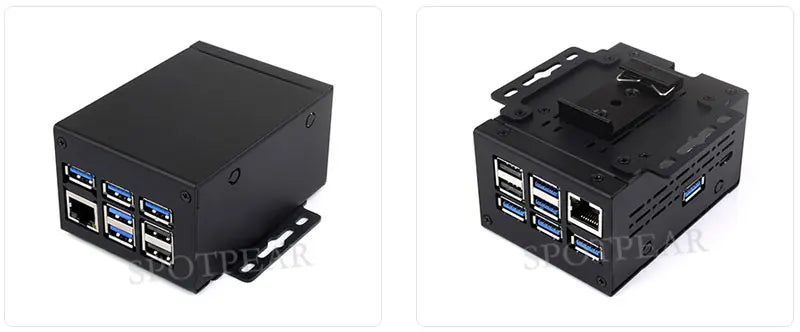

【Supports Installing Various HATs】

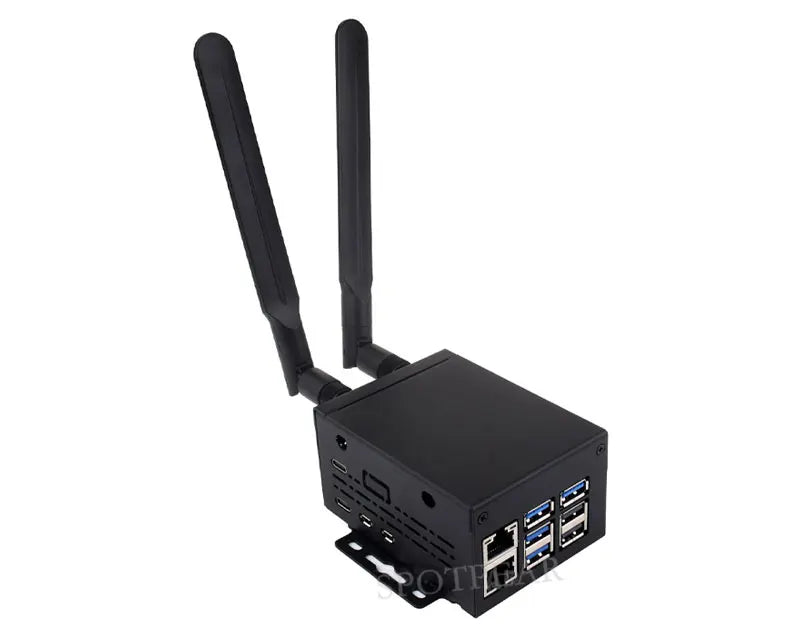

[] Installing With PCIe TO 4G/5G M.2 USB3.2 HAT+

[] Installing With PCIe TO MiniPCIe GbE USB3.2 HAT+

[] Installing With PCIe TO Gigabit ETH USB3.2 HAT+

* for reference only, the Raspberry Pi, external antennas and PCIe HATs are NOT included.

【Pi5 Assembly Instruction】

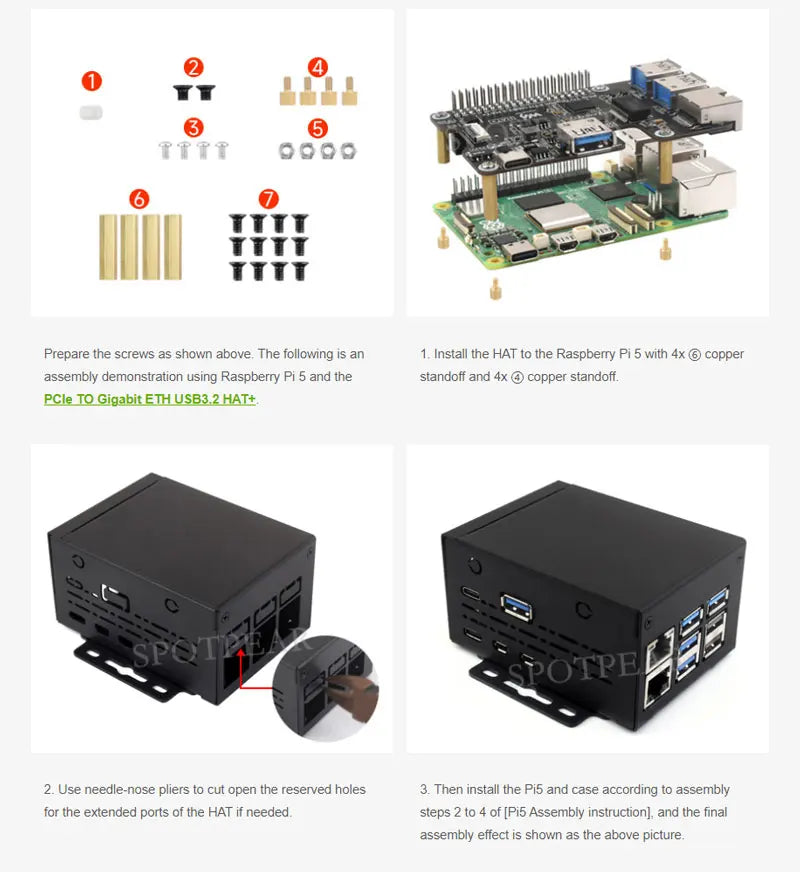

【Assembly Instruction Of Pi5 + HAT】

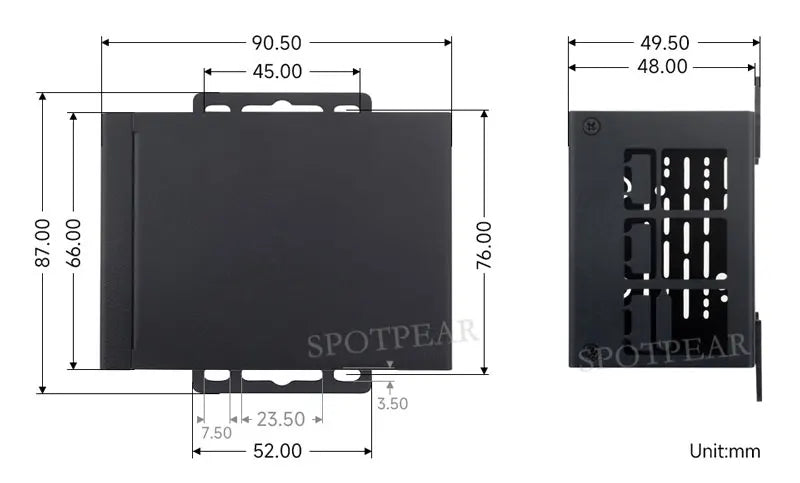

【Outline Dimensions】

【Shipping list】

[] PI5-CASE-D
