Raspberry Pi 5 PoE HAT Power over Ethernet 802.3af-compliant Moudle for Pi5
PoE-HAT-(F)
$116.36
Sale price
$116.36
Regular price
$0.00
Skip to product information
Raspberry Pi 5 PoE HAT Power over Ethernet 802.3af-compliant Moudle for Pi5
$116.36
Sale price
$116.36
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: spotpear
Certification: CE
Choice: yes
Demo Board Type: ARM
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Internet of Things (IoT)
semi_Choice: yes
【RPi5 Product Recommend】
【Note】
[] Not include Raspberry Pi 5.
【Overview】
[] A Power over Ethernet (PoE) expansion board suitable for Raspberry Pi 5, which supports IEEE 802.3af/at network standard. It is suitable for use with PoE routers or switches supporting IEEE 802.3af/at network standards, and only one network cable is needed to connect the Raspberry Pie to the network and supply power.
[] Based on Raspberry Pi 40PIN GPIO interface, it is suitable for Raspberry Pi 5.
[] supports PoE Ethernet power supply and IEEE 802.3af/at PoE network standard.
[] Fully isolated switch mode power supply (SMPS) is adopted.
[] On-board high-speed active cooling fan and equipped with metal fins to accelerate heat dissipation.
【Specifications】
[] PoE power input: 37V ~ 57V DC input.
[] Power output:
GPIO pin arrangement: 5V 4.5A (MAX)
2P needle arrangement: 12V 2A (MAX)
[] Product size: 56.5× 70.0mm.
[] network standard: supporting IEEE 802.3af/at PoE.
【For Use With Raspberry Pi 5】
[] Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs
【Power Over Ethernet】
[] Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Raspberry Pi or PoE equipment is NOT included.
【Onboard power supply interface】
[] 5V USB-A Provides Up To 4A Output (MAX 25W For 12V+5V Total Output Power)
Be Able To Power Extra Device While Providing Stable Power To Raspberry Pi
【Active Cooling Fan】
【Onboard MP8759GD Buck Chip】

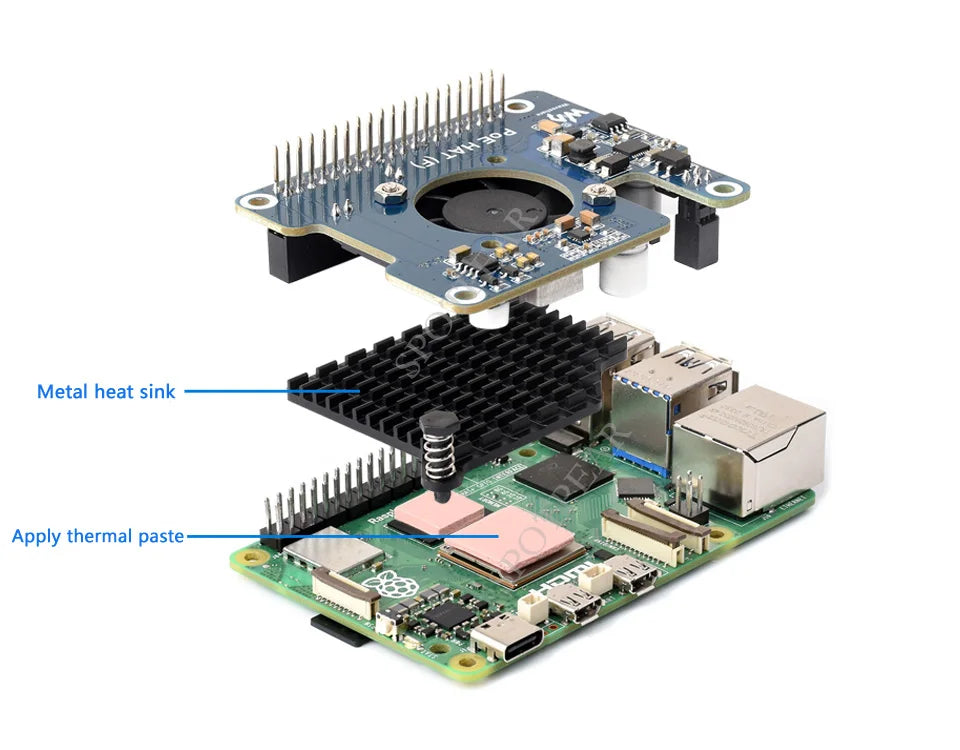

【Installation introduction】
【Outline Dimensions】
Package Contains
[] PoE-HAT-(F) × 1
