SPECIFICATIONS

Accessory Type: Power Adapter

Battery Included: no

Brand Name: Geekbord

Cable Length: 120mm

Choice: yes

Compatible With: Raspberry Pi5

High-concerned chemical: none

Input: 100~240V AC 50/60HZ 0.6A Max

Net Weight: 150g

Origin: Mainland China

Output: 5.1V/5A 9V/3A 12V/2.25A 15V/1.8A

Typical Application Fields: Education and Learning

semi_Choice: yes

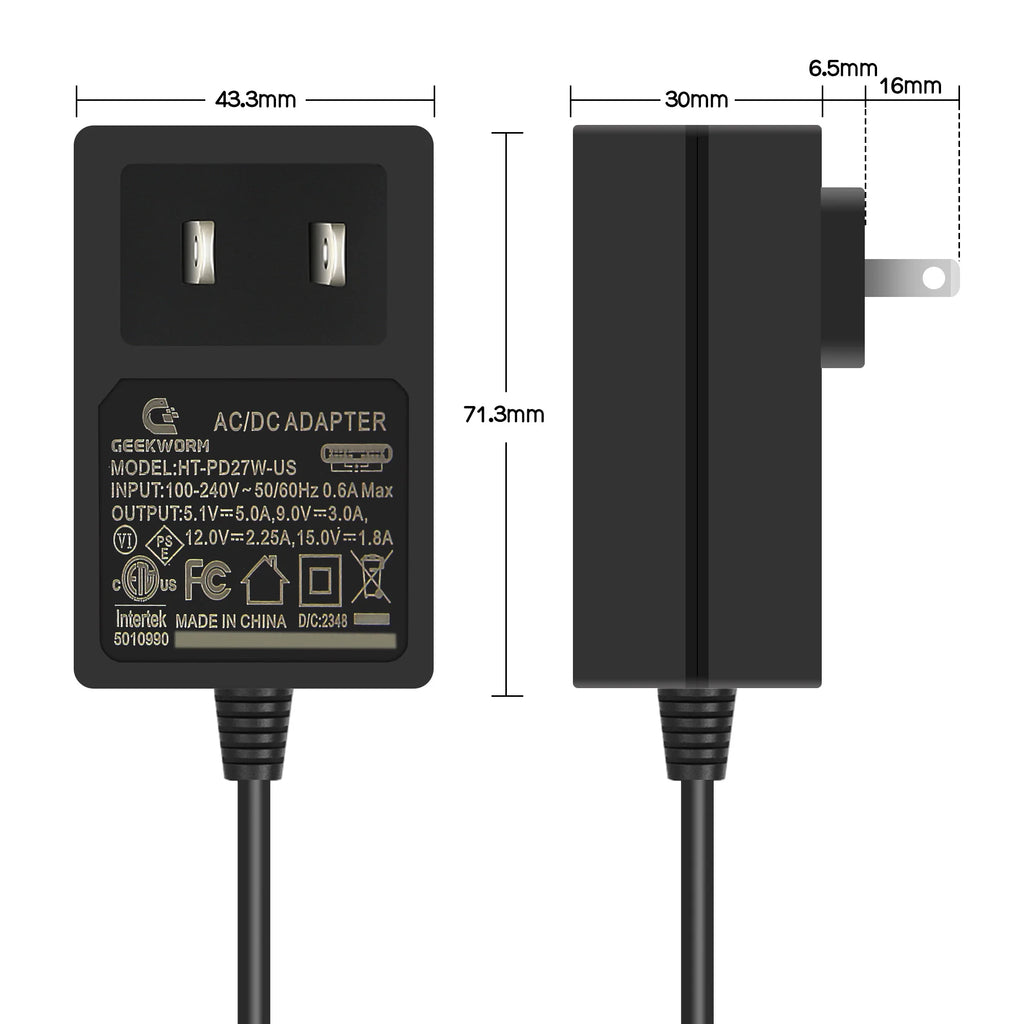

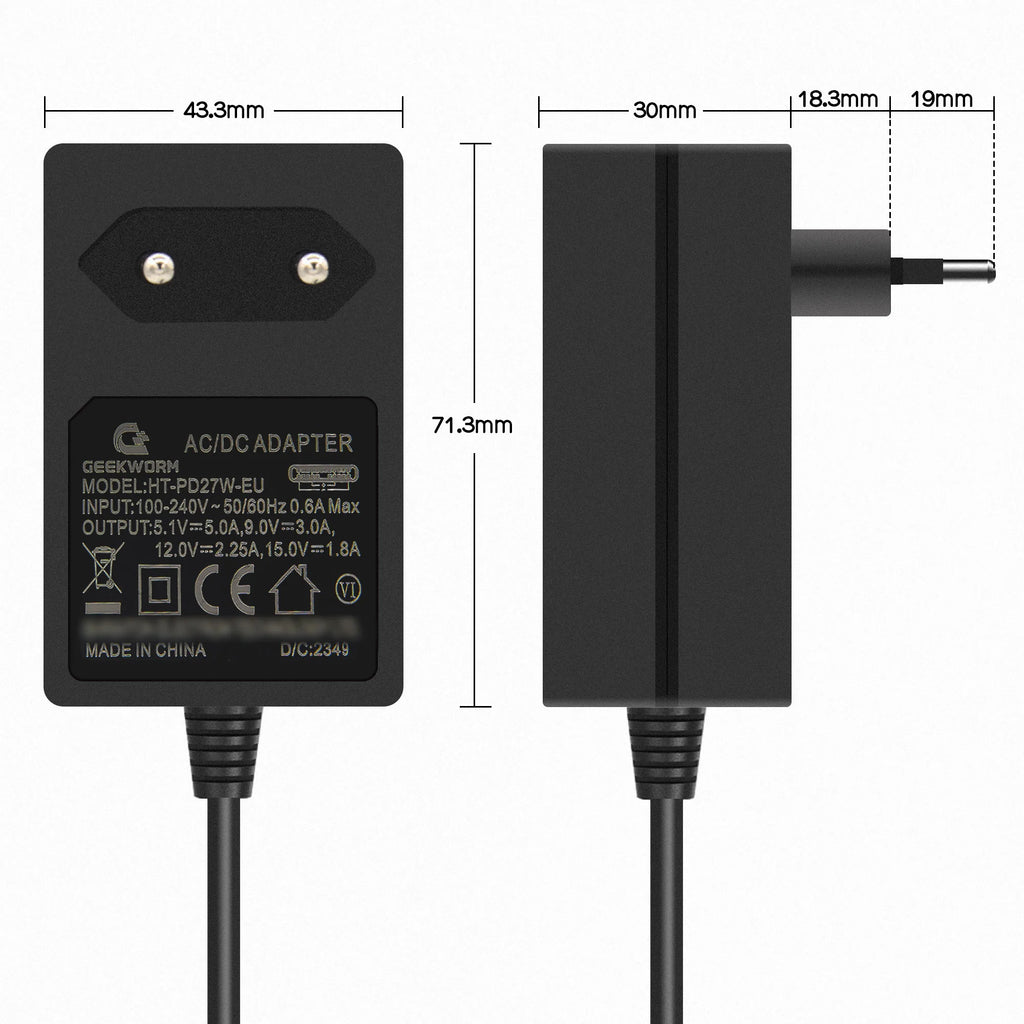

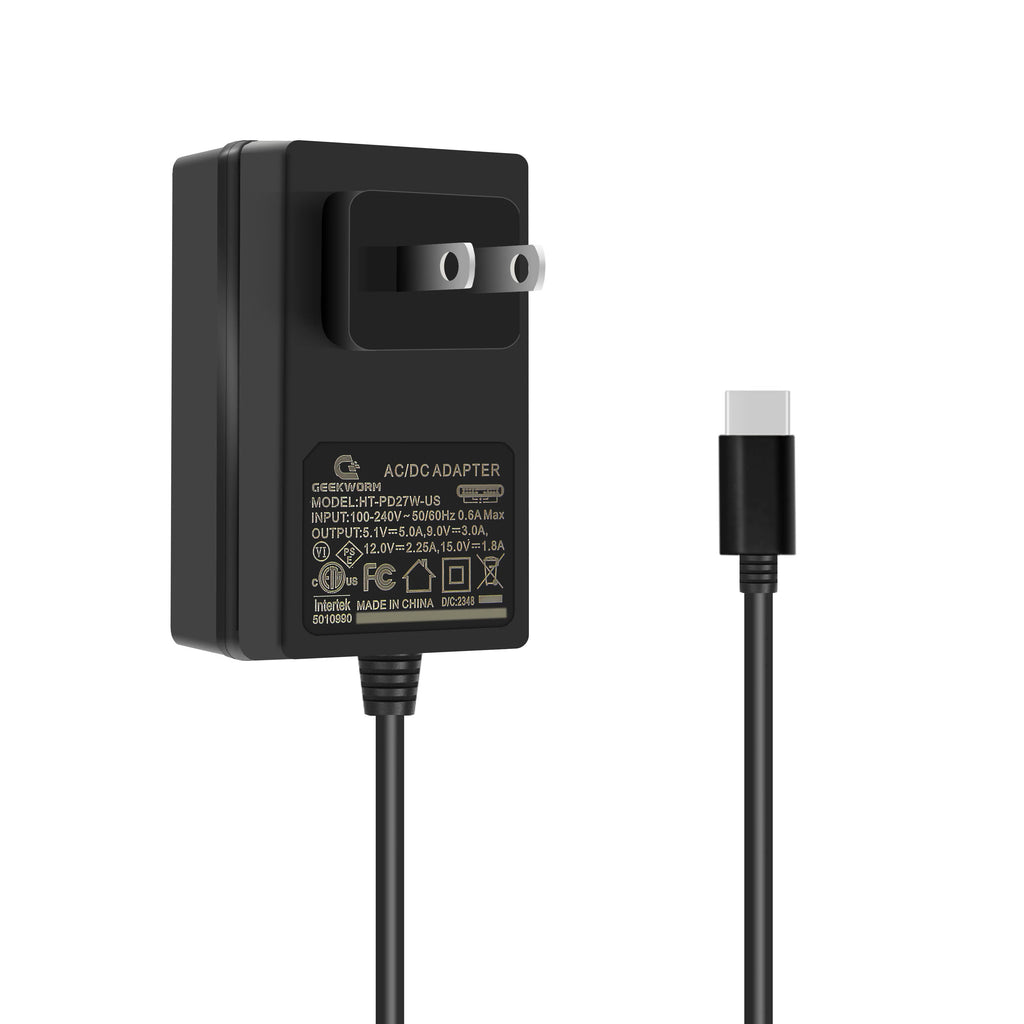

HT-PD 27W USB-C Power Supply for Raspberry Pi 5

• Power your Raspberry Pi 5 and high-demand projects with the HT-PD 27W USB-C Power Supply. Delivering 5.1V at 5A, this supply ensures stable, efficient performance while supporting USB PD (Power Delivery) for connected devices.

Key Features

• High-Power Output: 5.1V, 5A for Raspberry Pi 5, perfect for demanding applications.

• USB Power Delivery: Boosts USB-A current limit from 600mA to 1.6A for peripherals.

• Versatile Voltage: Supports 9V, 12V, and 15V for PD devices (up to 27W).

• Safety Protection: Includes over-voltage, over-current, and short-circuit protection.

• Global Compatibility: 100–240Vac input with EU, US, and UK plug options.

Specifications

• Input: 100–240Vac

• Output: 5.1V, 5A; 9V, 3A; 12V, 2.25A; 15V, 1.8A

• Connector: USB-C

• Cable: 120mm, 18AWG

• Plug Types: EU, US, UK

User Instructions & Safety

• Ensure proper ventilation when using the power supply.

• Use with compatible devices only to avoid potential damage and invalidating the warranty.

• Protect from moisture and heat sources. Operate in a dry, cool environment.

• Do not attempt to open or modify the power supply.
