Raspberry Pi 5 Power Supply Expansion Board DIY Electronic Adapter Module for Robot Car Kit Support Various Power Input Output

Raspberry Pi 5 Power Supply Expansion Board DIY Electronic Adapter Module for Robot Car Kit Support Various Power Input Output

$67.60

$67.60 $0.00

Description

SPECIFICATIONS

Brand Name: Roboduino

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Raspberry Pi 5 Power Supply Expansion Board DIY Electronic Adapter Module for Robot Car Kit Support Various Power Input Output

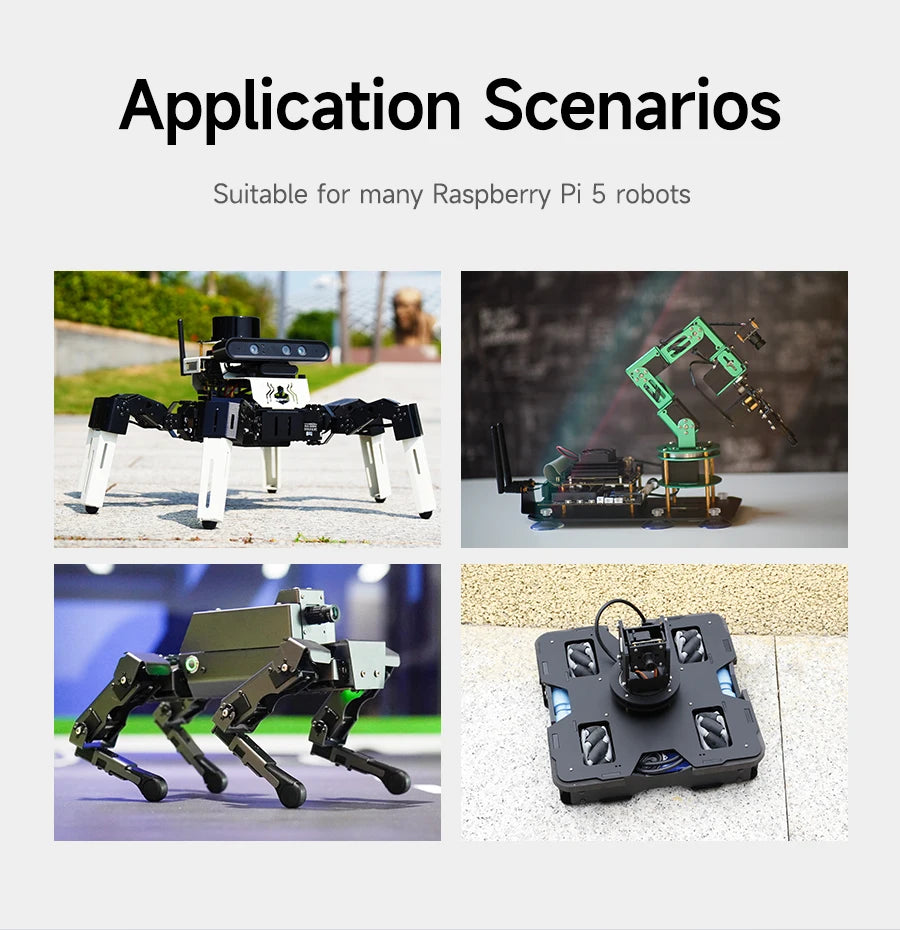

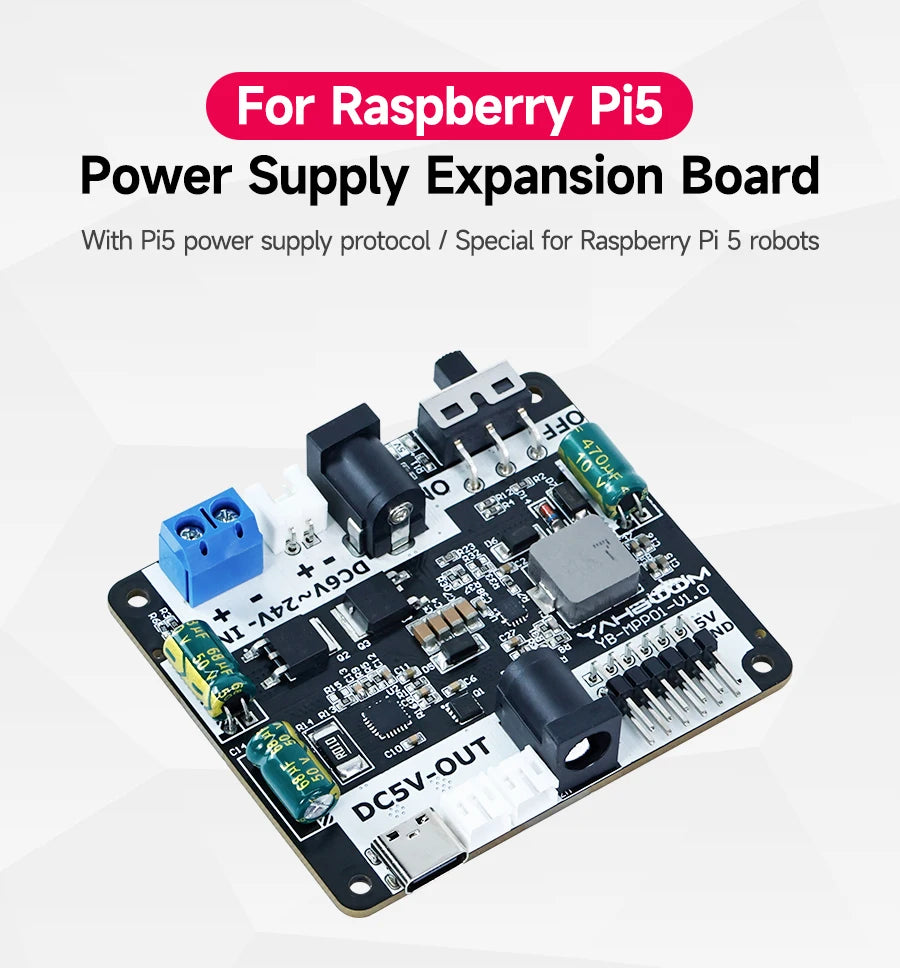

This is power supply expansion board tailor-made for Raspberry Pi 5. Integrating multiple types of input and output ports and efficient voltage stabilization technology, it can ensure that the input power is stably adjusted to the 5V/5A output, perfectly meeting the power needs of the Raspberry Pi 5. Effectively eliminating potential low-voltage operation risks, and avoiding USB interface current limitation. Yahboom have designed fixed holes for this expansion board, which can be stacked directly on the Raspberry Pi 5. The overall height is suitable for smart cars, robots and other mobile platform projects.

1.Comes with PD power supply protocol, suitable for Raspberry Pi 5, and compatible with JetsonNANO, K210, STM32 and other development boards.

2.Supports 6~24V voltage input and 5V/5A voltage output.

3.Can be stacked with Raspberry Pi 5 through screw copper posts.

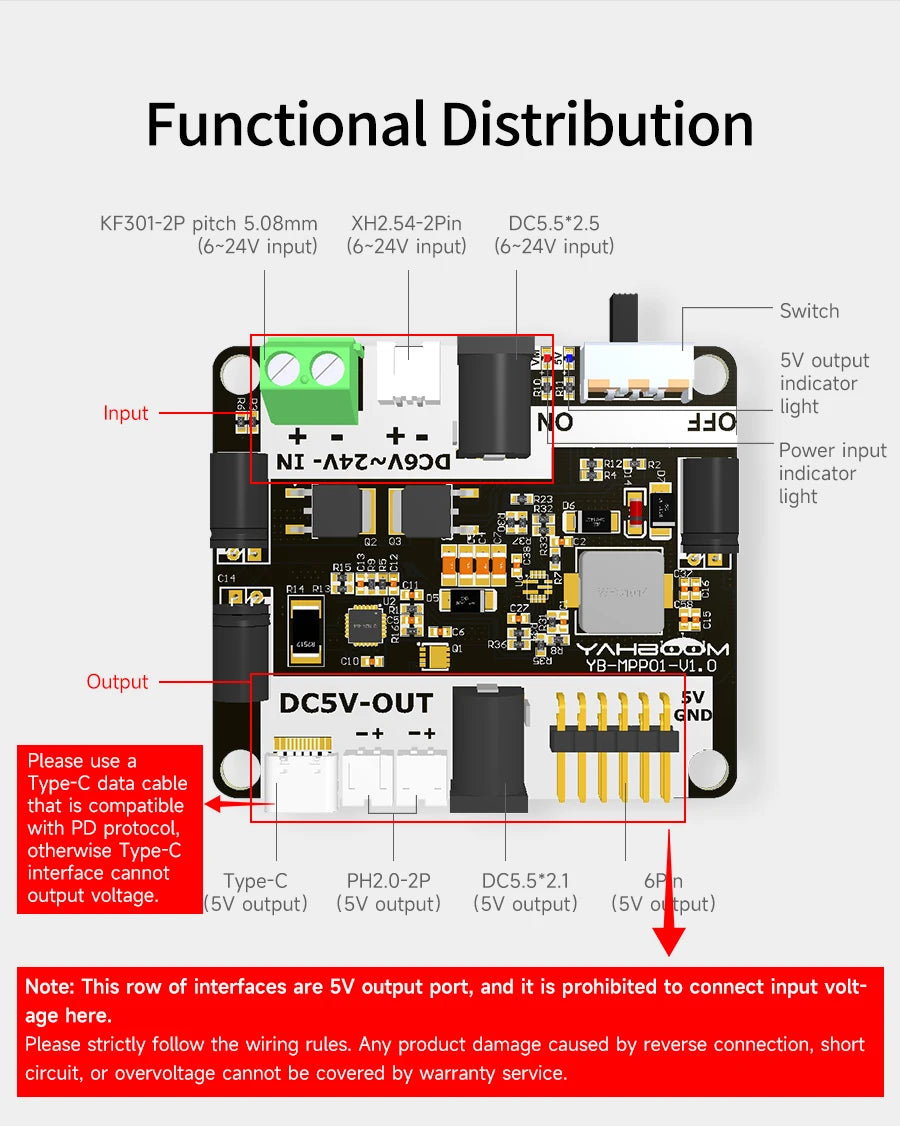

4.Onboard three input interfaces: KF301-2P pitch 5.08mm, XH2.54-2Pin, DC5.5*2.5.

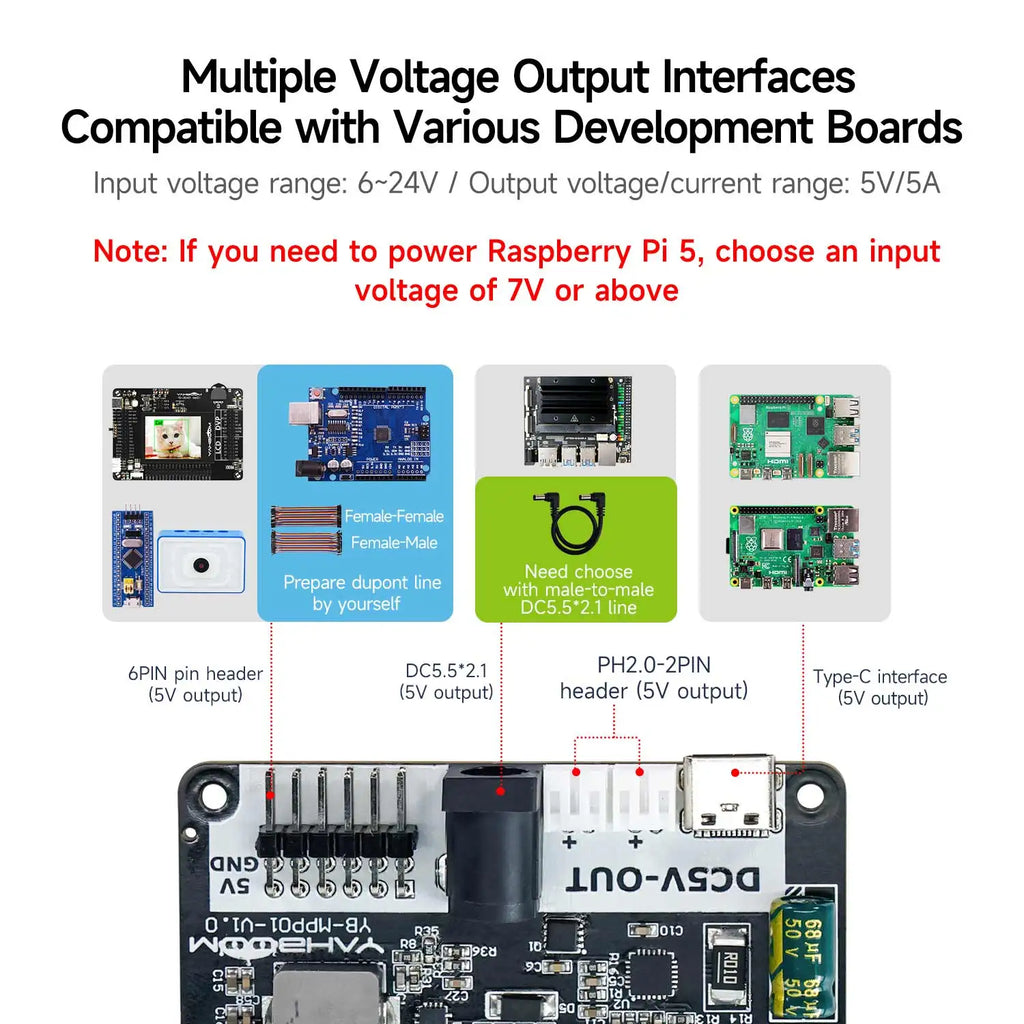

5.Onboard three output interfaces: Type-C, PH2.0-2P, DC5.5*2.1, 6Pin.
