SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi 5 / Pi4B

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Internet of Things (IoT)

semi_Choice: yes

  Note: Do not include18650 batteries, Please Buy alone.

https://spotpear.com/index/study/detail/id/905.html Notes and tutorial links

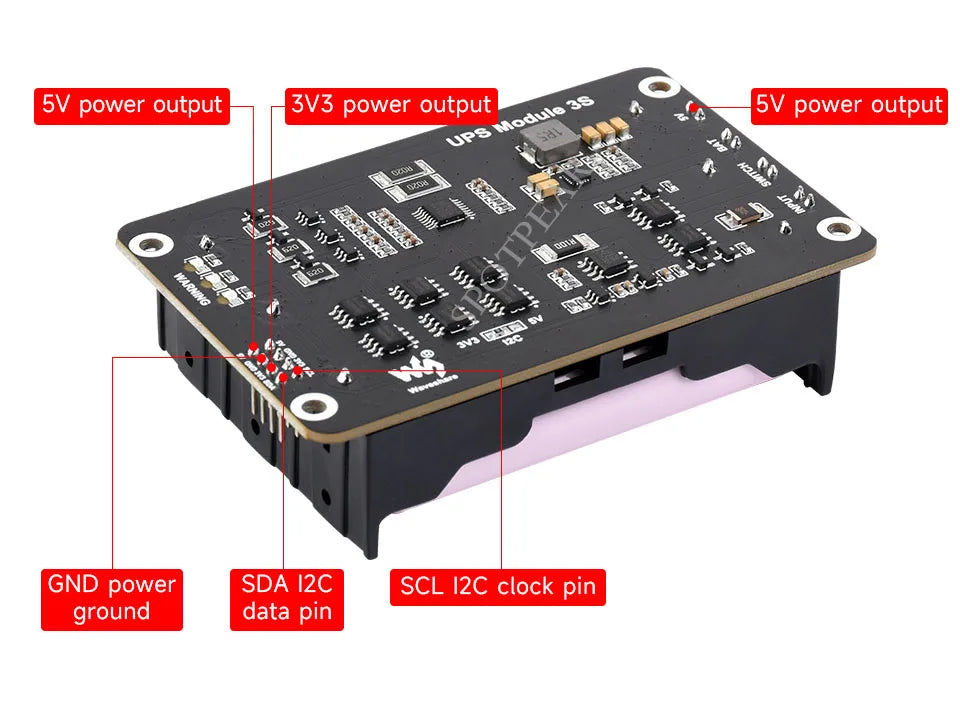

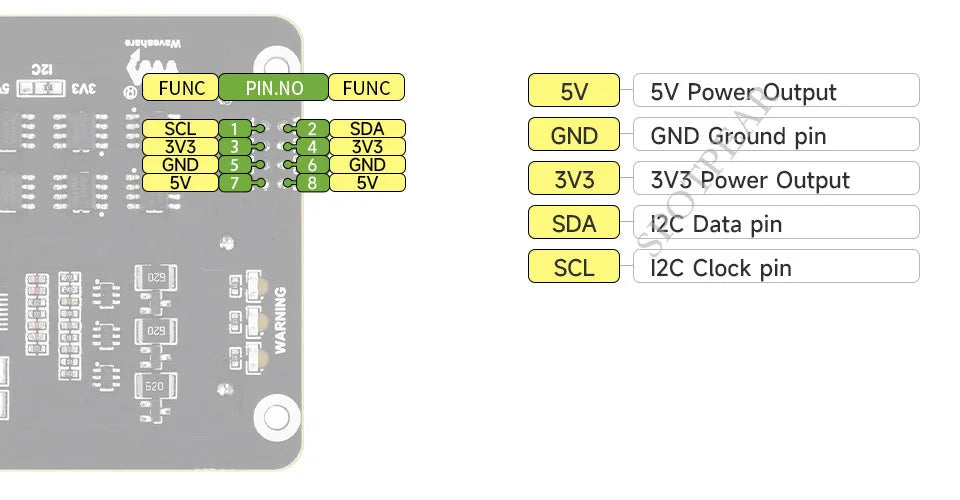

The pin header interface includes 5V voltage output, 3V voltage output and IIC output.
Note 1: When mounting the battery for the first time, you need to pay attention to whether the LED is on. If the LED is on, it means that the corresponding battery is reversed. Do not charge the battery if it is reversed.
Note 2: There may be no power output when the battery is connected for the first time. You need to press the BOOT button on the circuit board to activate the battery protection chip to have power output.
Note 3: Use the power supply configured by the product to charge. Using other power supplies may cause the product to be damaged if the output power ripple is too large and unstable.
Note 4: If the positive insulation pad of the battery is broken, it is recommended not to continue to use it, which may cause a short circuit and fire. When removing the battery, do not use a screwdriver to pry the positive pole of the battery, which may cause a short circuit, and pry the negative pole of the battery.

   Features

• Adapting various interfaces via cables, easy to integrate into mobile robots or industrial control equipment

• I2C bus communication, monitoring the batteries voltage, current, power in real time

• Multi battery protection circuits: over charge/discharge protection,over current protection, short circuit protection, and reverse protection,along with the equalizing charge feature, more safe and stable

• Onboard 5V regulator, up to 5A continuous output current,more sufficient power source for Raspberry Pi and Jetson Nano

• Batteries warning indicators, easy to check if the battery is connected correctly

• Comes with online development resources and manual

   Specifications

• OUTPUT VOLTAGE : Batteries series voltage; 5V 5A; 3.3V 300mA

• CONTROL INTERFACE : I2C

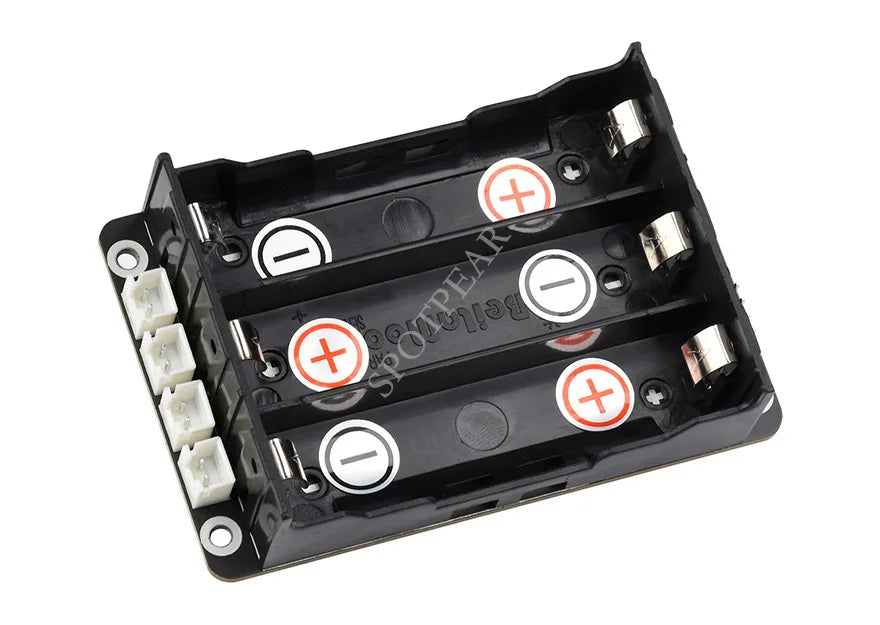

• BATTERY SUPPORT : 3 x 18650 Li batteries (in series,NOT included)

• CHARGER : 12.6V 2A

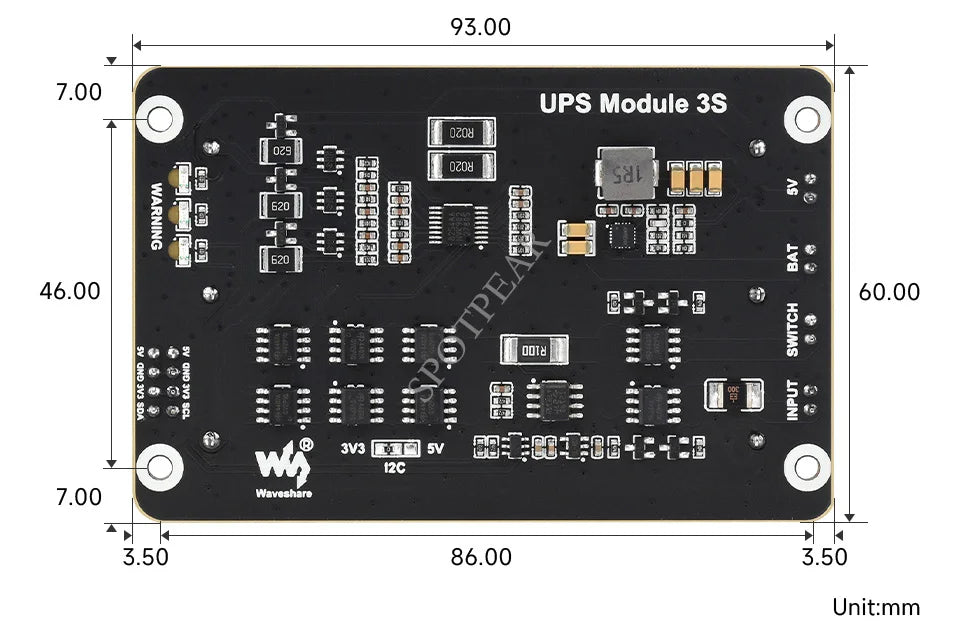

• DIMENSIONS : 60 × 93mm

• MOUNTING HOLE SIZE : 3.0mm

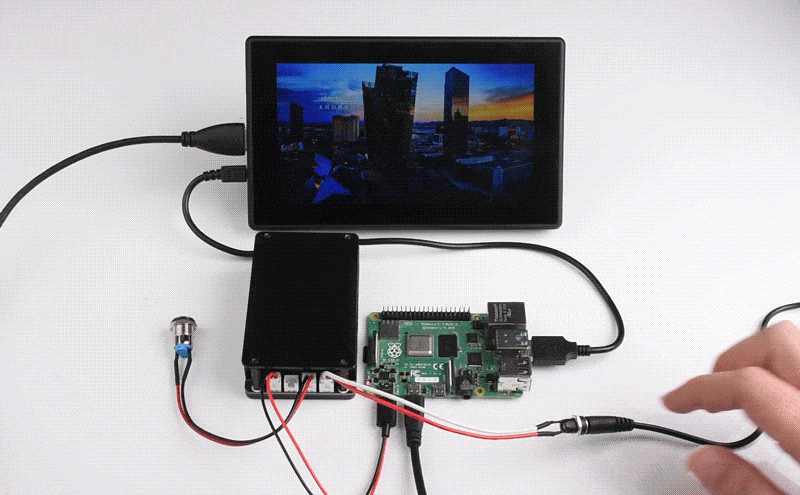

It is able to charge the batteries and provide power output at the same time from external power supply

Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

Monitoring The Batteries Voltage, Current And Power Via I2C

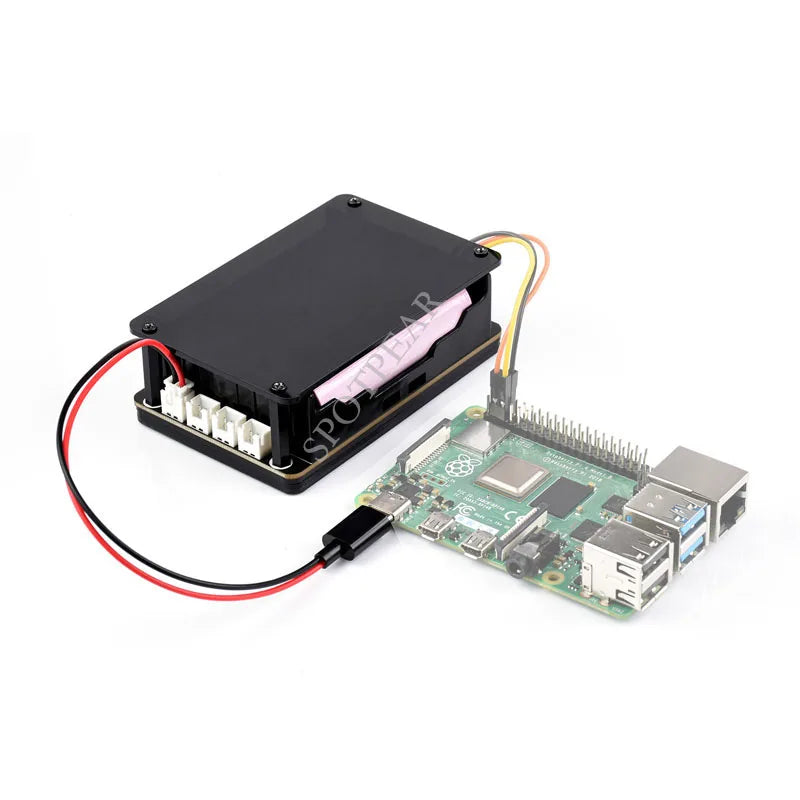

for reference only, the Raspberry Pi 4B and the batteries are NOT included.

Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse

Along With The Equalizing Charge Feature, More Safe And Stable

Easy To Integrate Into Mobile Robots Or Industrial Control Equipment

Easy To Check If The Battery Is Connected Correctly

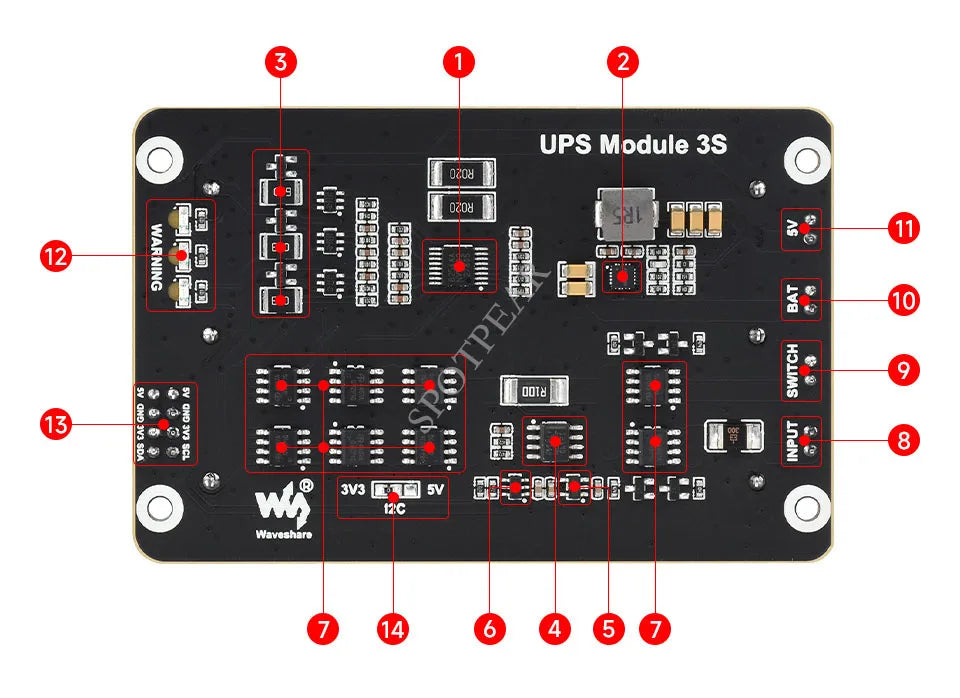

• Chips

• 1. S-8254AA : Li battery protection

• 2. SY8286 : 5V voltage regulator

• 3. HY2213 : Equalizing charge

• 4. INA219 : Voltage/current monitoring

• 5. RT9193 : 3.3V voltage regulator

• 6. NDC7002N : Voltage translator

• Others

• 7. AO4407A : Battery protection MOS tube

• 8. Power port : 12.6 2A power input

• 9. Power output switch

• 10. Batteries series power output

• 11. 5V power output

• 12. Reverse warning indicators

• 13. Multi-functional expansion header

• 14. I2C level selection : 3.3V (default) / 5V

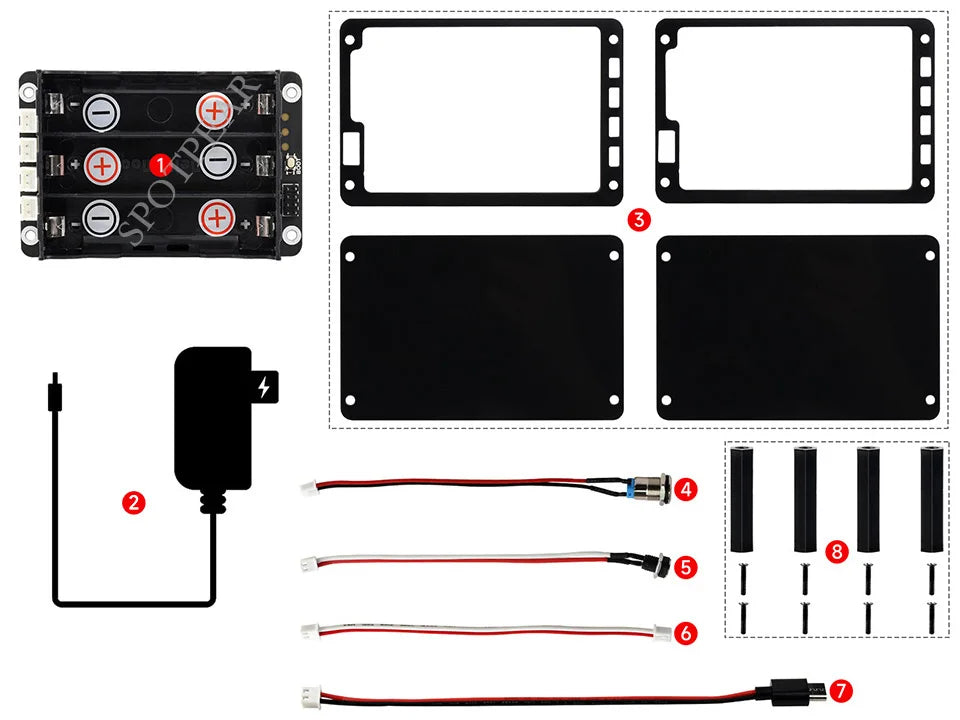

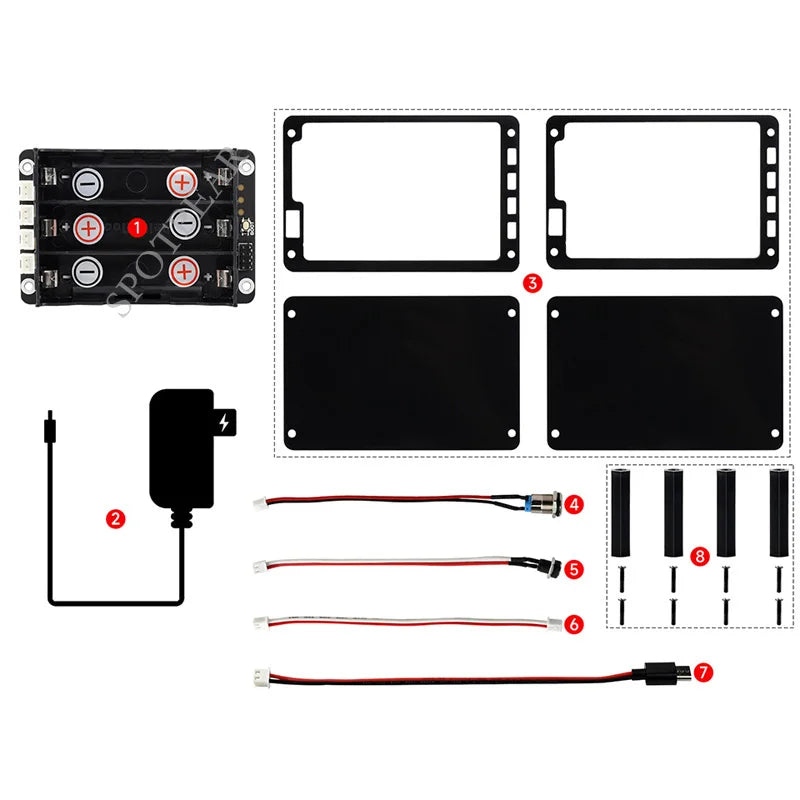

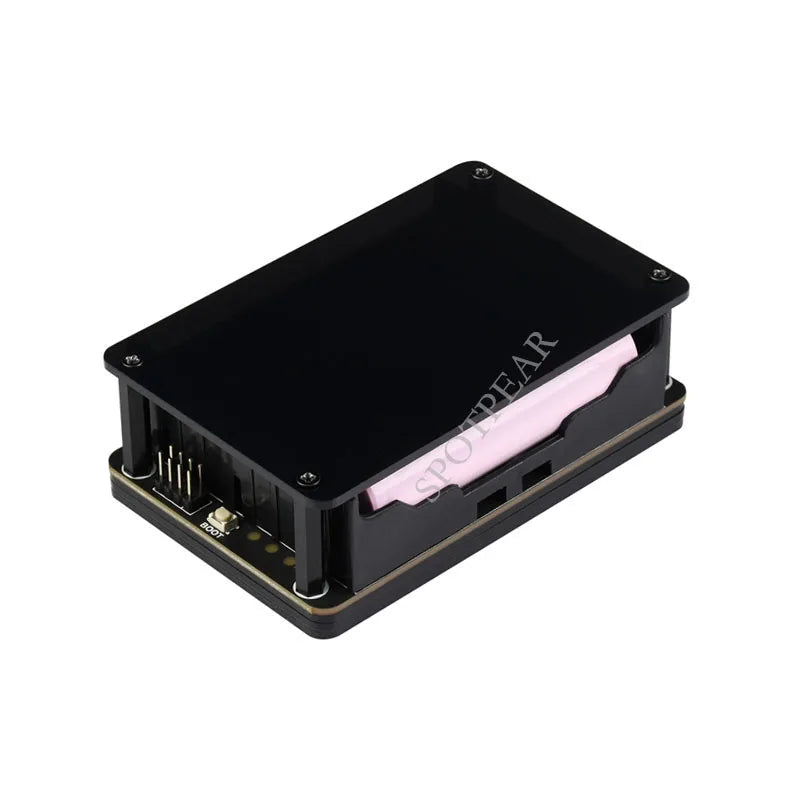

1. UPS Module 3S x1

2. 12.6V 2A Battery Charger x1

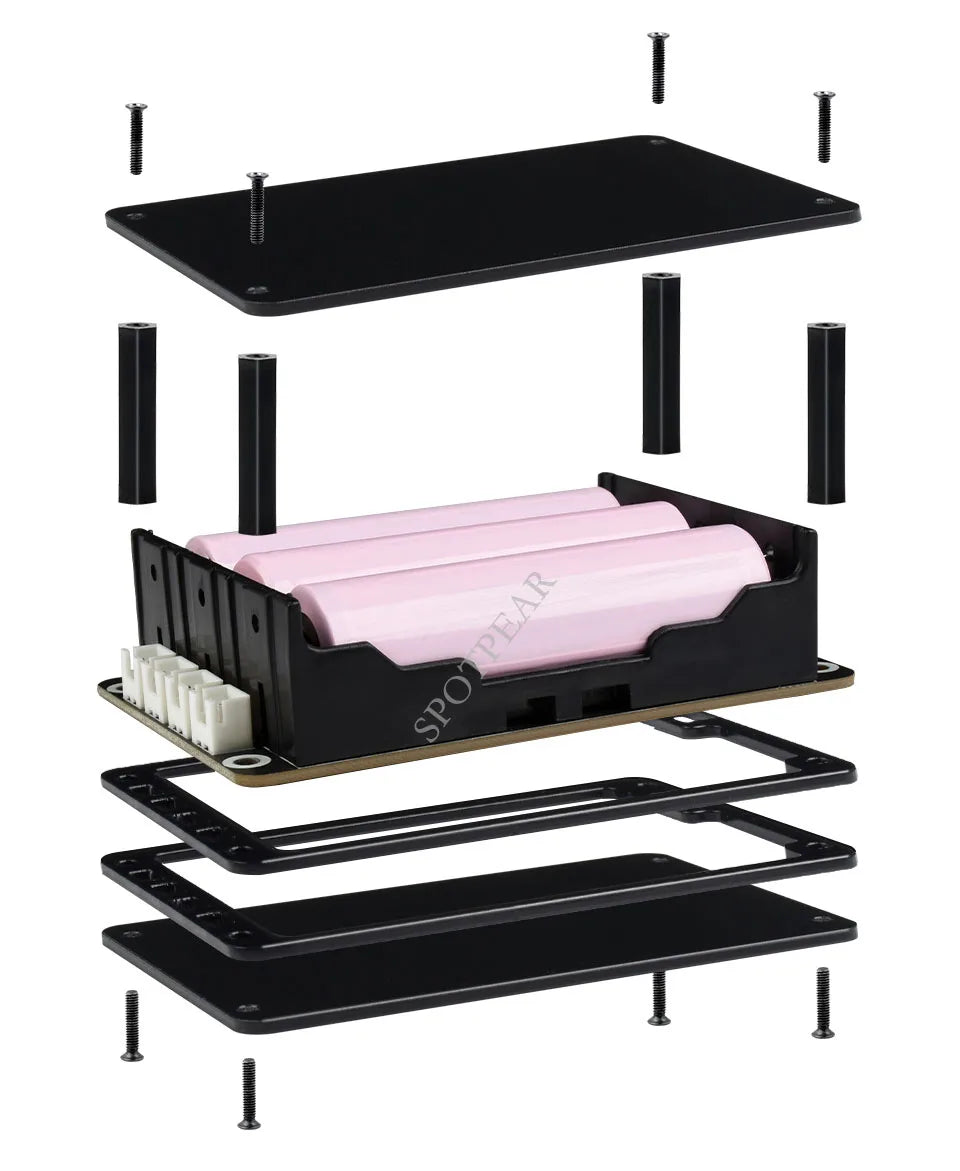

3. Acrylic protection panels x1

4. XH2.54 male self lock button switch ~15cm ×1

5. XH2.54 male to DC5521 female cable ~15cm x1

6. XH2.54 dual connector cable ~15cm ×1

7. XH2.54 male to Type-C cable ~20cm x1

8. Screws pack ×1
