SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

【Note】

[] Don't include a Power and Raspberry Pi

【Overview】

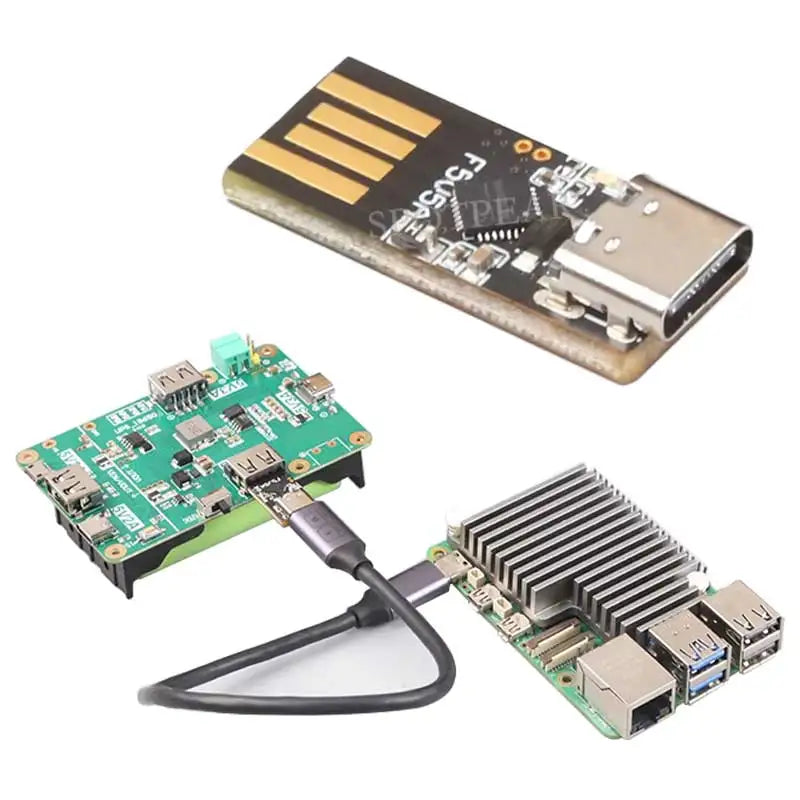

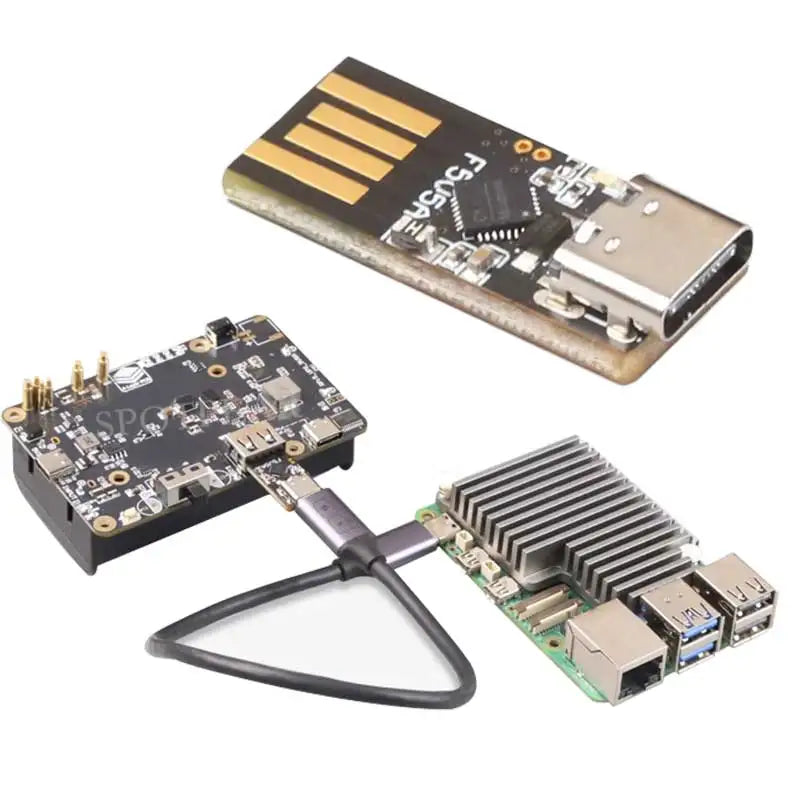

[] USB A-C PD adapter

[] Applicable to all USB-A power adapters, and handshake with Raspberry Pi 5 power C port PD

[] Raspberry Pi 5 system does not pop up

[] USB port is not limited to 600mA current

[] Supports forward and reverse insertion

【Features】

[] High-strength PCB design, 2U thickness with gold-immersion process

[] Convert the traditional A port to a C port with 5V5APD protocol

[] Embedded 5V5A PD protocol required by Raspberry Pi 5

[] The actual output capacity is limited by the A port output capacity of the power adapter/power module itself

[] PCB board gold-immersion process, lead-free production

Note: The CC line needs to be a standard CC line with USB signal and CC signal. The Raspberry Pi 5 system can handshake and recognize 5A.

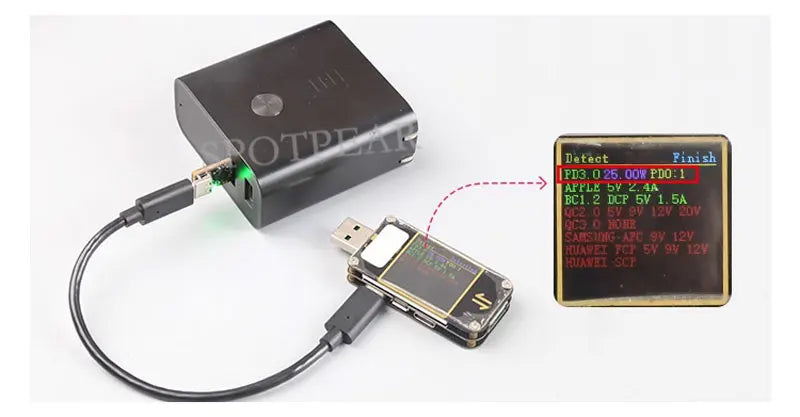

[] The PD is identified as 25W and shakes hands with the Raspberry Pi 5, but the actual current depends on the user's power adapter/power module.
【Connect Demo】

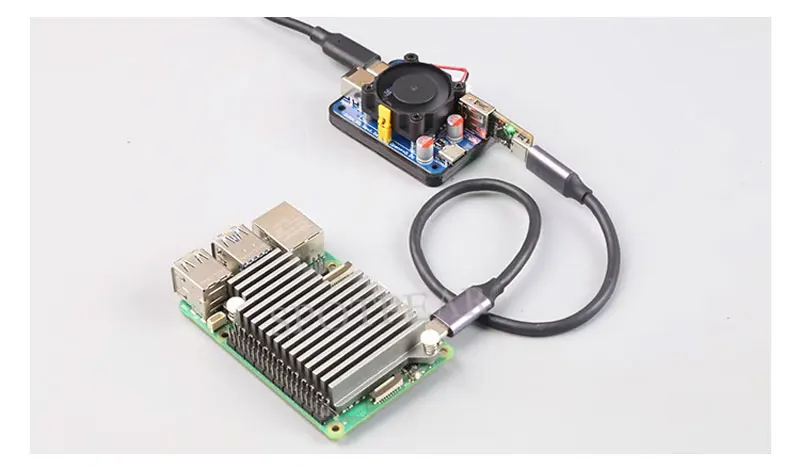

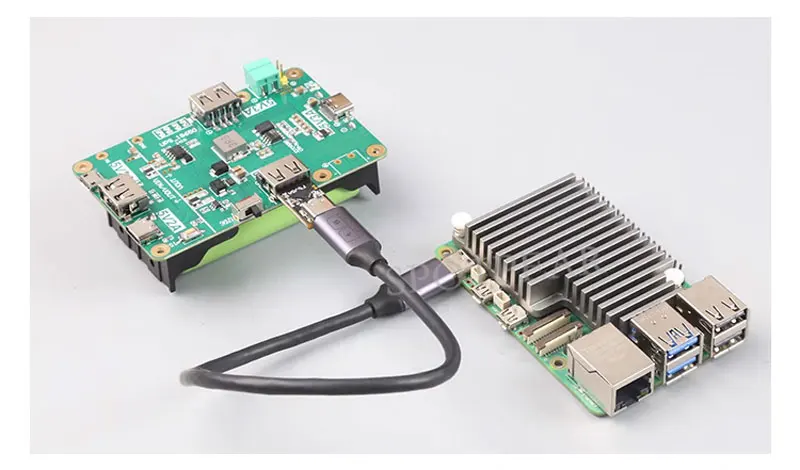

[] 5V5A PD power module, output port A is equipped with USB A-CPD adapter to connect to Raspberry Pi 5. Raspberry Pi 5 system does not pop up windows, and the USB port has no current limit.

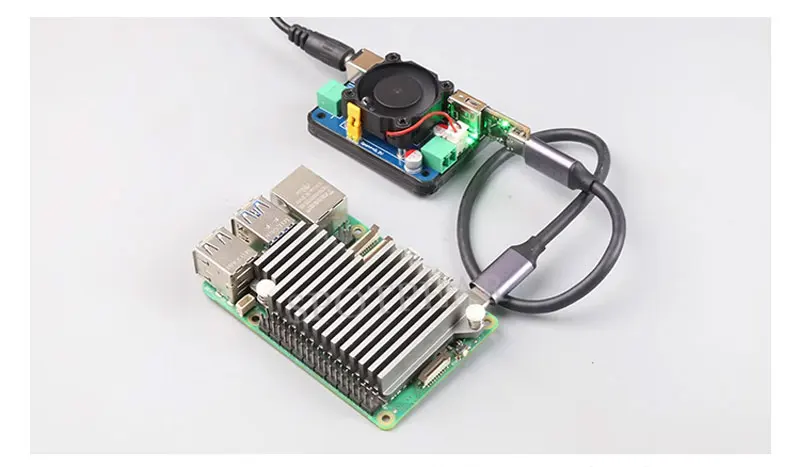

[] 5V5A power module, output port A is equipped with USB A-CPD adapter to connect to Raspberry Pi 5. Raspberry Pi 5 system does not pop up windows, and the USB port has no current limit.

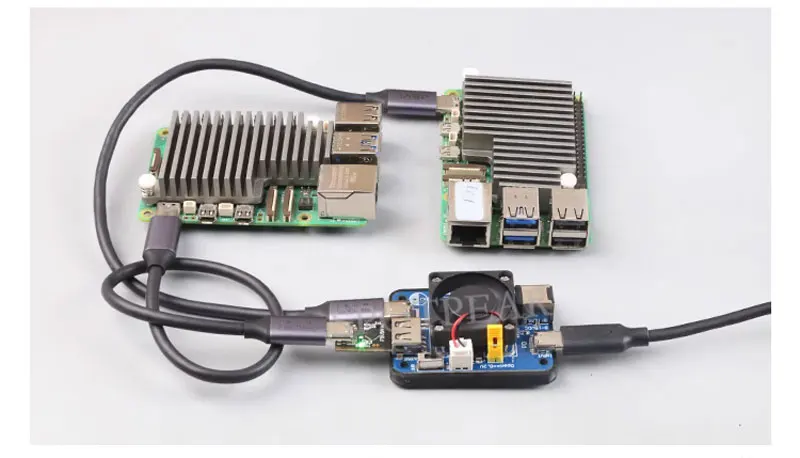

[] RPi5-5V5A dual PD power module, equipped with a USB A-CPD adapter, can connect two Raspberry Pi 5s to one module at the same time, share 5V5A, and the two Raspberry Pi 5s will not have pop-up windows on their own system, and the USB port has no current limit.

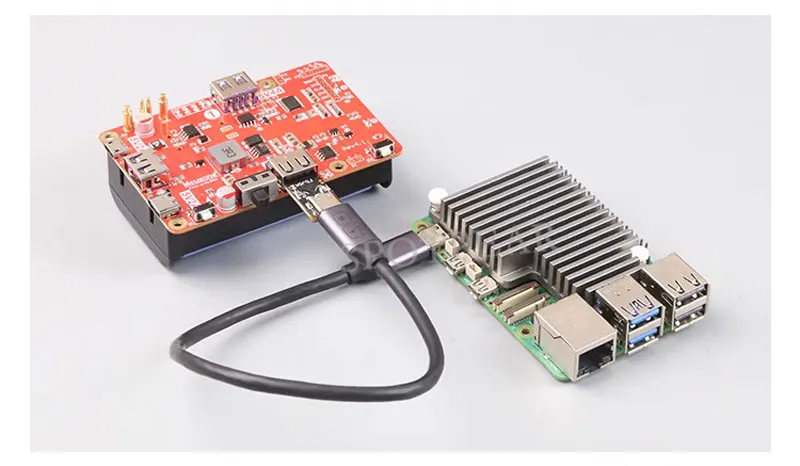

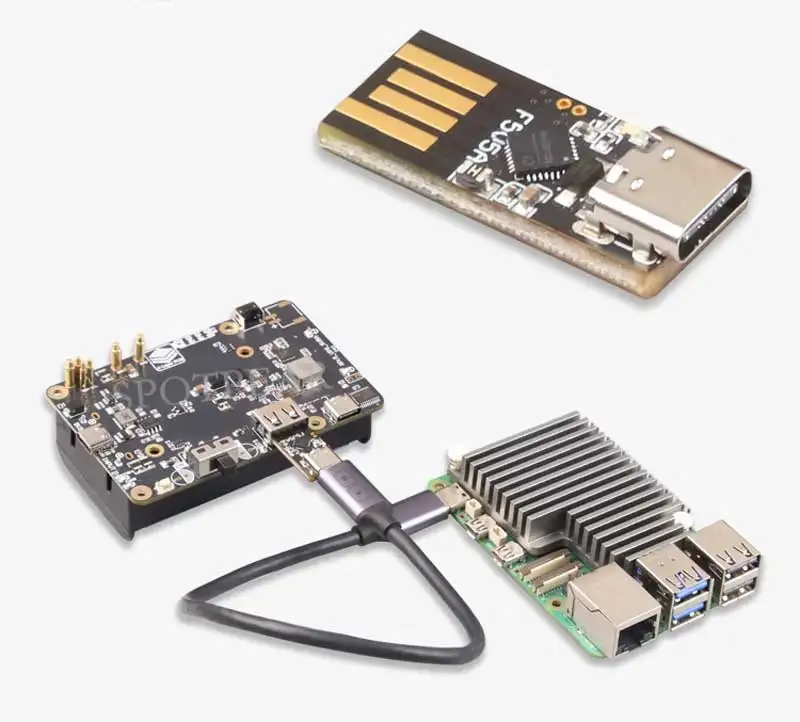

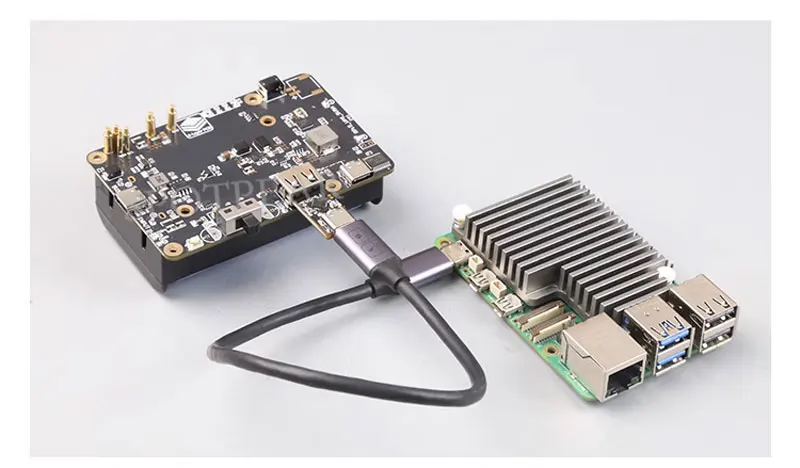

[] 21700 5V5A PD power module, output port A is equipped with USB A-CPD adapter to connect to Raspberry Pi 5, Raspberry Pi 5 system does not pop up windows, and the USB port has no current limit.

[] 18650 5V3A power module, output port A is equipped with USB A-CPD adapter to connect to Raspberry Pi 5, power supply 3A, Raspberry Pi 5 system does not pop up windows, USB port has no current limit.

[] 21700 5V4A power module, output port A is equipped with USB A-CPD adapter to connect to Raspberry Pi 5, power supply 3A, Raspberry Pi 5 system does not pop up windows, USB port has no current limit.

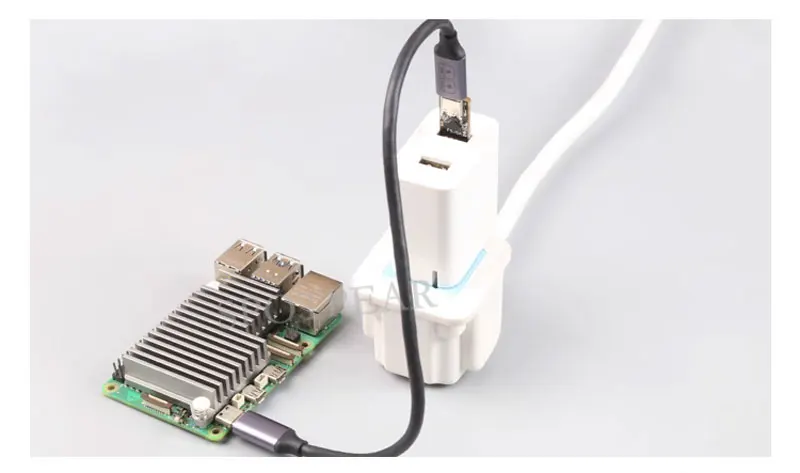

[] 5V power adapter, output port A is equipped with USB A-CPD adapter to connect to Raspberry Pi 5, Raspberry Pi 5 system will not pop up windows, and the USB port has no current limit.

[] USB A-C-PD（No Cable）

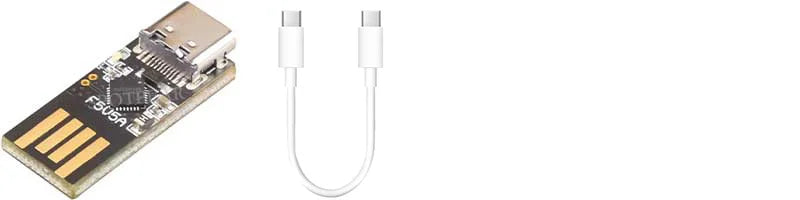

[] USB A-C-PD-With-Cable（With Cable）
