SPECIFICATIONS

Accessory Type: Camera Module

Battery Included: no

Brand Name: SHCHV

Choice: yes

Compatible With: Raspberry Pi 5/4B/3B+/3B/Zero

FOV: 75 degree (diagonal)

Focal: Adjustable

High-concerned chemical: none

IR CUT: Yes

Night Vision: Yes

Origin: Mainland China

Pixel: 5 MP

Sensor: OV5647

Typical Application Fields: Other Fields

semi_Choice: yes

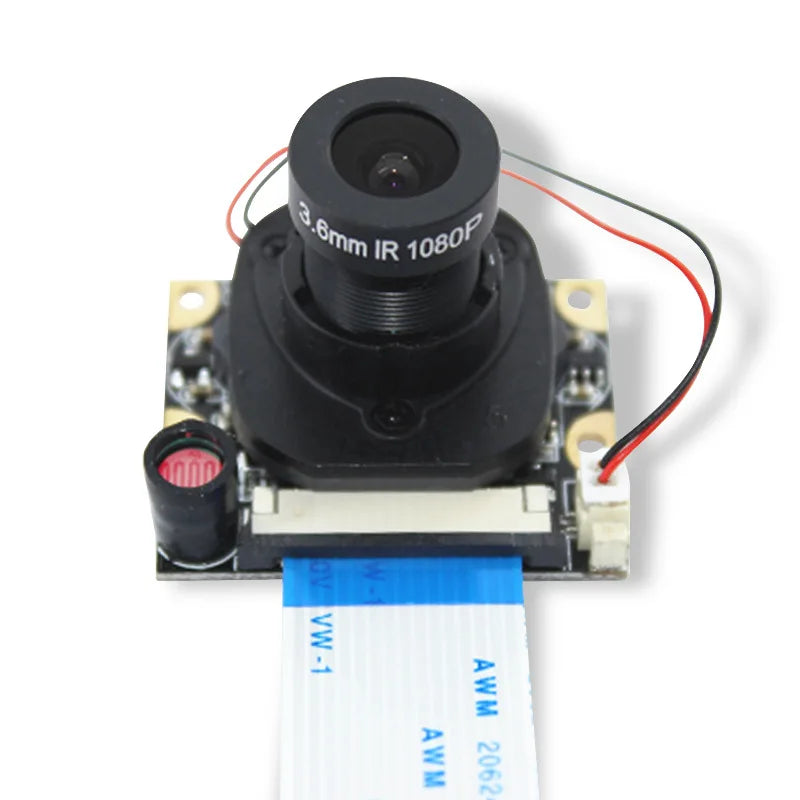

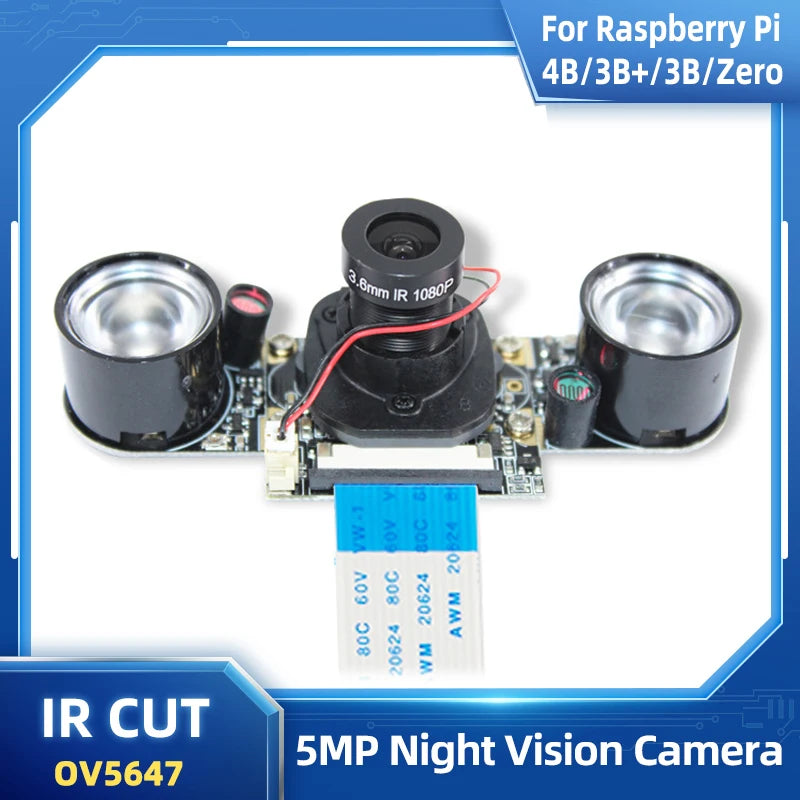

Raspberry Pi IRCUT Camera Night Vision Focal Adjustable 5MP OV5647 Sensor Camera

Introduction :

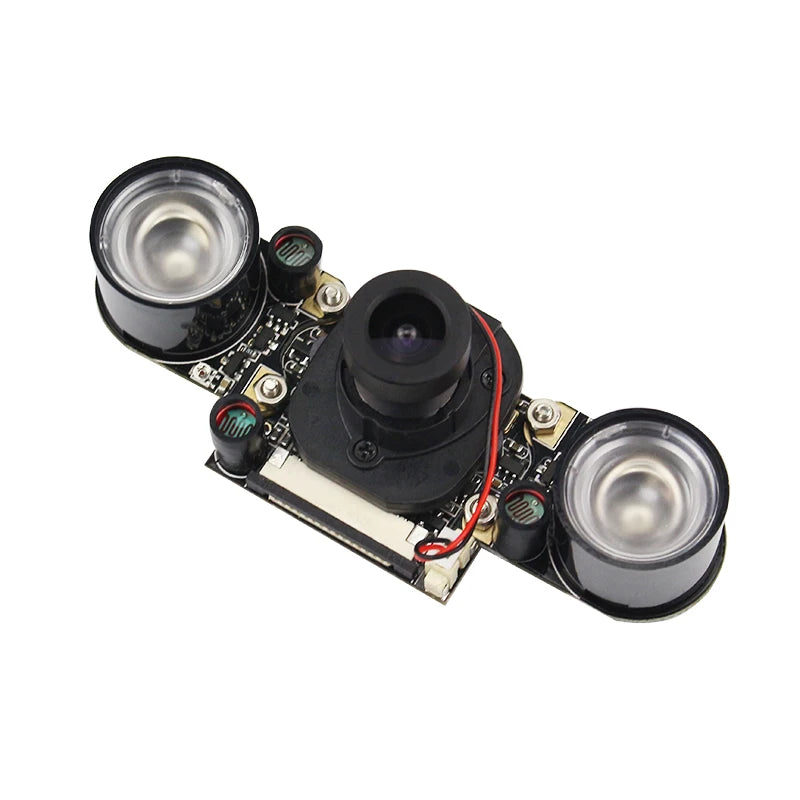

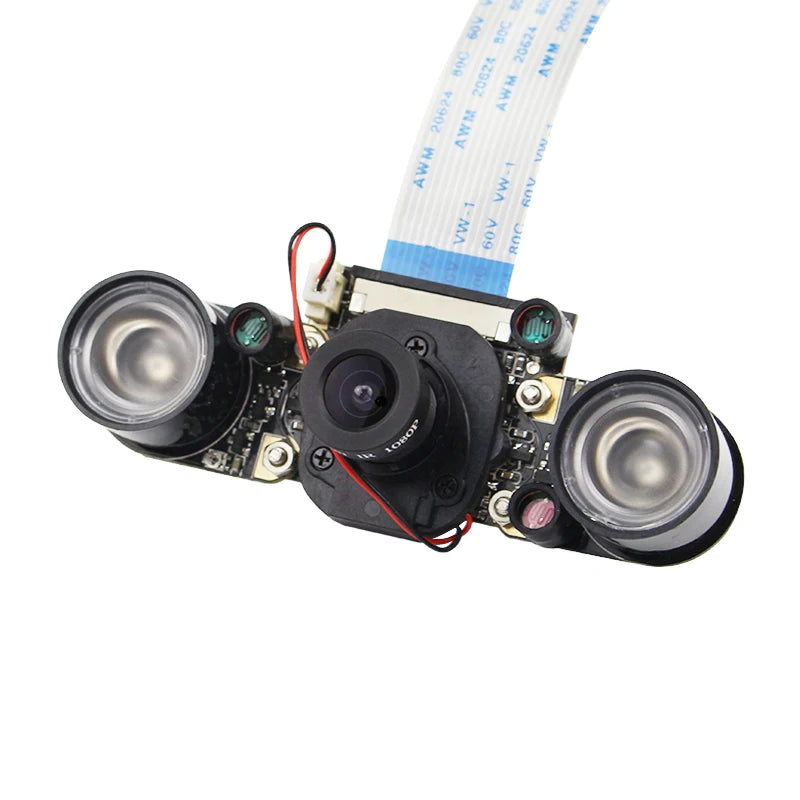

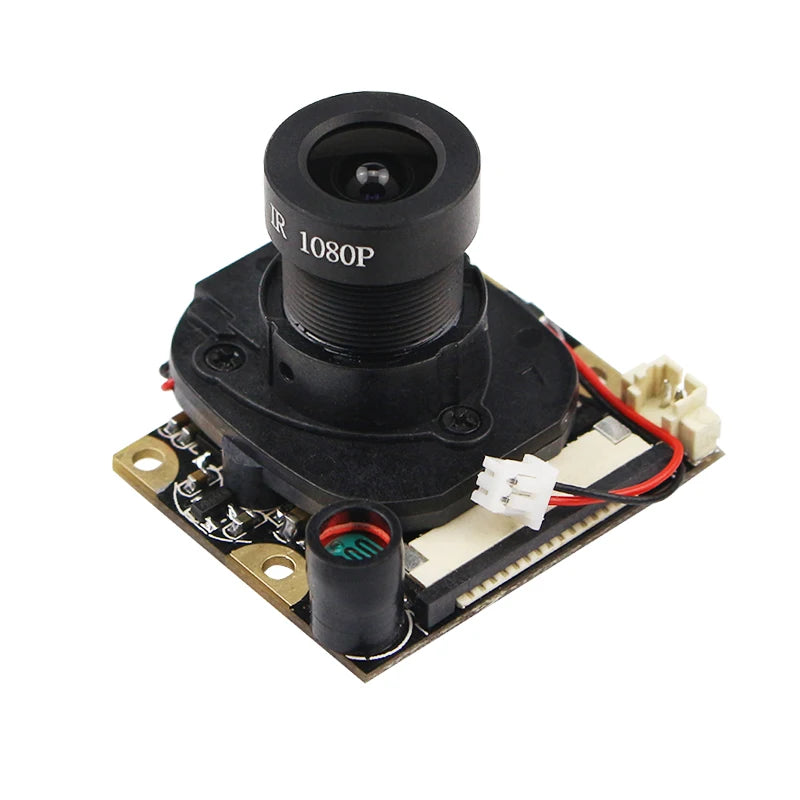

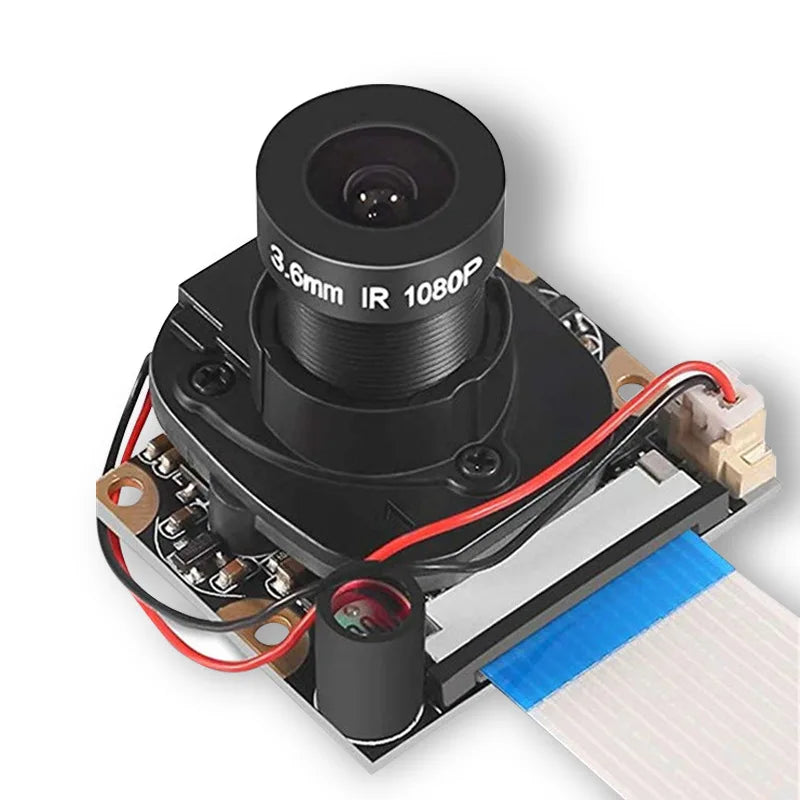

The Raspberry Pi IR-CUT Camera is the day and night camera.

You can get the best imaging whatever it is in the daytime or at night.

It's a built-in IR-CUT camera, can be used during the day and night.

Automatically switch to night or night model :

When the camera at daytime will switch to day mode , the camera image is a normal color image, when the camera at night will switch to night mode , the camera can normally identify the infrared fill light of the light, which can be set through the software switch, to solve the other night vision camera during the day to take pictures of the image color is not normal.

Feature:

1. Raspberry Pi Camera, supports all revisions of the Raspberry Pi.

2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight

3. Comes with infrared LED, supports night vision

4. 5 megapixel OV5647 sensor

5. Camera specifications

6. CCD size: 1 / 4inch

7. Aperture (F): 1.8

8. Focal Length: 3.6mm adjustable

9. Field of View: 75.7 degree ( diagonal )

10. Sensor best resolution: 1080p

11. 4 screw holes to fix the IR lights or holder.

12. Used for attachment

13. Provides 3.3V power output

14. Supports connecting infraredLED and / or fill flash LED

15. Dimension: 31 mm × 32 mm

Packing List :

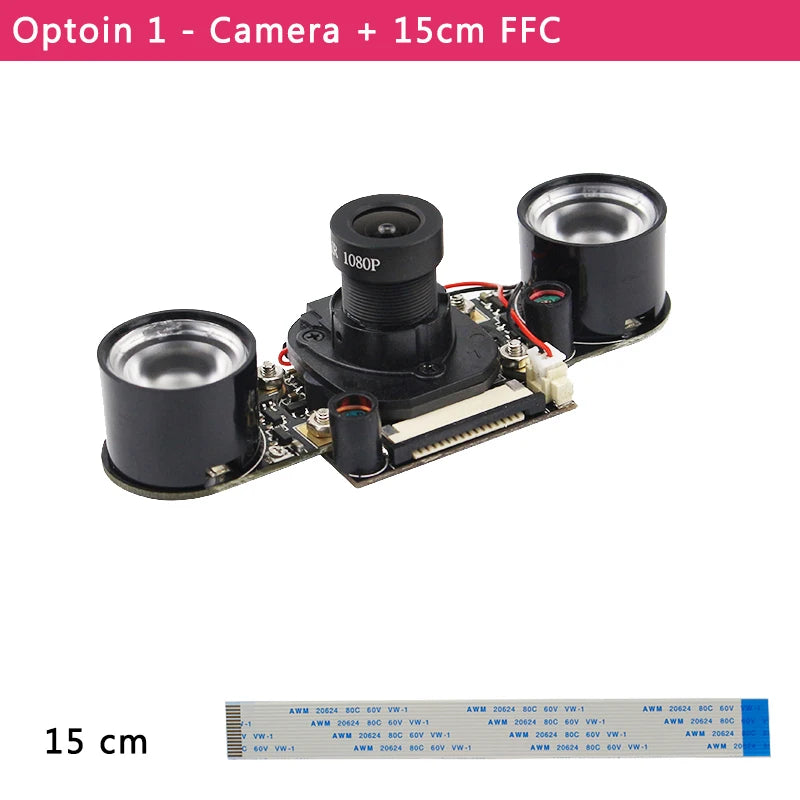

Option 1:

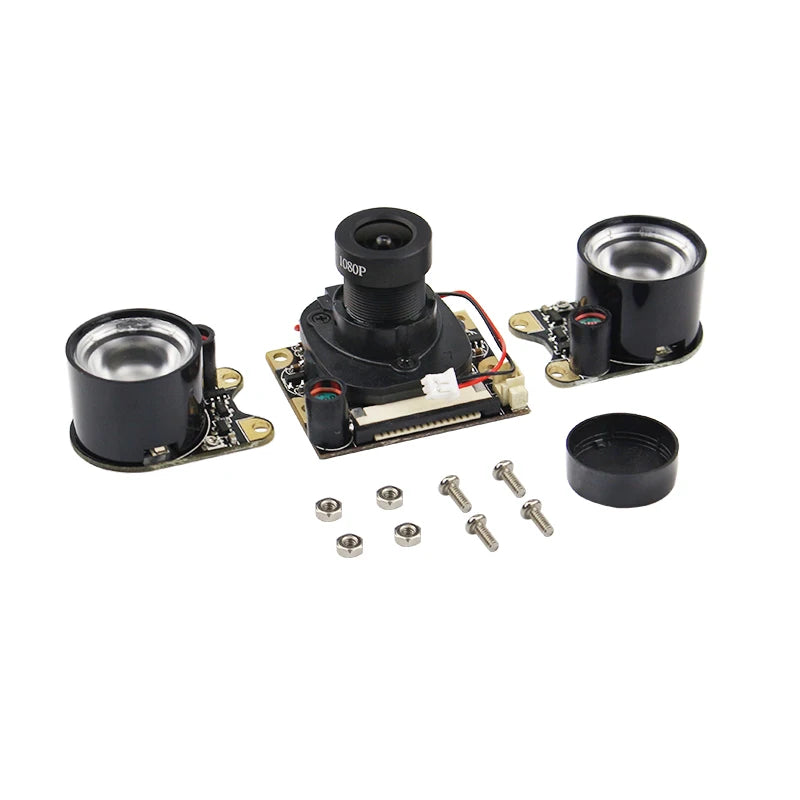

1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 set x Screws and Nuts

( not include Raspberry Pi )

Option 2:

1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 x 30 cm FFC

1 set x Screws and Nuts

( not include Raspberry Pi )

Option 3:

1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 x 50 cm FFC

1 set x Screws and Nuts

( not include Raspberry Pi )

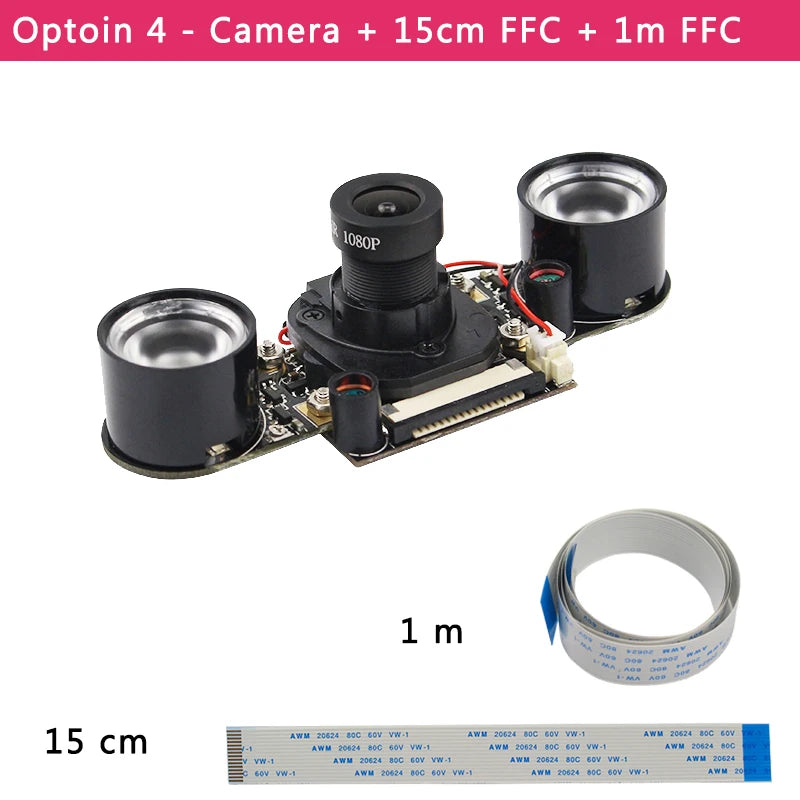

Option 4:

1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 x 1m FFC

1 set x Screws and Nuts

( not include Raspberry Pi )

Option 5:

1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 x 2m FFC

1 set x Screws and Nuts

( not include Raspberry Pi )

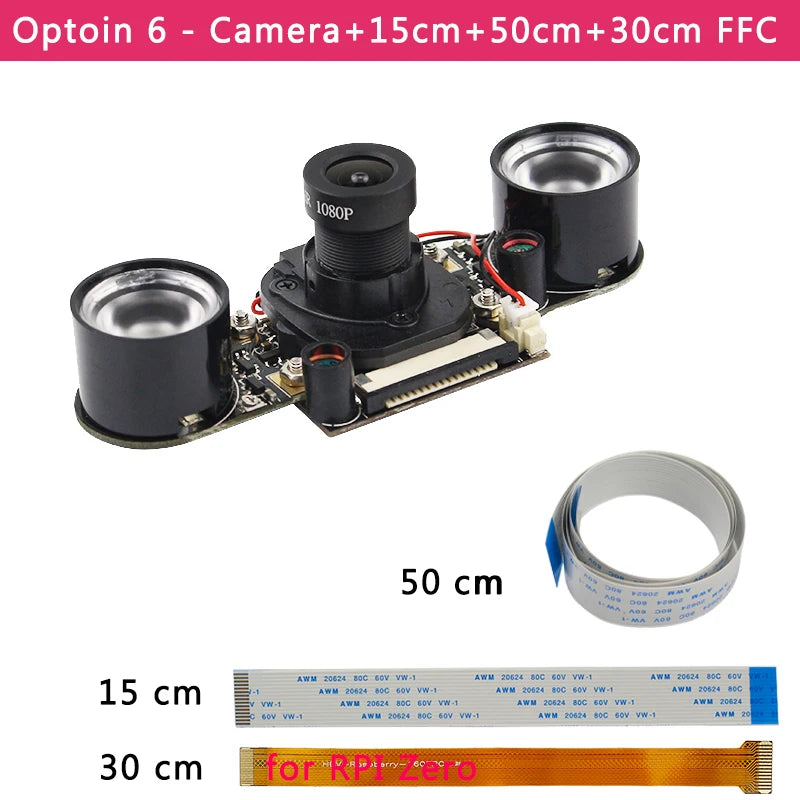

Option 6:

1 x IR-Cut Camera1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 x 50 cm FFC1 x 50 cm FFC

1 x 30 cm FFC (for RPI Zero)

1 set x Screws and Nuts

( not include Raspberry Pi )

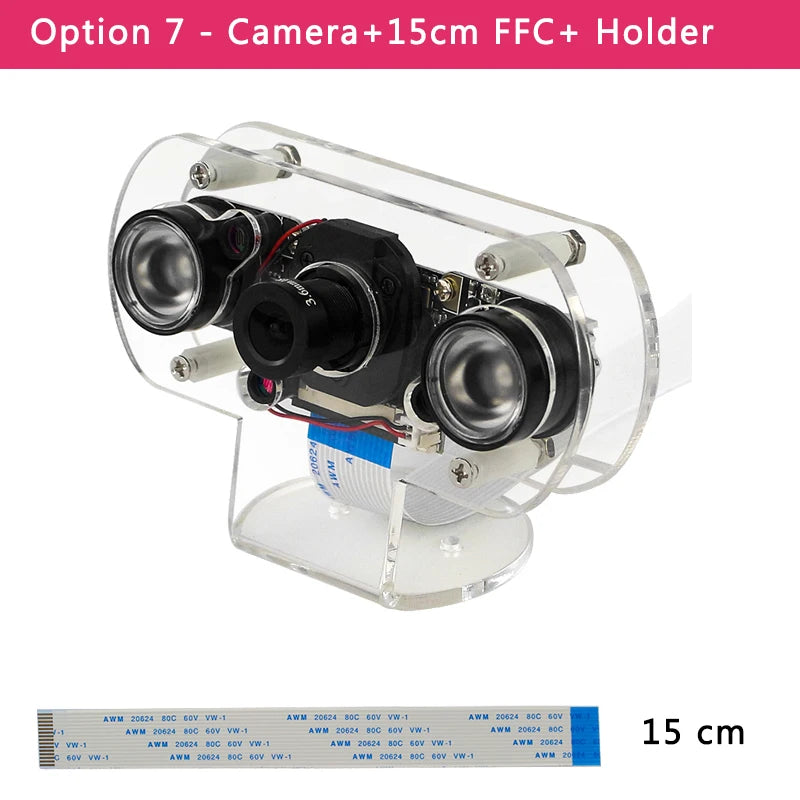

Option 7:

1 x IR-Cut Camera

2 x IR Lights

1 x 15 cm FFC

1 set x Screws and Nuts

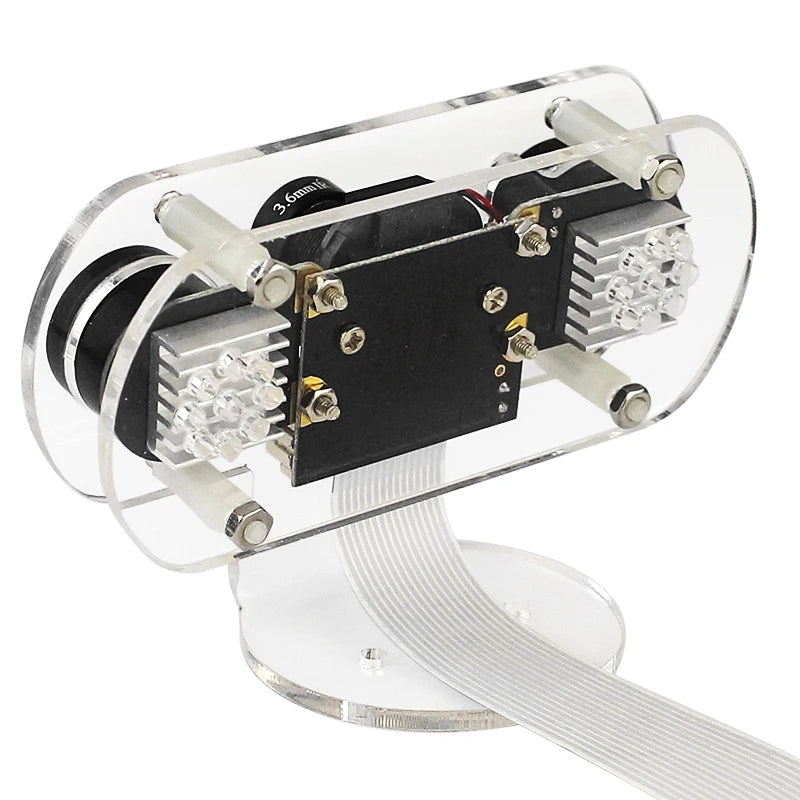

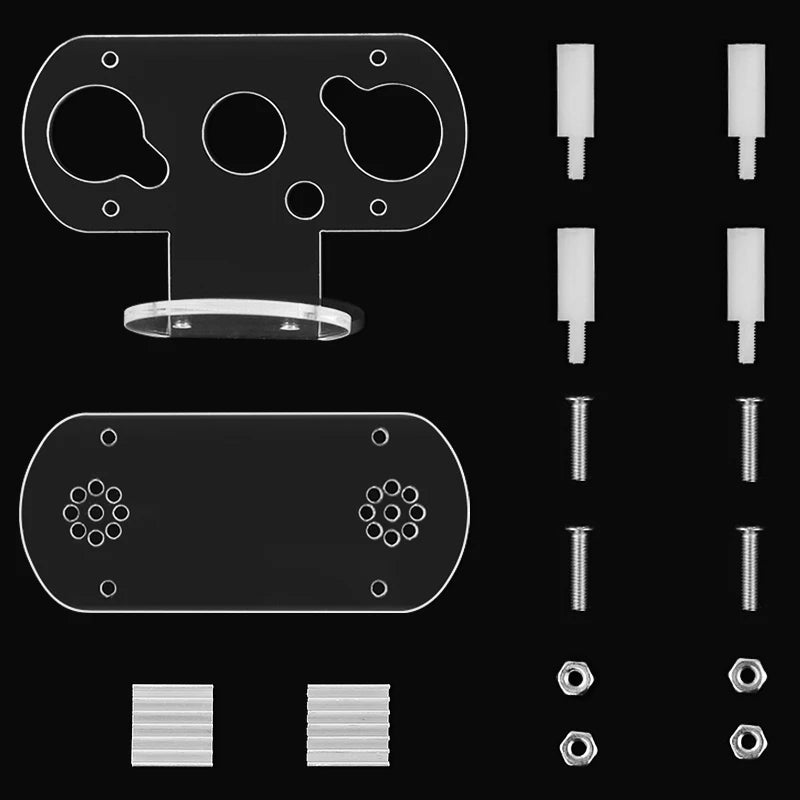

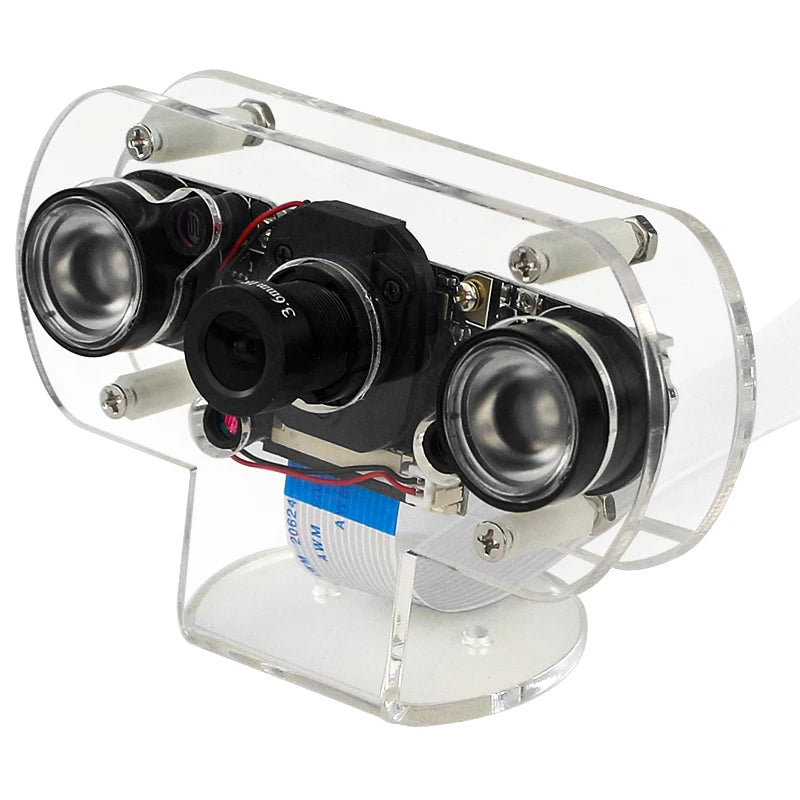

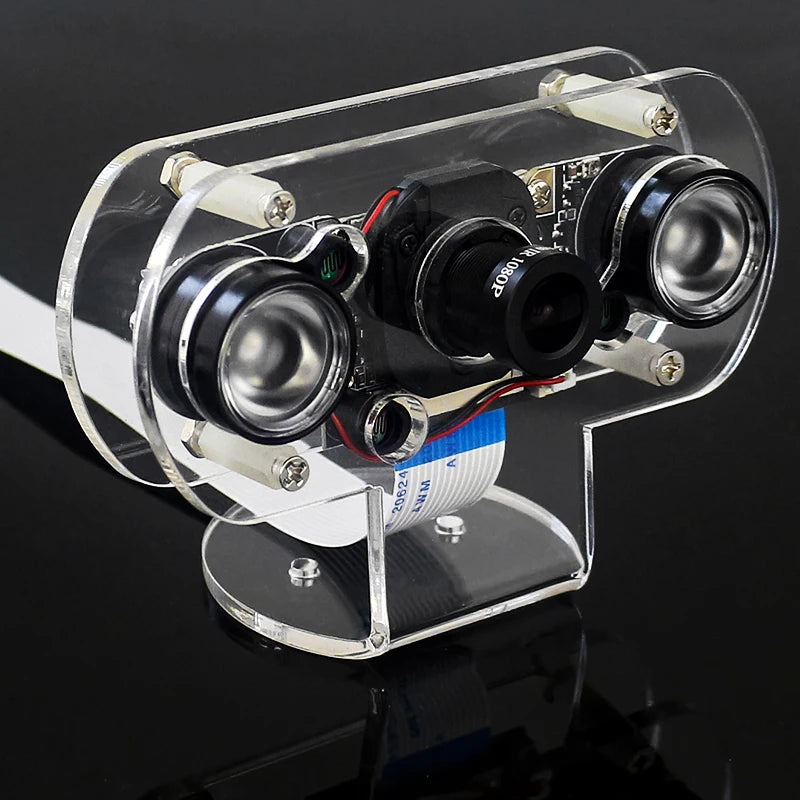

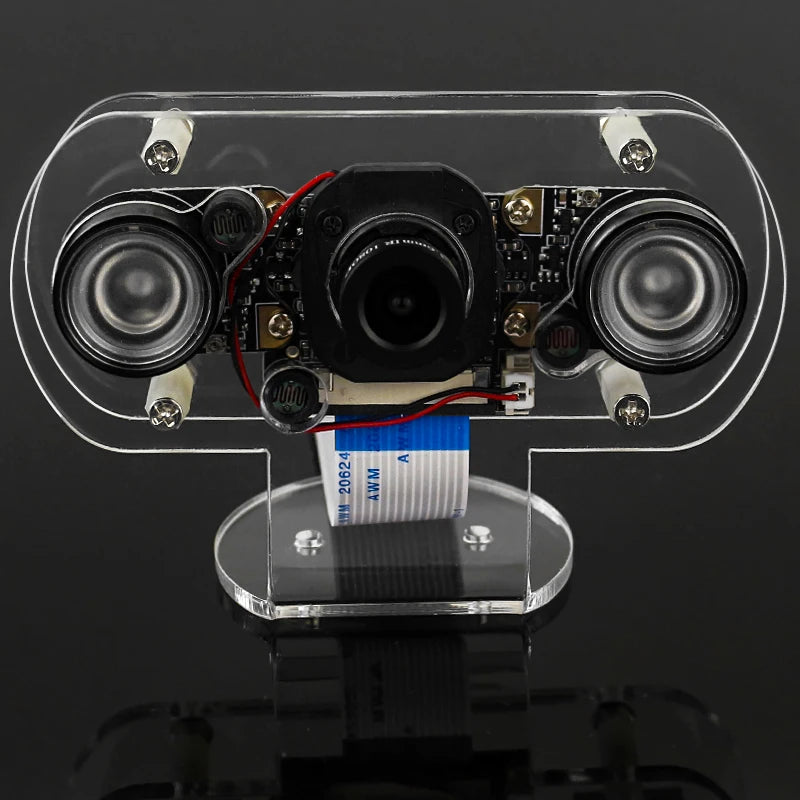

1 x Acrylic Holder

2 x Heatsinks

( not include Raspberry Pi )

Tip:

4. The captured video clip needs to play with mplayer
