Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi CM4

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

Note: Do not include CM4, Please Buy alone.

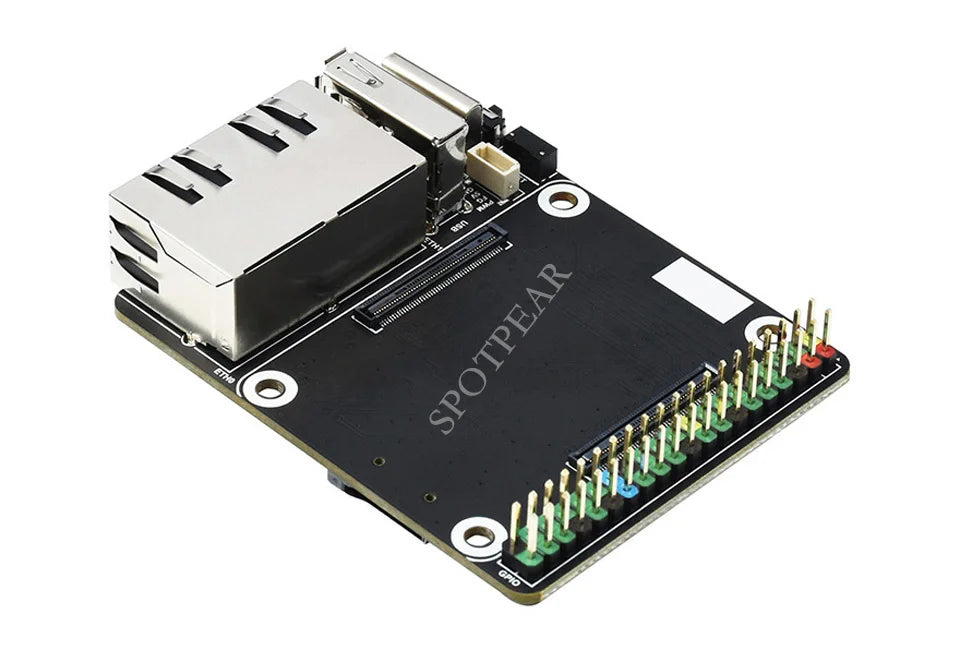

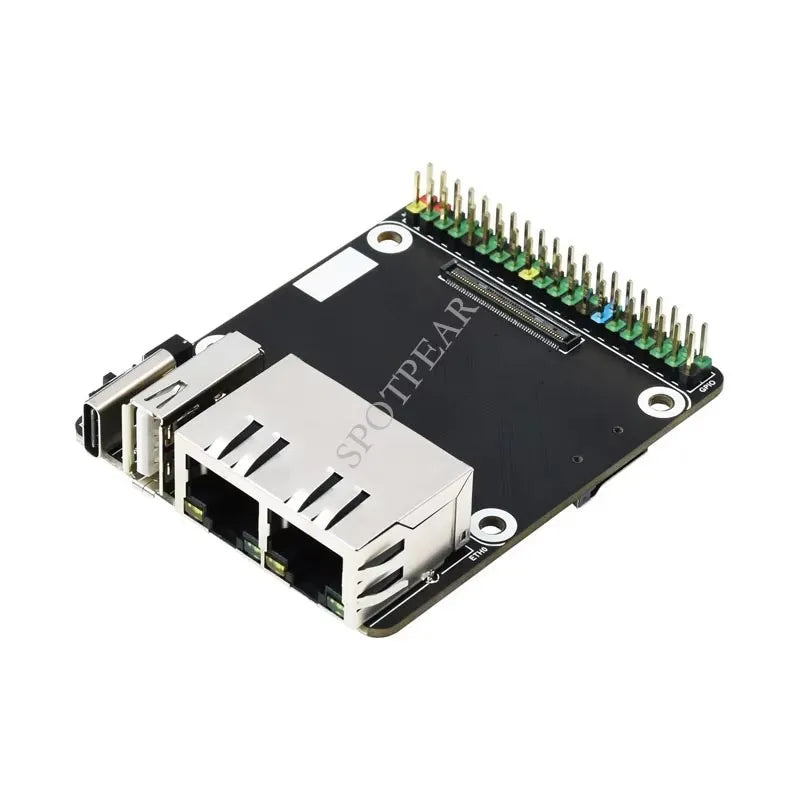

CM4-DUAL-ETH-MINI, a baseboard that can be used with Raspberry Pi Compute Module 4,
supports 5V DC Type-C interface power supply, and features dual Gigabit Ethernet ports,
single-channel USB2.0 with a fan interface and standard Raspberry Pi 40Pin interface,
which is suitable for scenarios requiring multiple network ports such as soft routing.

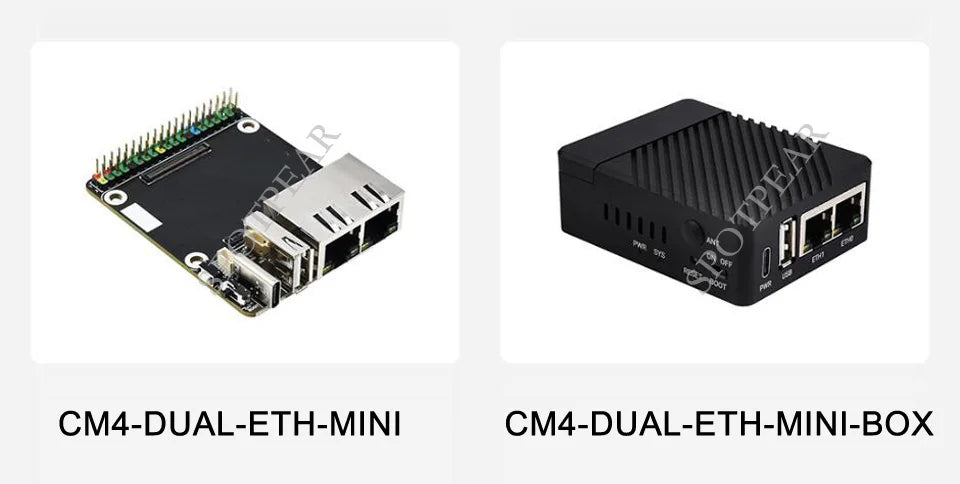

Version Option

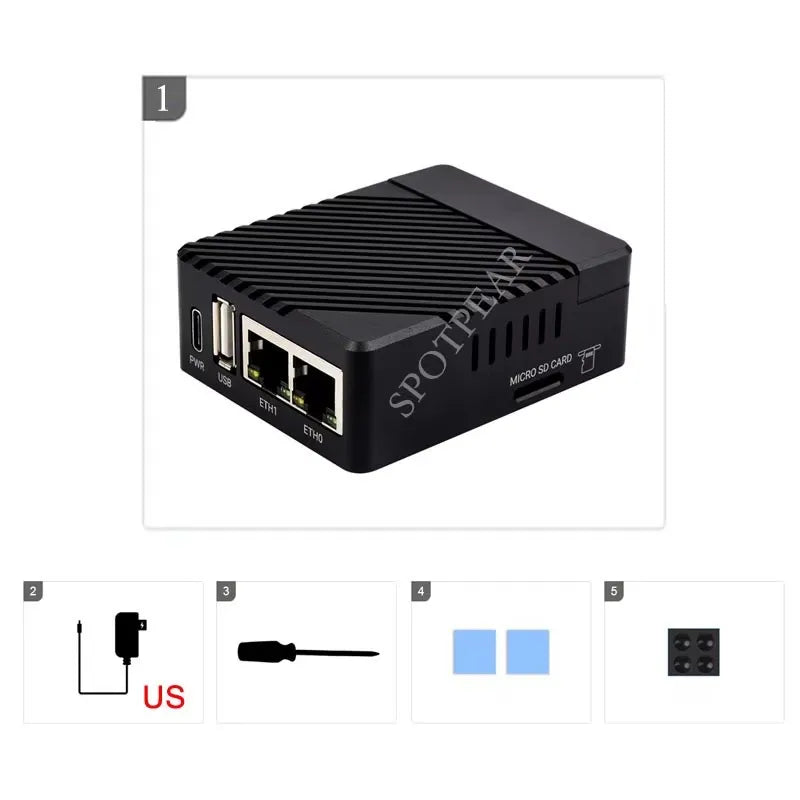

* Please refer to the part list for detailed package content

Note : Do not include CM4
Product Model : CM4-DUAL-ETH-MINI
Feature : Dual Gigabit Ethernet Base Board
Product Model : CM4-DUAL-ETH-MINI-BOX
Feature : Dual Gigabit Ethernet Mini-Computer Kit. In addition to the Dual Gigabit Ethernet Base Board, it is equipped with Aluminum Alloy case, fan and power supply adapter

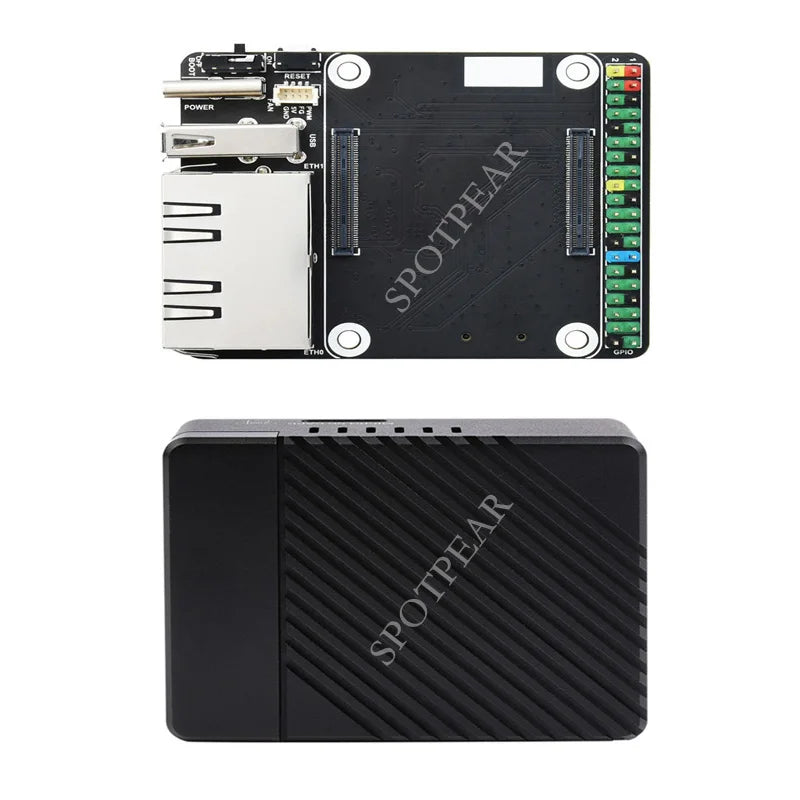

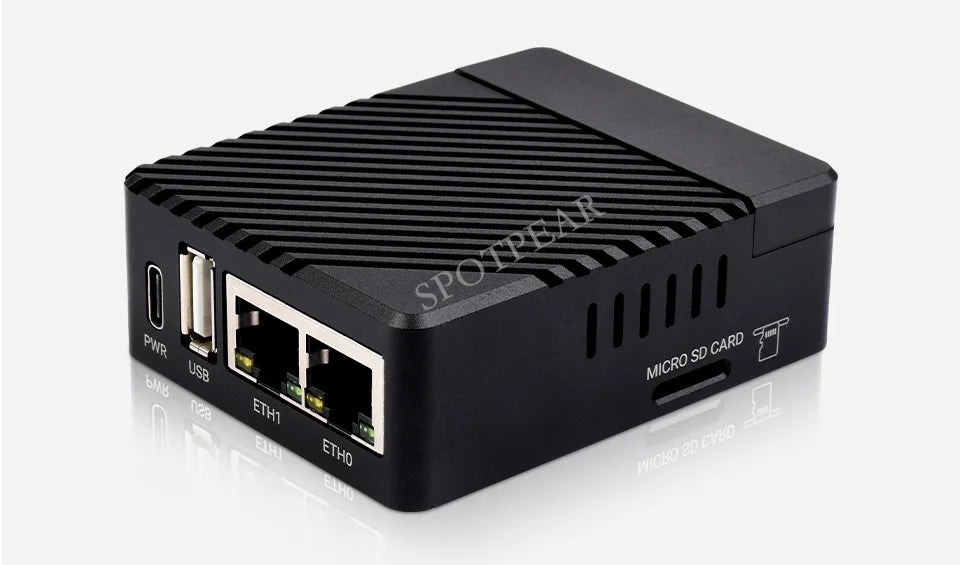

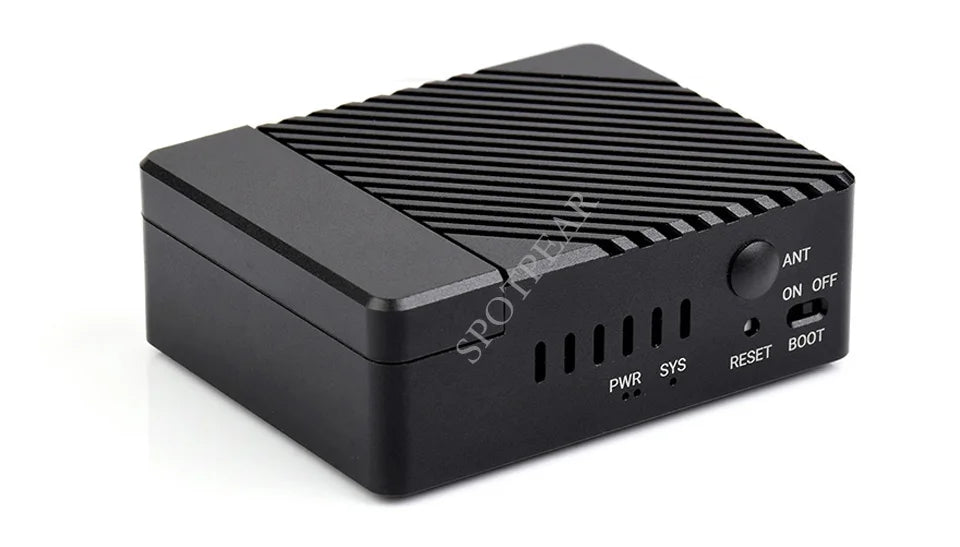

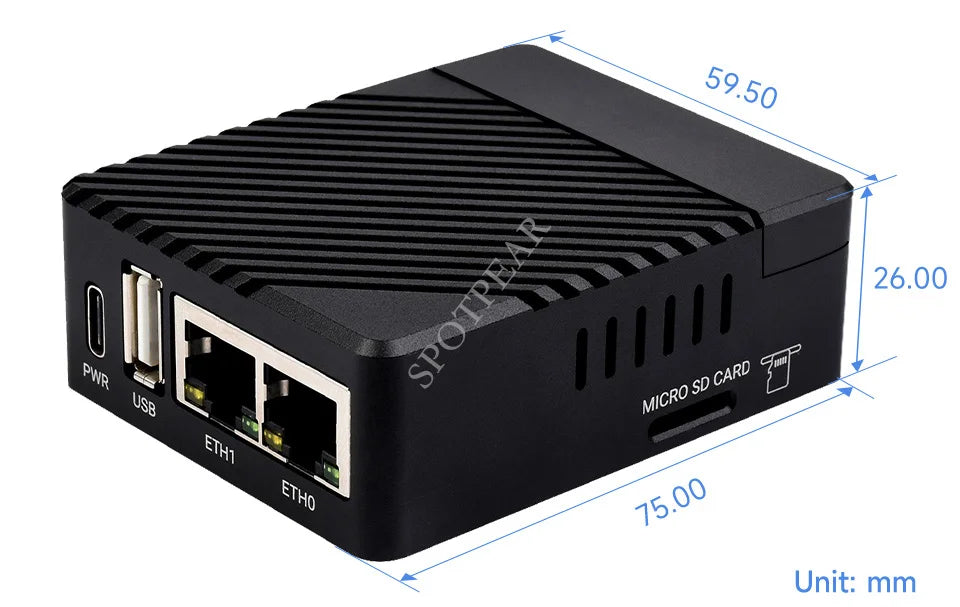

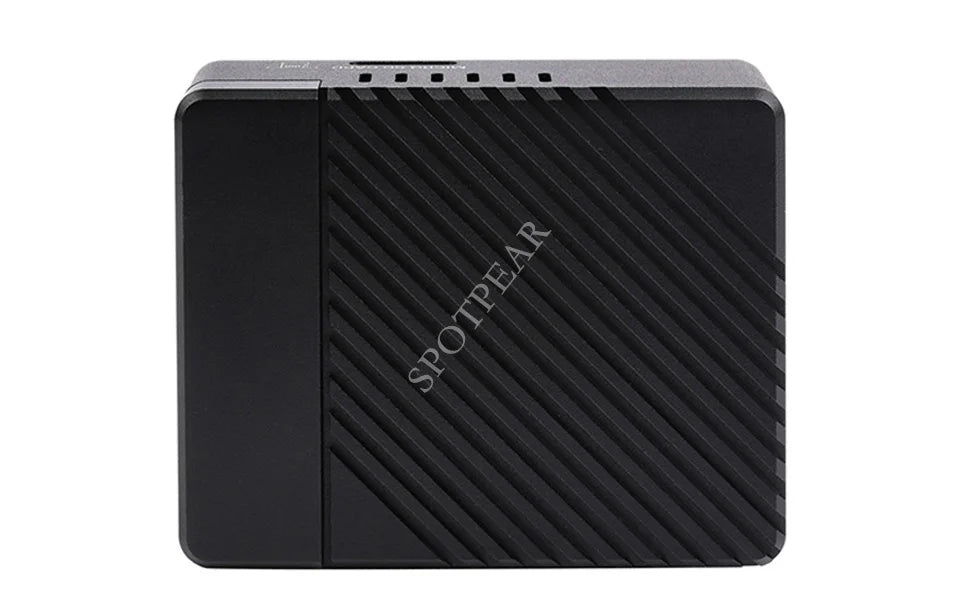

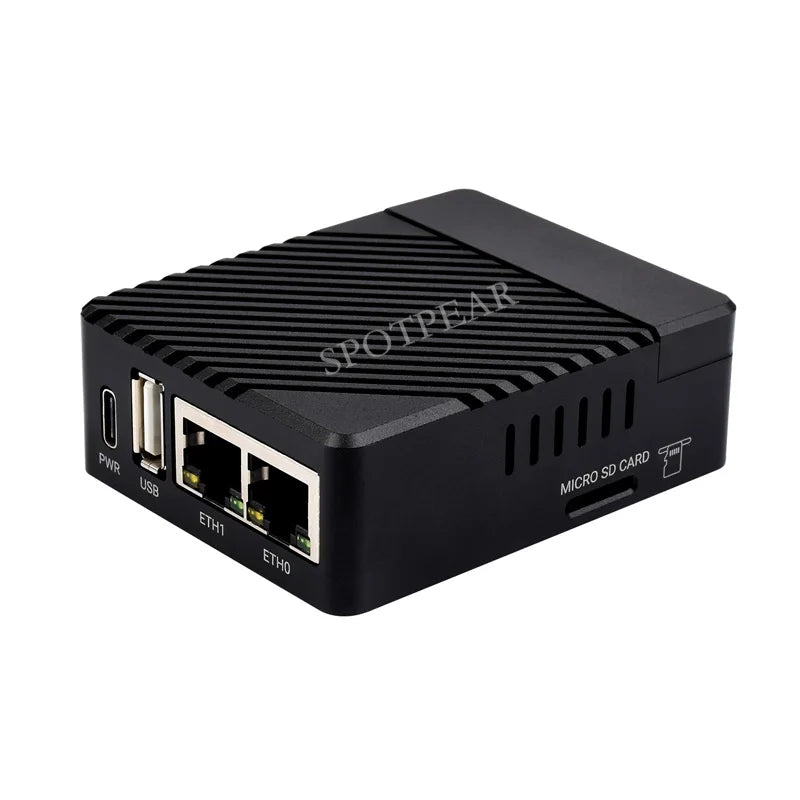

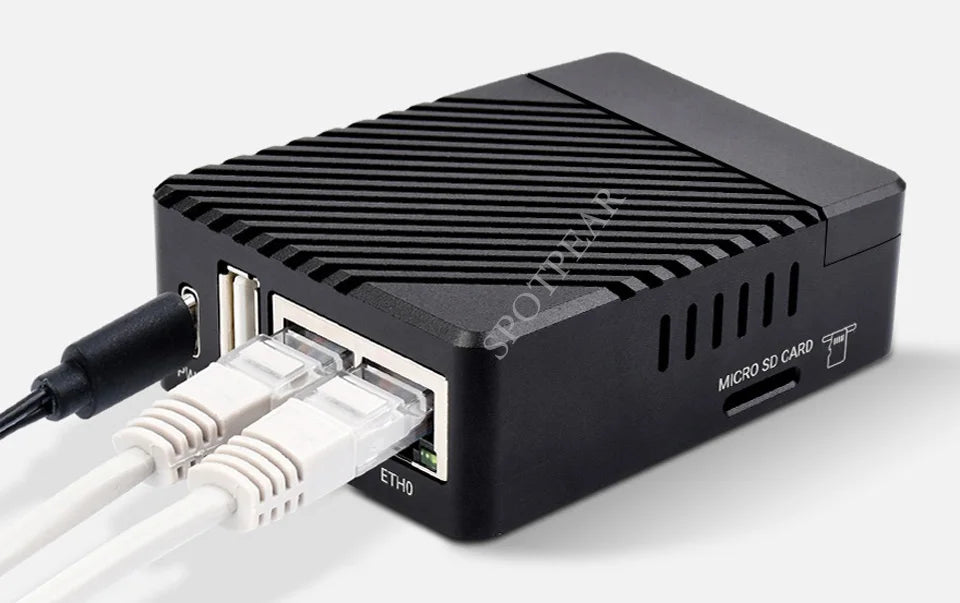

Optional Black Metal Case

Better Protection For The Base Board, Comes With Cooling Fan For Efficient Heat Dissipation

for reference only, CM4 is NOT included.

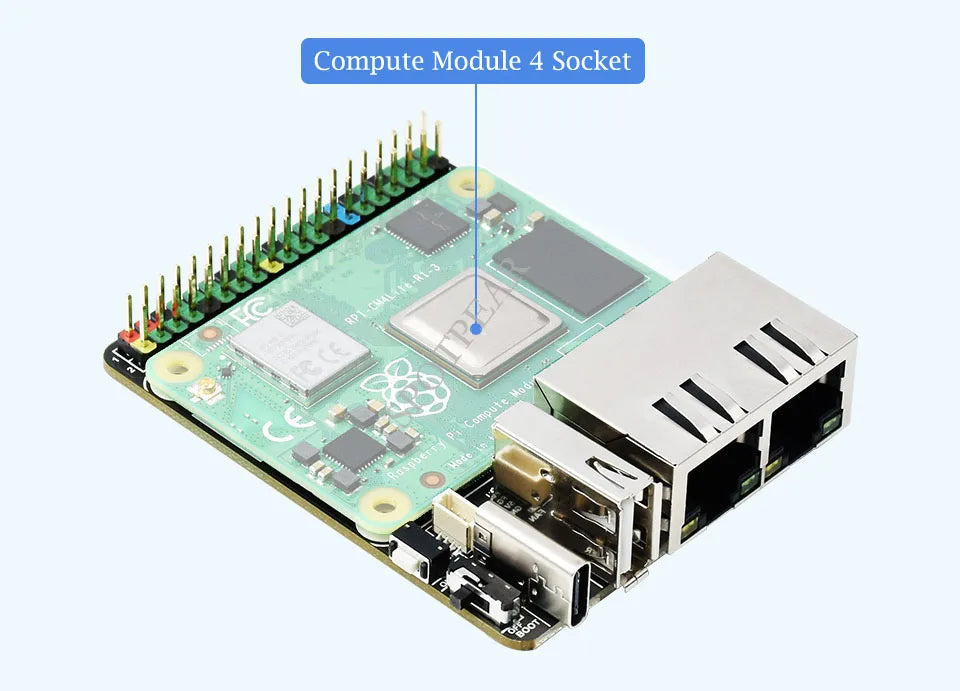

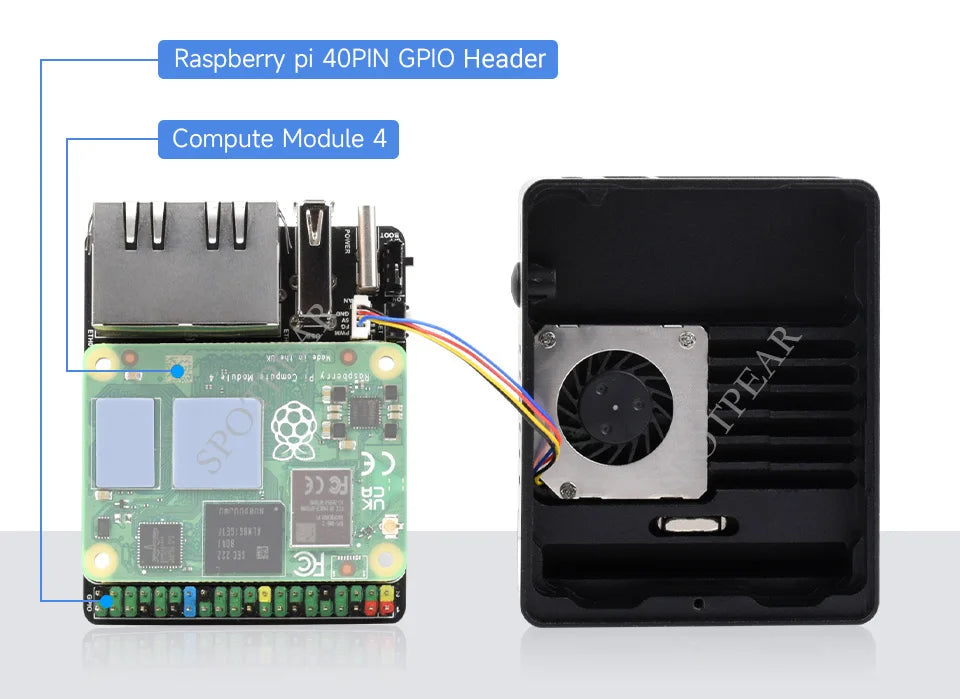

Connecting With Compute Module 4

Standard CM4 Socket And 40PIN GPIO Header

Suitable For Compute Module 4 Lite/EMMC Series Module

for reference only, CM4 is NOT included.

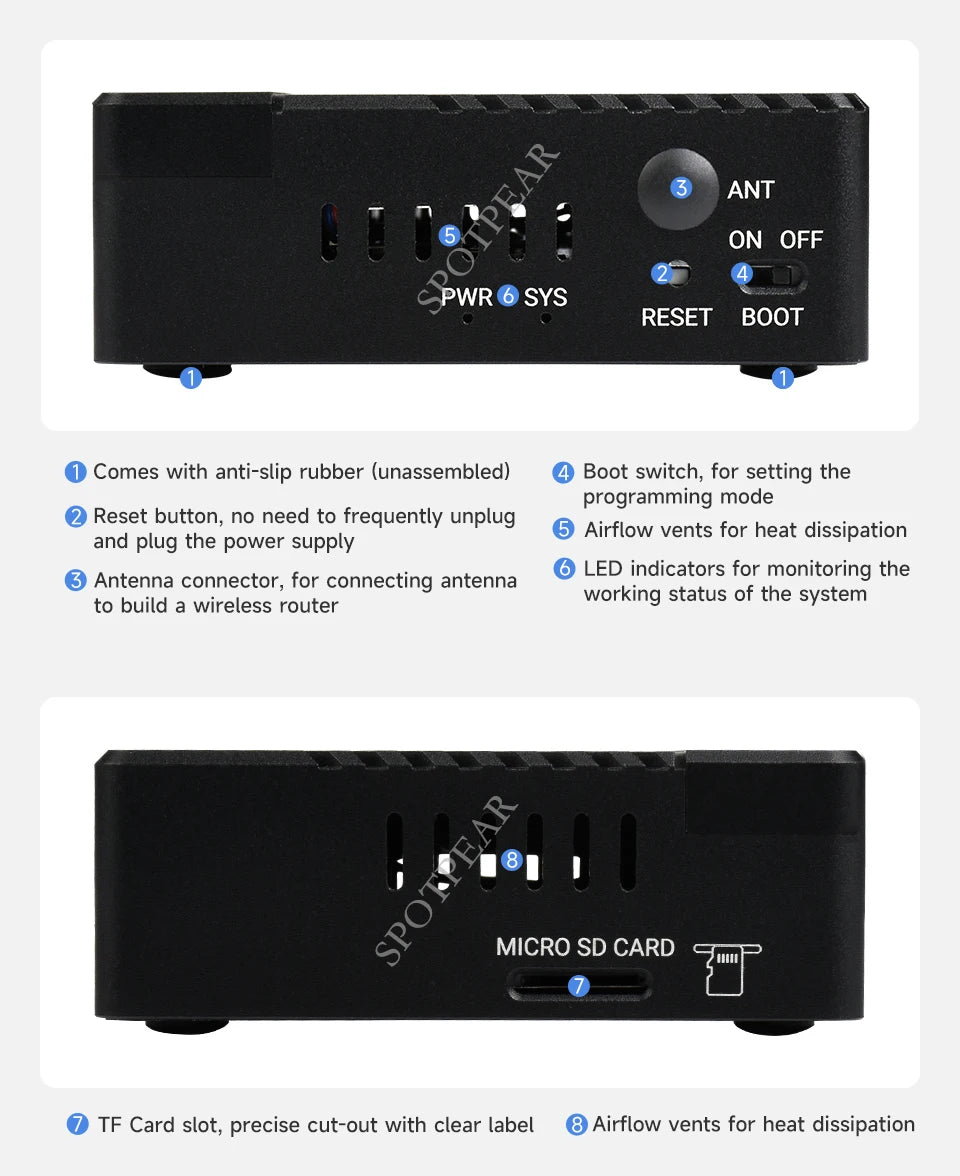

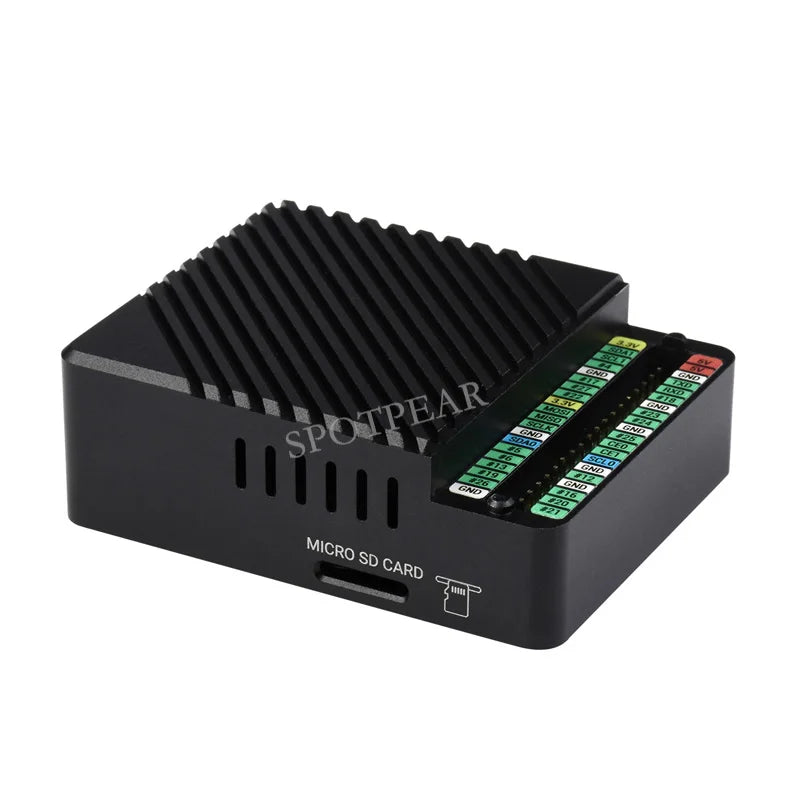

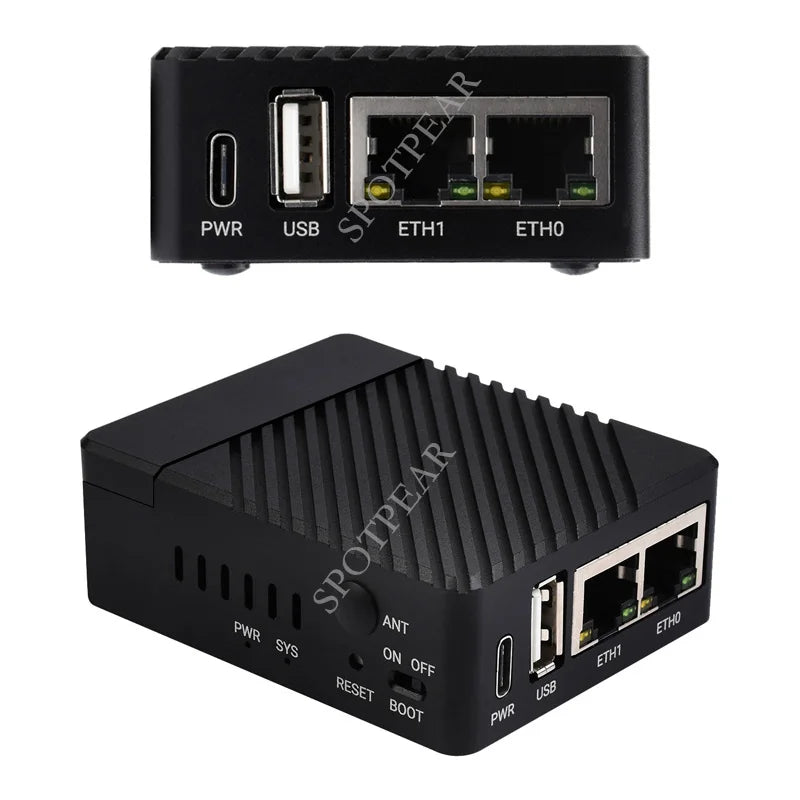

Rich Interfaces

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

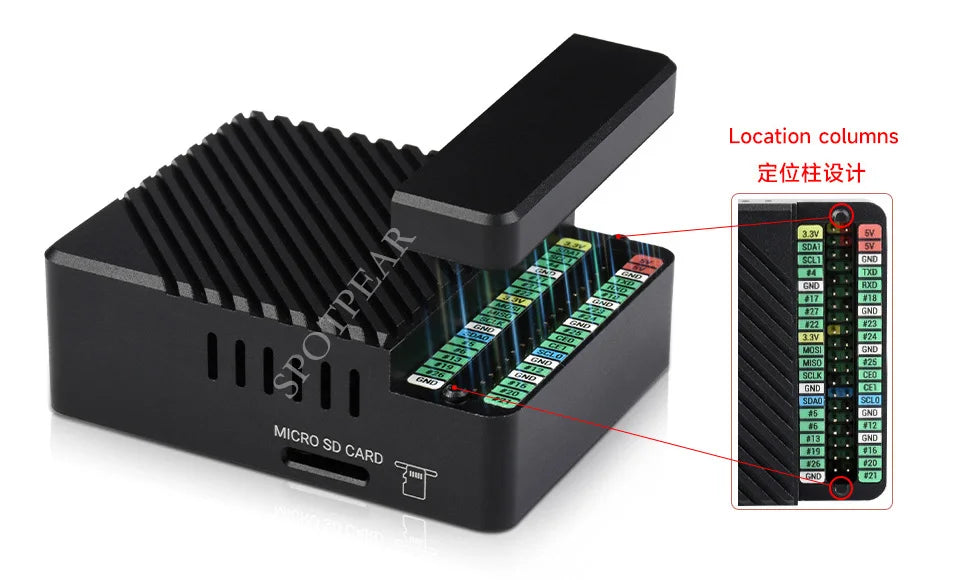

Magnetic Design

Magnetic Removable Top With The Location Columns, Easy To Fix And Better Protection For The GPIO Pins

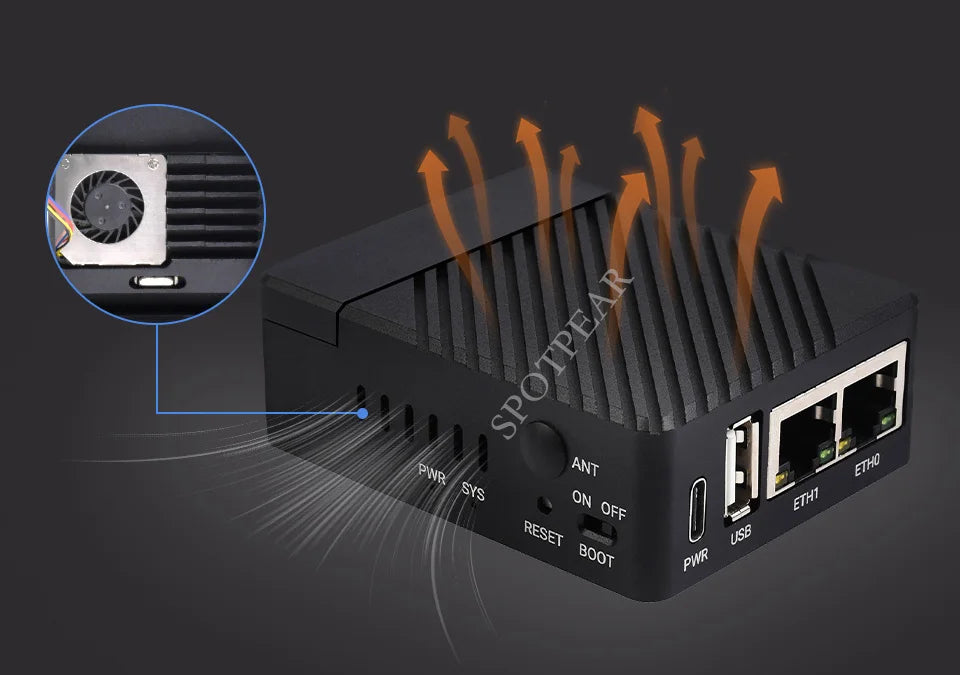

Heat Dissipation Design

Metal Case For Large Area Thermal Conductivity And Heat Dissipation

Built-In Speed-Adjustable Fan With Cooling Fins, More Efficient

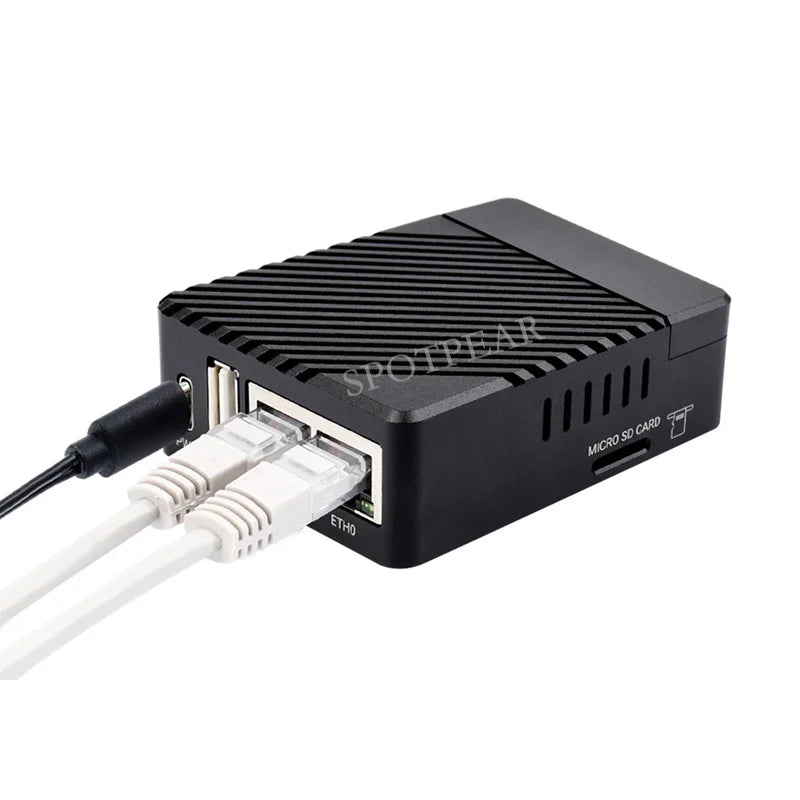

Application Example

Suitable For Raspberry Pi Or Other Industrial Occasions With Special Function Requirements

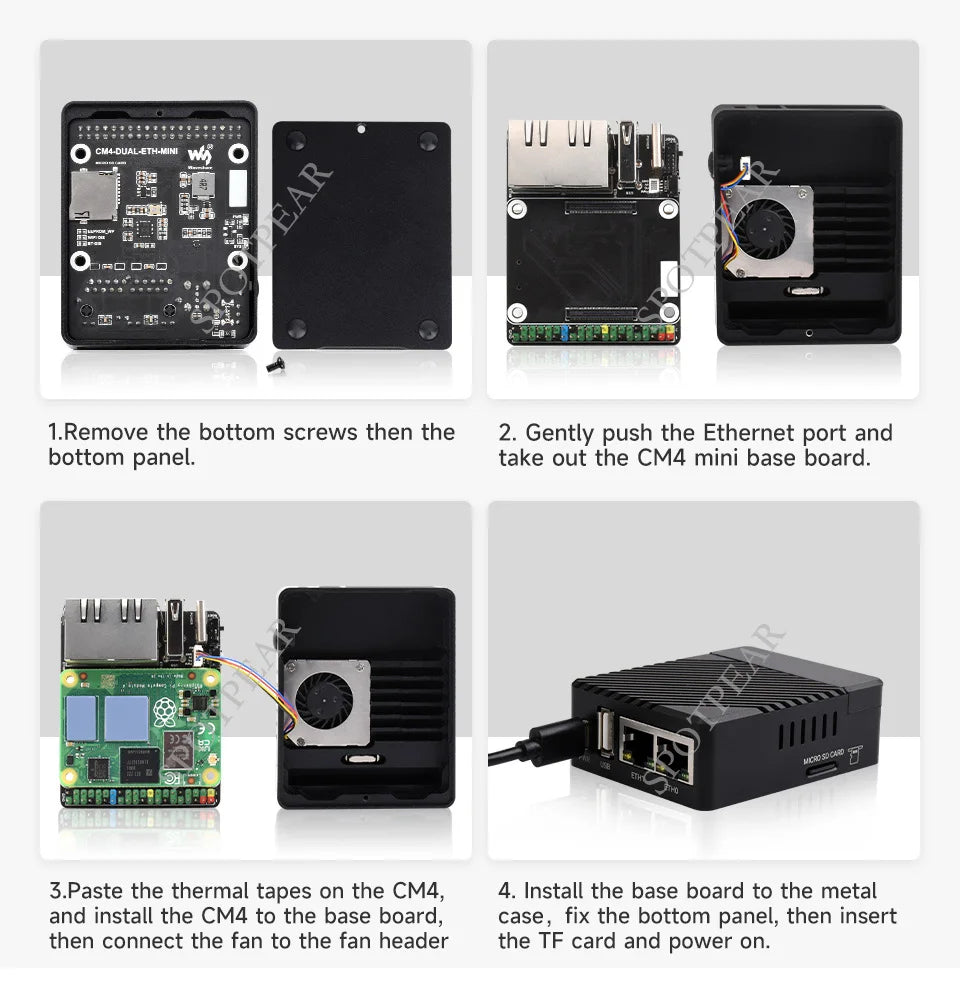

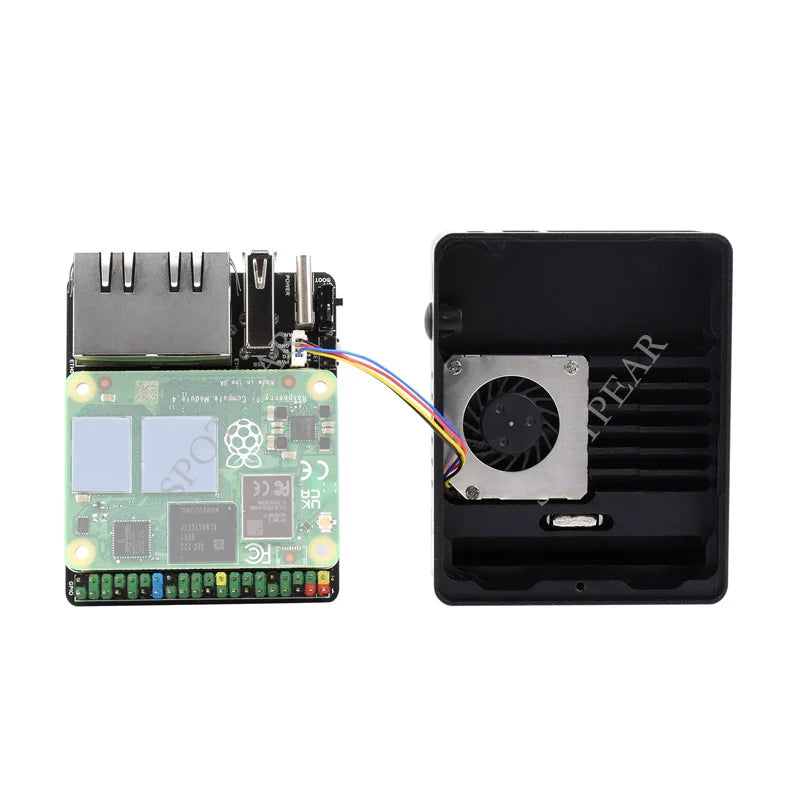

Assembly Guide

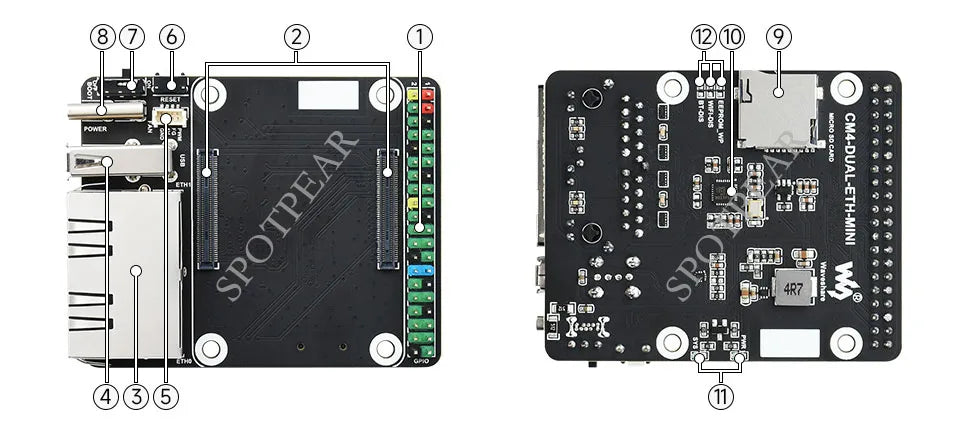

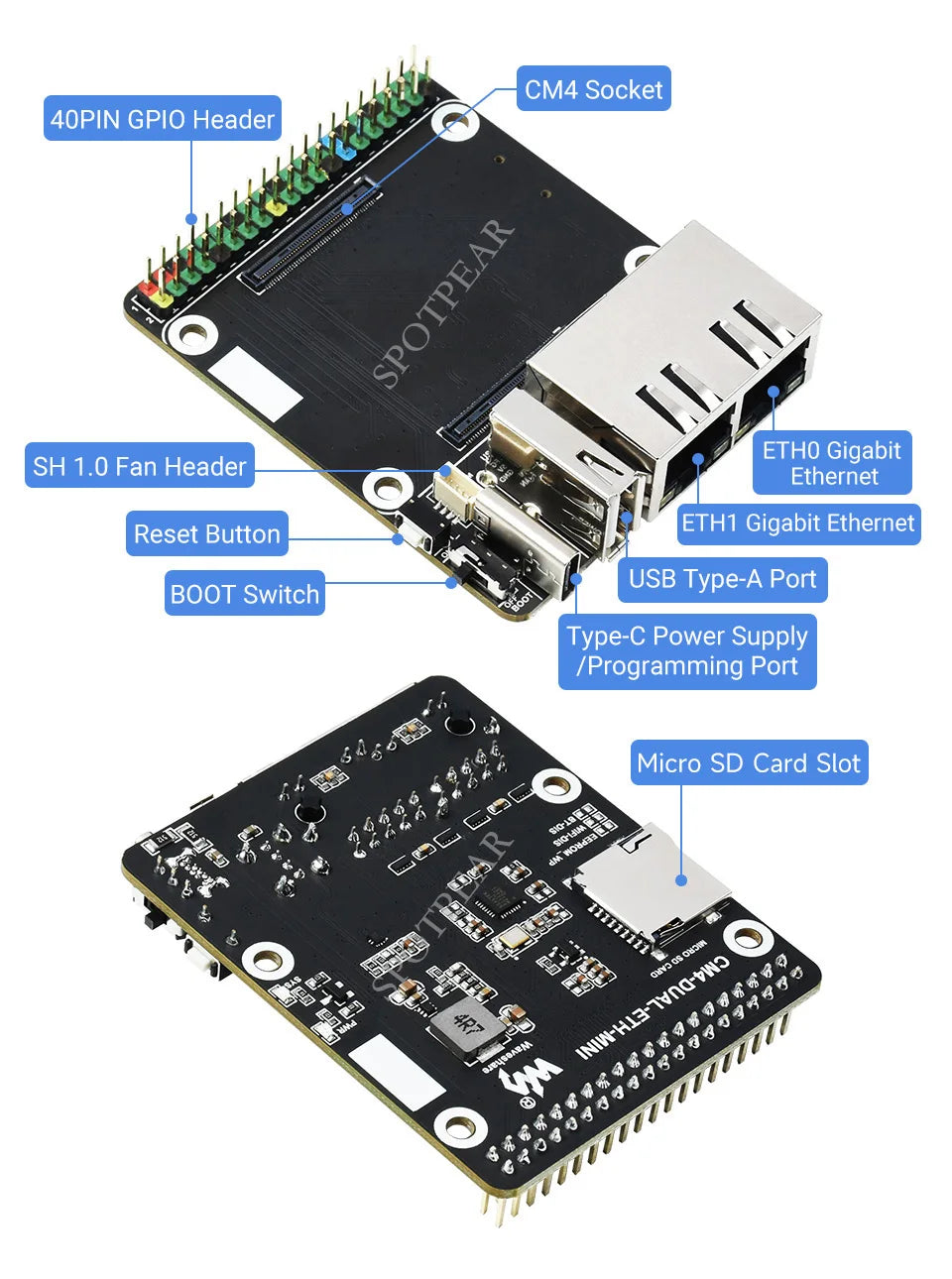

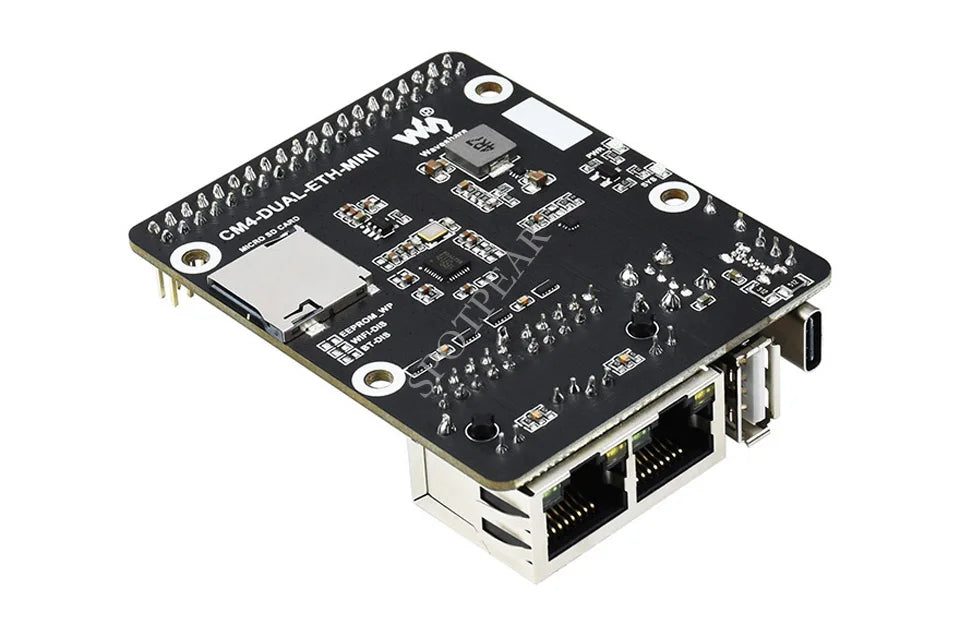

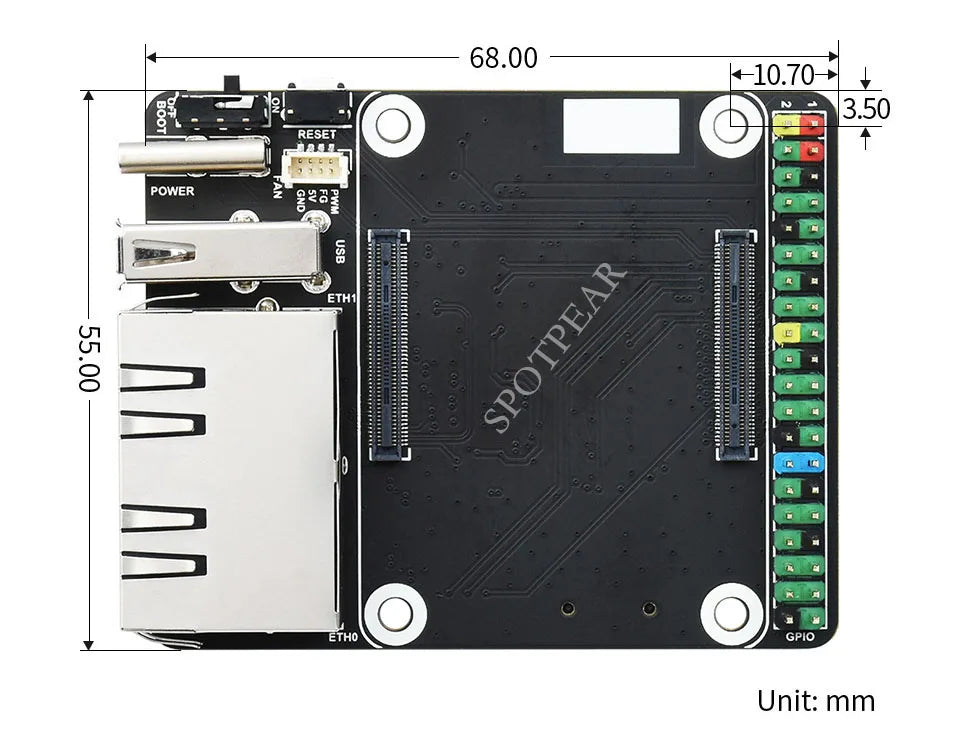

What's On Board

1. 40PIN GPIO header : for connecting sorts of HAT
2. M4 Socket : suitable for all variants of Compute Module 4
3. RJ45 Dual Gigabit Ethernet Port
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM4 original network port
ETHERNET 1: PCIe extended network port
4. USB 2.0 Type A port : for connecting sorts of USB devices
5. FAN header : for connecting cooling fan, allows speed adjustment and measurement
6. Reset button
7. Boot switch
ON: CM4 would be booted from USB-C interface
OFF: CM4 would be booted from eMMC or TF card
8. Type-C port : 5V/2.5A power supply, or used for eMMC programming
9. TF card slot : for connecting a TF card with pre-burnt image (Lite variant ONLY)
10. RTL8111H : Gigabit NIC chip
11. Indicator :
PWR: indicating the power supply status of Raspberry Pi
SYS: indicating the working status of Raspberry Pi
12. SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM4 version with wireless
BT_DIS: Bluetooth disabled, only for CM4 version with wireless
