SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Material: Cast Iron

Origin: Mainland China

Type: Other

is_customized: Yes

DESCRIPTION

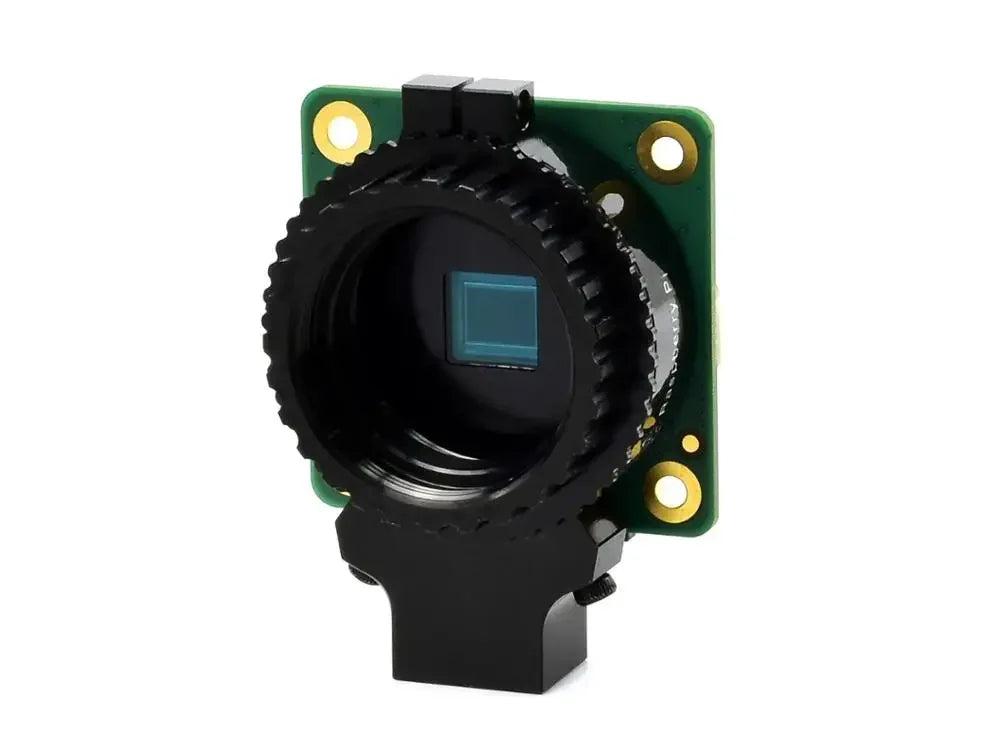

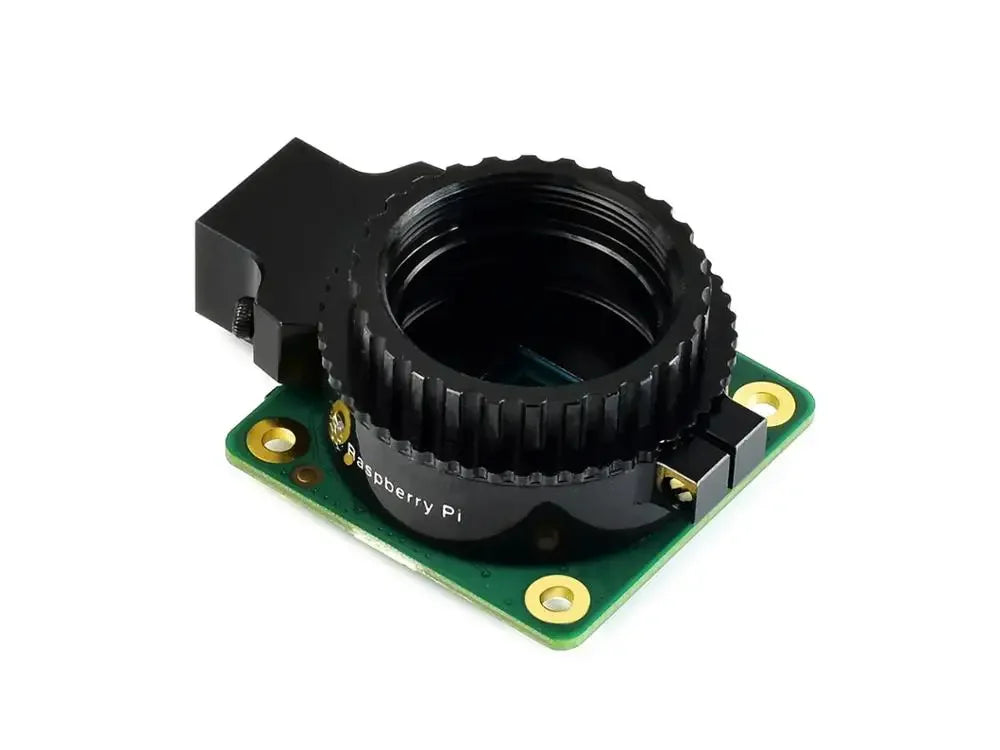

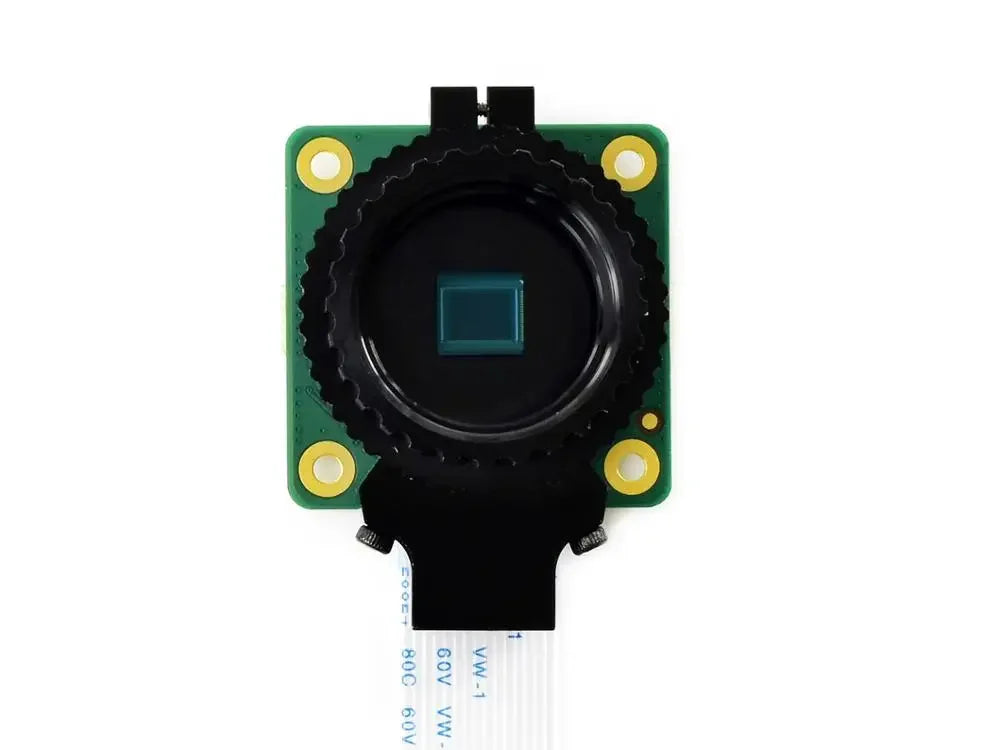

Raspberry Pi High Quality Camera, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- And CS-Mount Lenses

RASPBERRY PI HIGH QUALITY CAMERA

Higher Resolution & Sensitivity, Compatible With Raspberry Pi Series Boards

The Raspberry Pi High Quality Camera is the latest camera board from Raspberry Pi Foundation. It adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi series boards, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than the existing Camera Module V2.

The Raspberry Pi High Quality Camera could be an ideal alternative for the Camera Module V2, suits industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

SENSOR	Sony IMX477R
	12.3MP, 4056 (H) × 3040 (V)
	7.9mm CMOS diagonal size
	1.55µm (H) × 1.55µm (V) pixel size
OUTPUT	RAW12 / 10 / 8, COMP8
BACK FOCUS	Adjustable（12.5mm-22.4mm）
LENS SUPPORT	C-mount / CS-mount (C-CS adapter included)
IR CUT FILTER	Integrated
TRIPOD MOUNT	1/4″-20
COMPLIANCE	FCC 47 CFR Part 15, Subpart B, Class B Digital Device
	Electromagnetic Compatibility Directive (EMC) 2014/30/EU
	Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

Higher Resolution, Better Imaging Effect

Compared To 8MP Of Normal Raspberry Camera, The High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect

With Mounted Lens

C-Mount 16mm Telephoto Lens (C-CS Adapter Required)
VS

CS-Mount 6mm Wide Angle Lens (C-CS Adapter Should Be Removed)

Lens Selection

	16mm Telephoto Lens	6mm Wide Angle Lens
IMAGE FORMAT	1″	1/2″
FOCAL LENGTH	16mm	6mm
APERTURE	F1.4-16	F1.2
MOUNT	C-mount	CS-mount
FIELD ANGLE	1″ 44.6° × 33.6° 2/3″ 30.0° × 23.2° 1/1.8″ 24.7° × 18.6° 1/2″ 21.8° ×16.4°	63°
BACK FOCUS	17.53mm	7.53mm
OPTICAL LENGTH	67.53mm	-
DISTORTION	1″（-0.7%） 1/2″（-0.5%） 1/3″（-0.15%）	-
M.O.D.	0.20m	0.20m
DIMENSIONS	Φ39.00 × 50.00mm	Φ30.00 × 34.00mm
OPERATION	Manual aperture adjustment	Manual aperture adjustment
WEIGHT	133.7g	53g

Working With Raspberry Pi

Raspberry Pi, and lenses in the photos are NOT included
To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

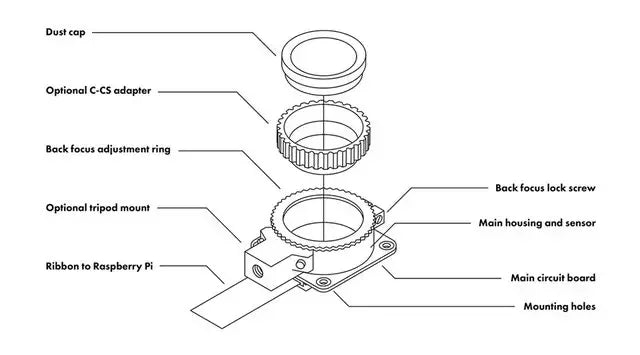

Hardware Overview
