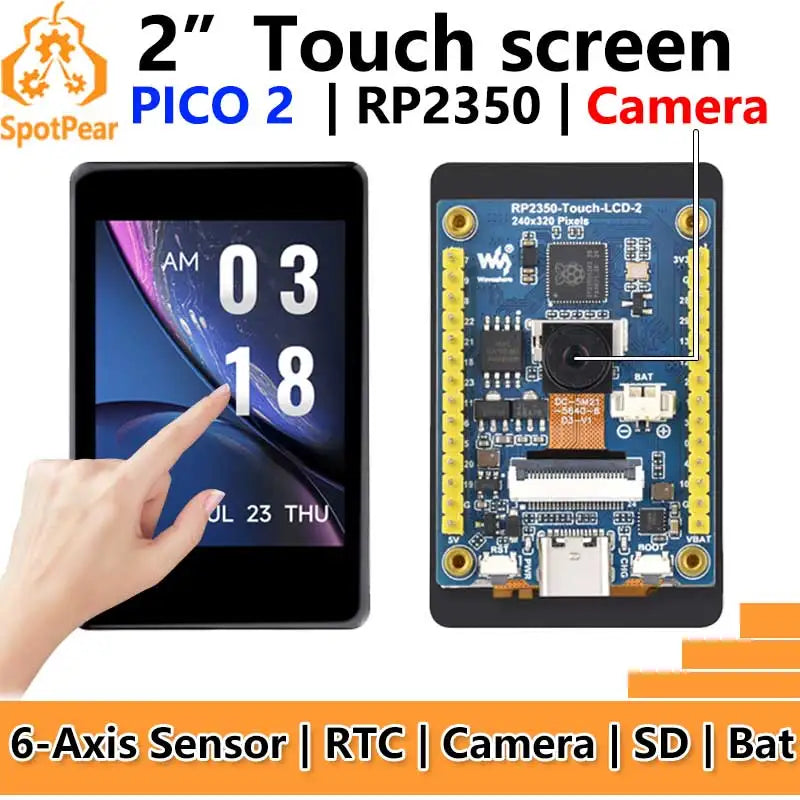

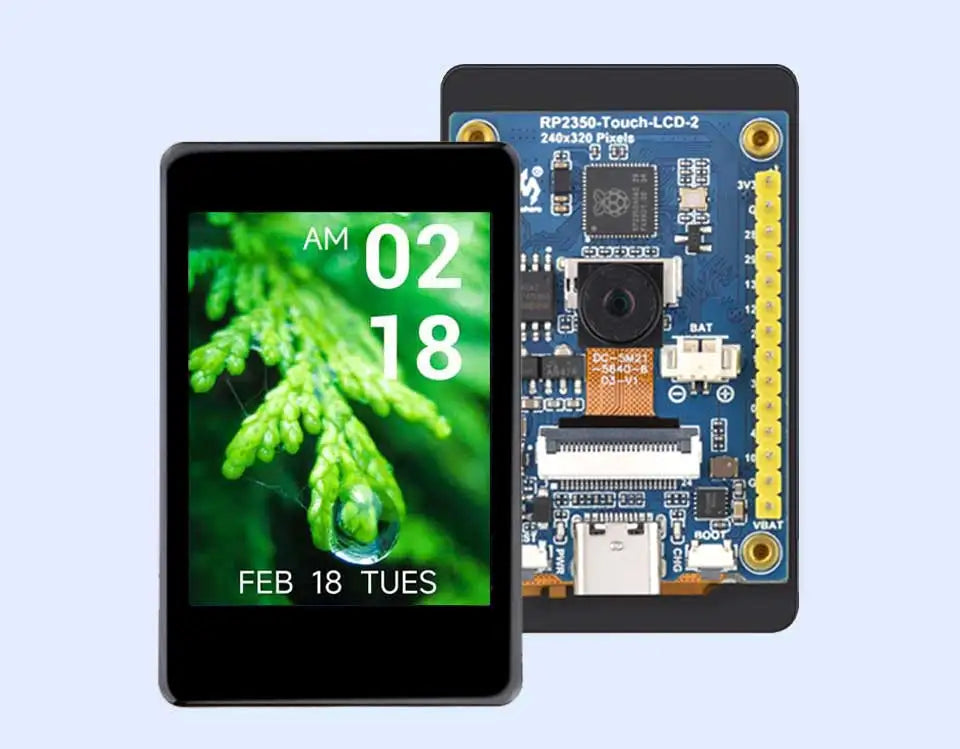

Raspberry Pi Pico 2 RP2350 2 inch LCD Capacitive TouchScreen Development Board 240x320 Display QMI8658 6-Axis /OV5640 Camera /SD
RP2350-Touch-LCD-2
$101.80
Sale price
$101.80
Regular price
$0.00
Skip to product information
Support OV5640 etc.
Support C/C++, MicroPython, Arduino
Raspberry Pi Pico 2 RP2350 2 inch LCD Capacitive TouchScreen Development Board 240x320 Display QMI8658 6-Axis /OV5640 Camera /SD
$101.80
Sale price
$101.80
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: LCD Screen
Battery Included: no
Brand Name: spotpear
Choice: yes
Compatible With: Raspberry Pi
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Education and Learning
semi_Choice: yes
RP2350 Touch LCD Development Board
Designed based on Raspberry Pi RP2350
Version selection

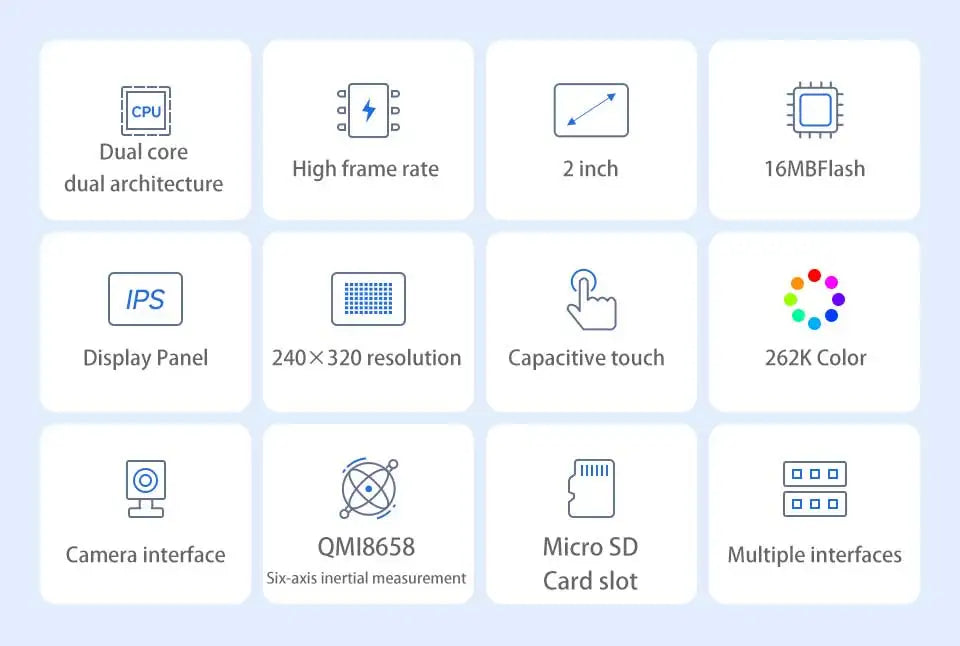

Product Features

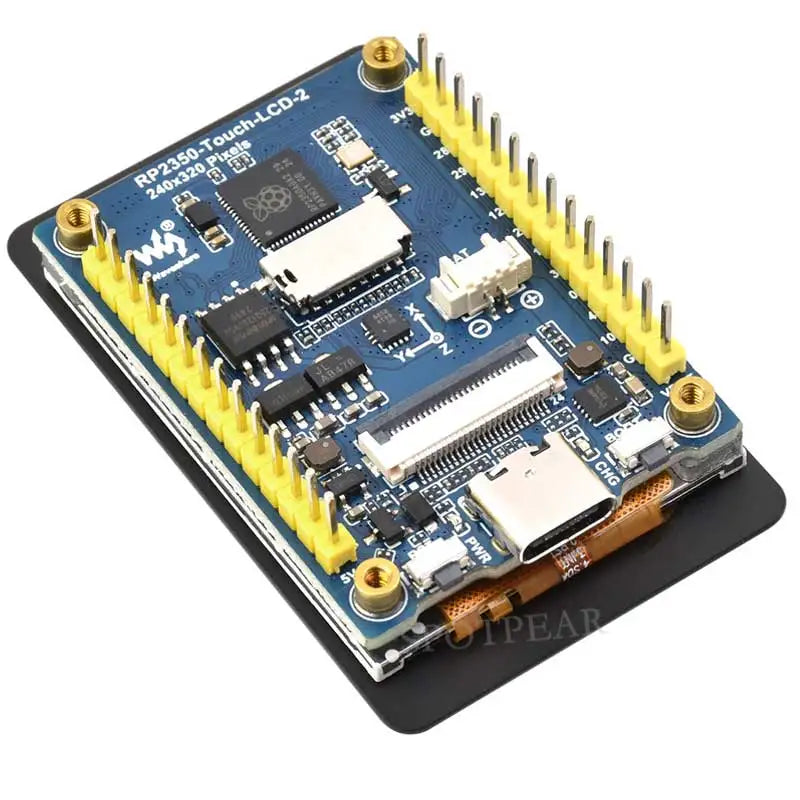

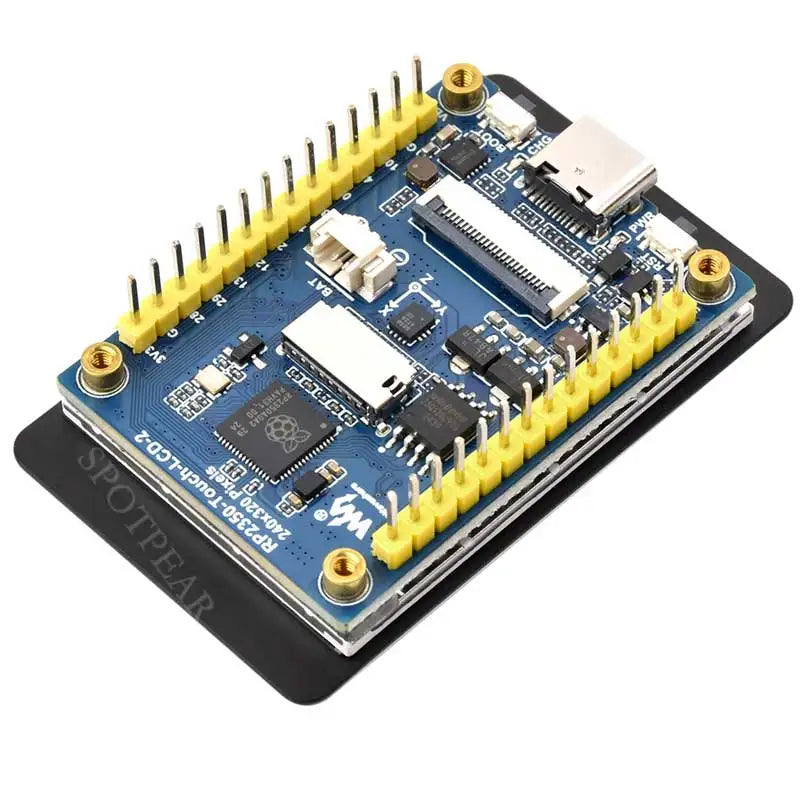

This product is a low-cost, high-performance microcontroller development board. In a small form factor, it has a 2-inch capacitive touch LCD screen, camera interface, Micro SD card slot, lithium battery charging chip, and six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals on board, making it easy to develop and integrate into products.
RP2350 microcontroller chip designed with Raspberry Pi
Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at clock frequencies up to 150MHz
Built-in 520KB SRAM and 16MB on-chip Flash
Uses Type-C interface, no need to worry about plugging it in the right or wrong direction

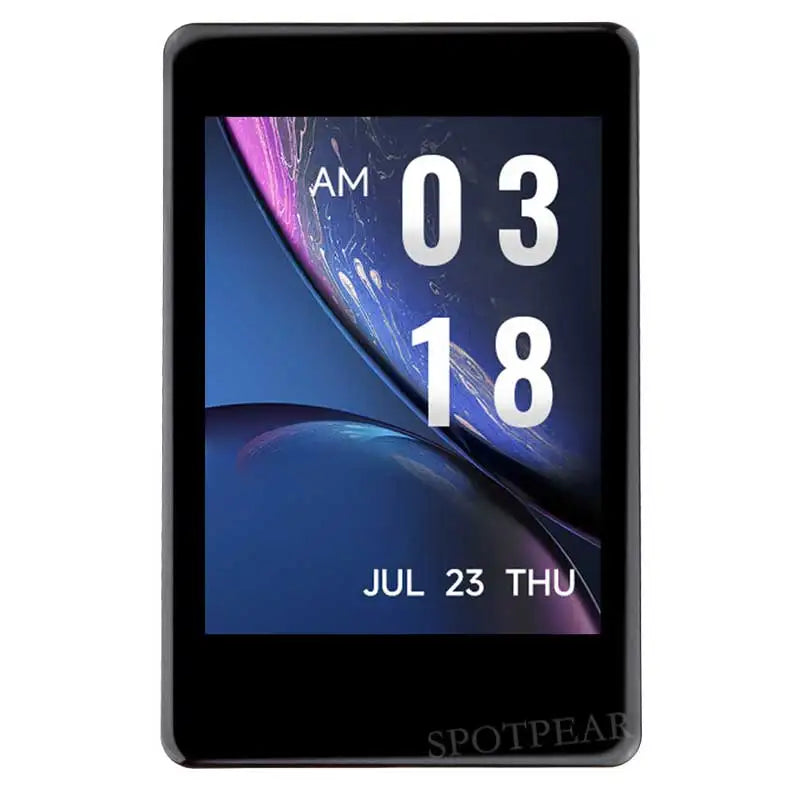

Onboard 2-inch capacitive touch LCD screen, 240 × 320 resolution, 262K colors

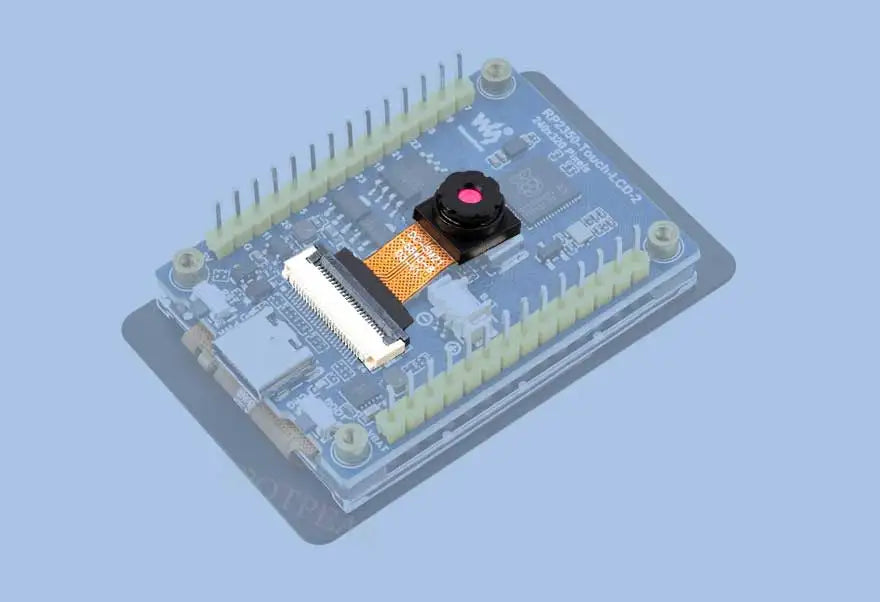

Onboard camera interface, compatible with mainstream cameras such as OV5640, suitable for image and video acquisition
Onboard lithium battery charging and discharging interface, suitable for mobile scenarios
USB1.1 host and device support
Supports low power sleep and hibernation modes
USB can be recognized as mass storage for drag-and-drop program downloading
Bring out 22 multi-function GPIO pins
2 SPI, 2 I2C, 2 UART, 2 12-bit ADC, and 14 controllable PWM channels
Precise on-chip clocks and timers
Onboard temperature sensor
12 Programmable I/O (PIO) state machines for custom peripheral support

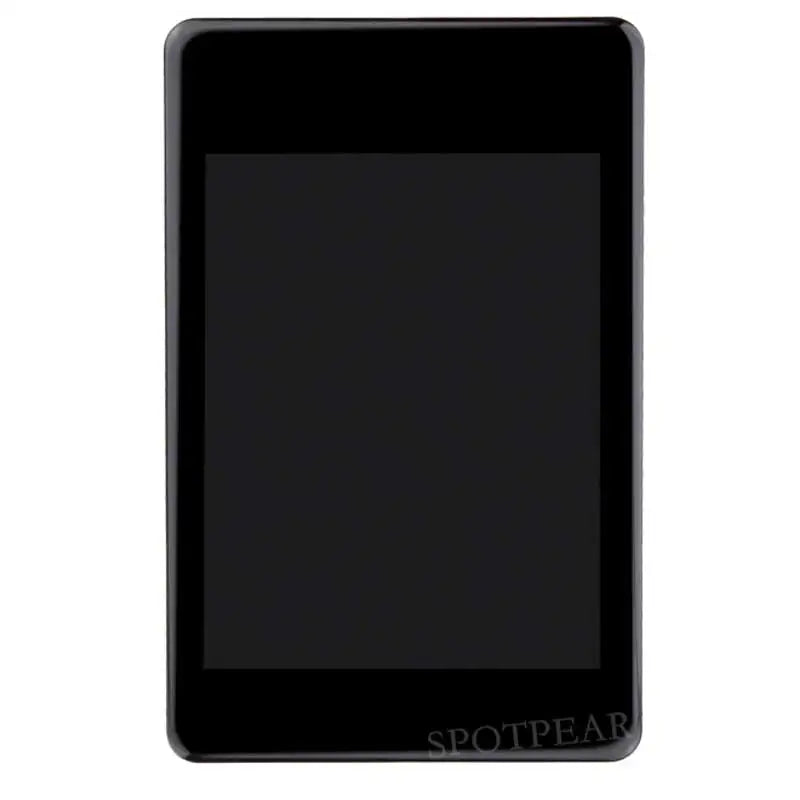

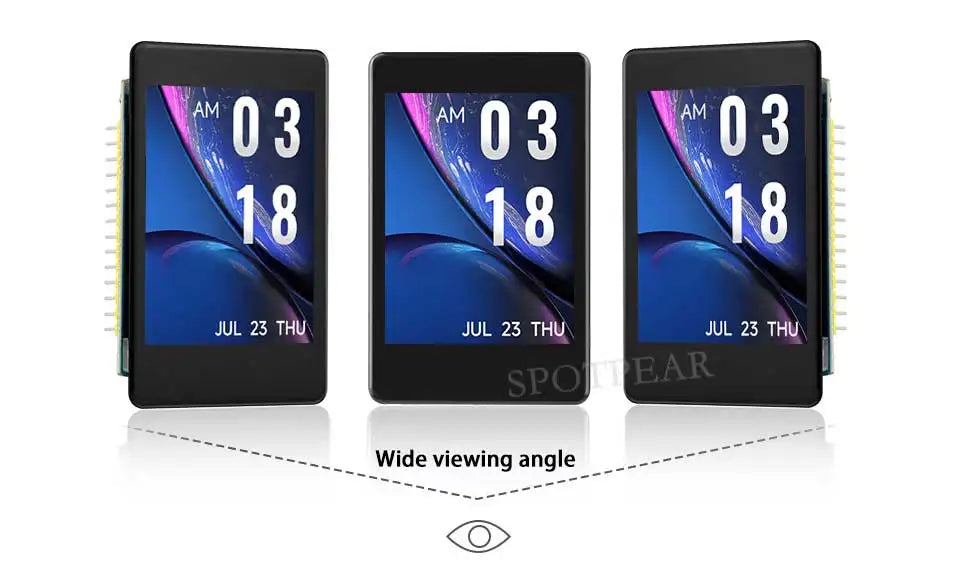

IPS display panel
Excellent display performance, 262K color, wide viewing angle
Support OV5640 etc.
Mainstream cameras
The version with OV5640 camera is optional. The OV5640 camera supports 5 million pixels and is suitable for image acquisition, video surveillance and other application scenarios to meet diverse needs.
Usage Examples

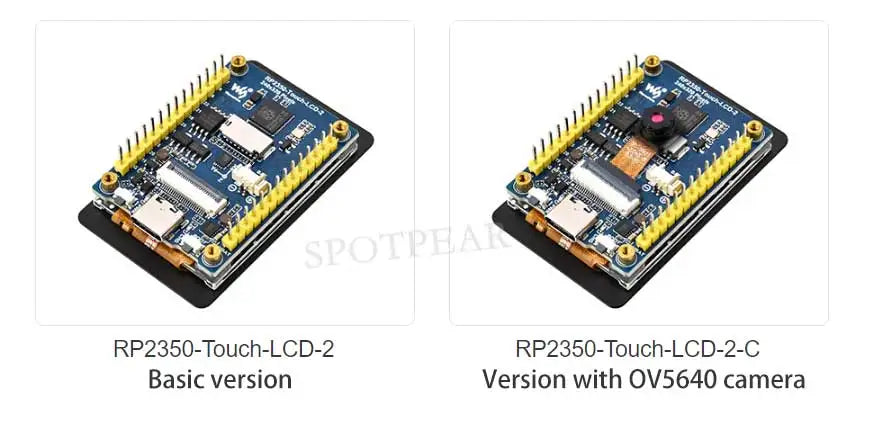

The basic version does not include a camera, and a version with an OV5640 camera is available as an option.
Unique dual-core, dual-architecture
The unique dual-core, dual-architecture capability of the RP2350 allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, giving developers the opportunity to experiment with the RISC-V architecture in a stable, well-supported environment.
Support C/C++, MicroPython, Arduino
Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application

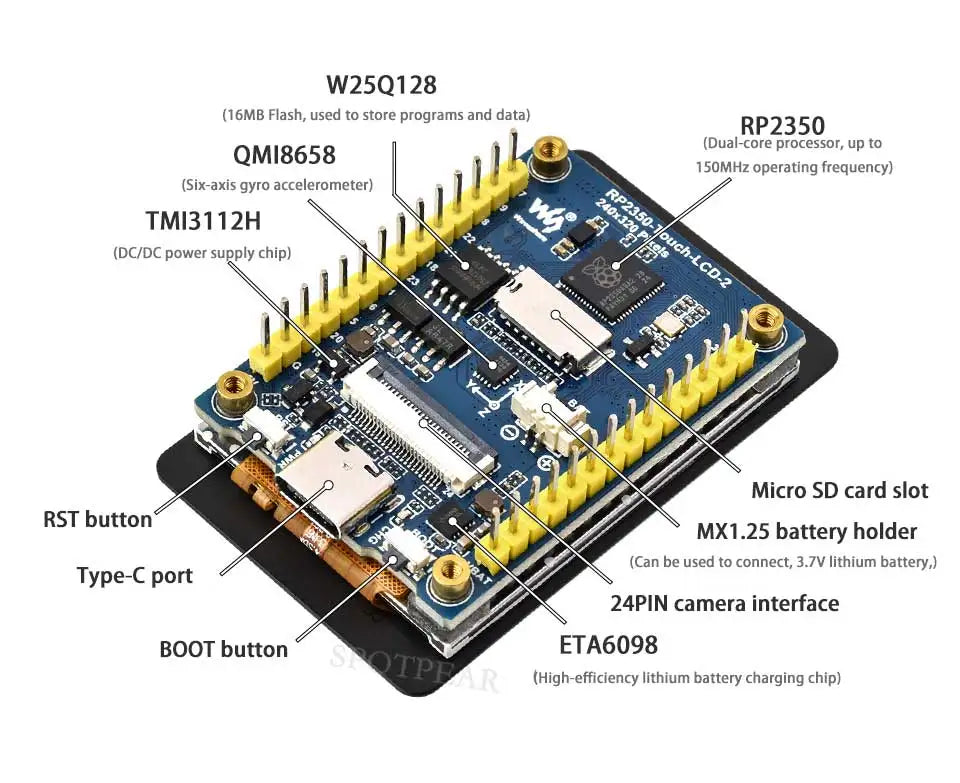

Resource Overview

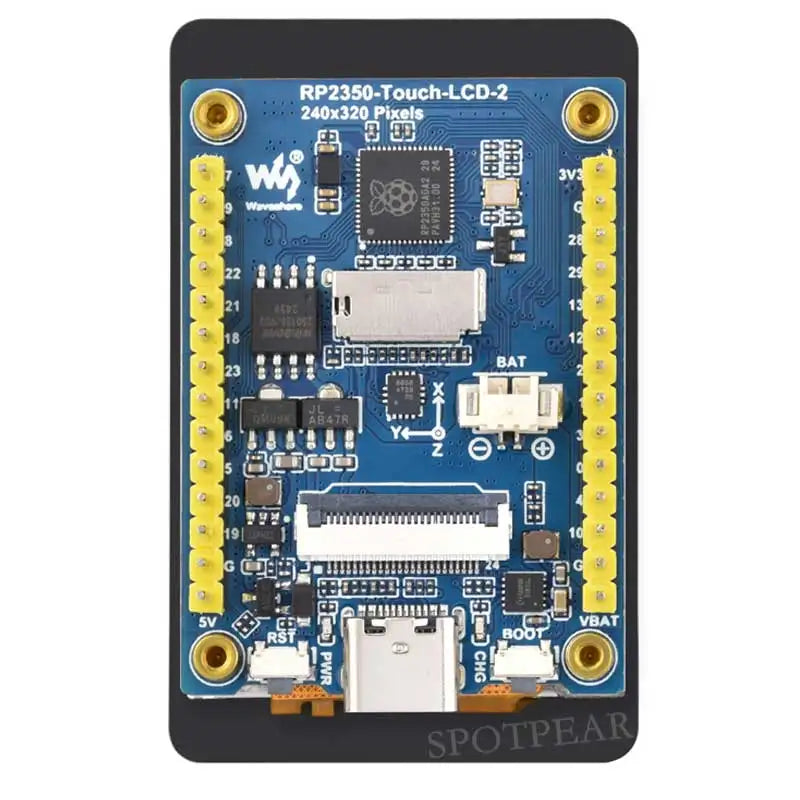

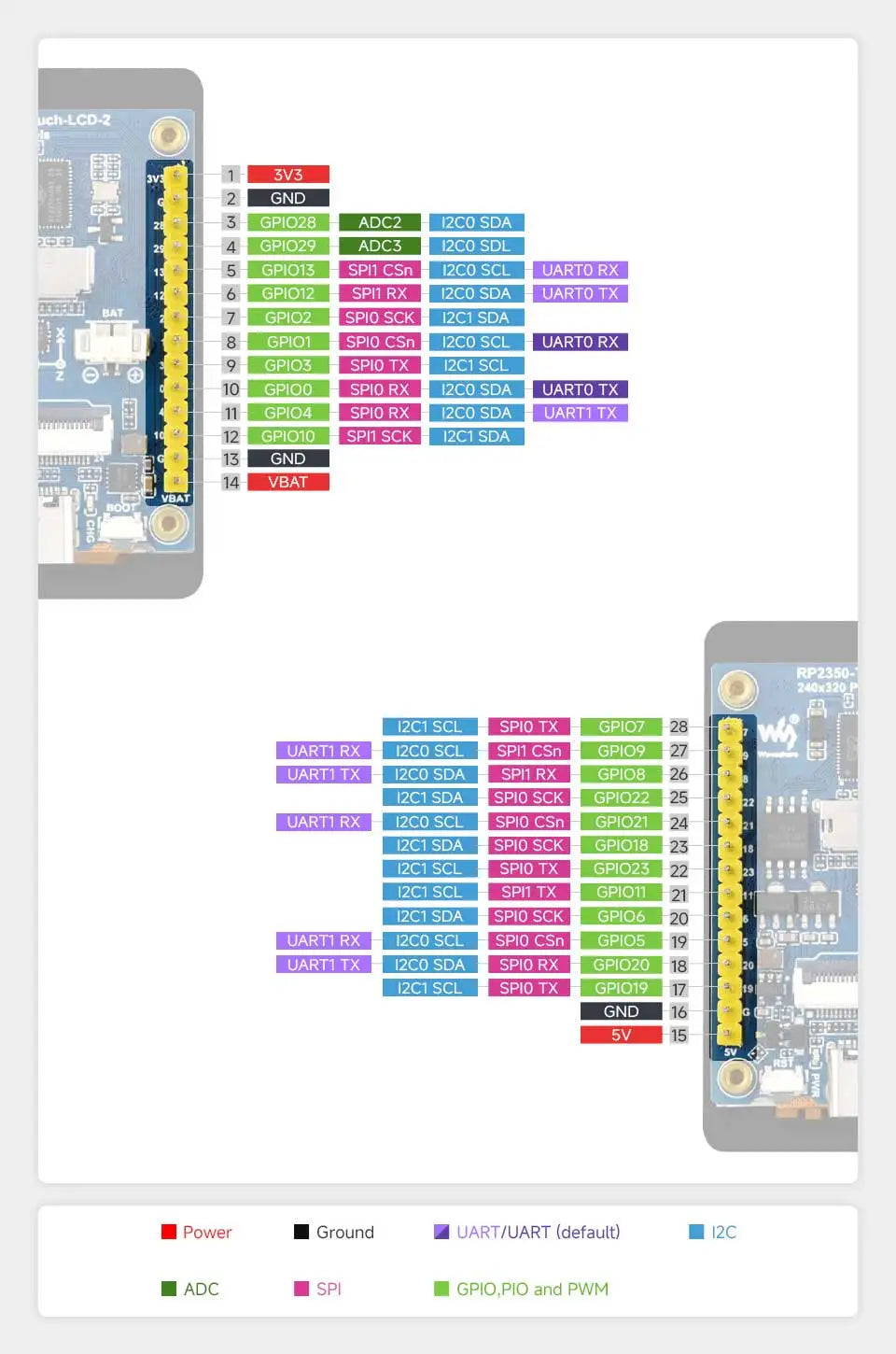

Pin Definition

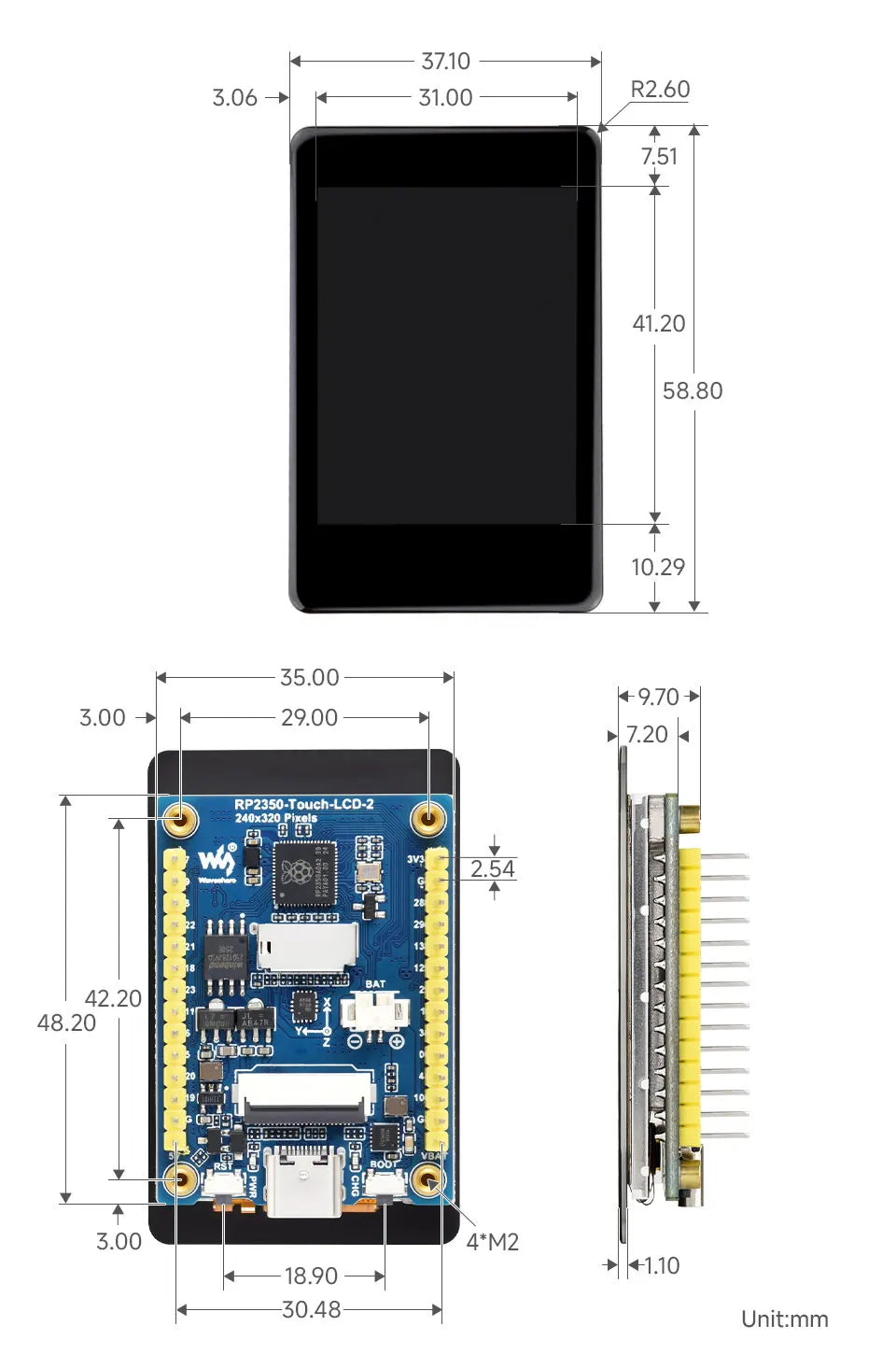

Product size
Package Contains

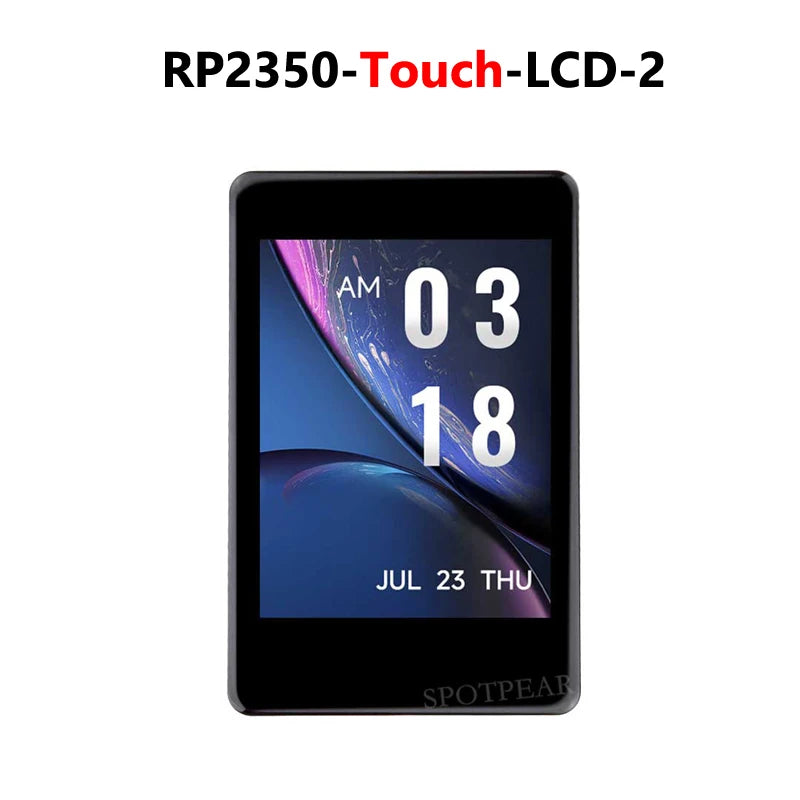

[] RP2350-Touch-LCD-2 x1

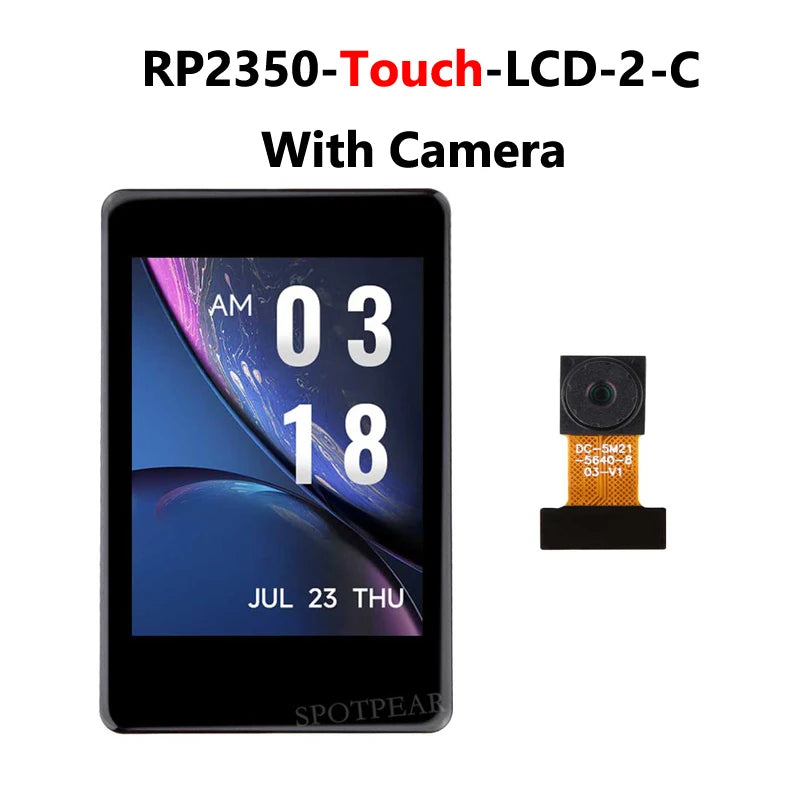

[] RP2350-Touch-LCD-2-C x1
