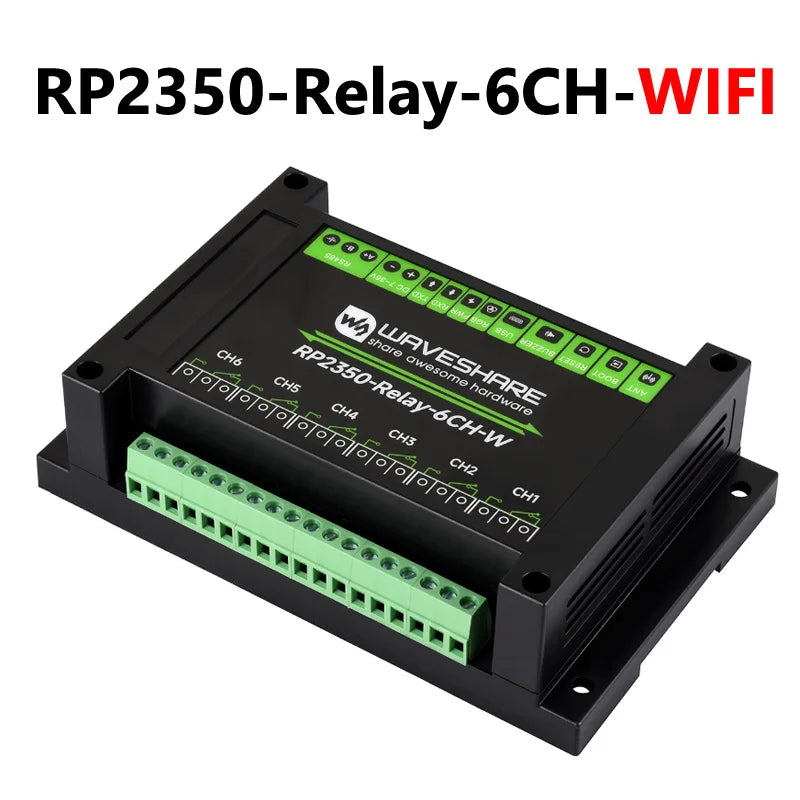

Raspberry Pi Pico 2 RP2350 industrial 6-ch Relay RS485 isolation protection Waveshare RP2350-Relay-6CH WIFI Option

Raspberry Pi Pico 2 RP2350 industrial 6-ch Relay RS485 isolation protection Waveshare RP2350-Relay-6CH WIFI Option

$205.72

$205.72 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: RP2350

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

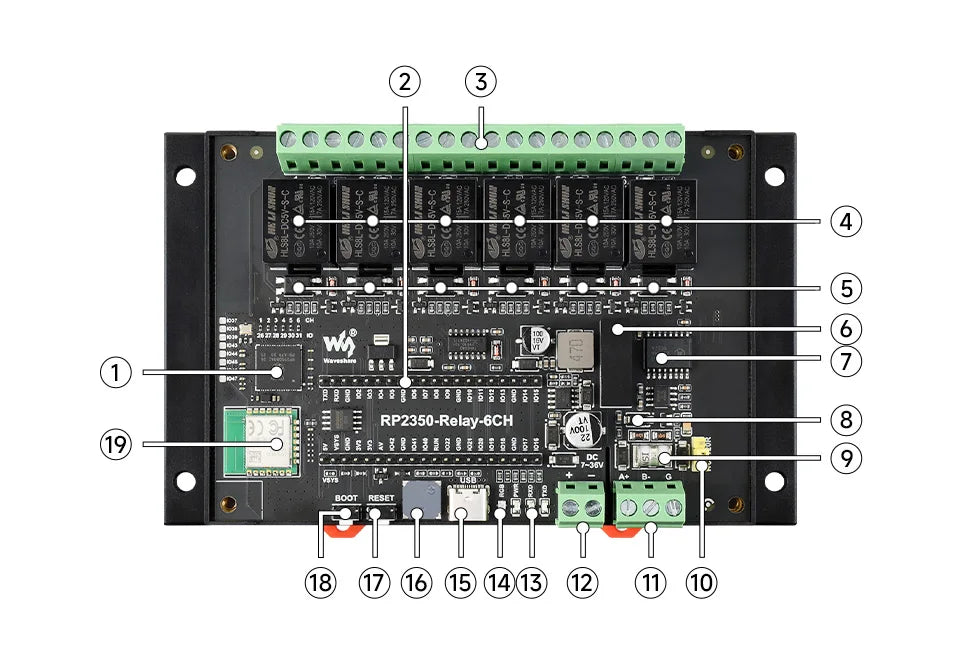

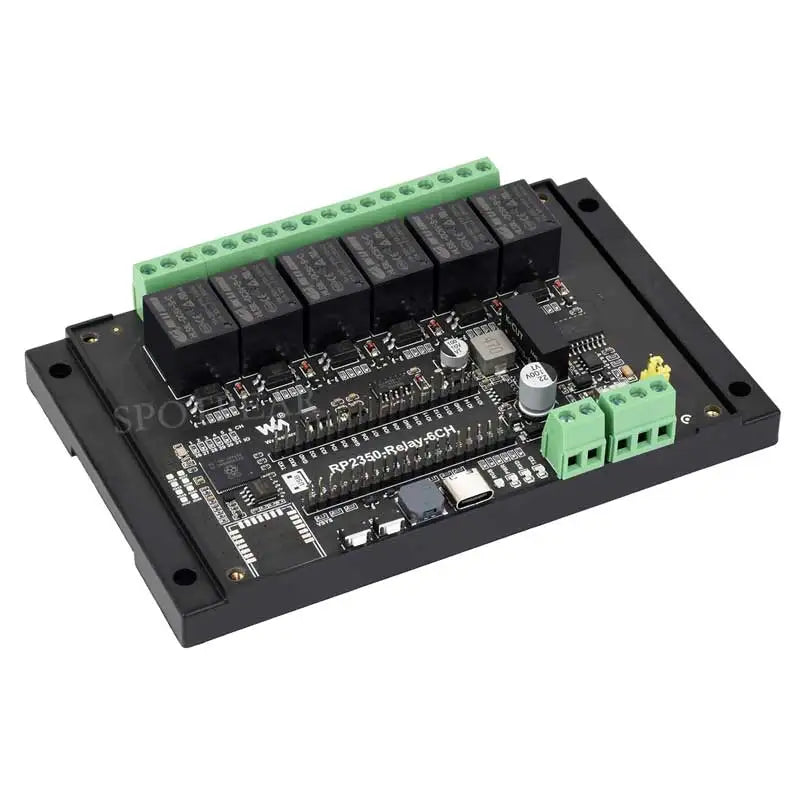

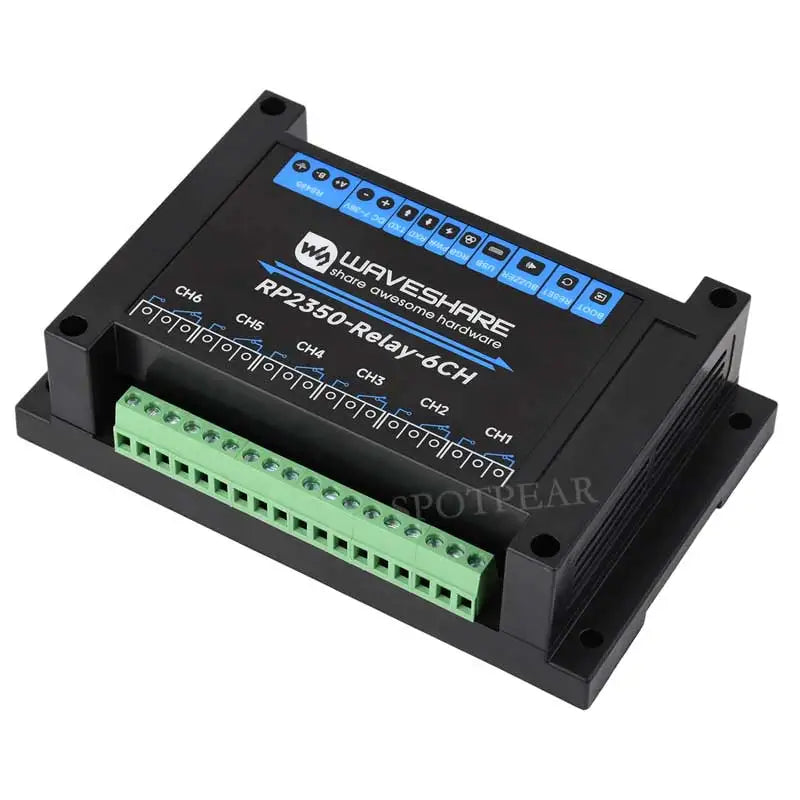

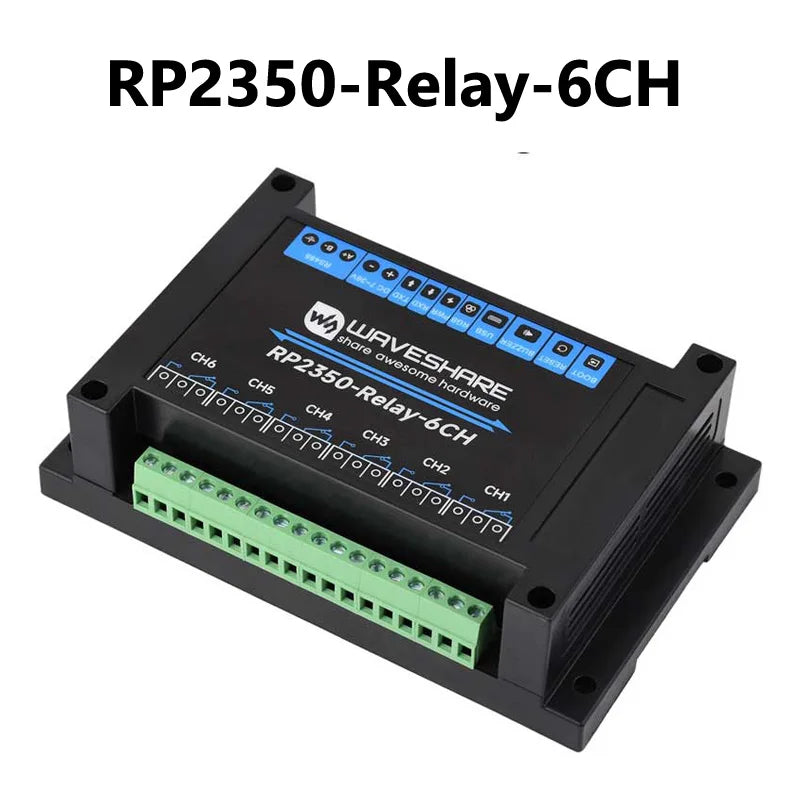

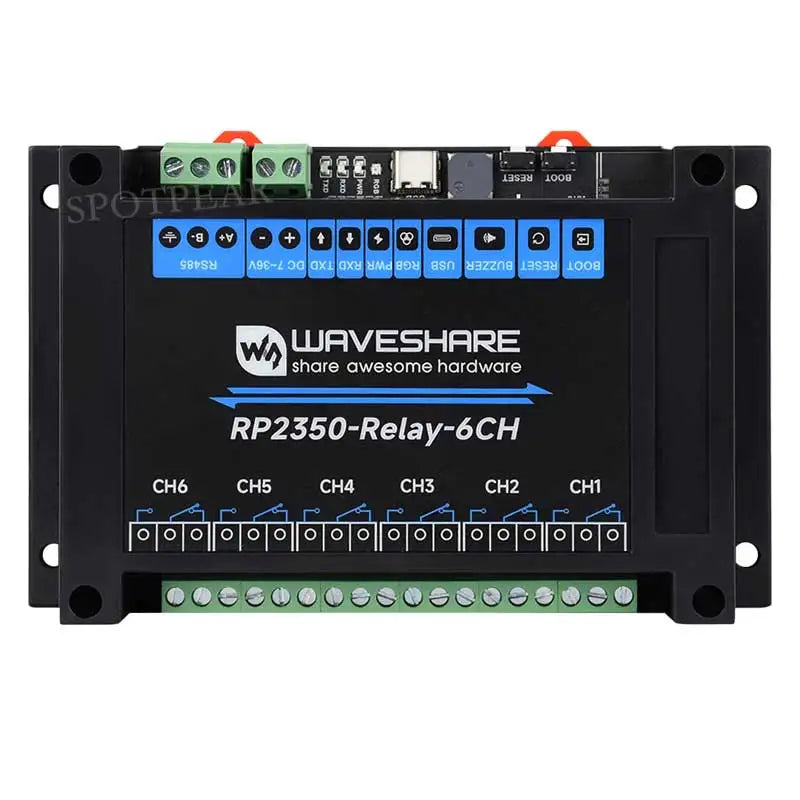

Industrial 6-Ch RP2350 Relay Module

Based on RP2350, Onboard RS485 / Pico HAT interfaces

Built-In Protection Circuits Such As Power Isolation And Optocoupler Isolation, Safe & Stable & Reliable

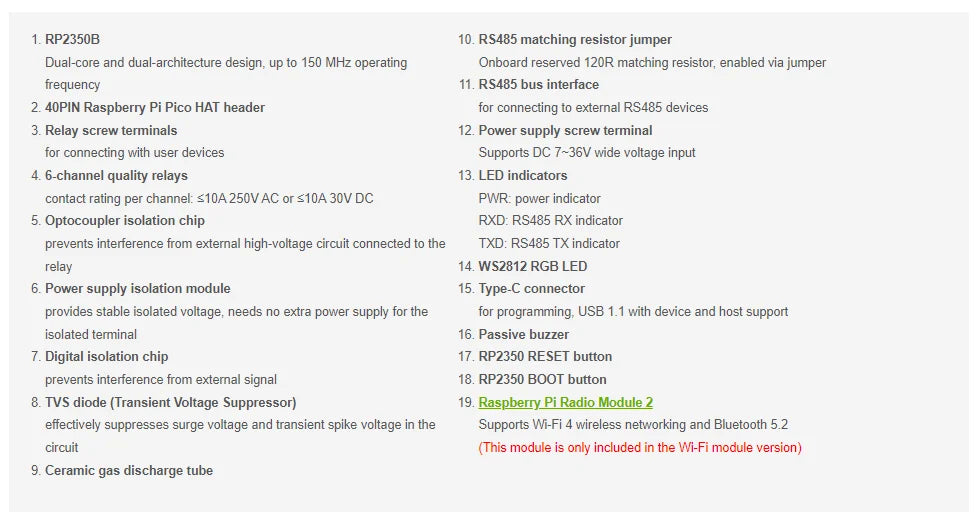

Features At A Glance

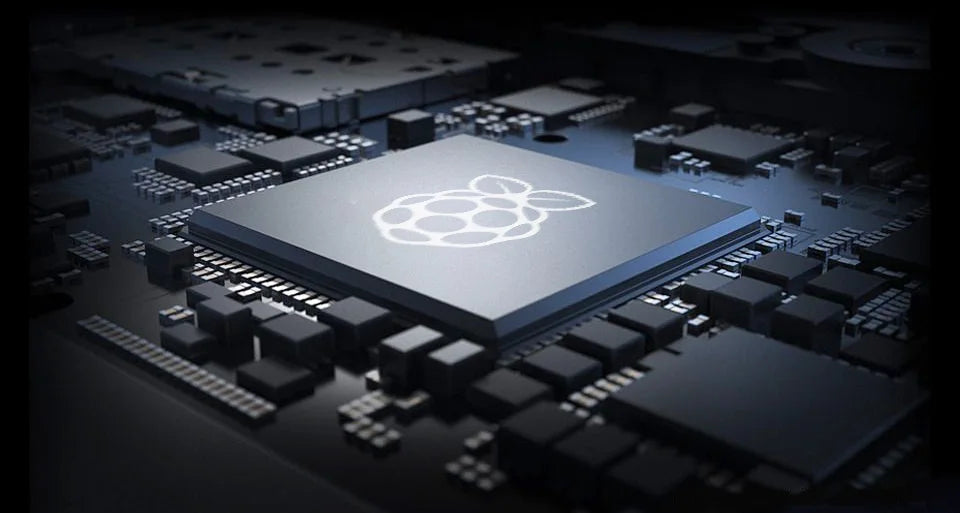

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in Raspberry Pi Radio Module 2, supports Wi-Fi 4 wireless networking and Bluetooth 5.2 (for Wi-Fi module version only)
520KB of SRAM, 16MB onboard Flash memory
Type-C connector for easier use
High quality relay, contact rating: ≤10A 250VAC/30VDC
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard 40PIN header compatible with some Raspberry Pi Pico HATs, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Built in buzzer, RGB colorful LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the module

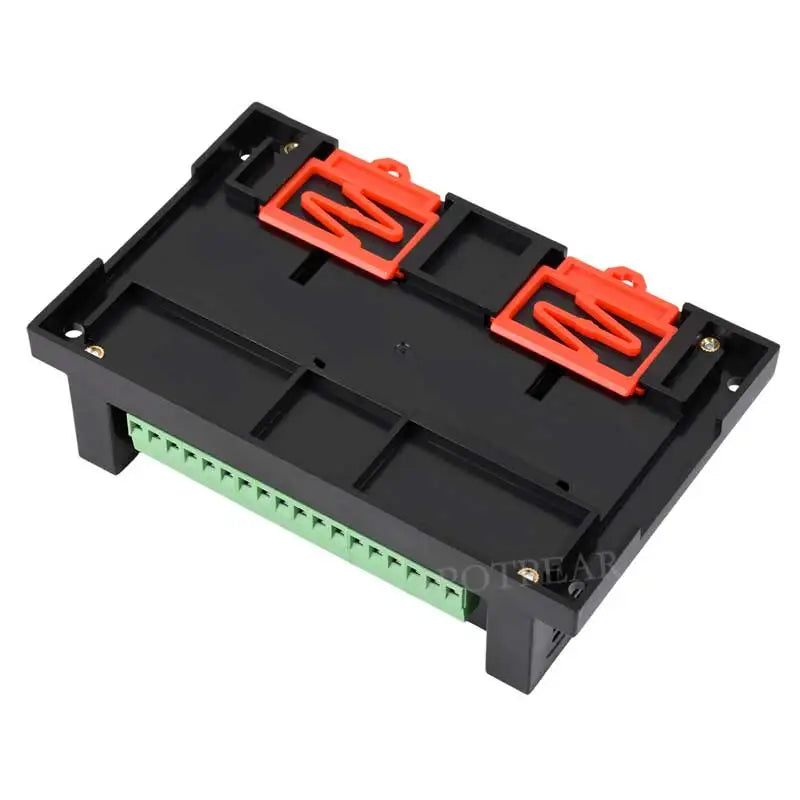

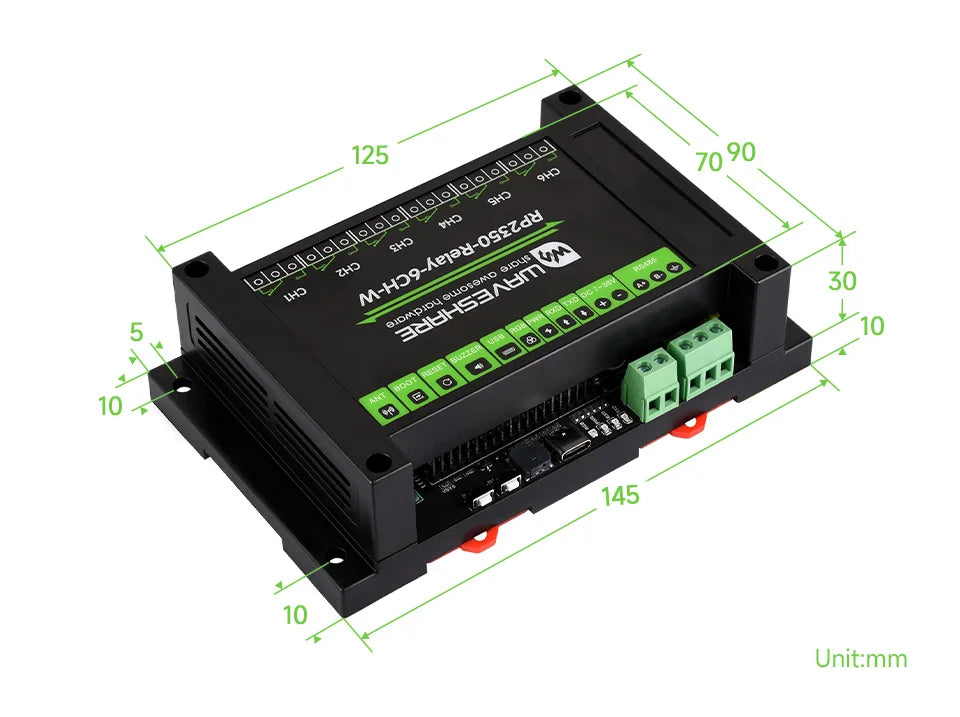

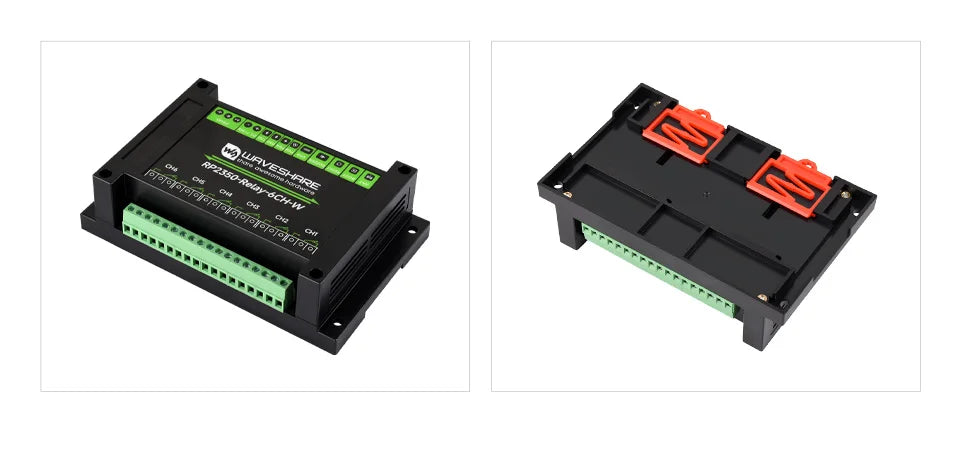

Rail-mounted ABS case, easy to install, safe to use
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

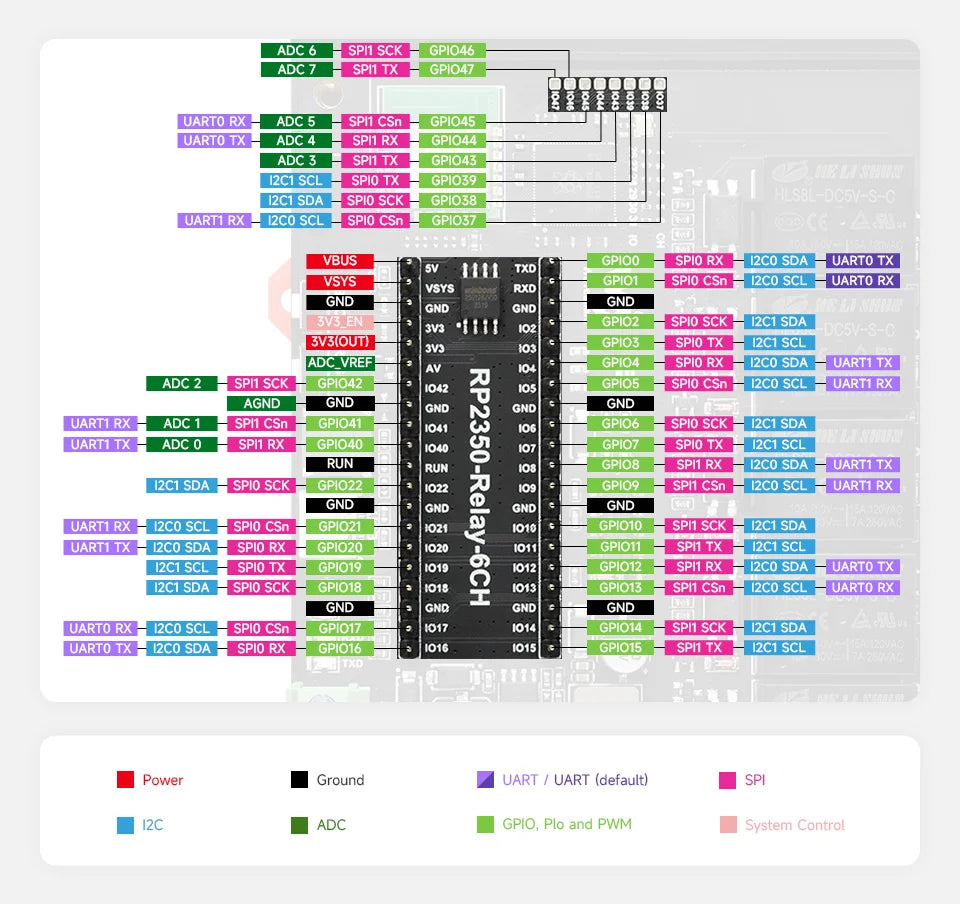

Adapting 34 × multi-function GPIO pins
1 × HSTX, 2 × I2C, 2 × UART, 8 × 12-bit ADC, 24 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

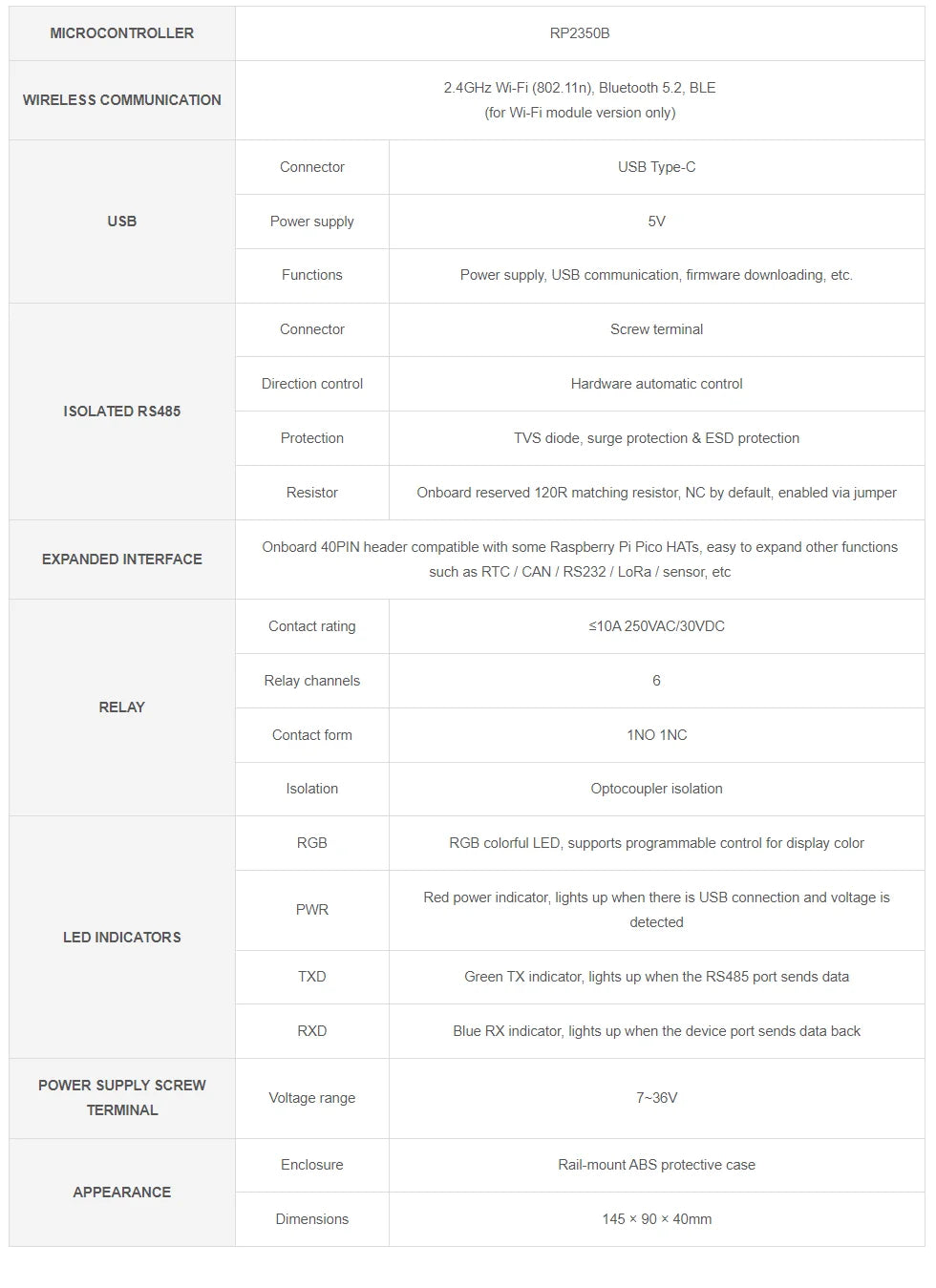

Specifications

Dual-Core, Dual-Architecture

The Unique Dual-Core, Dual-Architecture Capability Of RP2350B Allows Users To Choose Between A Pair Of Industry-Standard Arm Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment

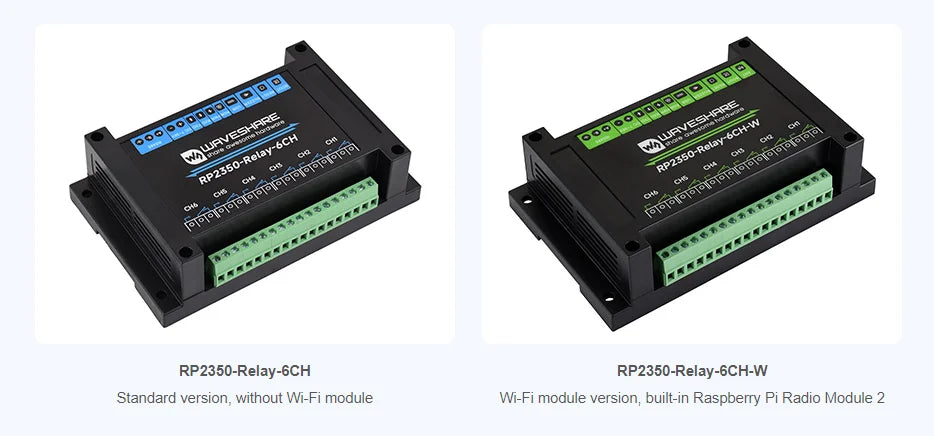

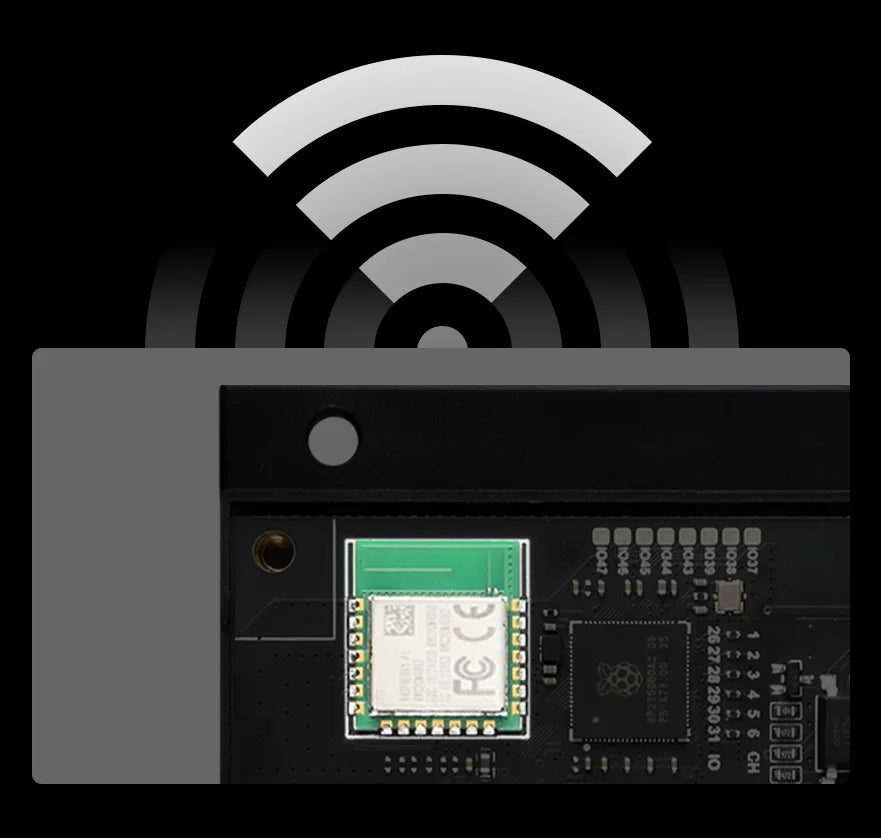

Optional For Wi-Fi & Bluetooth Module

Adopts Infineon’s CYW43439, Supports Wi-Fi 4 Wireless Network And Bluetooth 5.2

(* for Wi-Fi module version only)

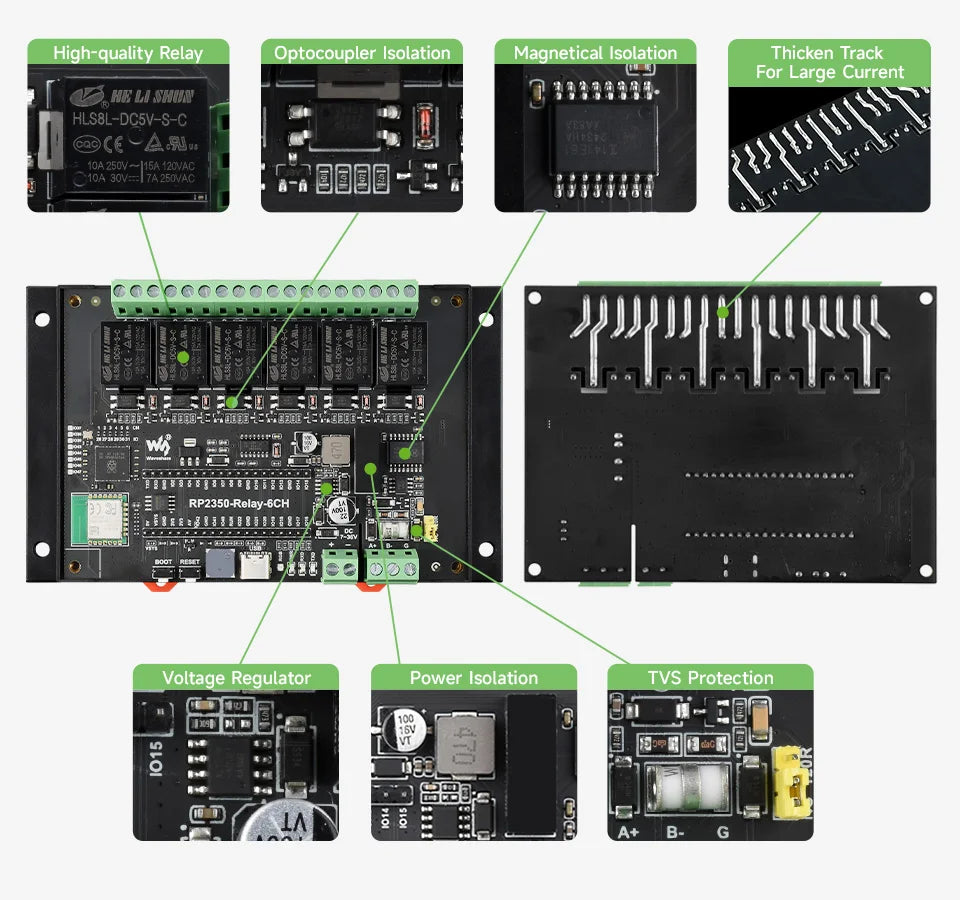

Onboard Multiple Isolation Protection Circuits

Multiple Protections, More Safe And Reliable

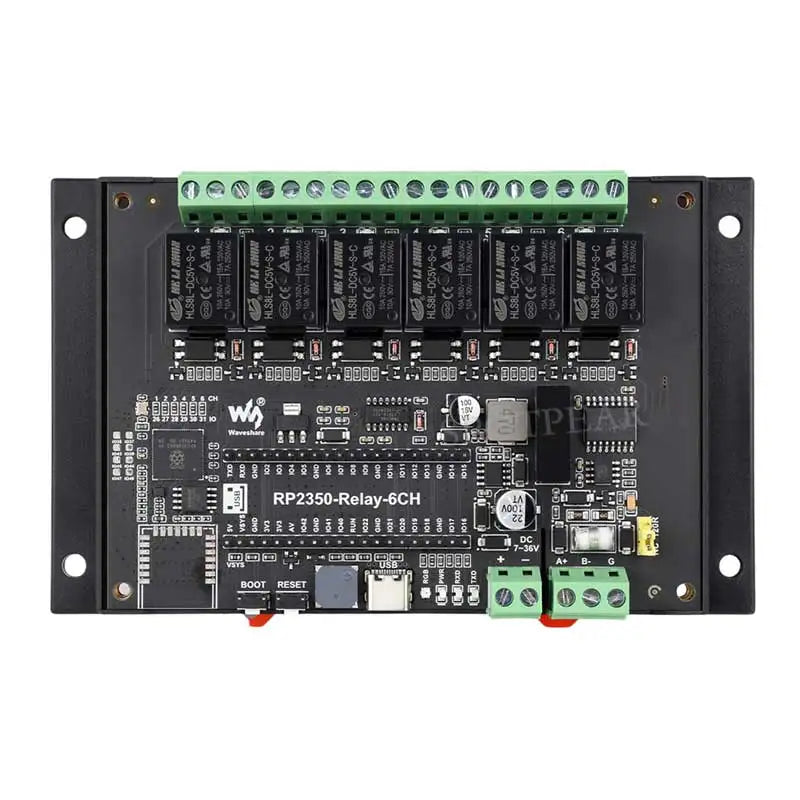

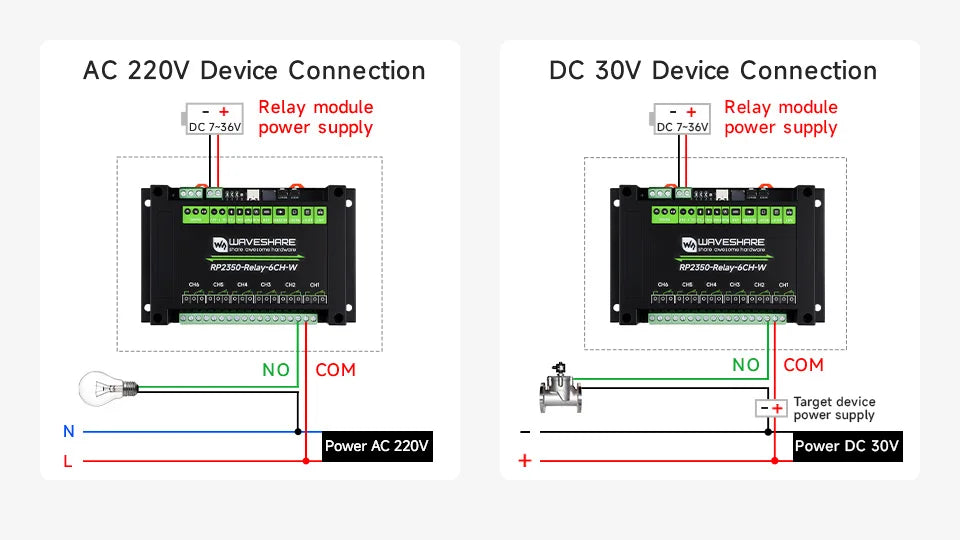

High Quality 6-Ch Relays, Supports RS485 Or Wi-Fi Remote Control

Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC

(* Only the Wi-Fi module version supports Wi-Fi remote control)

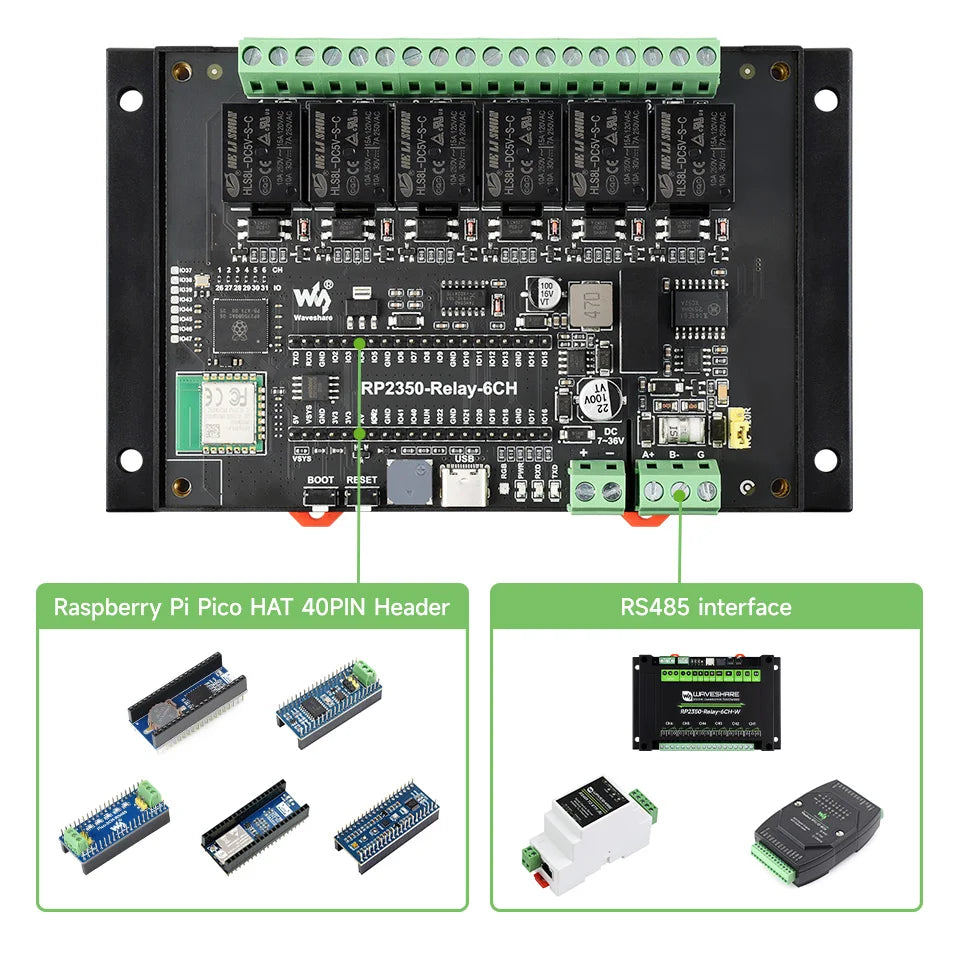

Onboard Pico HAT Compatible Interface And RS485 Interface For Easy Expansion

Onboard Isolated RS485 Interface, For Connecting To Various RS485 Modbus Industrial Modules Or Sensors. Onboard 40PIN Header Compatible With Some Raspberry Pi Pico HATs, For Expanding More Functions Such As RTC / CAN / RS232 / LoRa / Sensor, Etc.
