SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

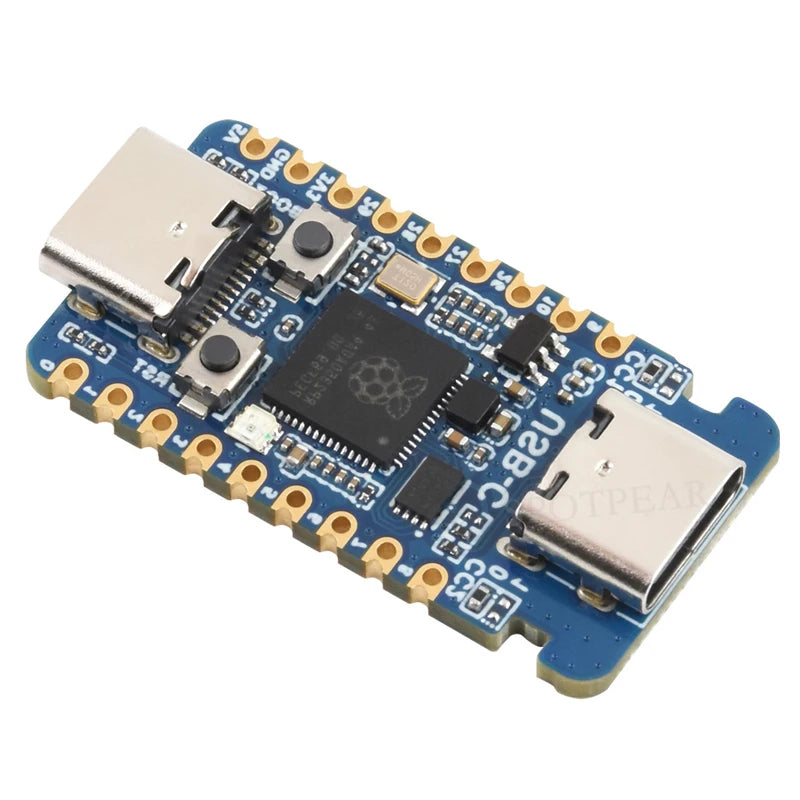

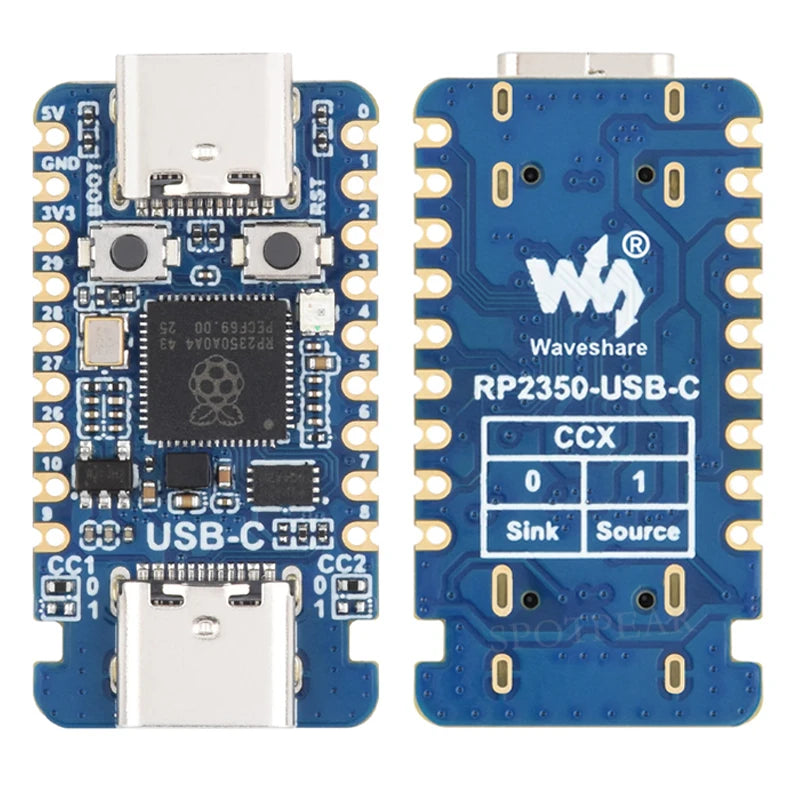

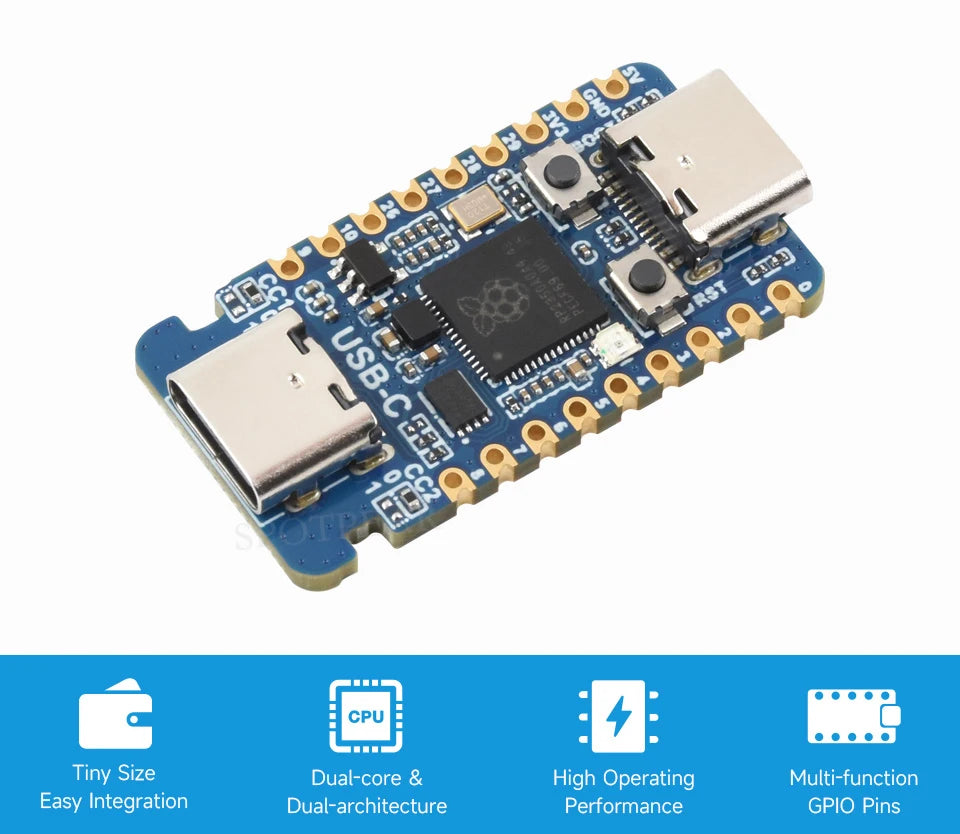

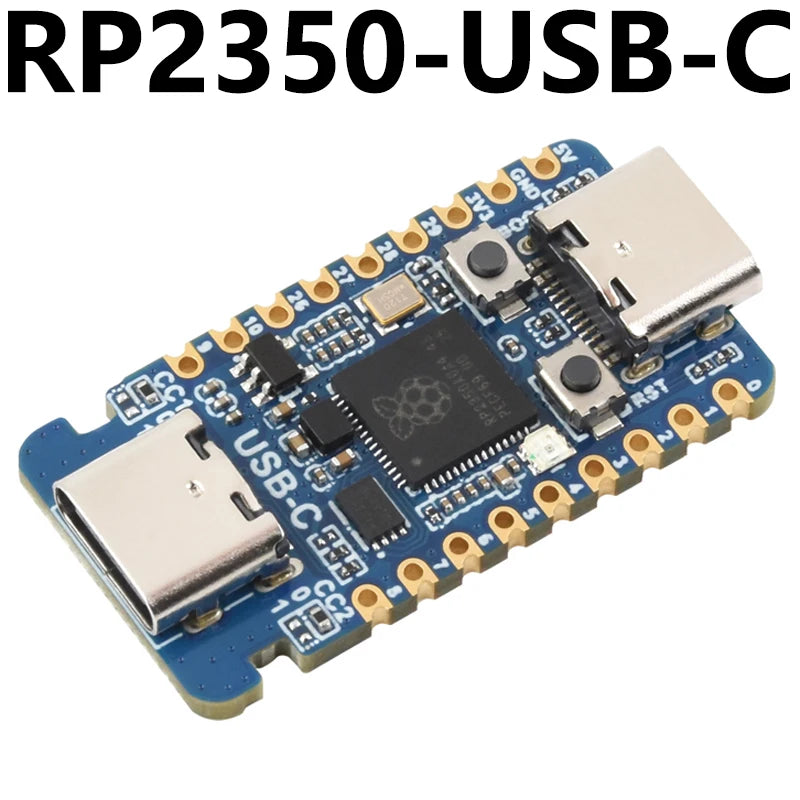

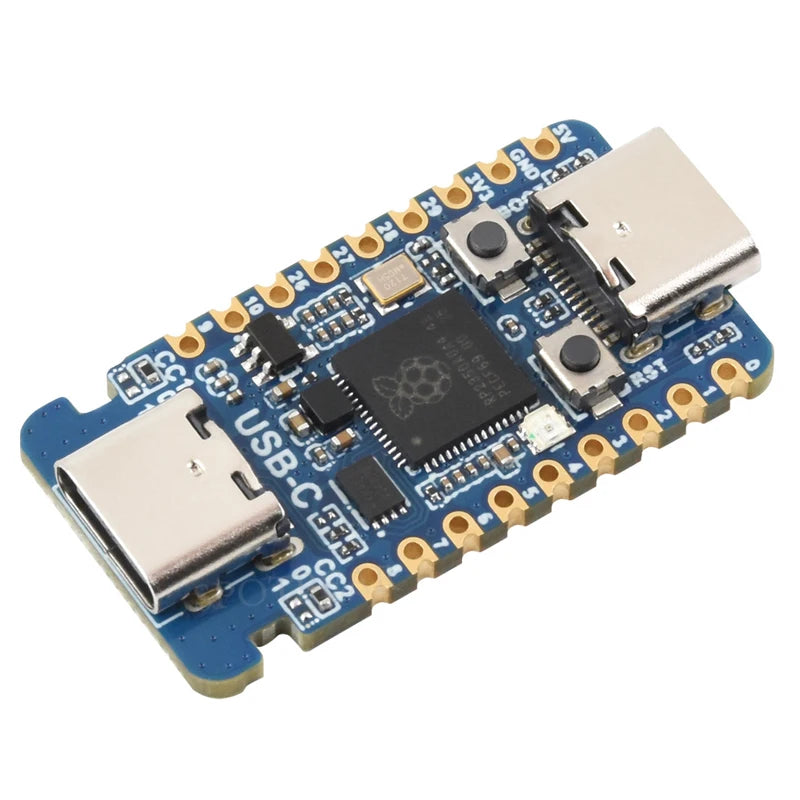

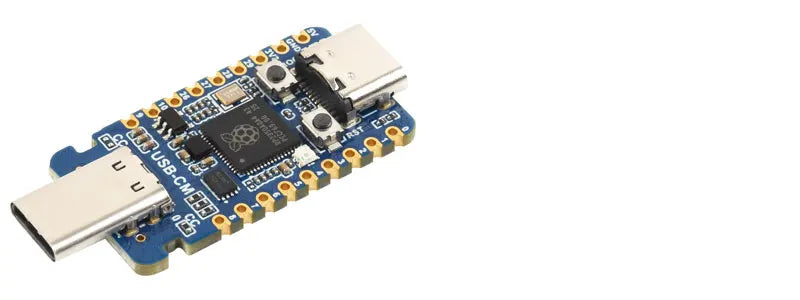

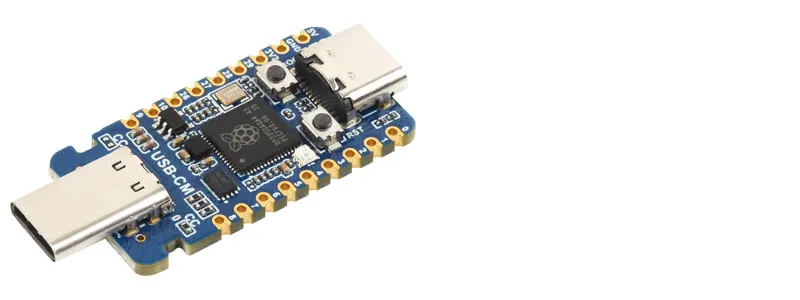

RP2350-USB-C
Mini Development Board

Based on Raspberry Pi RP2350A

Castellated module, suitable for SMD applications

Board Specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom

• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz

• Built-in 520KB Static RAM, with onboard 2MB Flash

• Type-C port for easier use

• Compatible with PD-only USB-C power adapters

• Castellated module allows soldering directly to carrier boards

• USB 1.1 with device and host support

• Low-power sleep and dormant modes

• Drag-and-drop programming using mass storage over USB

• Adapting 15 × multi-function GPIO pins from the RP2350A

• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels

• Accurate clock and timer on-chip

• Built-in temperature sensor for real-time monitoring of chip temperature

• 12 × Programmable I/O (PIO) state machines for custom peripheral support

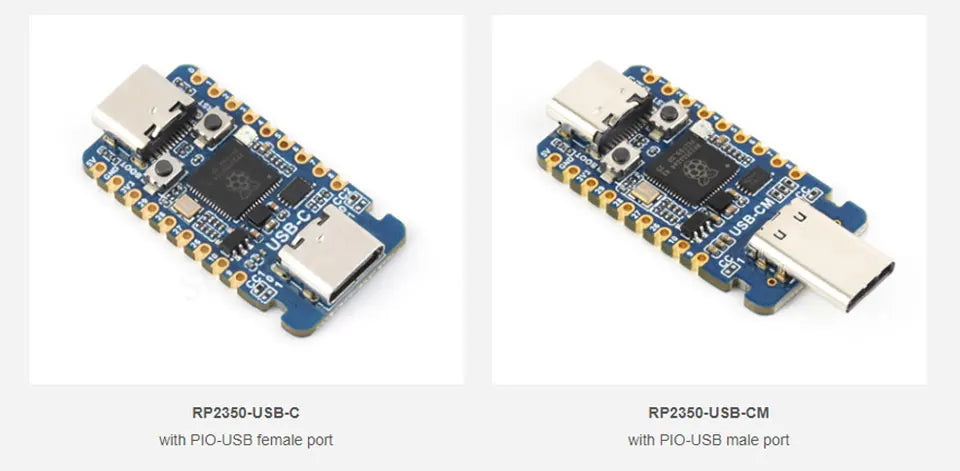

Version Options

C/C++, MicroPython, Arduino Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core, Dual-Architecture

The Unique Dual-Core, Dual-Architecture Capability Of RP2350A Allows Users To Choose Between A Pair Of Industry-Standard ARM Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment

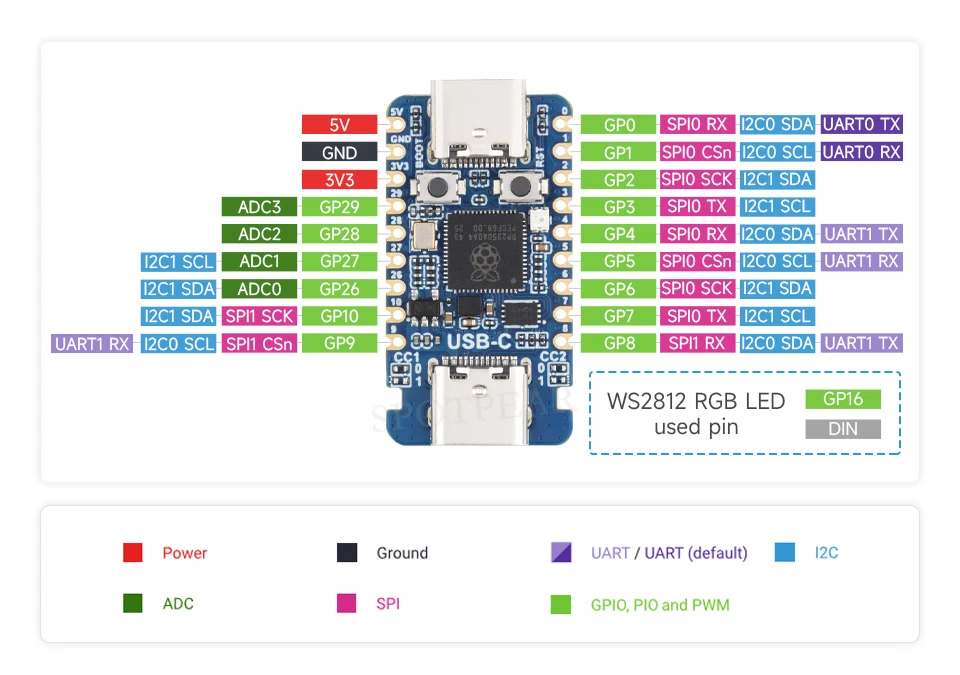

15 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

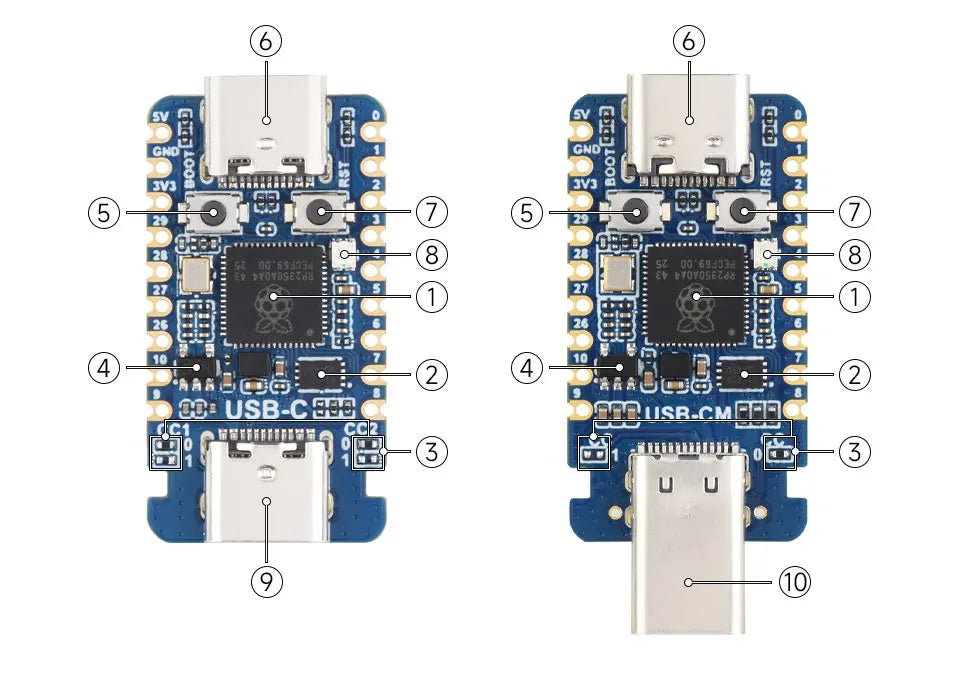

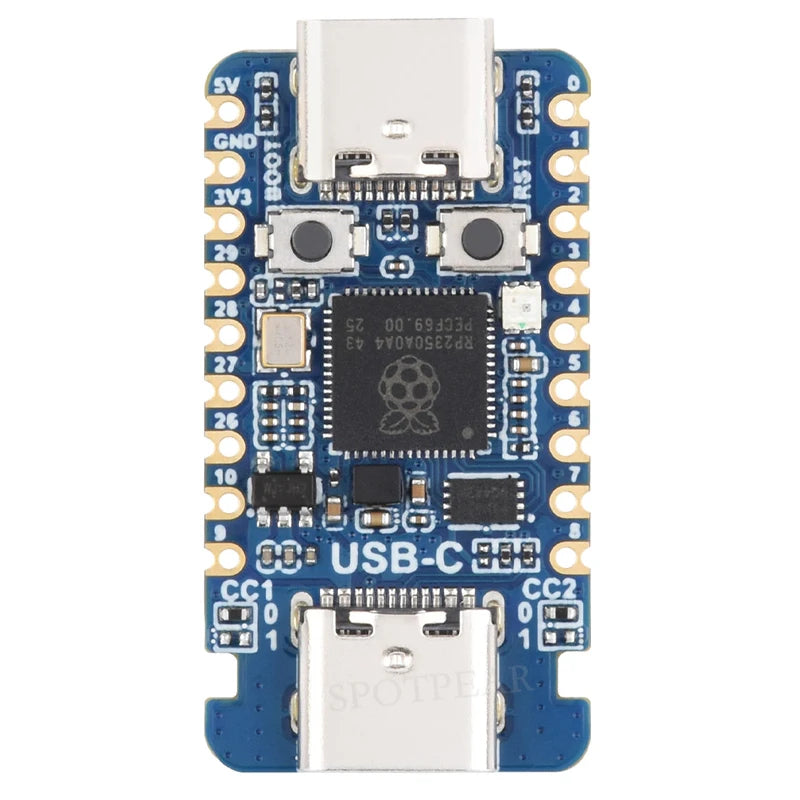

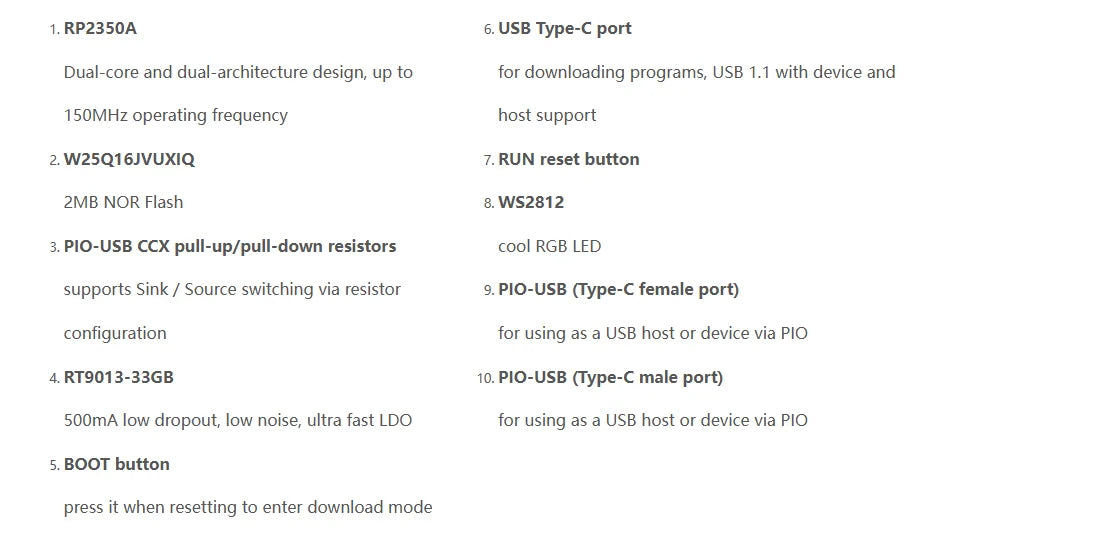

What's On Board

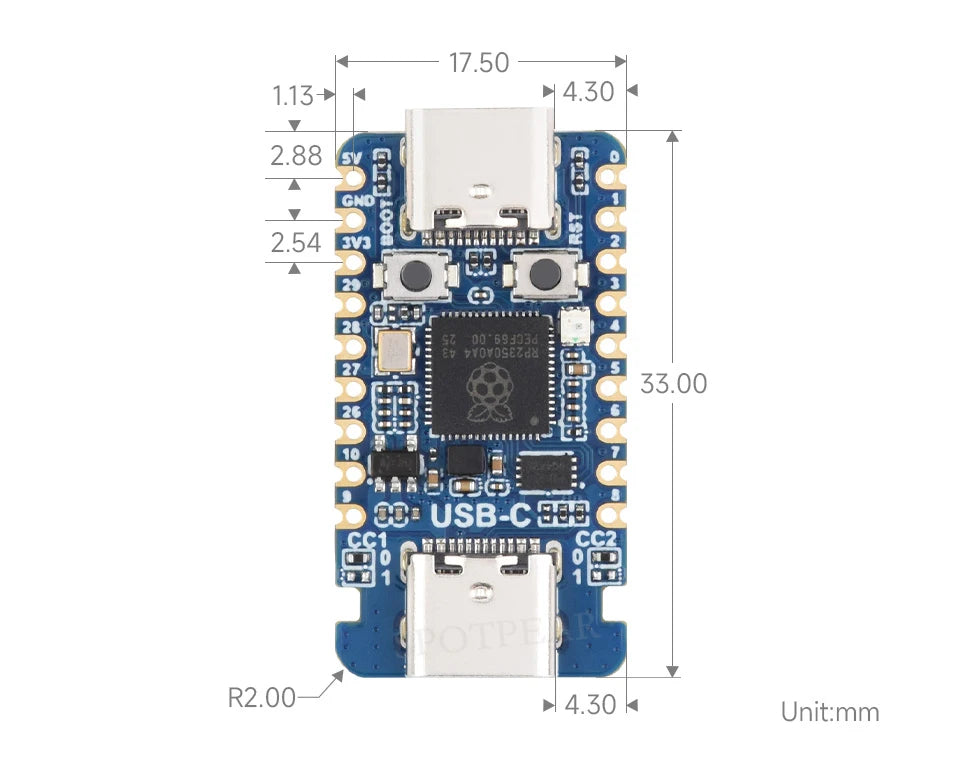

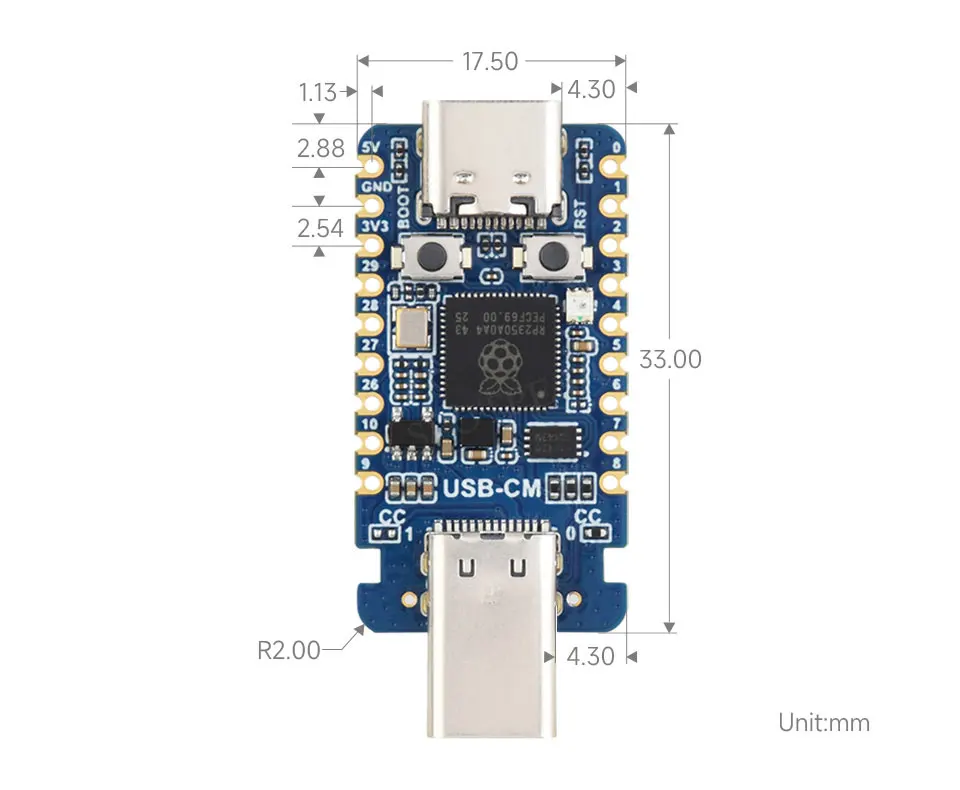

Outline Dimensions

RP2350-USB-C

RP2350-USB-CM

PACKAGE CONTENT

[] RP2350-USB-C

[] RP2350-USB-CM
