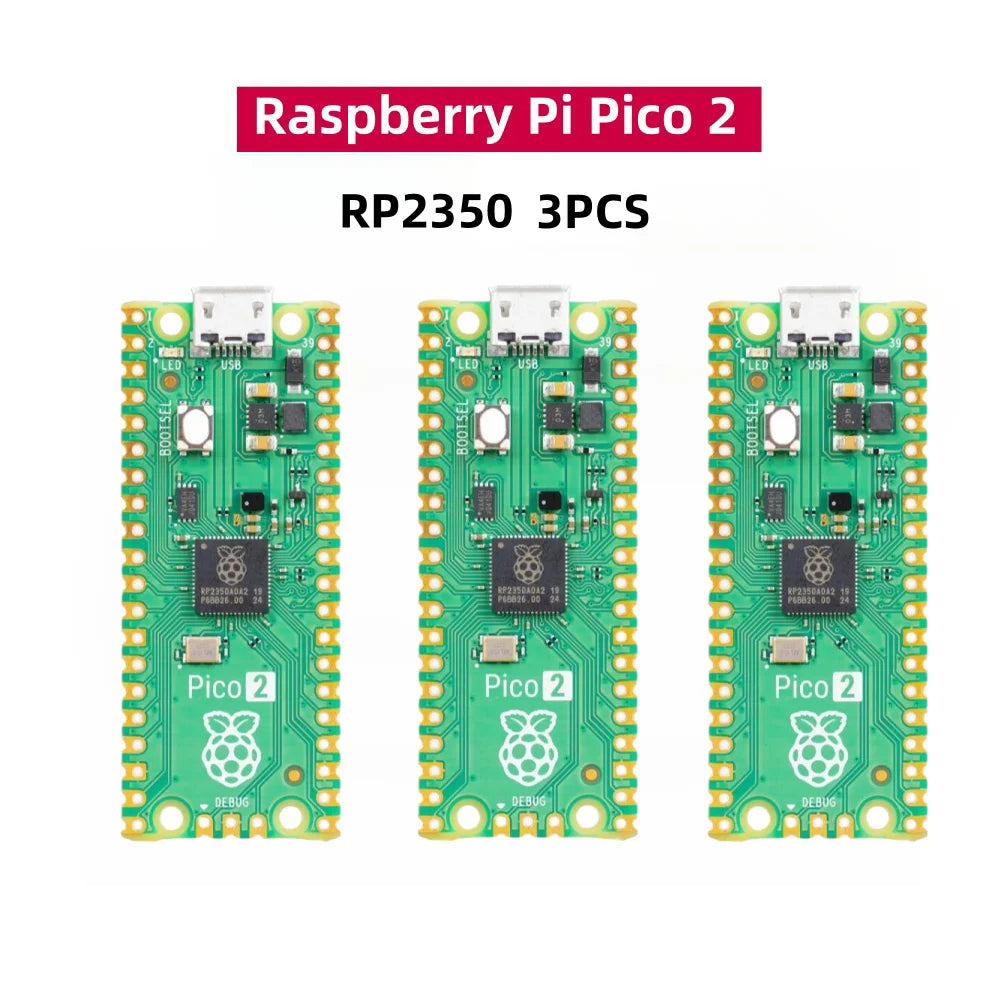

Raspberry Pi Pico 2 - Seeed XIAO RP2040, RP2350 MicroPython-Ready, 520kB SRAM, 19 GPIOs, 27μA, Onboard RGB LED

Raspberry Pi Pico 2 - Seeed XIAO RP2040, RP2350 MicroPython-Ready, 520kB SRAM, 19 GPIOs, 27μA, Onboard RGB LED

$22.20

$22.20 $0.00

Color Pi pico 2 XIAO ESP32 C3 XIAO ESP32 C6 XIAO RP2350 Pi pico 2 (3pcs) XIAO RP2040

Description

SPECIFICATIONS

Accessory Type: SENSOR

Battery Included: Yes

Brand Name: seeed studio

Button: 1 RESET button, 1 BOOT button

Compatible With: Raspberry Pi

Dimensions: 21x17.5 mm

Flash: 2MB PSRAM

High-concerned chemical: none

Interface: 19 Pins: 3x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM

LEDs: 1user LED 1 power LED 1 RGB LED

Low power: 27μA

Origin: Mainland China

Processor: Raspberry Pi RP2350,Dual Cortex-M33 @ 150MHz, FPU

RAM: 520kB SRAM

Security: OTP, Secure Boot, Arm TrustZone

Software compatibility: Support Micropython / C,C++

Typical Application Fields: Education and Learning

Working Temperature: -20°C-70°C

Features:

🌱 Powerful MCU Board:

Equipped with a Raspberry Pi RP2350 chip featuring symmetric dual Arm Cortex-M33 @ 150MHz with FPU.

🌱 Enhanced Security Features:

Built-in secure boot and encrypted bootloader ensure application security.

🌱 Software Support:

Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping.

🌱 Rich Onboard Resources:

Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).

🌱 Expanded 8 New IOs:

Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications.

🌱 Efficient Power Design:

Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS).

🌱 Compact Thumb-Sized Design:

Measuring 21 x 17.5mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.

🌱 Production-friendly:

Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.

Product Description

The XIAO RP2350 packs the power of the Raspberry Pi RP2350 (dual Cortex-M33 cores running at 150MHz with FPU, enhanced security and encryption) into the classic XIAO form factor. Measuring just 21x17.5mm, it features 19 multifunction GPIOs, an RGB LED, and a Battery Management System with ultra-low power consumption of 27μA, battery power supply, and direct battery voltage measurement. Thanks to the XIAO ecosystem, the XIAO RP2350 is compatible with a wide range of add-ons, including displays, LED matrix, Grove modules, CAN Bus, Vision AI sensors, and mmWave sensors. With native support for MicroPython, C, and C++, the XIAO RP2350 is perfect for developers of all levels looking to create compact, battery-powered applications for smart control, wearables, DIY keyboards, and more.
